SPECIFICATIONS

Brand Name: HAXNFIELEC

Compatible Audio & Video Equipment Style: Professional Audio Equipment

High-concerned chemical: none

Origin: Mainland China

Power Supply: ±4V to ±18V

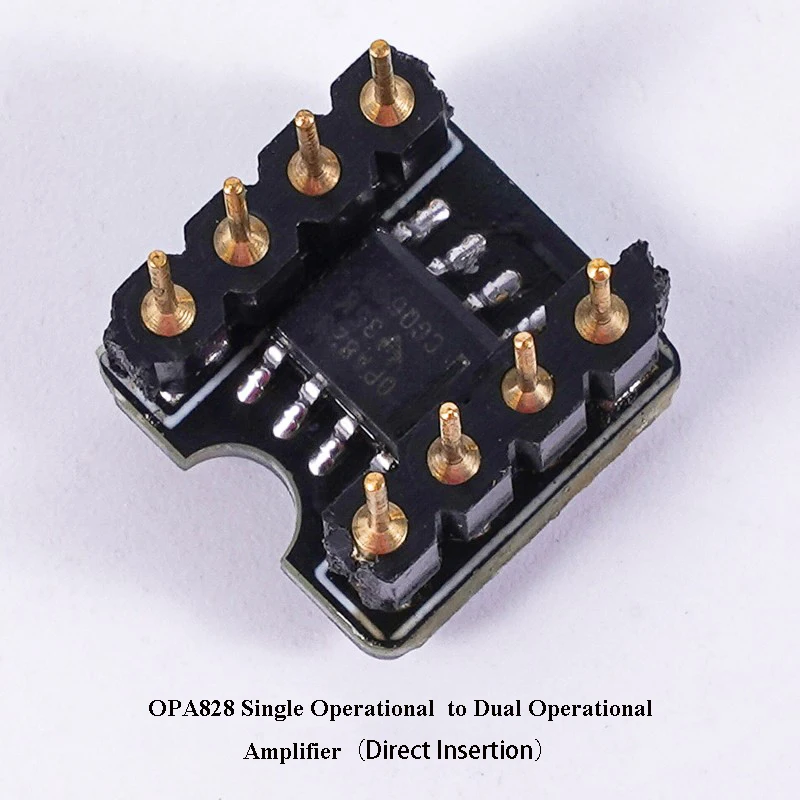

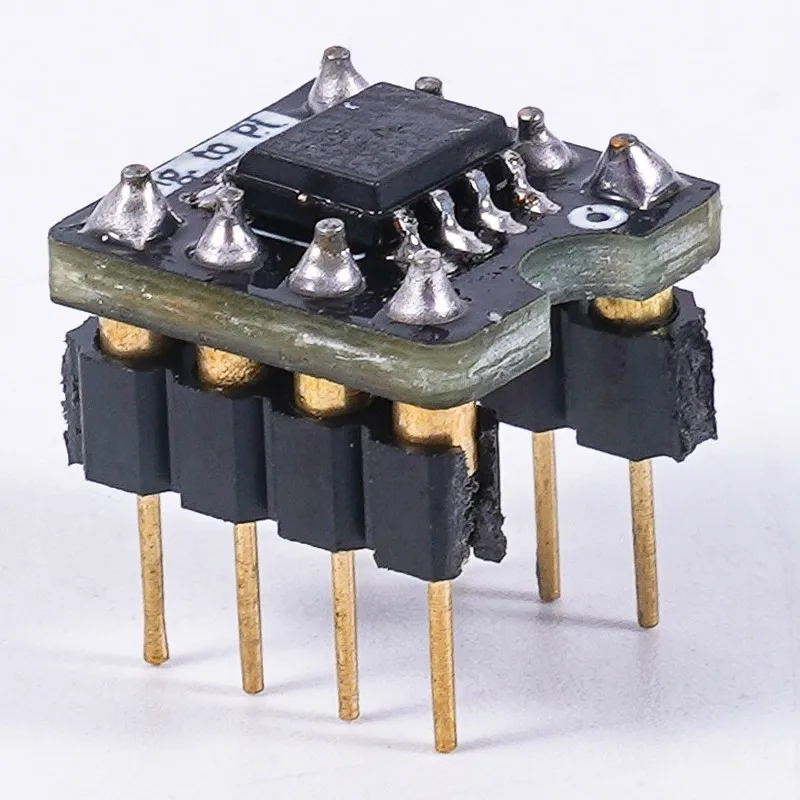

Type: OPA828 DIP8 Dual Operational Amplifier

OPA828 DIP8 Dual Operational Amplifier Dual OP AMP

Upgrade NE5532 MUSES8920 OPA2604 LME49720 OP275 AD827

Description:

OPA828 JFET is an upgraded version of OPA627 Operational Amplifier. It combines high speed with high DC precision and high AC performance. The operational amplifier achieves low offset voltage (50μV), low temperature drift (0.45μV/℃ typical value), low bias current (1pA typical value), and low noise (4nV/√Hz typical value), with noise of only 60nVRMS 0.1Hz to 10Hz. OPA828 operates in a wide power supply voltage range of ±4V to ±18V , the current only 5.5mA per channel (typical value).

Sound quality is more transparent than classic high-end OPA627. Very penetrating, medium frequency is also very delicate and non-burr, it is very worth using for new machines and grinders.

It can replace NE5532 MUSES8920, OPA2604 LME49720, OP275, AD827, etc.

Packing List:

1pcs x OPA828 DIP8 Dual Operational Amplifier
