OPA828 Single /Dual OP AMP third generation upgrade OPA627 AD797 For HIFI Amplifier DAC board
OPA828 original OP
$34.88
Sale price
$34.88
Regular price
$0.00
Skip to product information
OPA828 Single /Dual OP AMP third generation upgrade OPA627 AD797 For HIFI Amplifier DAC board
$34.88
Sale price
$34.88
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE,Nvarcher
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module

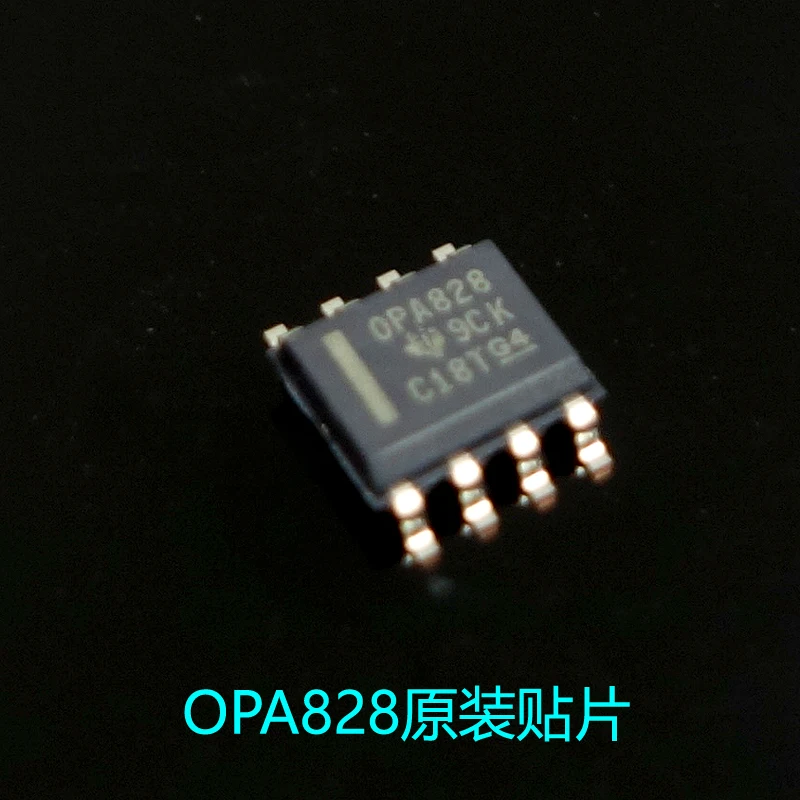

The OPA828 JFET is an upgraded version of the OPA627 operational amplifier, combining high speed with high DC precision and high AC performance. This op amp achieves low offset voltage (50µV), low temperature drift (0.45µV/°C typ), low bias current (1pA typ), and low noise (4nV/√Hz typ) with only 60nVRMS 0.1 Hz to 10Hz. The OPA828 operates over a wide supply voltage range of ±4V to ±18V with only 5.5mA (typ) supply current per channel
***Note OPA828 is not AD828.
The transfer op amp is made of German silver-containing solder, and the pins are gold-plated pins.

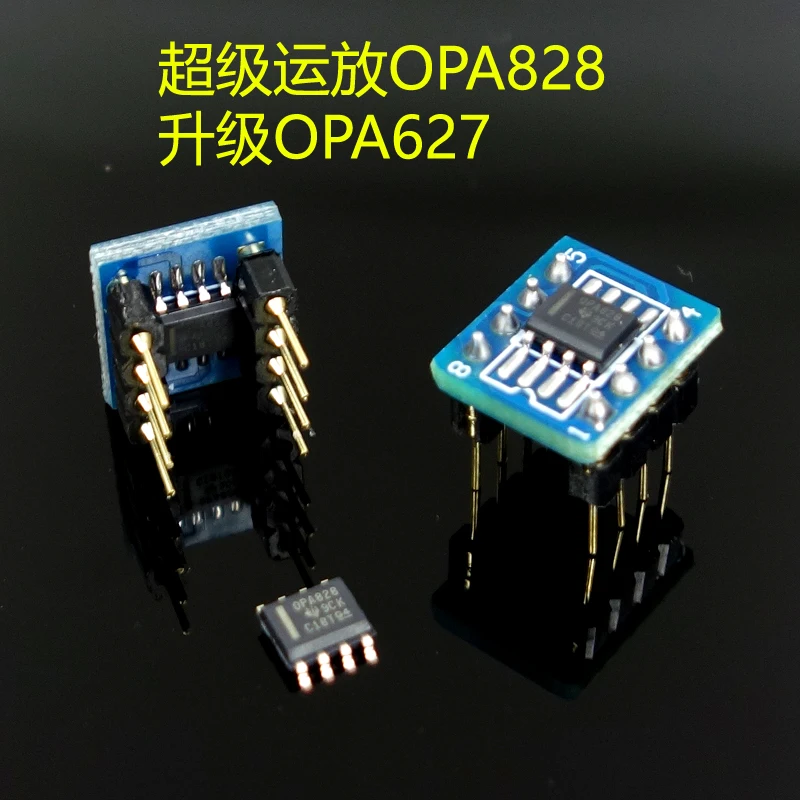

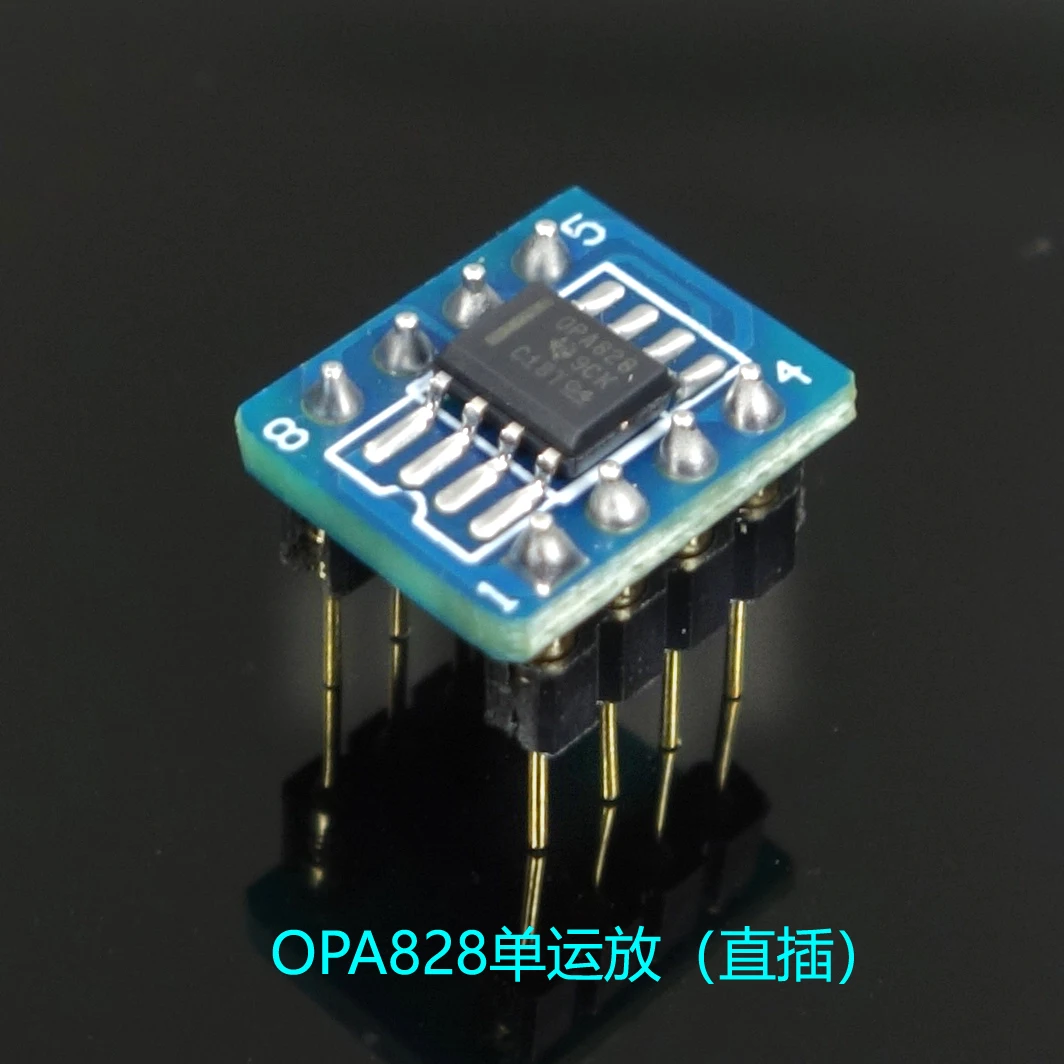

The patch-to-inline single op amp version can replace NE5534, OPA627, OPA604, LME49710, AD797, etc.
The patch-to-inline dual-op amp version can replace NE5532, MUSES8920, OPA2604, LME49720, OP275, AD827, etc.
