OPA847 High Speed Low Noise Op Amp Voltage Amplifier In-phase 3.9G Wideband Pulse Amplification Function Module AD797 OPA657
OPA847 Module
$60.12
Sale price
$60.12
Regular price
$0.00
Skip to product information
OPA847 High Speed Low Noise Op Amp Voltage Amplifier In-phase 3.9G Wideband Pulse Amplification Function Module AD797 OPA657
$60.12
Sale price
$60.12
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: Your Cee
Condition: New
Dissipation Power: low
High-concerned chemical: none
Operating Temperature: normal
Origin: Mainland China
Package: TQFP
Quantity: 1
Supply Voltage: standard
Type: Module
is_customized: Yes

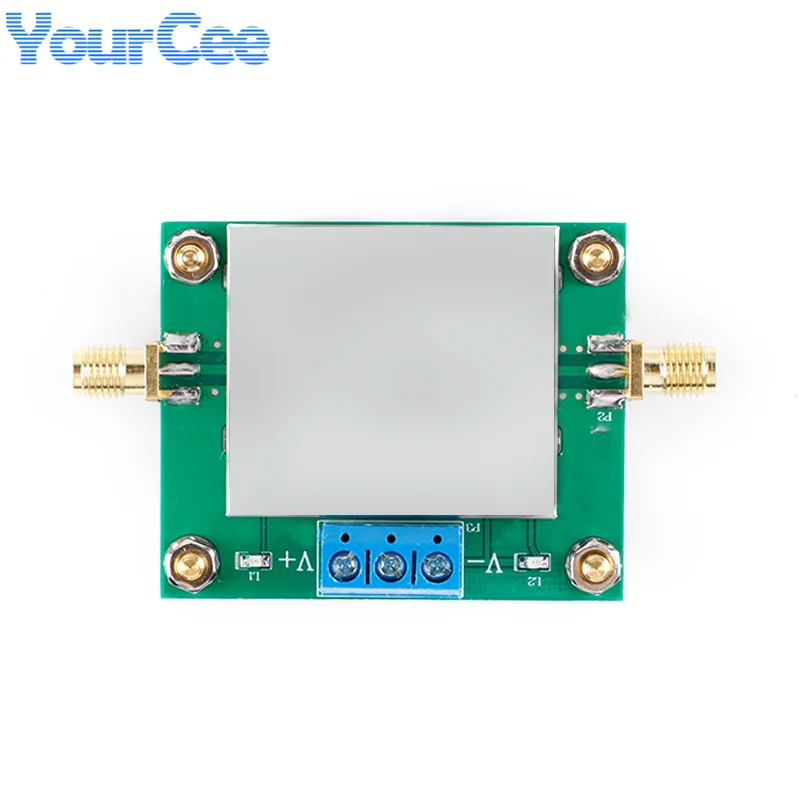

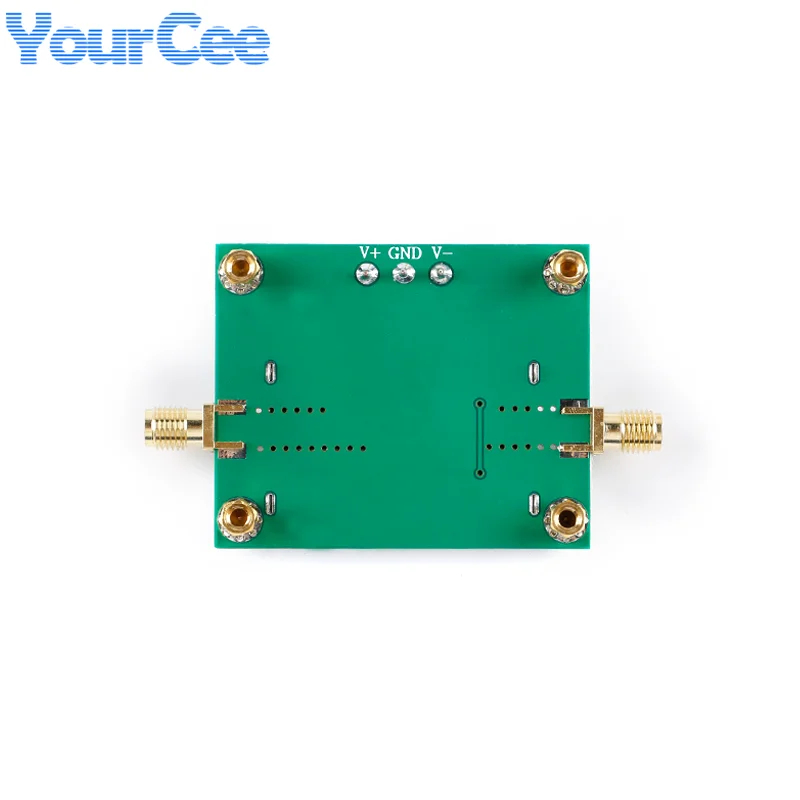

OPA847 Module
Parameters:
Name: OPA847 High Speed Low Noise Broadband Operational Amplifier
Size: 50mm * 42mm
Power supply: ±5V
Bandwidth: 3.9 GHz
Output Current: Voltage Amplifier, No Load Capacity
Amplifier Type: In-phase Amplifier

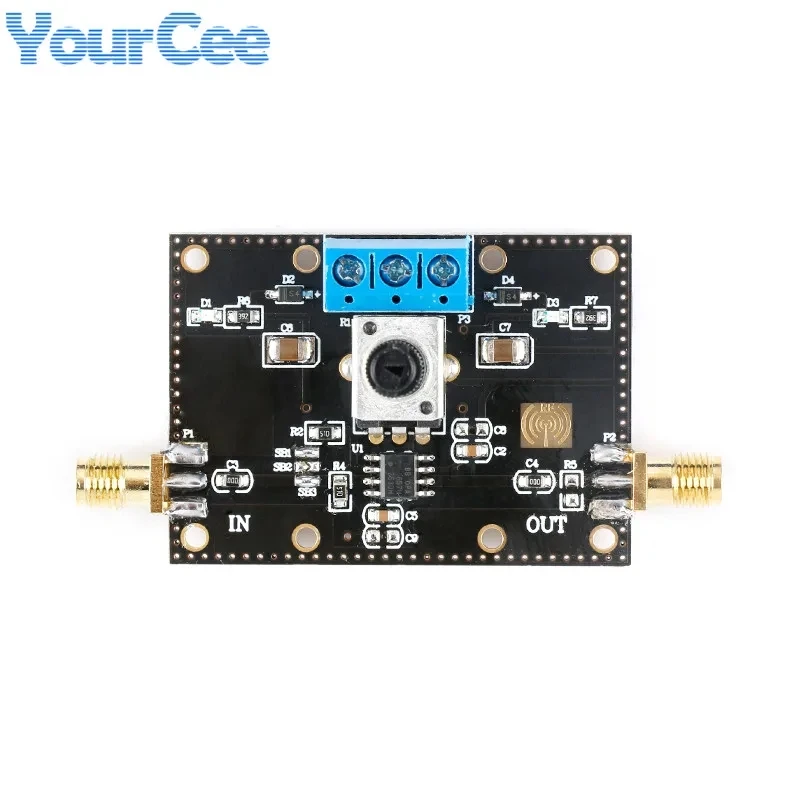

OPA657 Module
1. It can be changed into in-phase amplifier.
2. Can be changed into reverse amplifier:
3. It can be changed to shoot with output.
4. Can be changed to integral amplification
5. Can be changed into differential amplifier
We use two gain modes for users:
1. Fixed amplification factor of direct resistance.
2. High-quality sliding manual amplifier design.
Parameters:
Name: OPA657 Amplifier Module
Size: 50mm X36mm
Power supply: ± 6.5V (maximum)
Operational Amplifier Parameters：
Power supply range: ± 6.5 (maximum)
Gain bandwidth product: 1.6 GHz
Input bias current: 2pA
Input offset voltage: ±250 μV
Voltage swing rate: 700V/s (G=10,1-V Step)
High output current: 70mA
Input voltage noise: 4.8nV/√Hz
CMRR: 89dB
Operating temperature range: -40°C ~85°C
