SPECIFICATIONS

Battery Included: no

Brand Name: OPEN-SMART

Certification: NONE

Choice: yes

Color: RED

High-concerned chemical: none

Model Number: Rotary Encoder Module

Origin: Mainland China

Package: Yes

Products Status: Stock

Type: Industrial Computer Accessories

semi_Choice: yes

Description

This module is an incremental rotary encoder which can rotate 360 degrees. It encodes the rotation signal from the axis and output the signal by electronic pulse.

According to the pulse from the SA and SB pin, you can find you can know whether it turns clockwise or counterclockwise.

It can also output high level from the SW pin when you push it.

Features:

- Working voltage: 3-5.5V;

- Working current: 1.5mA(MAX)

- Pulse Number for One Circle: 20

- Active level for button: High.

- Dimensions: 28.9X23.9X31.3MM

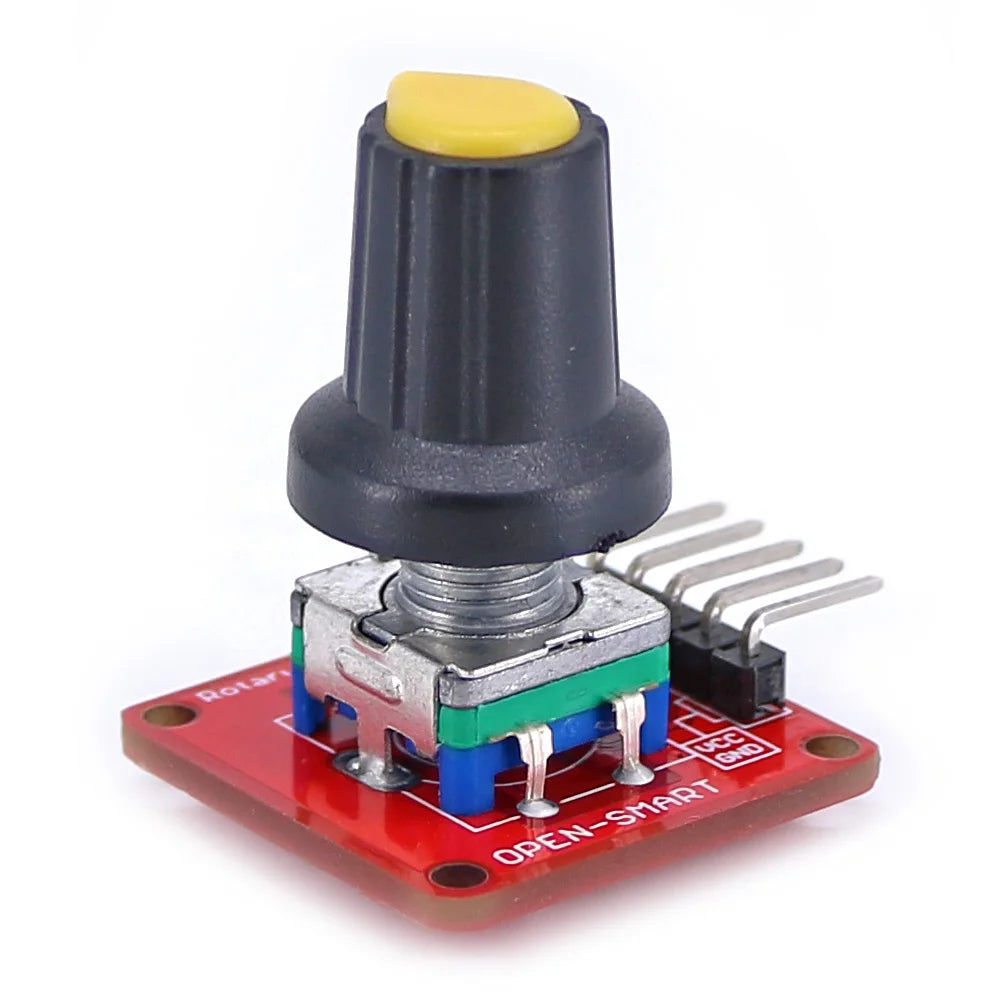

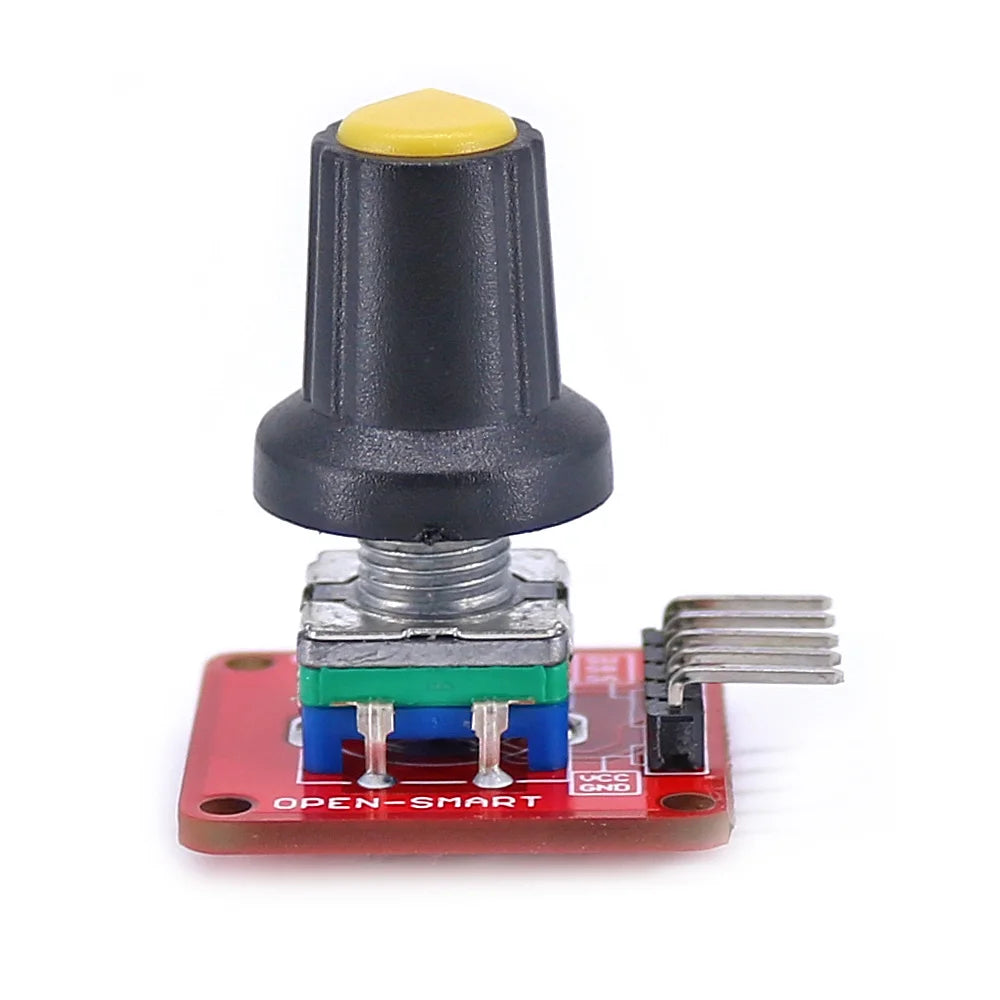

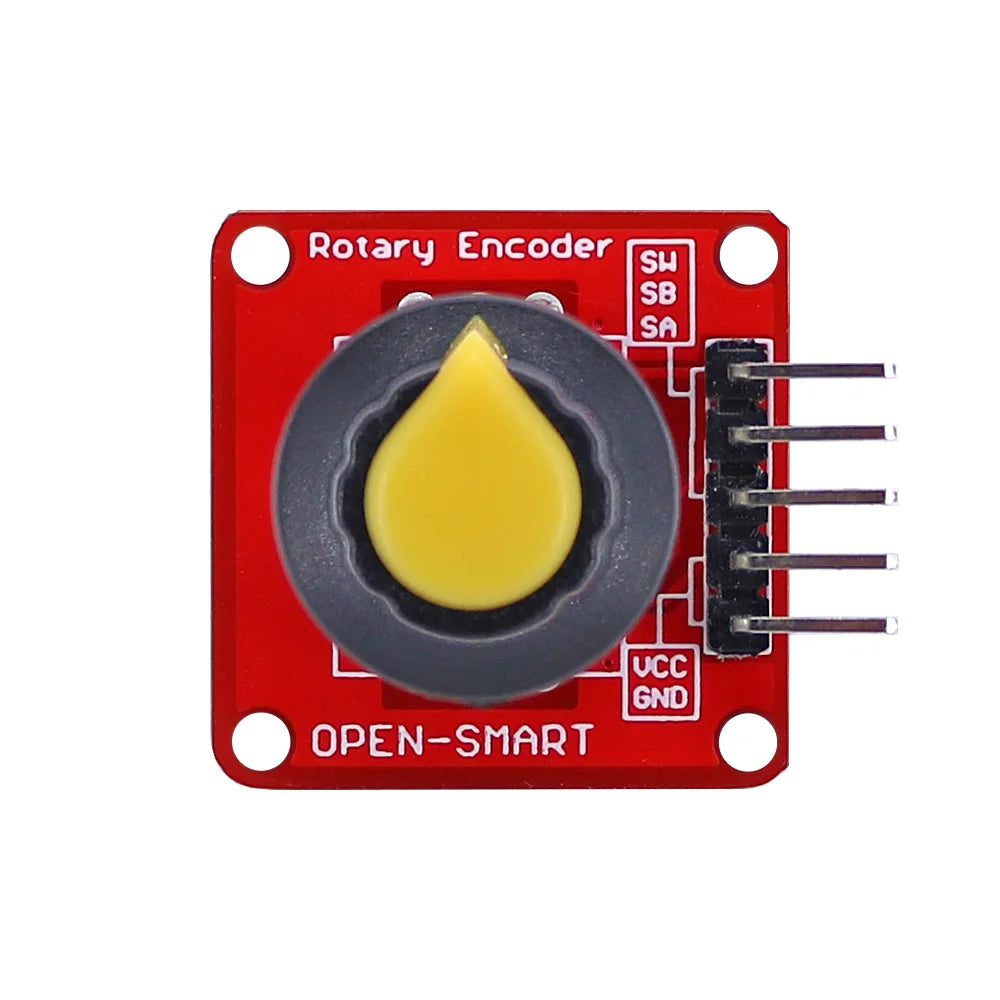

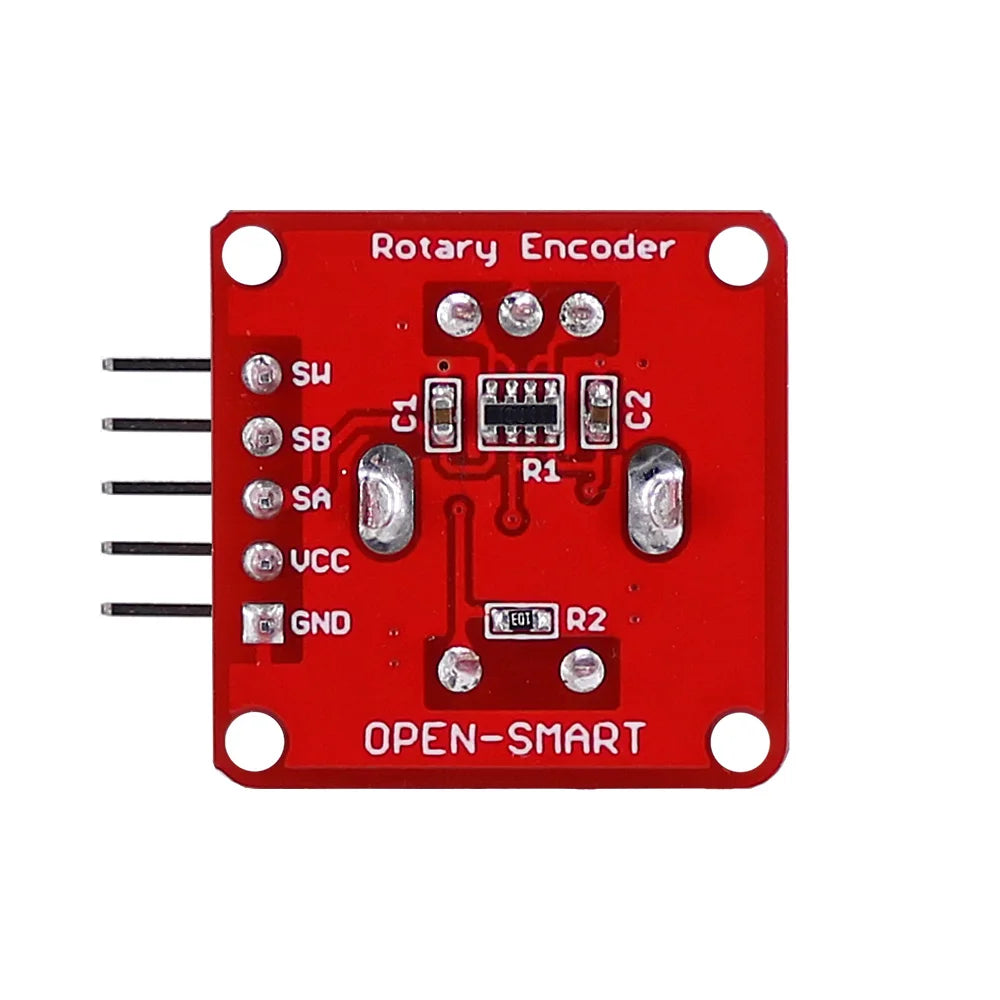

Photos

Part List(Schematics and program can be sent via e-mail,Please contact us)

1 x  module
