Orange Pi 5 Plus EMMC Module 5.1 32GB / 64GB / 256 GB 3D NAND Fast Read Write Speeds compatible for Tablet PC OTT Smart Phone TV

Orange Pi 5 Plus EMMC Module 5.1 32GB / 64GB / 256 GB 3D NAND Fast Read Write Speeds compatible for Tablet PC OTT Smart Phone TV

$311.76

$311.76 $0.00

Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: Caturda

Capacity: 32GB/64GB/256G Optional

Choice: yes

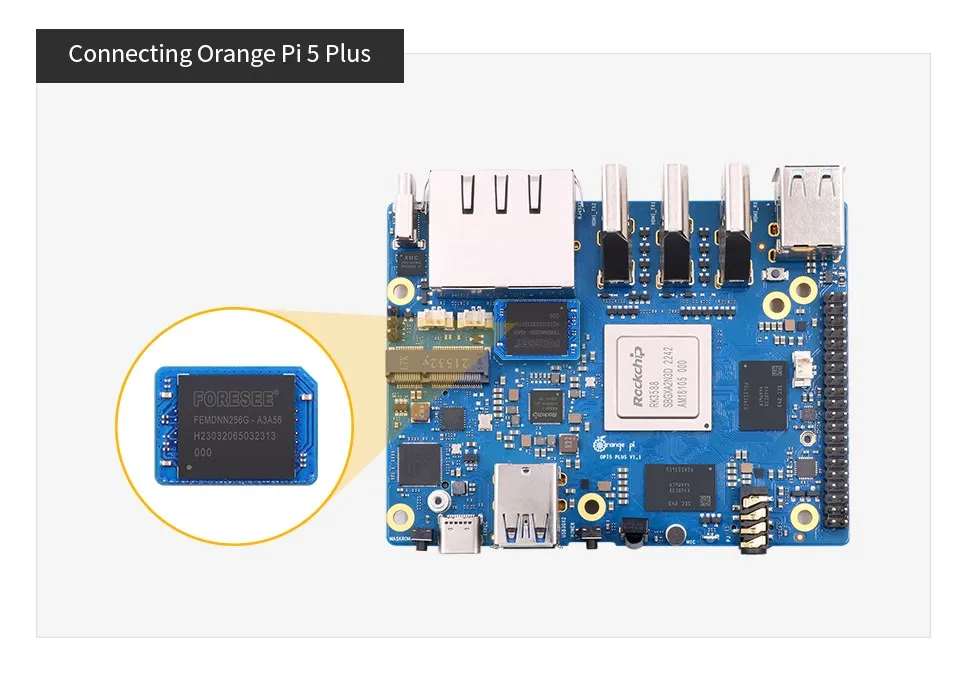

Compatible With: Orange Pi 5 Plus

Data bus width: 1 bit (default), 4 bits, 8 bits

Data transfer rate: up to 400MB/s (HS400)

High-concerned chemical: none

MMC I/F clock frequency: 0 - 200MHz

Operation temperature: -25 ℃ to +85℃

Origin: Mainland China

Storage without operation temperature: -40 ℃ to +85℃

Typical Application Fields: Education and Learning

Vcc(NAND): 2.7V - 3.6V

Vccq (Controller): 1.7V - 1.95V

eMMC 5.1 Specification Compatibility: Backward compatible with eMMC 4.41/4.5/5.0

semi_Choice: yes

Orange Pi 5 Plus EMMC Module 5.1 32GB / 64GB / 256 GB 3D NAND Fast Read Write Speeds compatible for Tablet PC OTT Smart Phone TV

Introduction

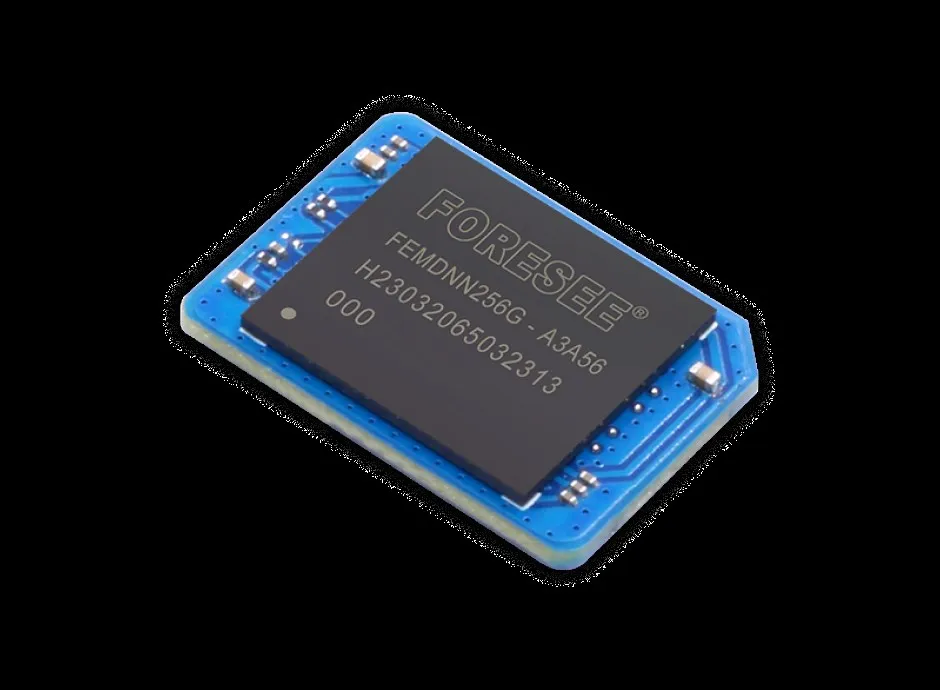

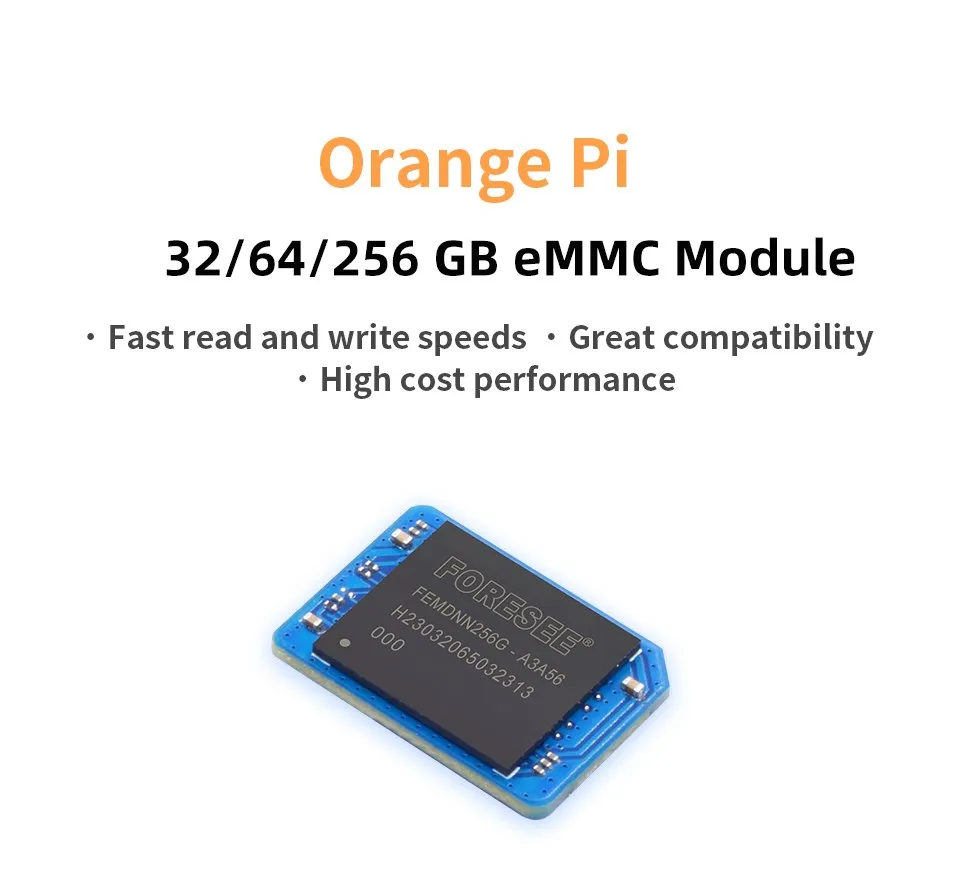

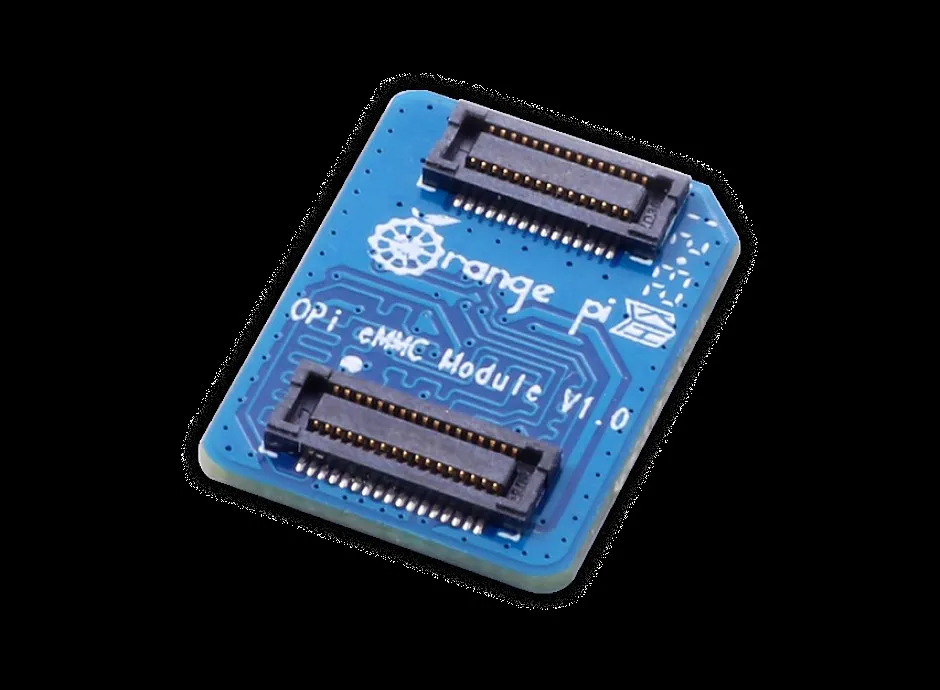

Orange Pi eMMC Module is developed based on a high-performance controller and next-generation 3D NAND Flash that can be used in complex environments and scenarios, meeting the requirements for high performance, low power consumption, compatibility and stability of eMMC. In addition, Orange Pi eMMC Module is equipped with power failure protection technology to enhance data stability, and the SoC-based Orange Pi eMMC Module also has good compatibility and can be used in many mainstream platforms that support the eMMC interface.
This eMMC has good compatibility and stability, and the working temperature range is also wide, it can work stably in normal environment between -25℃ ~ 85℃, it can be widely used in tablet PC, OTT, smart phone, smart TV and other fields.
