SPECIFICATIONS

Application: Computer

Brand Name: XRIICHA

Choice: yes

Condition: New

High-concerned chemical: none

Model Number: Programmer test adapter socket

Origin: Mainland China

Package: SOP

Type: Logic ICs

semi_Choice: yes

Note: Components are unsoldered. You need to solder the pins and switches yourself.

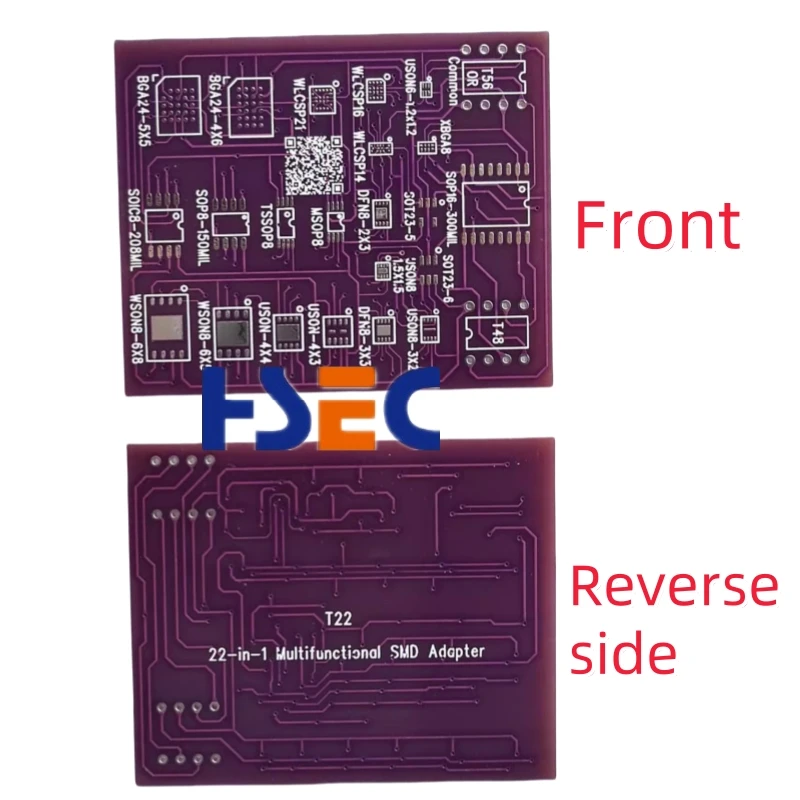

Description:Support 22 kinds of different packages memory chip conversion to DIP8 package, through a small switch to convert the T48/T56/TL866/RT809F/RT809H /CH341Ab/EZP2019/EZP2023/EZP2025.......programmer to use, the use of high-quality PCB board, easy to use, inexpensive, very suitable for amateur use, can save you a lot of money.

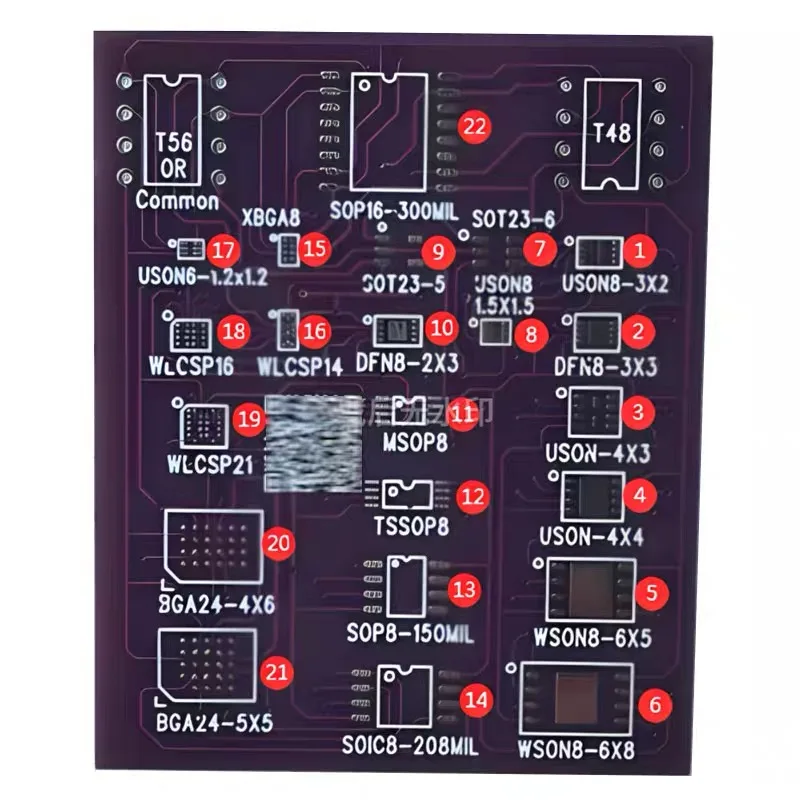

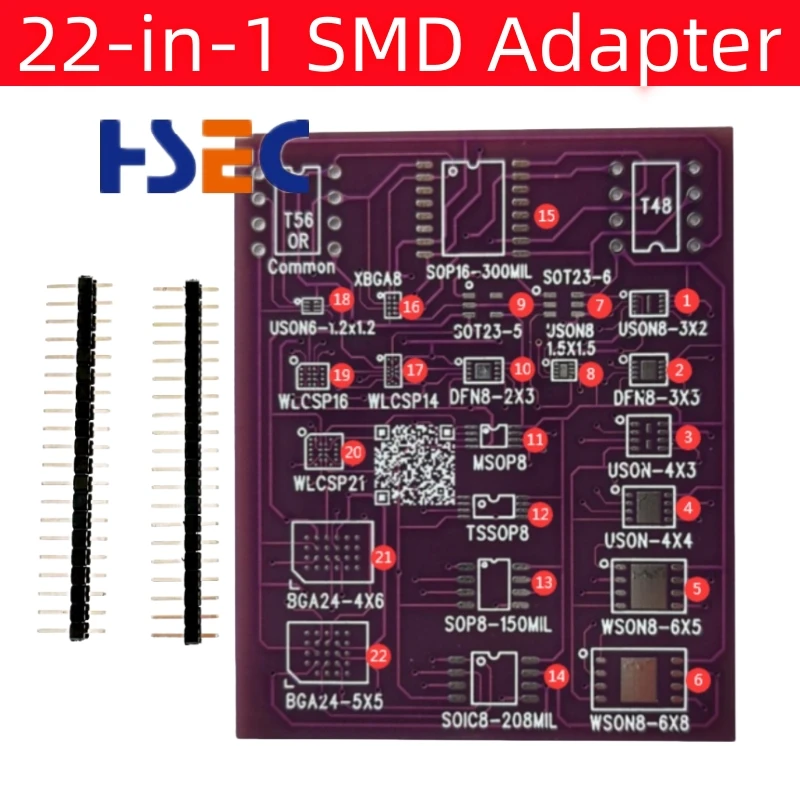

List of 22 IC packages supported:

1、USON8-3X2

2、DFN8-3X3

3、USON-4X3

4、USON-4X4

5、WSON8-6X5

6、WSON8-6X8

7、SOT23-6

8、USON8 1.5X1.5

9、SOT23-5

10、DFN8-2X3

11、MSOP8

12、TSSOP8

13、SOP8-150MIL

14、SOIC8-208MIL

15、SOP16-300MIL

16、XBGA8

17、WLCSP14

18、USON6 - 1.2 x 1.2

19、WLCSP16

20、WLCSP21

21、BGA24- 4X6

22、BGA24- 5X5

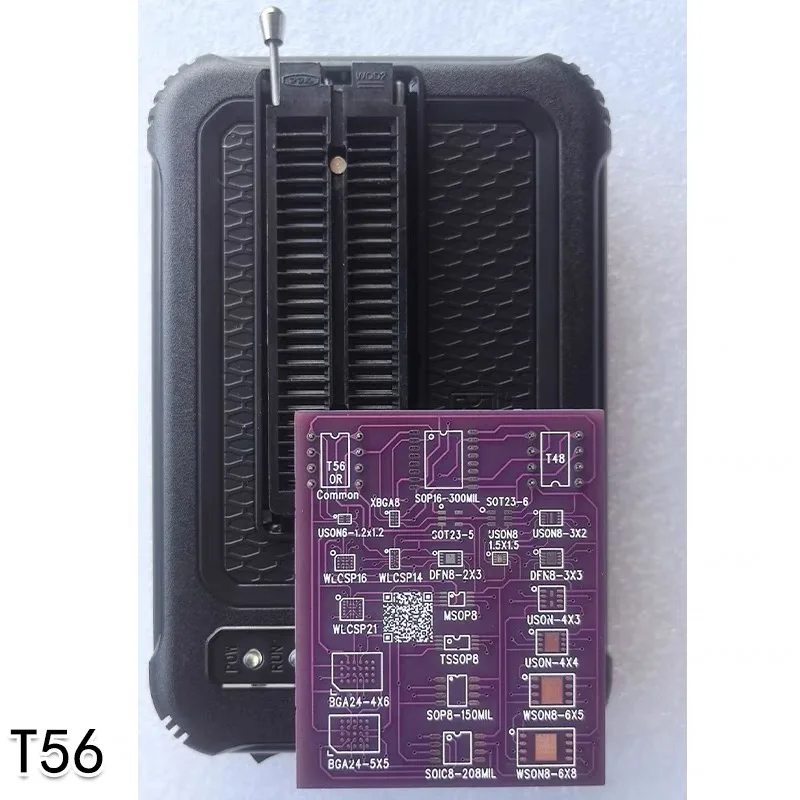

Soldering instructions: We bring with the PCB board 1 groups of 40Pin pins, the actual use of only two groups of 4Pin, the other two groups are spare, please do not put the 4 groups of pins are soldered, just according to your programmer to choose the T48 or T56, soldering 2 groups of a total of 8Pin can be, please see the following physical schematic, soldered after the switch will be dialed to the corresponding position.

In addition, this board is designed for SPI 25 FLASH, not for SPI NAND, may not work properly due to interference.

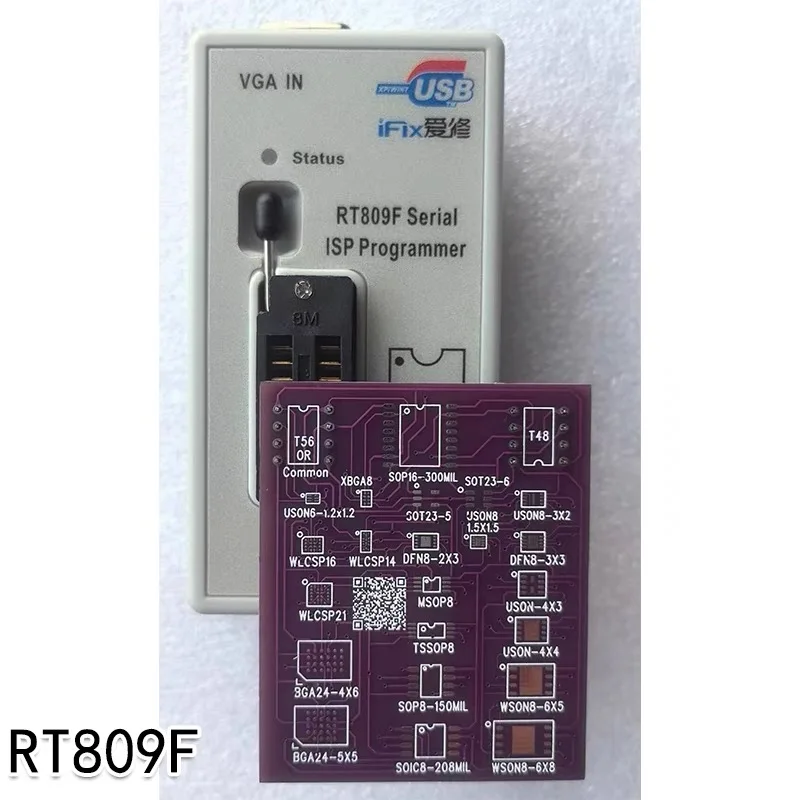

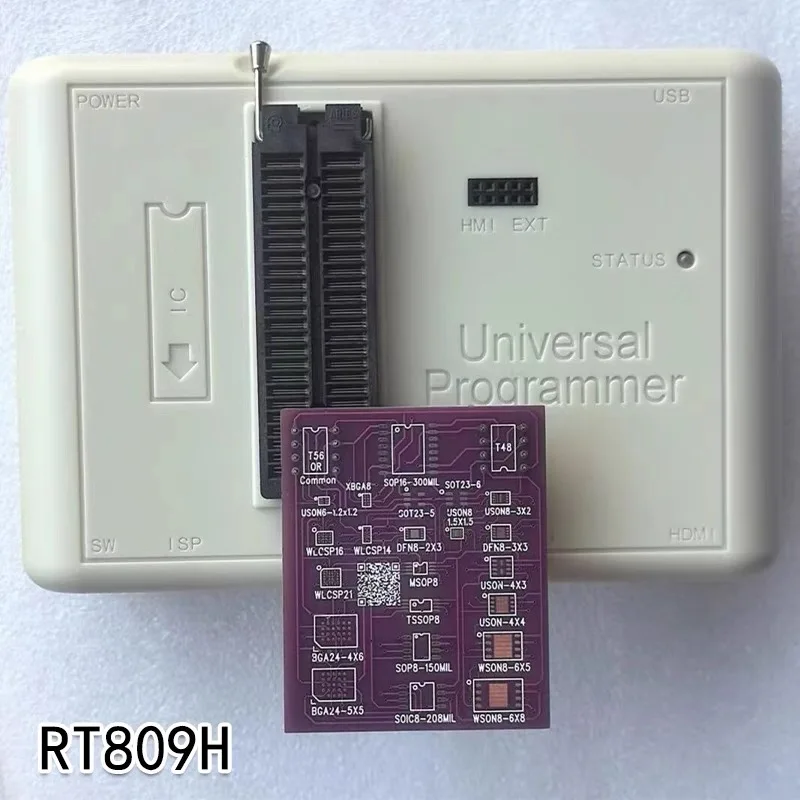

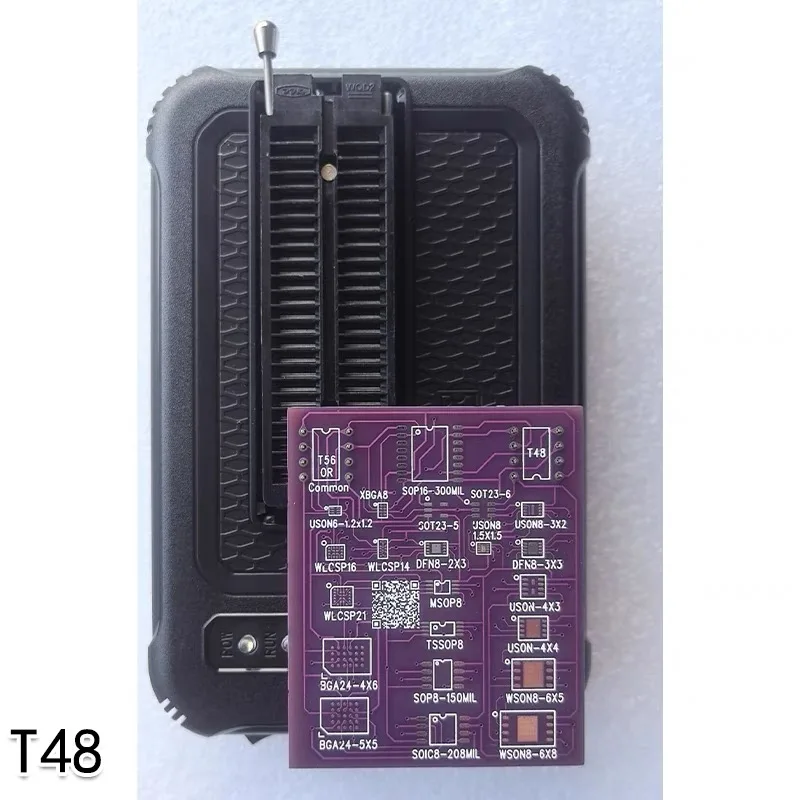

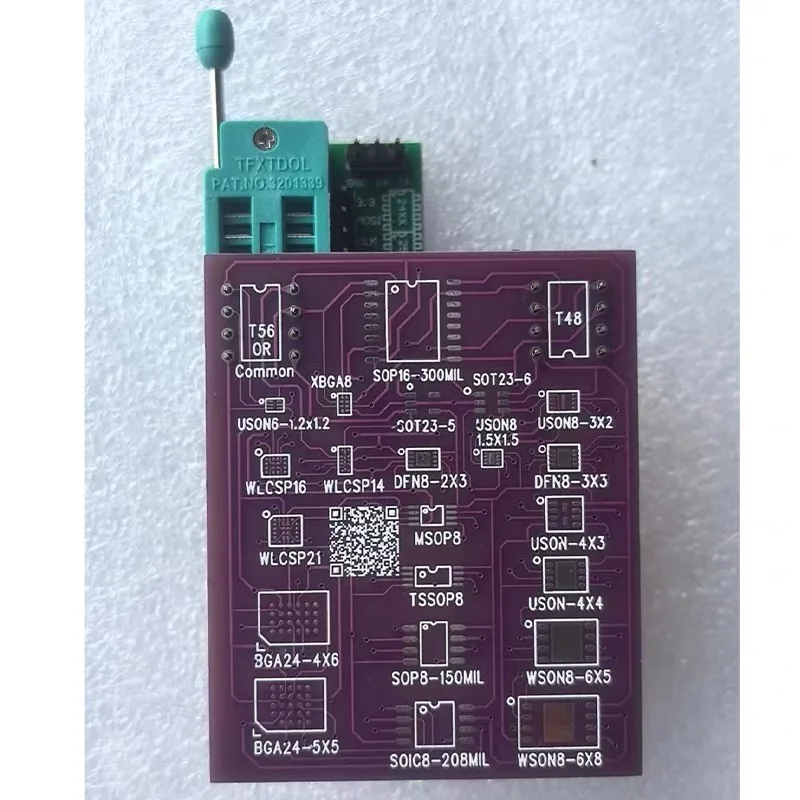

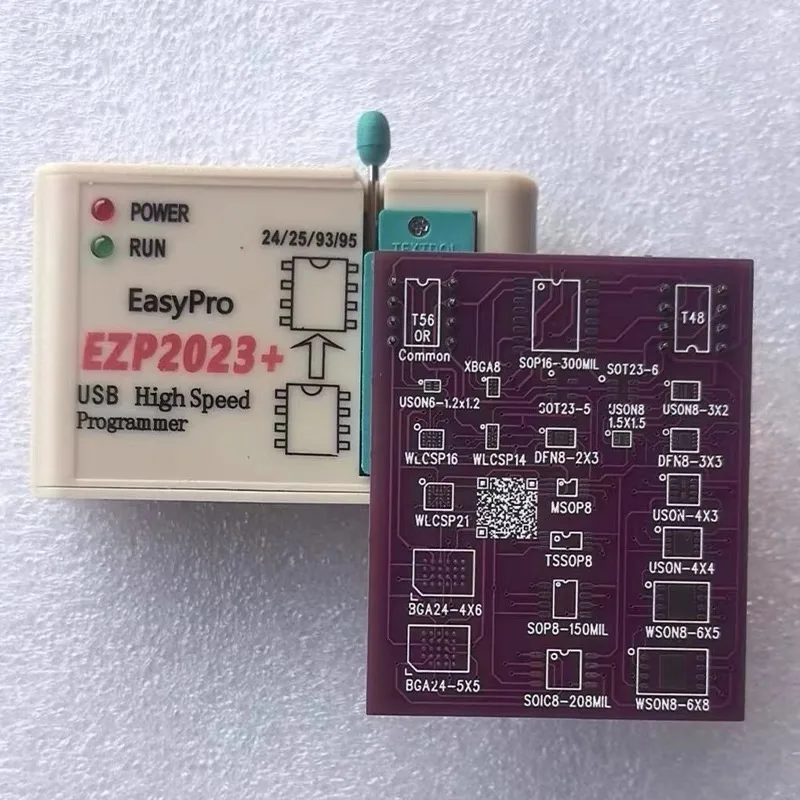

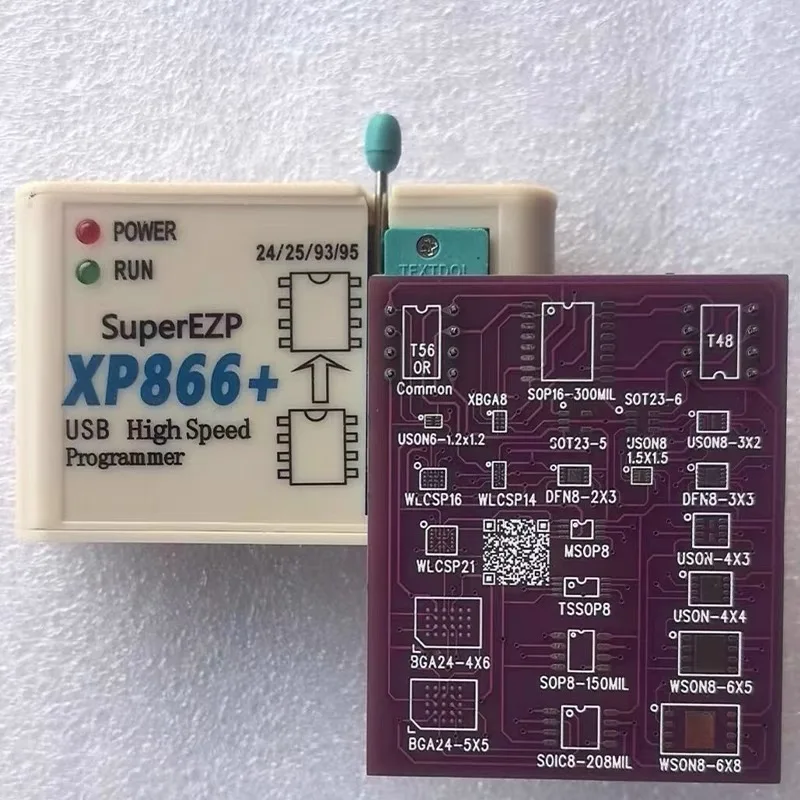

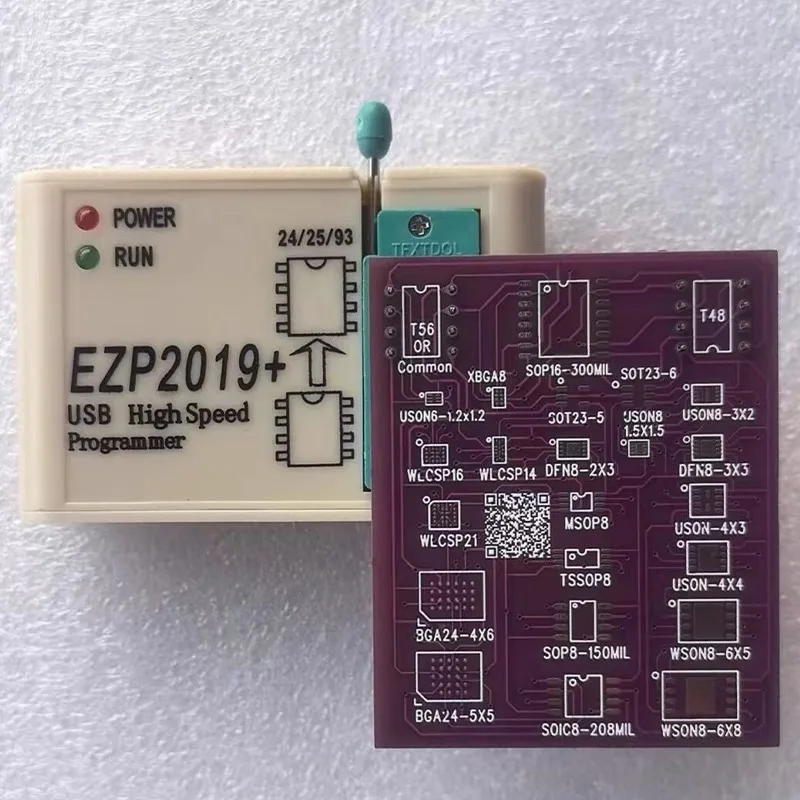

Use with T48/T56/TL866/RT809F/RT809H/CH341A

/EZP2019/EZP2023/XP866/EZP2025...programmer
