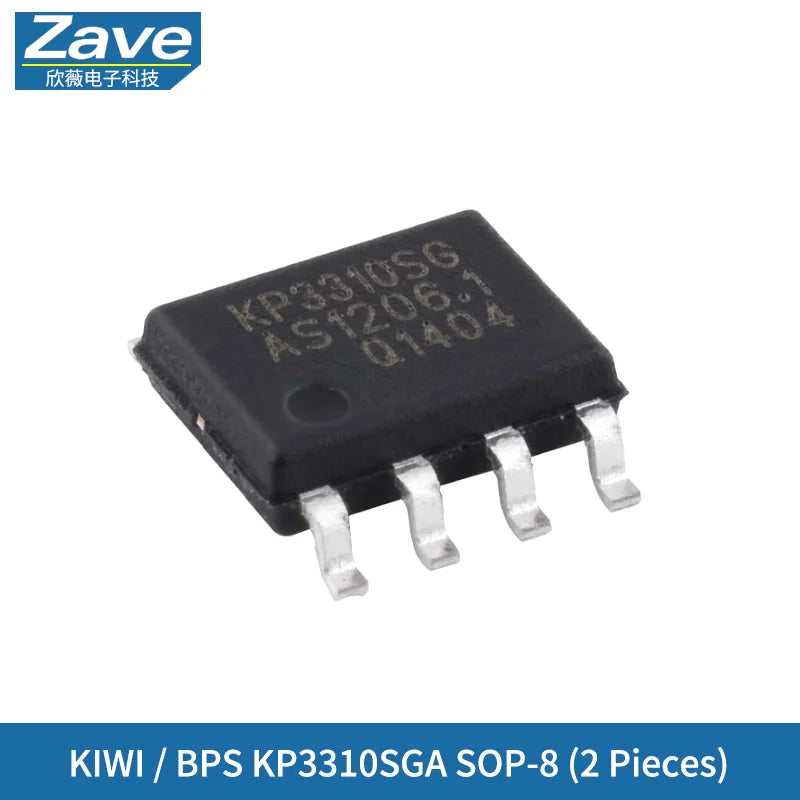

Original Authentic KIWI / BPS KP3310SGA, KP3310DP Linear LDO Voltage Regulator Controller Chip

Original Authentic KIWI / BPS KP3310SGA, KP3310DP Linear LDO Voltage Regulator Controller Chip

Original Authentic KIWI / BPS KP3310SGA, KP3310DP Linear LDO Voltage Regulator Controller Chip

$3.84

$3.84 $0.00

Description

SPECIFICATIONS

Brand Name: ZAVE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Voltage Regulator

PRODUCT DESCRIPTION

Product Overview

Original Authentic KP3310

KP3310 is a compact, inductor-less offline linear voltage regulator. By adjusting the resistance of the SEL pin, KP3310 can achieve three output voltage levels: 5V, 3.3V, and 2.7V. It is a simple and reliable offline power solution for obtaining bias power supply.

KP3310 integrates a 650V power MOSFET, startup control circuit, VDD voltage control circuit, AC signal synchronous detection circuit, low dropout regulator, and more. The chip intelligently controls AC energy input to reduce system losses, improve system efficiency, and effectively lower system standby power consumption.

KP3310 integrates comprehensive self-recovery protection functions: VDD under-voltage protection, VDD over-voltage protection, output overload protection, output under-voltage protection, surge protection, and built-in over-temperature protection, etc.

Main Features

High output voltage accuracy: 2%
Output adjustable: 5V/3.3V/2.7V
Optimized control method to improve efficiency
Wide input voltage range: 80~305VAC
No power inductor required
No input high-voltage capacitor required
Fewer components, low cost
Fast dynamic response
Output short-circuit protection
Output under-voltage protection
Output overload protection
Built-in over-temperature protection

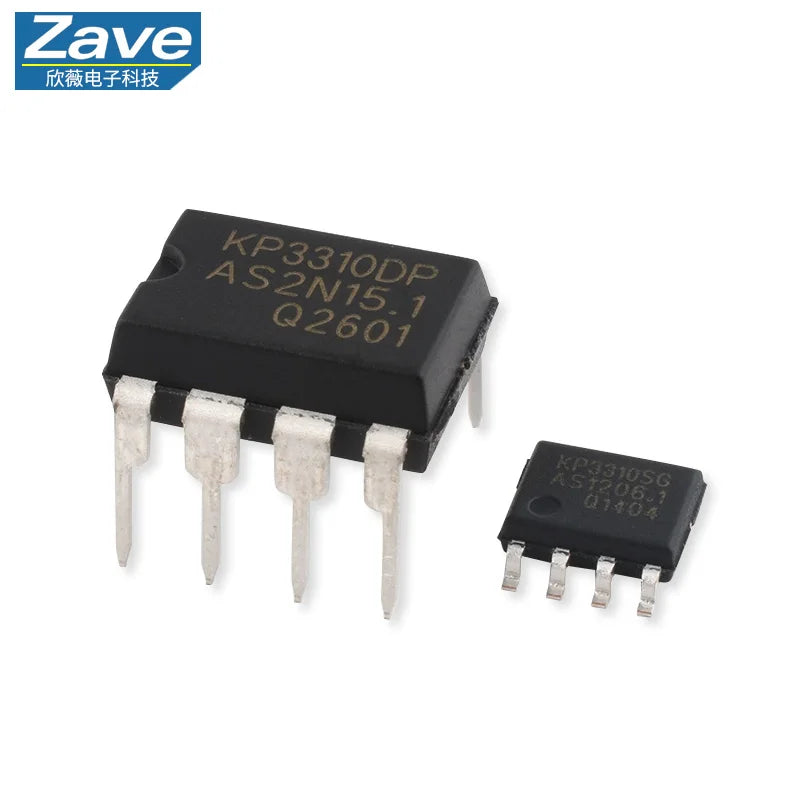

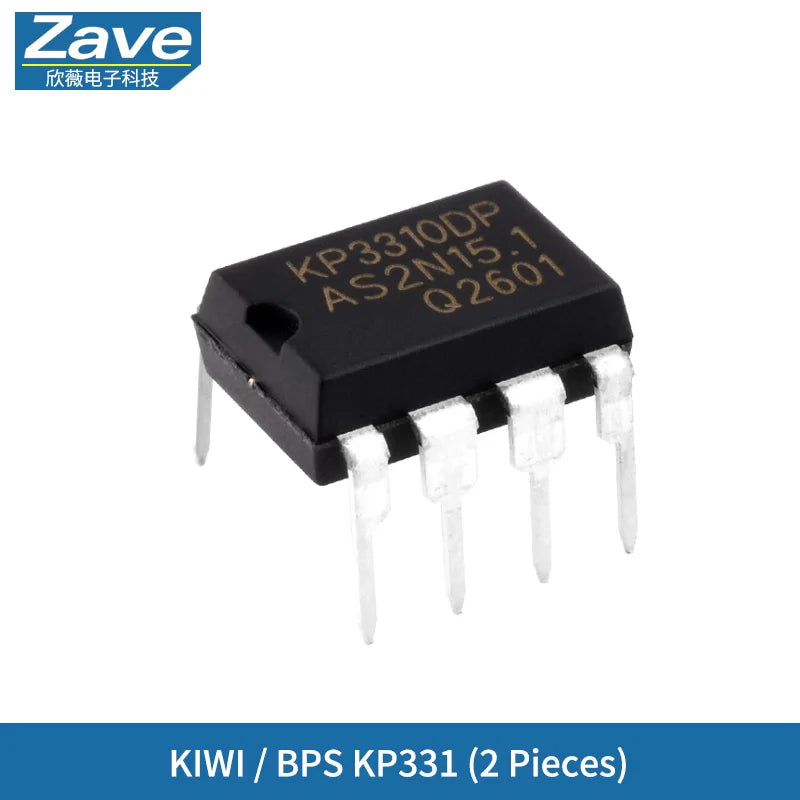

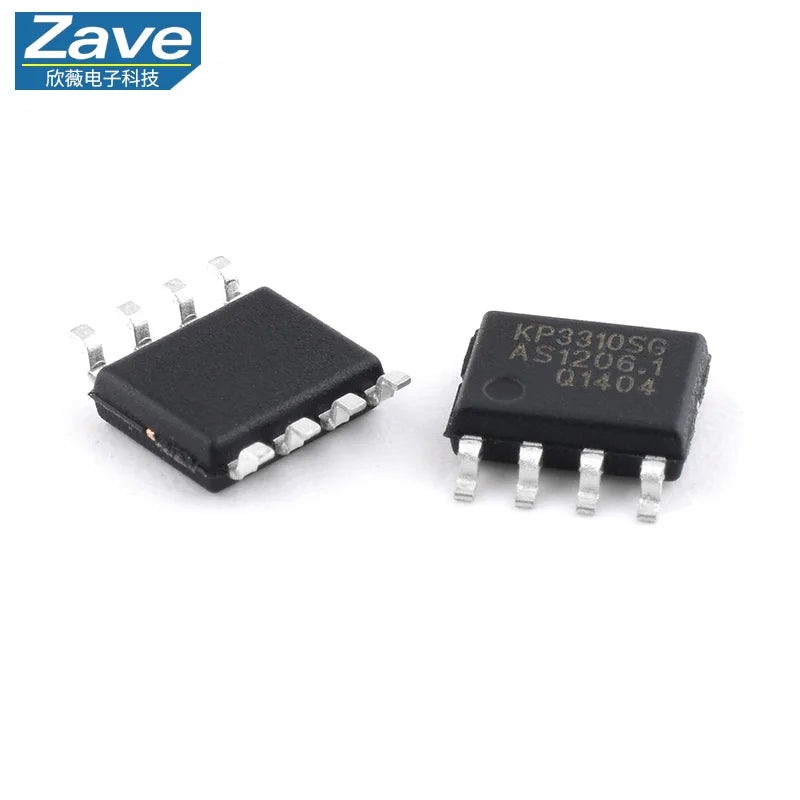

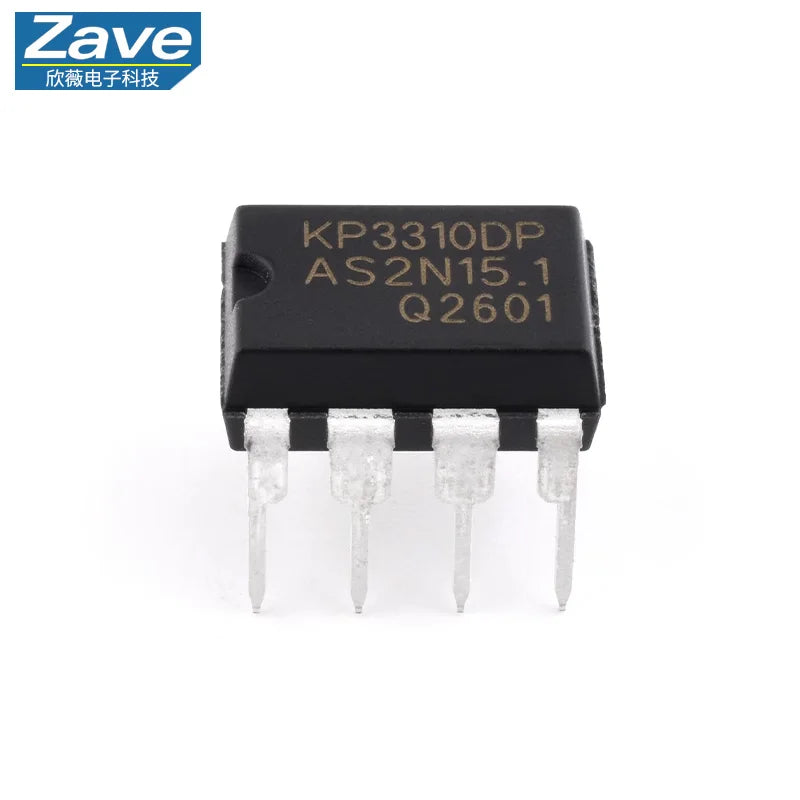

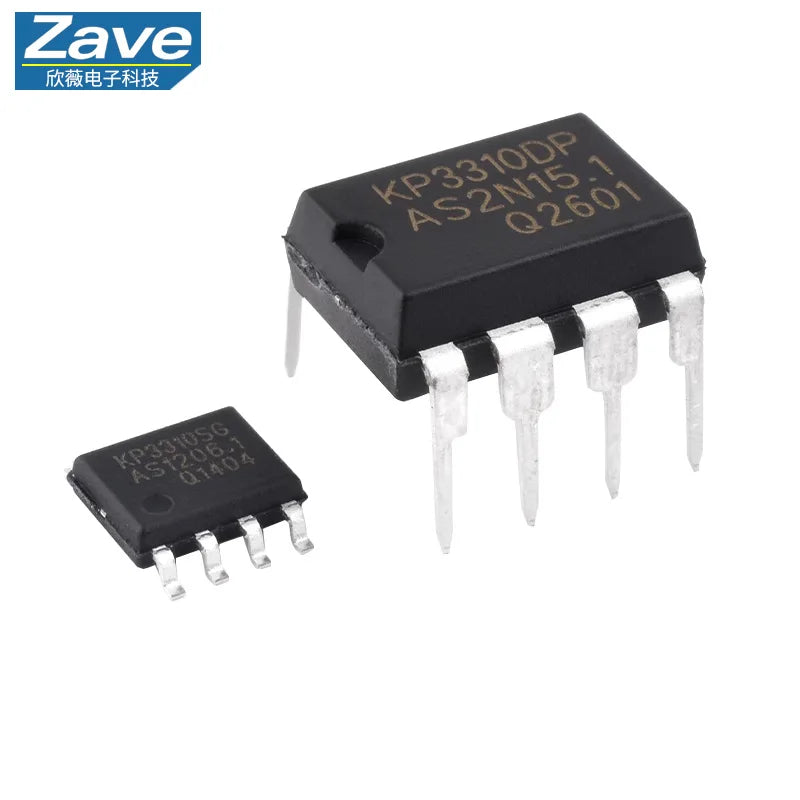

Package Types: SOP-8, DIP-8
