SPECIFICATIONS

Application: Desktop

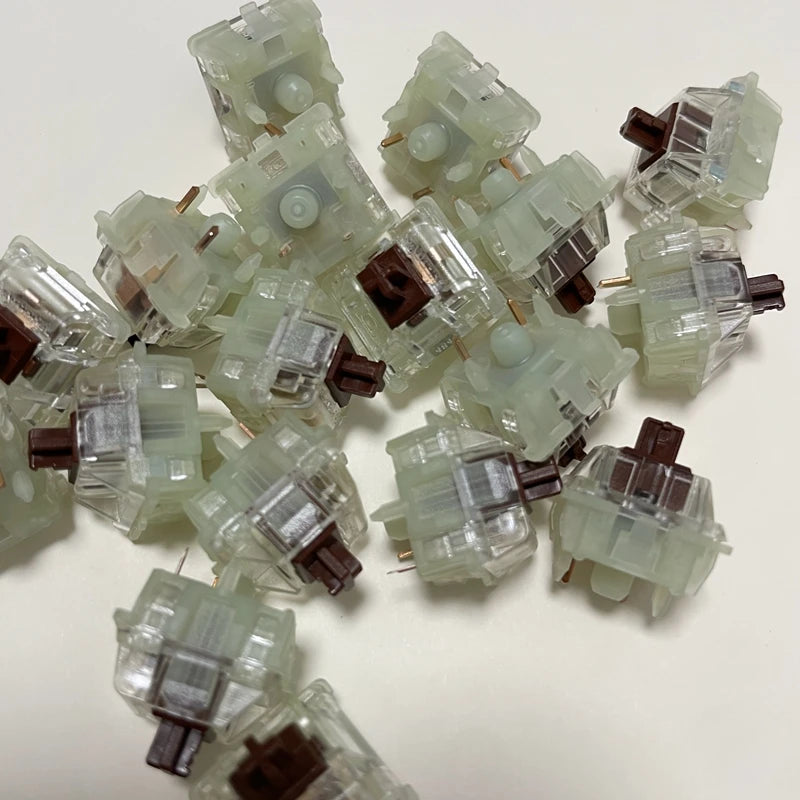

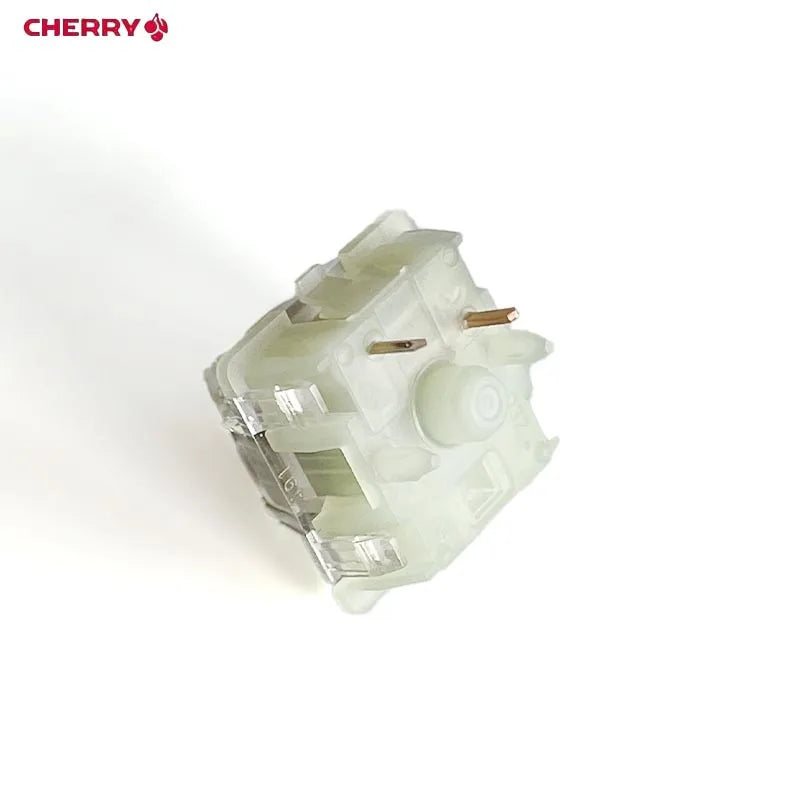

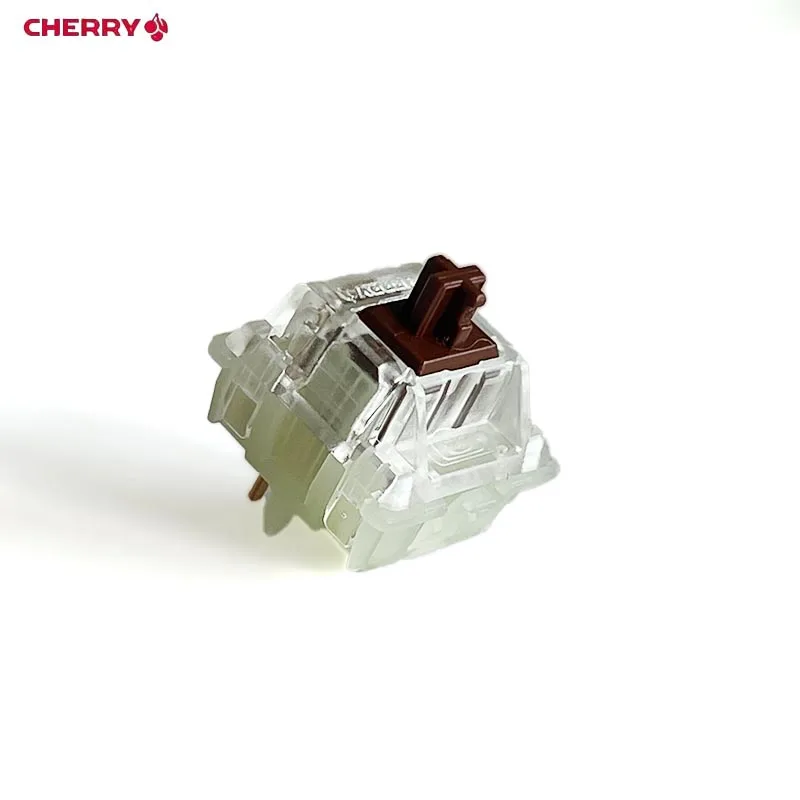

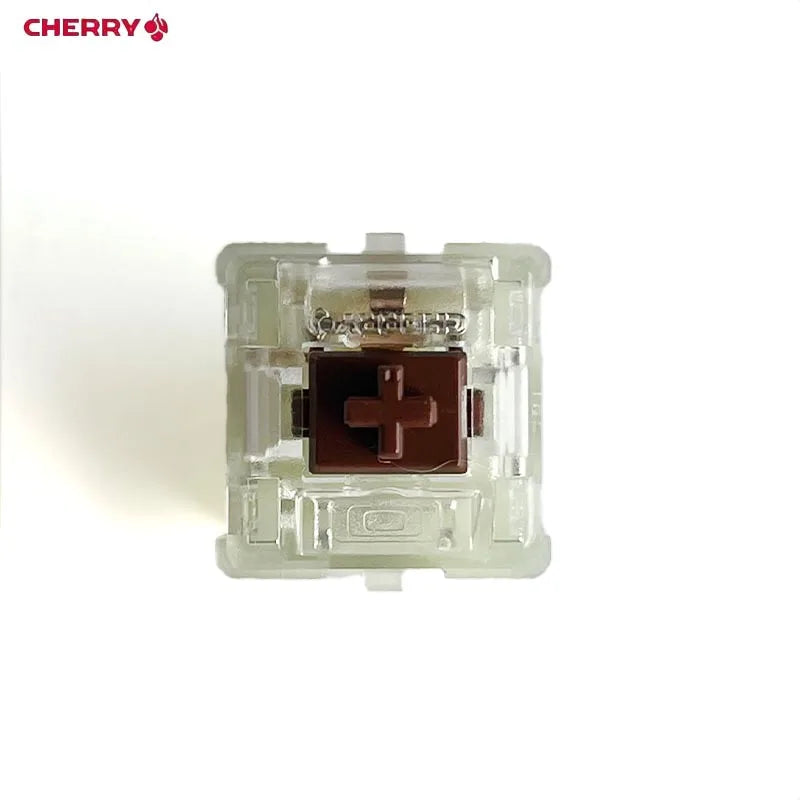

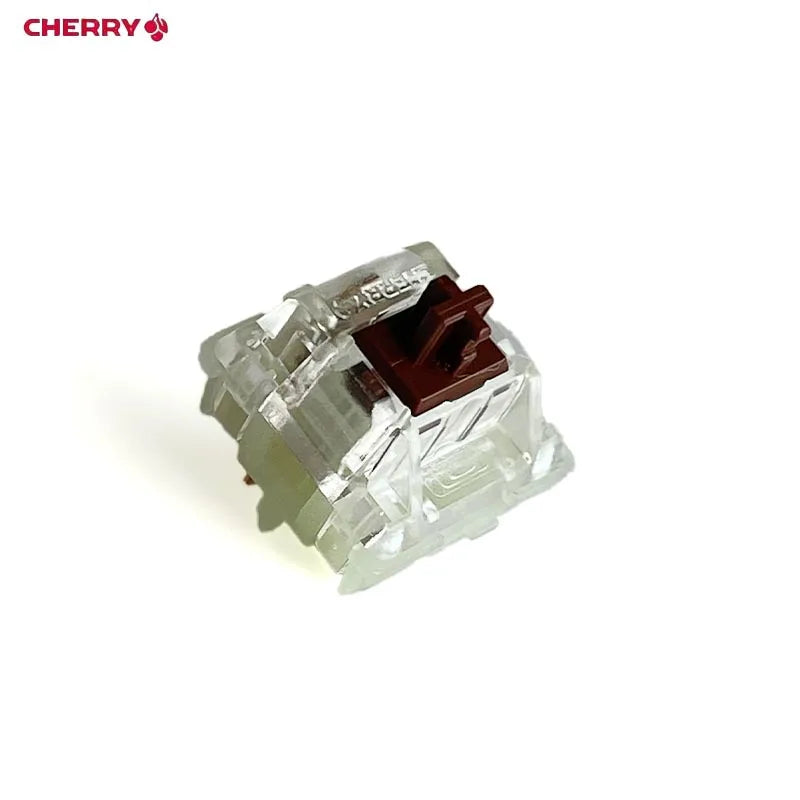

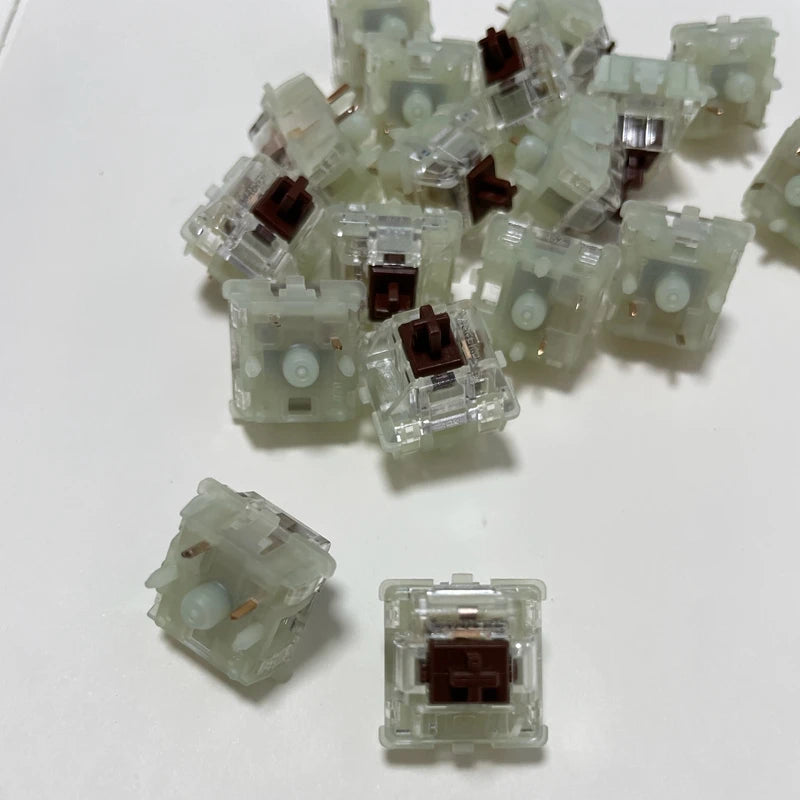

Axis Body Brand: Original Cherry MX Brown RGB Switch 5Pin TactileSMD For Mechanical Key

Battery Included: no

Brand Name: skyloong

Choice: yes

High-concerned chemical: none

Interface Type: USB

Keyboard Standard: 104 Keys

Language: Europe,English

Operation Style: Mechanical

Origin: Mainland China

Style: Standard

Type: Wired

semi_Choice: yes

High-precision MX keyswitch specially engineered for

RGB Multicolor Illumination

Brown switch: Soft pressure point, key stroke with soft tactile

contact feedback.

A shining example: The new CHERRY MX RGB switch.

Globally pioneering technology for precision mechanical

keyswitches. Optimised for use with SMD LEDs, which make

the keyboard shine in all RGB colours with high luminosity.

Every key can be illuminated individually in a different color.

Engineered and Made in Germany.

Key benefits

• Brown switch: Soft pressure point, key stroke with soft tactile

contact feedback

• MX switch variant optimised for use with SMD LEDs (RGB or

single colour)

• More consistent lighting throughout the keycap due to

optimised, transparent casing and scattering surface

including lens.

• Option to use all 16.7 million RGB colours in high luminosity

(scope of supply does not include LED)

• SMD LEDs directly mounted on the circuit board for

cost-efficient, fully automated production

• High-precision mechanical keyswitch based on the MX

standard

• World exclusive CHERRY Gold Crosspoint technology

• Short bounce time for high switching frequency (such as for

fast typing)

• Self-cleaning contacts, resistant to dust and dirt

• Over 100 million keystrokes / contact switches per module

• Fastening: Product dependant, see table "Models"

• Switching voltage: 12 V AC/DC max.

• Switching current: 10 mA AC/DC max.

• Dielectric strength: 500 V / 50Hz

• Durability: > 100 million actuations

• Contact configuration: Single-pole contact

• Actuator travel: 4.0 mm

• Pretravel: 2 mm

• Initial force: 30 cN min.

• Actuation force: 45 cN

• Pressure point force: 55 cN

• Bounce time: typically < 1 ms

• Standard lead spacing: 19.05 mm (16 mm min.)

• Lighting: SMD LED can be mounted directly on the circuit

board (not included in the module), opening for SMD LED in

the base.

• Decoupling diode: no

• Wire jumper: no

• Insulation materials: Thermoplastics (min.UL 94 HB)

• Spring: Stainless steel

• Contacts: High-quality gold alloy
