SPECIFICATIONS

Application: MOBILE PHONE

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: Standard

High-concerned chemical: none

Operating Temperature: Standard

Origin: Mainland China

Package: DIP

Quantity: 1

Supply Voltage: Standard

Type: Module

is_customized: Yes

semi_Choice: yes

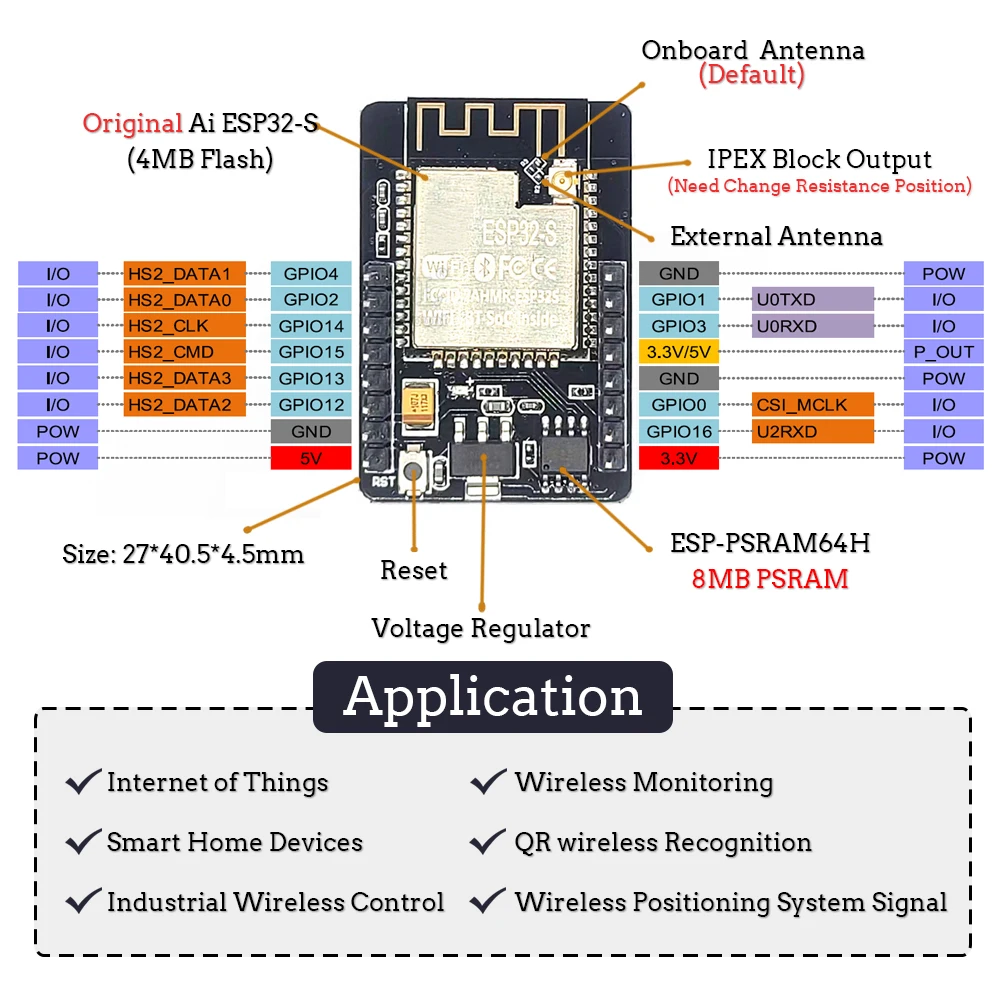

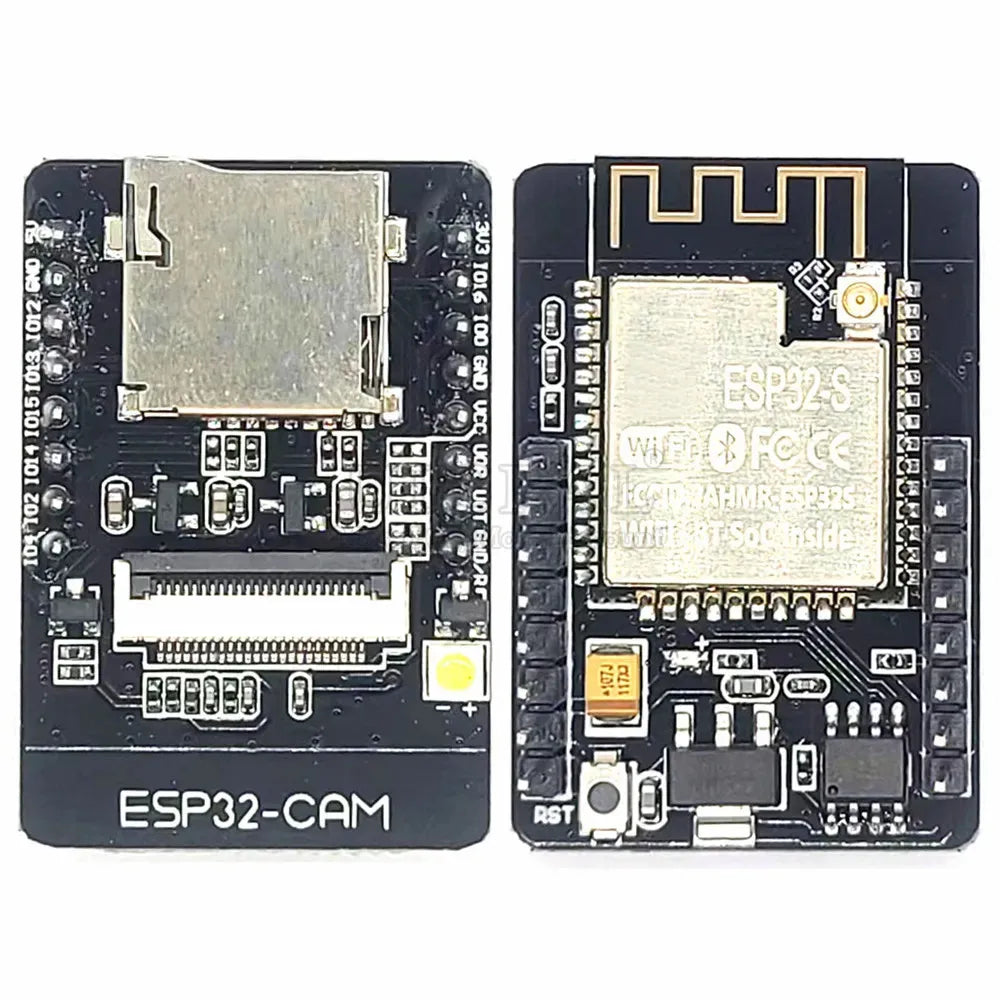

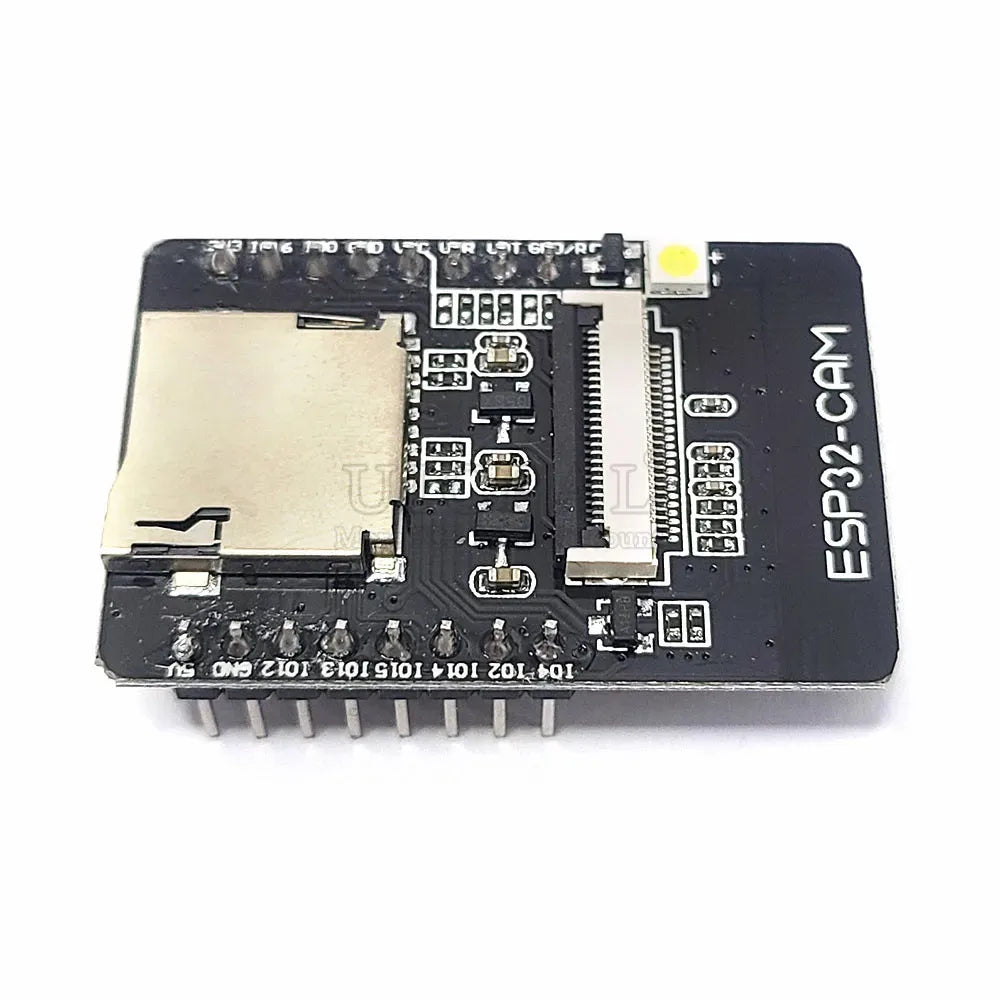

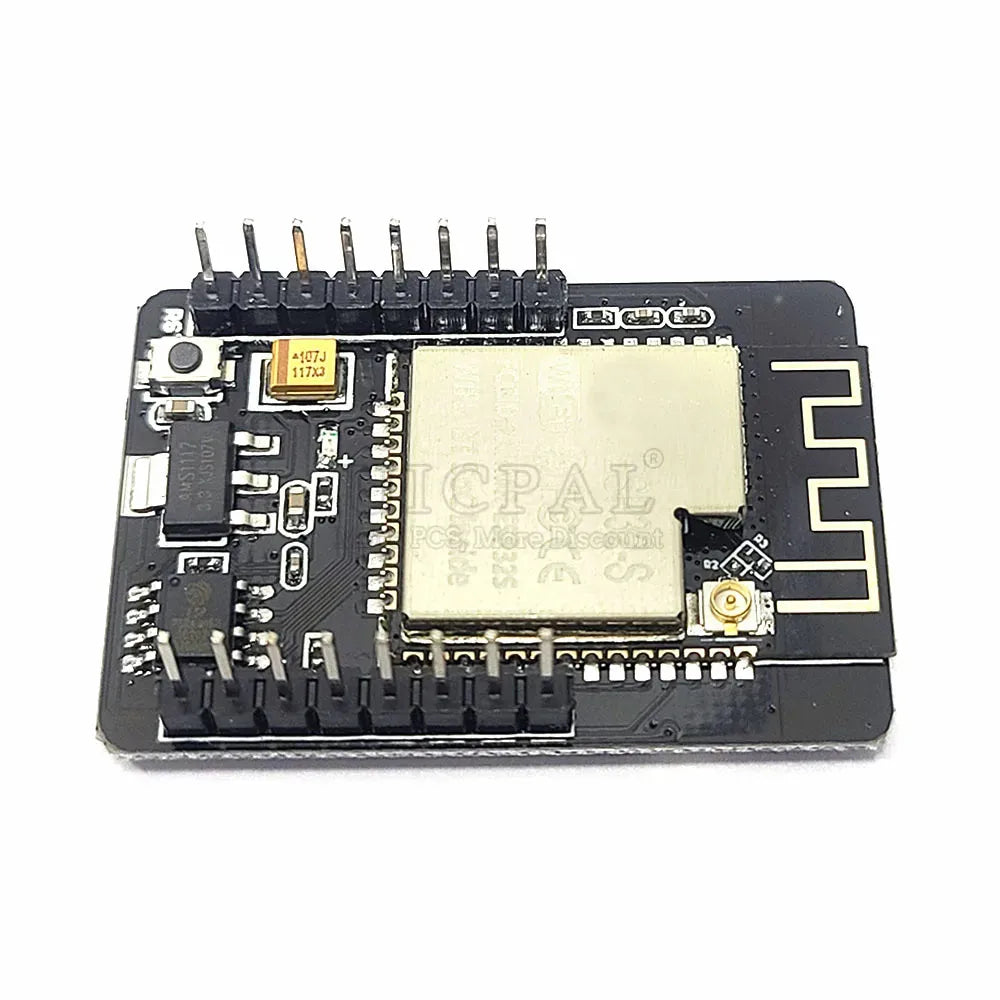

Original ESP32 CAM 2.4G Wifi Bluetooth Camera Module Development Board Low Power Dual Core 4MB PSRAM DIP-16 ESP32-S Good Tested

The ESP32-CAM is the latest camera module to be released in a small size. The module can work independently as a minimum system, measuring only 27*40.5*4.5mm, with a minimum deep sleep current of 6mA.

ESP32-CAM can be widely used in a variety of iot applications, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless recognition, wireless positioning system signals and other iot applications, is the ideal solution for iot applications.

ESP32-CAM adopts DIP package, directly plug in the base plate can be used, to achieve rapid production of products, to provide customers with high reliability connection, convenient application in a variety of Internet of Things hardware terminal occasions.

Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module

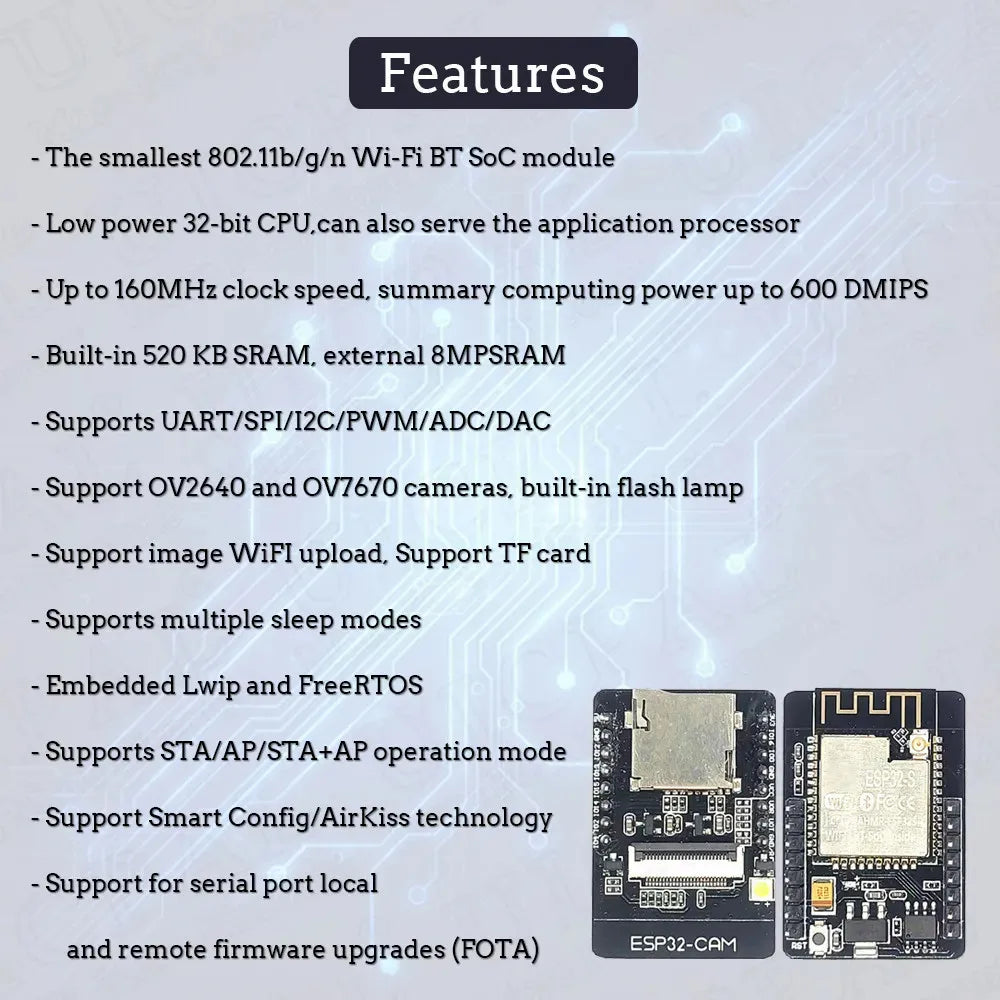

Product characteristics:

Low power dual-core 32-bit CPU, can be used as an application processor

The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS

520 KB of internal SRAM and 8MB of external PSRAM

Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC

OV2640 and OV7670 cameras with built-in flash

Support picture WiFI upload

TF card support

Supports multiple sleep modes.

Embedded Lwip and FreeRTOS

Support STA/AP/STA+AP working mode

Supports Smart Config/AirKiss one-click network distribution

Support secondary development

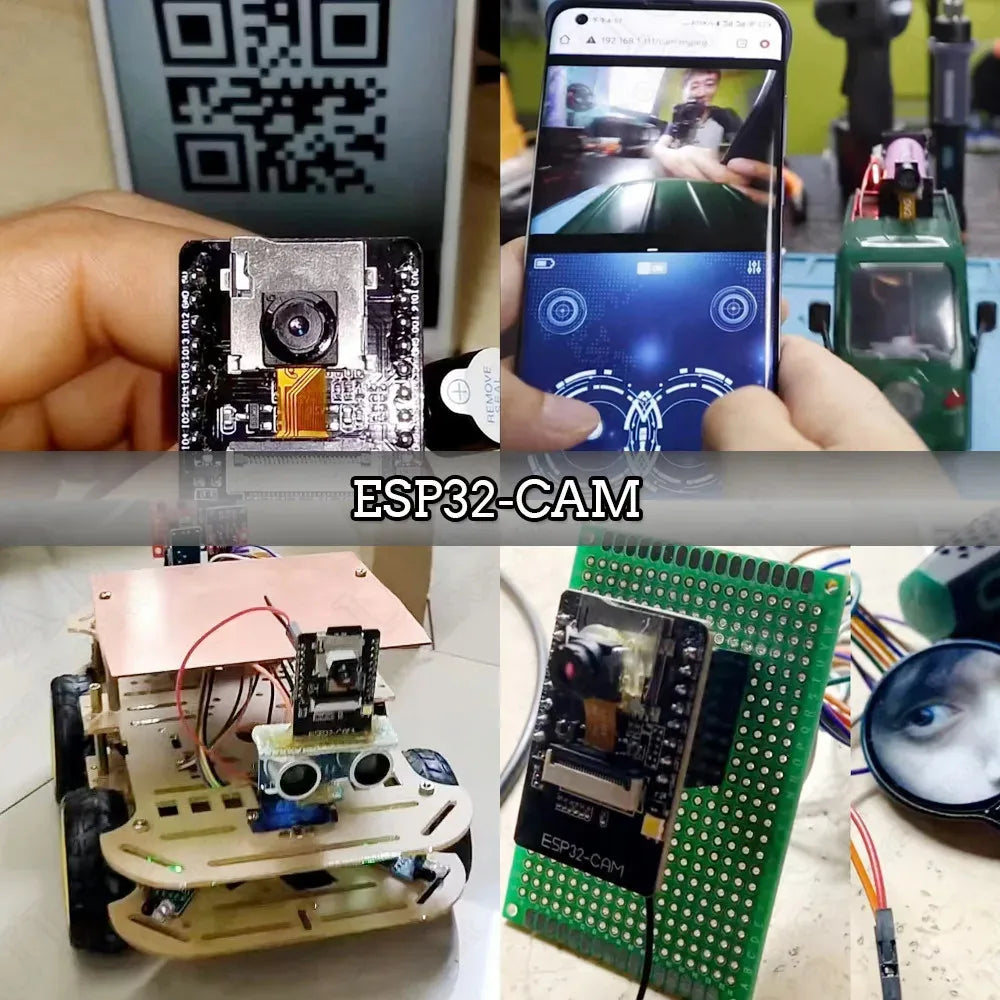

Application scenario:

Home smart device map

Wireless monitoring

Smart agriculture

QR wireless recognition
