SPECIFICATIONS

Application: Camera

Brand Name: UICPAL

Choice: yes

Condition: New

Dissipation Power: Standard

High-concerned chemical: none

Operating Temperature: -20 to +70

Origin: Mainland China

Package: DIP

Pixel: 2 Million Pixels

RAM: Internal 520KB + external 8MB PSRAM

Supply Voltage: 5V

Type: Drive IC

is_customized: Yes

semi_Choice: yes

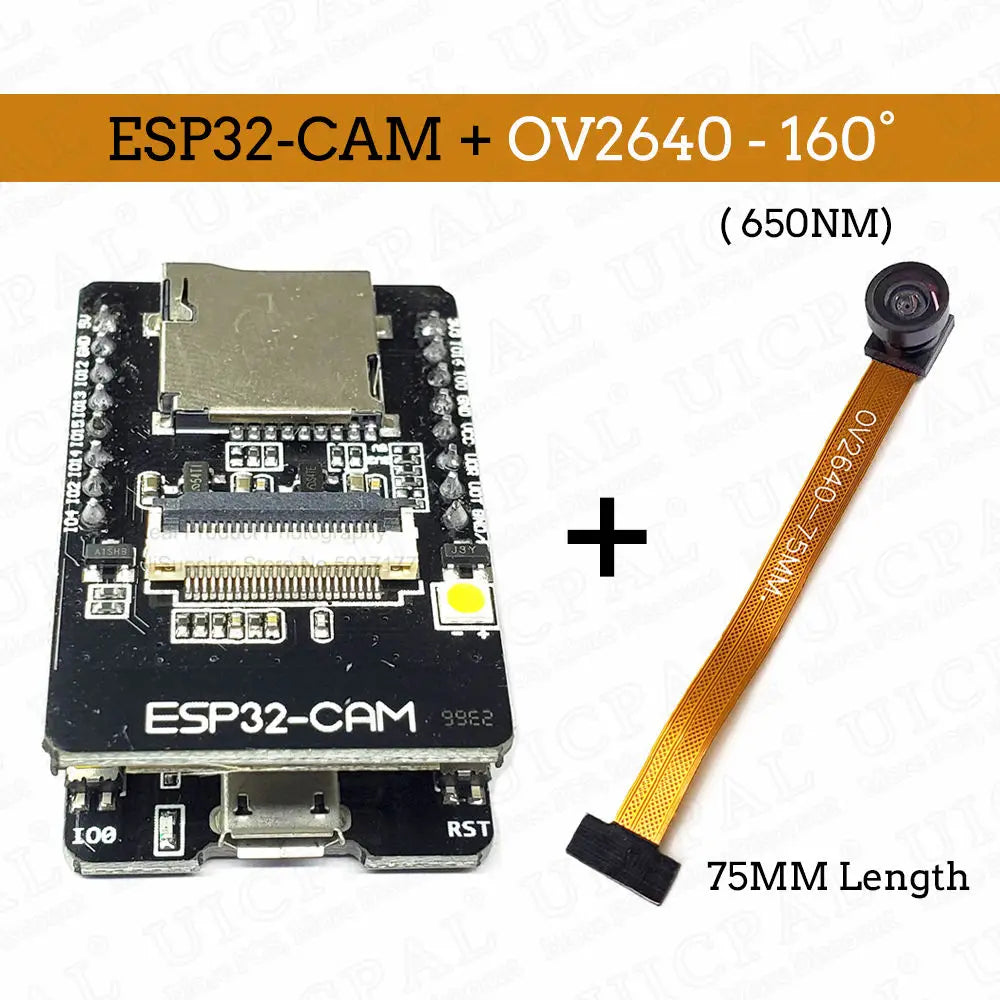

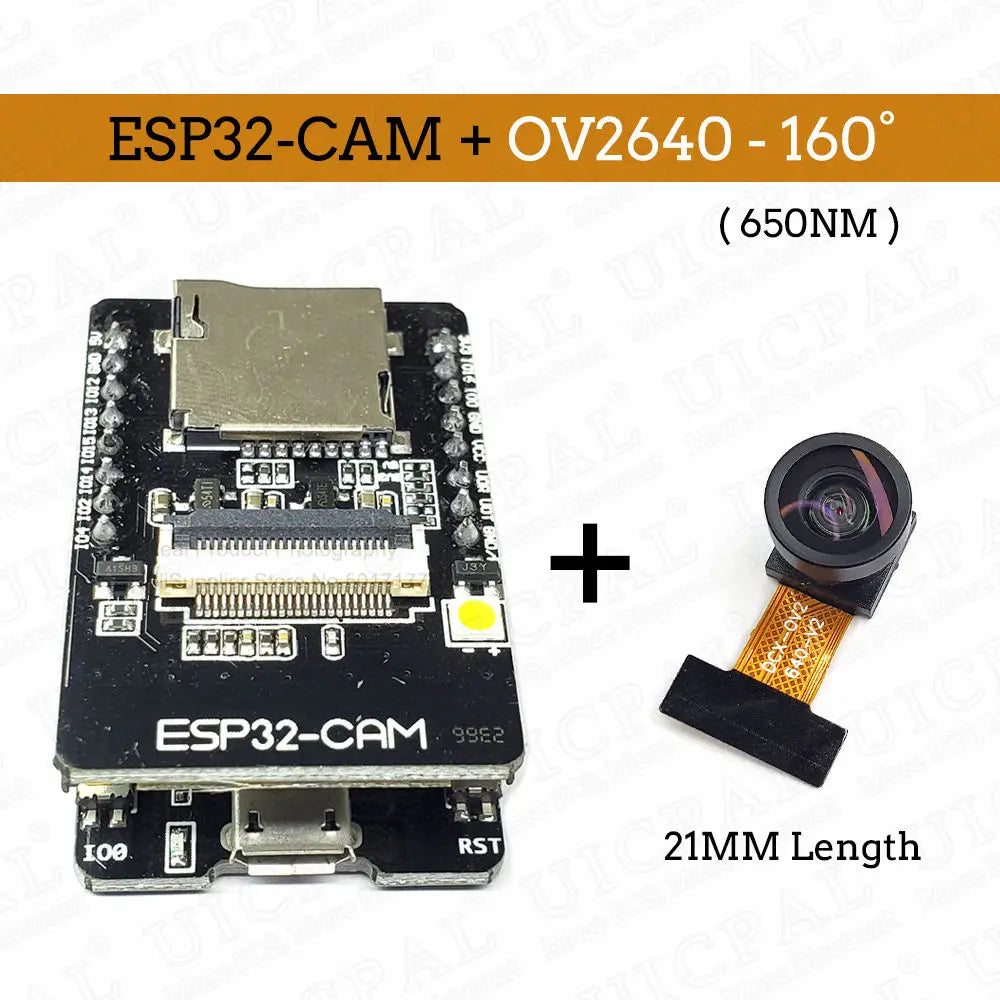

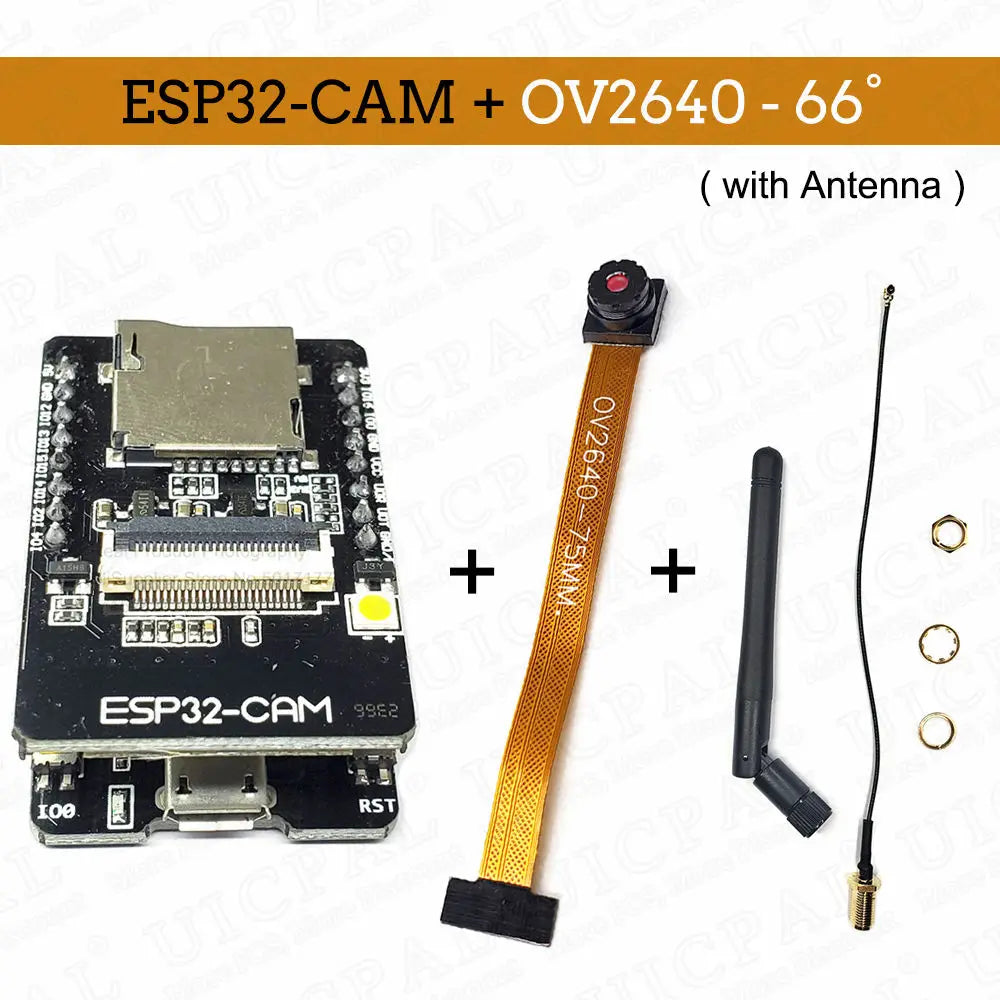

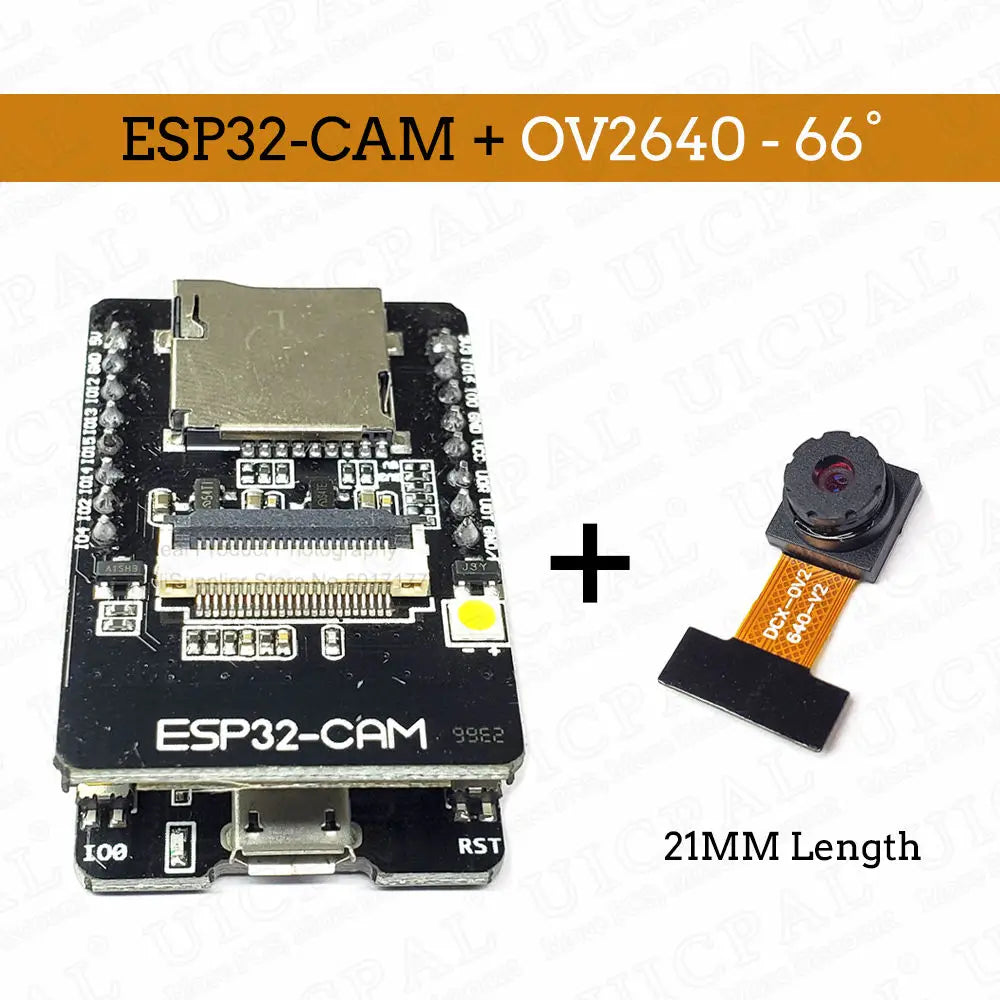

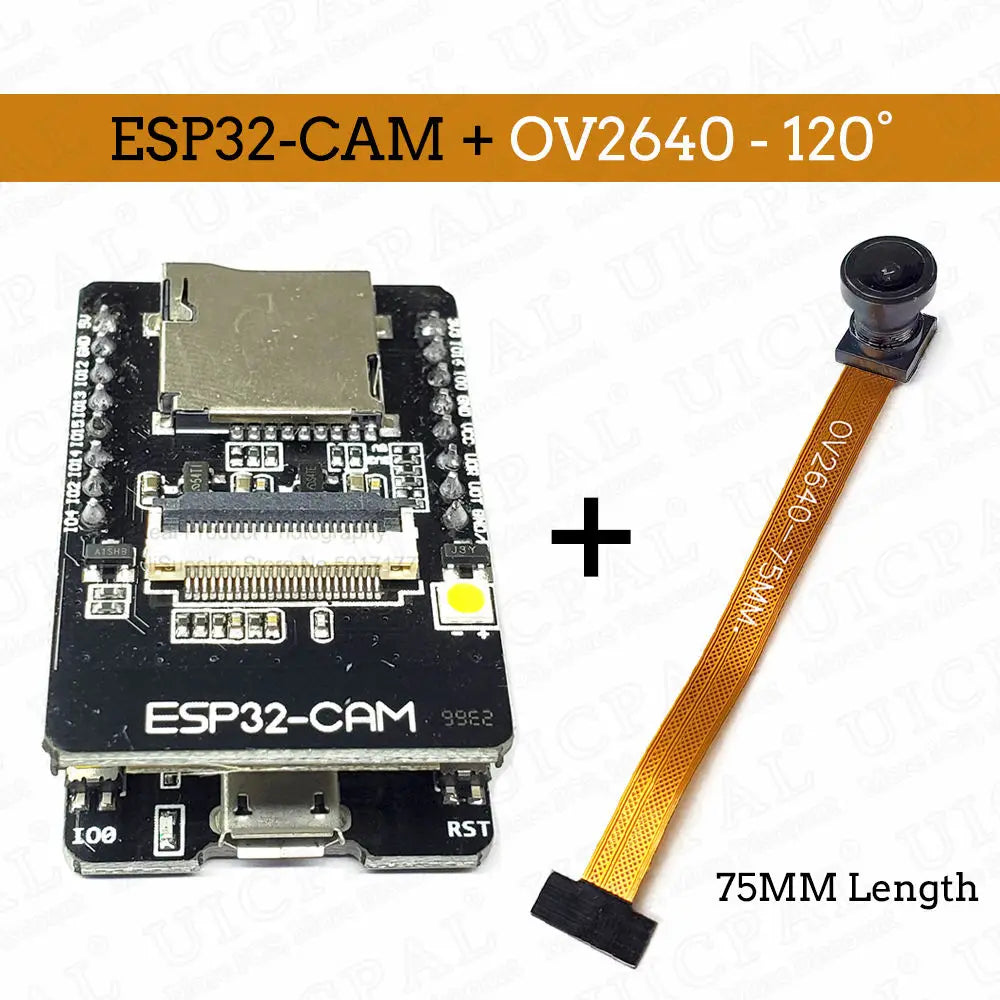

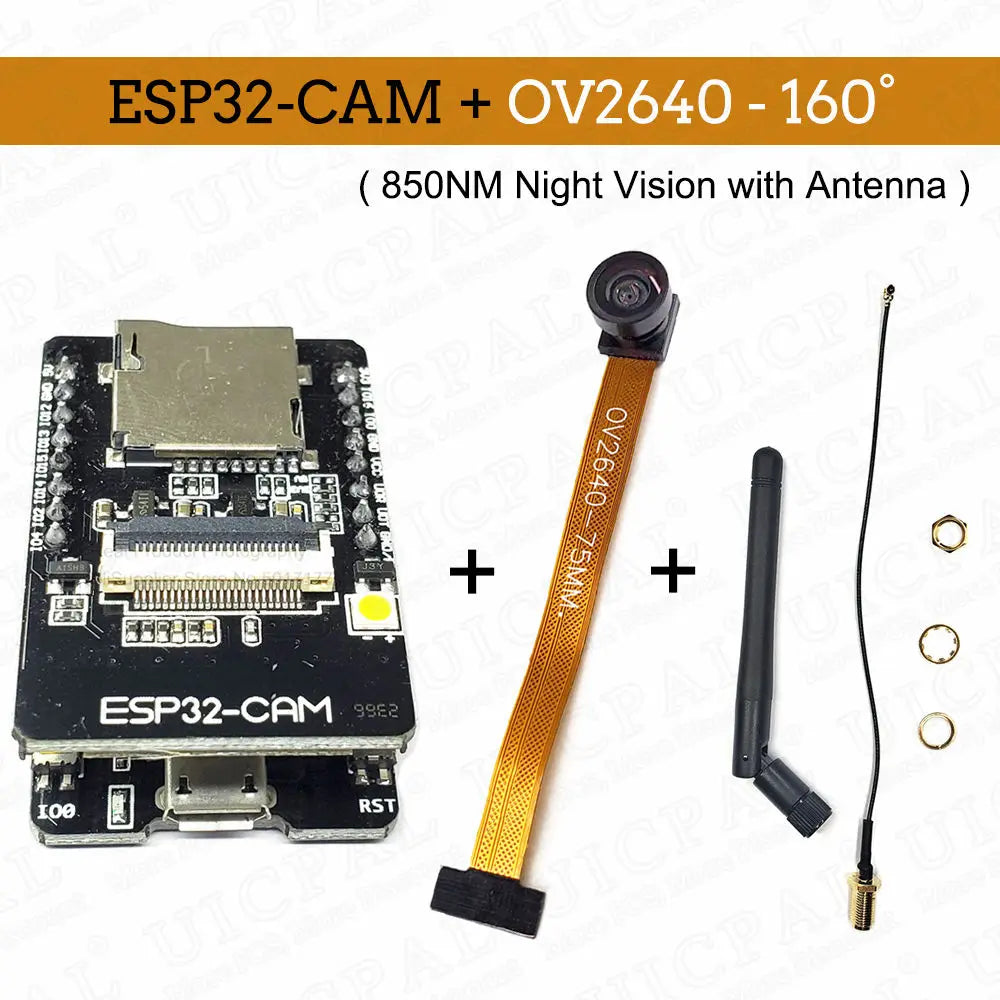

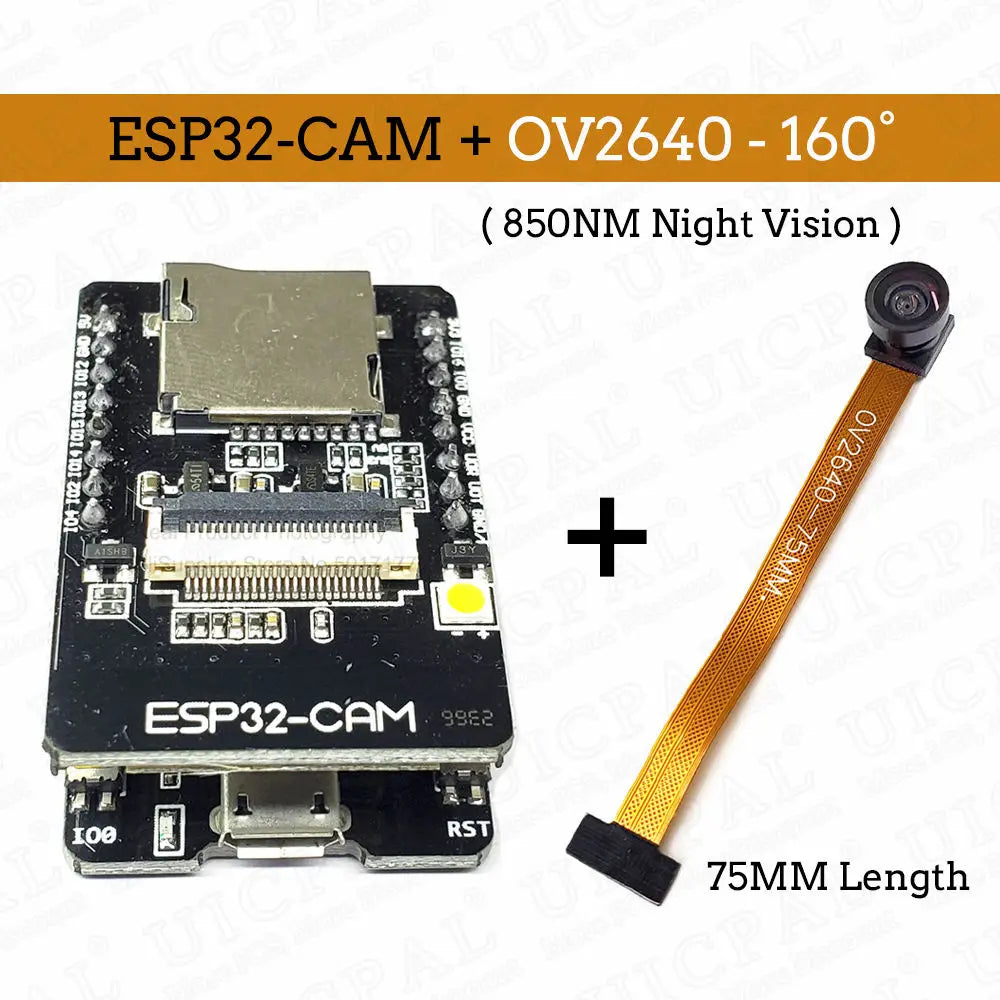

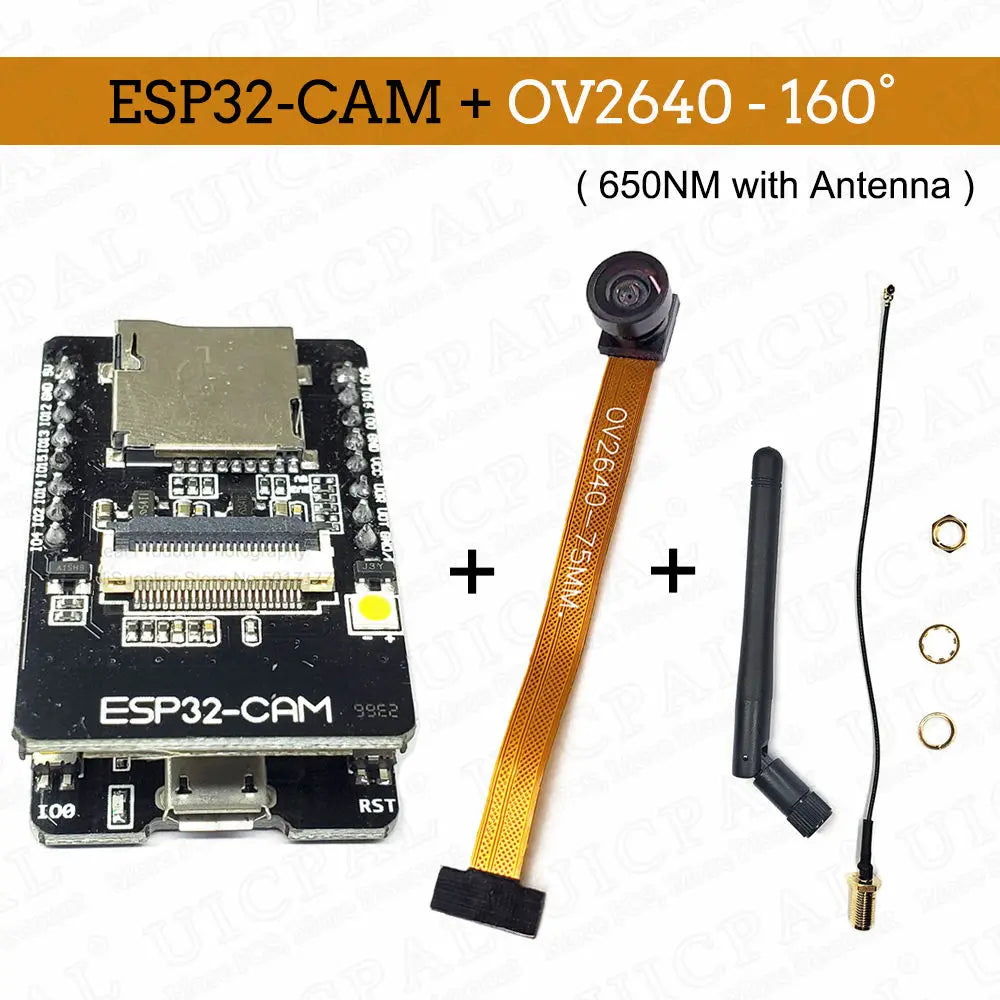

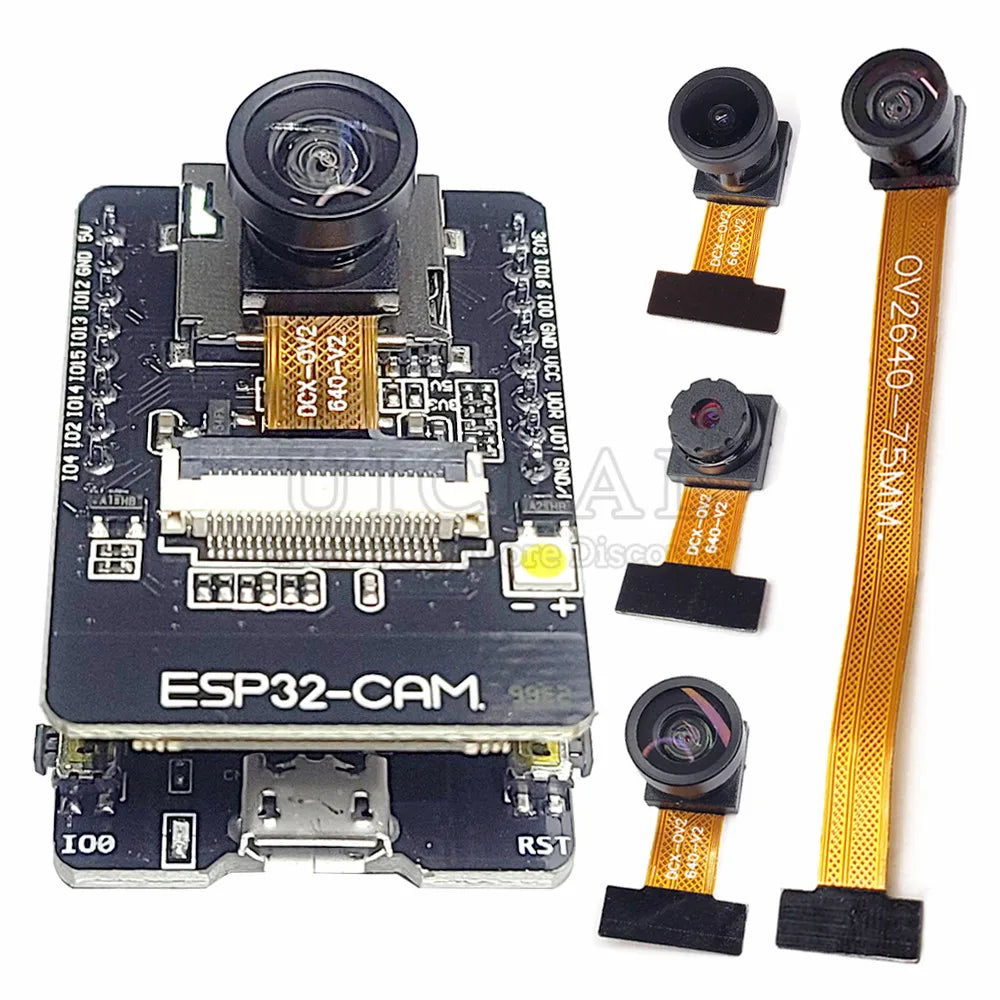

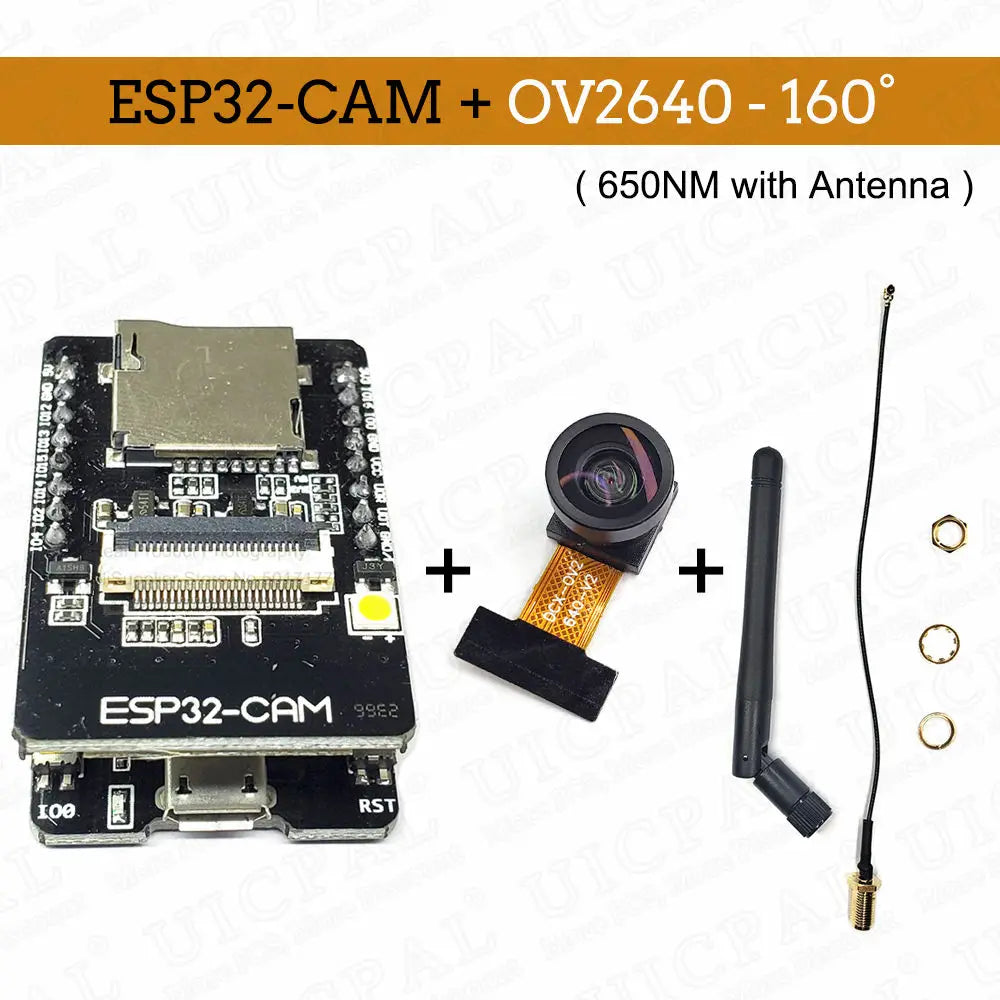

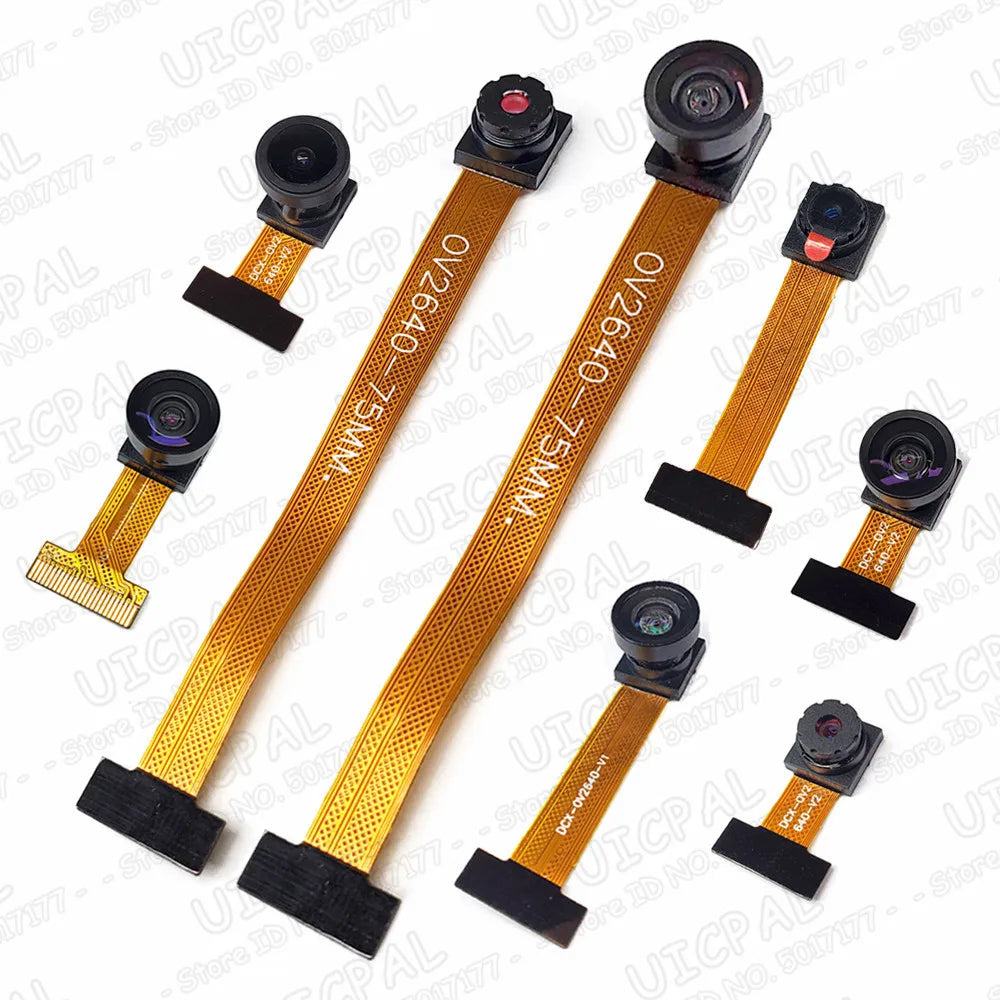

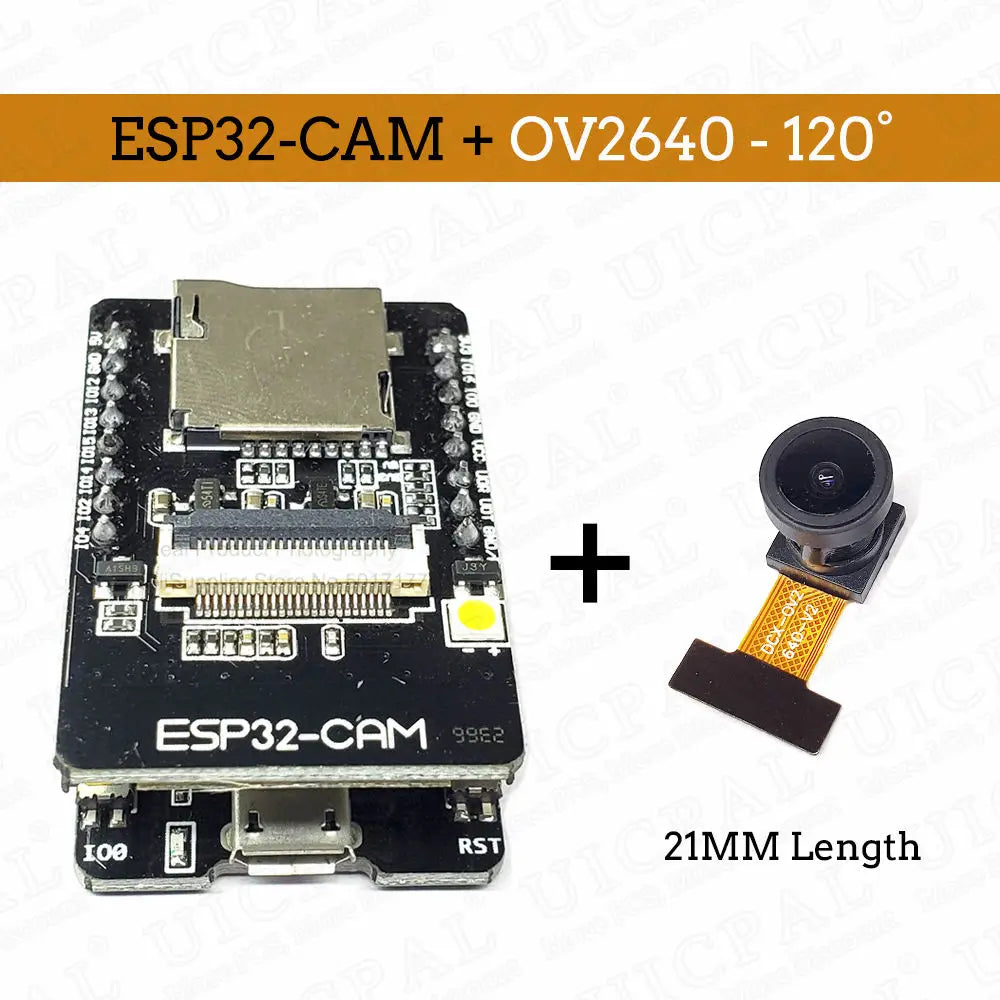

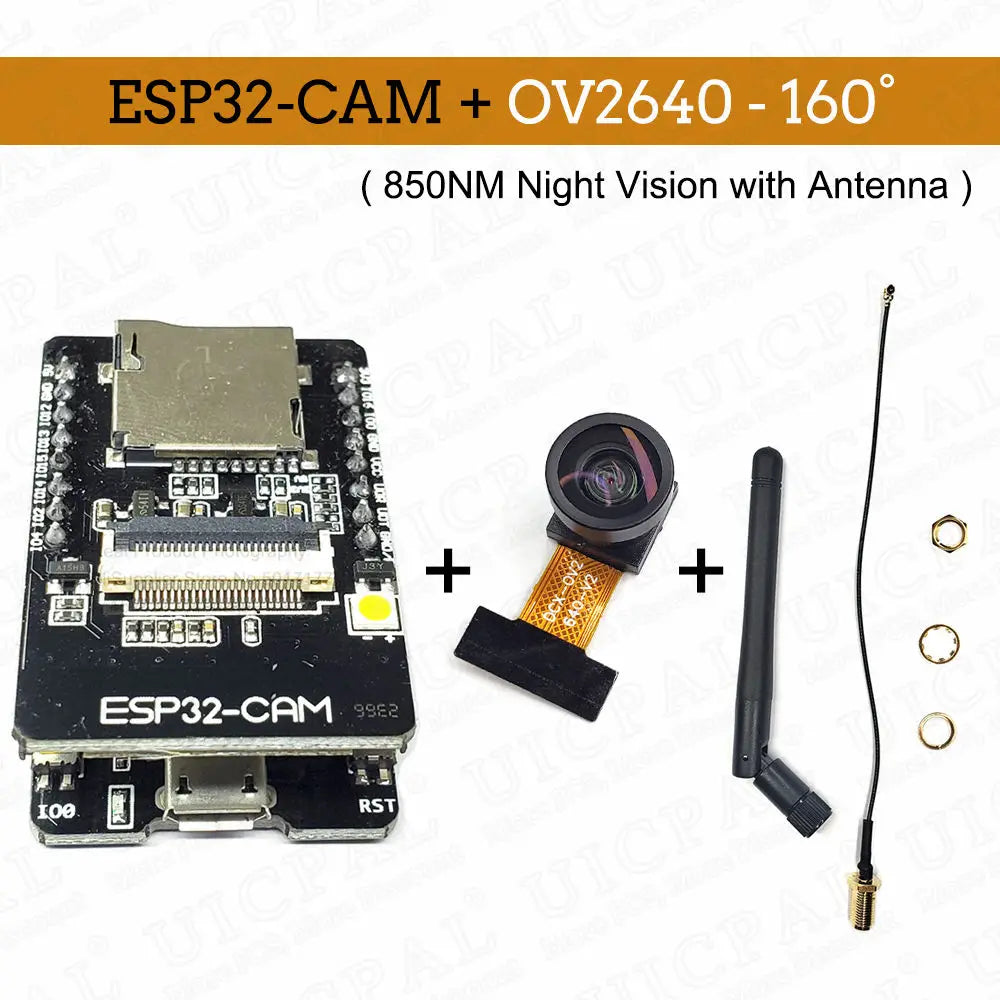

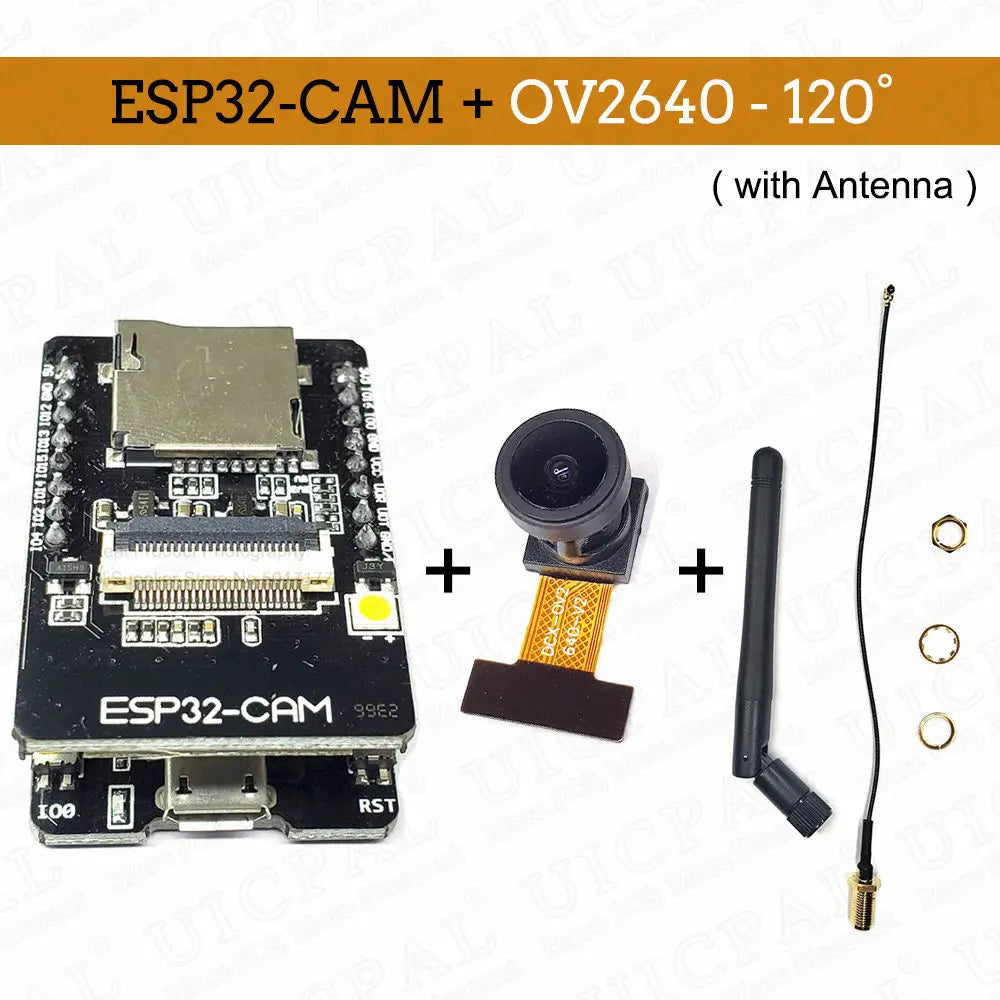

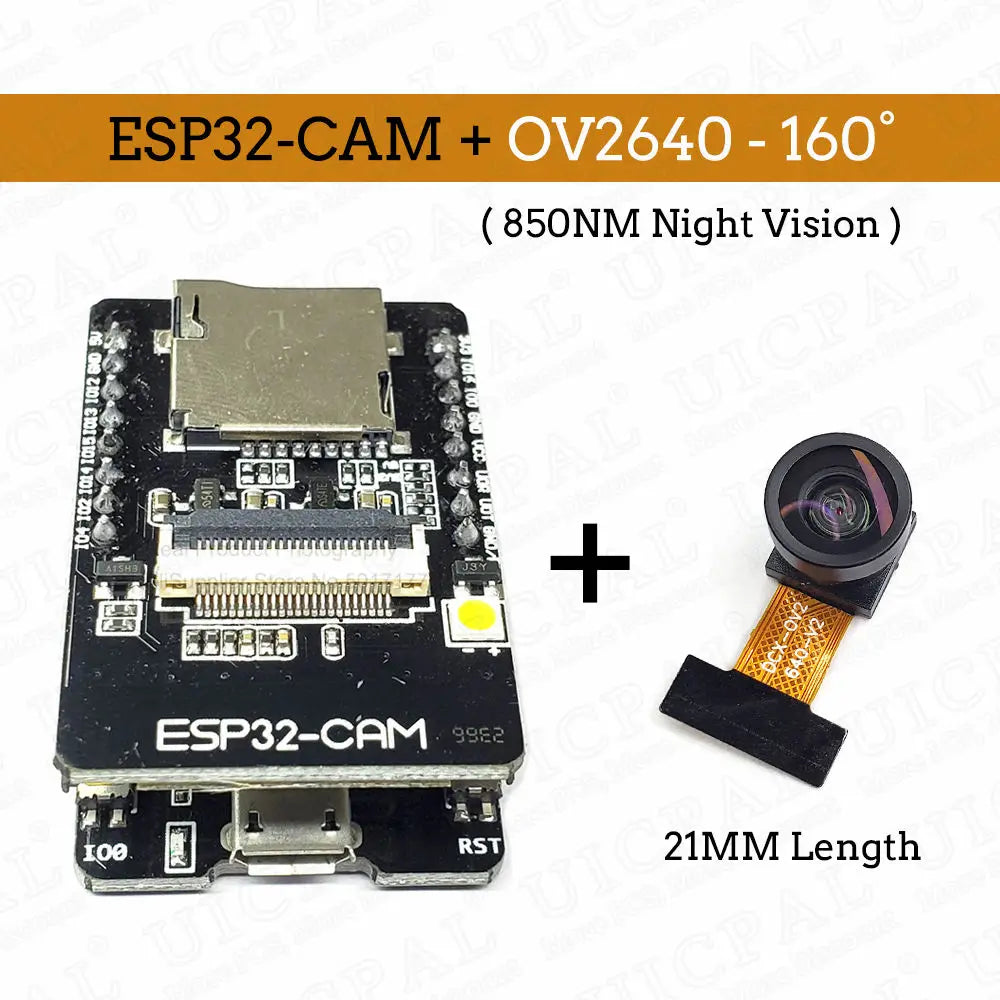

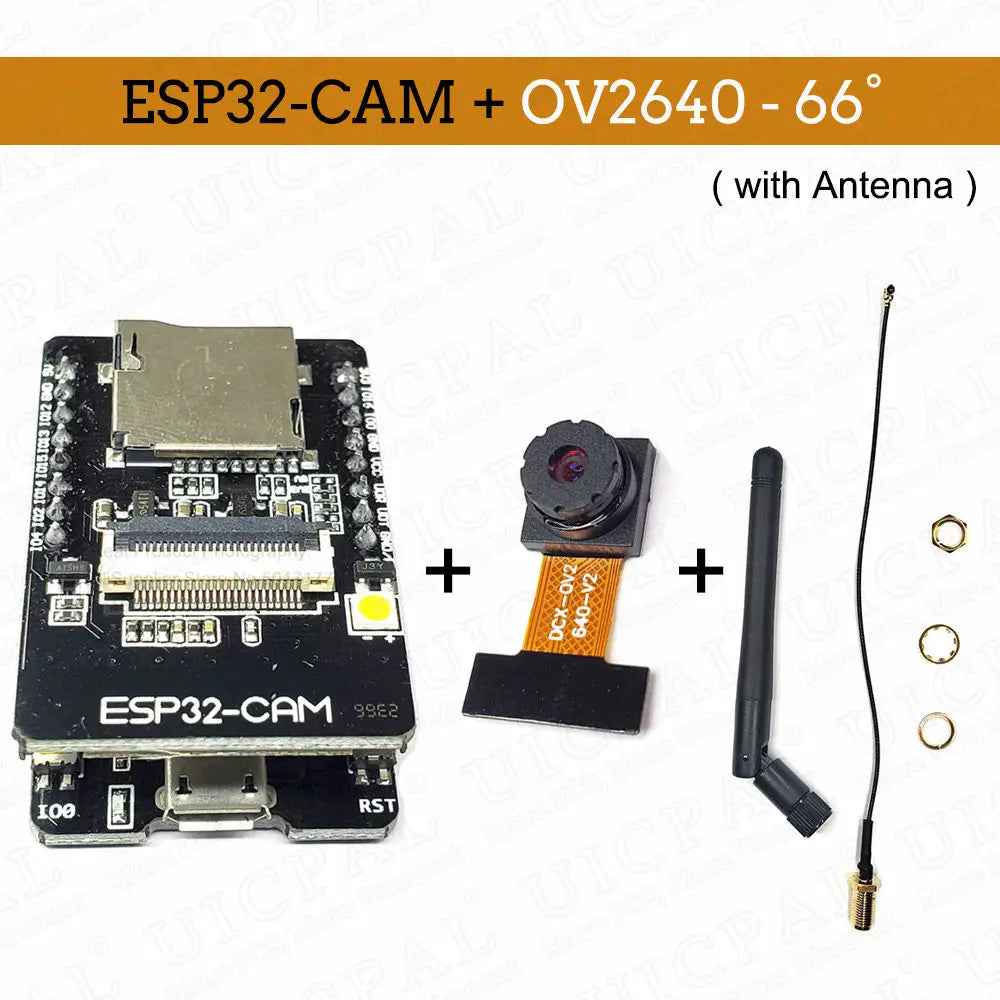

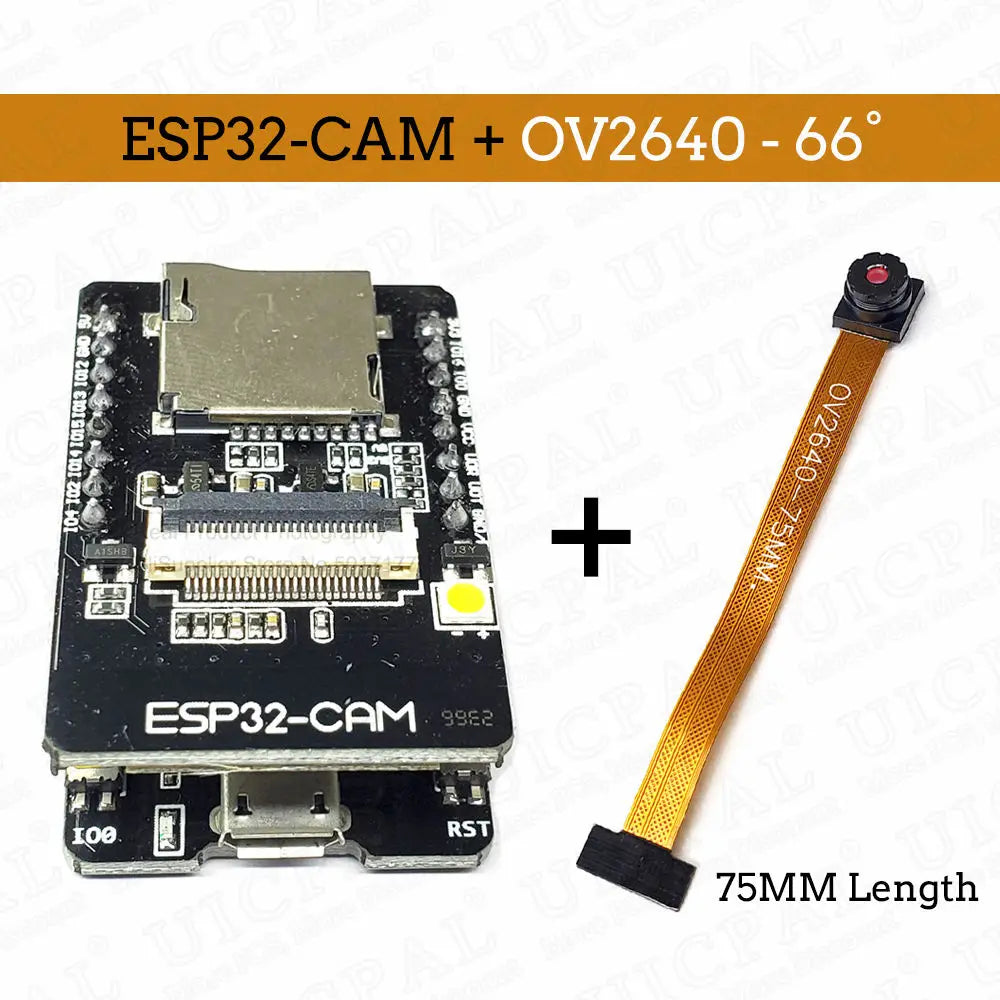

Original ESP32 CAM Camera Module Kit 2.4 GHz WiFi Bluetooth 8MB PSRAM OV2640 Camera Module 66 120 160 Degree 850nm Night Vision

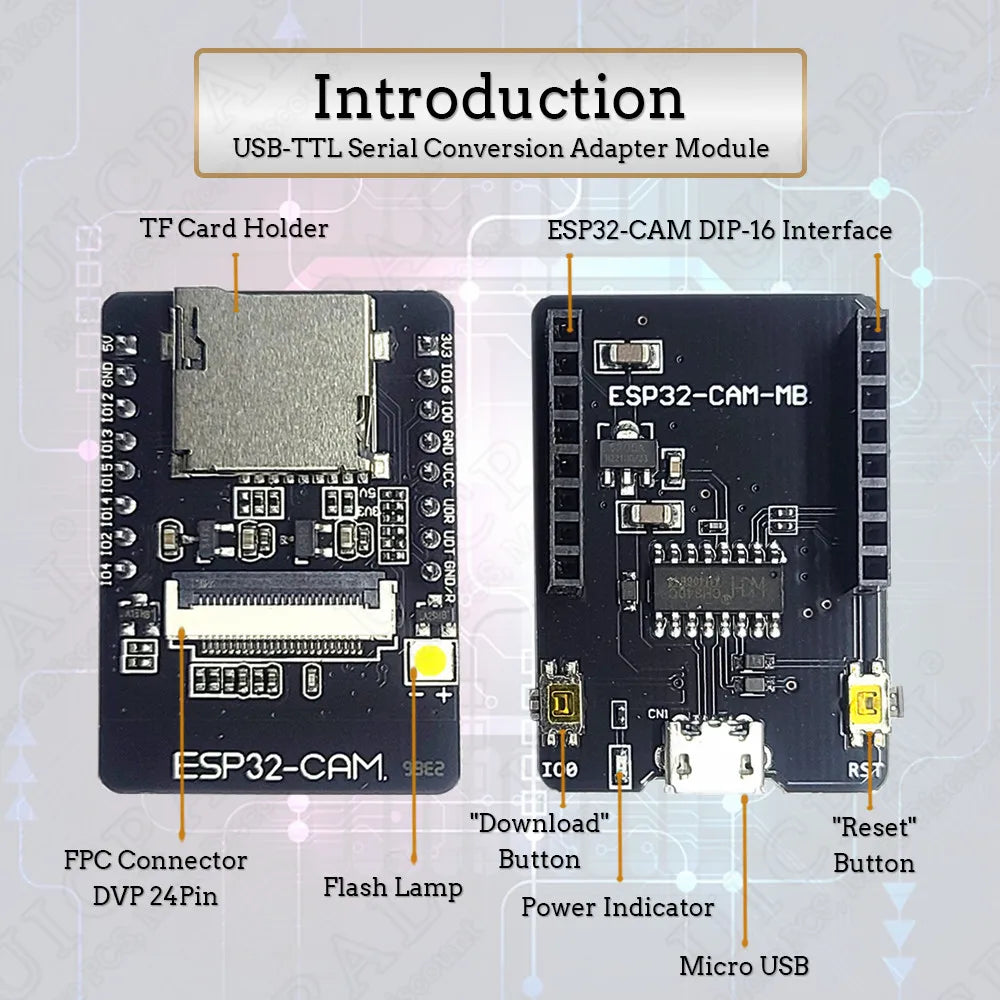

ESP32-CAM Introduction:

The ESP32-CAM-MB module is a small camera module with a size of 39.8*27*. This module can work independently as the smallest system. A brand-new WiFi+Bluetooth dual-mode development board is based on the ESP32 design, uses PCB onboard antennas, is equipped with two high-performance 32-bit LX6CPUs, uses a 7-stage pipeline structure, and the main frequency adjustment range is 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi+BT/BLE SoC module HK-ESP32-CAM-MB with micro USB interface, convenient and reliable connection method, and convenient for various IoT hardware terminal occasions.

HK-ESP32-CAM-MB adopts a micro USB interface, which is convenient and reliable in connection mode, which is convenient and suitable for various IoT hardware terminal occasions.

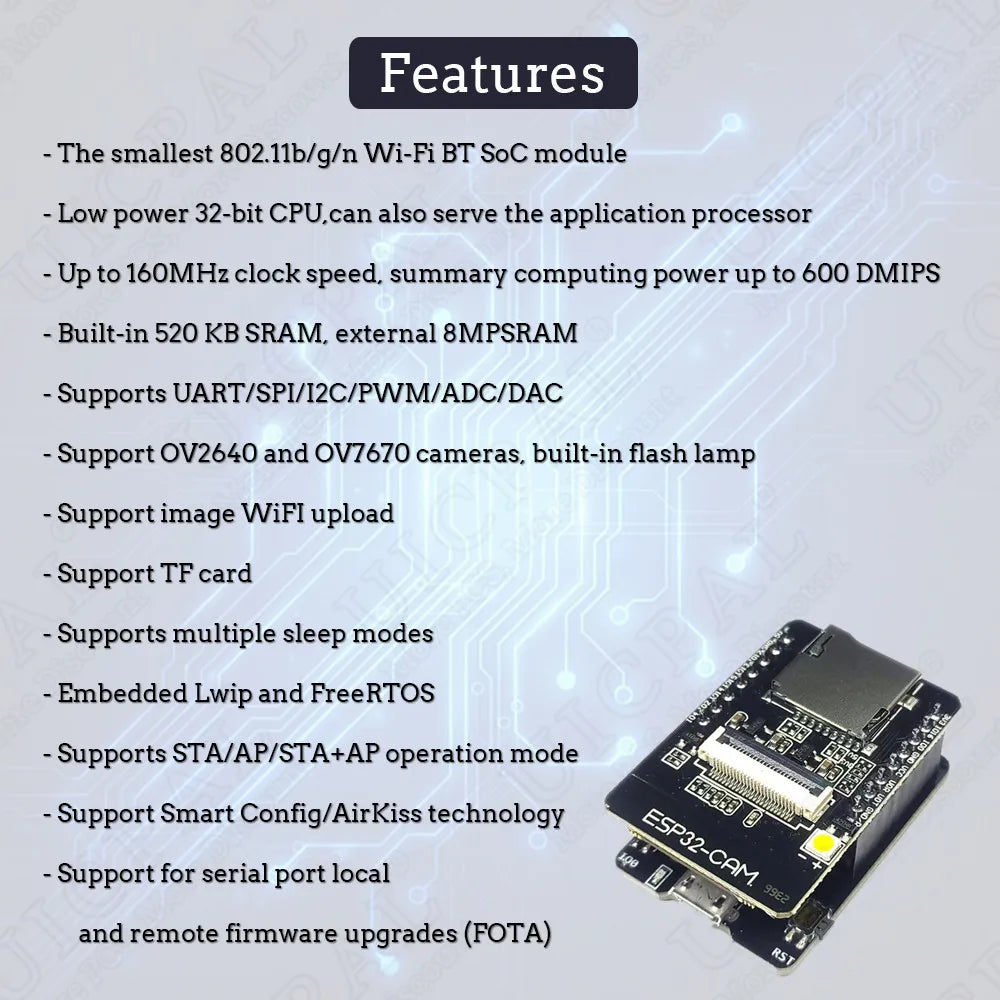

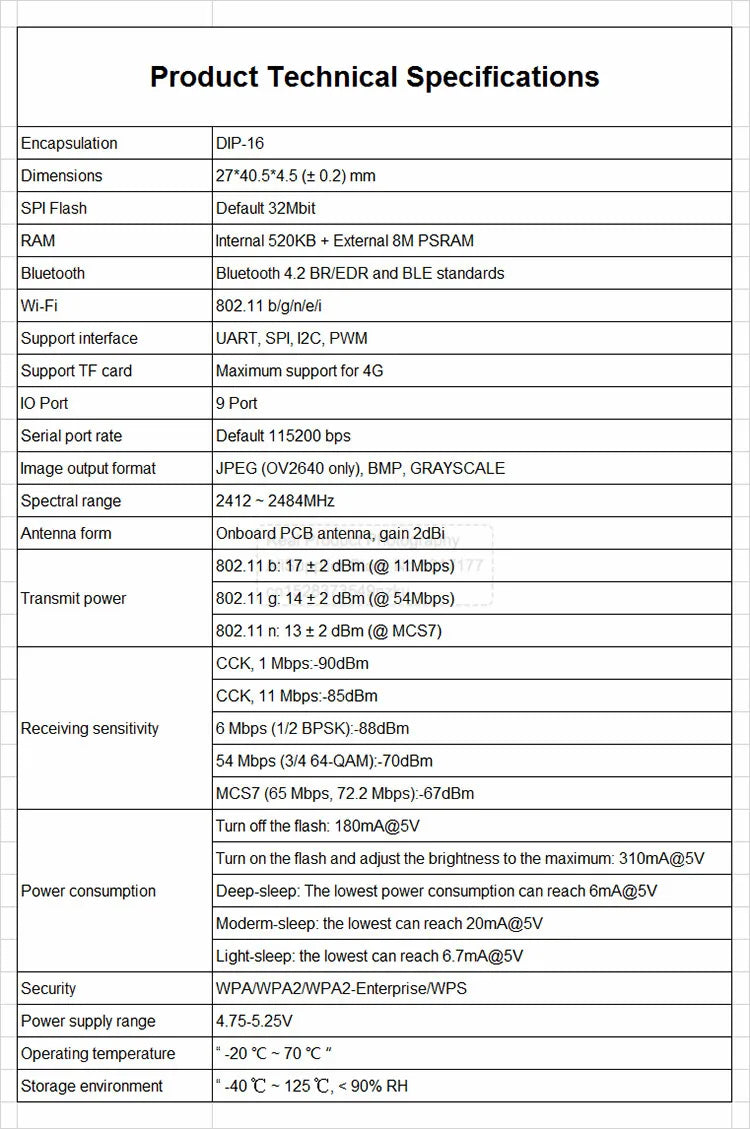

Basic performance parameters

1 The dual-core processor can be used as a low-power dual-core processor.

2 The main frequency is up to 240MHz, and the computing capacity is up to 600dmips

three. Built-in 520 KB SRAM, external 8MB PSRAM

4 Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces

5 Support OV70 flash and OV2640

6 Support picture WiFI upload

7 Support TF card

8 Support multiple sleep modes.

9 Embedded Lwip and FreeRTOS

10 Support STA/AP/STA+AP working mode

11 Support smart configuration/AirKiss one-key network configuration

12 Support secondary development

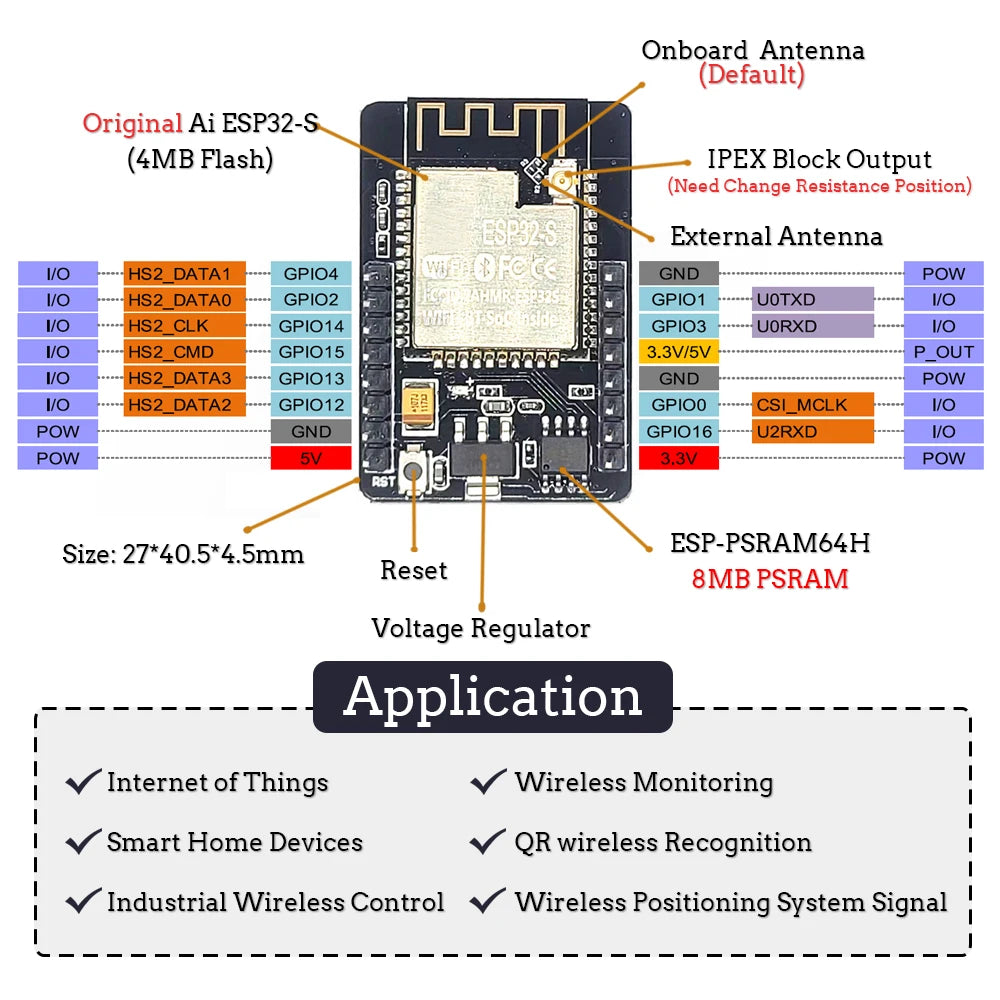

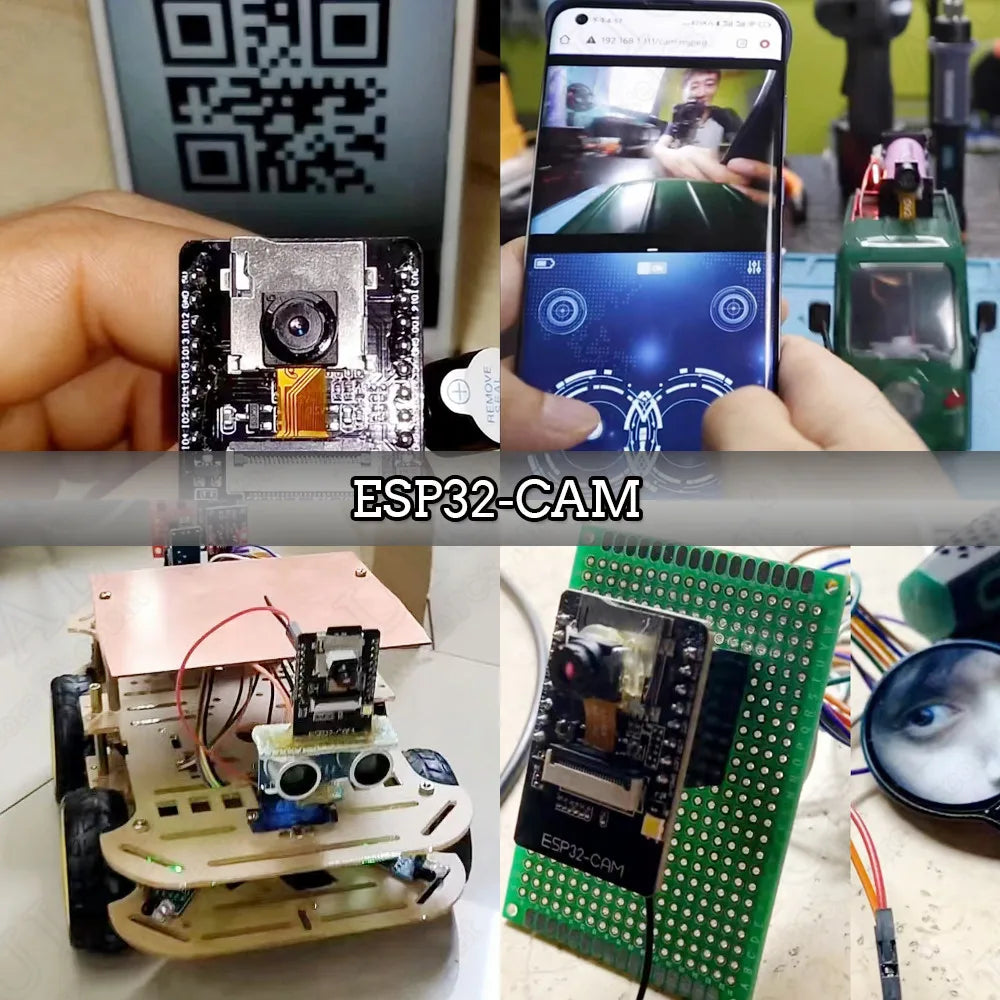

Application scenario

1 Home smart device image transmission

2 wireless monitoring

three. Smart agriculture

4QR wireless identification

5 wireless positioning system signal

6 and other IoT applications

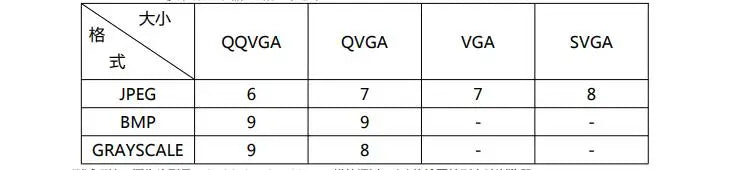

ESP32-CAM module picture output format rate:

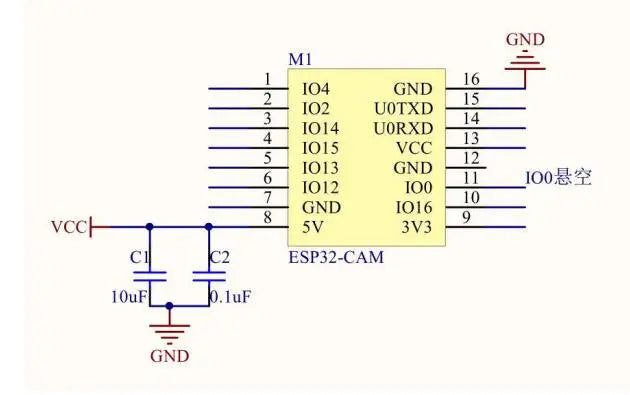

Minimal system diagram:
