SPECIFICATIONS

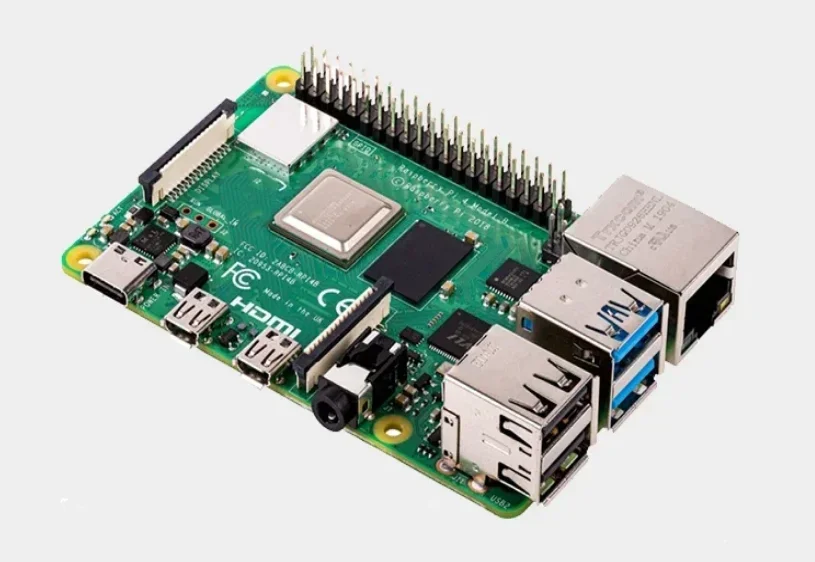

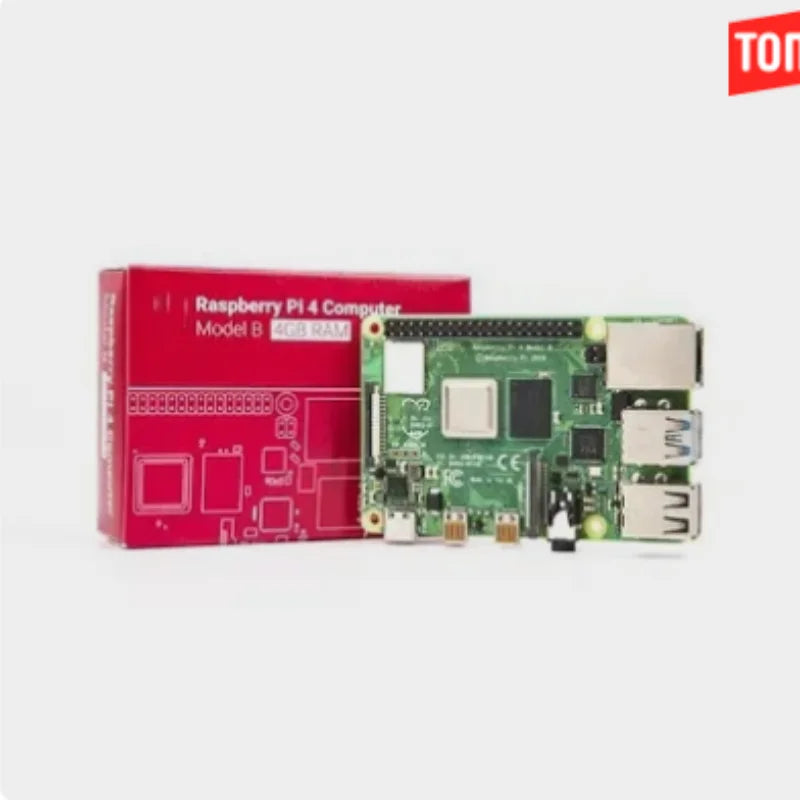

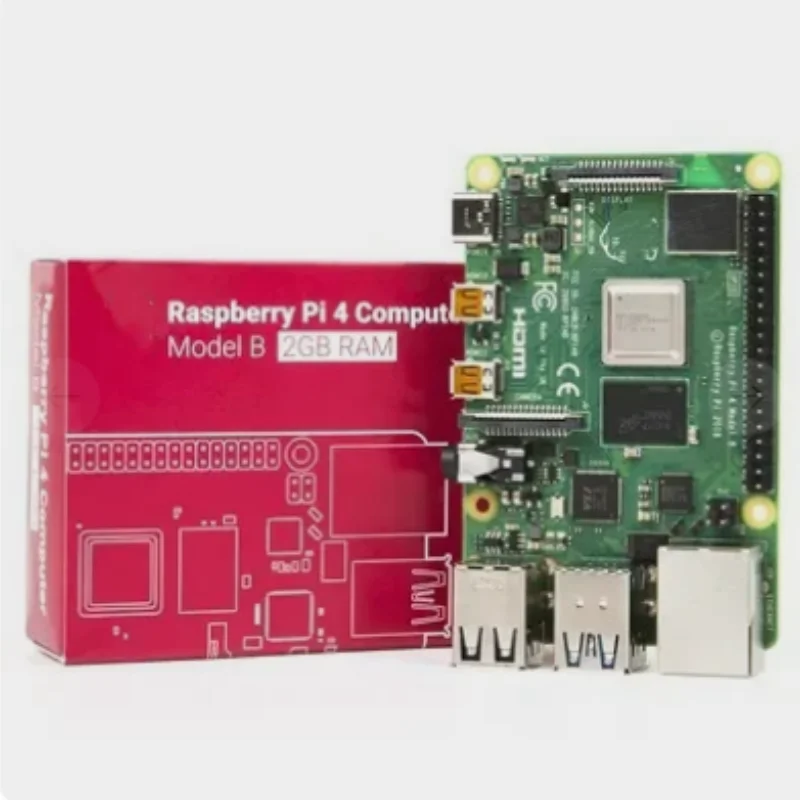

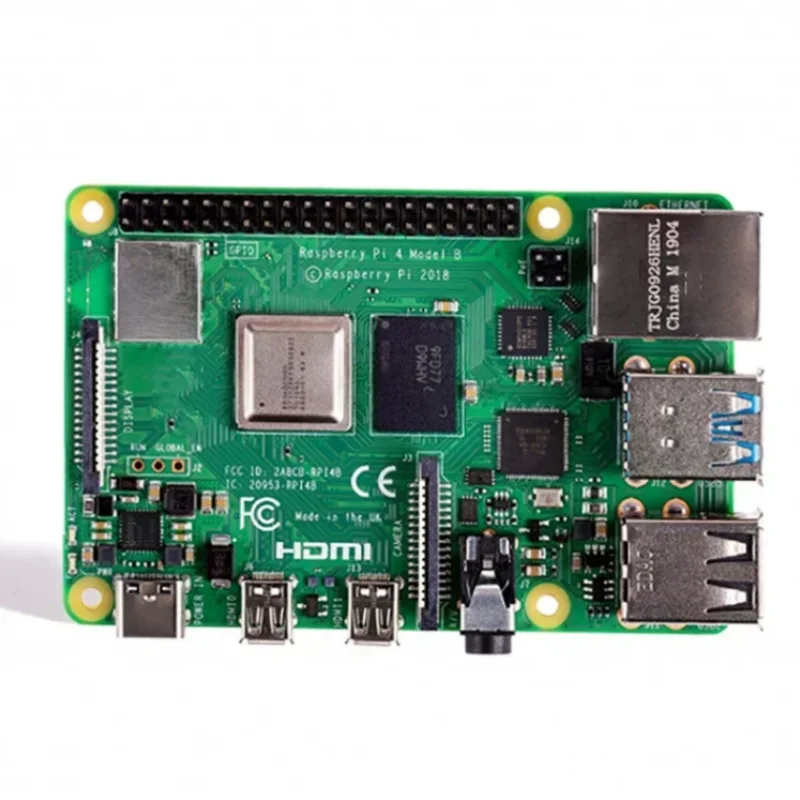

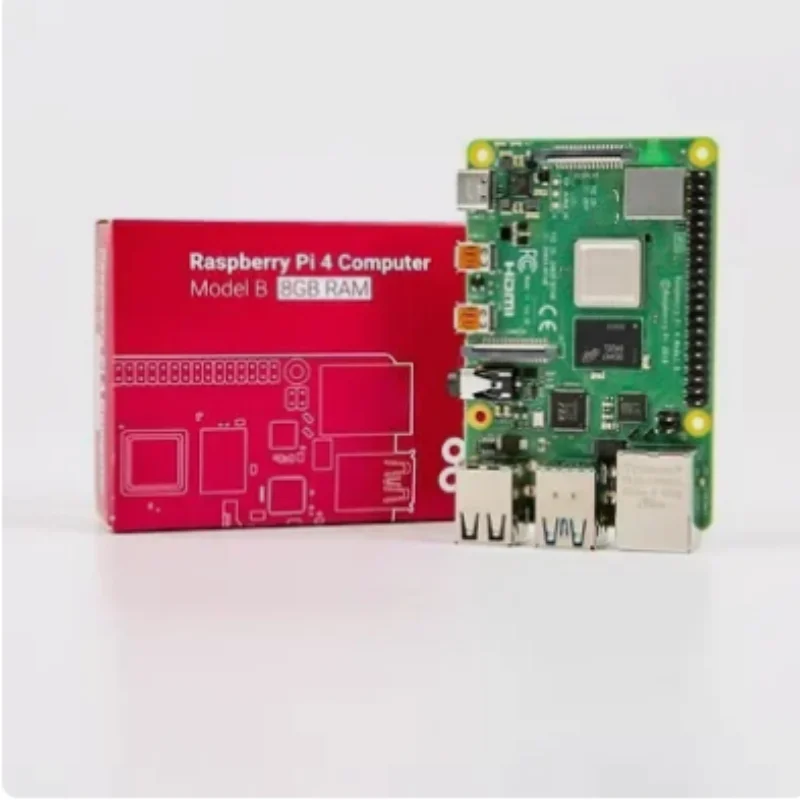

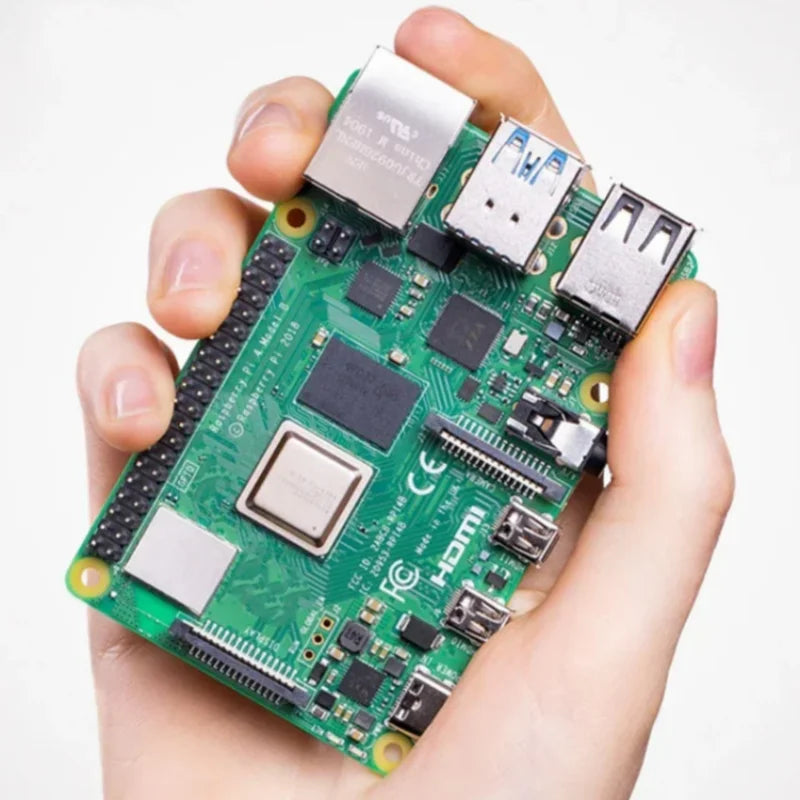

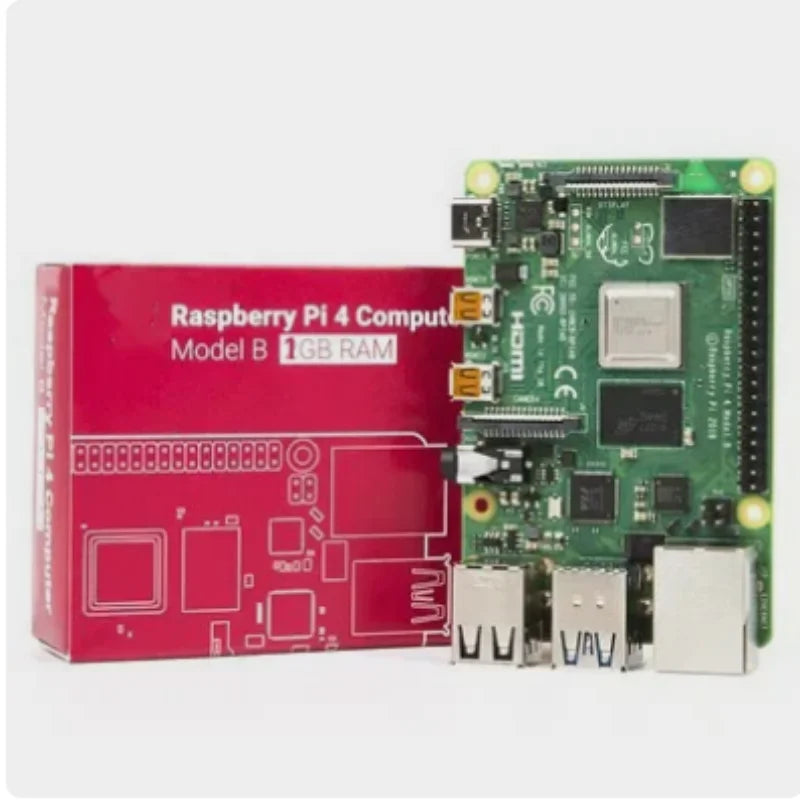

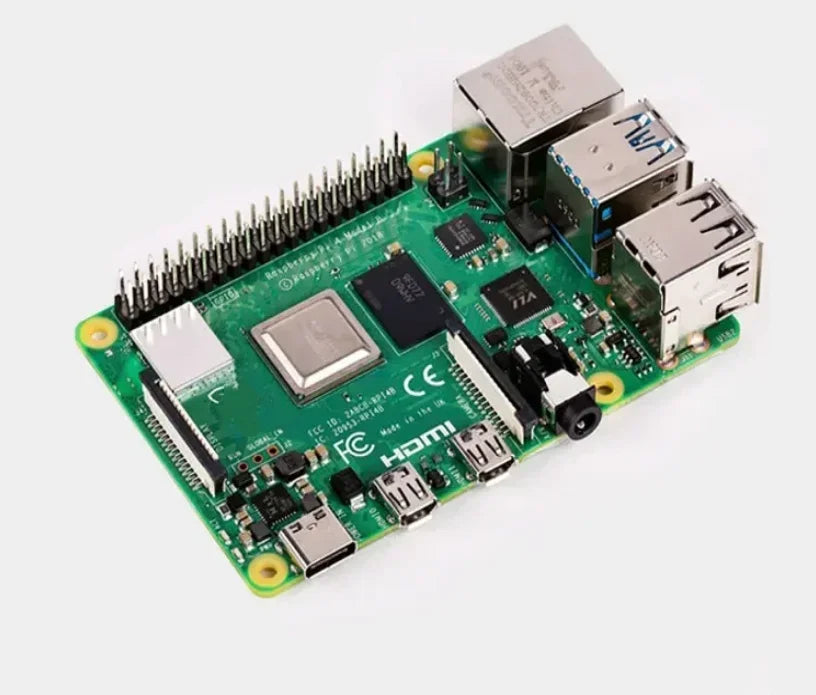

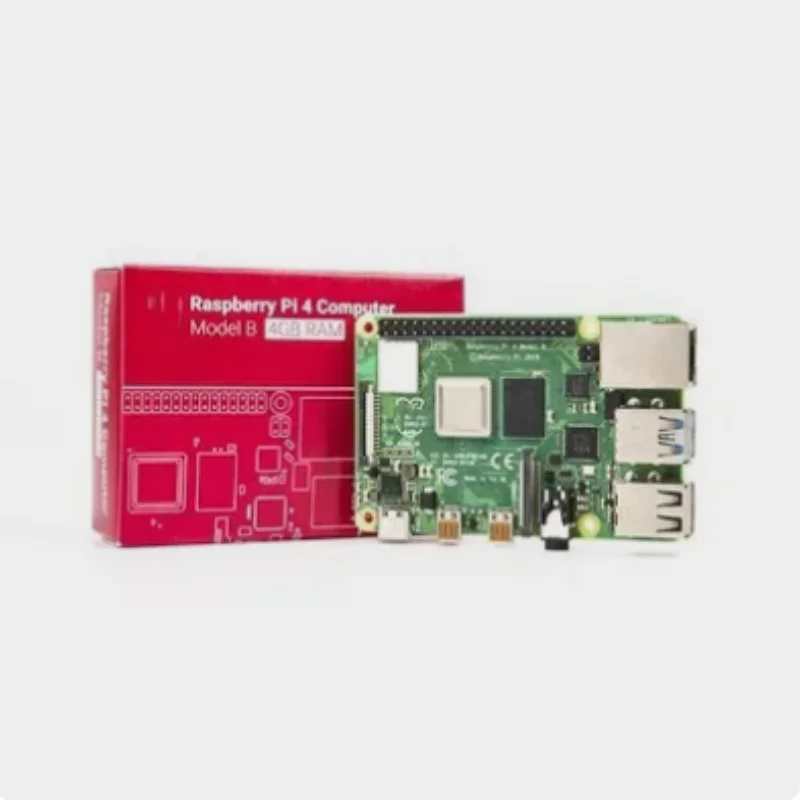

Original Raspberry Pi 4B 8GB/4GB/2GB RAM 64 bit quad core Bluetooth WiFi 5.0 development board

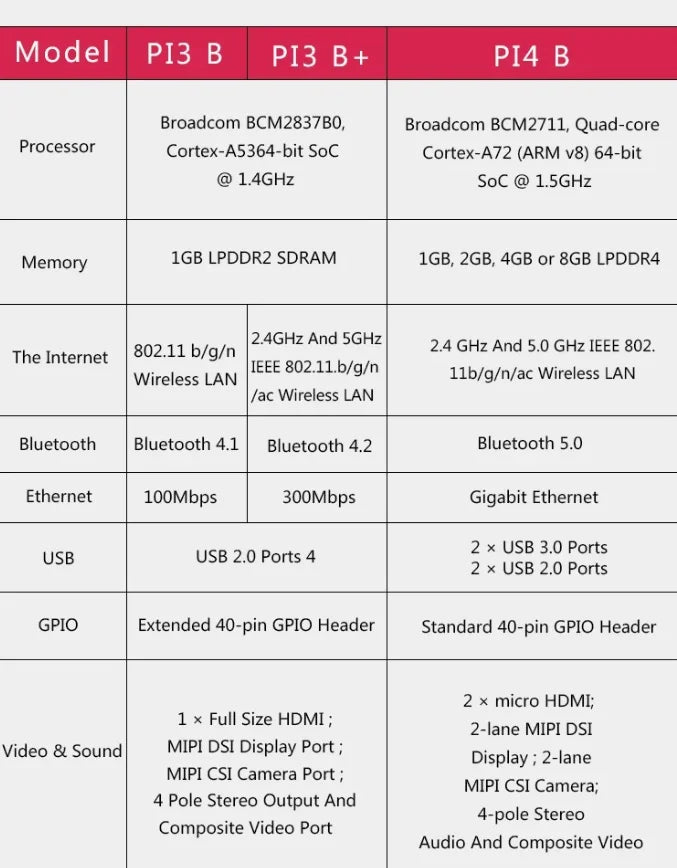

technical specifications
Raspberry Pi 4 B model 1GB
Raspberry Pi 4 B model 2 GB

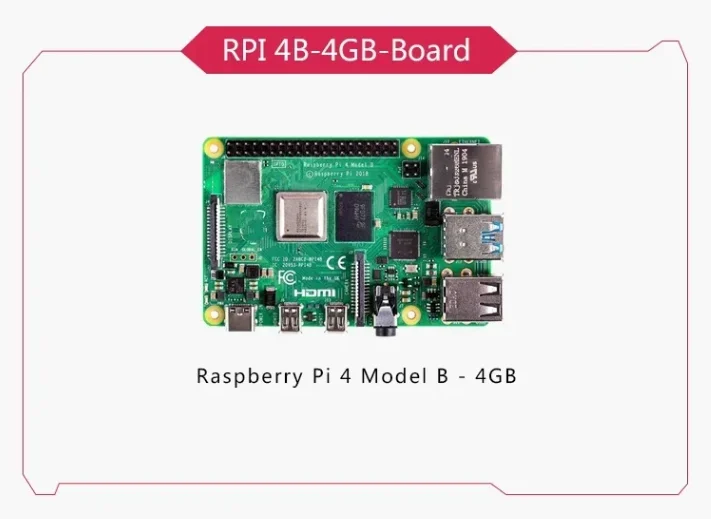

Raspberry Pi 4B model 4GB

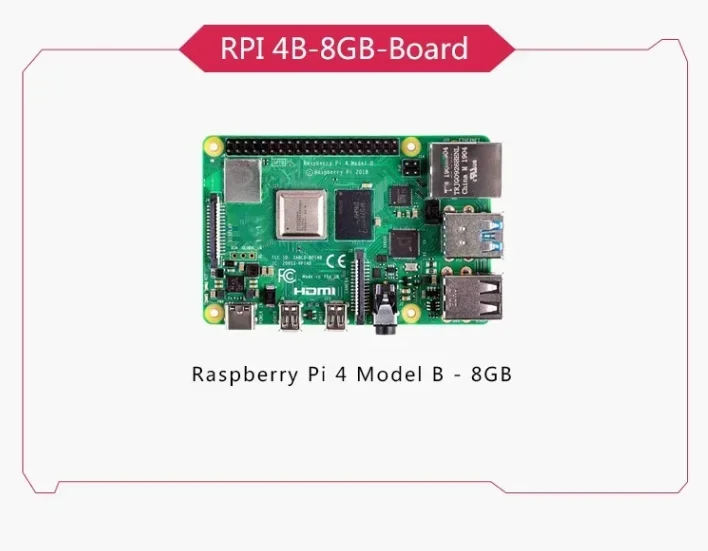

Raspberry Pi 4 B model 8GB

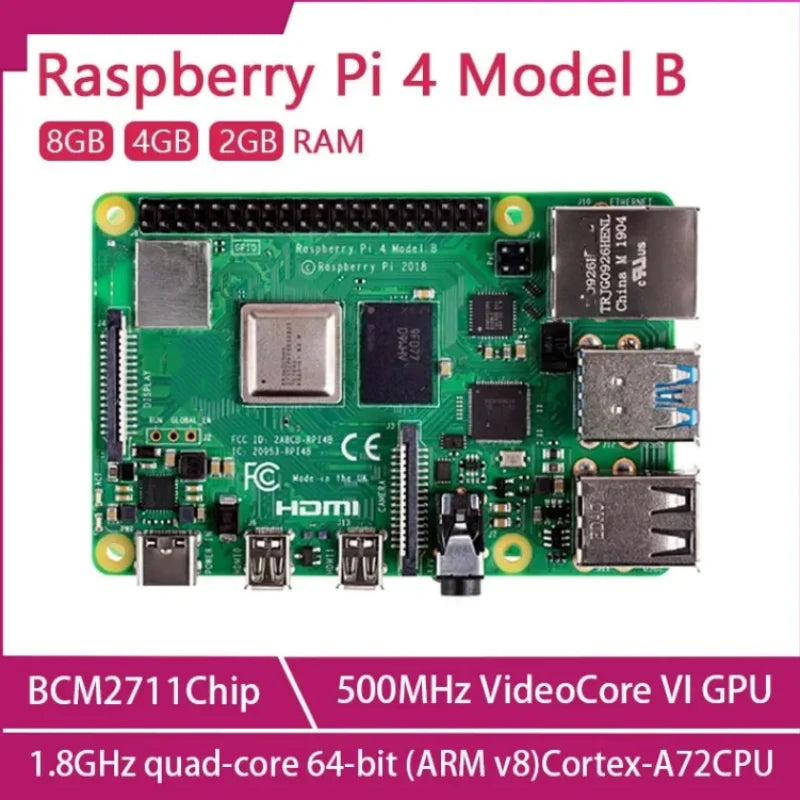

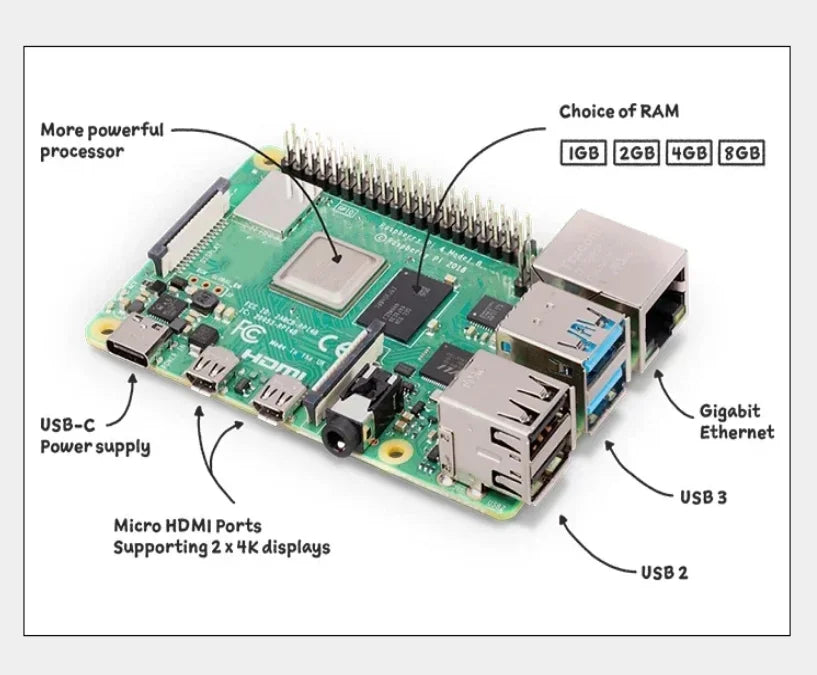

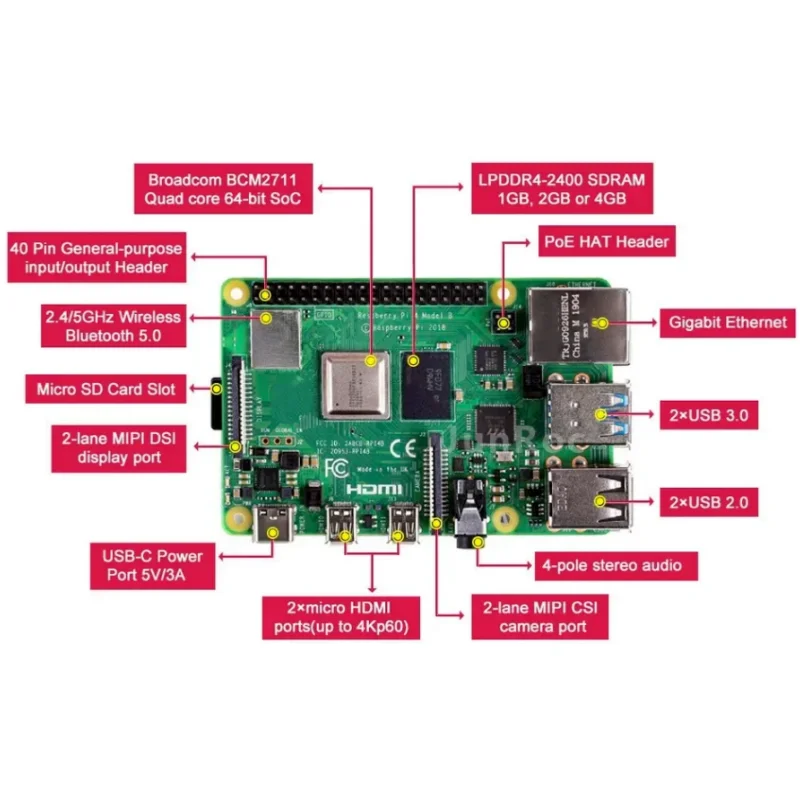

Broadcom BCM2711 quad core Cortex-A72 (ARM V8) 64 bit SOC, 1.5GHz
2GB, 4GB, or 8GB LPDDR4-3200 SDRAM (depending on model)

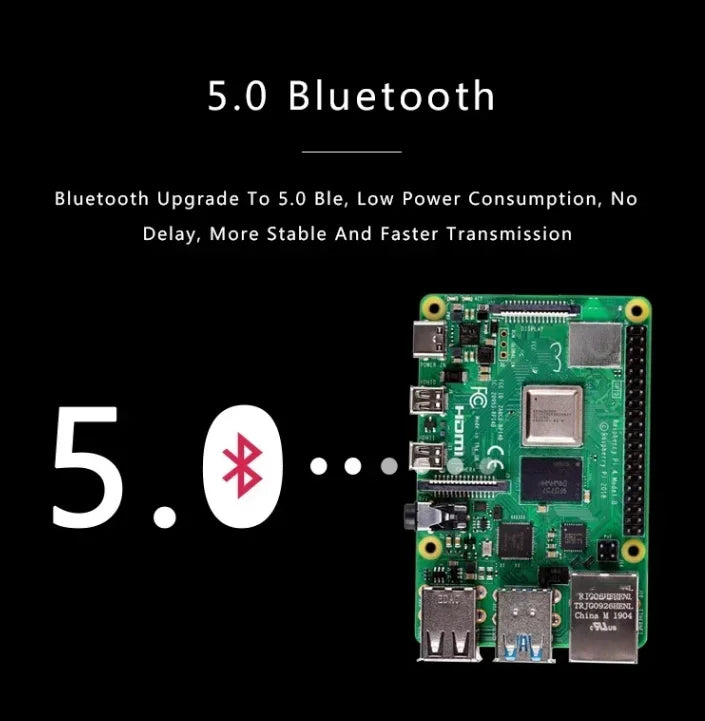

2.4 GHz and 5.0 GHz wireless IEEE 802.11ac, Bluetooth 5.0, BLE

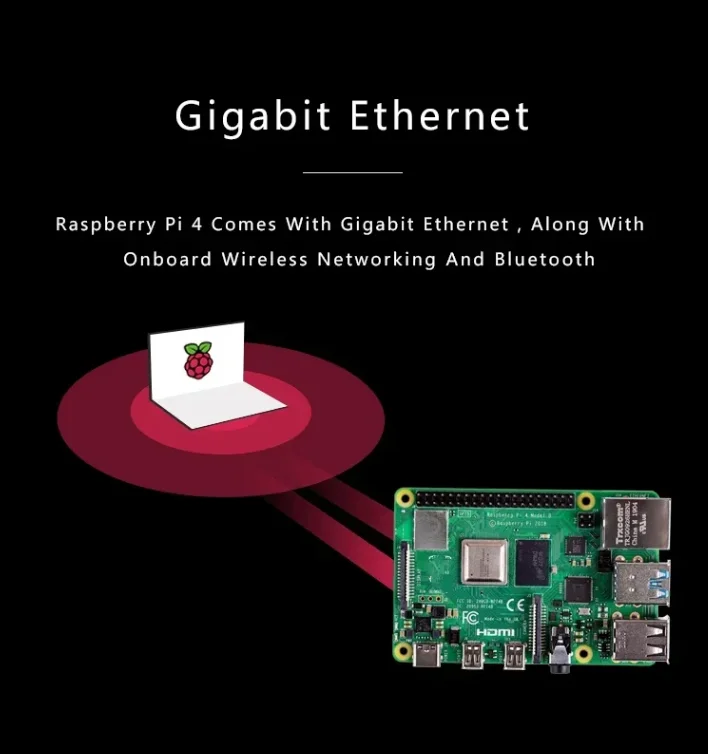

Gigabit Ethernet
2 USB 3.0 ports; 2 USB 2.0 ports.
Standard 40 pin GPIO Raspberry Pi connector (fully backward compatible)
2 micro HDMI ports (supporting 4KP60)
2 MIPI DSI display ports
2 MIPI CSI camera ports
Quadrupole stereo audio and composite video ports

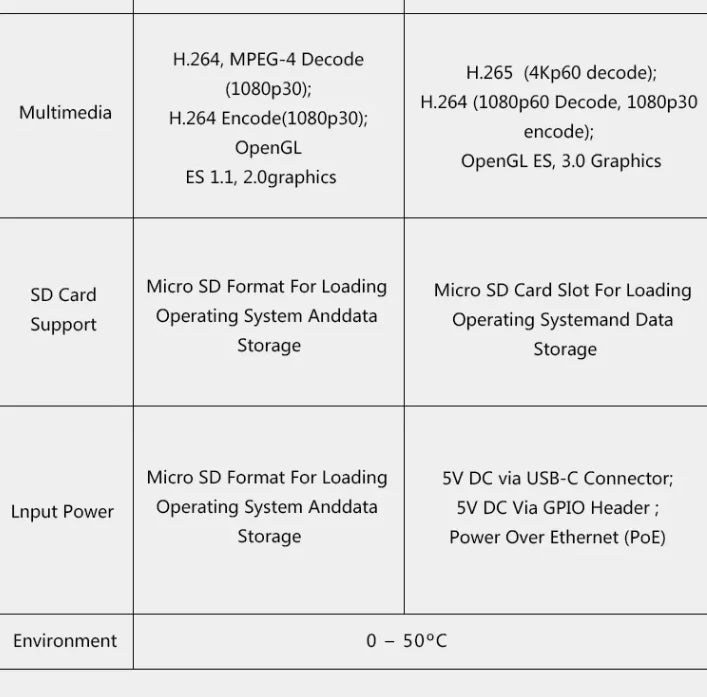

H. 265 (4KP60 decoder, H264 decoder (1080P601080P30 encoding)
OpenGL ES 3.1, Vulkan 1.0

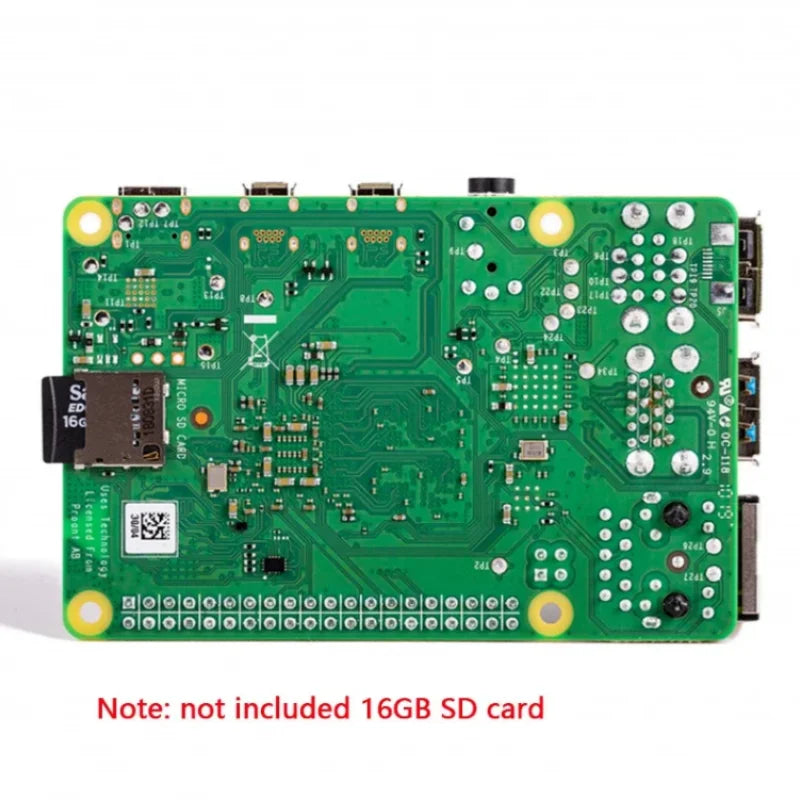

Micro SD card slot for operating system downloads and data storage
5V DC via USB-C interface (at least 3A *)
5V DC through GPIO connector (at least 3A *)
Enable power via Ethernet (PoE) (requires separate PoE engine cover)
Working temperature: Environment 050 ° C
*If the power consumption of the following USB peripheral devices is below 500mA, a 2.5A high-quality power supply can be used.
