SPECIFICATIONS

Brand Name: NovelLife

Certification: CE,FCC

Color: Dark Grey

Dimensions: 168mm

High-concerned chemical: none

Input Voltagle: DC 9-24V, PD3.0 9-28V

Is Smart Device: Yes

Model Number: Miniware TS101 smart soldering iron TS100 Pine64 Pinecil Upgrade

Origin: Mainland China

Output Temperature: 50-400 Celsius Degree

Output Voltage: 65W(DC), 45W(PD)

Power Input Jack: DC5.5*2.5, USB Type C

Soldering Iron Handle Material: Plastic

Soldering Iron Handle Size: 98X16.5mm(L*D)

Soldering Iron Tip Size: 105X15.5mm(L*D)

Soldering Iron Tip Type: TS-B2

Temperature Adjustment: Support

Temperature Stability: +/-2%

Voltage: Below-50V AC (Safety Extra-Low Voltage AC, SELV AC)

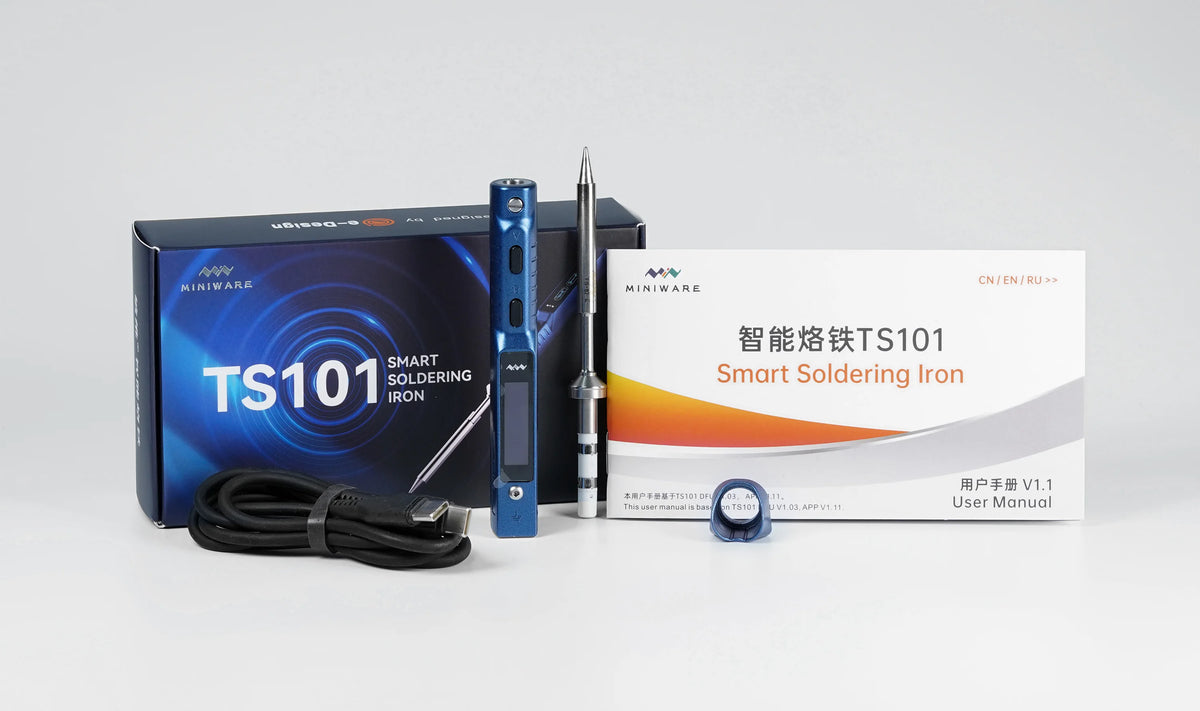

New blue color release if you want it please click below picture:

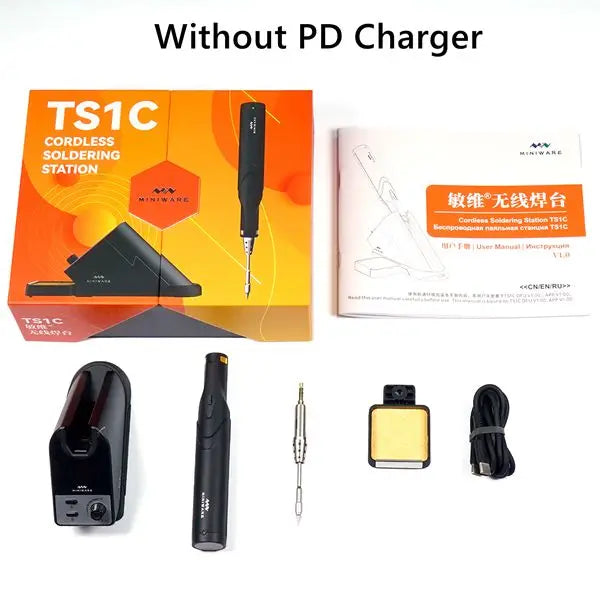

Miniware cordless soldering station release click below picture to buy:

TS101 compatible parts please click below to buy:

Note:

1) the DC power jack has a special structure when you shake the soldering iron, it will produce the sound, it is normal, it is not the quality problem

2)How to let TS101 output 90W

1. Update the ts101 soldering iron's firmware to V2.0 or above

2.Set the "PDPwMax" as "OFF"

3.Provide PD3.1 28V 5A PD charger and 50V 5A 240WEPR USB cable to TS101

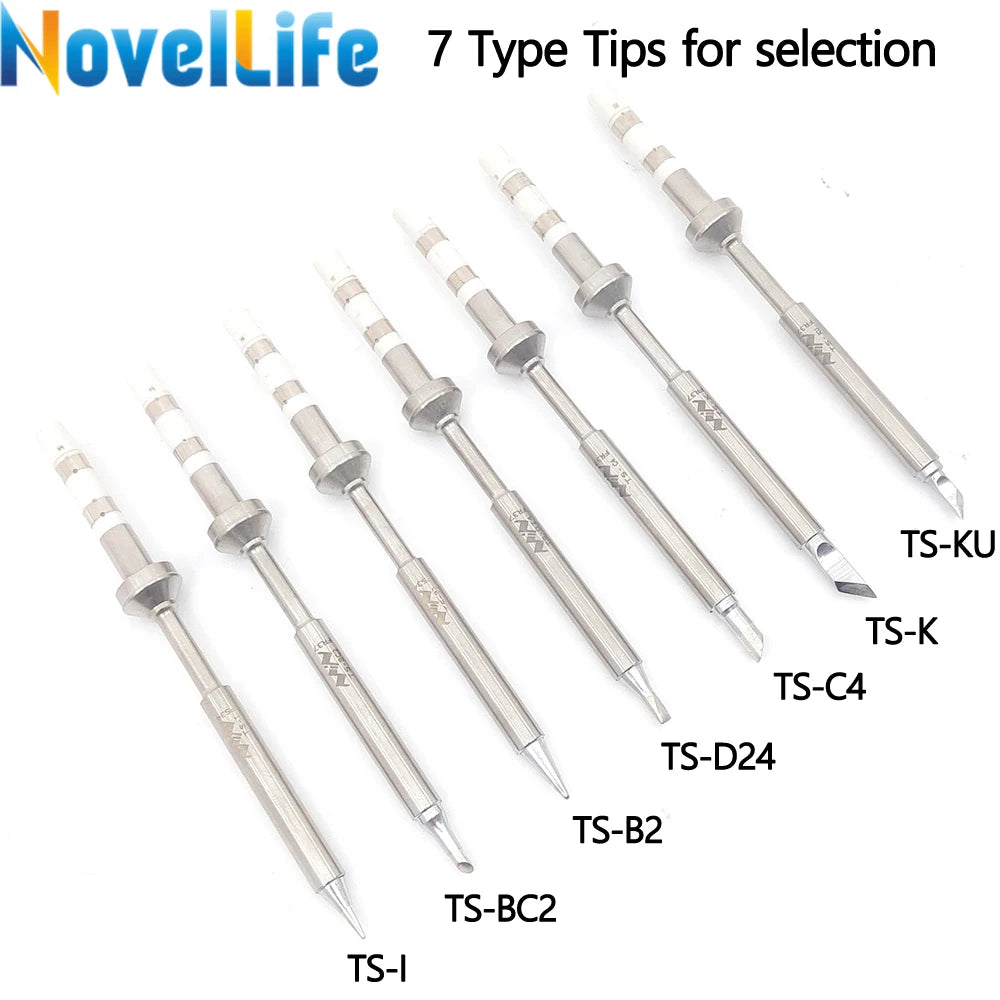

3)the color represent the tip model, and the tip model please refer the following picture

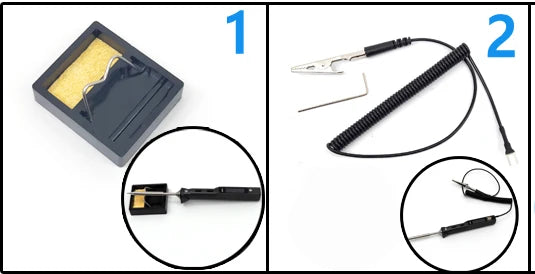

we will send you the ESD ground clip and the mini stand as free gift

Original TS101 Electric Soldering Iron Adjustable Temperature USB Portable Digital Welding Station Mini TS100 Upgrade

the most popular ts100 soldering iron upgraded version just release now and named TS101 with 3 user friendly upgrades:

1) more ergonomic appearance design with larger screen display more information; anti-slip soldering iron handle convenience to grip; pluggable tip installation easy to replace the tip;

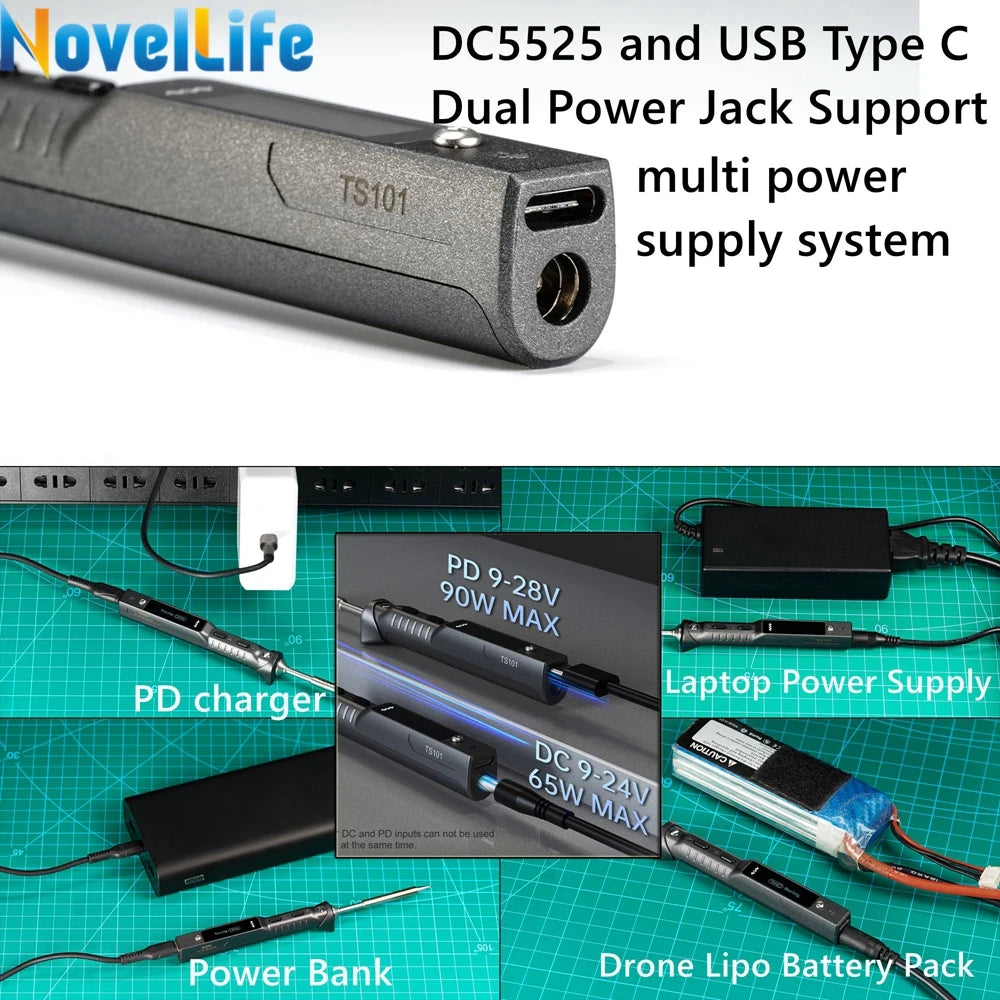

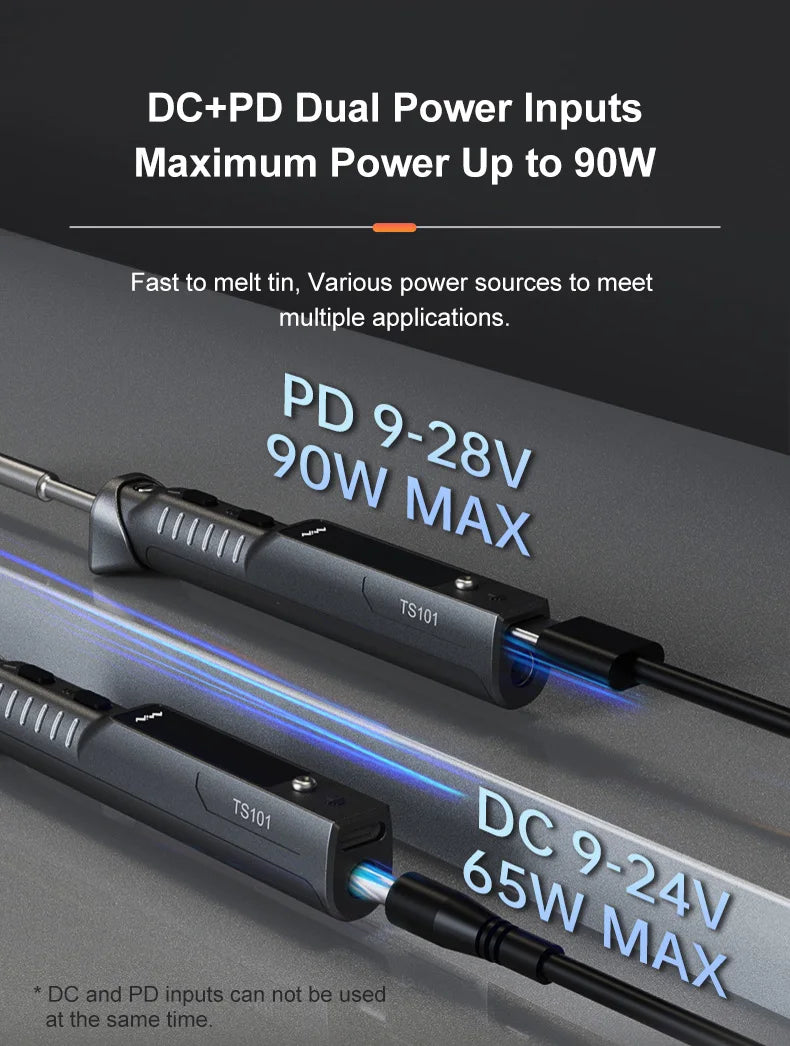

2) upgraded with DC5525 and USB Type C dual power jack support DC 9-24V and PD3.0 9V-28V power supply which can be powered by laptop power supply, the power bank or smart phone quick power charger directly

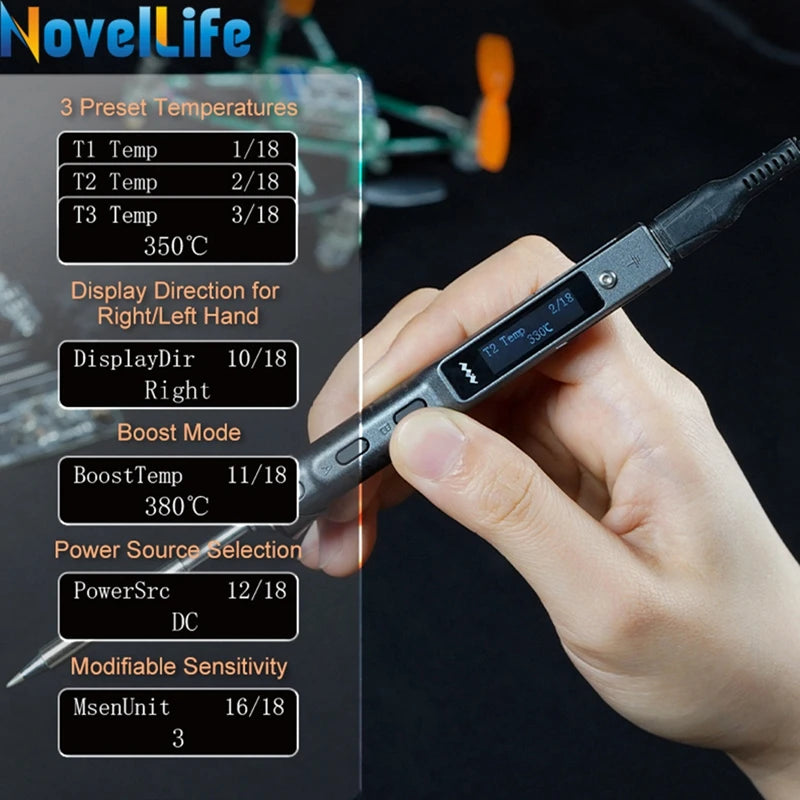

3) support 3 groups default heating temperature and one key turbo boost heating mode to speed up your soldering project and save time

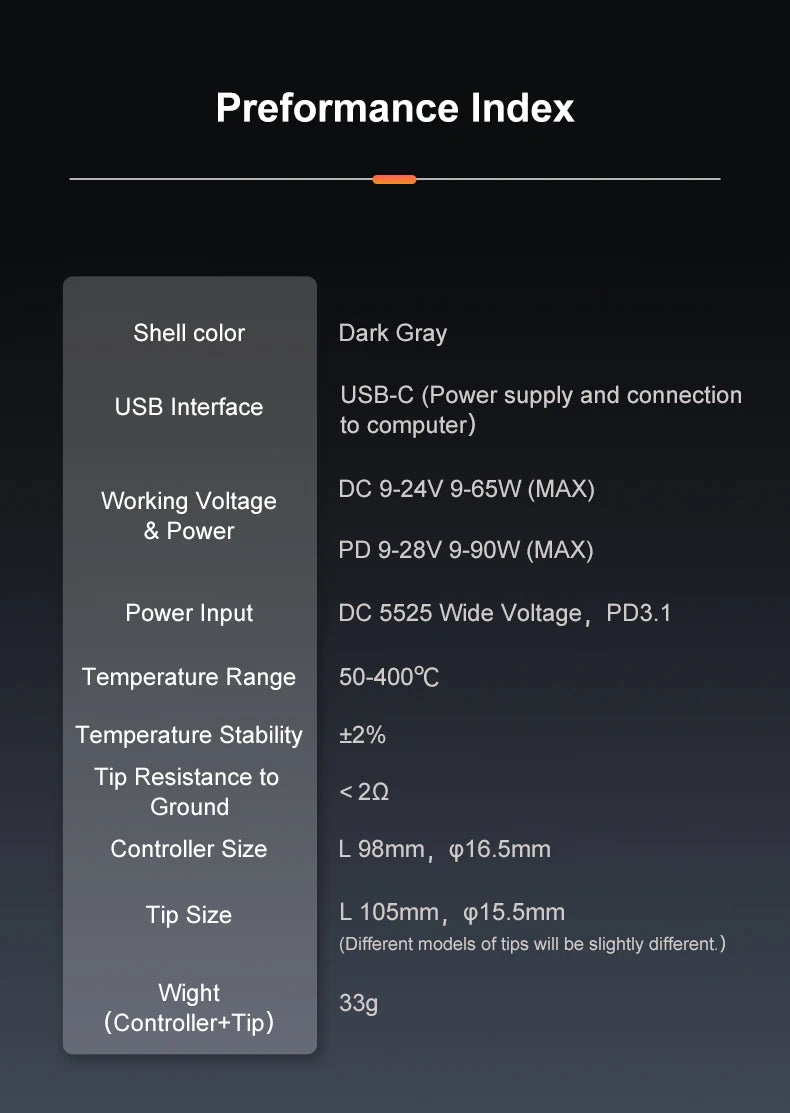

-Model: TS101

-Max. Ouput Power: 65W(DC), 45W(PD)

-Input Voltage: DC9-24V, PD3.0 9-28V

-Power Jack: DC5.5*2.5, USB Type C

-Temperature Heating Adjustable Range: 50C-400C/122F -752F

-Temperature Stability Range: +/-2%

-Soldering Iron Handle Size:16.8X95mm(D*L)

-Soldering Iron Tip Size: 15.5X105mm(D*L, TS-B2)

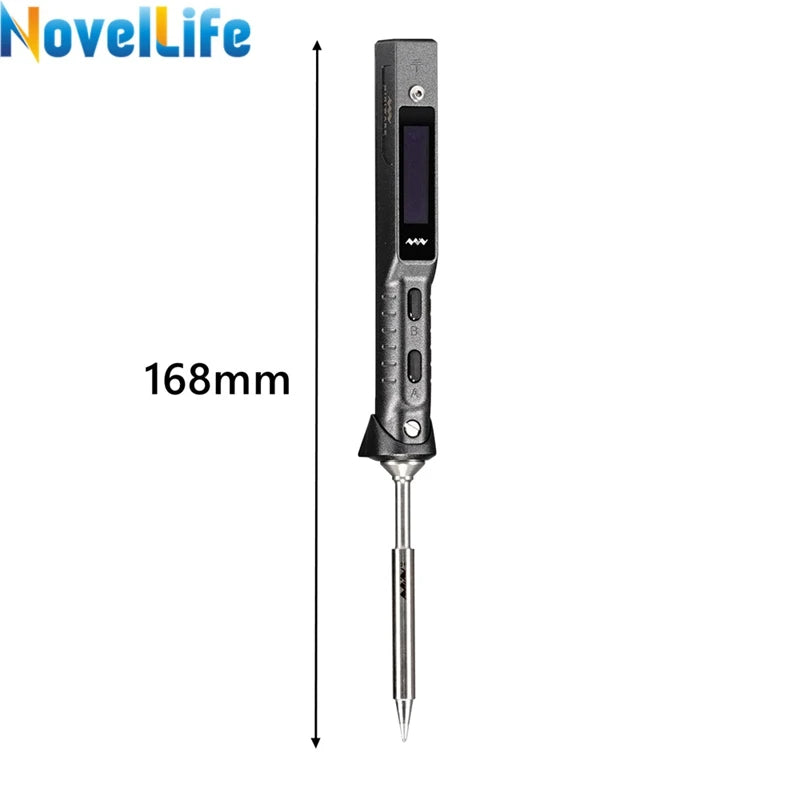

-Overall Length:168mm(tip installed)

-Net Weight:33g

Features:

1) TS100 upgraded with more ergonomic appearance design: anti-slip plastic handle and pluggable ball-nut tip installation, larger led screen display more information

2) Embedded smart MCU processor chip to control soldering iron and monitor the soldering iron tip timely ensure stable heating temperature support auto sleep, auto stanby and intelligent temperature compensation and also support firmware update

3) Internal Heating design with dual temperature sensor and acceleration extreme cooperate ensure fast heating speed,reach the set the temperature only few seconds

4) Support 3 group default heating temperature and one key turbo boost heating mode to speed up your soldering project and save time

5) 9V-24 low working voltage with DC5525 and USB Type C dual power jack support DC 9-24V and PD3.0 9V-28V power supply which can be powered by laptop power supply, the power bank or smart phone quick power charger directly

6) Comes with soft silicone rubber USB type C cable with high temperature resistance

7) Compact size with pen shape design and only 33g light weight easy to handle and carry

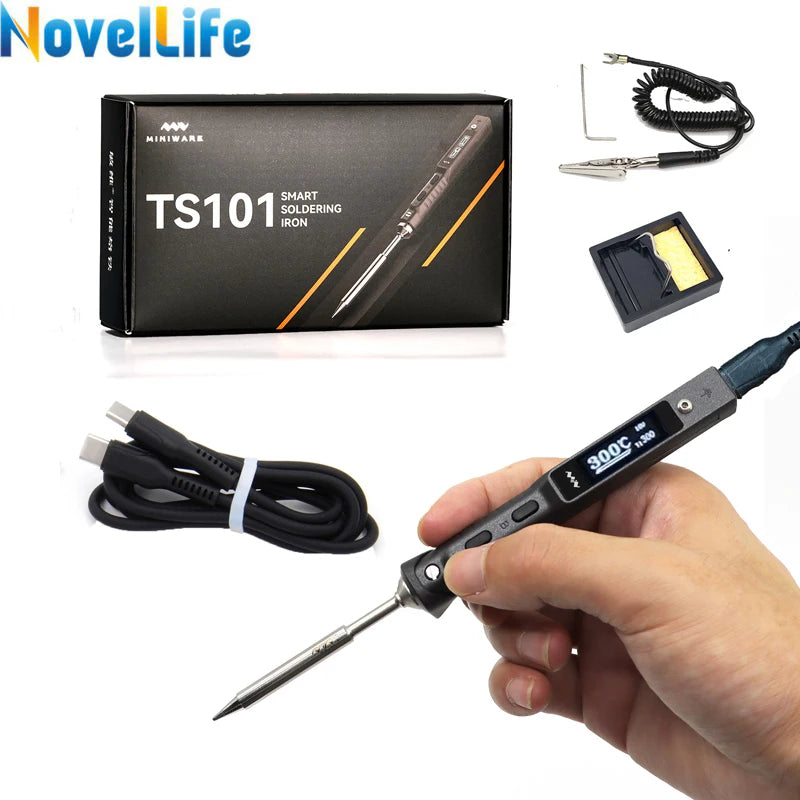

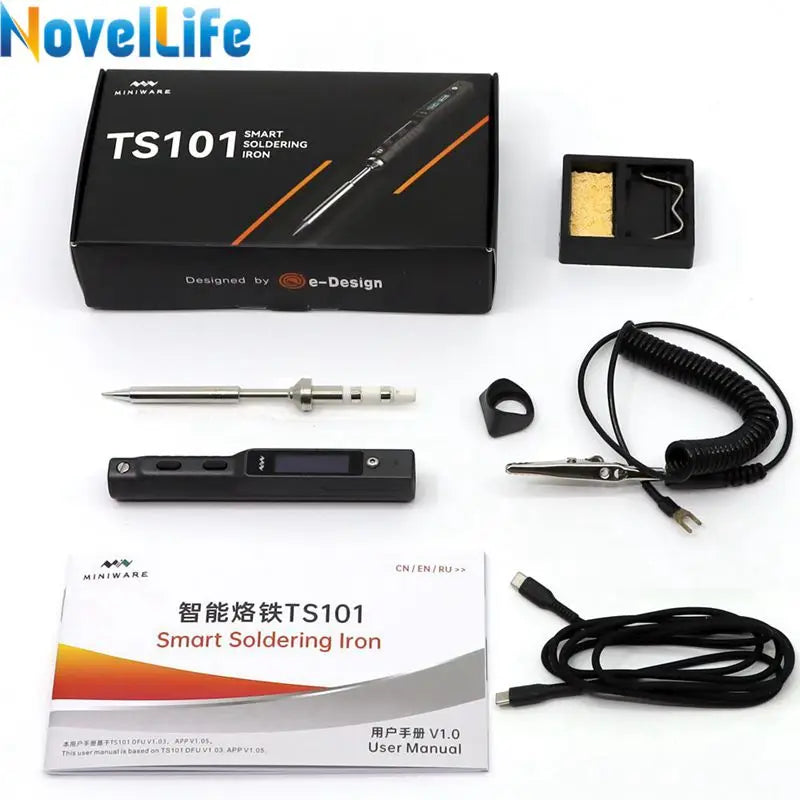

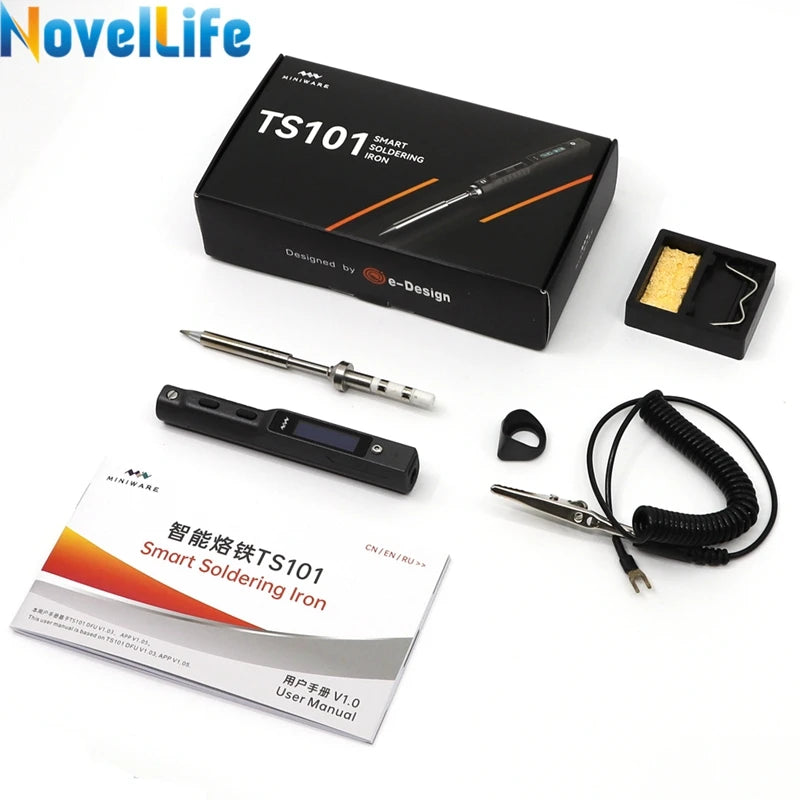

Package Included:

1X Original TS101 Soldering Iron

1X USB Type C Cable

1X Mini Soldering Stand

1X ESD Ground Clip
