Features:

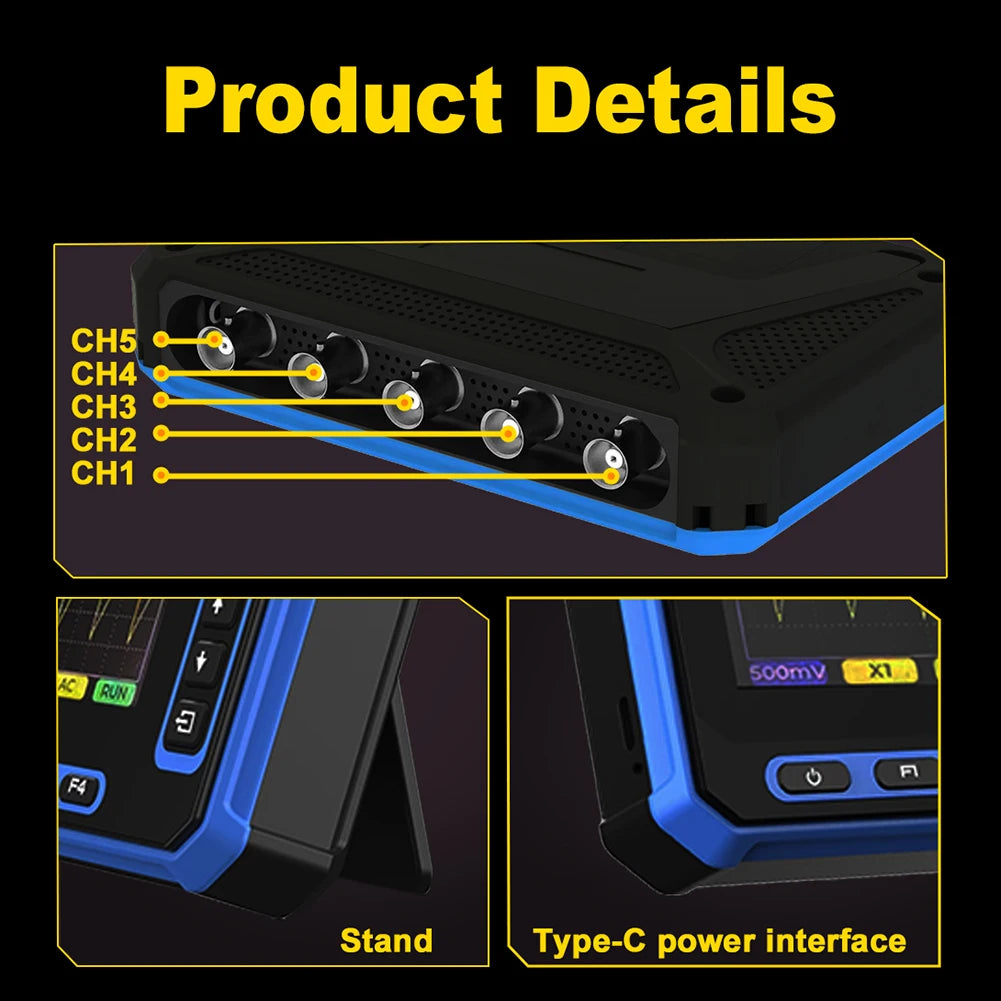

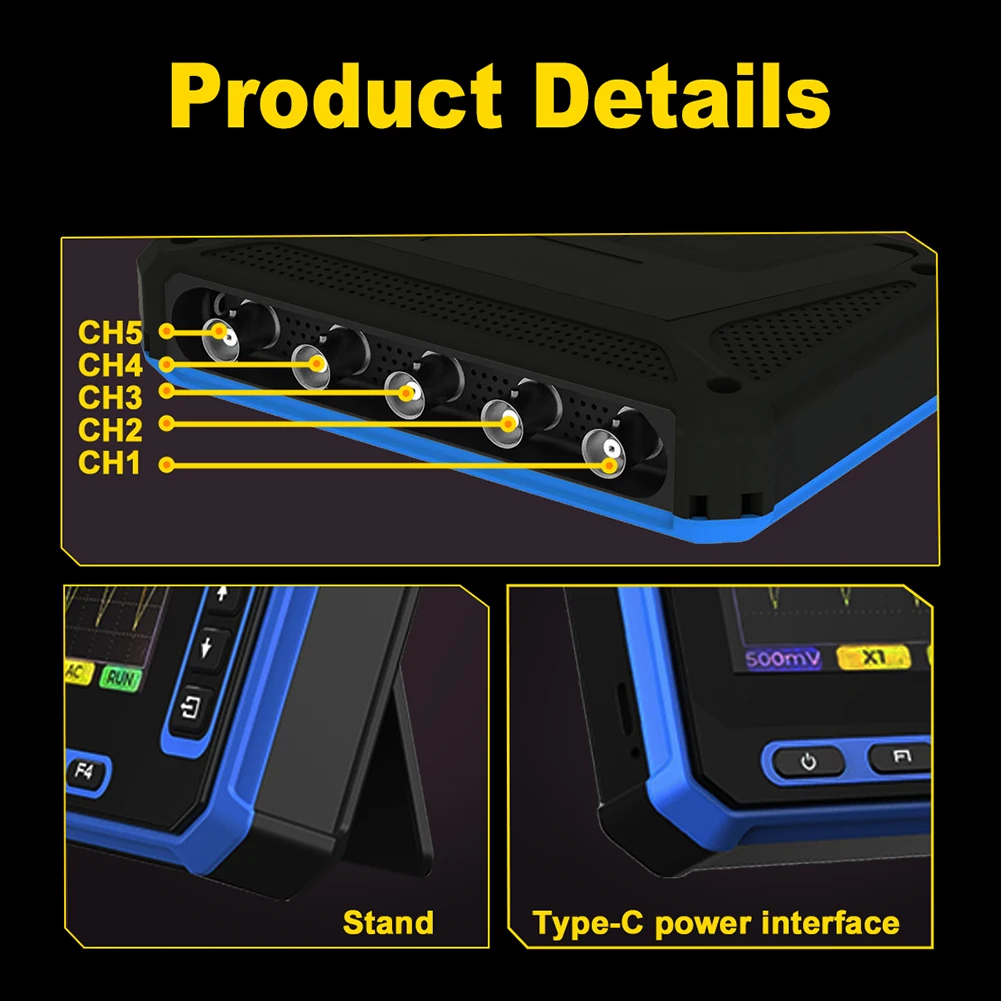

Supports simultaneous acquisition of 5 channels, reducing device switching time and facilitating for rapid troubleshooting.

Wireless for WiFi (optional): Remotely control your phone or computer. Dual-band for WiFi, supports for Android/ for Windows systems.

Wired USB: and play, compatible with for Windows systems.

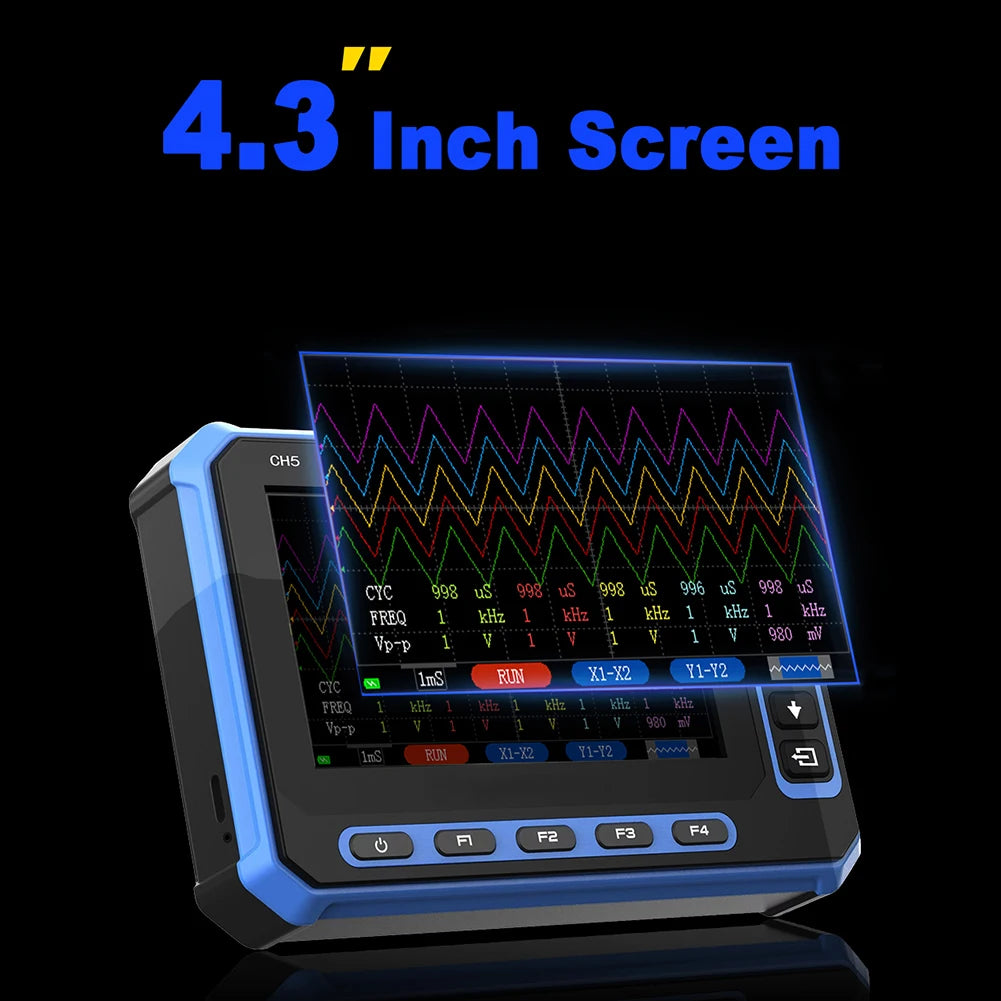

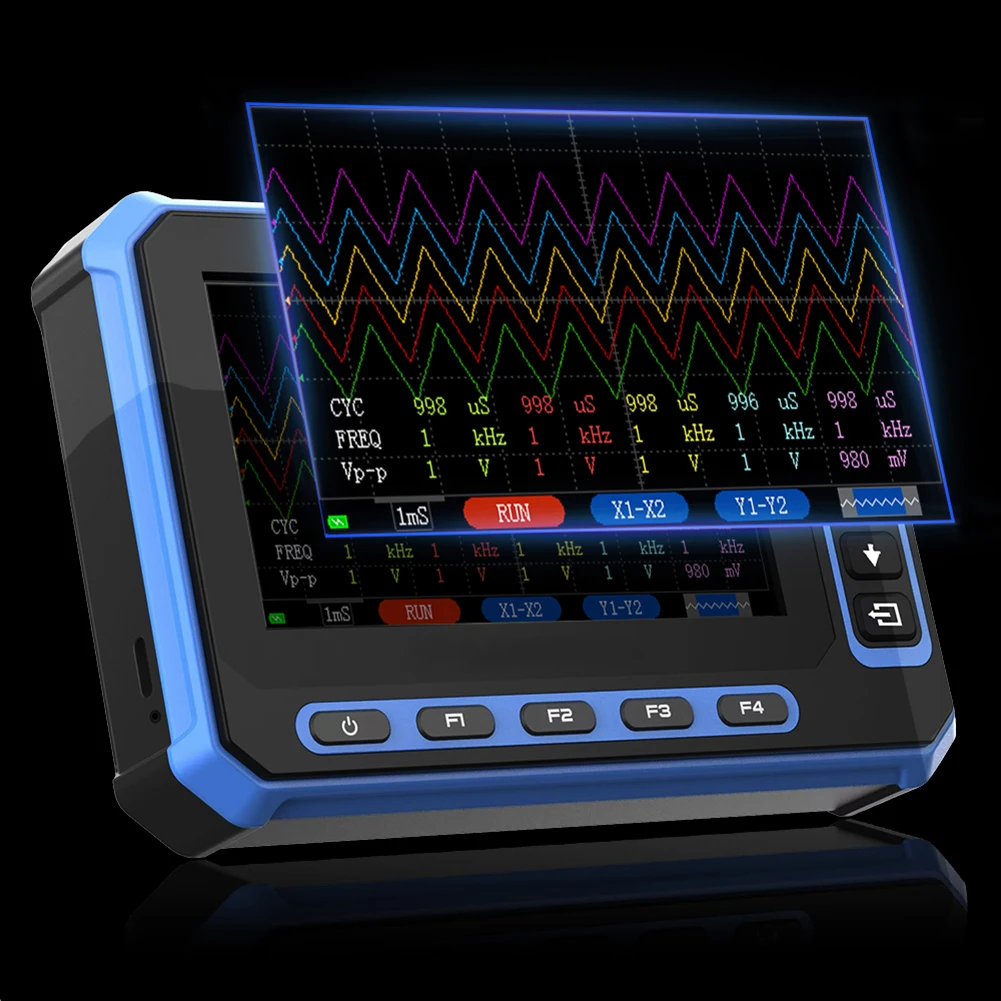

4.3-inch color screen; oscilloscope software interface with over 80% effective view area for richer waveform details.

1MHz bandwidth, specifically designed for low-frequency signals (such as audio, sensor signals, and industrial control signals); supports sampling rates up to 3MHz, meeting the needs of basic research, development, and teaching.

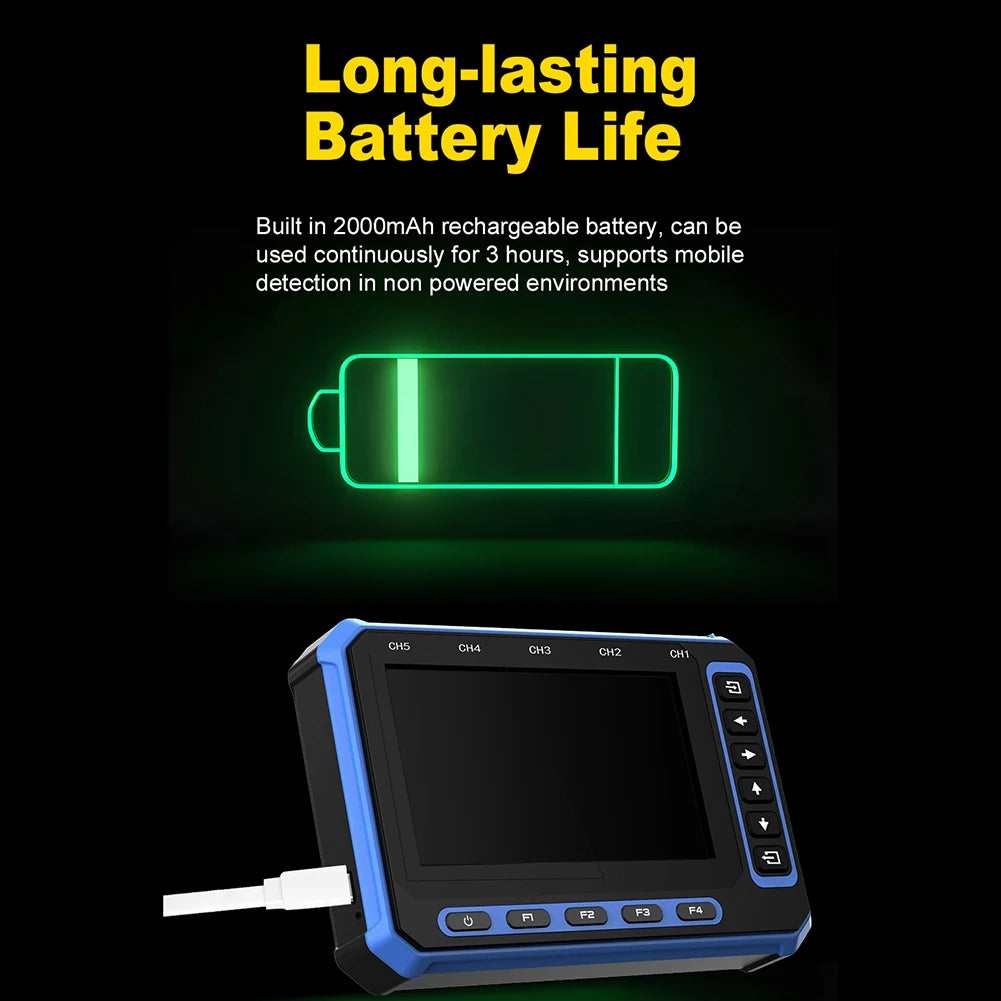

Lightweight and portable, weighing only 350 grams. Built-in 2000mAh battery, providing up to 3 hours of continuous operation.

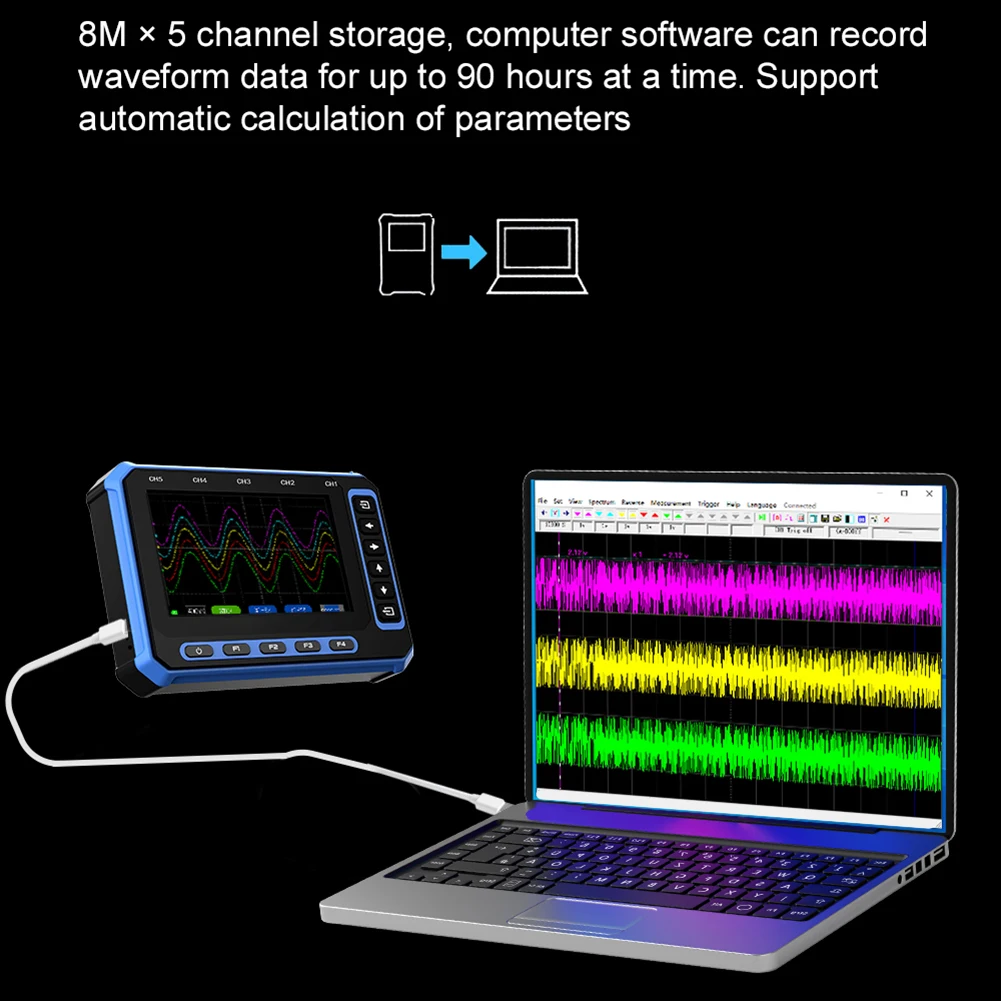

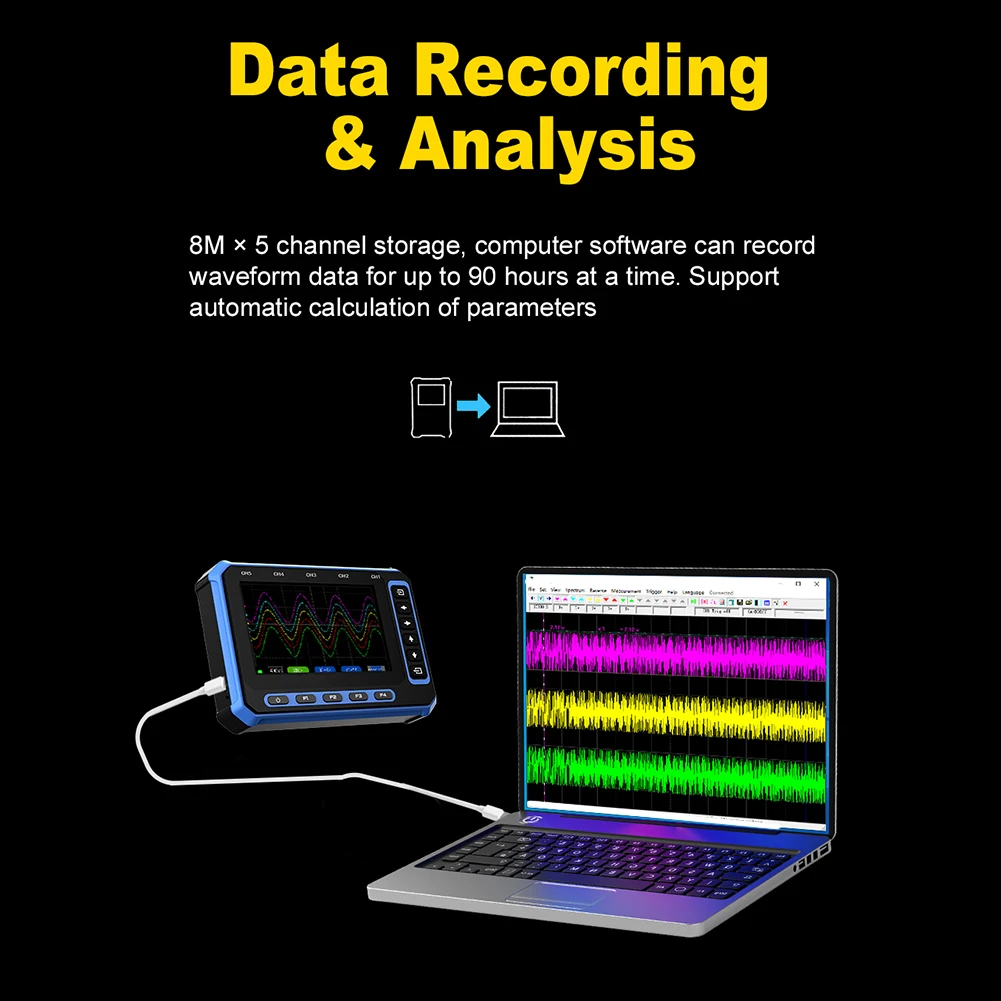

8M×5 channel storage; computer software can record up to 90 hours of waveform data at a time. Supports periodic signal analysis.

Applications include: laboratory R&D and signal analysis, industrial automation and equipment maintenance, automotive electronic system testing, mobile device repair and field testing, etc.

Specifications:

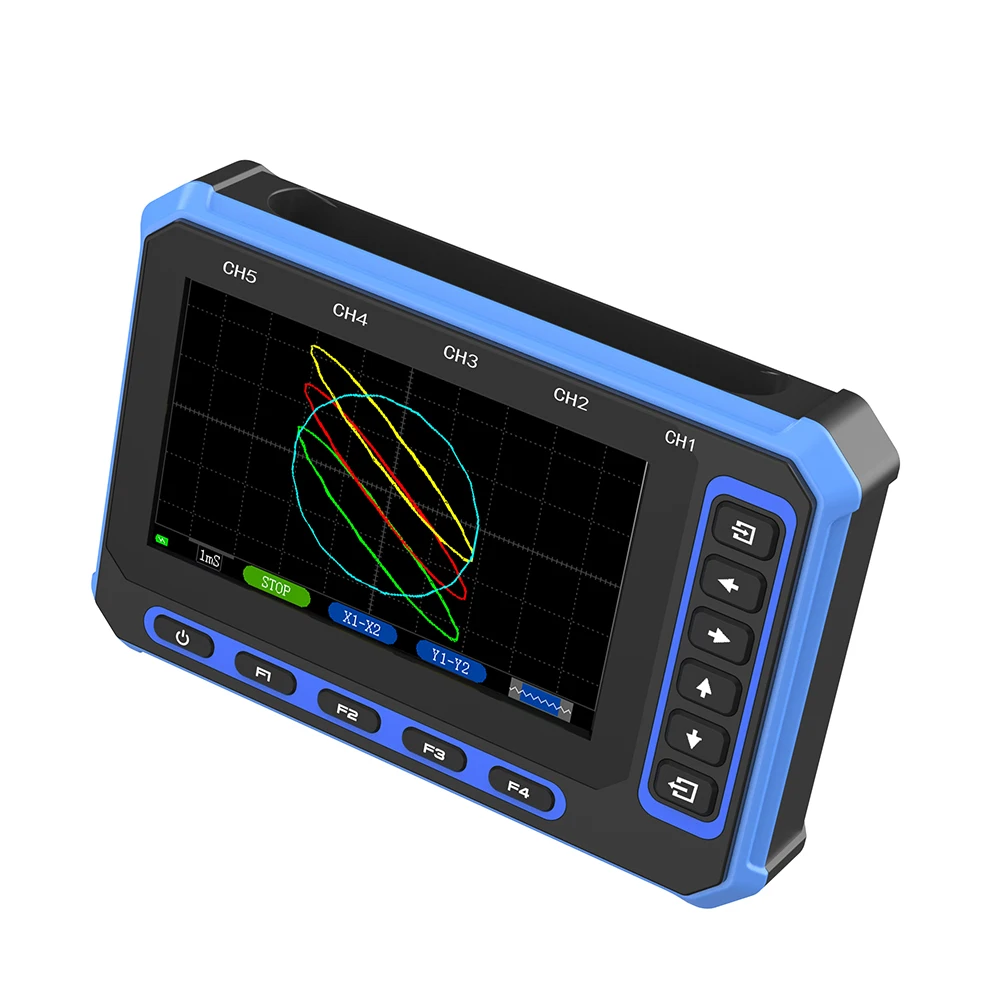

Product Name: OS-5C Digital Oscilloscope

Model: OS-5C

Material: ABS

Color: Blue

size: 150mm*100mm*32mm

Screen: 4.3-inch IPS 480*272

Channel Number: 5

Maximum Sampling Rate: 3MHz*3 / 1.5MHz*4 / 1.5MHz*5

Bandwidth: 1MHz

Input Impedance: 1MΩ/20pF

Input Selection: AC/DC

Maximum Measurement Voltage: ±10V (×10: ±100V)

Maximum Peak-to-Peak Voltage: 20V (×10: 200V)

Voltage Range (PC Software/Mobile APP): 2mV/division ~ 2V/division

Voltage Range (Screen): 4mV/division ~ 4V/division

Time Base Range (PC Software/Mobile APP): 1µs/division ~ 10800s/division

Time Base Range (Screen): 1µs/division ~ 4 seconds/division

Data recording depth (PC software): 8 million * 5 channels / up to 90 hours

Waveform display mode: YT/XY/ROLL

Vertical resolution: 8 bits

Trigger type: Rising edge/Falling edge

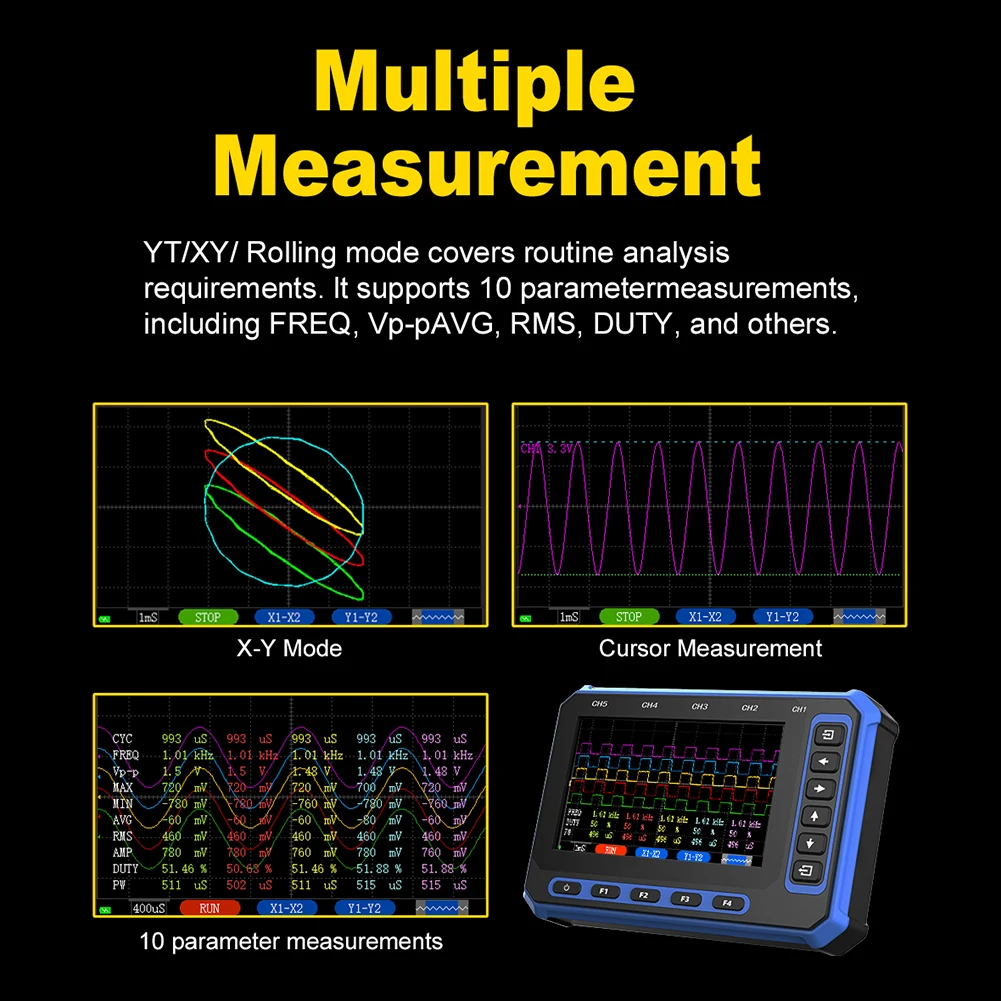

Data display: Periodicity, Frequency, Peak-to-peak value, Maximum value, Minimum value, Average value, RMS value, Amplitude, Duty cycle, Pulse width

Language: English/Chinese/Portuguese/Spanish

Port type: Type-C

Operating voltage: 5V

Current power consumption: <2A

Battery specifications: 3.7V/18650/2000mAh/Removable

Battery standby time: < 3 hours

Signal output: 1kHz

RF ( for WiFi version required): forWiFi 2.4G or 5G

Main unit dimensions: 150mm*100mm*32mm

Package contents:

OS-5C (without forWiFi): 1 x Oscilloscope + 1 x USB data cable + 1 x English user manual

OS-5C-forWiFi: 1 x Oscilloscope + 1 x USB data cable + 1 x English user manual

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
