SPECIFICATIONS

Brand Name: OSOYOO

Brightness: 400 Nit

Certification: CE, FCC

Choice: yes

Display Mode: 300

High-concerned chemical: none

Interface: DSi

Model Number: 2022003100

Origin: Mainland China

Resolution: 800*480

Touch Panel Type: Capacitive screen

Type: TFT

is_customized: Yes

semi_Choice: yes

Note: The interface of this screen is different from Raspberry Pi Official 7" DSI screen. Please choose the correct DSI cable for this screen at the bottom of description.

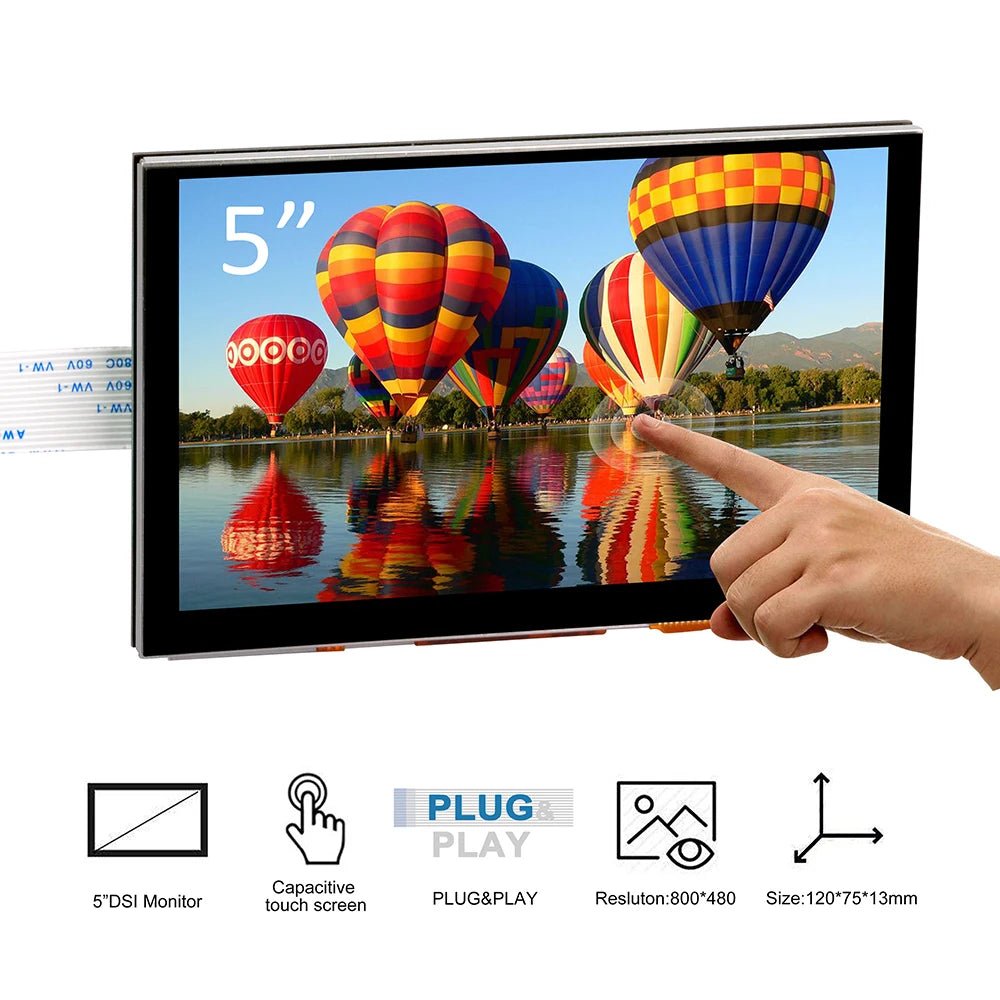

Feature for 5" DSI

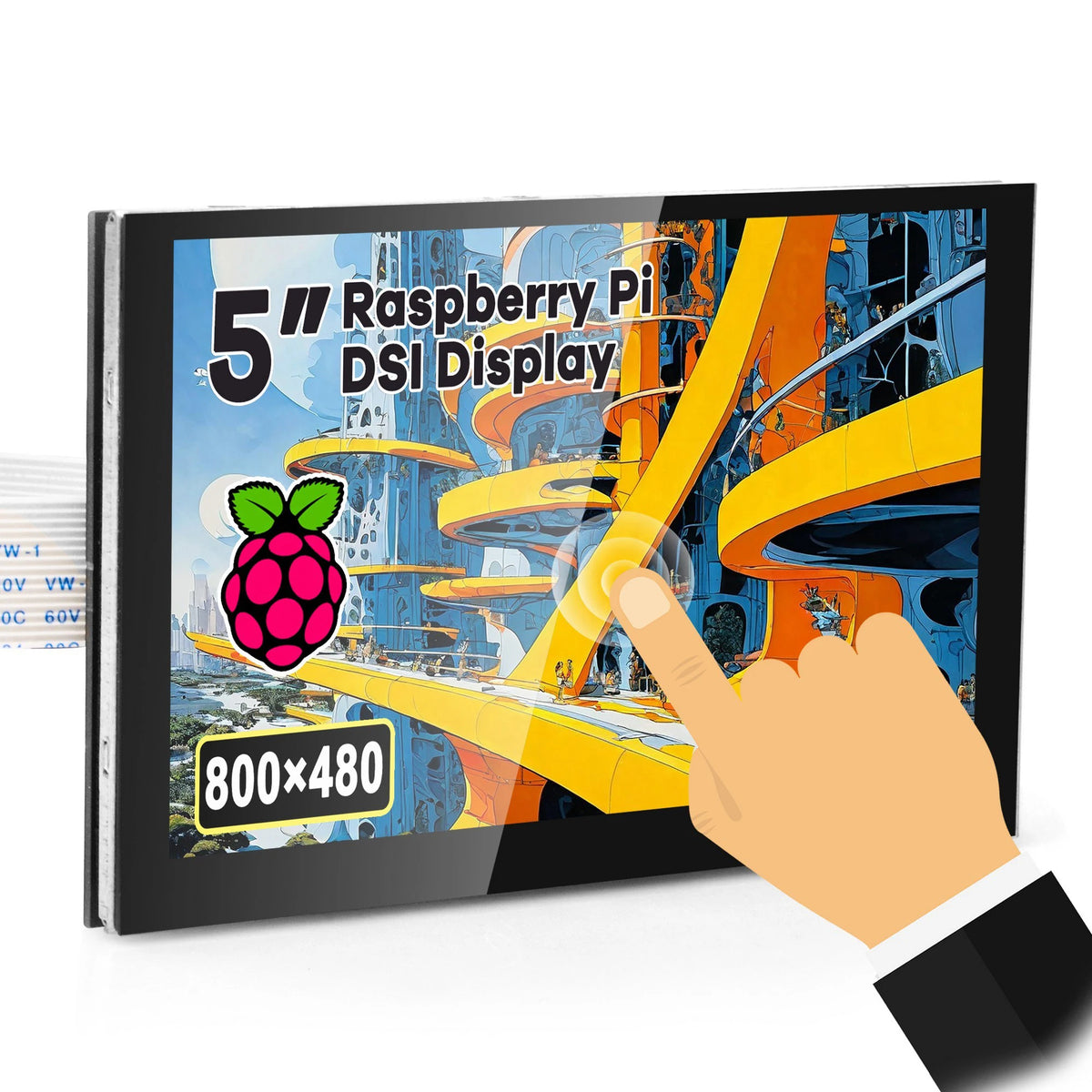

• The 5" LCD display is an LCD display which connects to the Raspberry Pi through the DSI connector.

• It is capacitive touch LCD screen.

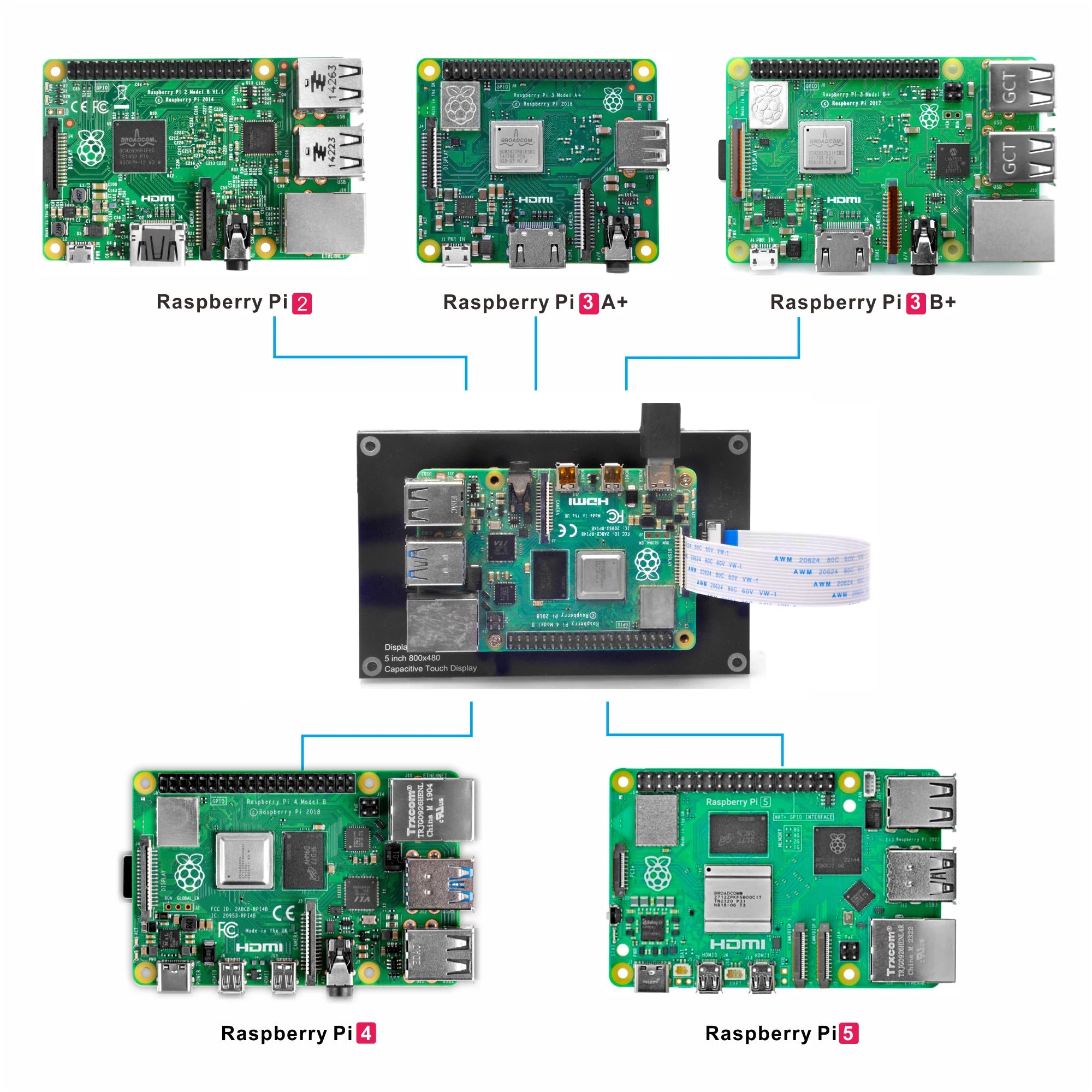

• It is compatible with Raspberry Pi 5, 4, 3B+, 3B, 3A+ and 2B

• Support system Raspberry Pi OS, Ubuntu, Kali, RetroPie, OctoPrint (Note: Raspberry Pi 5 is just compatible with Raspberry Pi BOOKWORM OS)

• It doesn't need to install driver, and you can plug and play.

• The Physical resolution of LCD is 800*480

• No need additional power

• Quality Standards ：Class B

• Guarantee period: 60 days

Differences between TN and IPS screen:

Here we provide TN panel and IPS panel of 5 inch DSI screen. Both IPS and TN panels have their advantages.

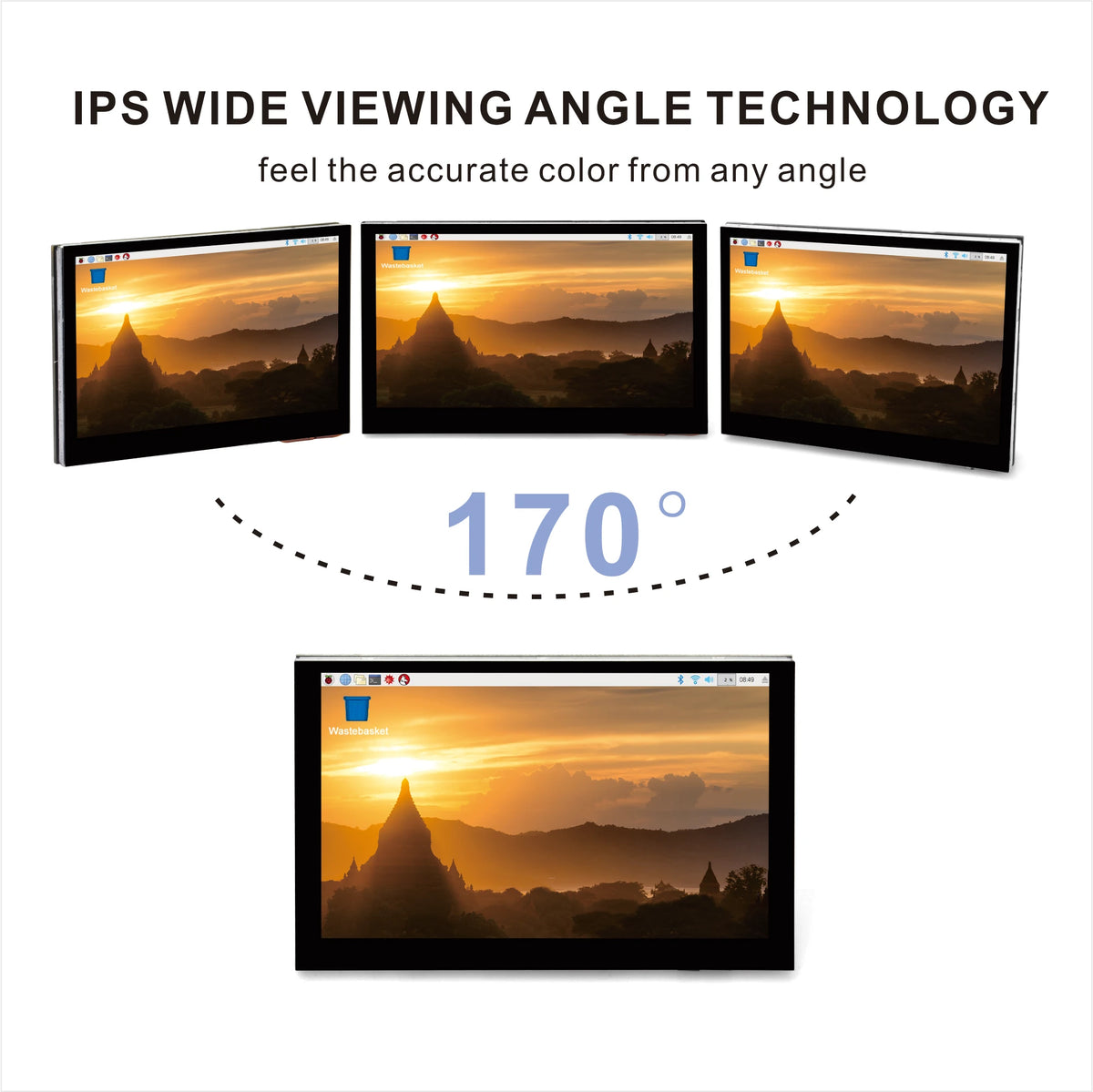

• Viewing Angles: IPS panels offer wider viewing angles compared to TN panels. This means that the colours and images remain consistent even when viewed from different angles. If you often share your screen with others or work on graphics, an IPS panel would be a better choice.

• Response Time: If you’re a gamer, the response time of the panel is a critical factor. TN panels generally have faster response times than IPS panels, making them a preferred choice for fast-paced gaming.

• Colour Accuracy: For professionals working in graphic design or video editing, colour accuracy is paramount. IPS panels are known for their superior colour accuracy and consistency compared to TN panels.

You can choose the one more suitable for yourself.

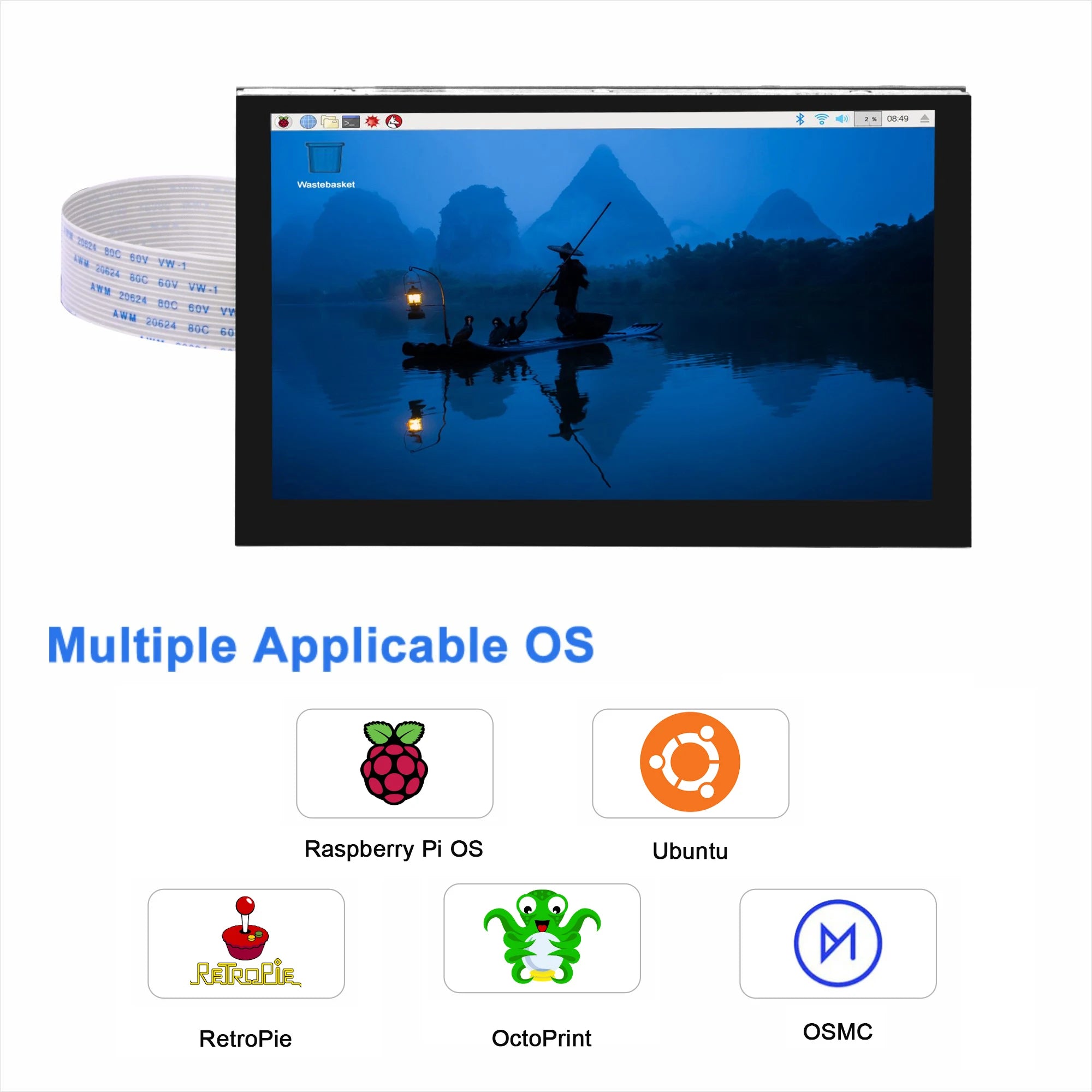

Multiple Applicable OS

Note: Raspberry Pi 5 is just compatible with Raspberry Pi BOOKWORM OS

Free drive support Raspberry Pi OS, Ubuntu, RetroPie, and so on.

This drive free monitor designed DSI for signal and data transmission.

No need additional power for touchscreen.

No program or software support required.

You just need to install DSI cable on your screen and raspberry pi DSI port, No need jumper wires then power on raspberry pi device which build OS

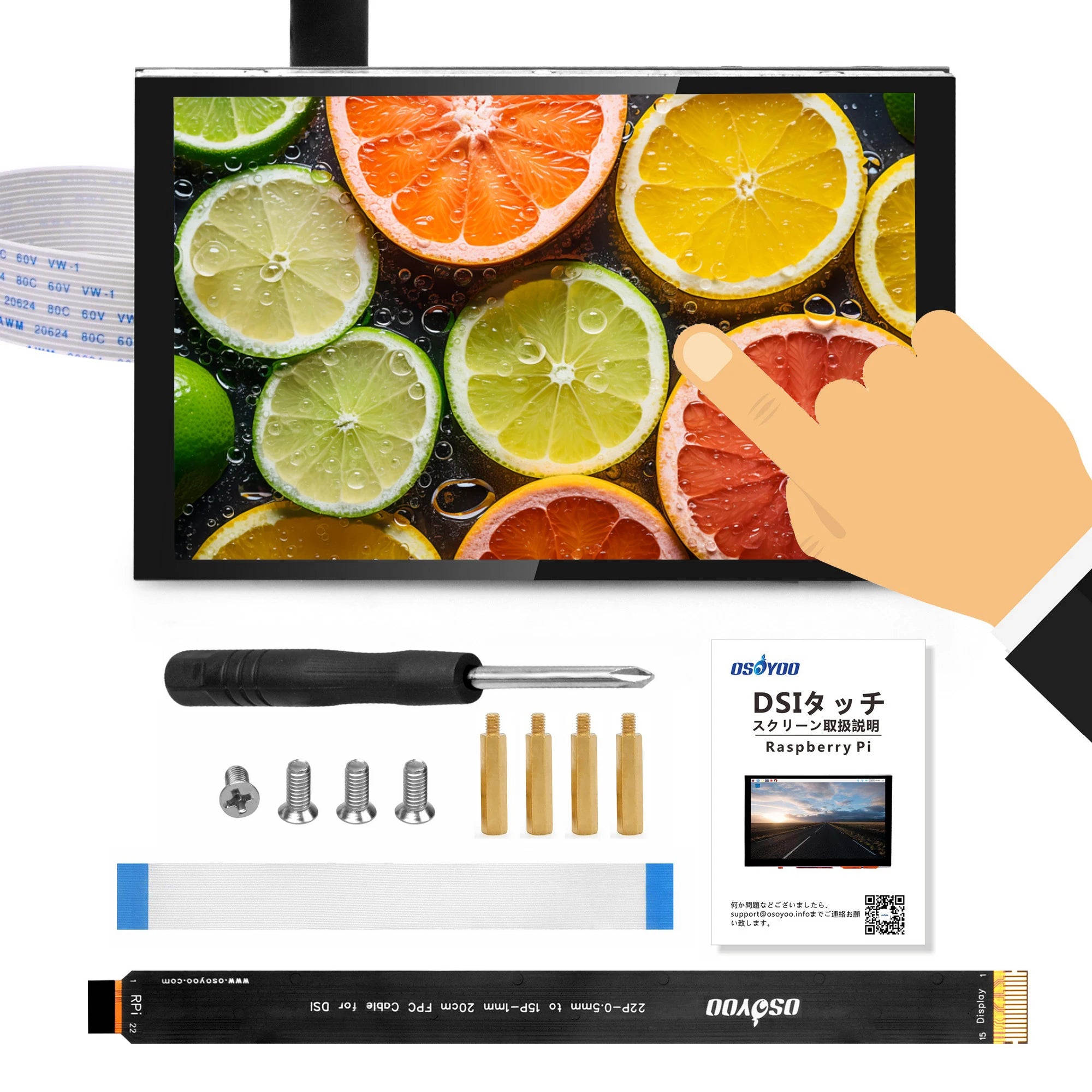

Package includes:

• 1 piece 5" DSI TN/IPS Touch LCD Screen for Raspberry Pi,

• 1 pc 15 pin to 15 pin DSI FFC 10cm Cable for Raspberry Pi 2/3/4/ (the metal connectors of two side are at the same side)

• 1 pc 15pin-1mm to 22pin-0.5mm DSI FPC 20cm cable for Raspberry Pi 5,

• 1 pc screwdriver,

• 1 pc user guide manual come in the nice box

(Note: DSI cables for OSOYOO 5 inch DSI screen are different from Official Raspberry Pi DSI cable. Please choose the correct DSI cable for this screen at the bottom of description)

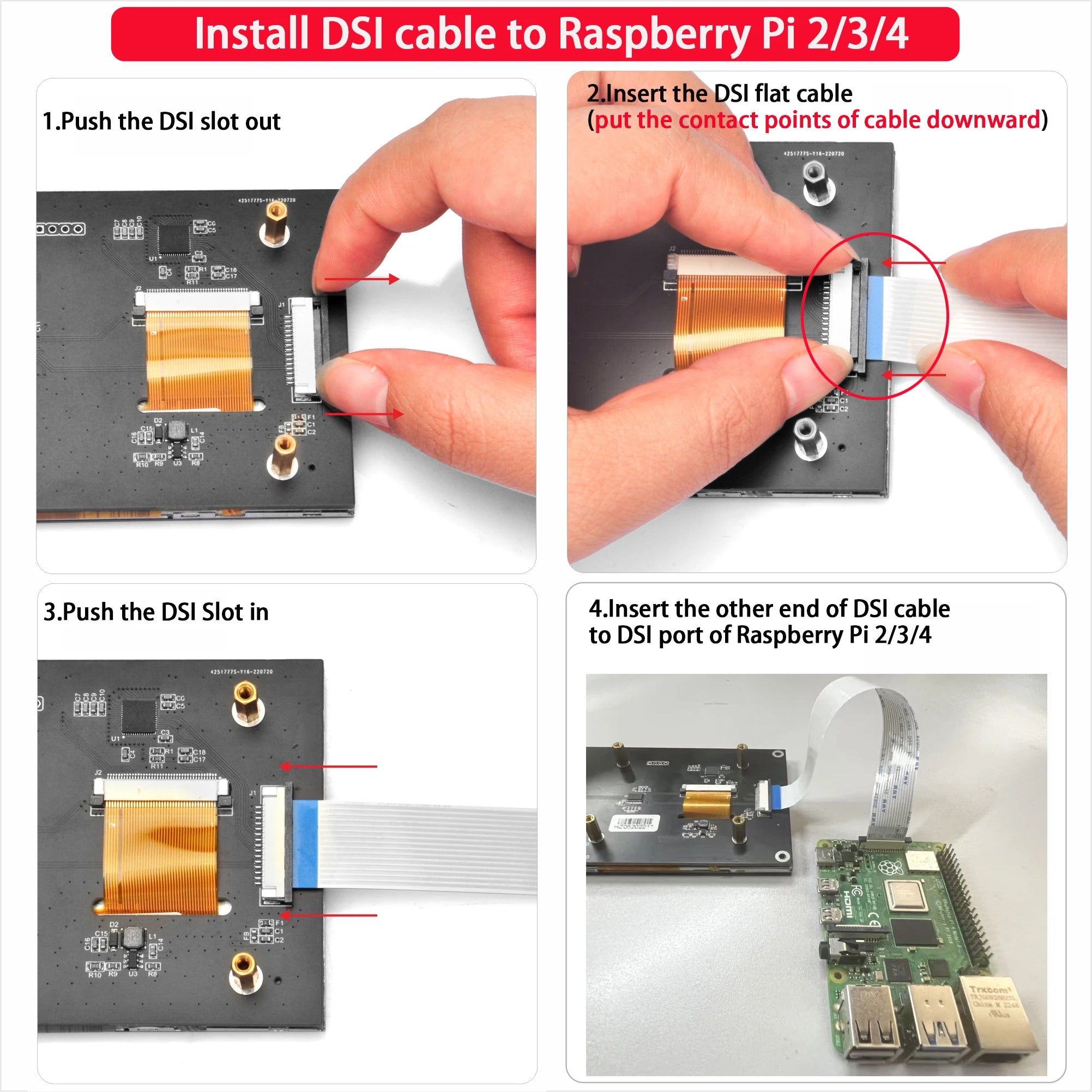

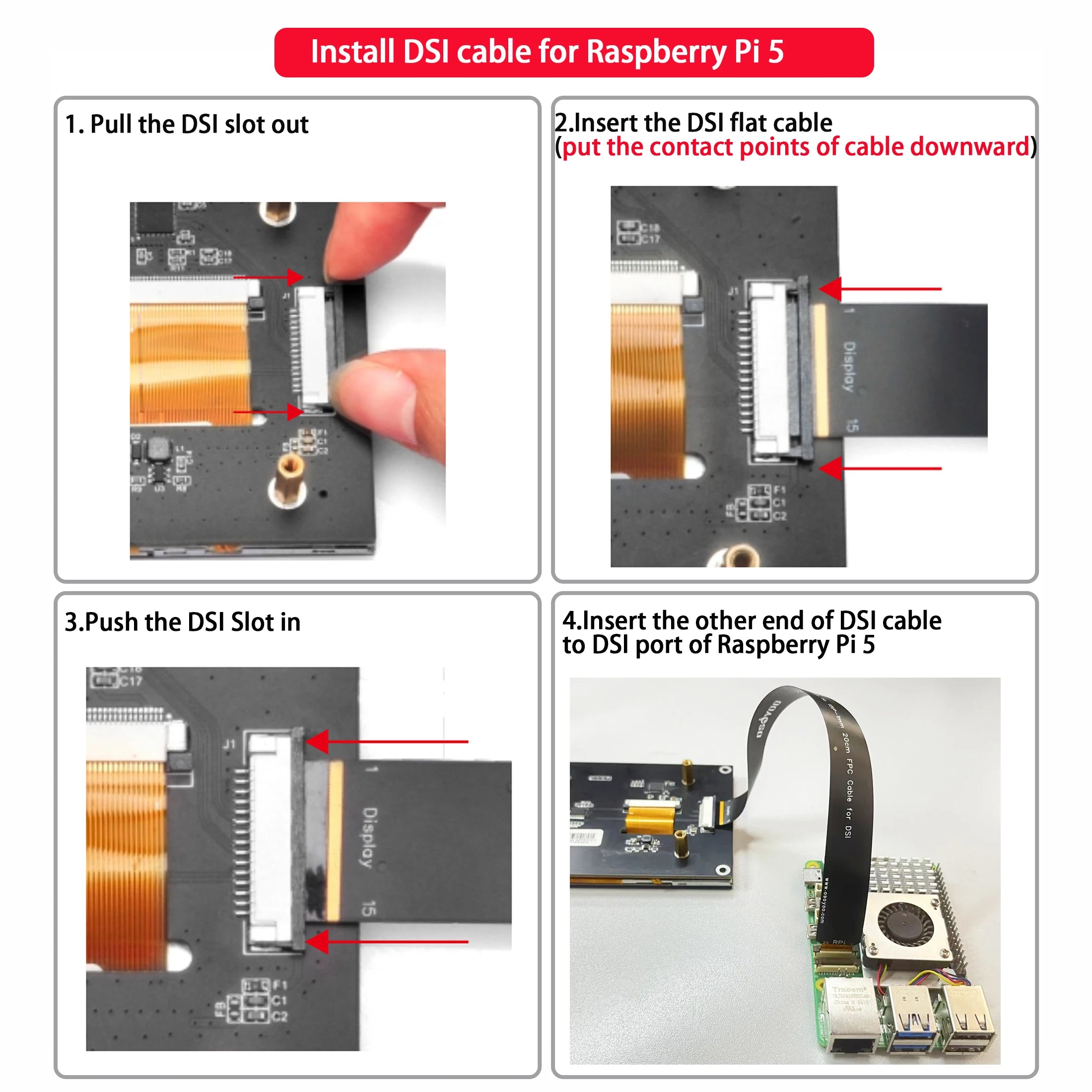

How to install 5 inch DSI screen

1. Prepare 5 inch DSI screen and DSI ribbon cable

2. Toggle DSI interface with your finger

3. Insert the end of cable to DSI interface (Put contact points of cable downward)

4. Fasten DSI interface tightly

5. Install the DSI screen with Raspberry Pi （Pay attention of contact points of Raspberry Pi DSI slot and DSI cable)

Note: if you use the screen with Raspberry Pi 5, Please replace the white DSI cable with black15pin-1mm to 22pin-0.5mm DSI FPC 20cm cable

#Please order DSI cable for OSOYOO 5inch DSI screen (V1.x, V2.x, V3.0)
