SPECIFICATIONS

Product Feature

Hello! Welcome to our store!

Fashion design,100% Brand New,high quality!

Quality is the first with best service. customers all are our friends.

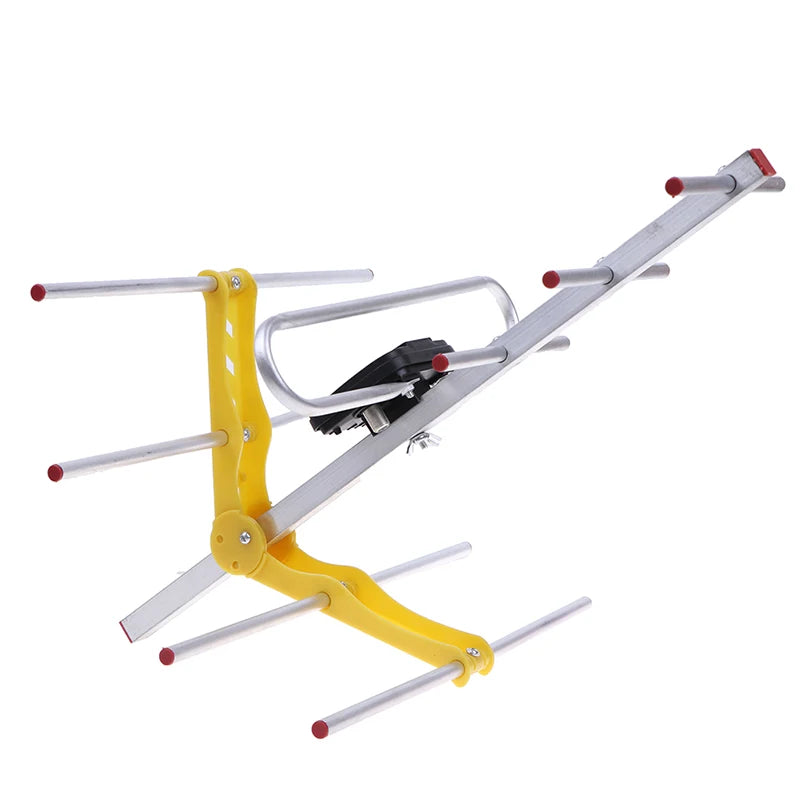

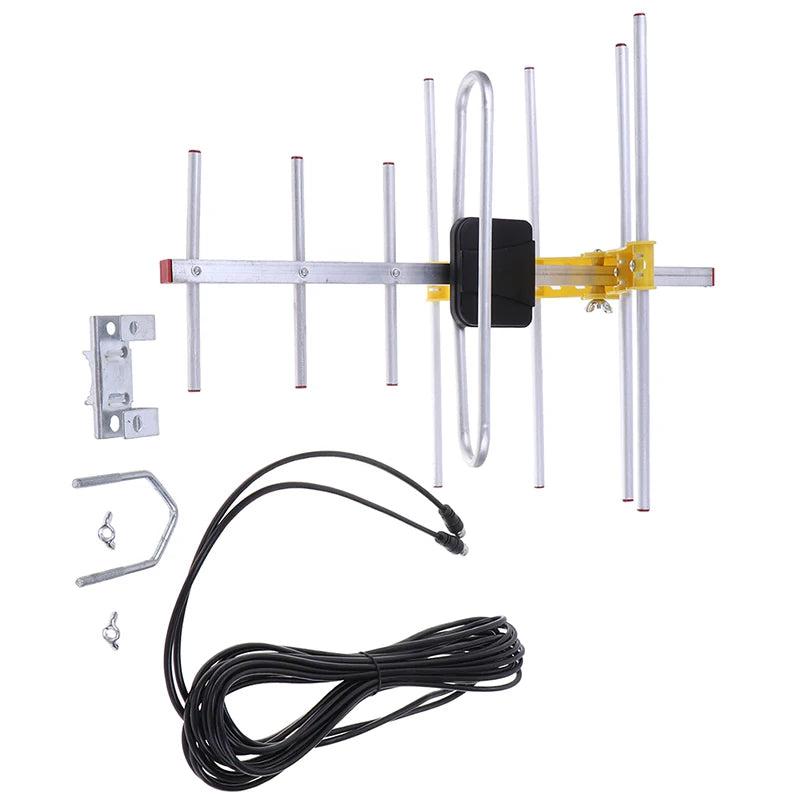

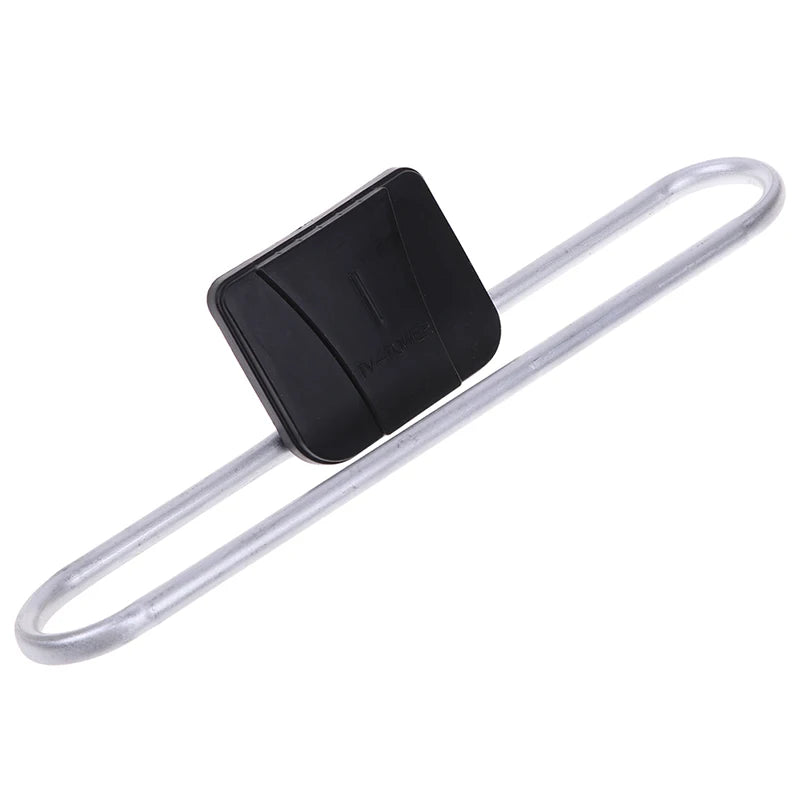

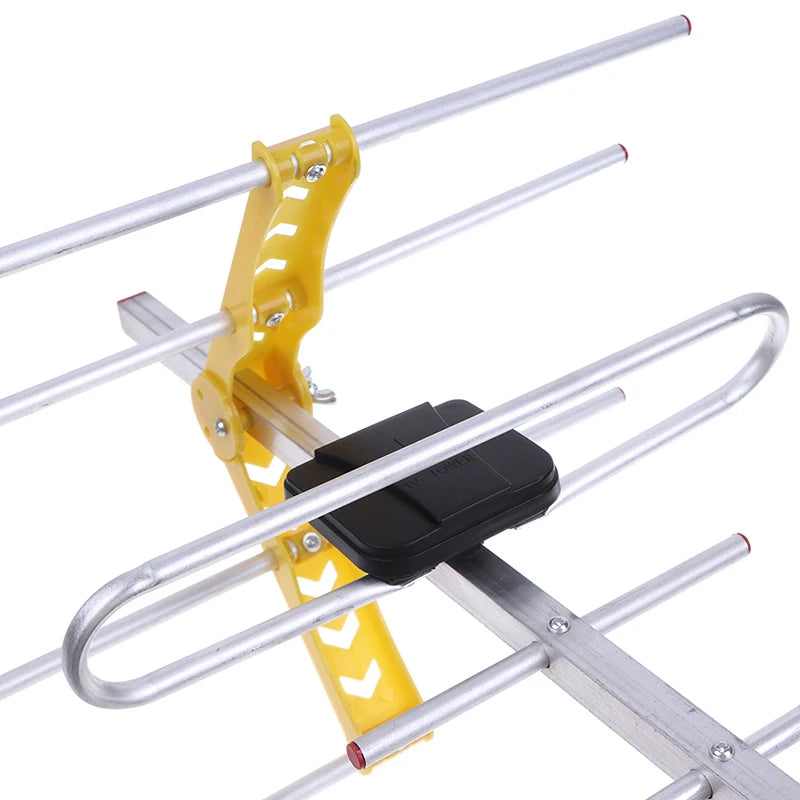

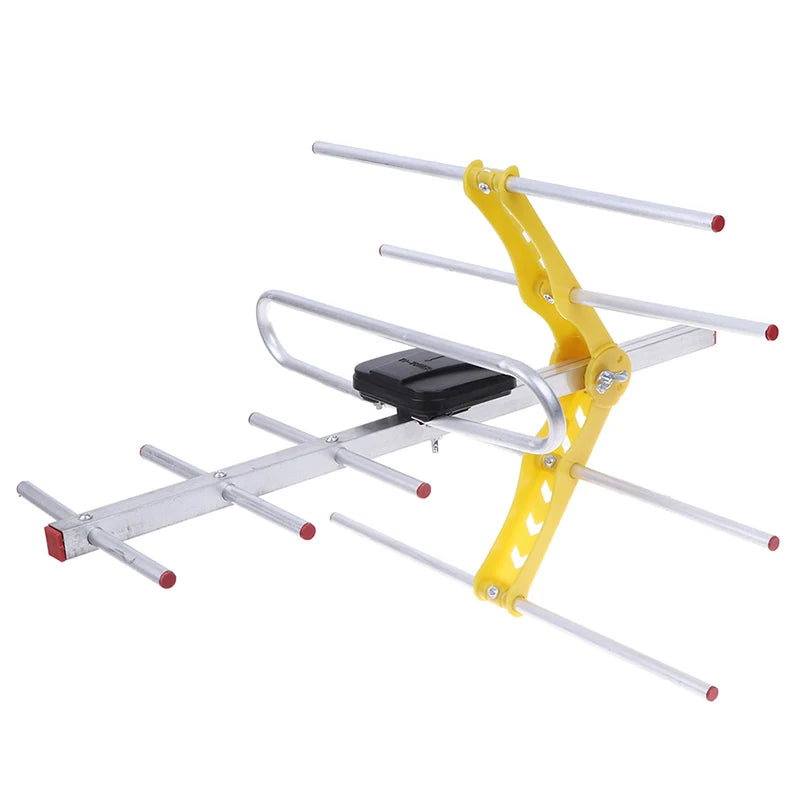

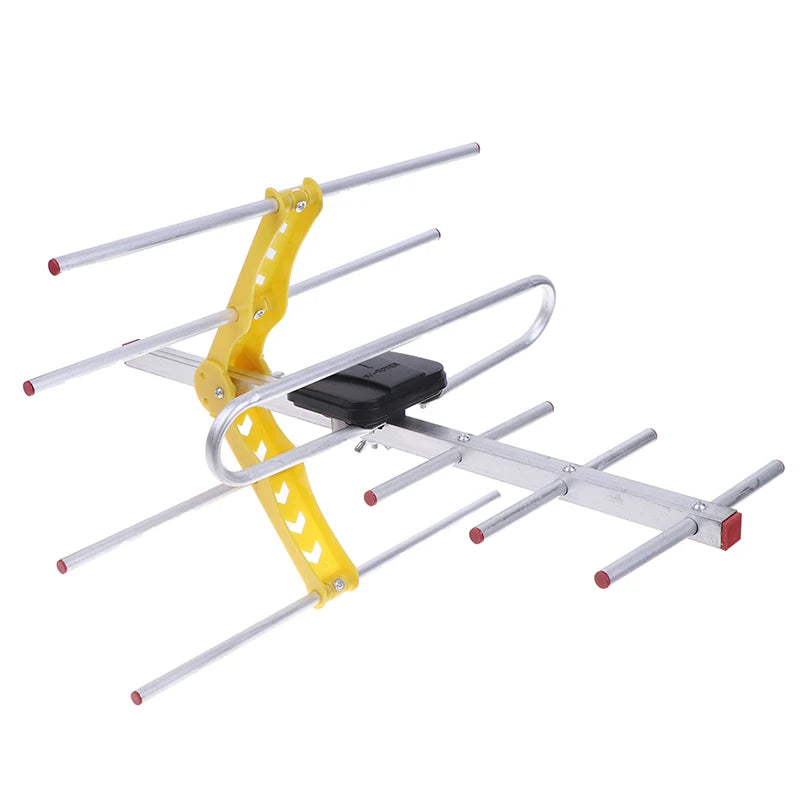

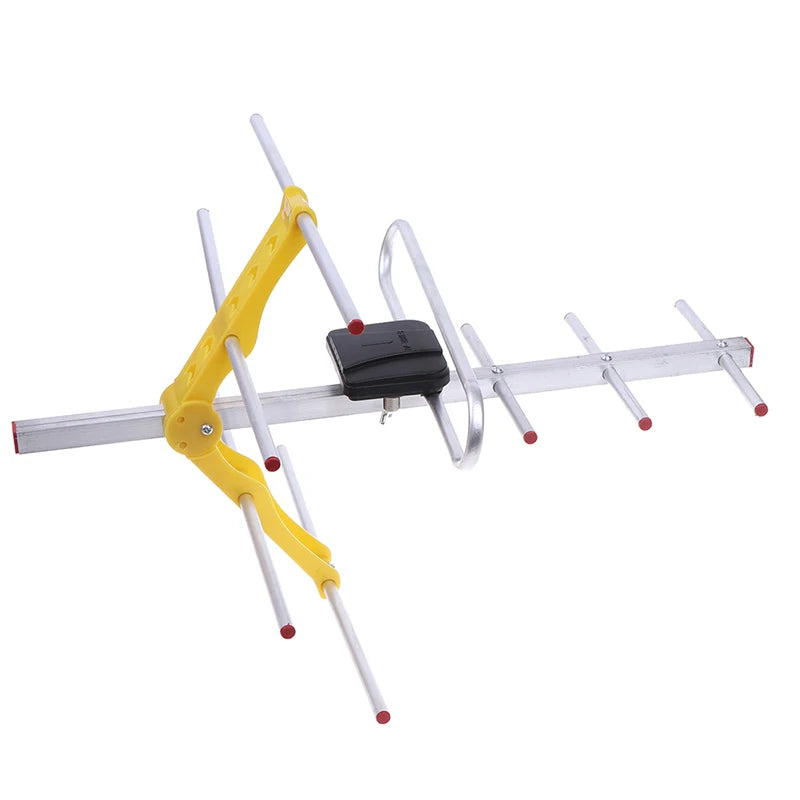

1.With the design of the folding oscillator, five units and V reflectors, it has a strong directional and wide frequency band

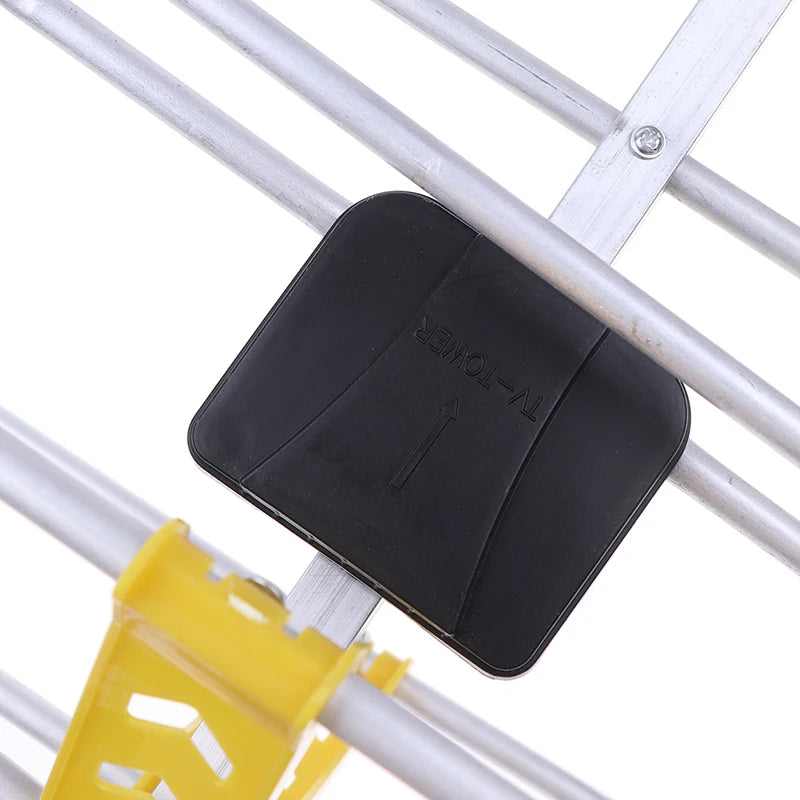

2.The printing plate impedance matching device can effectively receive and transmit digital TV signals

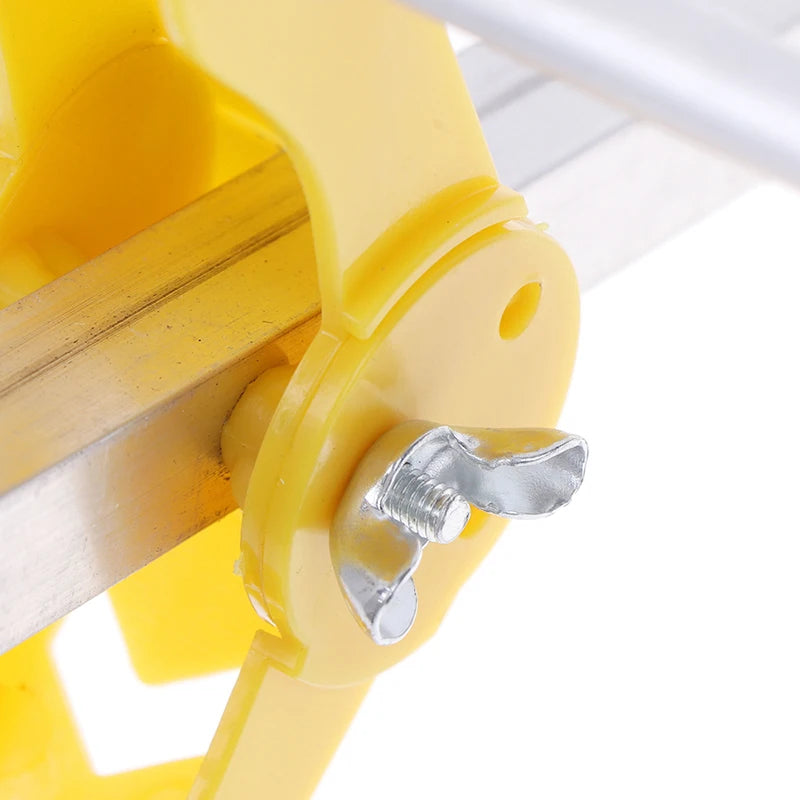

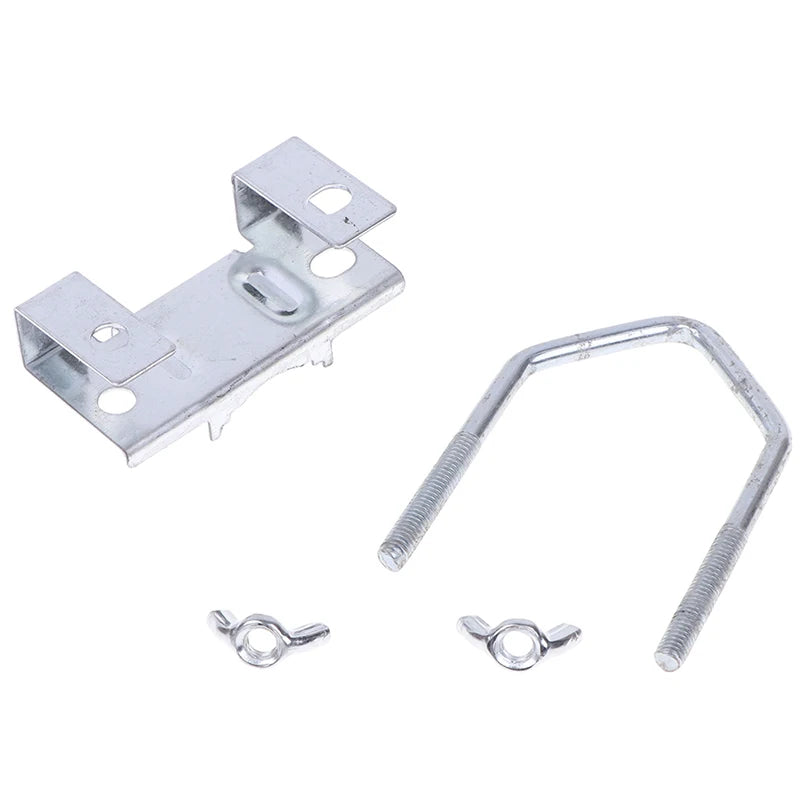

3.It is convenient for users to install and use the cylindrical support rod in different diameter

4.The number of compatible dvb-t/H, dvb-t 2, DMB- T/H, isdb-t, atsc-t, ADTB- T, etc

TV format

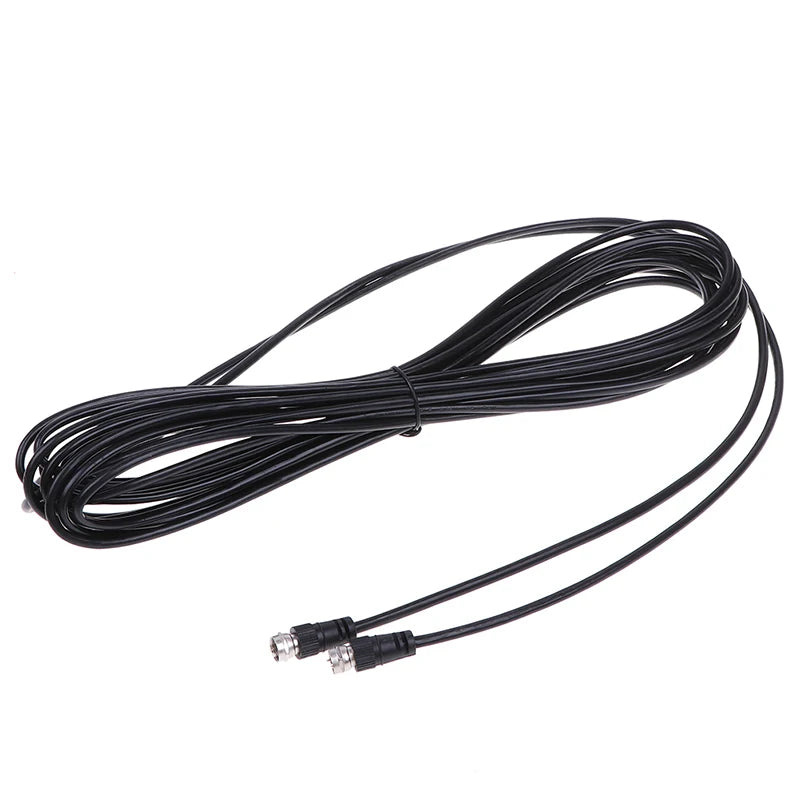

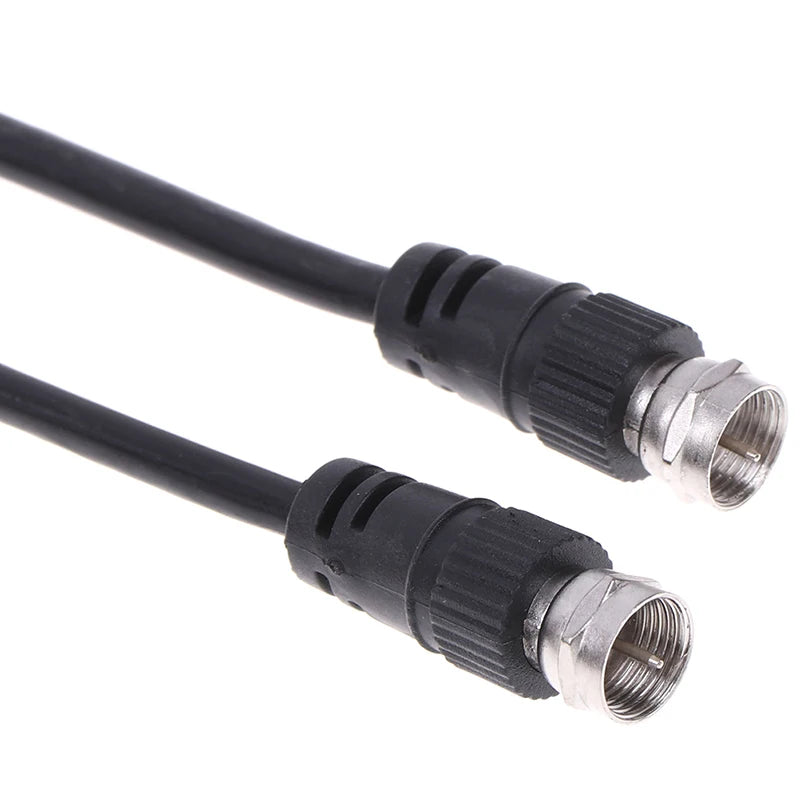

Signal output interface: English F female head

Technical parameters:

Signal receiving parameters:

Frequency range: 470-860（MHz）

Output impedance: 75 Ω

The standing wave ratio: less than or equal to 2.0

Ratio: greater than or equal to 10 dB

Support bar diameter: Φ 30 mm ~ 45 mm

Interface form: English F female head

Polarization mode: horizontal

Working temperature: - 40 ℃ ~ 70 ℃

Relative humidity: 5%~95%

Air pressure: 86kPa~106kPa

Physical parameters:

Product size: 420mm x 325 mm x 245 mm

There is 2-3% difference according to manual measurement.

Please check the measurement chart carefully before you buy the item.

1 inch = 2.54 cm

Please note that slight color difference should be acceptable due to the light and screen.

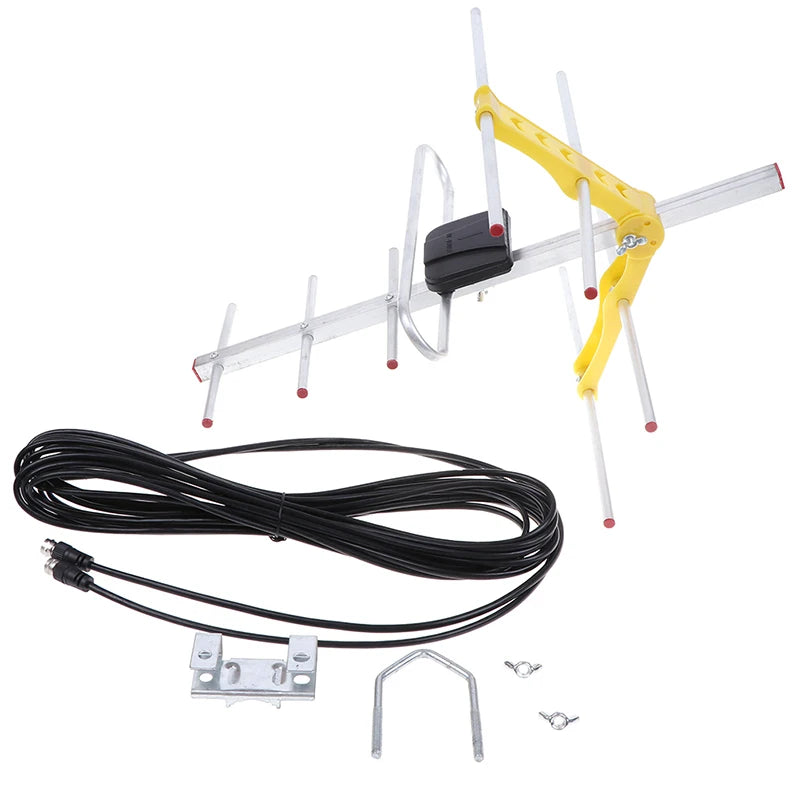

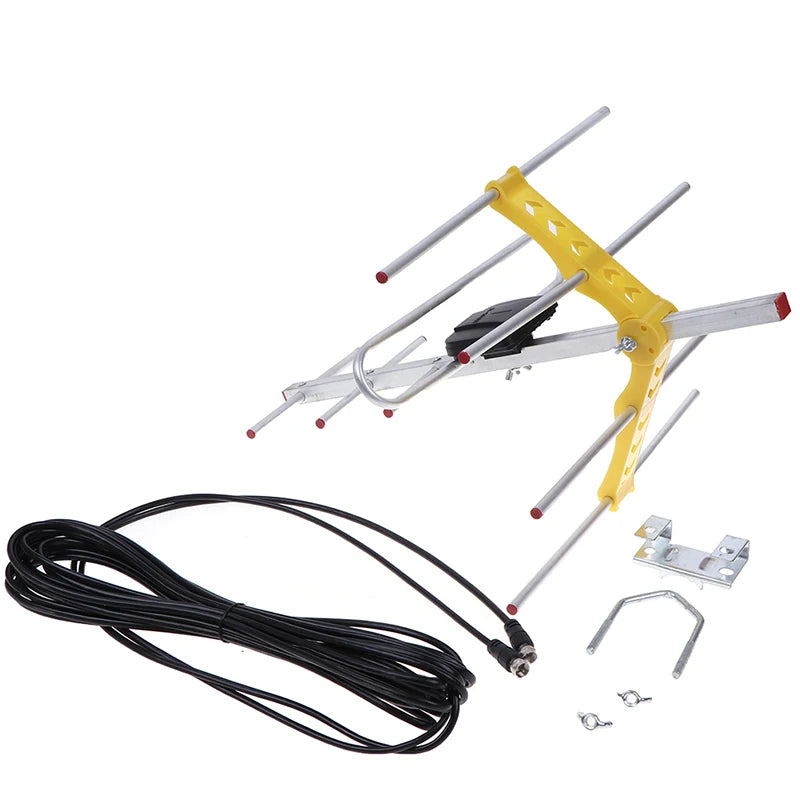

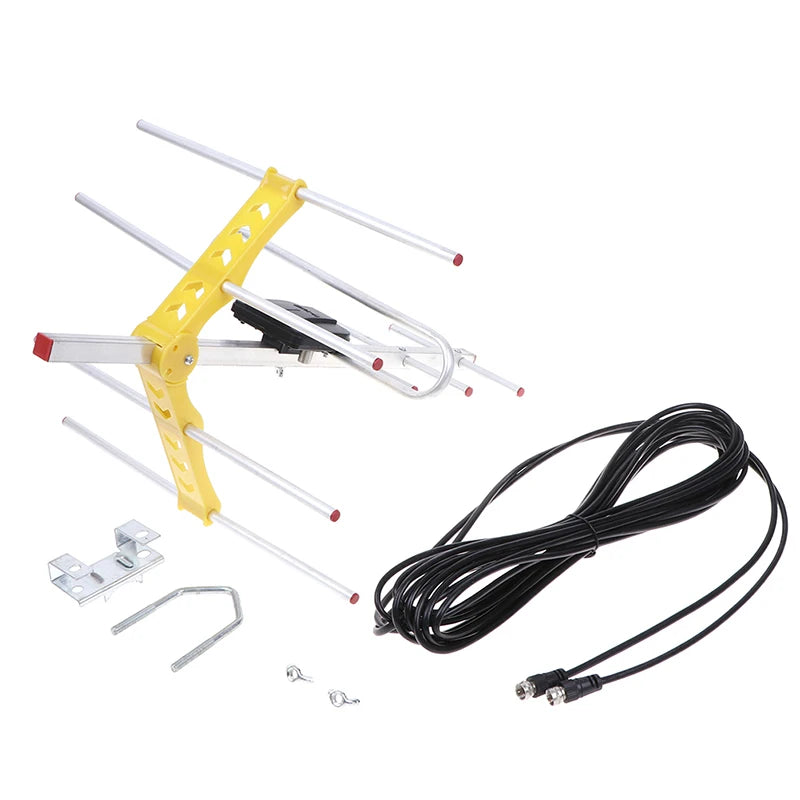

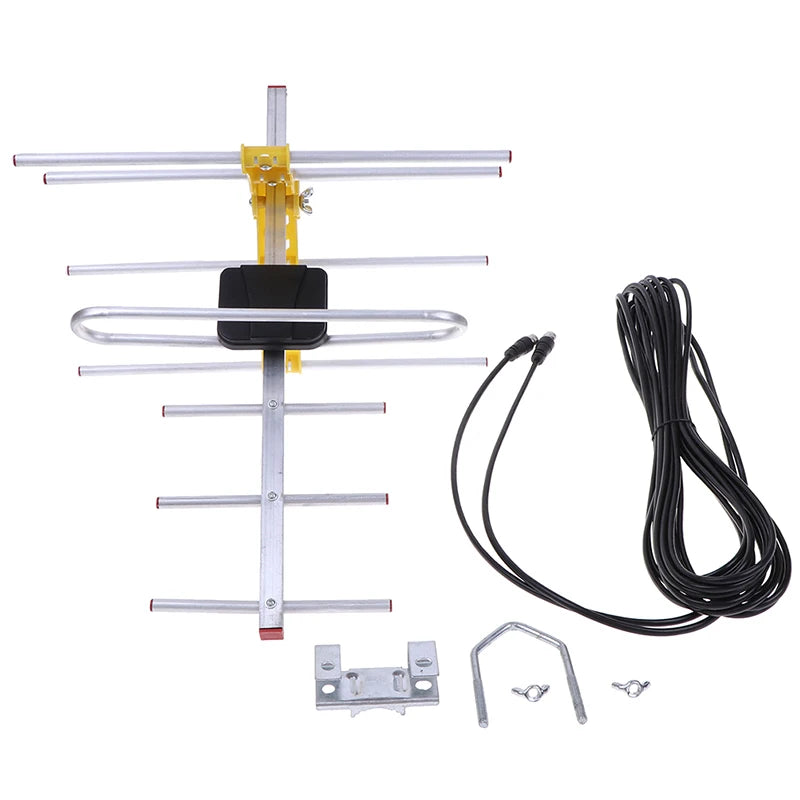

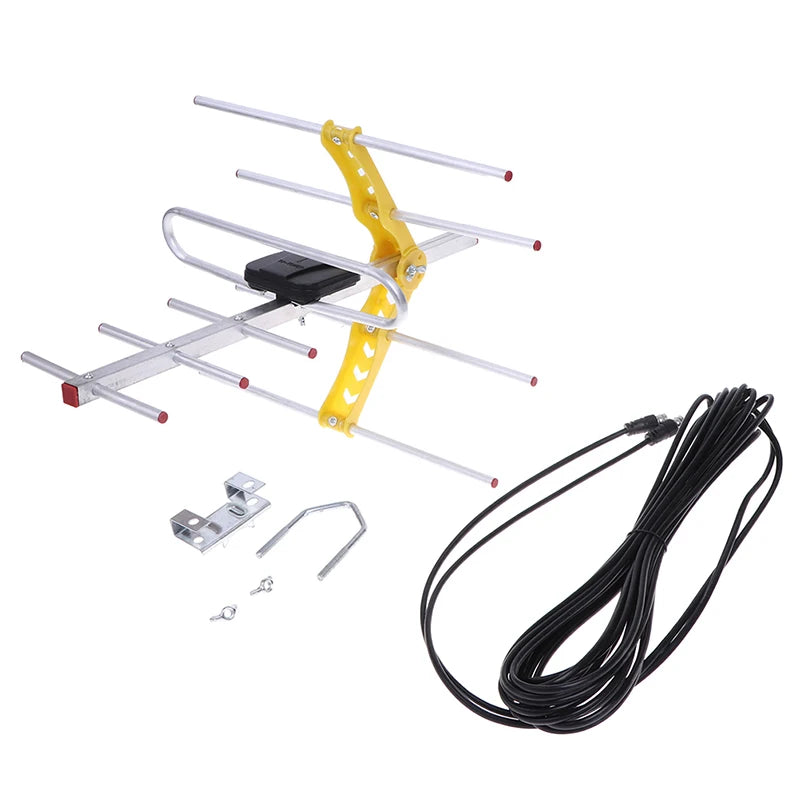

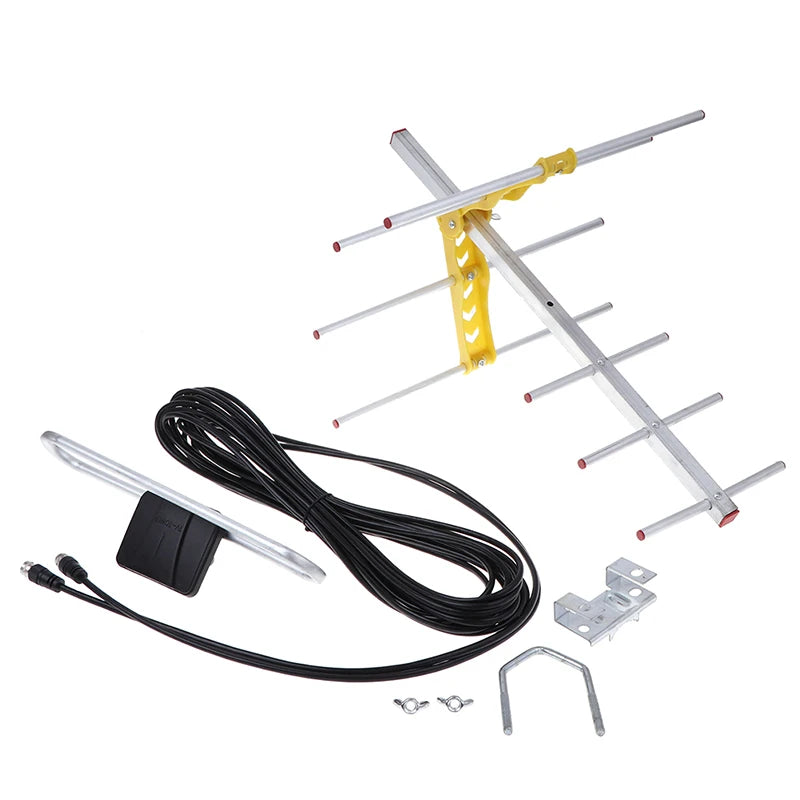

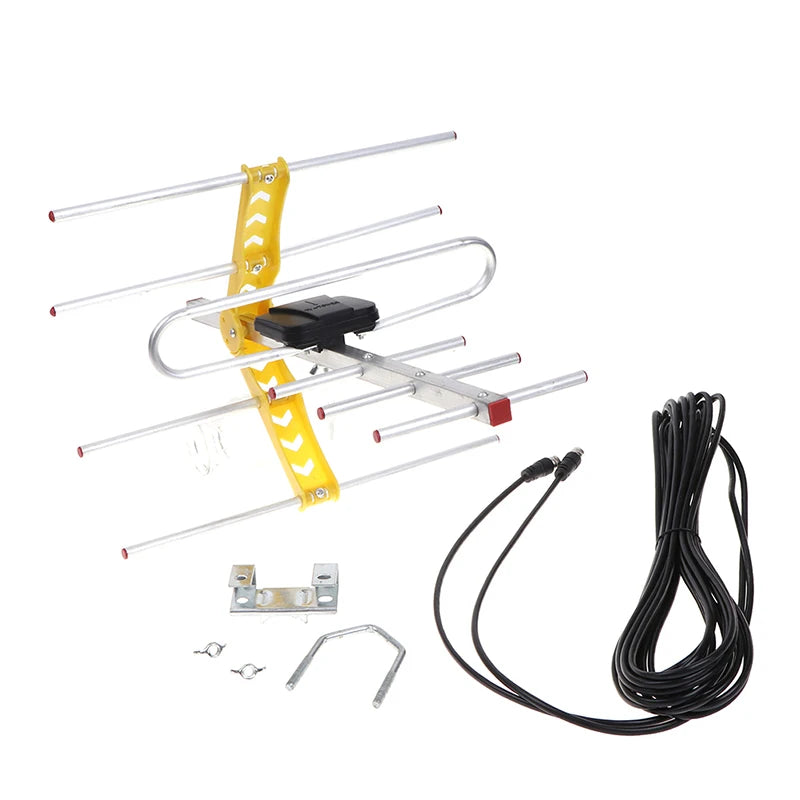

What you get:

1*100Miles Amplified Yagi Antenna
