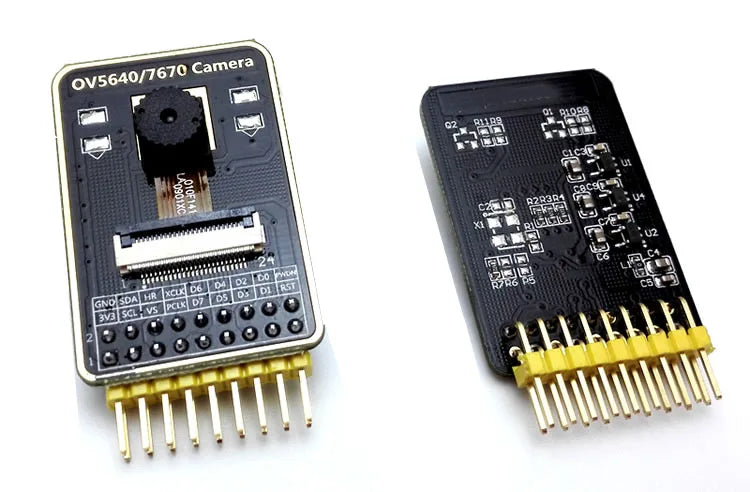

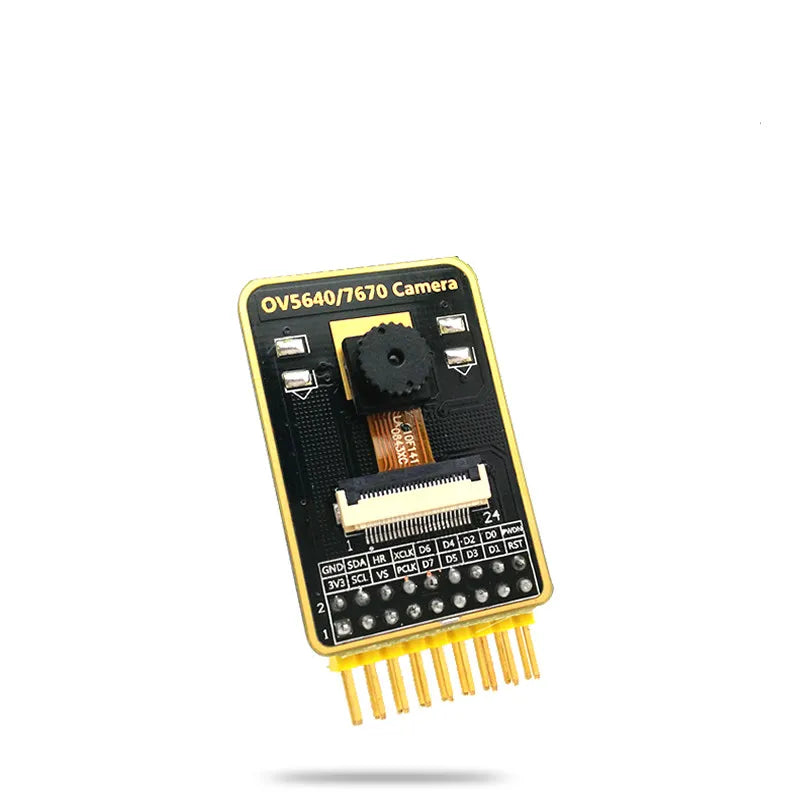

OV7670 Camera 30-megapixel Module
Default Title
$54.24
Sale price
$54.24
Regular price
$0.00
Skip to product information
OV7670 Camera 30-megapixel Module
$54.24
Sale price
$54.24
Regular price
$0.00
Description
SPECIFICATIONS
Application: Camera
Brand Name: OMDAZZ
Condition: New
Model Number: OV7670
Origin: Mainland China
Package: DIP
Supply Voltage: 3.3V
Type: Logic ICs
Parameter of the OV7670 camera:
Size of the board: W27mm x L41mm
Photosensitive array 640X480
IO voltage 2.5V to 3.3V (internal LDO 1.8V)
Power consumption 60mW/15fps VGA YUV
Sleep <20μA
Temperature operation -30 ° C to 70 ° C
Stable operation 0 ° C to 50 ° C
Output format (8-bit) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
Optical size 1/6"
Angle of view 25°
Maximum conversion rate 30fps VGA
Sensitivity 1.3V / (Lux-sec)
Signal to noise ratio 46 dB
Dynamic range 52 dB
Browse mode line by line
Electronic exposure 1 line to 510 lines
Pixel area 3.6 μm x 3.6 μm
Dark current 12 mV/s at 60 °C
Well capacity 17Ke
