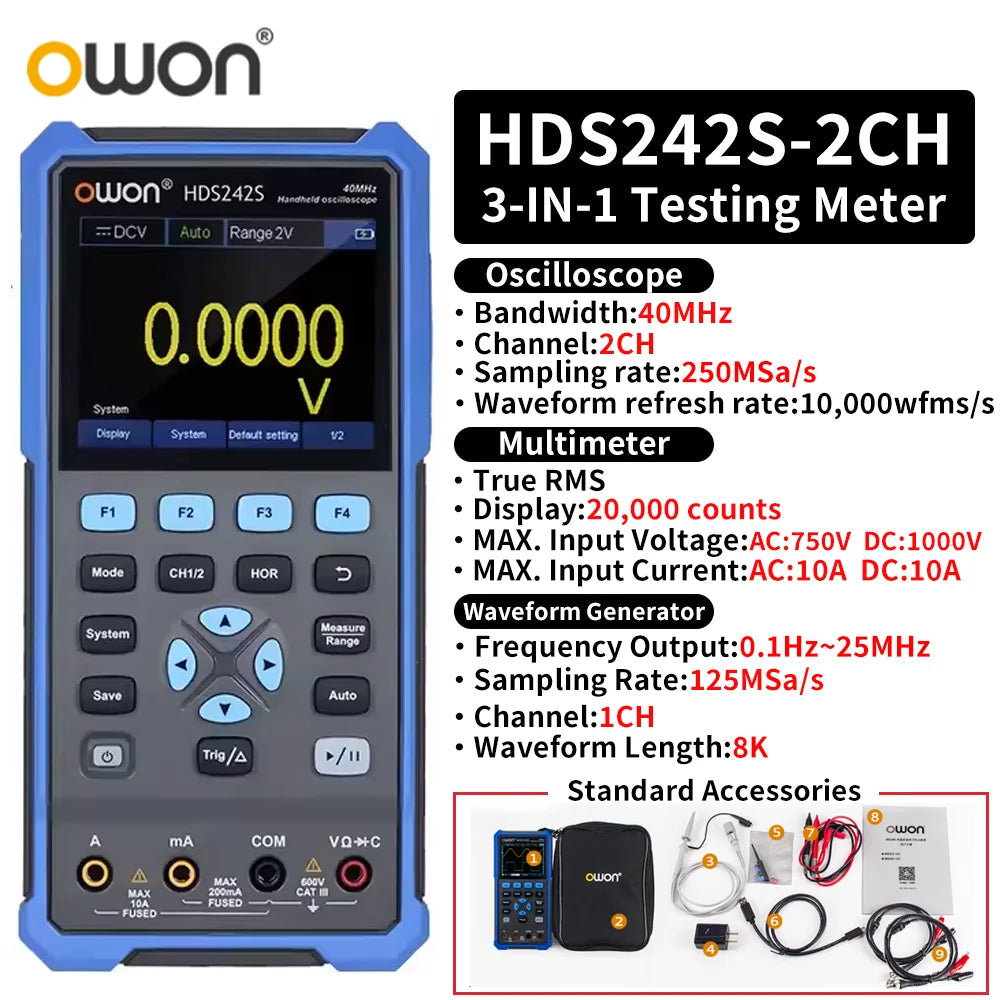

OWON HDS2102S/HDS272S/HDS242S Handheld 3-in-1 Digital Oscilloscope, Signal Generator, Multimeter | 100MHz Bandwidth, 2 Channels

HDS2202S / AU

$1,465.36

Sale price $1,465.36 Regular price $0.00

Skip to product information

OWON HDS2102S/HDS272S/HDS242S Handheld 3-in-1 Digital Oscilloscope, Signal Generator, Multimeter | 100MHz Bandwidth, 2 Channels

OWON HDS2102S/HDS272S/HDS242S Handheld 3-in-1 Digital Oscilloscope, Signal Generator, Multimeter | 100MHz Bandwidth, 2 Channels

$1,465.36

Sale price $1,465.36 Regular price $0.00

Color HDS2202S HDS2202 HDS2102 HDS272S HDS272 HDS2102S HDS242 HDS271 HDS241 HDS242S

Plug Type AU UK EU US

Description

SPECIFICATIONS

Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK

Band Width: 40MHz-200MHz

Battery Included: Yes

Brand Name: owon

Certification: CE

Communication Interface: USB Type-C

DIY Supplies: Electrical

Digital Channels: 2

Display Size: 3.0 - 4.9 Inches

Frequency Output: See product page for details

High-concerned chemical: none

Model Number: HDS2102S/HDS272S/HDS242S

Multimeter Max Input Current: DC : 10A AC : 10A

Multimeter Max Input Voltage: AC 750V, DC 1000V

Multimeter Max. Resolution: 20,000 counts

Multimeter Testing Mode: Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test

Origin: Mainland China

Real Time Sampling Rate: 250MSa/s-1GSa/s

Semi-finishedproduct: No

Waveform Generator Only for: HDS242S, HDS272S, HDS2102S, HDS2202S

Waveform Length: 8K

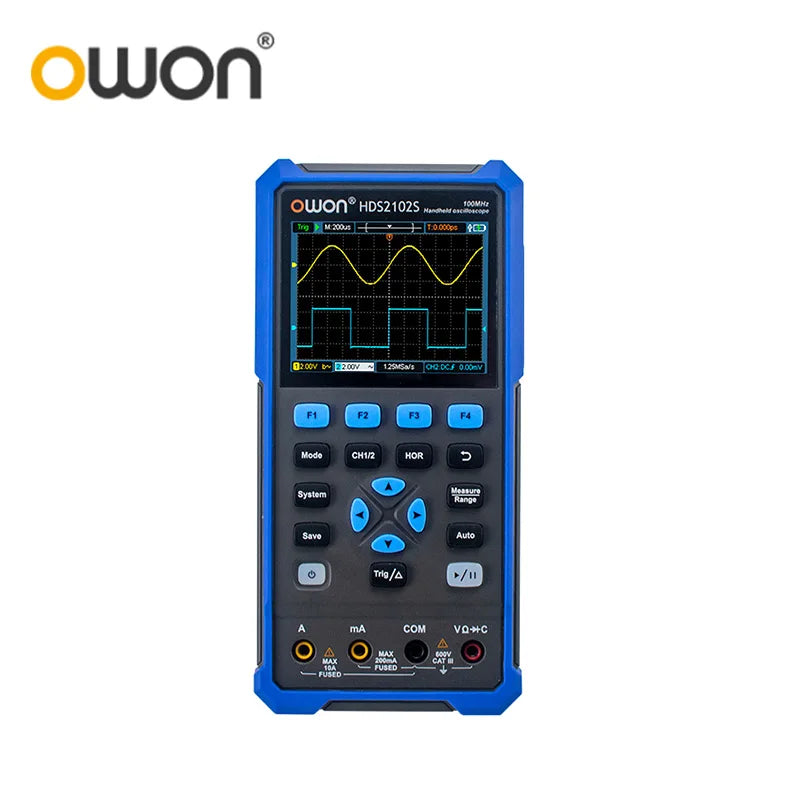

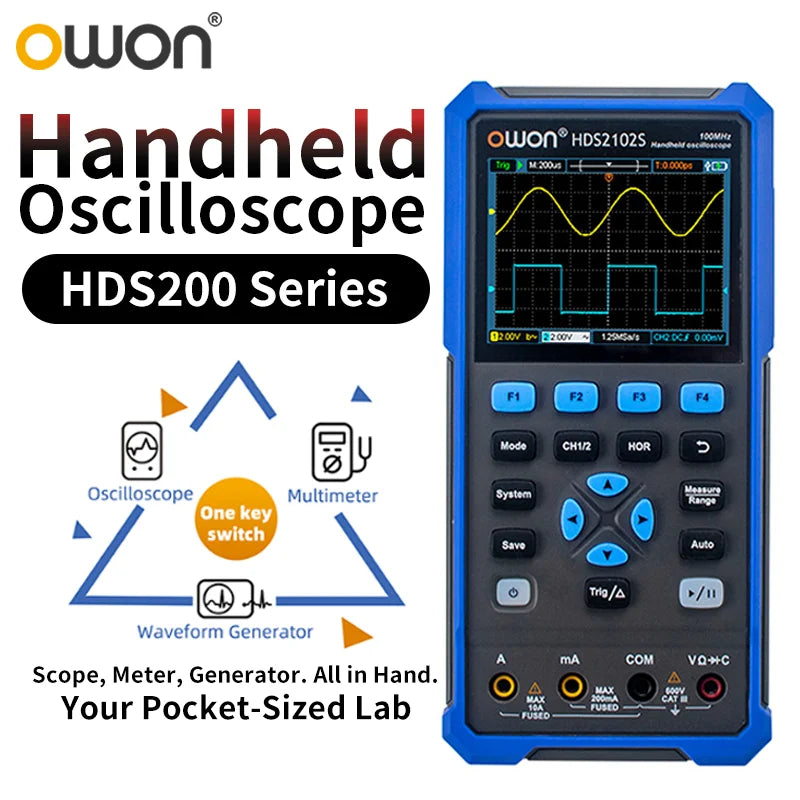

OWON HDS200 Series Handheld 3-in-1 Digital Oscilloscope, Signal Generator, Multimeter

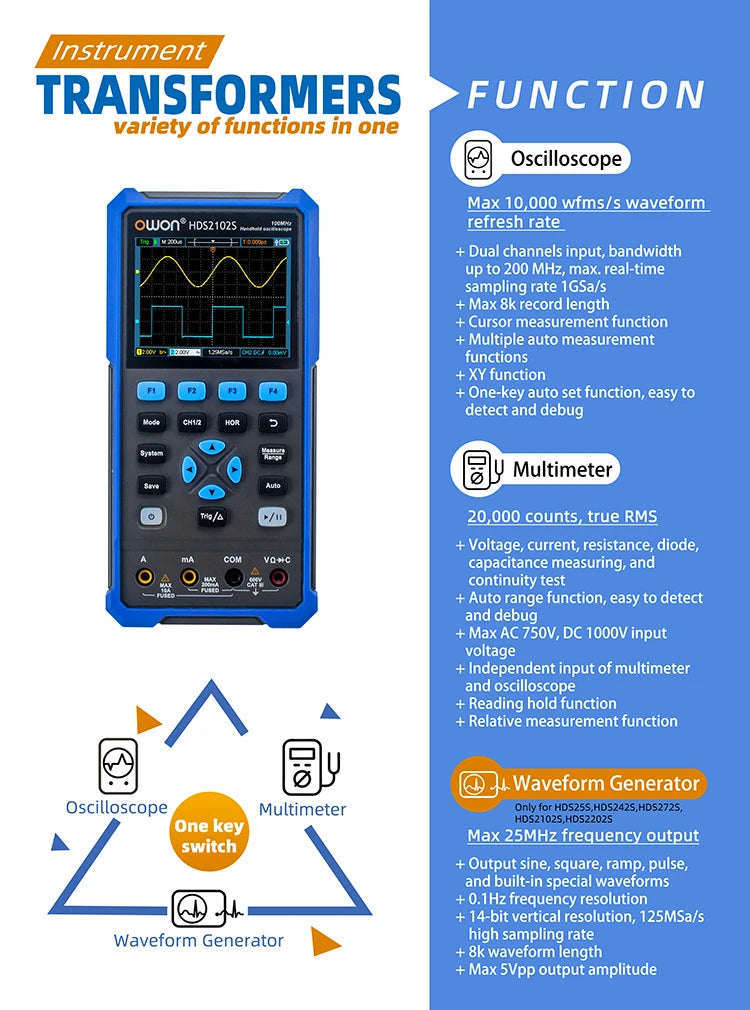

Product Feature

+ Oscilloscope + multimeter + waveform generator, multifunction in one

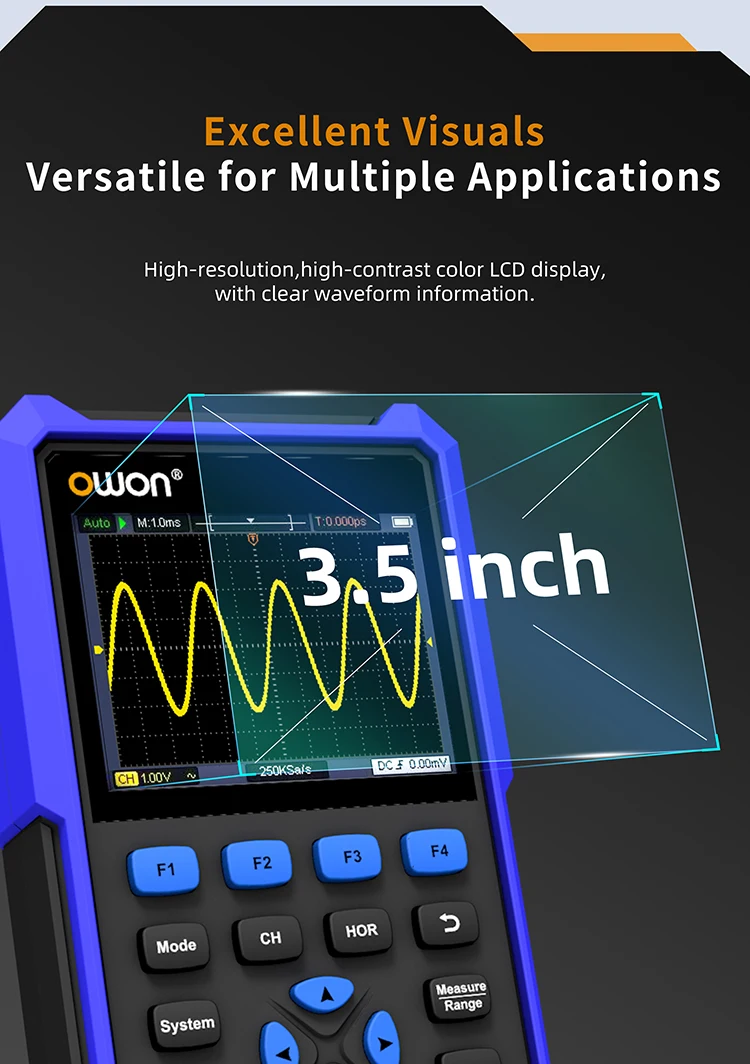

+ 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use

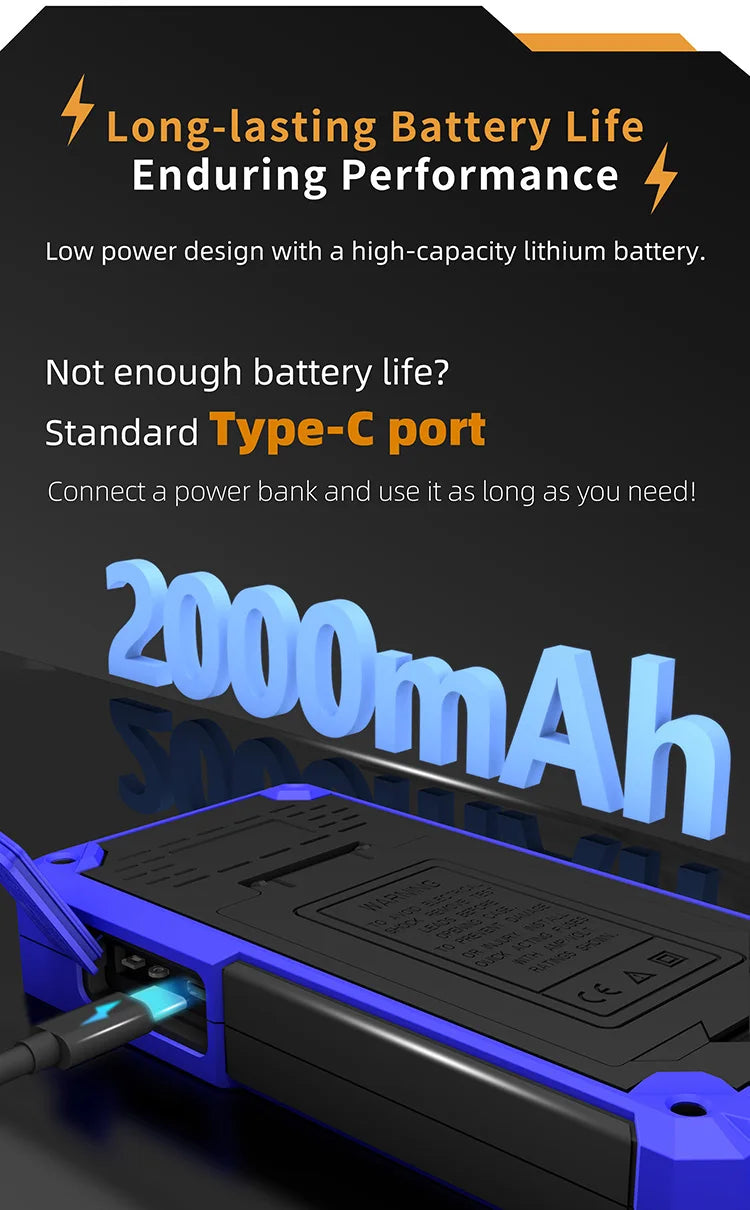

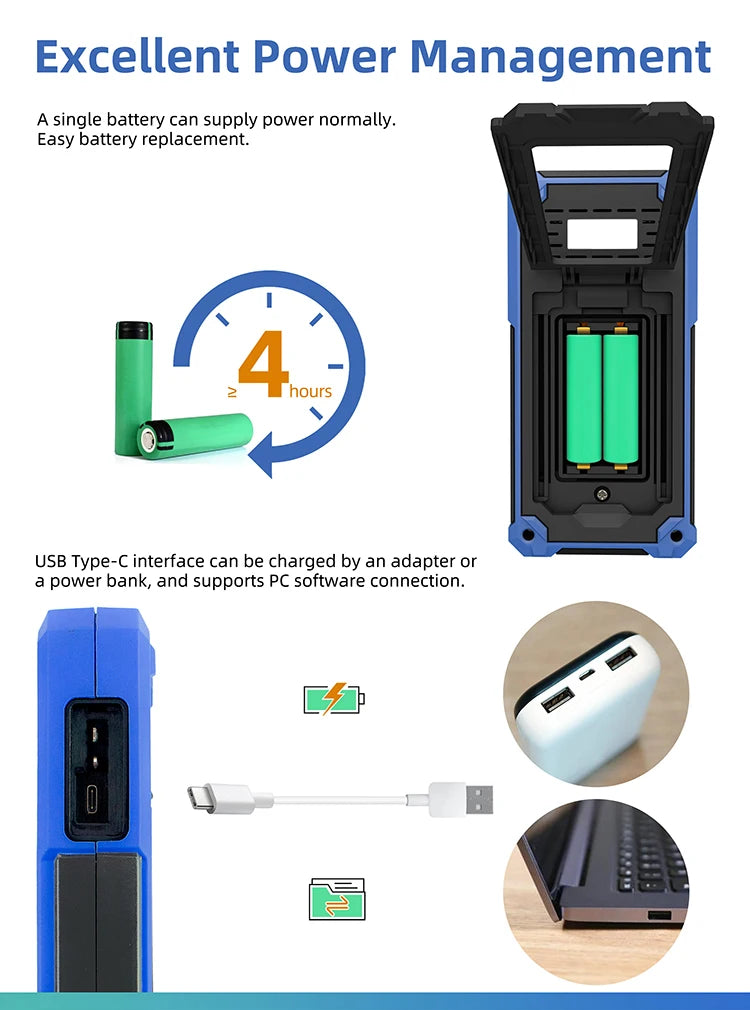

+ 18650 lithium battery, can work continuously for 3-6 hours

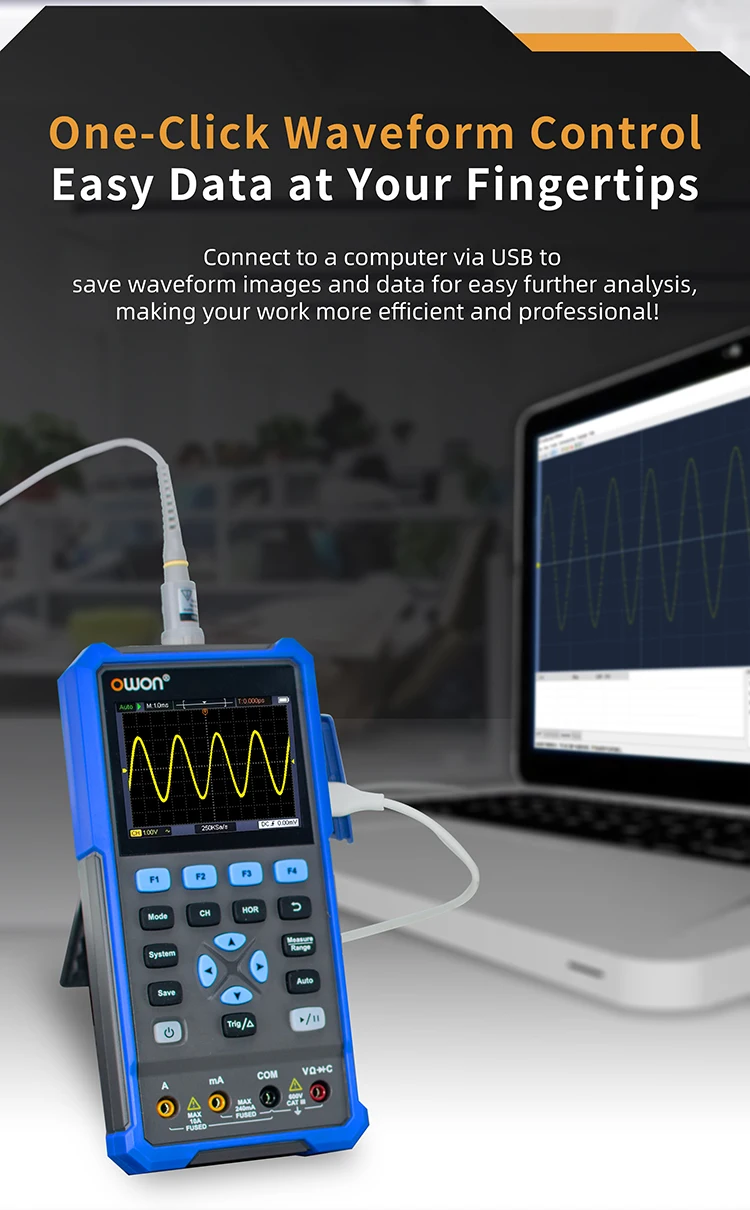

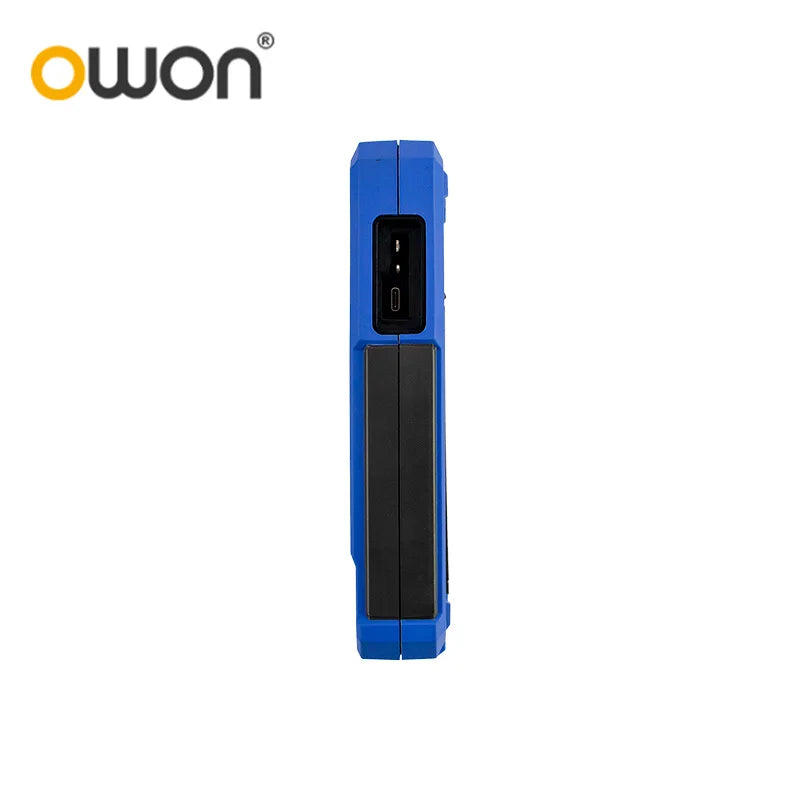

+ USB Type-C interface, support power bank, support PC software connection
+ Self-calibration function
+ SCPI supported, facilitate secondary development

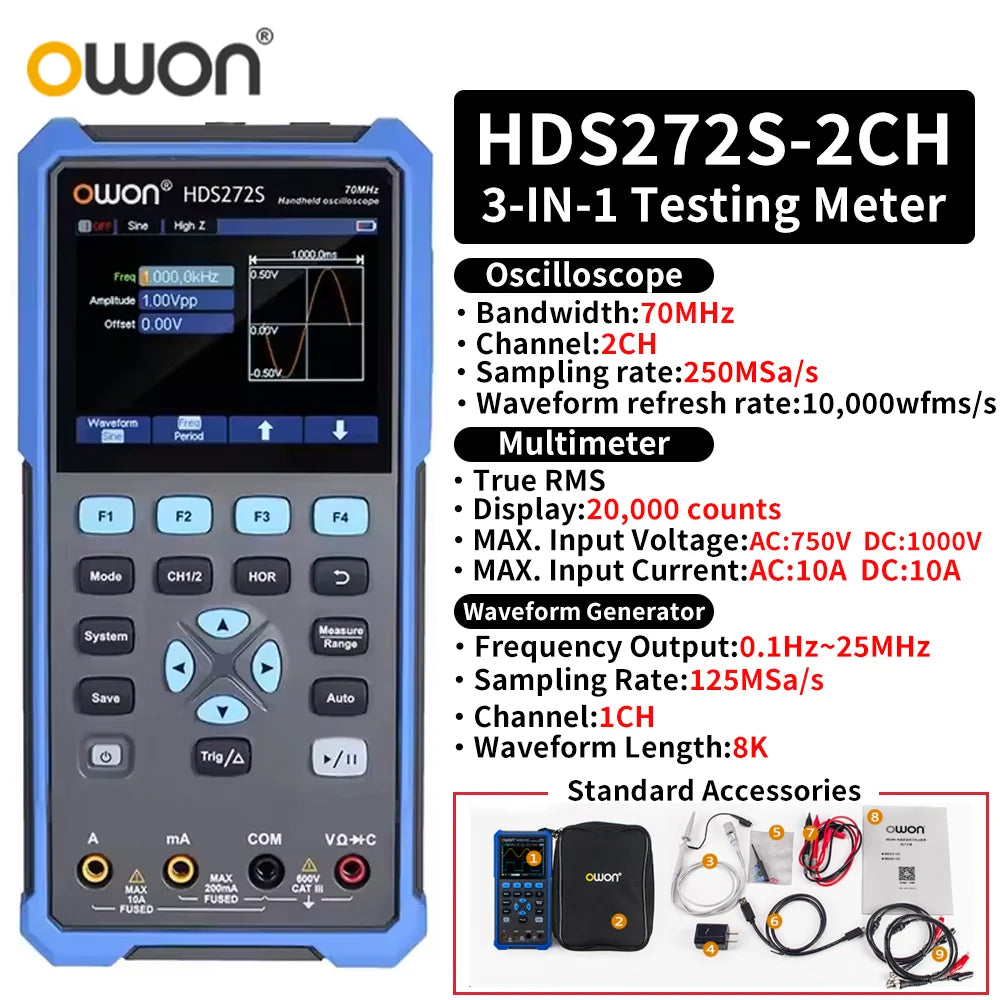

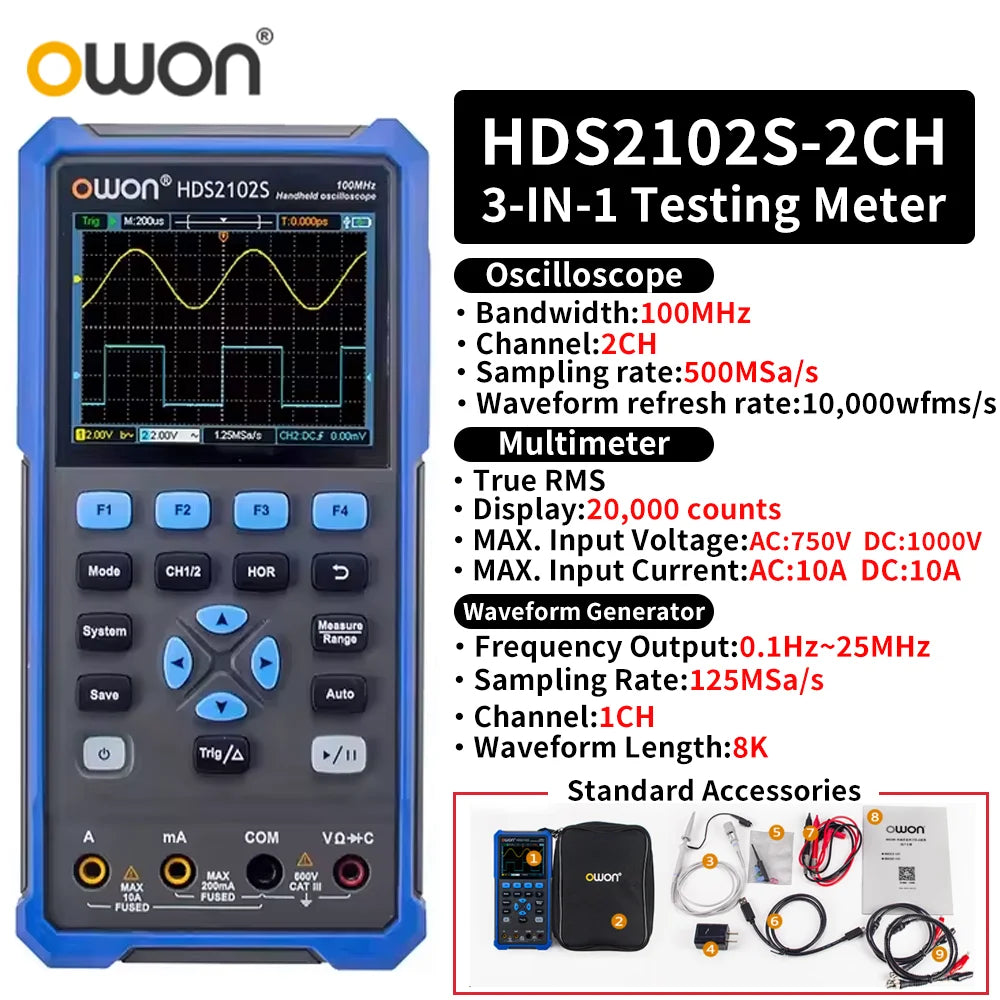

HDS242(S)/HDS272(S)/HDS2102(S)/HDS2202(S) Parameters

「Oscilloscope」Specifications

Model	HDS25(S)	HDS242(S)		HDS272(S)	HDS2102(S)		HDS2202(S)
Bandwidth	25MHz	40MHz		70MHz	100MHz		200MHz
Channels	2-CH
Sample Rate	250MSa/s		500MSa/s				1GSa/s
Acquisition Model	Normal, Peak detect
Record Length	8K
Display	3.5-inch LCD
Waveform Refresh Rate	10,000 wfrms/s
Input Coupling	DC, AC, and Ground
Input Impedance	1 MΩ±2%, in parallel with 16pF±10pF
Probe Attenuation Factors	1X,10X,100X,1000X,10000X

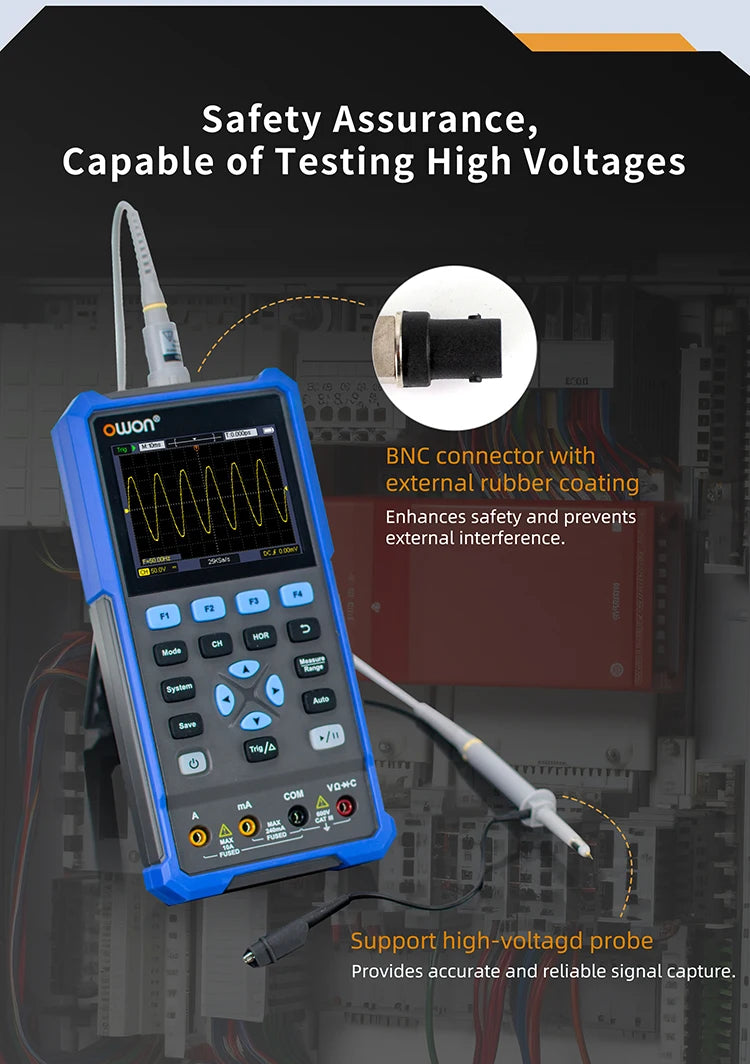

Max. input Voltage	400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)
Bandwidth Limit (typical)	20MHz
Horizontal Scale	5ns/div - 1000s/div, step by 1 - 2 - 5					2ns/div - 1000s/div, step by 1 - 2 - 5
Vertical Sensitivity	10mV/div - 10V/div
Vertical Resolution	8 bits
Trigger Type	Edge
Trigger Modes	Auto, Normal, single

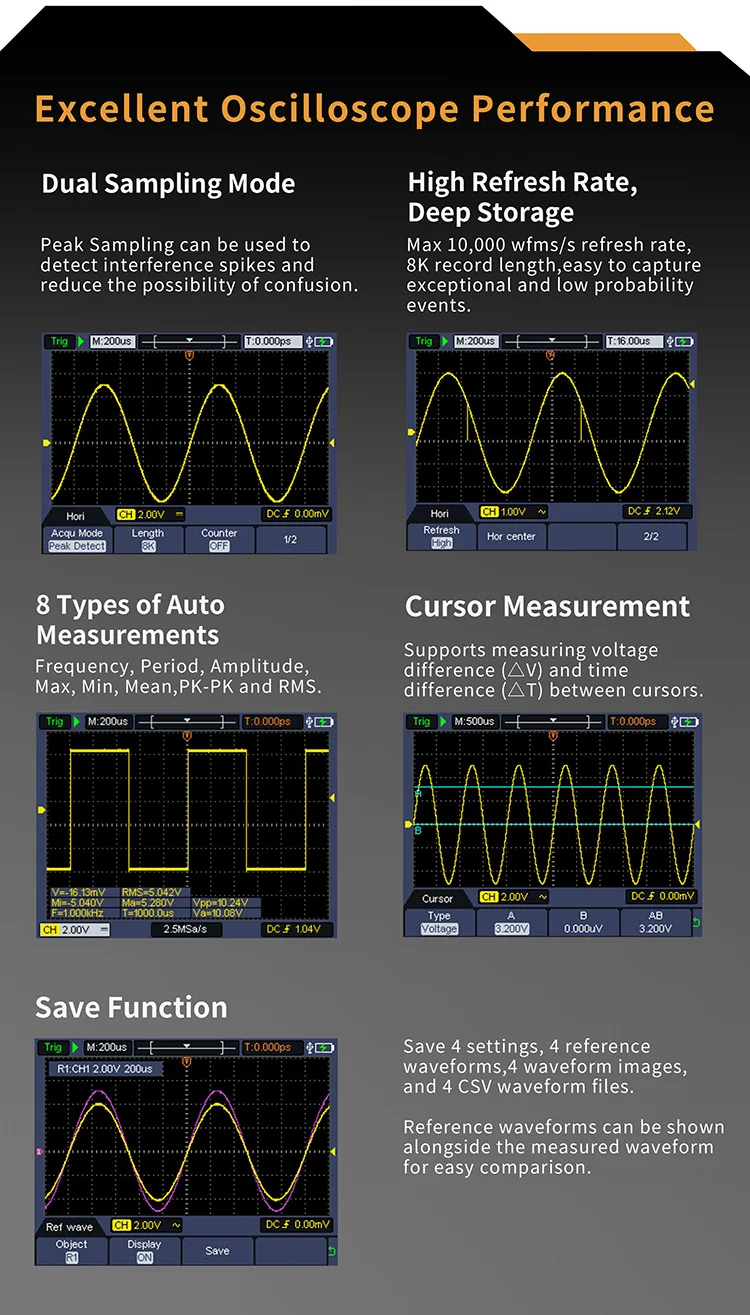

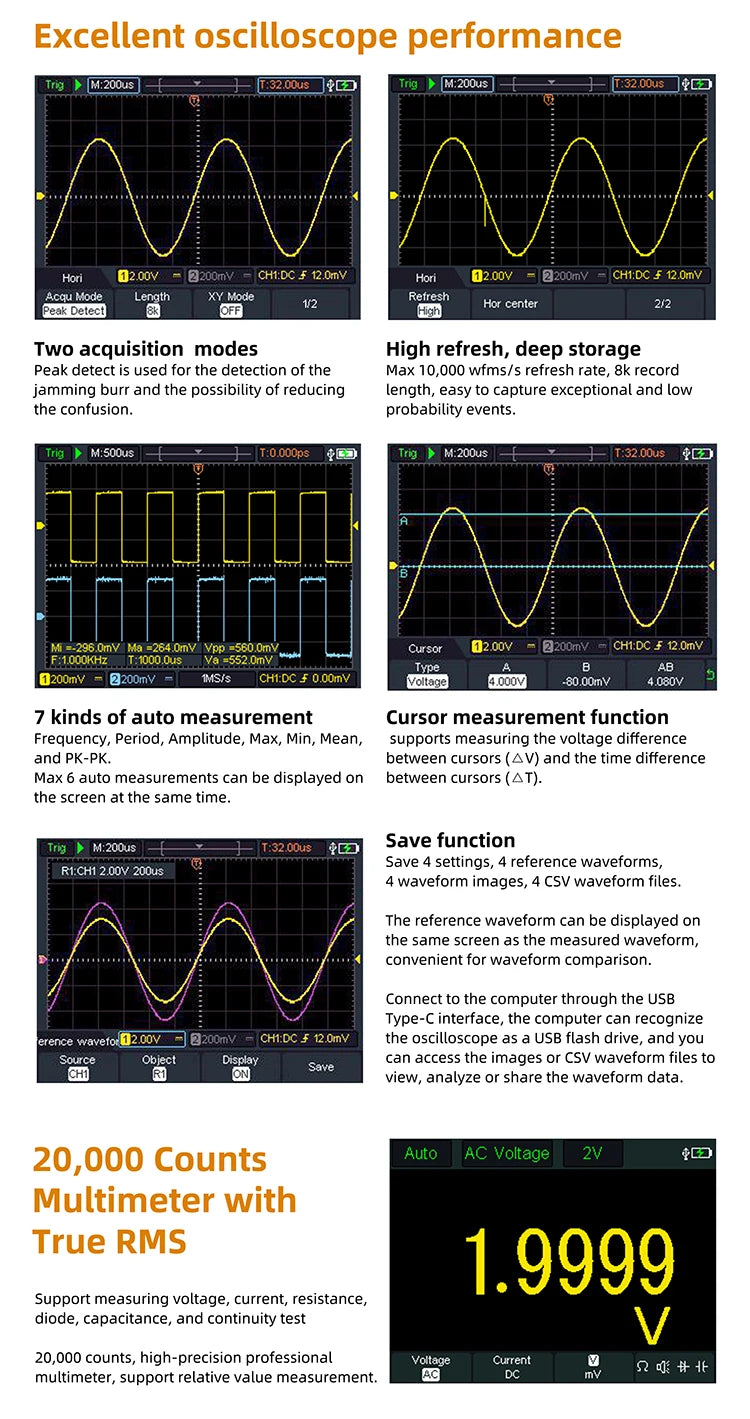

Automatic Measurement	Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
Cursor Measurement	ΔV, ΔT, ΔT&ΔV between cursors
Communication Interface	USB Type-C

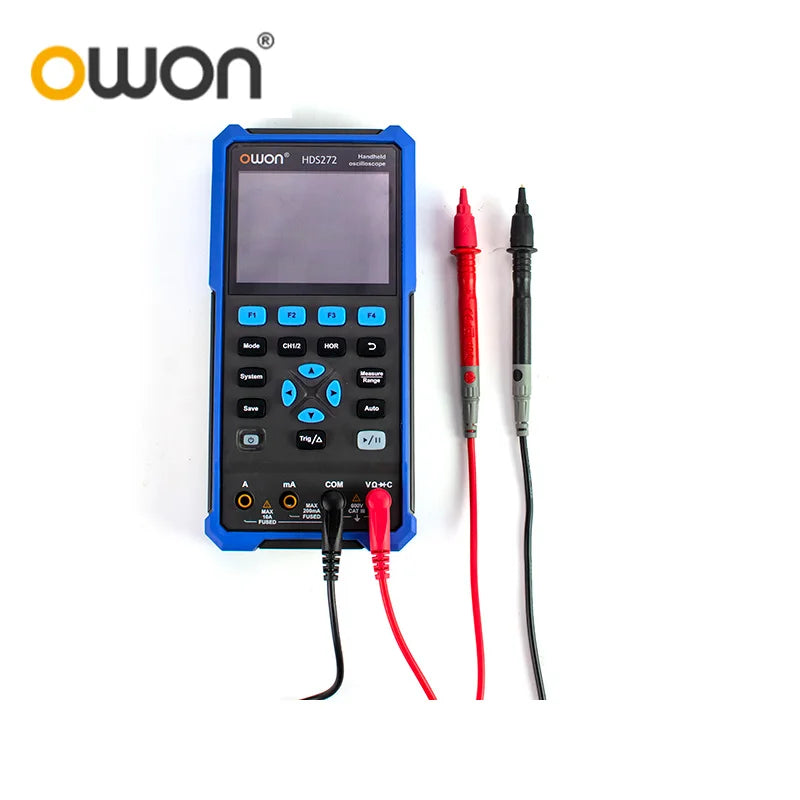

「Multimeter」Specifications (Standard)

Max. Resolution	20,000 counts
Testing Mode	Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
Input Impedance	10MΩ
Max Input Voltage	AC 750V, DC 1000V
Max Input Current	DC : 10A AC : 10A
Diode	0 - 2V

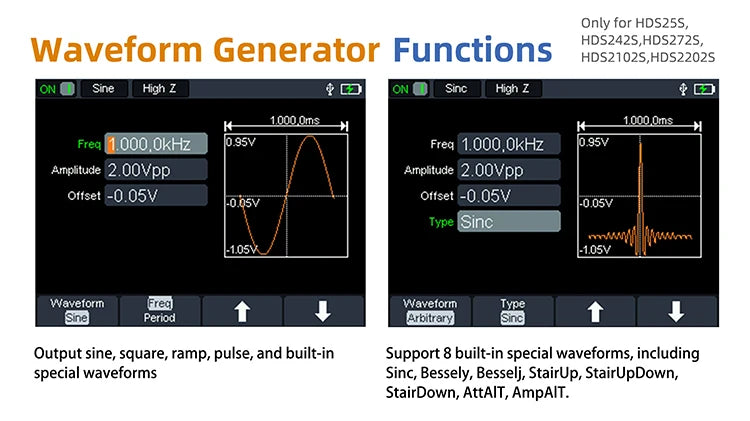

「Waveform Generator」Specifications (Only for HDS25S, HDS242S, HDS272S, HDS2102S, HDS2202S)

Frequency Output	Sine	0.1Hz - 25MHz (HDS242S, 272S, 2102S, 2202S)
		0.1Hz - 10MHz (HDS25S)
	Square	0.1Hz - 5MHz (HDS242S, 272S, 2102S, 2202S)
		0.1Hz - 2MHz (HDS25S)
	Ramp	0.1Hz - 1MHz
	Pulse	0.1Hz - 5MHz
	Arbitrary	0.1Hz - 5MHz
Sampling Rate	125MSa/s
Channel	1-CH
Amplitude Range (high impedance)	20 mVpp - 5 Vpp
Waveform Length	8K
Vertical Resolution	14bits
Output Impedance	50Ω

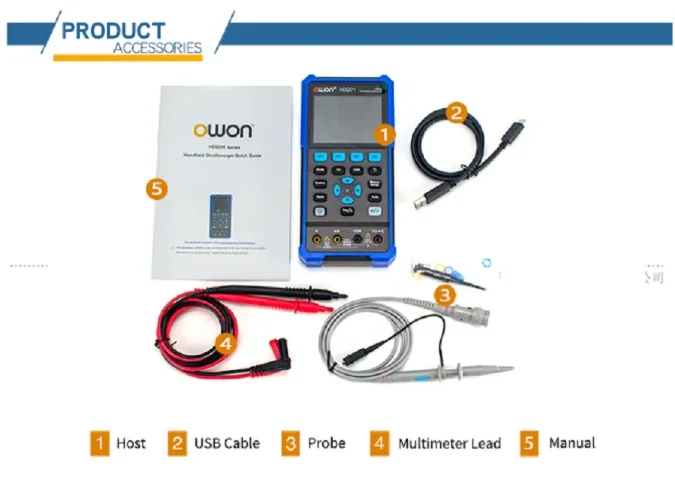

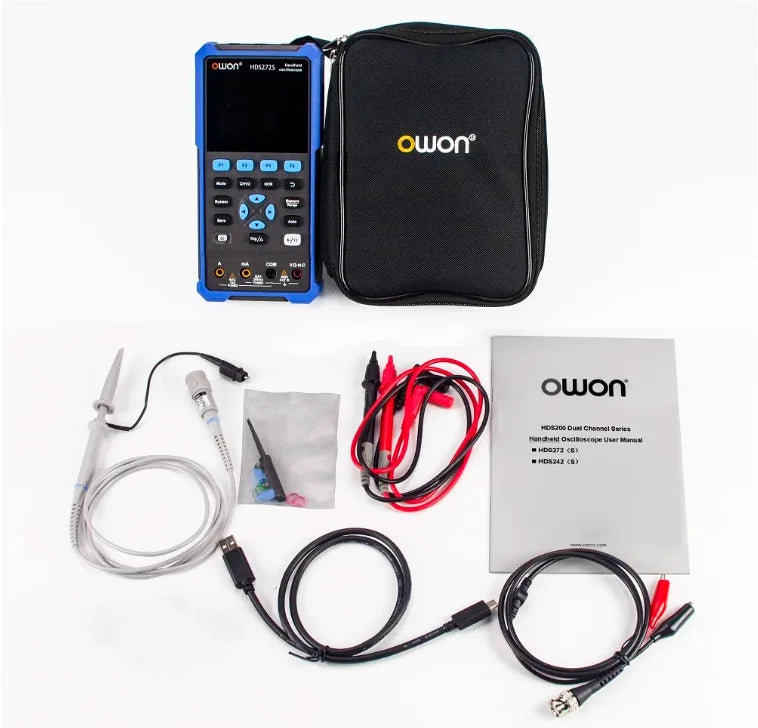

HDS242(S)/HDS272(S)/HDS2102(S)/HDS2202(S) Packging

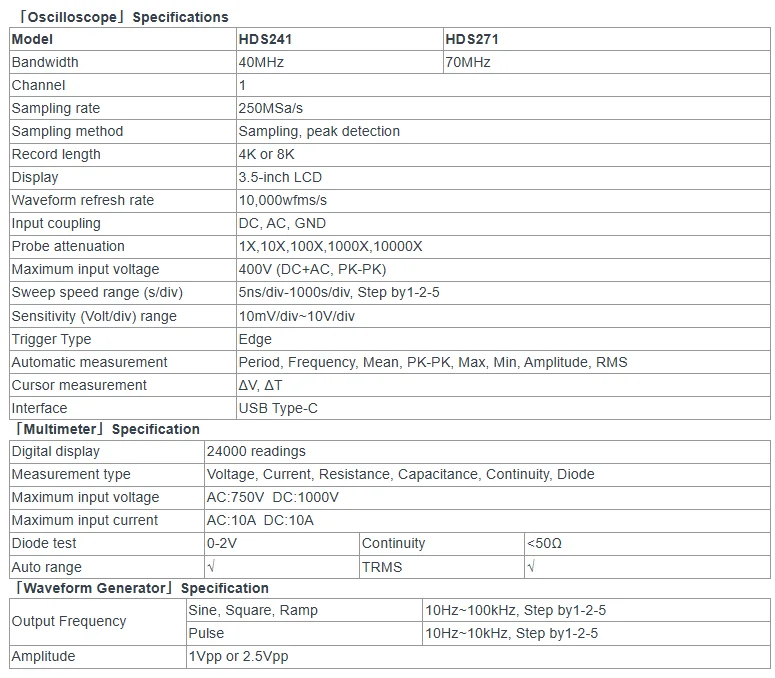

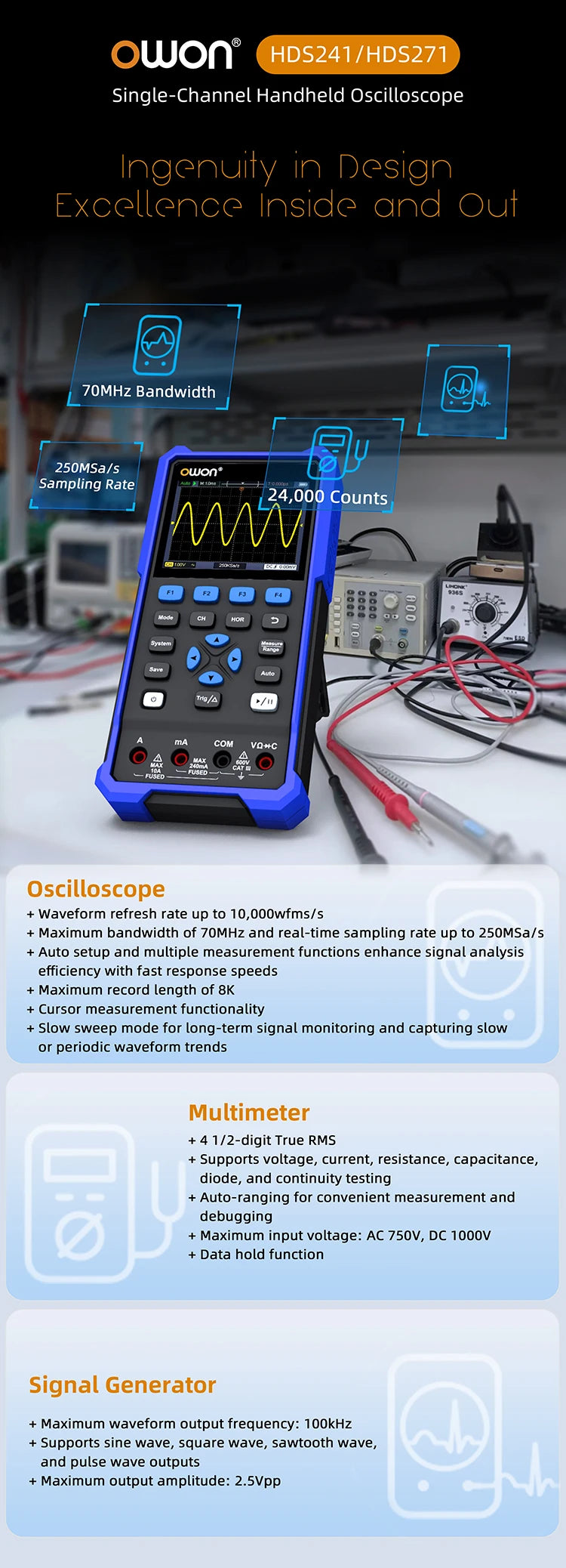

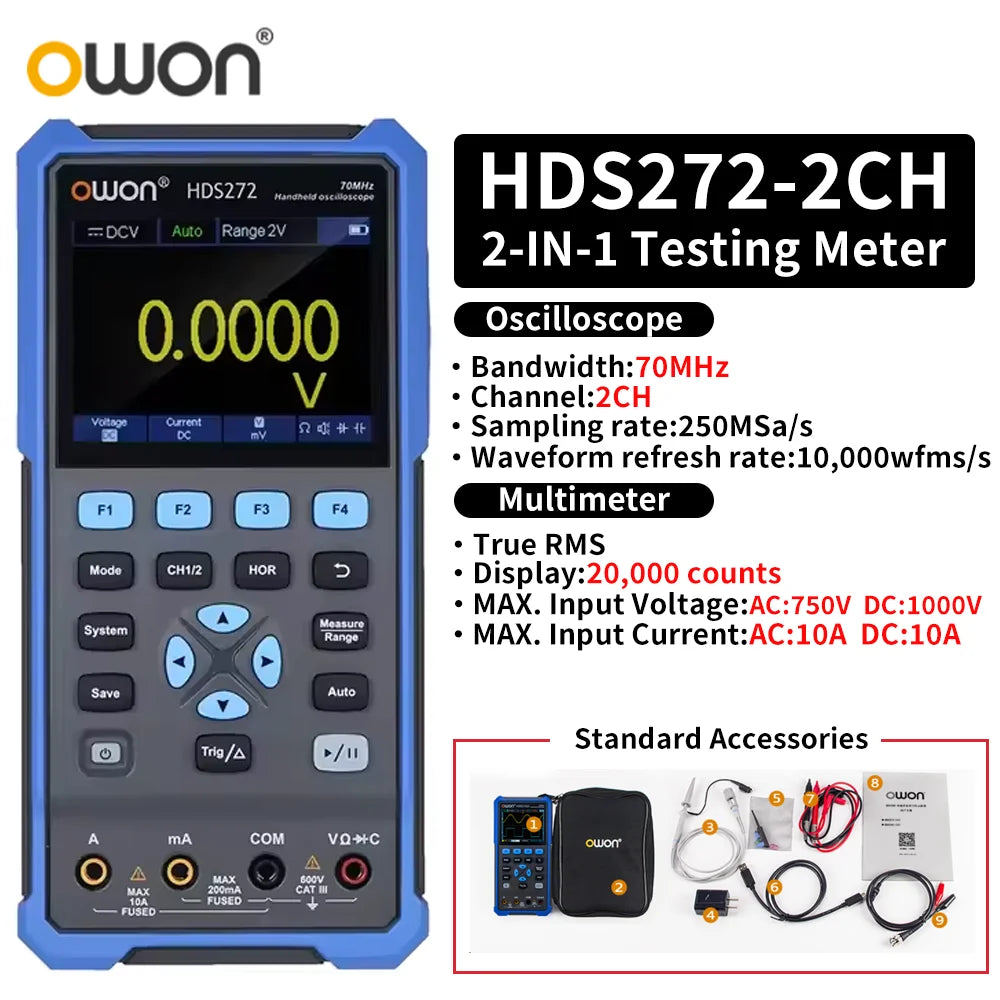

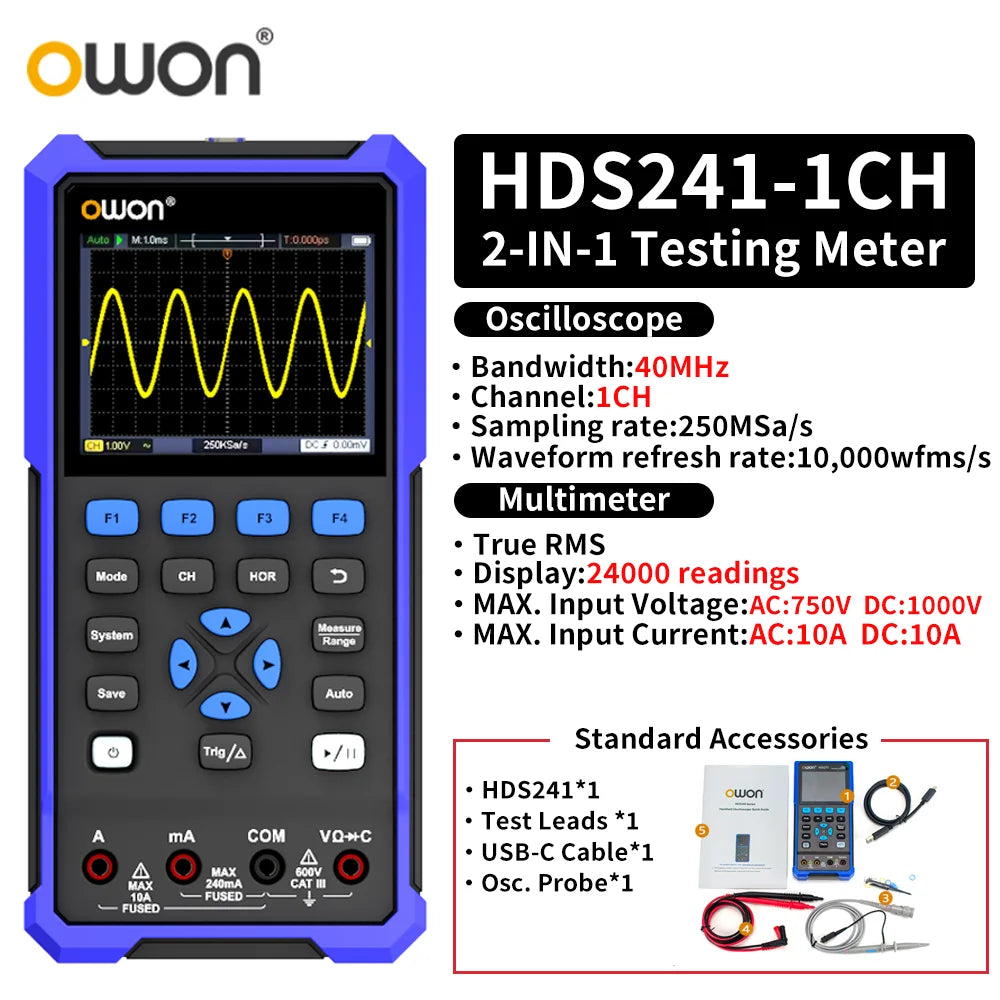

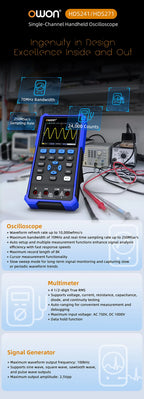

HDS241/HDS271 Parameters

HDS241/HDS271 Packging
