OWON Oscilloscope Digital Dual Channel 200MHz Bandwidth 1GSa s Sample Rate 2 in 1 Analog Oscilloscope Multimeter HDS2202

OWON Oscilloscope Digital Dual Channel 200MHz Bandwidth 1GSa s Sample Rate 2 in 1 Analog Oscilloscope Multimeter HDS2202

$3,156.76

$3,156.76 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Frame Material: None

General Use: Commercial Furniture

High-concerned chemical: none

Installation Method: self-contained

Material: Metal

Metal Type: Stainless Steel

Origin: Mainland China

Dear friends, it's great to meet you all through this shop. I'm Felix from China. The prices and shipping costs shown in the links are inaccurate. Please contact me before placing your order so I can provide you with a more accurate quote. Different countries/regions have different shipping methods for different products, and it's difficult to accurately display shipping costs in the links. I hope you understand. Welcome to join us! Our WhatsApp number is +86 13786139874

If you have any questions, Please contact our service:

Product Description

This is a multifunctional instrument for outdoor maintenance, rapid on-site measurement, auto maintenance, detection and more. Digital LCD color display is easy for reading, built-in ensures strong endurance, and zipper carry bag is convenient for One in hand, worry-free testing in multiple scenes.

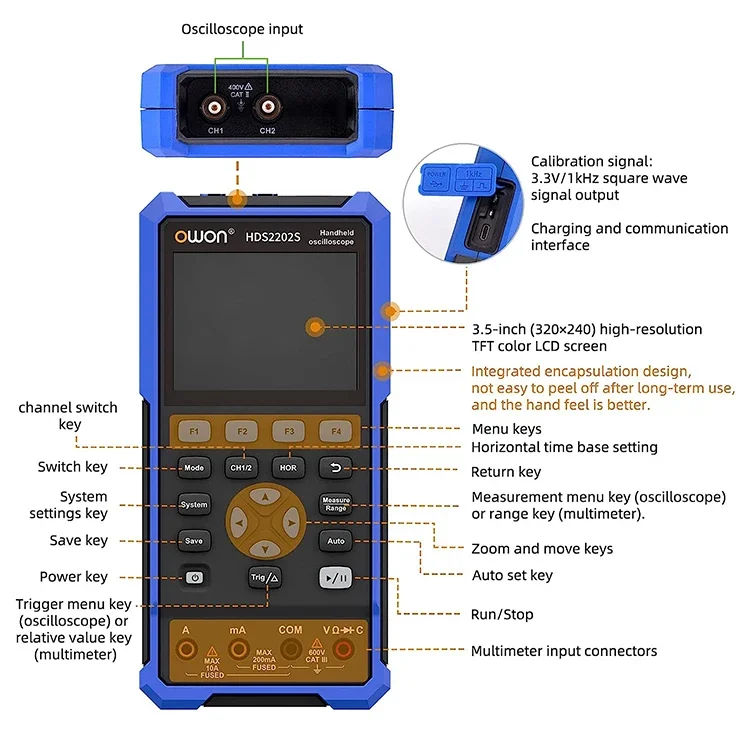

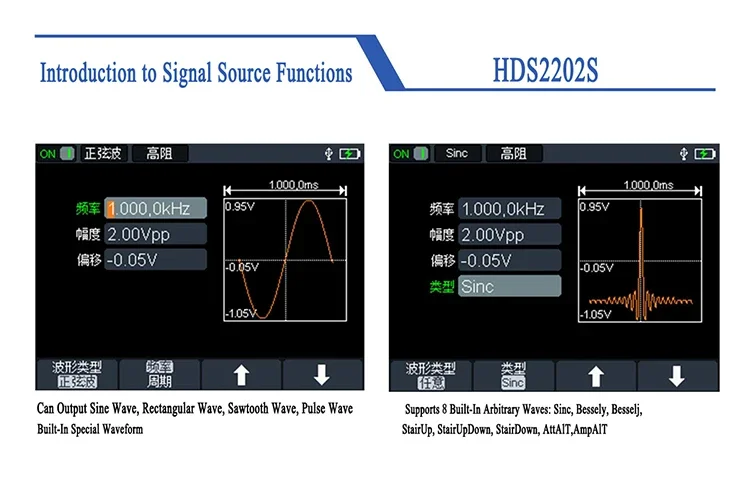

*Oscilloscope + multimeter + waveform generator, multifunction in one
*3.5-inch high-resolution, high-contrast color LCD display, for outdoor use
*18650 comprehensive consumption ≤5W, can work for 4 hours
*USB Type-C support bank, support PC software connection
*Self-calibration function
*SCPI supported, facilitate secondary development

Features:

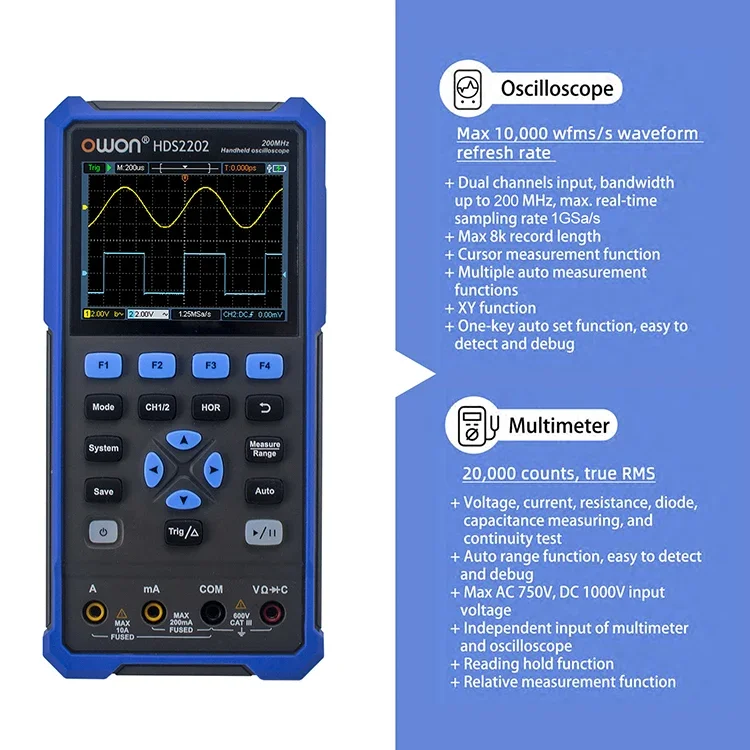

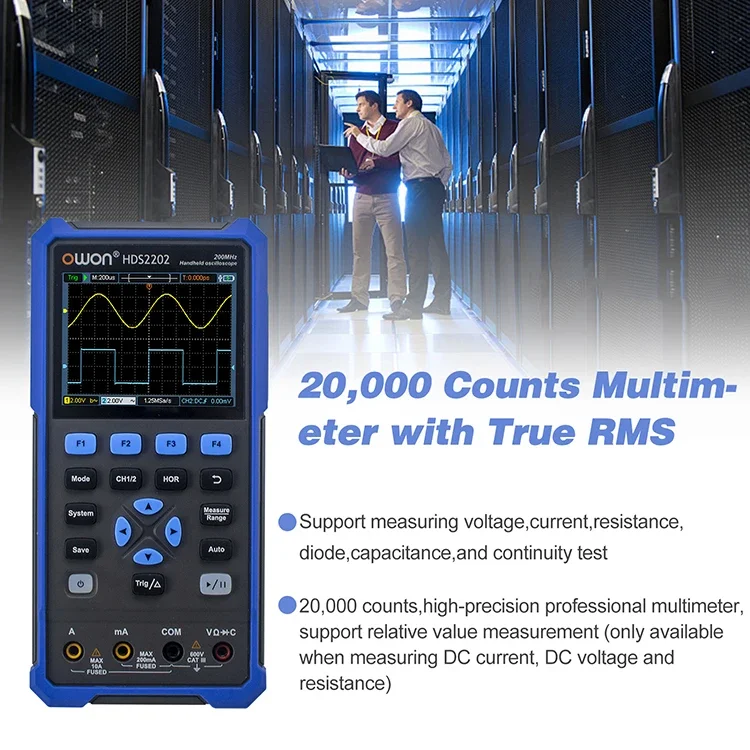

[2 in 1 Multifunction Instrument] Oscilloscope -- dual input, 200MHz bandwidth, 1GSa/s sampling rate. Multimeter -- true RMS, 20000 counts, auto range, voltage/ current/ diode/ capacitance/ continuity testing.

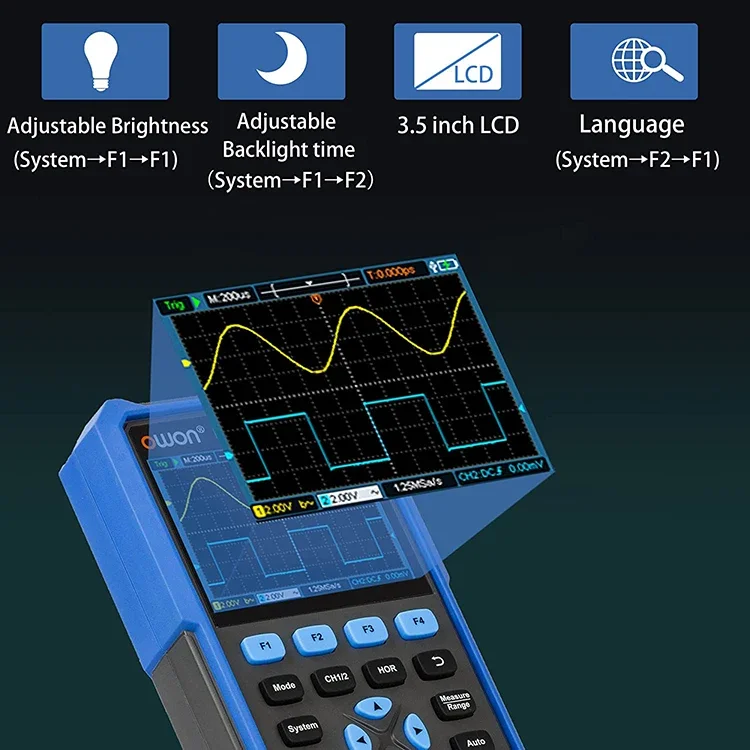

[Digital LCD Display] 3.5-inch high-resolution, high-contrast color LCD display, clear at a glance, easy to read even in dark
environment. Supports self-calibration function. SCPI supported, facilitates secondary development.

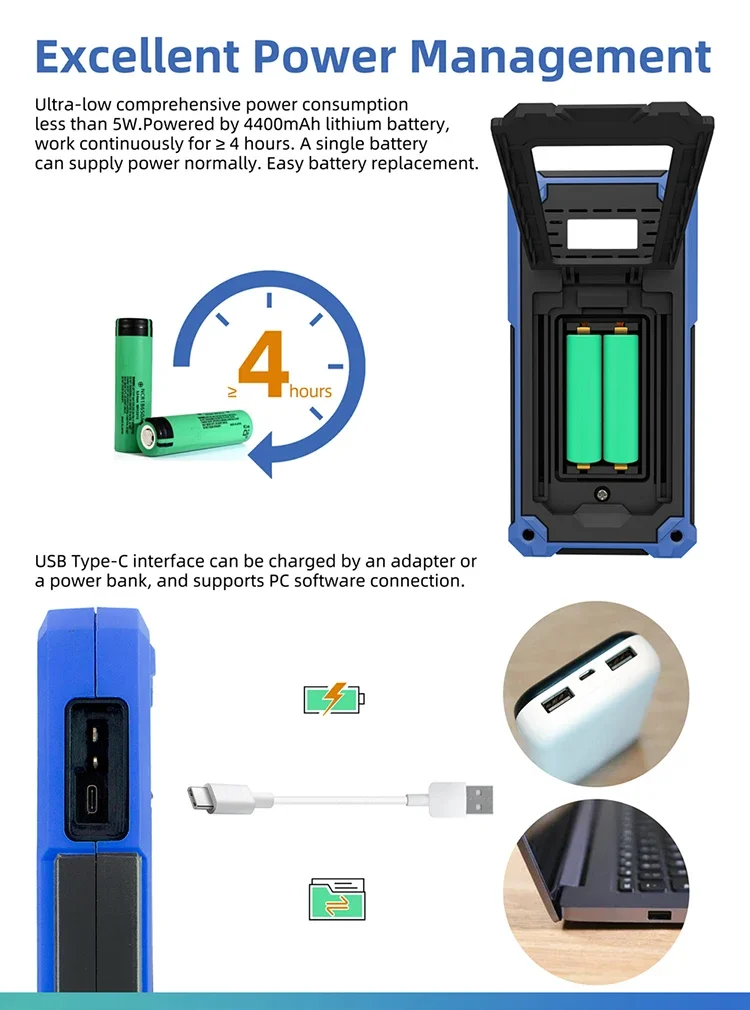

PC Software Supported] Built in with 4400mAh provides 4 hours long working time. Low comprehensive consumption, Type-C USB comes with USB and adapter for easy and quick supports PC software connection.

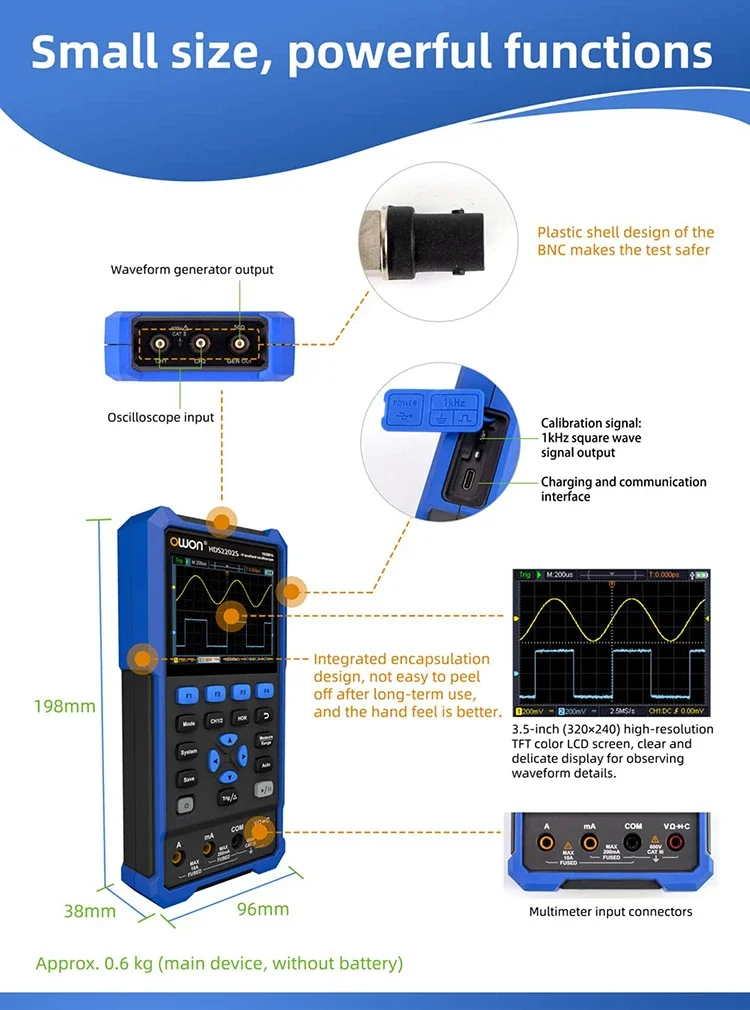

Quality, Small Size] plastic shell is sturdy and compact and lightweight, to hold, easy to
operate, to carry. bracket is convenient to use and space-saving when not in use.
[Wide Range of Use] One in hand, worry-free testing in multiple scenes. for outdoor maintenance, rapid on-site measurement, auto maintenance, detection, etc..

Specification

Model	HDS2202	HDS2202S
Bandwidth	200MHz
Channel	2	generator)
Sample Rate	1GSa/s

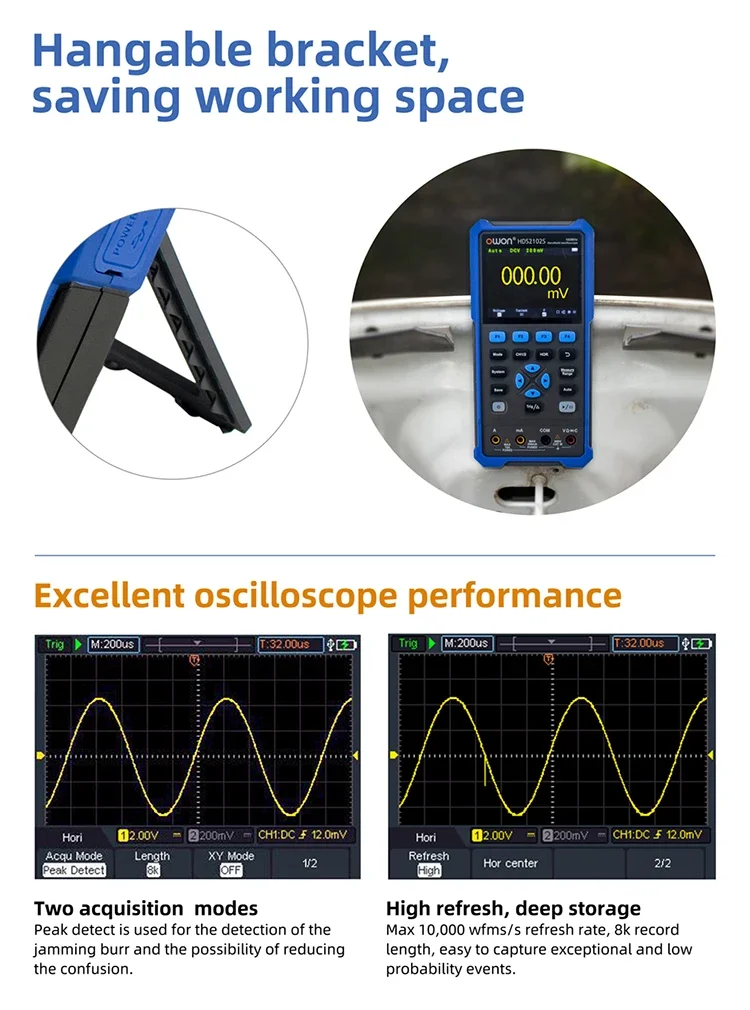

Acquisition Model	Sample,Peak detect
Record Length	8K
Display	3.5 inch LCD
Waveform Refresh Rate	10000 wfrms/s
lnput Coupling	DC,AC,Ground
lnput Impedance	1MΩ ±2%,in parallel with 16 pF±10 pF
Probe Attenuation	1x,10X,100x,1000x,10000x
Max. Input Voltage	400V(DC+AC,PK- PK)
Bandwidth Limit(typical)	20MHz/Full bandwidth
Sampling Rate Range	2ns/div~1000s/div,step by 1 - 2-5
Sensitivity Resolution	10mV/div~10V/div
Low Frequency (-3db)	≥10 Hz(at input,AC coupling)
Rise Time (At Input Typical)	≤1.75ns
Trigger Type	Edge
Trigger Model	Auto,Normal, single
Trigger Level Range	±4 div from the screen center

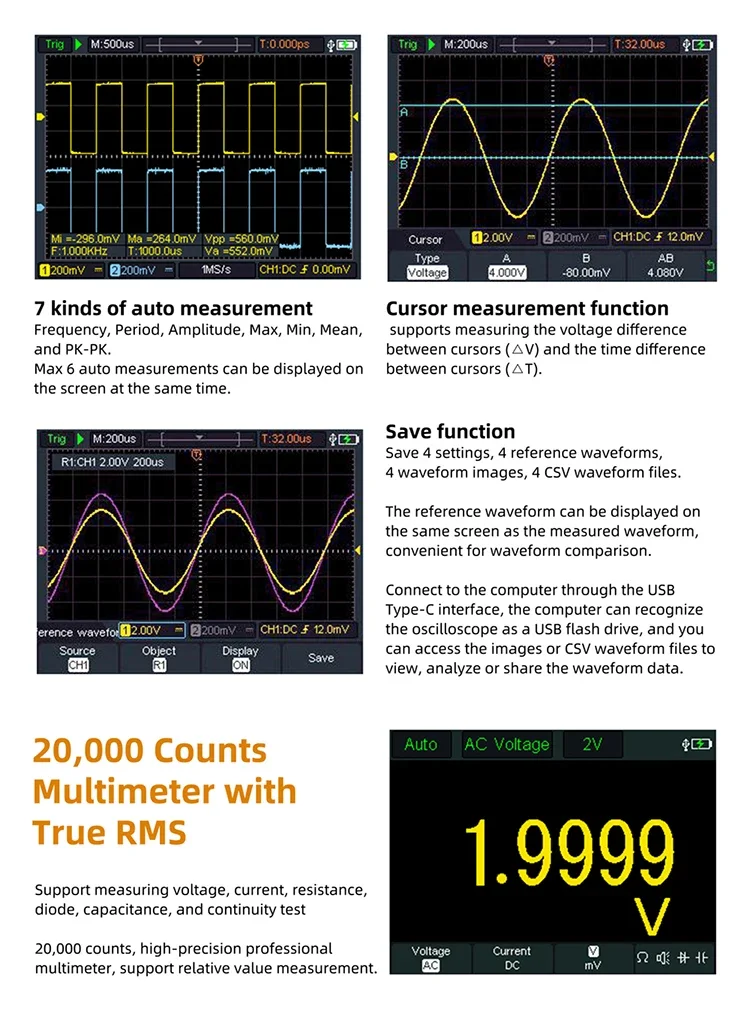

Automatic Measurement	Period,Frequency,Mean,PK-PK,Max,Min,Amplitude
Cursor Measurement	ΔV,ΔT,ΔT&ΔV between cursors,auto cursor
Communication	USB Type-C

Detailed Images

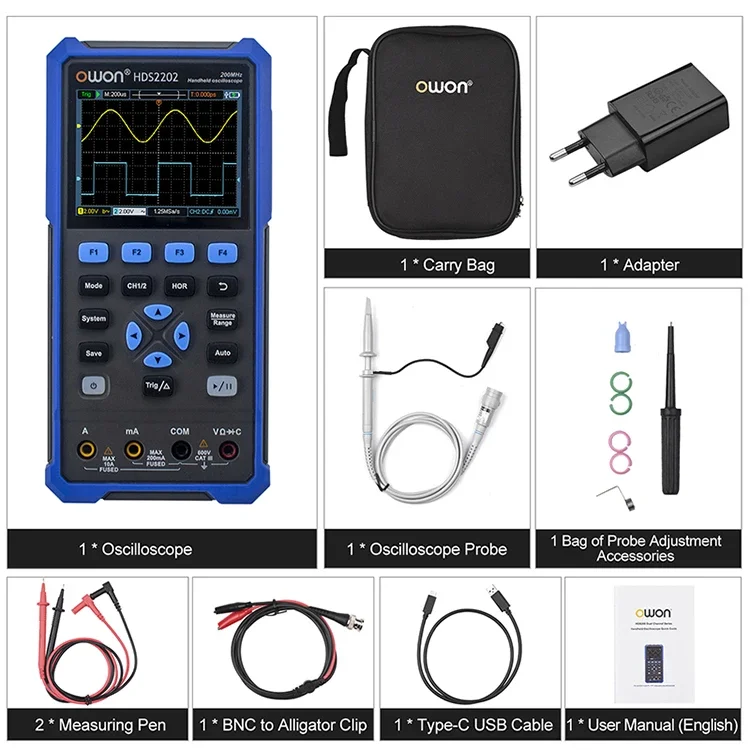

Product packaging
