OWON VDS1022/VDS1022I 25MHz 2CH 100MS/s USB Isolated PC Virtual Oscilloscope XY Mode FFT Analysis Dual Views for Repair Testing

OWON VDS1022/VDS1022I 25MHz 2CH 100MS/s USB Isolated PC Virtual Oscilloscope XY Mode FFT Analysis Dual Views for Repair Testing

$311.68

$311.68 $0.00

Description

SPECIFICATIONS

Band Width: Less than 60MHz

Battery Included: no

Brand Name: owon

Certification: CE,FCC,RoHS,KC

DIY Supplies: Electrical

Digital Channels: 2

Display Size: None

High-concerned chemical: none

IS Battery Demountable: No

Max Waveform Capture Rate: 30,000wfm/s

Model Number: VDS1022/VDS1022I

Origin: Mainland China

Real Time Sampling Rate: 100MSa/s

Record Length: 5K

Semi-finishedproduct: No

Type 1: Ultra-thin body design, easy to carry

Type 2: PC Oscilloscope

Type 3: Virtual Oscilloscope

Type 4: Portable USB Oscilloscope

Type 5: USB Oscilloscope

Type 6: PC Based Oscilloscope

Type 7: Virtual Oscilloscope

Type 8: Digital Oscilloscope 2 Channel

Type 9: Handheld Oscilloscope

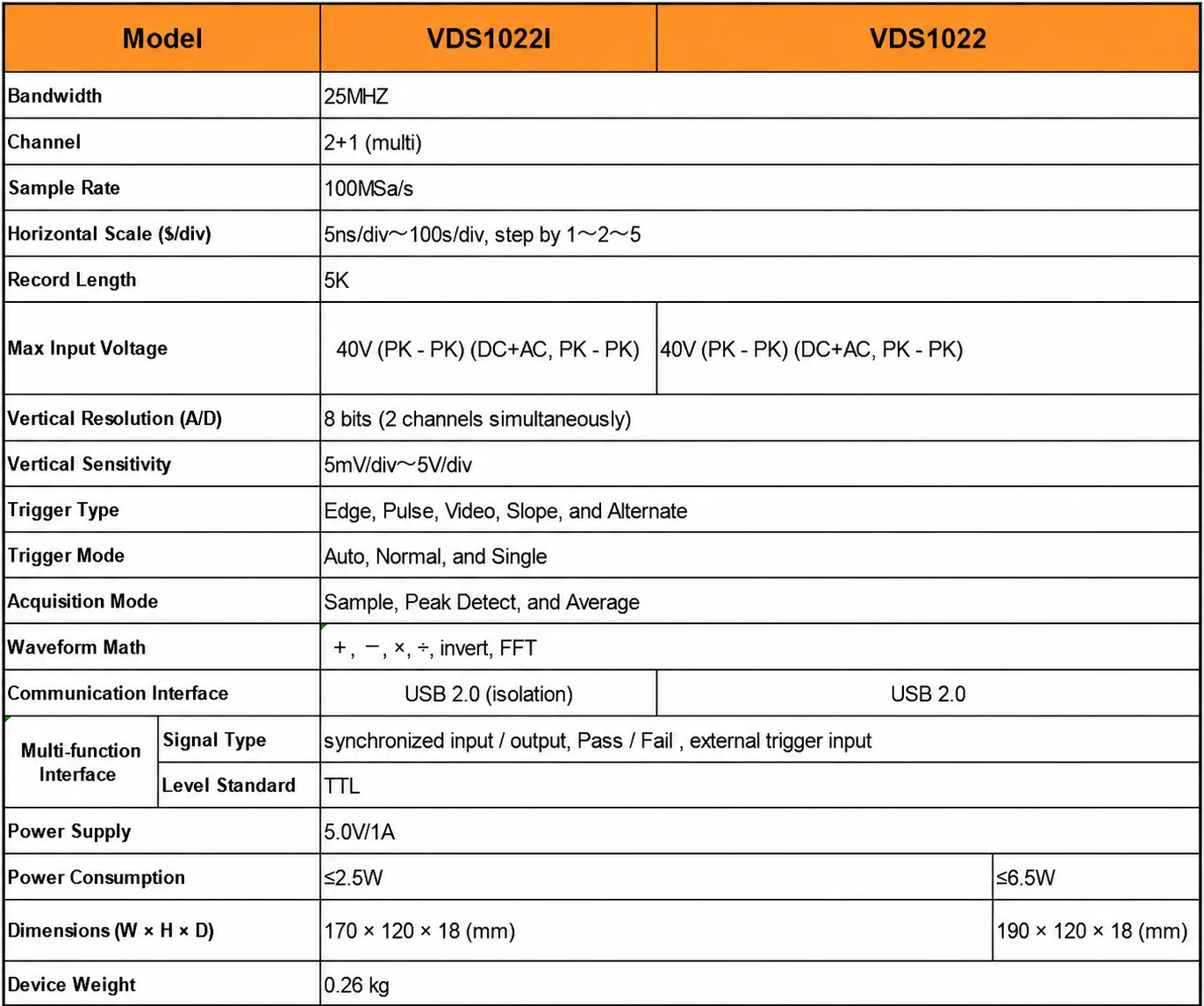

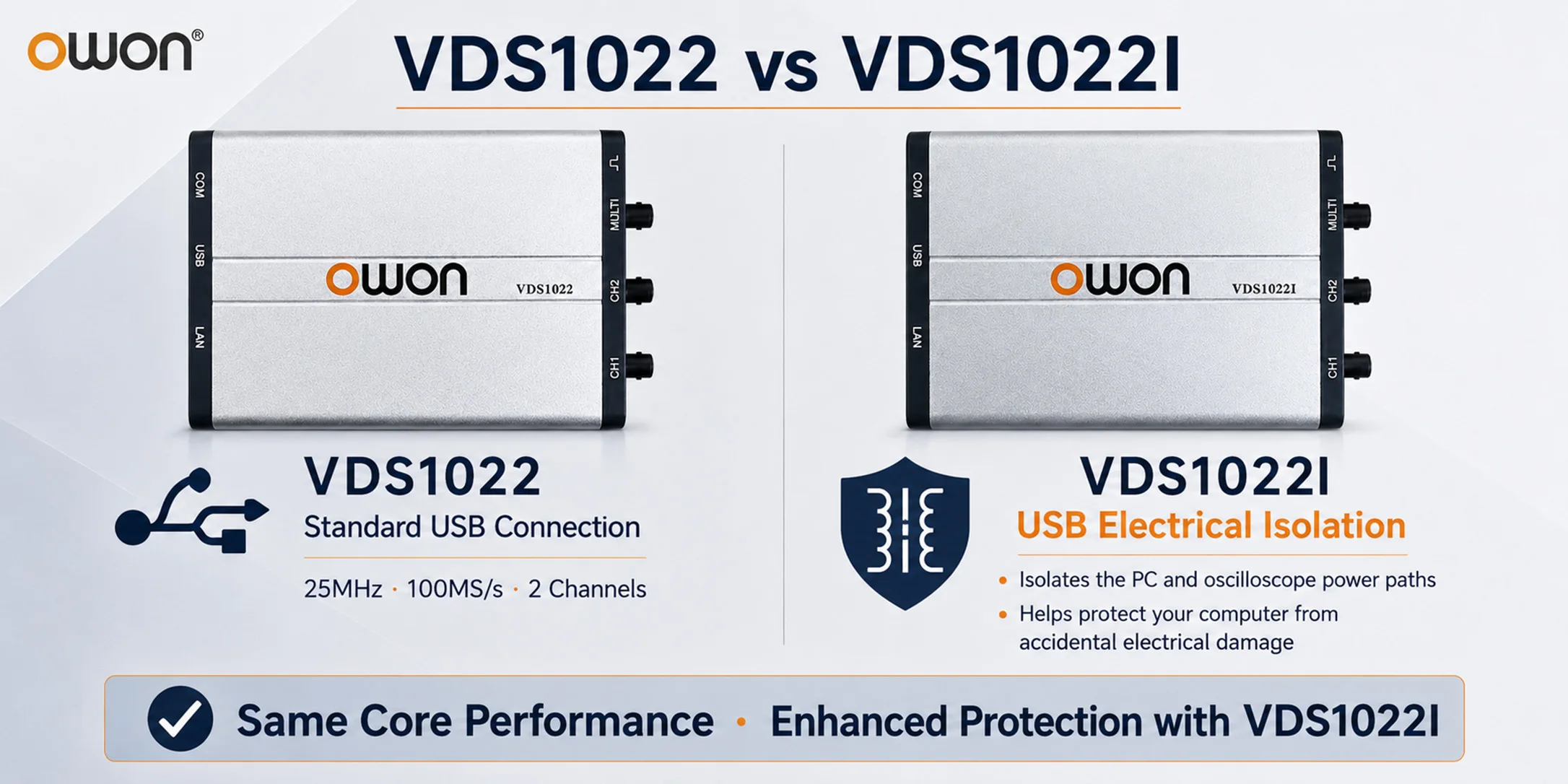

The difference between VDS1022 and VDS1022I is VDS1022I isolate power for the computer and the oscilloscope to protect the computer from being burned by mistake

▶ Product Title

OWON VDS1022I 25MHz 2 Channel USB Isolated Oscilloscope 100MS/s 400V Peak Input PC Virtual Oscilloscope for Industrial Testing

▶ Hero Banner

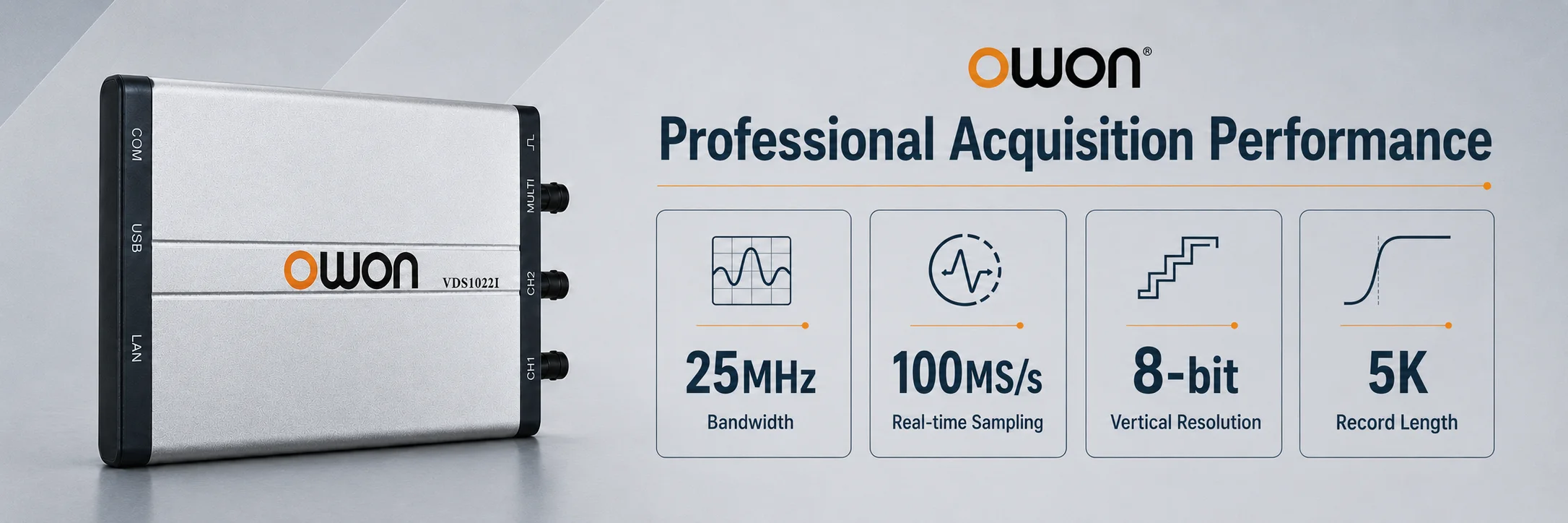

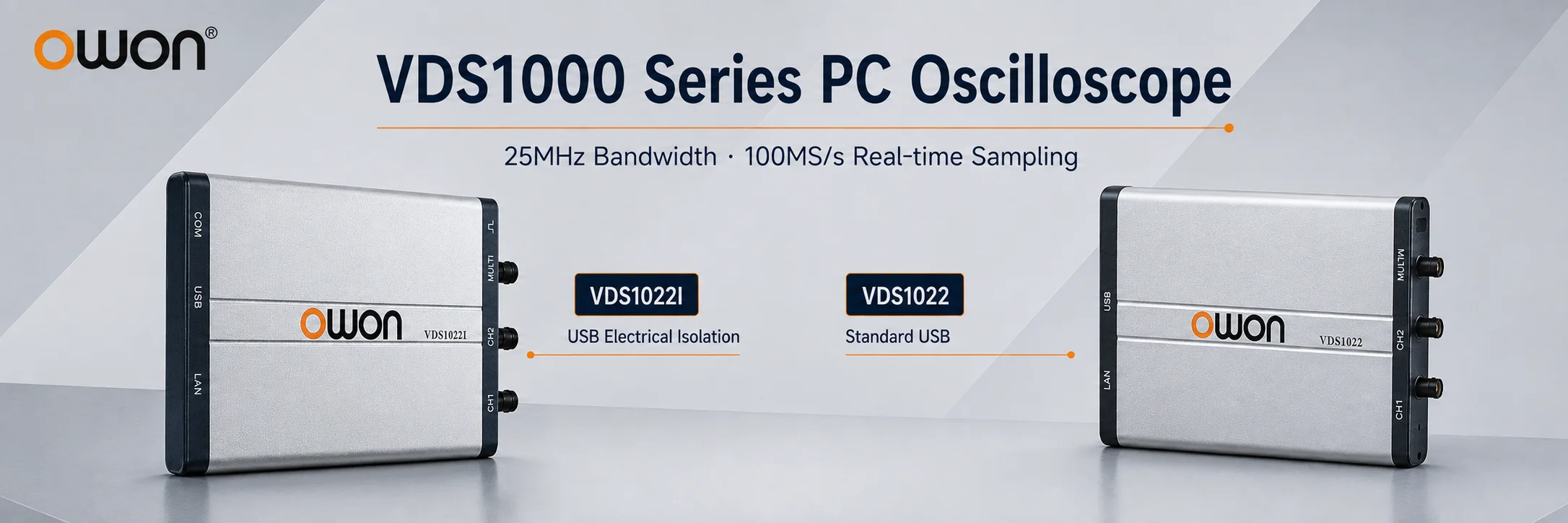

Headline: VDS1022I Isolated USB Oscilloscope | Industrial Grade Protection Sub-headline: 25MHz Bandwidth · 2CH Simultaneous Sampling · 400V Peak Withstand · Galvanic Isolation Design

SCPI Example for VDS Series PC oscilloscope

https://files.owon.com.cn//software/Application/VDS_Series_SCPI_example_folder.zip

User Manual for VDS1022(I) PC oscilloscope

https://files.owon.com.cn/probook/VDS1022_1022I.zip

PC software for VDS1022(I) PC oscilloscope

https://files.owon.com.cn/software/pc/OWON_VDS_C2_Setup.zip

OWON VDS Series PC Oscilloscope

- Up to 100MHz bandwidth, and max 1GS/s real-time sample rate
- 10M record length
- Friendly UI : FFT, or X-Y, and waveform 2 views displayed
on the same screen
- Multi-trigger option : edge, video, slope, pulse, and alternate
- USB isolation - less signal inference, more PC protection
- USB bus powering, and LAN remote control (optional)
- Ultra-thin body design, easy portability

Notice:The difference between VDS1022 and VDS1022I is VDS1022I isolate power for the computer and the oscilloscope to protect the computer from being burned by mistake

Feature Highlights

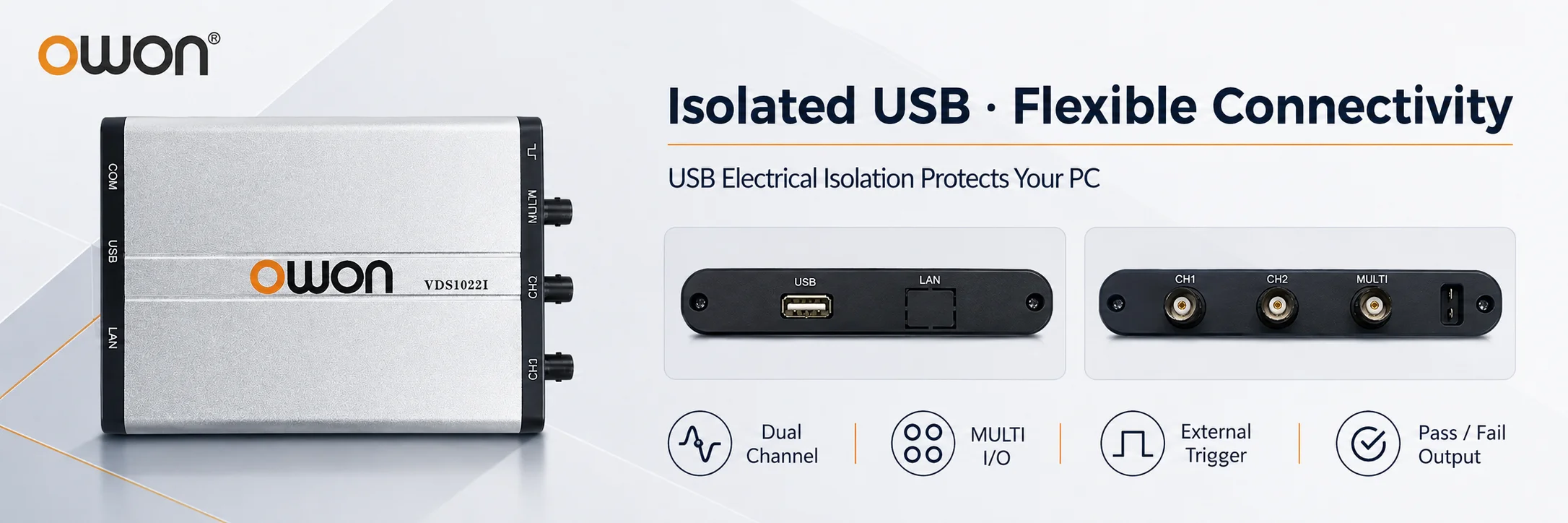

1. Industrial Galvanic Isolation Design（VDS1022I）

Built-in USB electrical isolation circuit suppresses common-mode ground loop noise and withstands transient high-voltage surges, fully protecting connected computers and peripheral devices. Purpose-built for high-voltage debugging, power electronics testing and industrial on-site maintenance scenarios

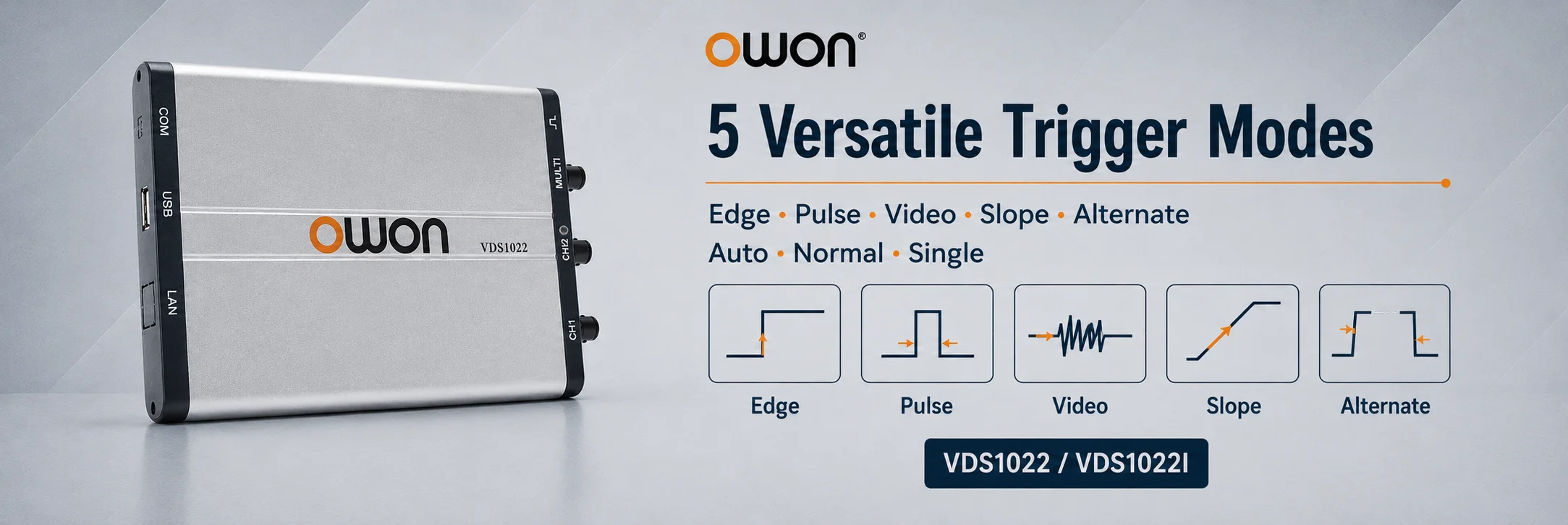

2. Versatile Trigger System

Supports **Edge, Pulse Width, Video, Slope and Alternate** trigger types, compatible with NTSC, PAL and SECAM standard video signals. Three operating modes (Auto / Normal / Single) cover requirements from routine measurement to transient event capture.

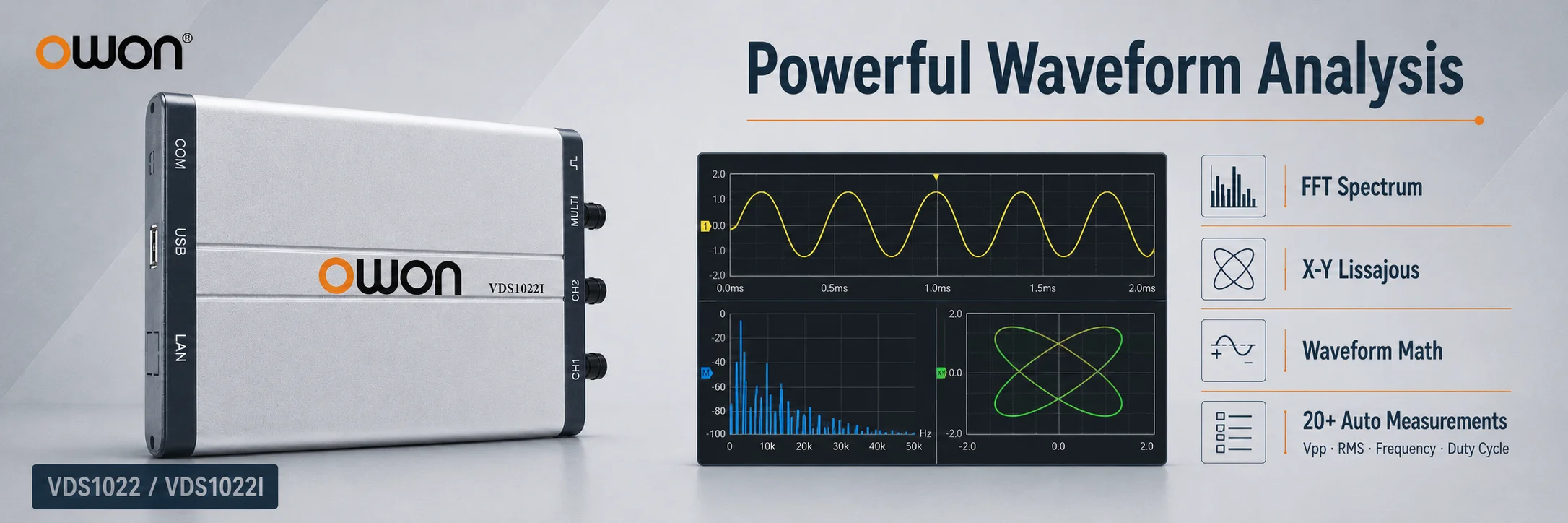

3. Professional Measurement & Waveform Analysis

- 20+ automatic measurement parameters: Vpp, Vavg, RMS, frequency, period, rise/fall time, duty cycle, channel delay, etc.
- Waveform math operations: addition, subtraction, multiplication, division, FFT spectrum analysis, inversion
- X-Y Lissajous mode with ±3° phase accuracy for frequency and phase characteristic testing

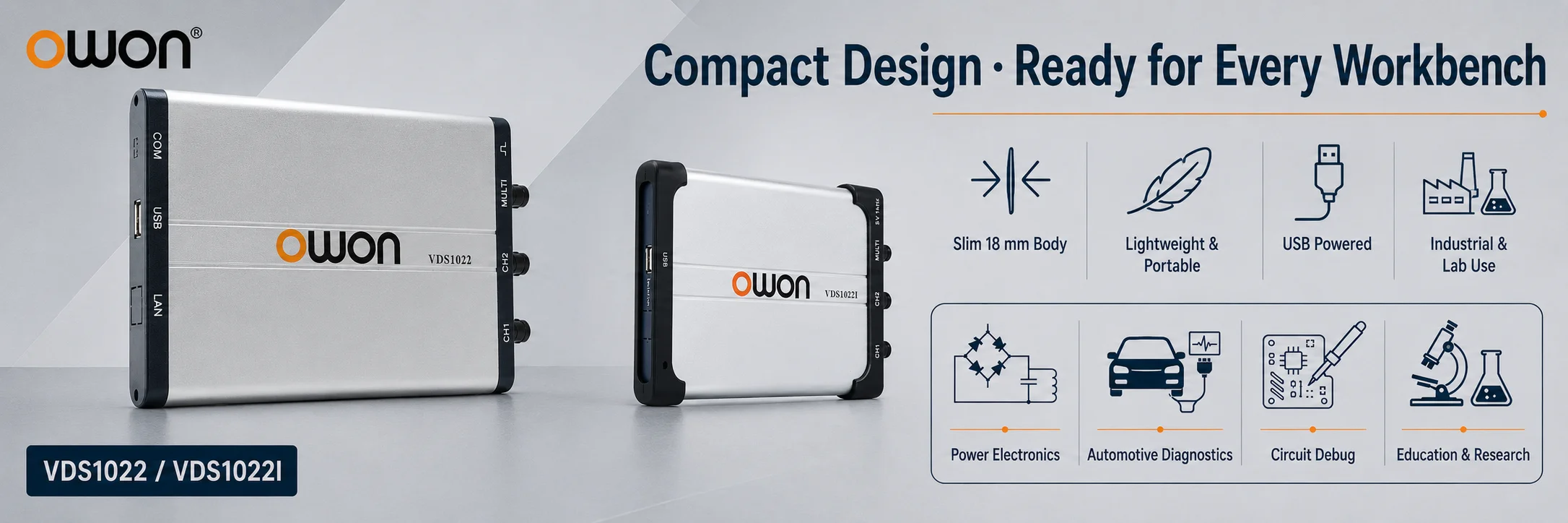

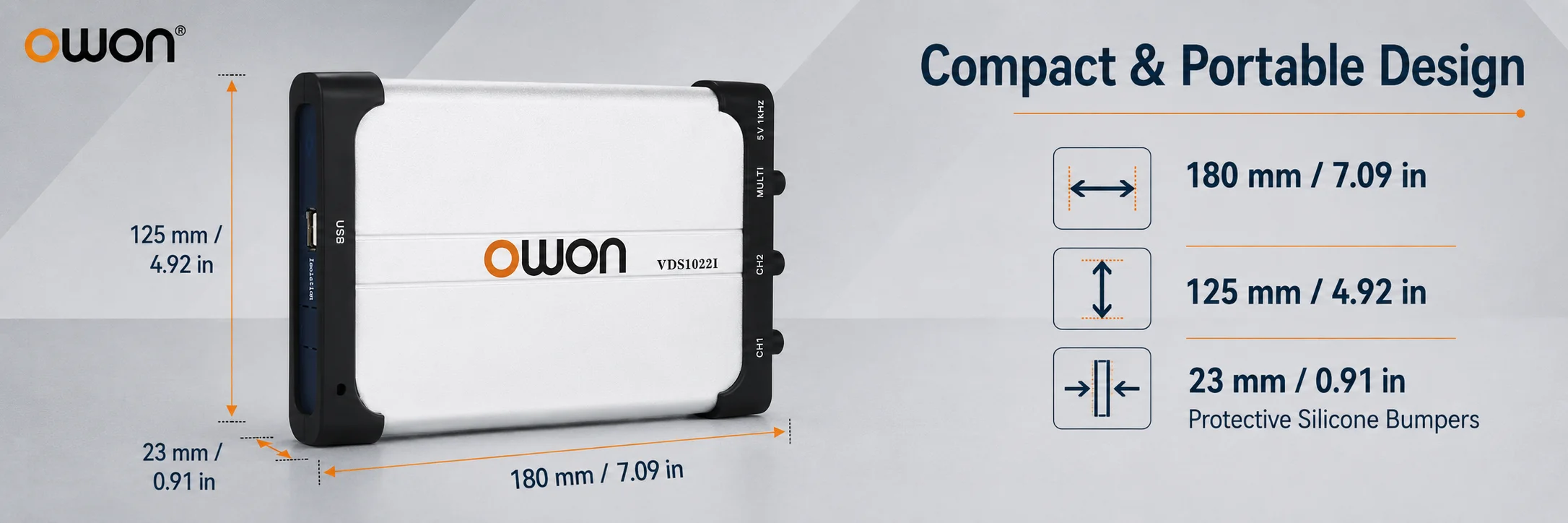

4. PC-Based Portable Design
USB bus-powered, no extra power adapter required. Compact and lightweight body is suitable for field maintenance, laboratory testing and mobile work scenarios. The bundled PC software provides intuitive operation and rich data export functions.

Package include
1 x PC Oscilloscope
2 x Probe
1 x USB cable(For VDS1022 only)
1 x CD
1 x Manual
1 x Probe correction pen
1 pair of silicone sleeves
