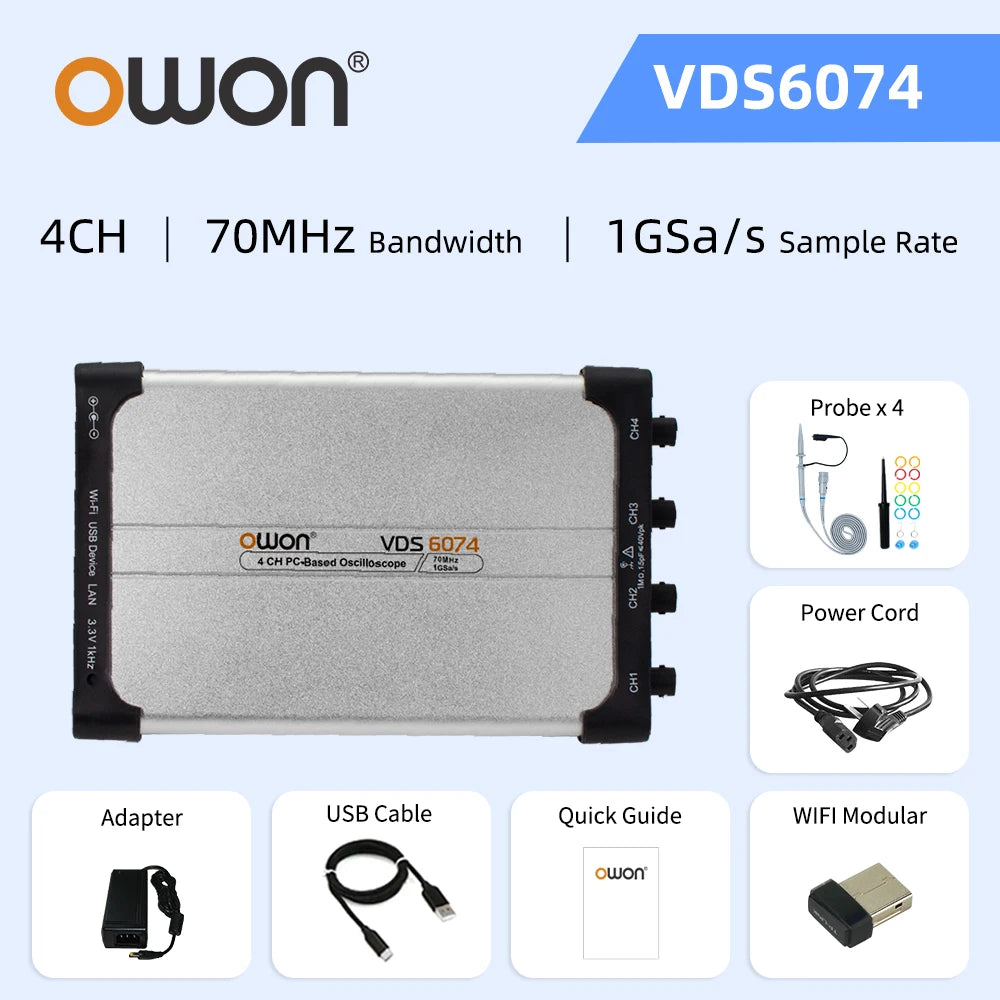

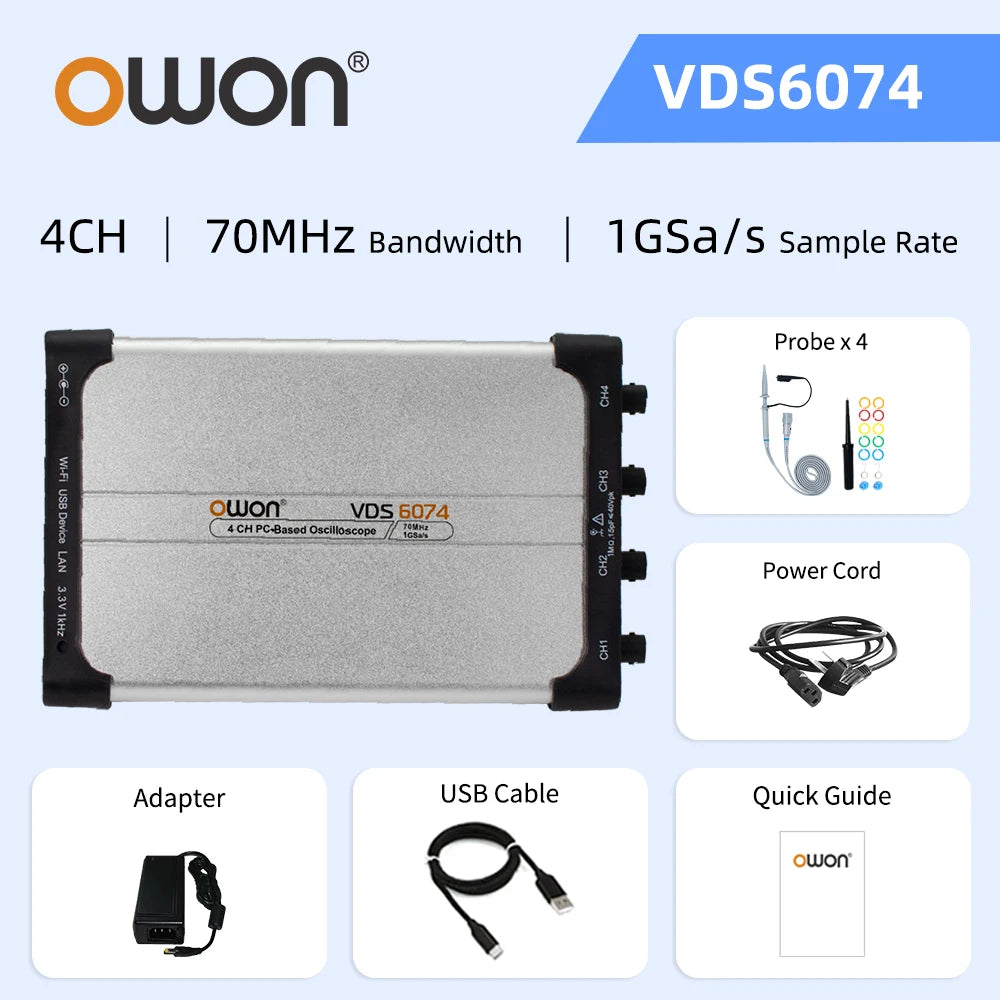

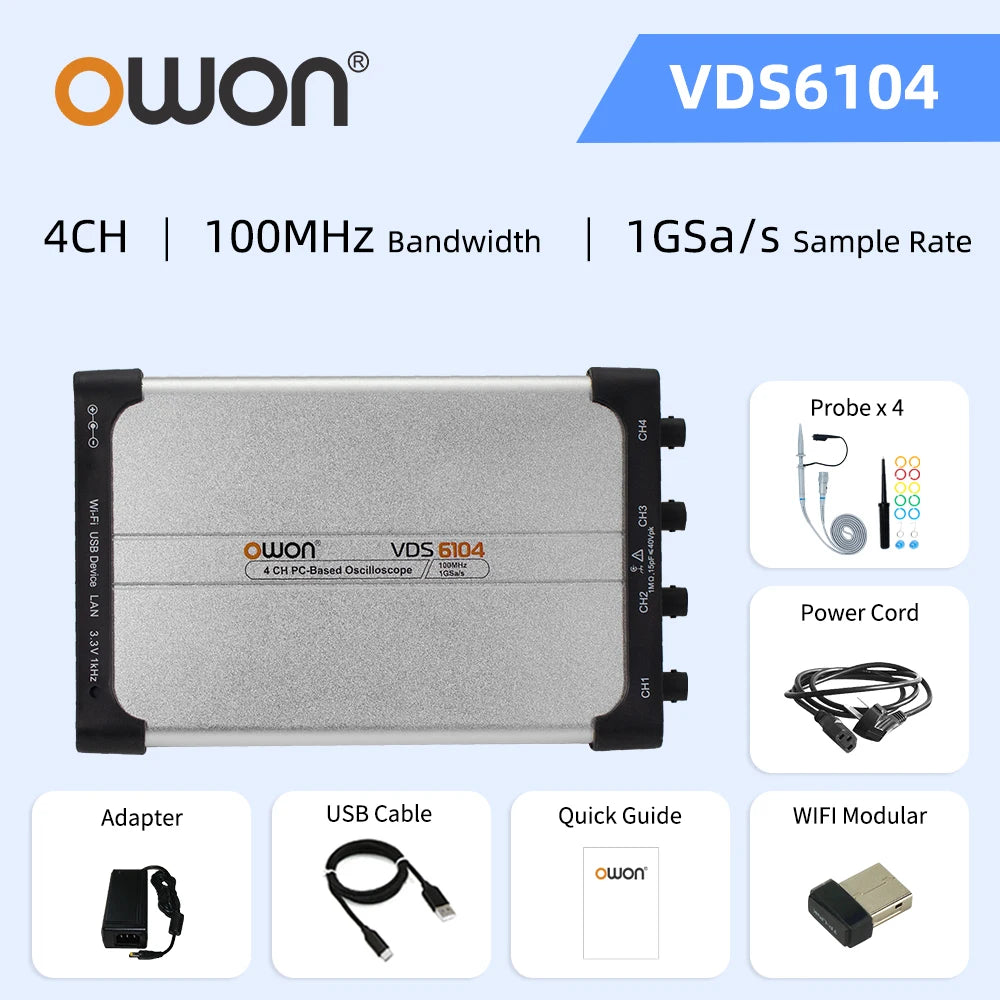

OWON VDS6074 VDS6104 Virtual Digital Oscilloscope 4 Channels 100MHz 1GSa/s WiFi USB LAN Interface Circuit Debug Tester
China Mainland / VDS6104 / EU
$1,790.72
Sale price
$1,790.72
Regular price
$0.00
Skip to product information
OWON VDS6074 VDS6104 Virtual Digital Oscilloscope 4 Channels 100MHz 1GSa/s WiFi USB LAN Interface Circuit Debug Tester
$1,790.72
Sale price
$1,790.72
Regular price
$0.00
Description
SPECIFICATIONS
Band Width: 70MHz/100mMHz
Battery Included: no
Brand Name: owon
Certification: RoHS,CE
DIY Supplies: Electrical
Digital Channels: 4
High-concerned chemical: none
Model Number: VDS6074/VDS6104
Origin: Mainland China
Real Time Sampling Rate: 1GSa/S
Record Length: 10M
Semi-finishedproduct: No
VDS6000Series 4CH PC Oscilloscope

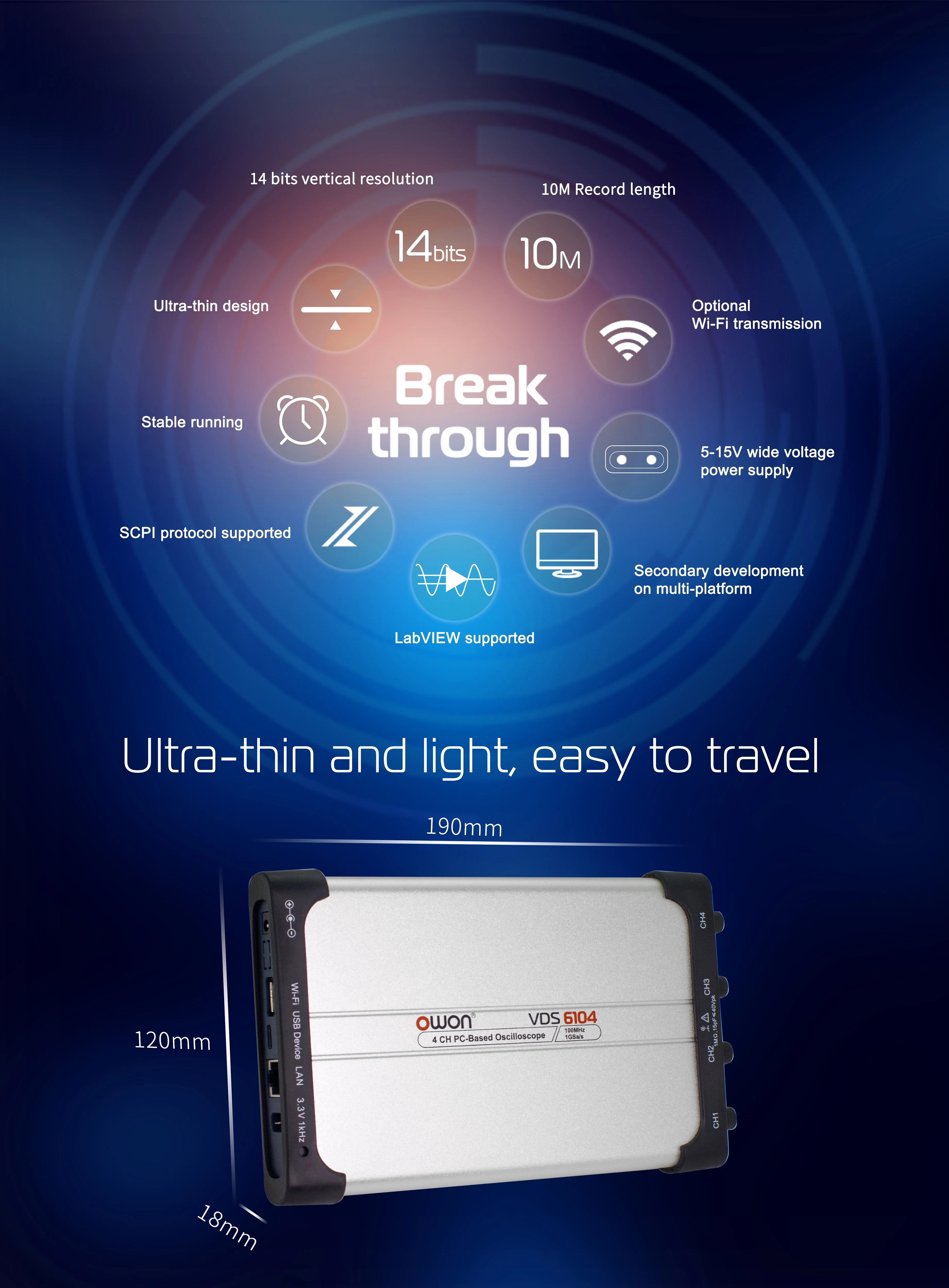

+ 4 channels ultra thin design
+70MHz-100MHz bandwidth, and 1GS/s real-time sample rate

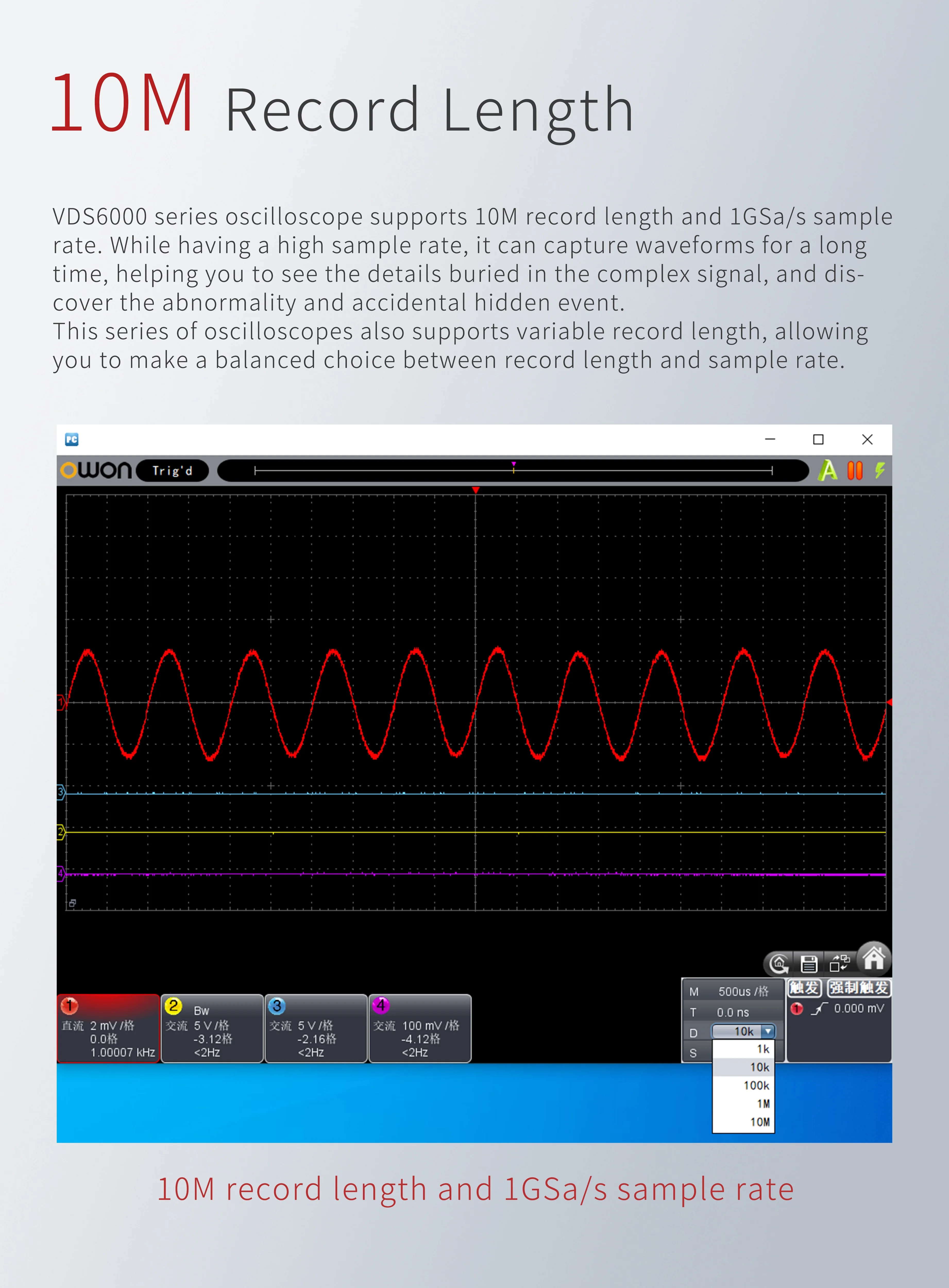

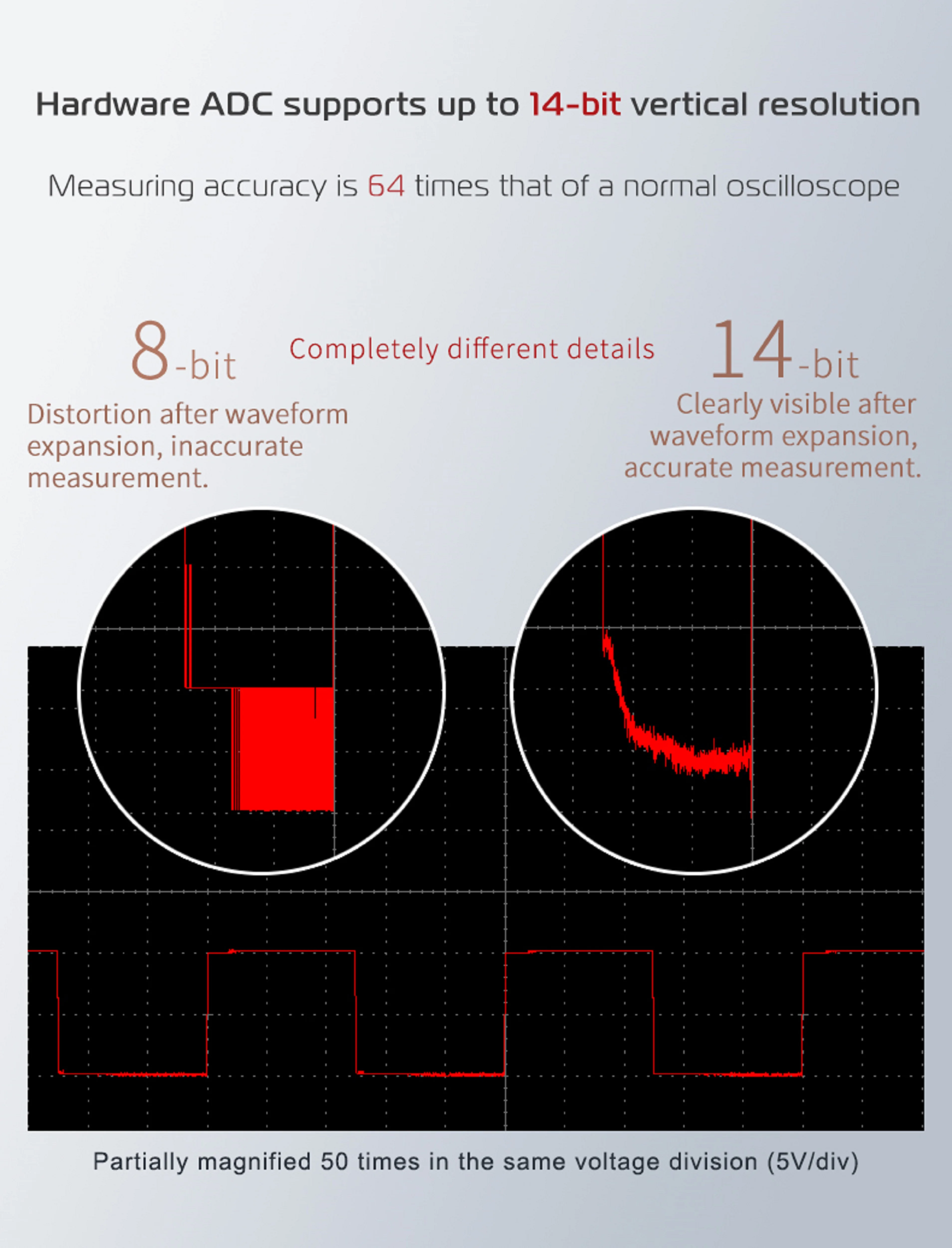

+ Max 10M record length, max 14 bits high resolution ADC

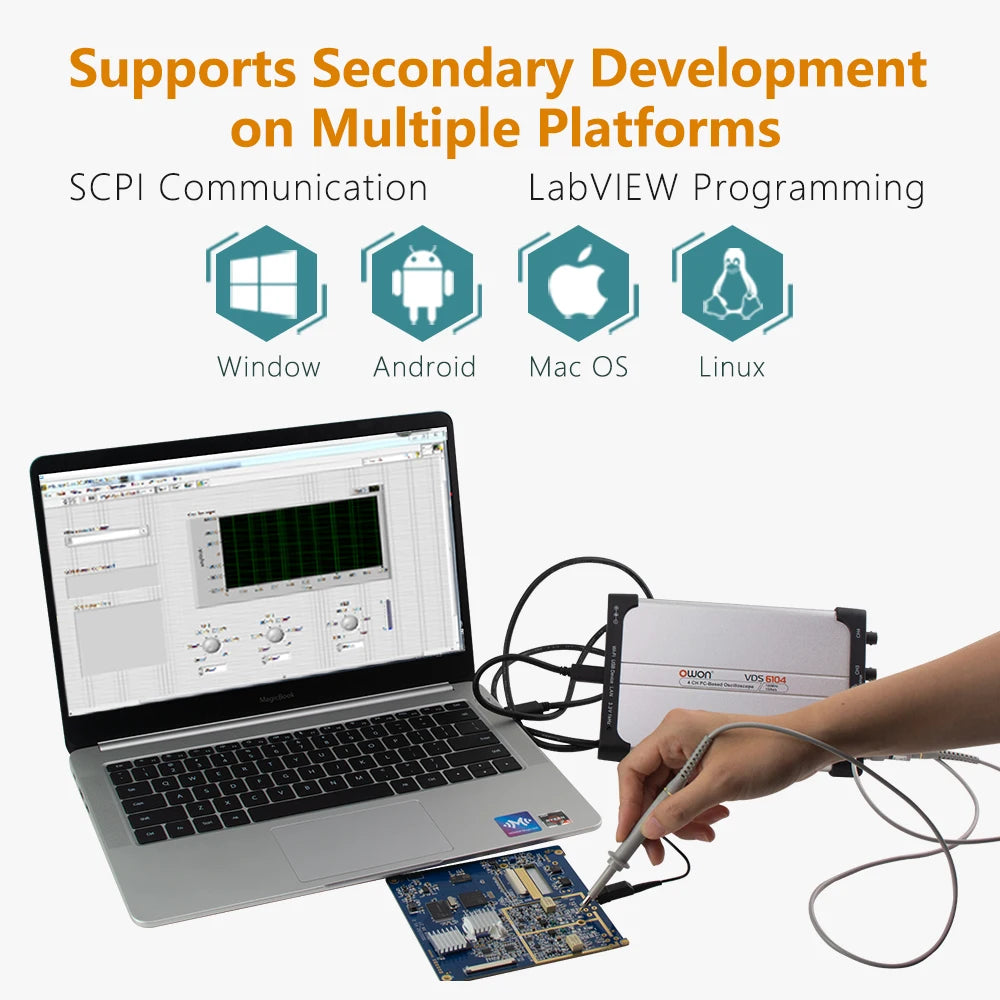

+ SCPI、LABVIEW supported
+ Support the secondary development of windows / Linux / Android / Ios platform
+ USB typ-c power supply, faster data transmission, support 5-15v wide voltage power supply

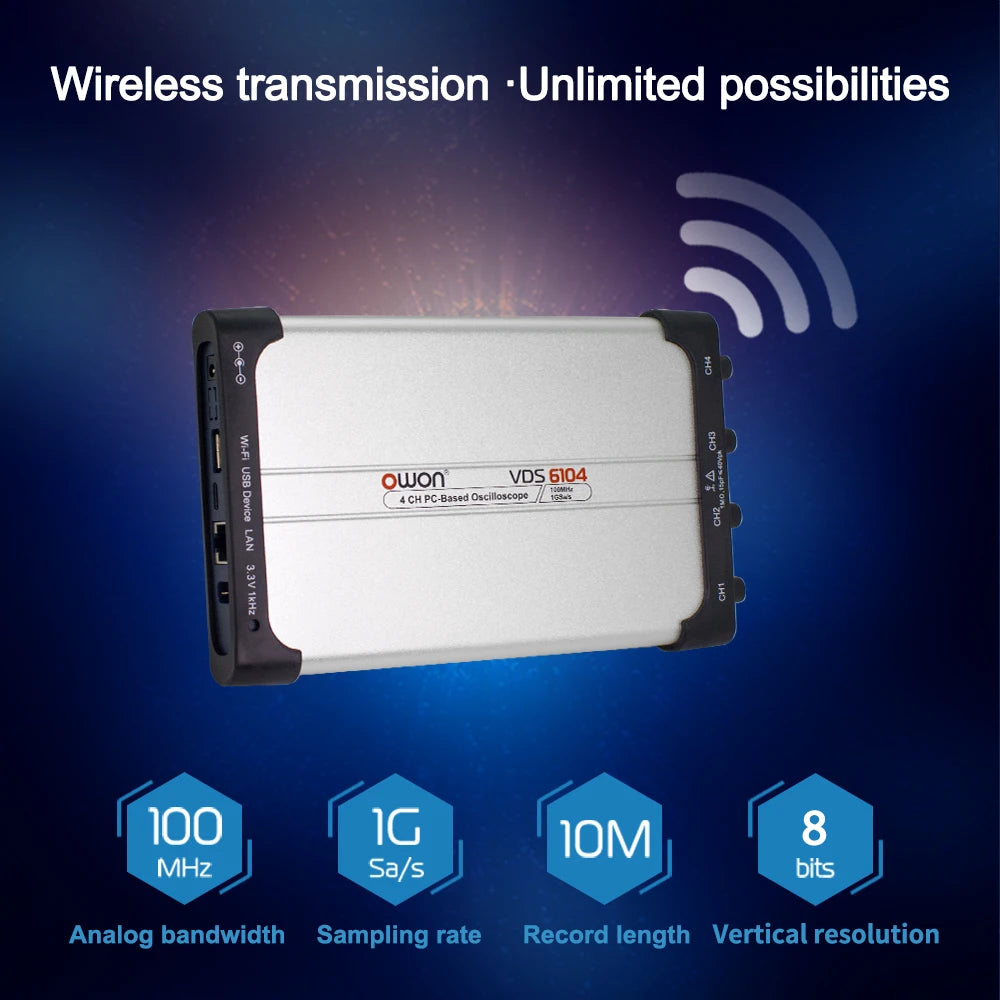

+ Wi-Fi unlimited transmission, more convenient to use.
(Wi-Fi accessories are required)
+ Support software for Windows and Mac OS

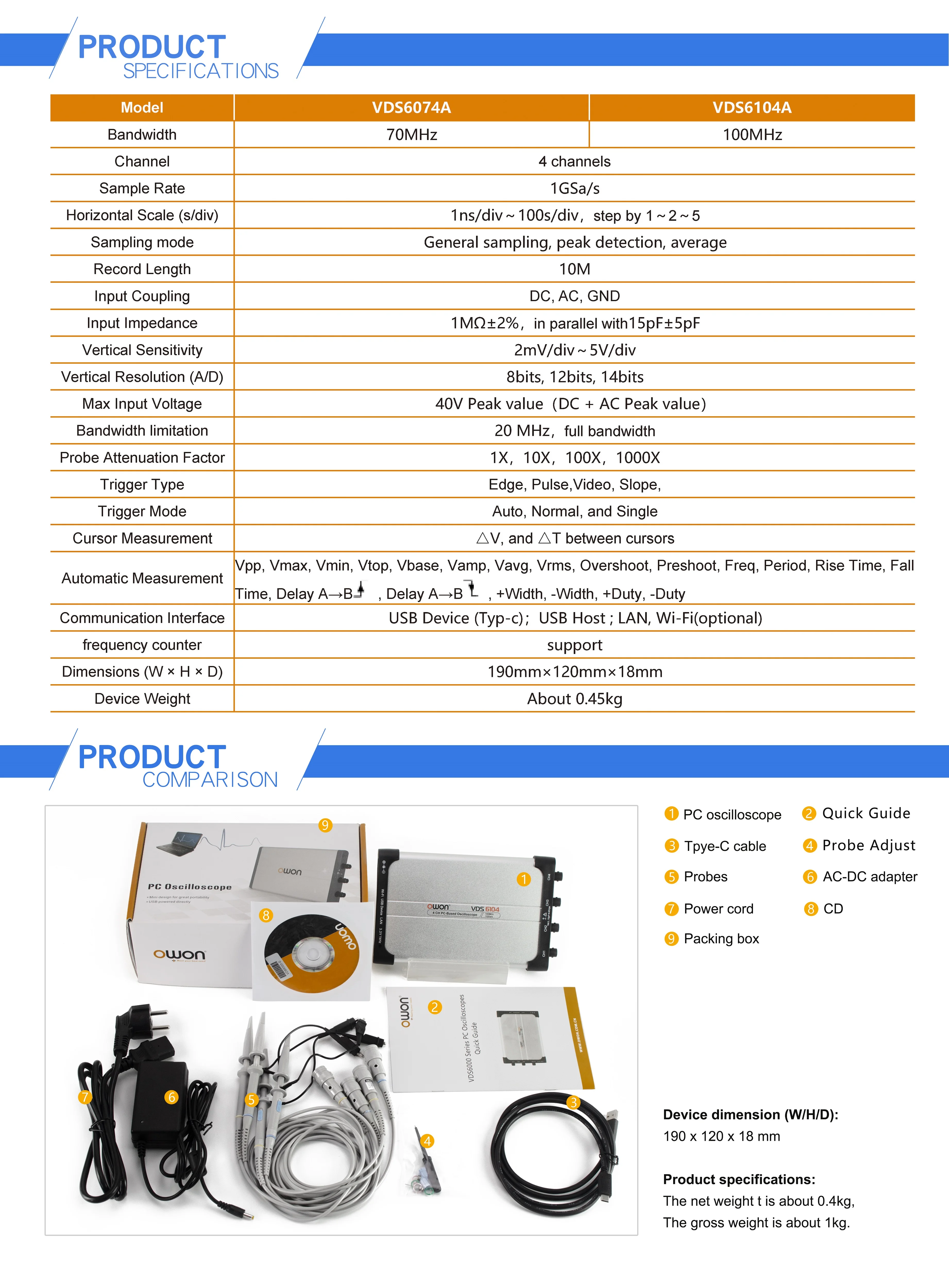

Model |
VDS6074 |
VDS6104 |
VDS6074A |
VDS6104A |
|||
Bandwidth |
70MHz |
100MHz |
70MHz |
100MHz |
|||
Channel |
4 channels |
||||||
Sample Rate |
1GSa/s |
||||||
Horizontal Scale (s/div) |
1ns/div～100s/div， step by 1～2～5 |
||||||
Sampling mode |
General sampling, peak detection, average |
||||||
Record Length |
10M |
||||||
Input Coupling |
DC, AC, GND |
||||||
Input Impedance |
1MΩ±2%，in parallel with15pF±5pF |
||||||
Time base accuracy |
±25ppm |
||||||
Vertical Sensitivity |
2mV/div～5V/div |
||||||
Vertical Resolution (A/D) |
8bits |
8bits/12bits/14bits |
|||||
Max Input Voltage |
40V Peak value（DC + AC Peak value） |
||||||
Bandwidth limitation |
20 MHz，full bandwidth |
||||||
Probe Attenuation Factor |
1X，10X，100X，1000X |
||||||
Isolation between channels |
50Hz: 100 : 1，10MHz: 40 : 1 |
||||||
Interpolation |
Sin(x)/x |
||||||
Single Bandwidth |
full bandwidth |
||||||
|
Low frequency response (AC coupling, - 3dB) |
≥5Hz（in BNC ） |
||||||
DC Gain Accuracy |
±3% |
±2% |
|||||
Trigger Type |
Edge, Pulse,Video, Slope, |
||||||
Line / Field Frequency (video) |
NTSC, PAL, and SECAM standard |
||||||
Trigger Mode |
Auto, Normal, and Single |
||||||
Cursor Measurement |
△V, and △T between cursors |
||||||
Automatic Measurement |
Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B |
||||||
Lissajous Figure |
Bandwidth |
full bandwidth |
|||||
Phase Difference |
±3 degrees |
||||||

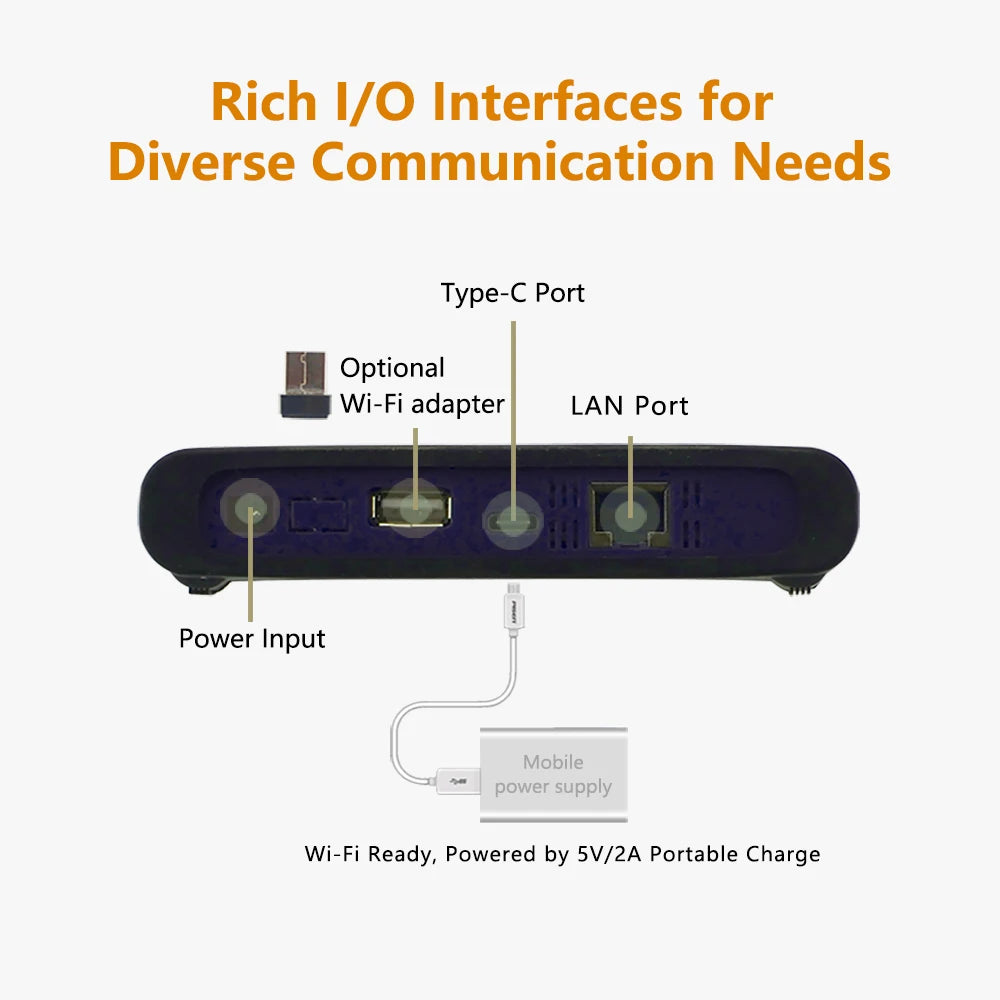

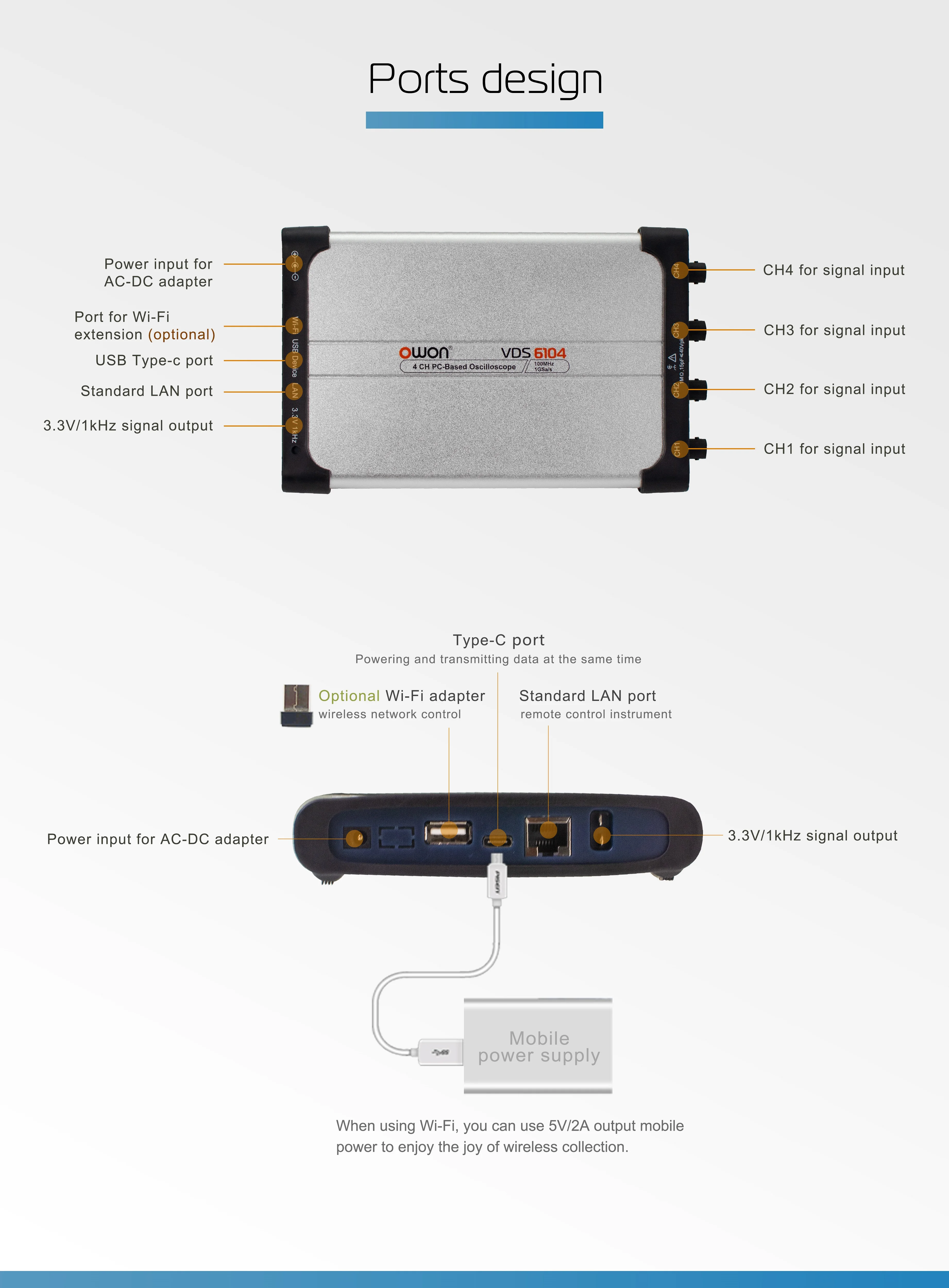

Communication Interface |
USB Device (Typ-c)；USB Host ; LAN, Wi-Fi(optional) |
||||||
frequency counter |
support |
||||||
Dimensions (W × H × D) |
190mm×120mm×18mm |
||||||
Device Weight |
About 0.45kg |
||||||
