SPECIFICATIONS

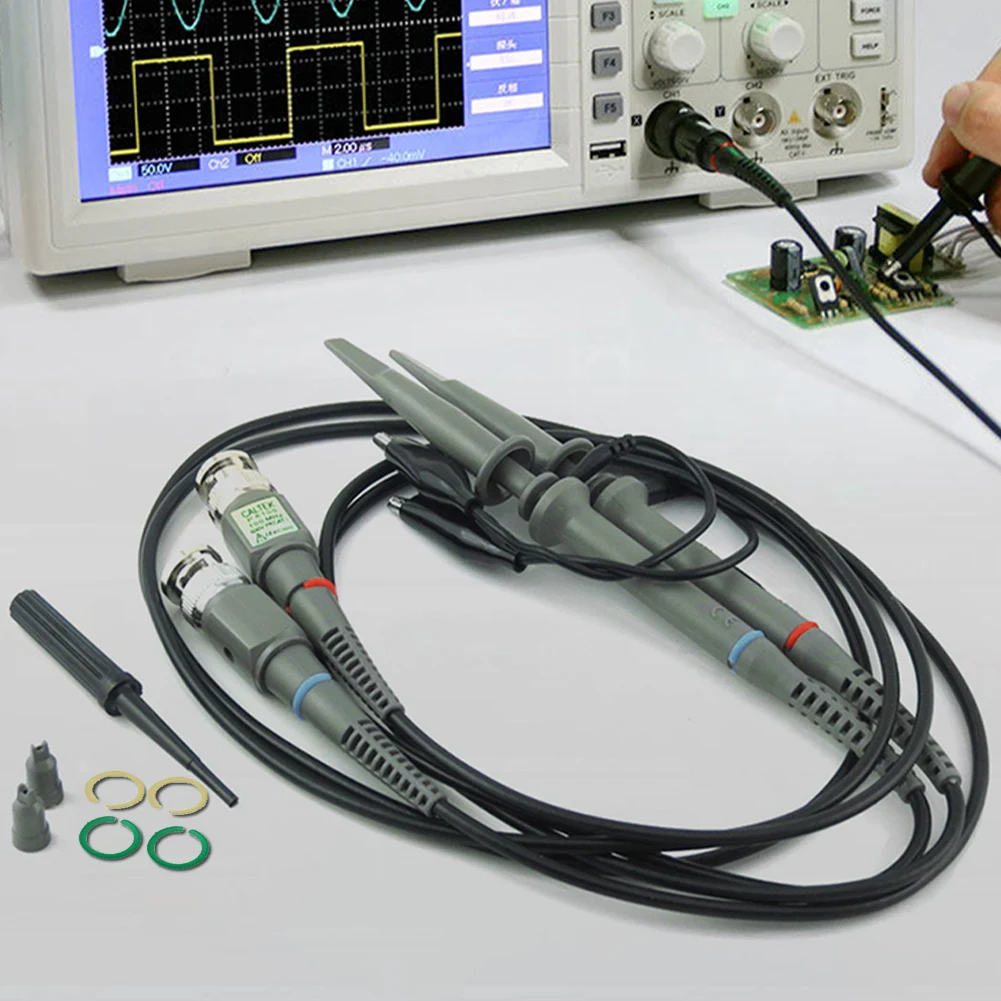

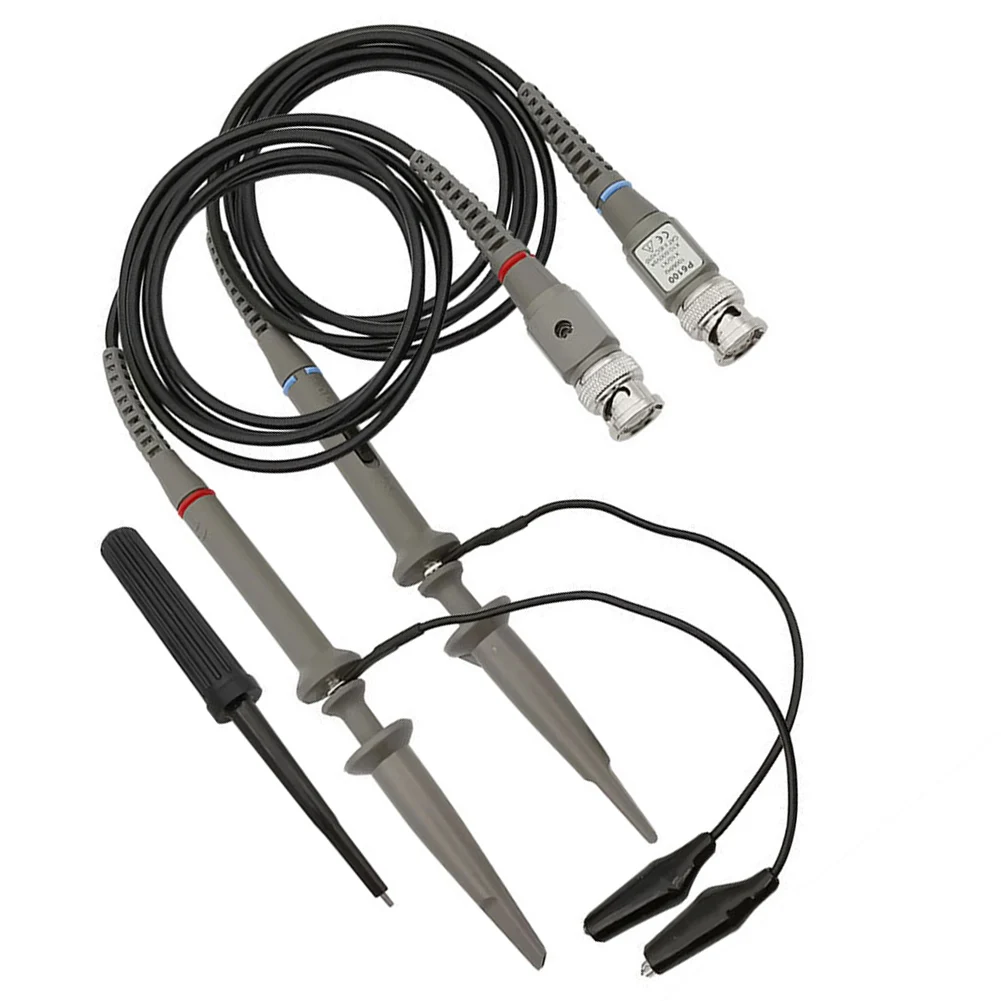

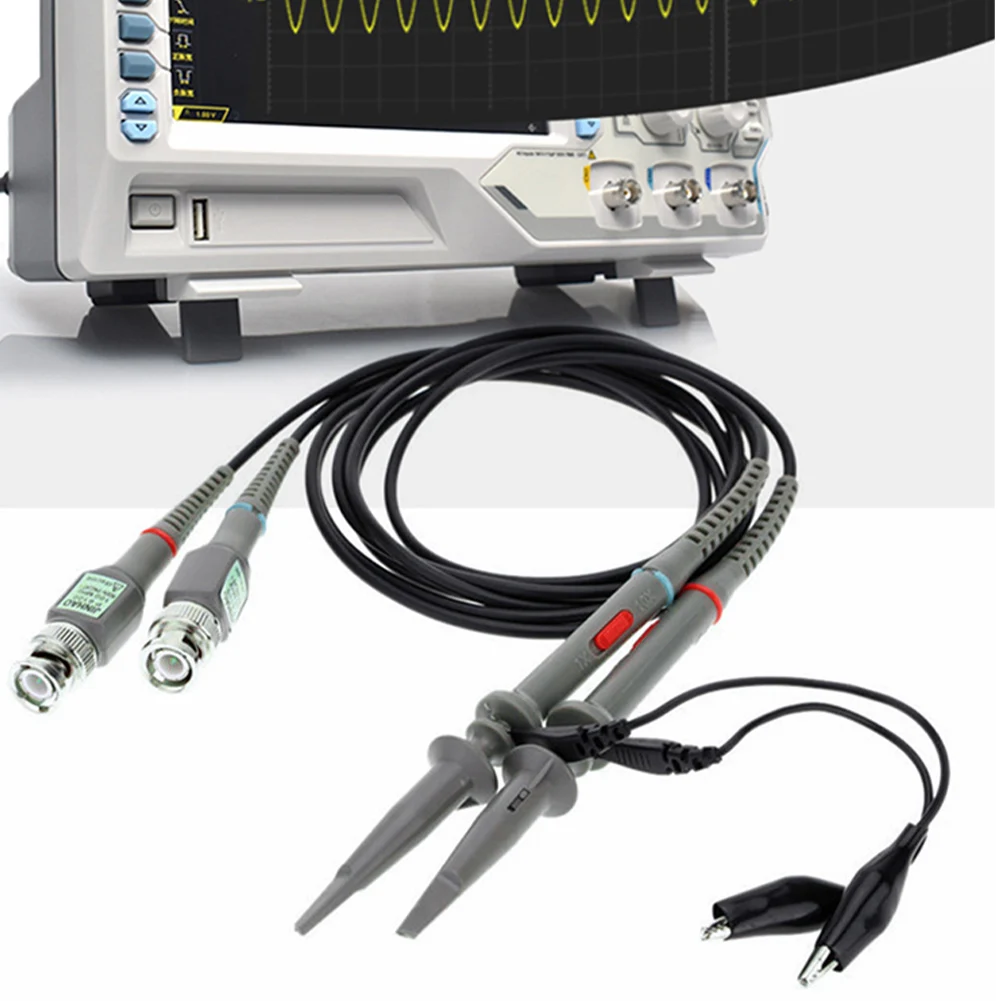

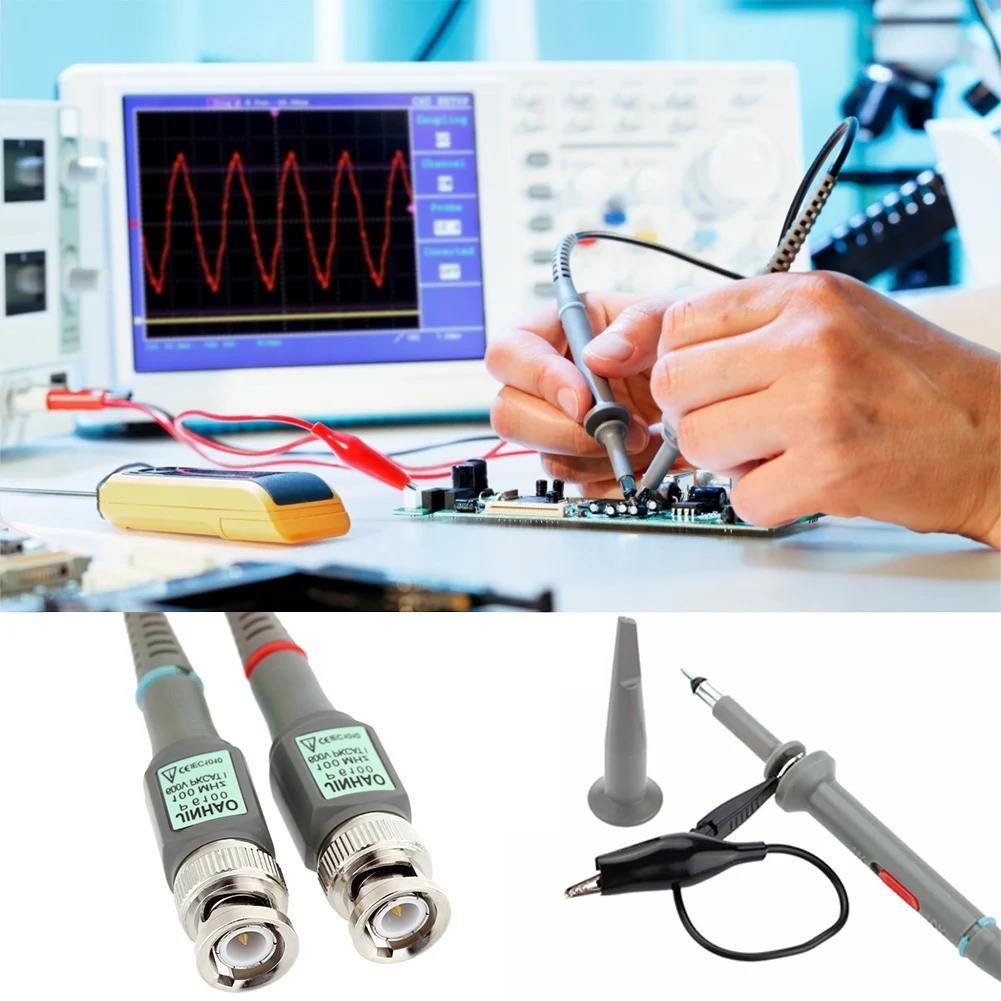

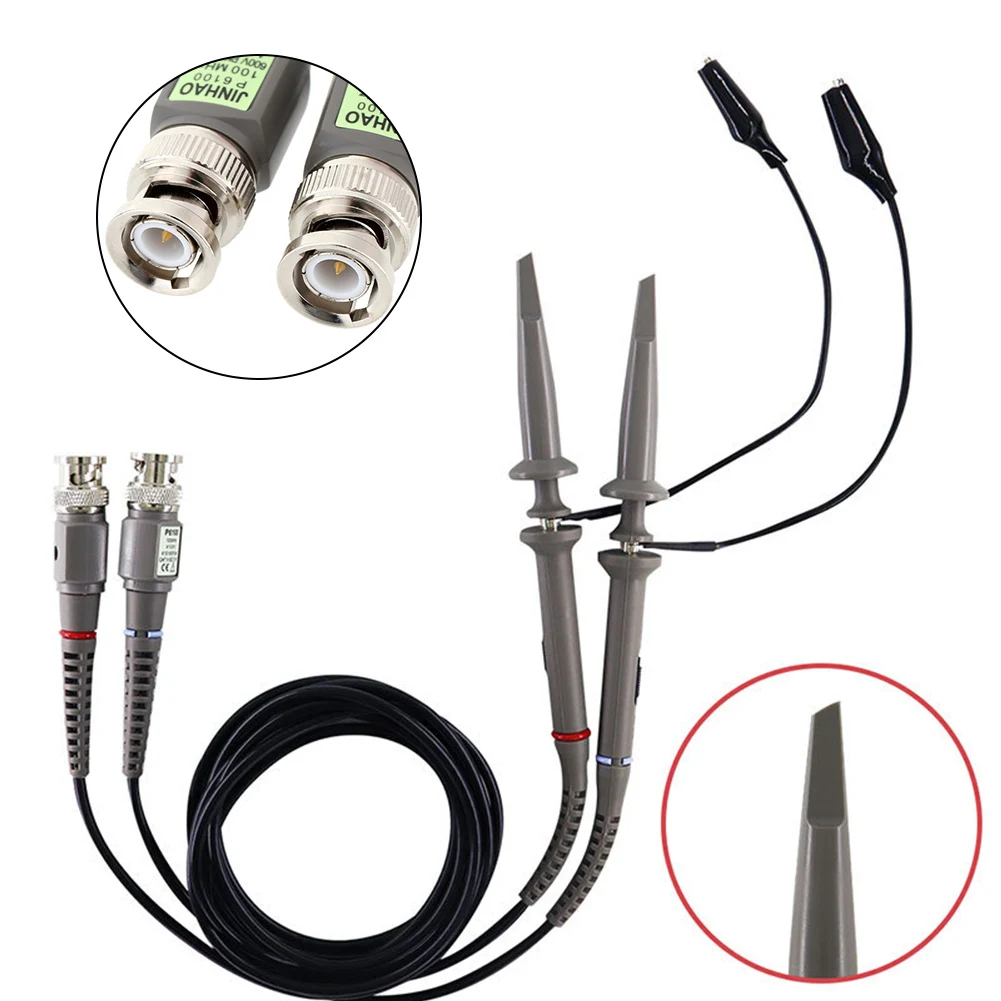

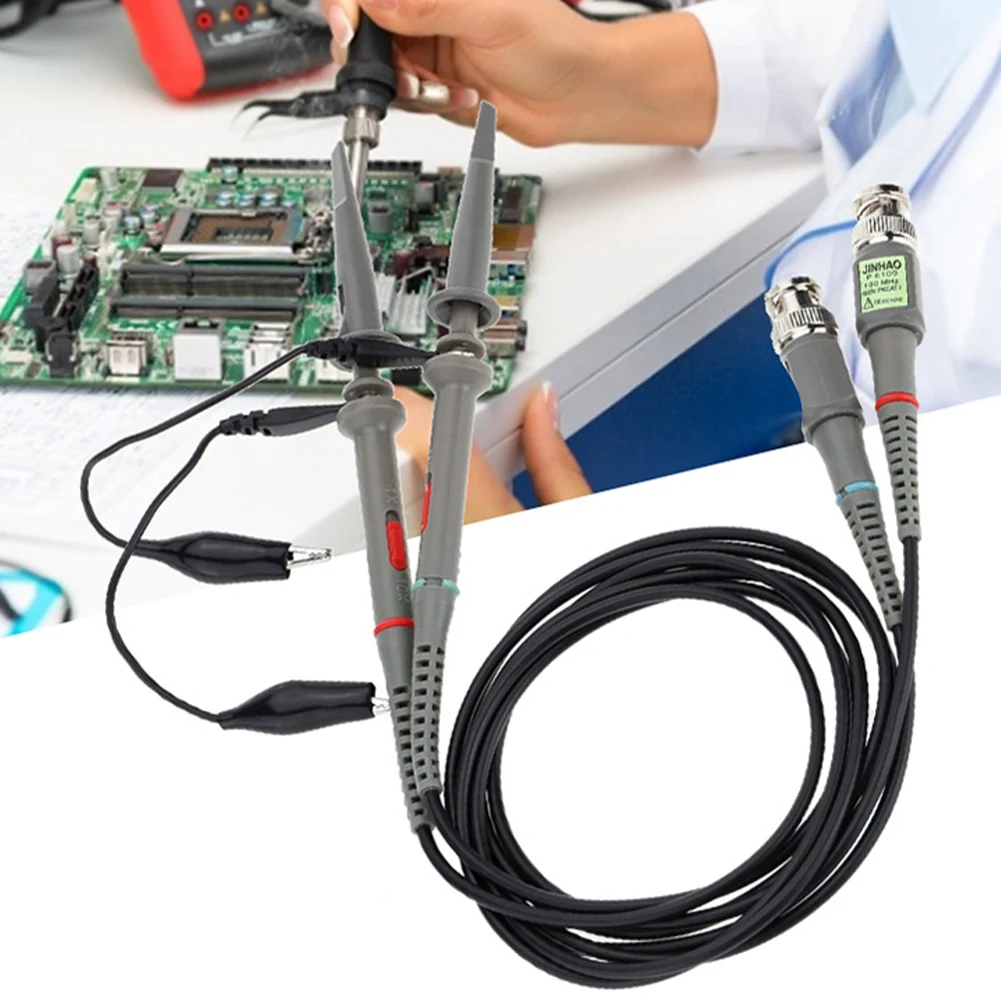

P6100 BNC Oscilloscope Probe Kit 100MHz Oscilloscope Clip Probe Cable 2 Pack BNC Connector for Oscilloscope Universal for Oscilloscope Parts Accessories

Feature:
1. 100Mhz and SMD Process: This P6100 BNC oscilloscope probe kit has 100Mhz. It is made of integrated injection molding and SMD process, with stable structure and easy to use.
2. Safe and Stable: The oscilloscope clip probe cable is equipped with X1&X10 adjustment switch, grounding clamp, detachable hook head, safe to use and stable data. It can give more accurate data information and more affective measuring work.
3. Wide Compatibility: This P6100 BNC connector for Oscilloscope is widely compatible with BNC interface, stable performance, CE certification, IEC1010 standard, suitable for all oscilloscopes. It is an ideal and practical electronic measuring tool.
4. Four-Color Identification Ring: This P6100 BNC connector for Oscilloscope has a four-color identification ring. The 4-color identification ring is more helpful to distinguish different channels, the cable length is 120CM, the use is flexible, and the adjustment tools are convenient for testing. High Precision guarantee that you can finish the testing task more .

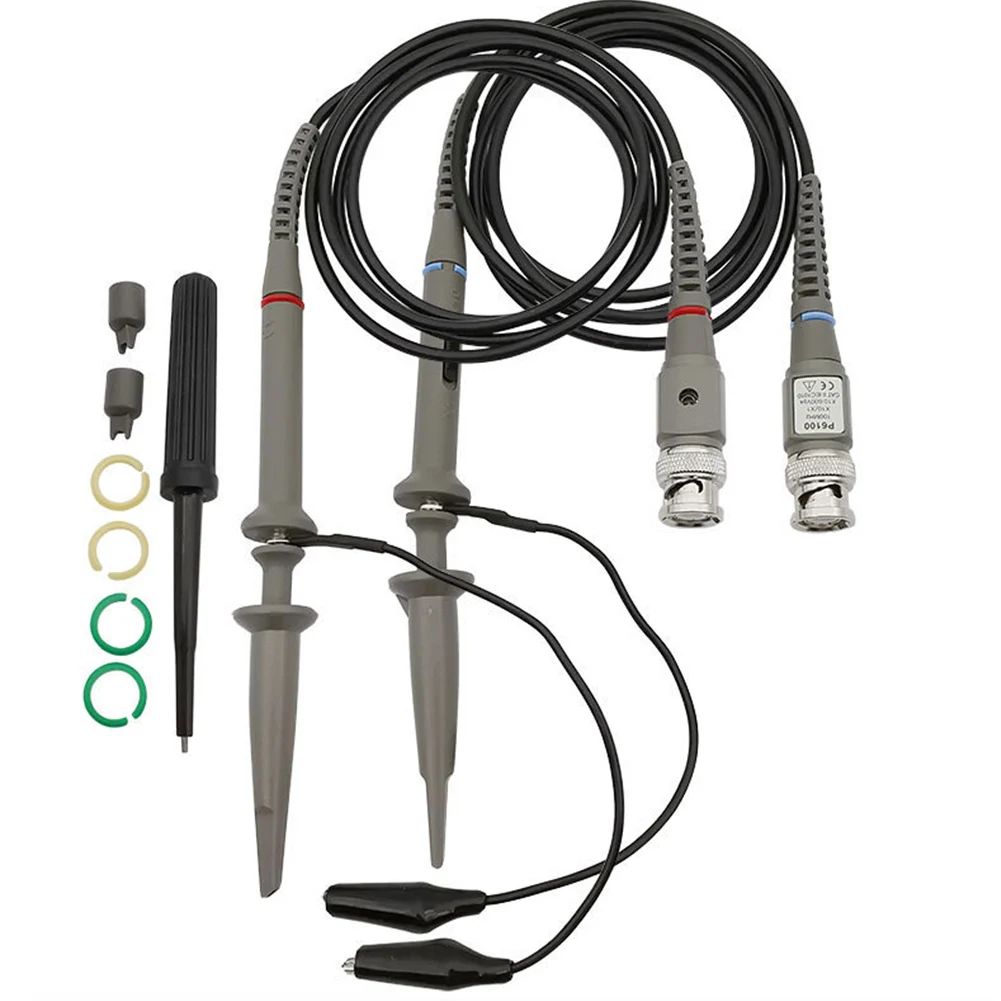

5. Package Includes: The P6100 BNC oscilloscope probe kit has 2 x probes, 8 x marker rings, 2 x ground wires, 1 x adjustment tools, 2 x tip locating sleeve, 1 x user manuals.

Specification:
Origin: Mainland China
Oscilloscope Parts & Accessories Type: Oscilloscope Probe & Accessories
Model number: P6100
Attenuation: X1; X10
Input resistance: 1X: 1MΩ±2%; 10X: 10MΩ±2%
Input capacitance: 1X: 85pF ~ 115pF; 10X: 18.5pF ~
22.5pF compensation range: 10pF-30pF
Rise time: less than 3.5ns
Operating voltage: 1X: < 200VDC + AC peak 10X: < 600VDC + AC peak work
Temperature: -10℃~ +50℃
Non-working hours: -20 ℃~+75℃
Humidity: ≤85% (RH)
Color: Gray and black
Packing: 2Pcs
Material: ABS

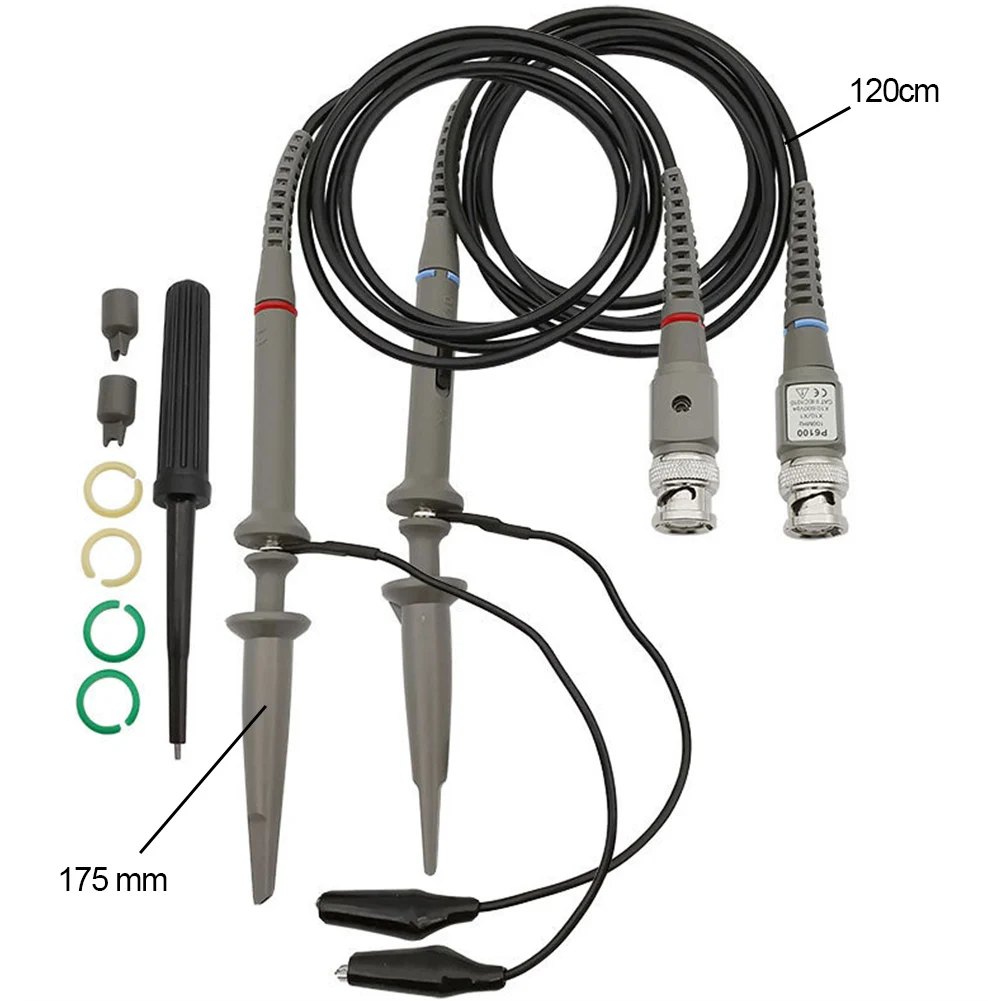

Pen length: 175mm/6.9in
Line length: 120cm/47.2in

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

2 x Oscilloscope Probe Kit
