SPECIFICATIONS

This super small mono amplifier is surprisingly powerful - able to deliver up to 2.5 Watts into 4-8 ohm impedance speakers. Inside the

 miniature chip is a class D controller, able to run from 2.0V-5.5VDC. Since the amp is a class D, its very efficient (over 90% efficient when

 driving an 8Ω speaker at over half a Watt) - making it perfect for portable and battery-powered projects. It has built in thermal and over-cu

rrent protection but we could barely tell it got hot. There's even a volume trim pot so you can adjust the volume on the board down from th

e default 24dB gain. This board is a welcome upgrade to basic "LM386" amps! CJMCU

The A+ and A- inputs of the amplifier go through 1.0uF capacitors, so they are fully 'differential' - if you don't have differential outputs, sim

ply tie the Audio- pin  to ground. The output is "Bridge Tied" - that means the output pins connect directly to the speaker pins, no connectio

n to ground. The output is a high frequency 250KHz square wave PWM that is then 'averaged out' by the speaker coil - the high frequencie

s are not heard. All the above means that you can't connect the output into another amplifier, it should drive the speakers directly. CJMCU

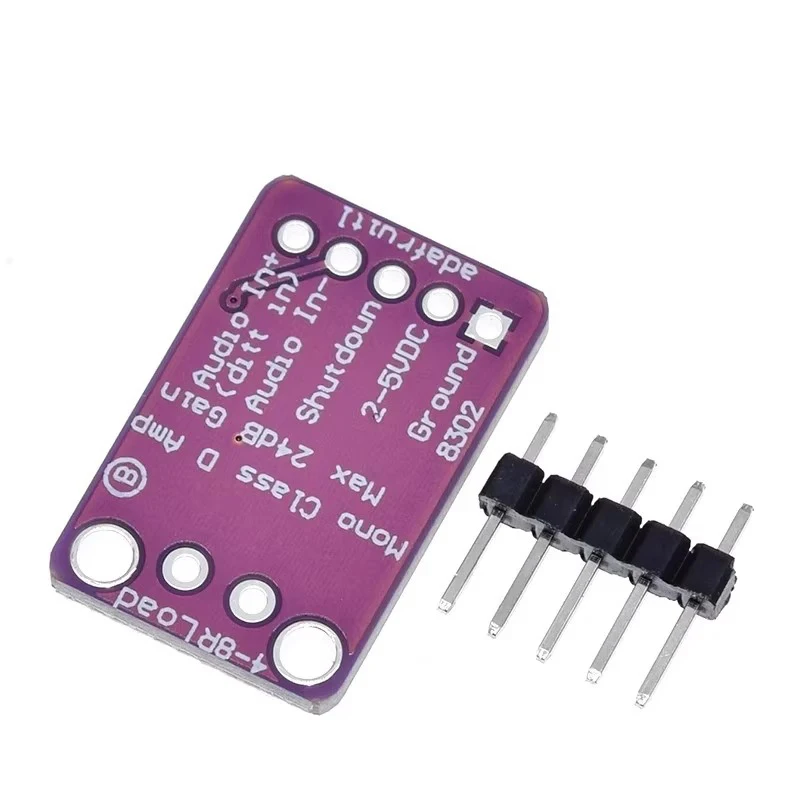

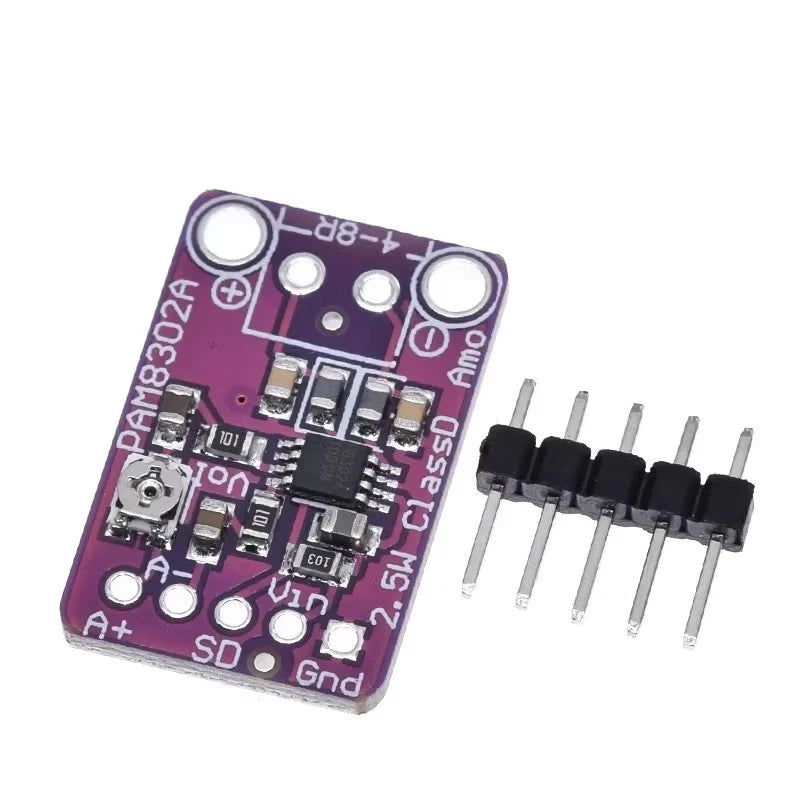

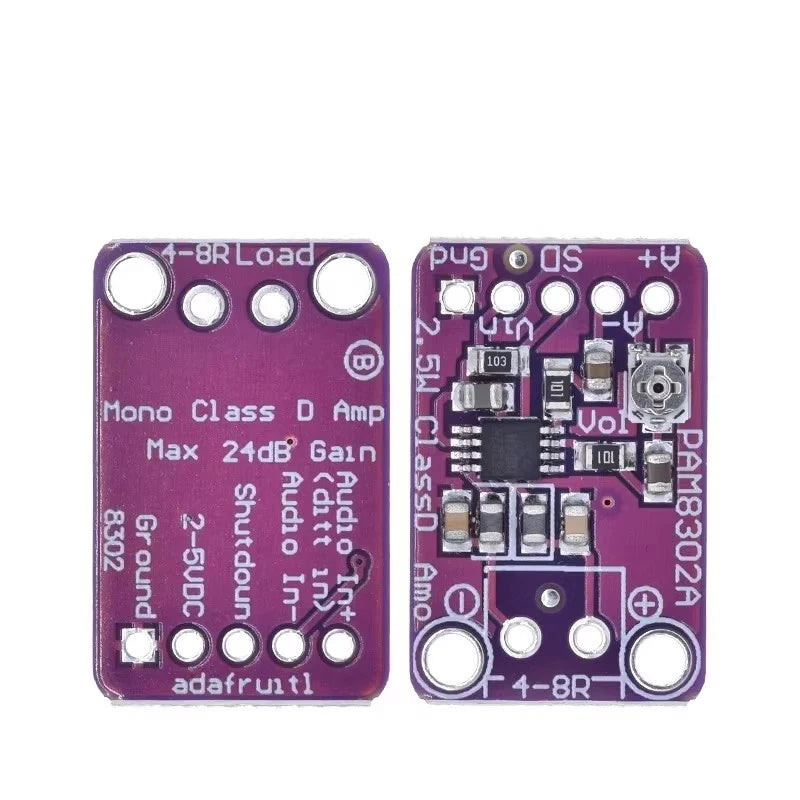

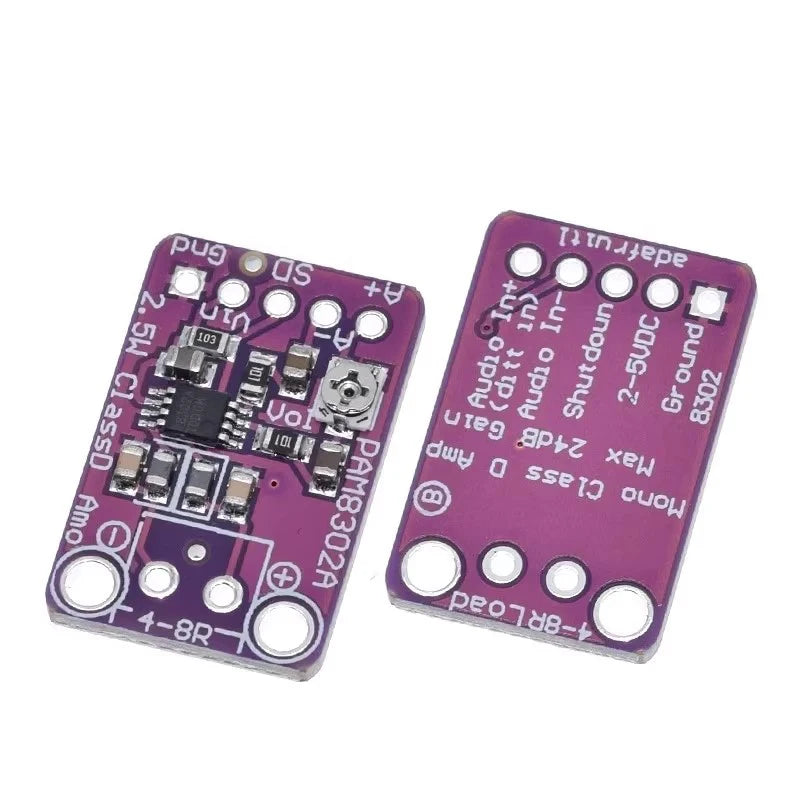

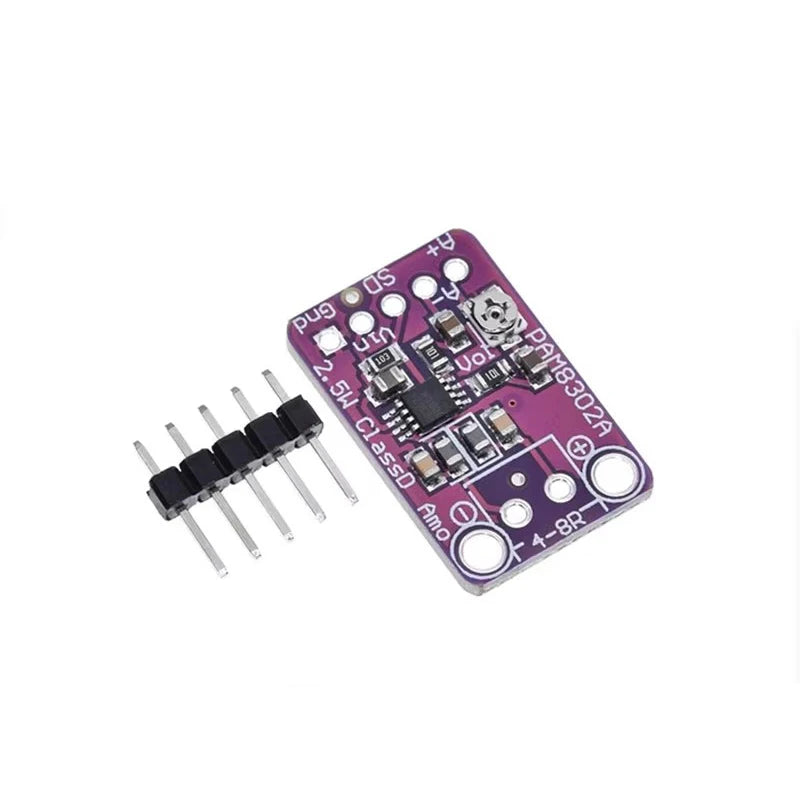

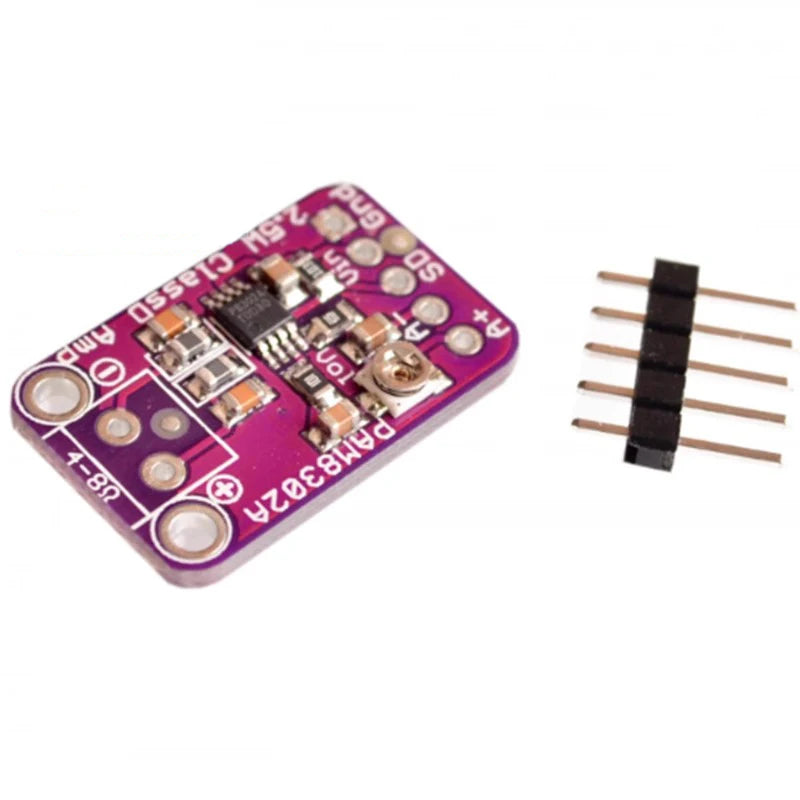

Comes with a fully assembled and tested breakout board. We also include header to plug it into a breadboard and a 3.5mm screw-terminal

 blocks so you can easily attach/detach your speaker. You will be ready to rock in 15 minutes! Speaker is not included, use any 4 ohm

or greater impedance speaker.

• Output Power: 2.5W at 4Ω, 10% THD, 1.5W at 8Ω, 10% THD, with 5.5V Supply
• 50dB PSRR at 1KHz
• Filterless design, with ferrite bead + capacitors on output.
• Fixed 24dB gain, onboard trim potentiometer for adjusting input volume.
• Thermal and short-circuit/over-current protection

• Low current draw: 4mA quiescent and 1uA in shutdown mode

•
