SPECIFICATIONS

Application: Computer

Brand Name: SZYTF

Choice: yes

Condition: New

Dissipation Power: N/A

High-concerned chemical: none

Operating Temperature: N/A

Origin: Mainland China

Supply Voltage: N/A

Type: Module

semi_Choice: yes

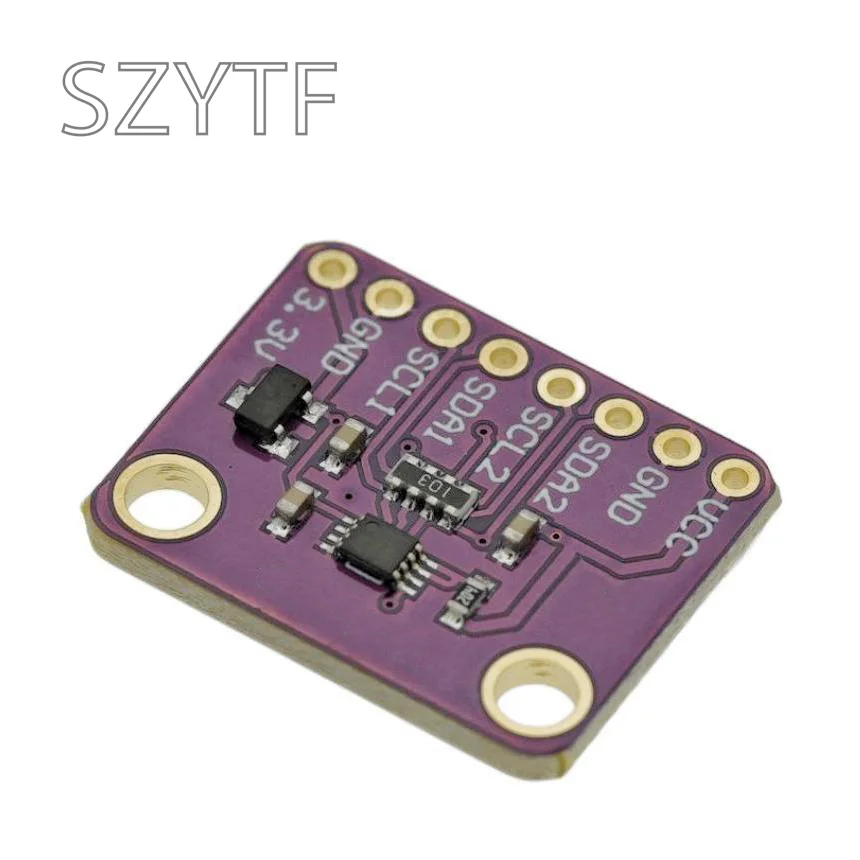

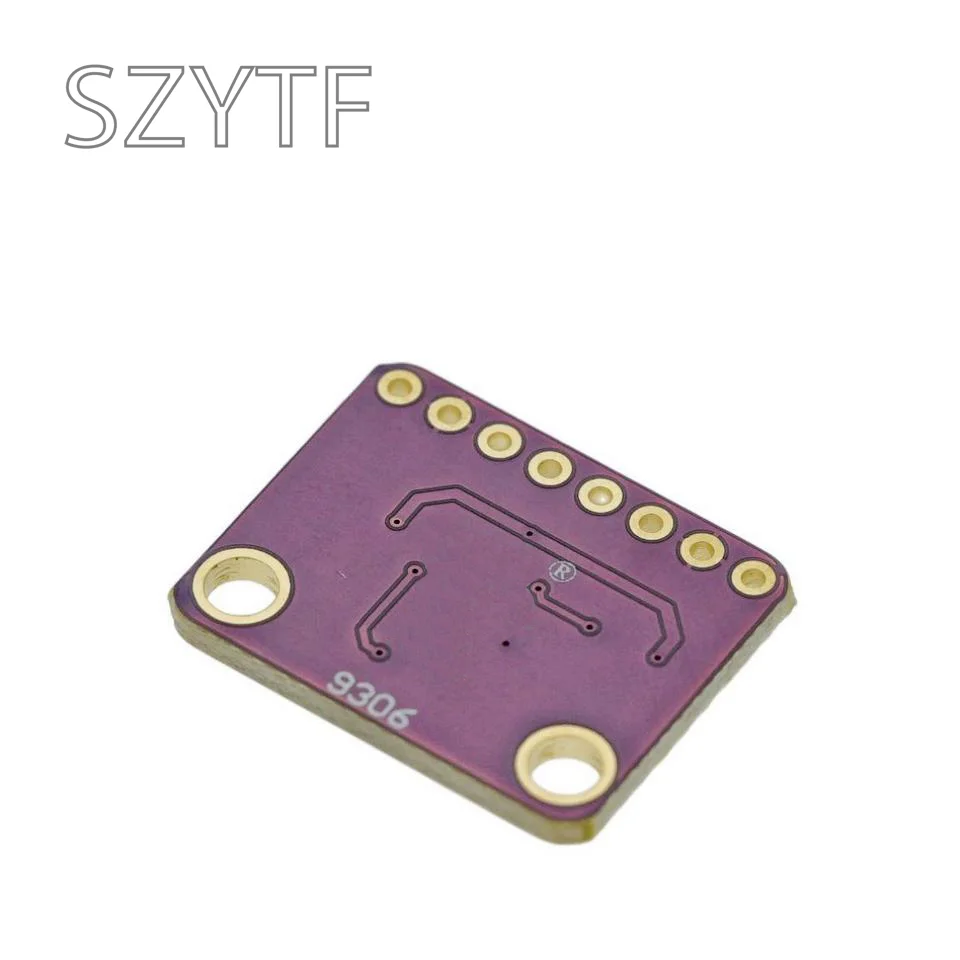

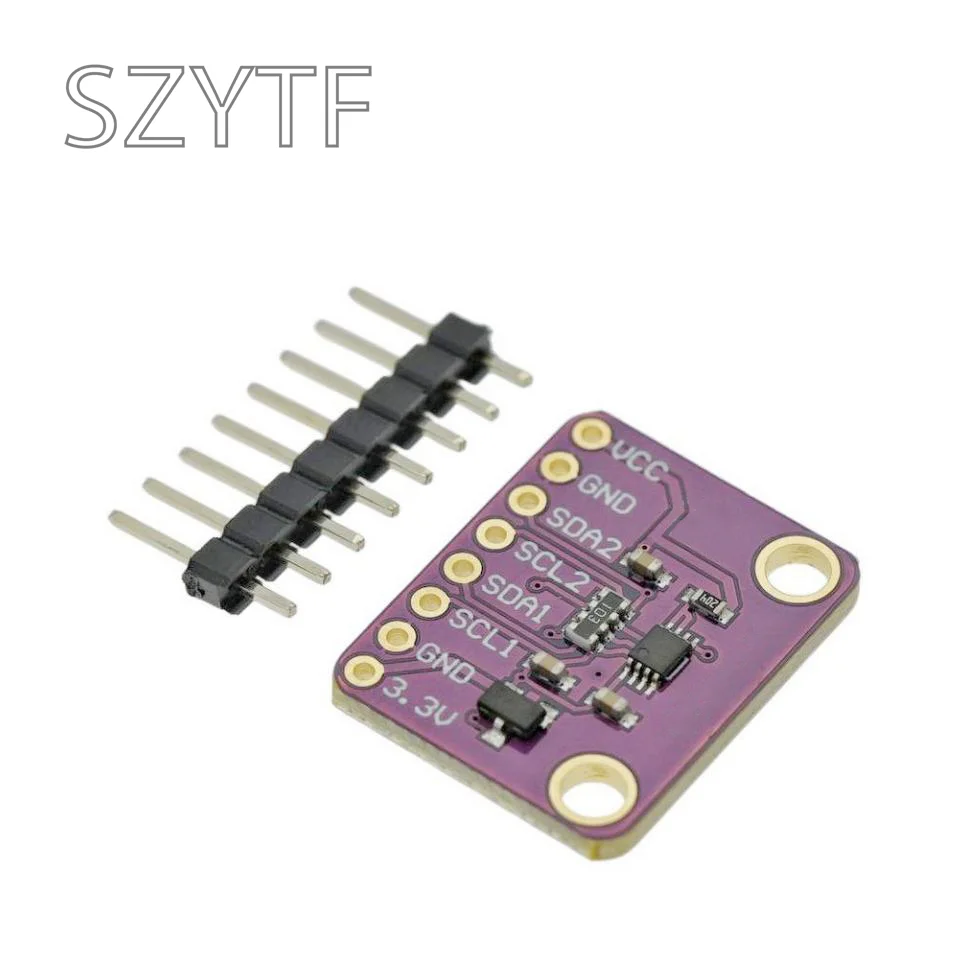

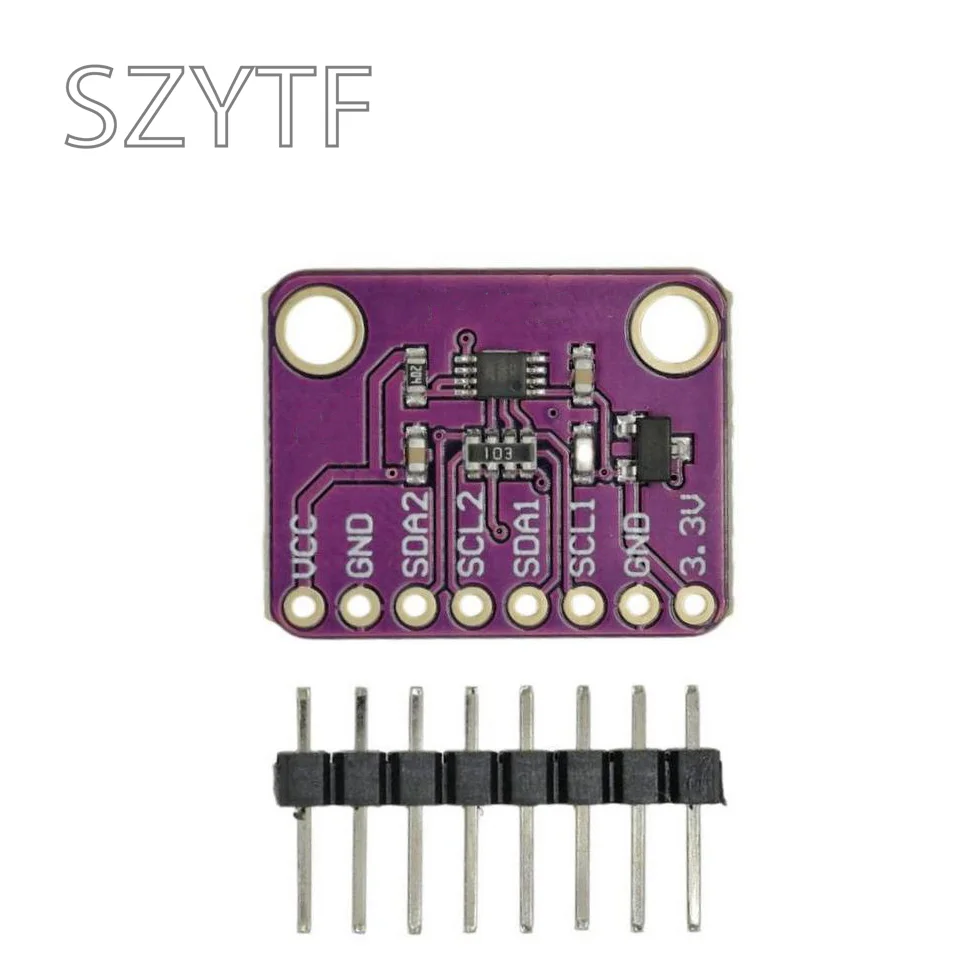

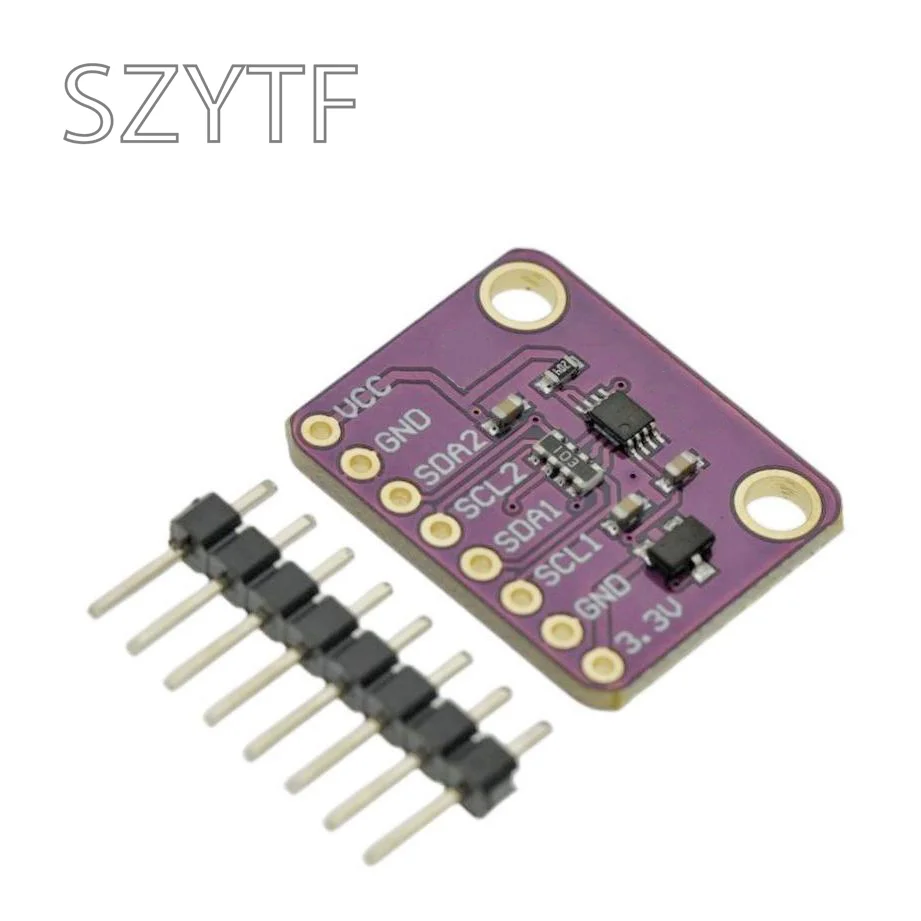

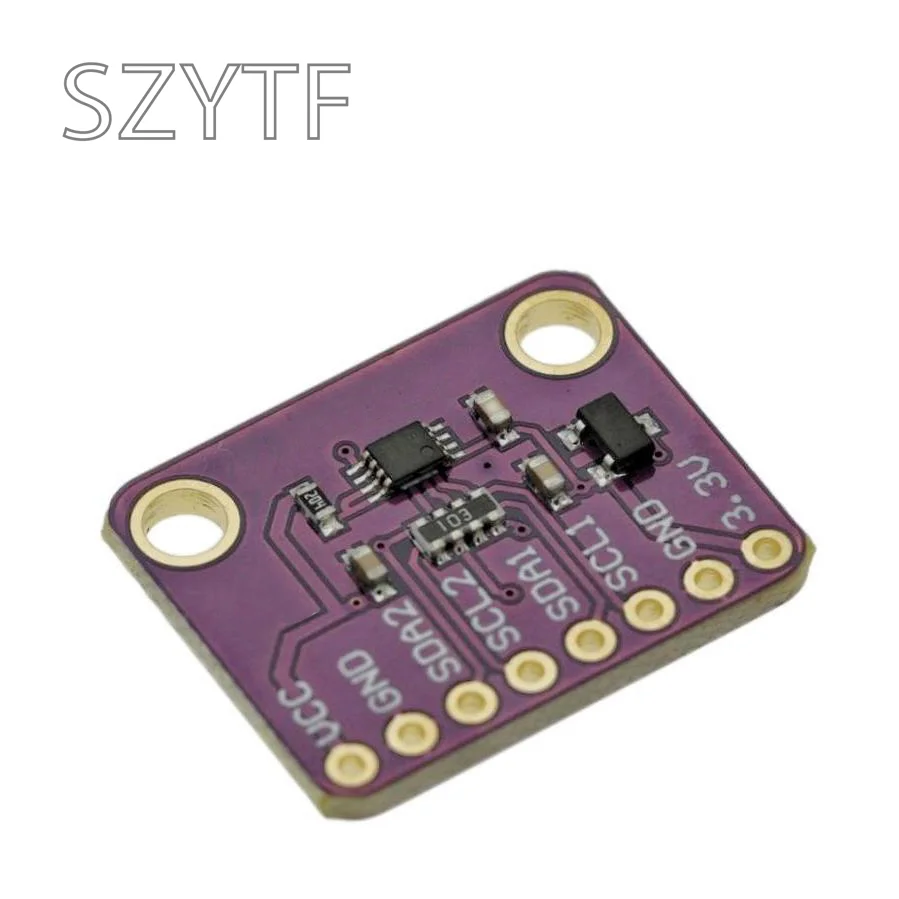

PCA9306 2-Bit Bidirectional I2C Bus and SMBus Voltage Level Translator

9306 device is a dual bidirectional I2C and SMBus voltage-level translator with an enable (EN) input, and is operational from 1.2-V to 3.3-V VREF1And 1.8-V to 5.5-V VREF2.

The PCA9306 device allows bidirectional voltage translations between 1.2 V and 5 V, without the use of a direction pin. The low ON-state resistance (RON) of the switch allows connections to be made with minimal propagation delay. When EN is high, the translator switch is ON, and the SCL1 and SDA1 I/O are connected to the SCL2 and SDA2 I/O, respectively, allowing bidirectional data flow Between ports. When EN is low, the translator switch is off, and a high-impedance state exists between ports.

In addition to voltage translation, the PCA9306 device can be used to isolate a 400-kHz bus from a100-kHzBusby controlling the EN pin, and disconnecting the slower bus during fast-mode communication.
