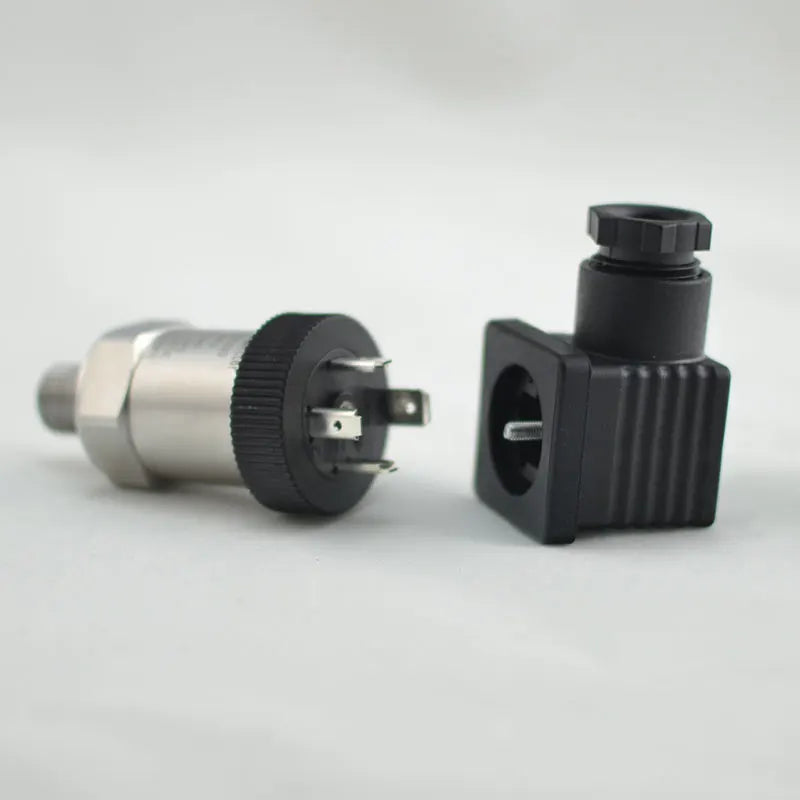

PCM300D Short Silicon Pressure Transmitter Pressure Transducer G1/4 4-20mA output
0-100Mpa
$151.25
Sale price
$151.25
Regular price
$0.00
Skip to product information
PCM300D Short Silicon Pressure Transmitter Pressure Transducer G1/4 4-20mA output
$151.25
Sale price
$151.25
Regular price
$0.00
Description
SPECIFICATIONS
Battery Included: no
Brand Name: SHLLJ
Choice: yes
High-concerned chemical: none
Max Measuring Range: 400 Bar & Above
Model Number: PCM300D
Origin: Mainland China
measure range: 0-0.2-60Mpa
semi_Choice: yes
0-0.2-60Mpa Silicon Pressure Transmitter Pressure Transducer G1/4 4-20mA output
Features:
Imported High Quality Diffused Silicon Chip
Capacity Range:0-0.2Mpa/0-0.4Mpa/0-0.6Mpa/0-1.0Mpa/0-1.6Mpa/0-2.5Mpa/0-4Mpa/0-6Mpa/0-10Mpa/0-16Mpa/0-25Mpa/0-40Mpa/0-60Mpa for you choice
Output Signal:4-20mA;
Power Supply:9-24VDC;
Comprehensive Precision:0.5%FS;
Overload Capacity:2 times for less than 10Mpa. 4 times for above 10Mpa
Using Temperature Range:-20-80℃;
Pressure Medium: Non-corrosive liquid or air;
Temperature Effect on Zero: Maximal: 2%FS
Temperature Drift on Sensitivity: Maximal: 2%FS
Shock Resistance:20g(20-5000HZ);
Housing Material: Stainless Steel;
Long-term Stability:less than 0.2%FS/year;
Defend Grade:IP65;

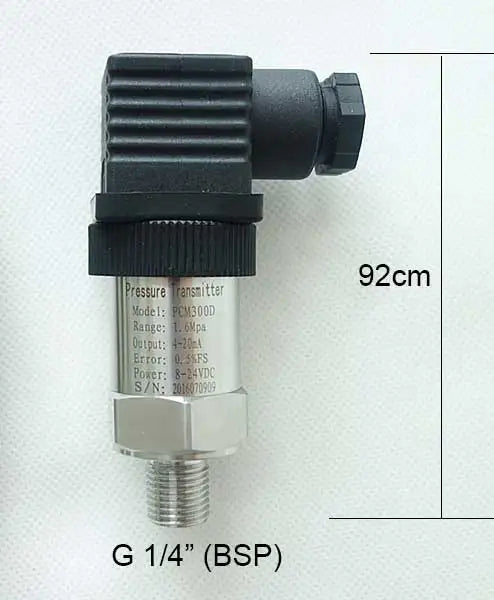

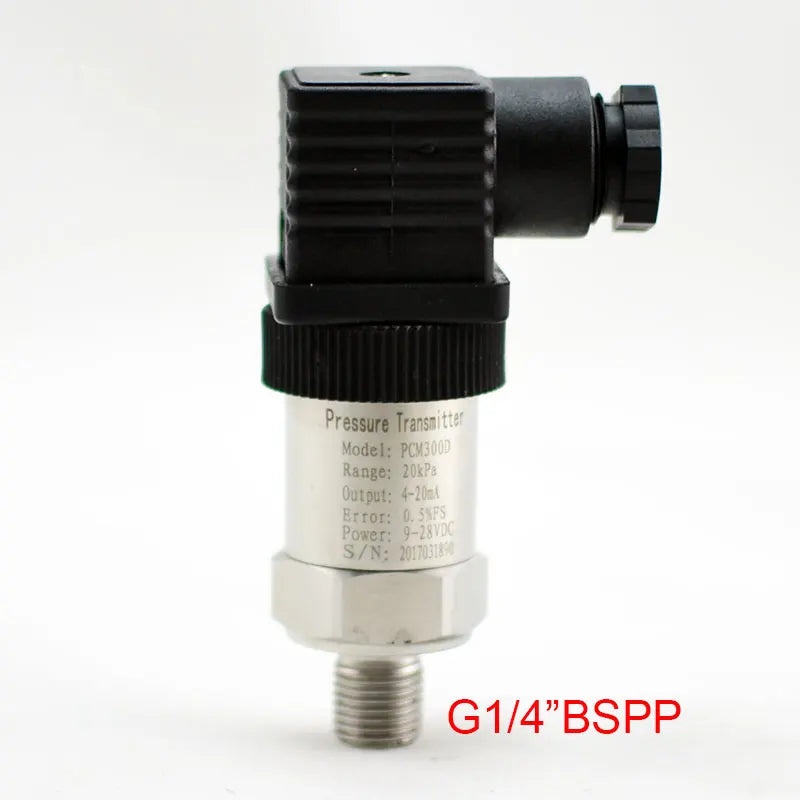

Pressure Connection:G1/4";
Application:
Industrial automation equipment,
Compression Machine,
Air conditioning and refrigeration systems,
Constant pressure water supply;
Other pressure measurement and liquid level measurement.
Package includes:
1 x Pressure Transmitter
If you needCapacity Range:0-20kpa 0-40kpa 0-100kpa
Please click it to buy them
