SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

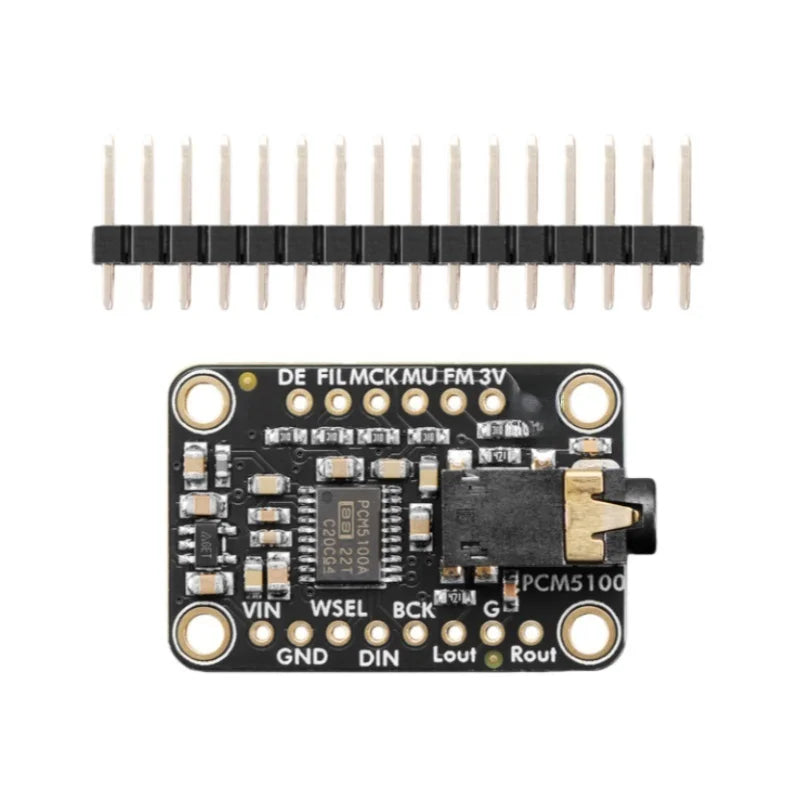

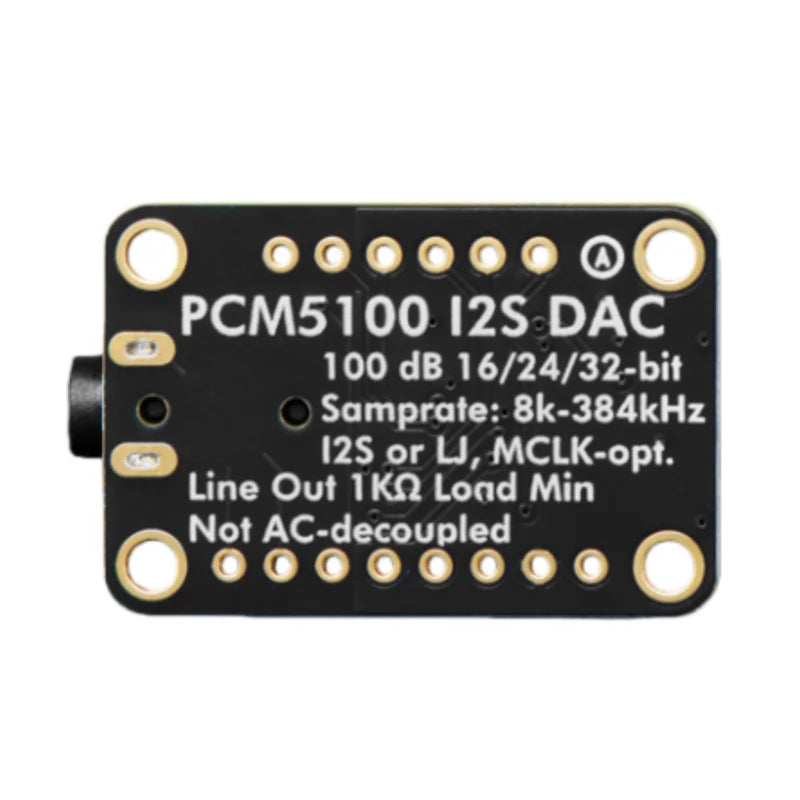

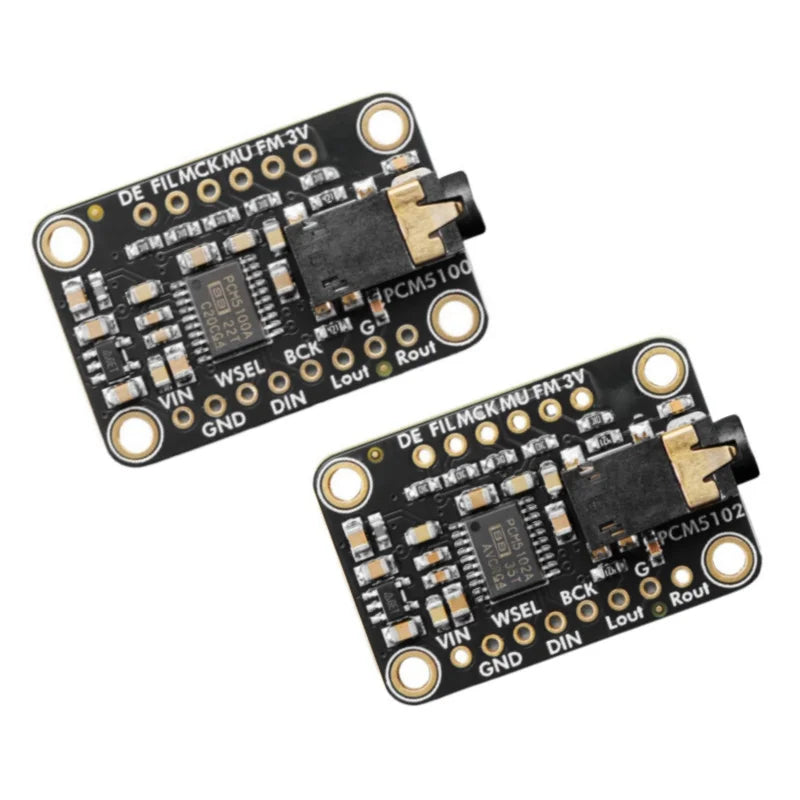

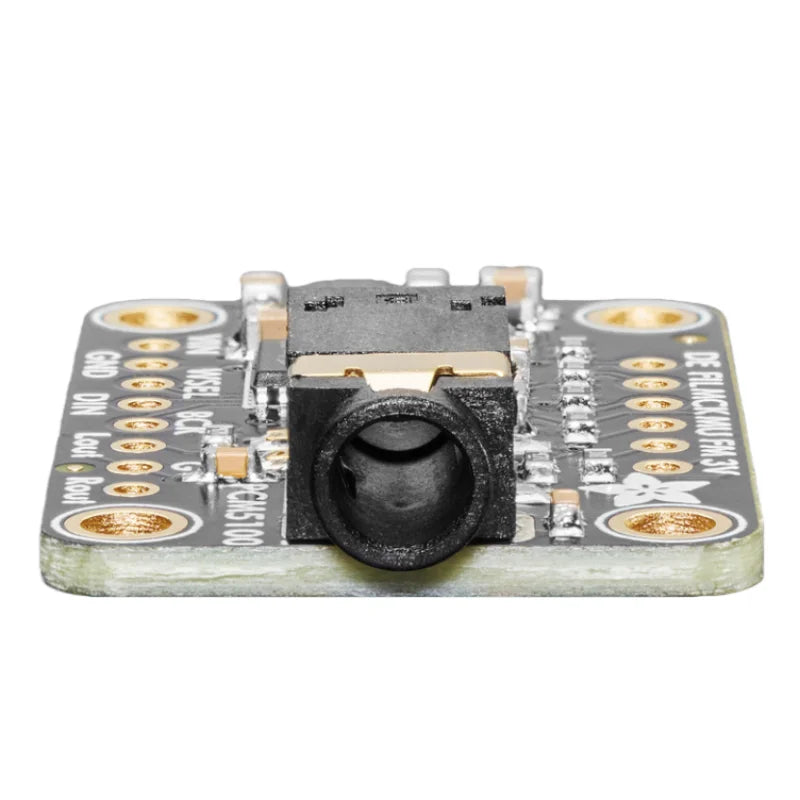

PCM5100 Features:

Market-Leading Low Out-of-Band Noise
Selectable Digital-Filter Latency and Performance
Accepts 16-, 24-, And 32-Bit Audio Data
Sampling Frequency 8kHz to 384kHz
PCM Data Formats: I2S, Left-Justified
Full Scale Output 2.1VRMS (GND center)
Integrated Power-On Reset
Automatic Power-Save Mode When LRCK And BCK Are Deactivated.
Integrated High-Performance Audio PLL With BCK Reference To Generate SCK Internally
3.3V Failsafe LVCMOS Digital Inputs
Hardware Configuration
Integrated Negative Charge Pump
Internal Pop-Free Control For Sample-Rate Changes Or Clock Halts
SNR / Dynamic Range: 100dB
THD+N @ - 1dBFS: -90dB

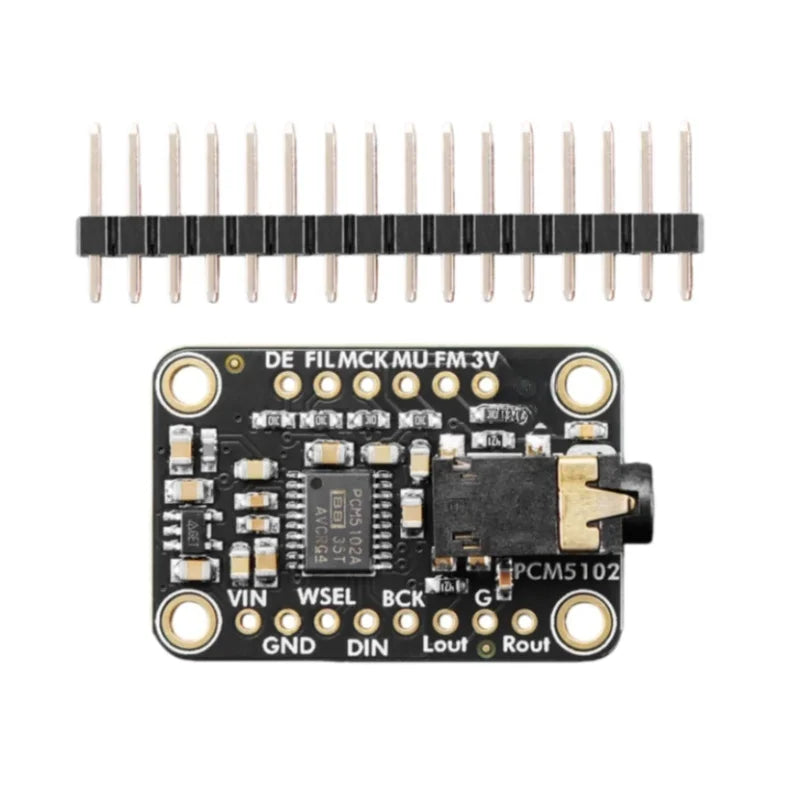

PCM5102 Features:

Market-Leading Low Out-of-Band Noise
Selectable Digital-Filter Latency and Performance
Accepts 16-, 24-, And 32-Bit Audio Data
Sampling Frequency 8kHz to 384kHz
PCM Data Formats: I2S, Left-Justified
Full Scale Output 2.1VRMS (GND center)
Integrated Power-On Reset
Automatic Power-Save Mode When LRCK And BCK Are Deactivated.
Integrated High-Performance Audio PLL With BCK Reference To Generate SCK Internally
3.3V Failsafe LVCMOS Digital Inputs
Hardware Configuration
Integrated Negative Charge Pump
Internal Pop-Free Control For Sample-Rate Changes Or Clock Halts
SNR / Dynamic Range: 112dB
THD+N @ - 1dBFS: -93dB
