SPECIFICATIONS

Product ApplicationsA/V Receiver
DVD, BD Player
HDTV Receiver
Applications requiring 2VRMS audio output
Smart Speaker to AUX Stereo Output


Product Features
Stereo jack included
PHAT format board

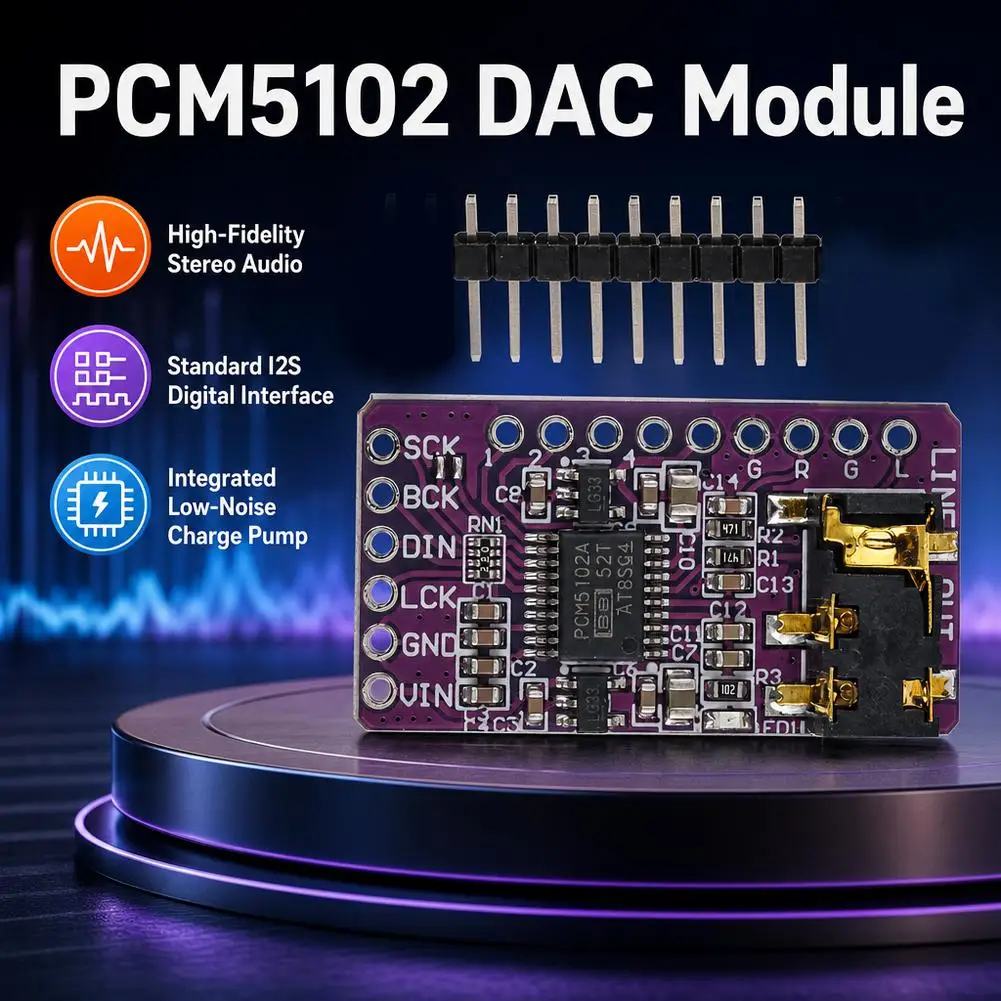

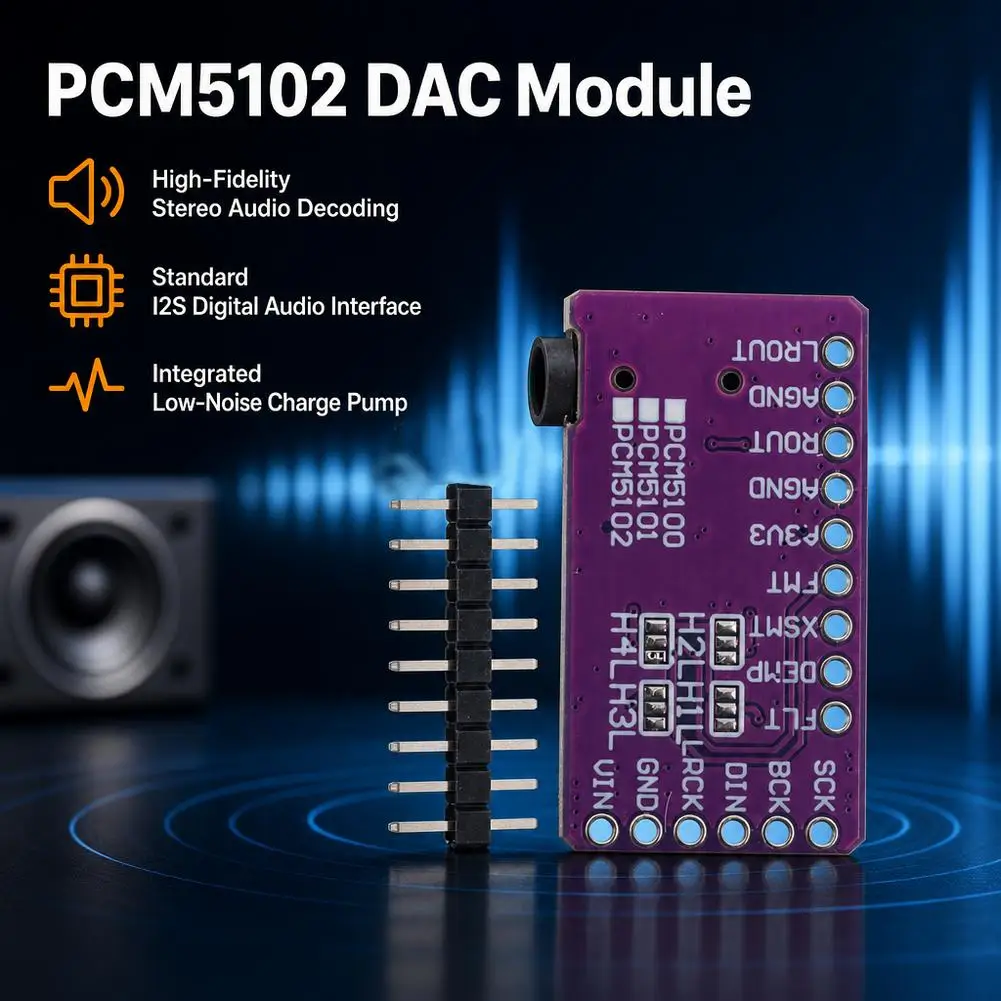

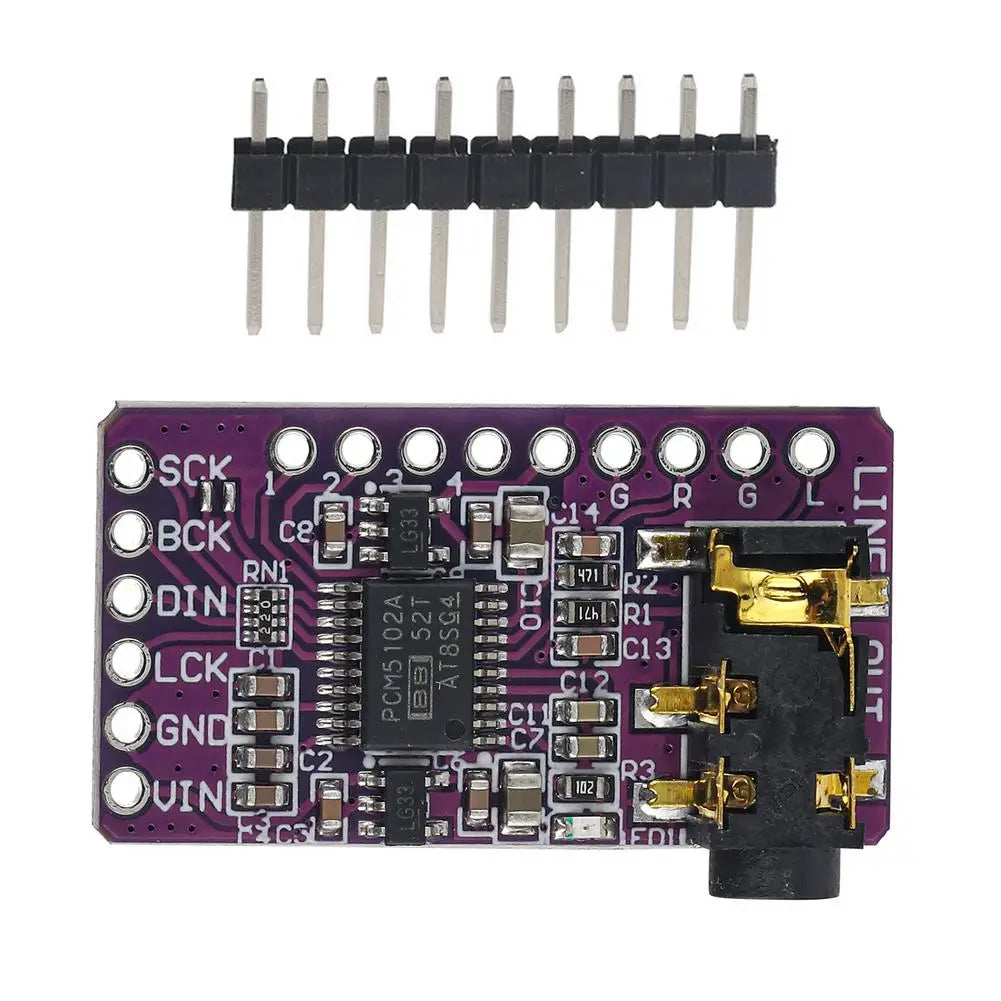

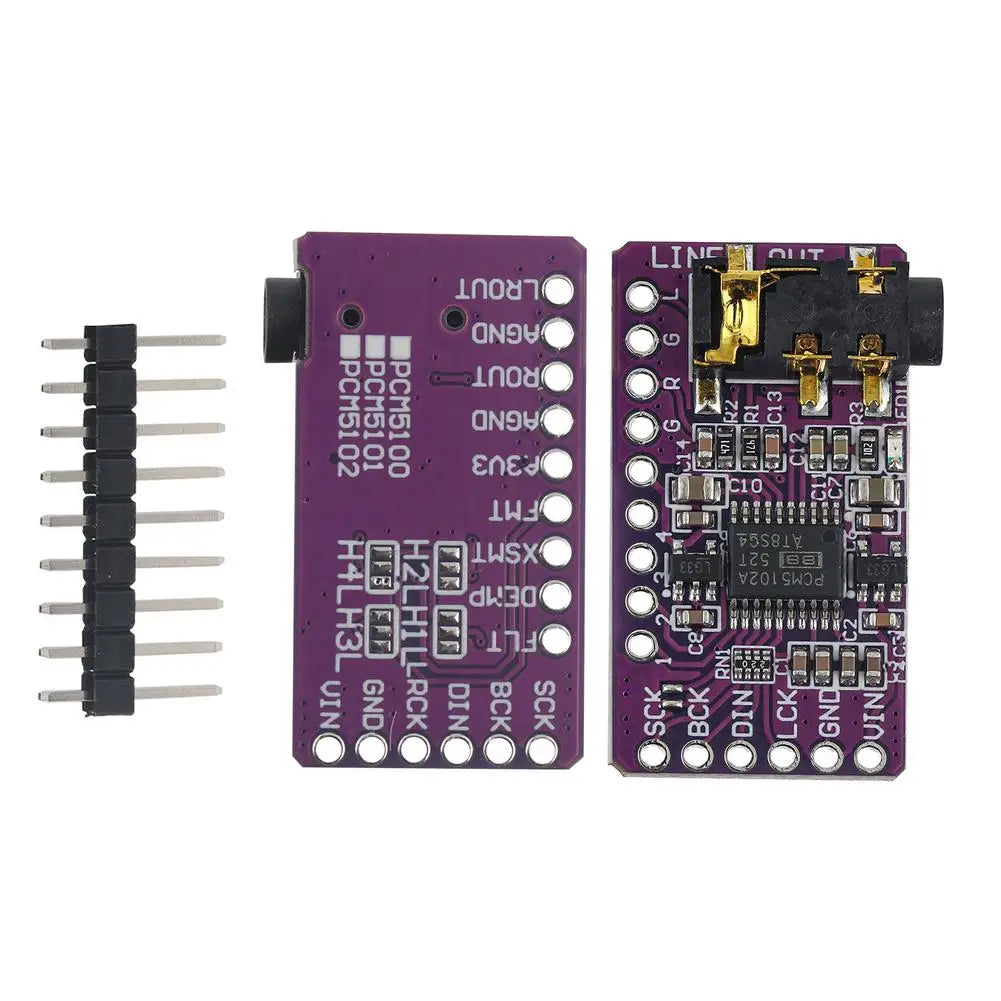

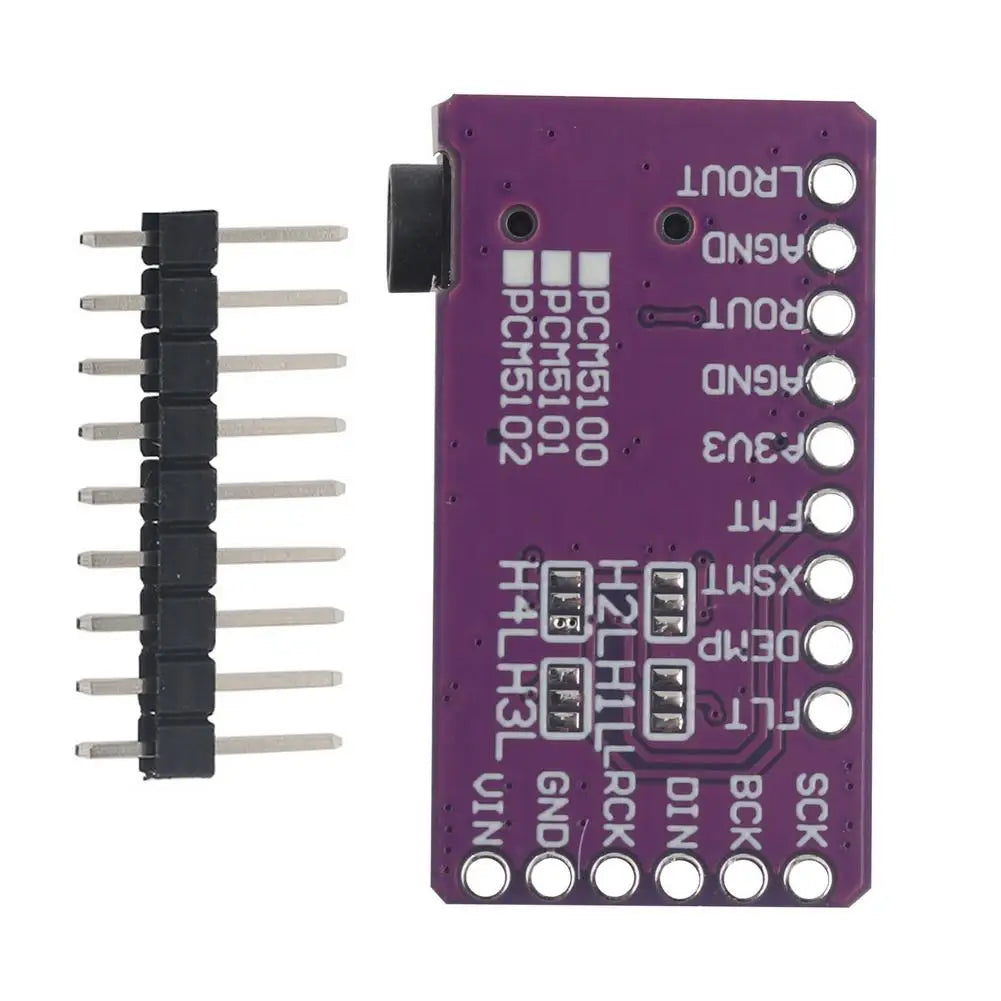

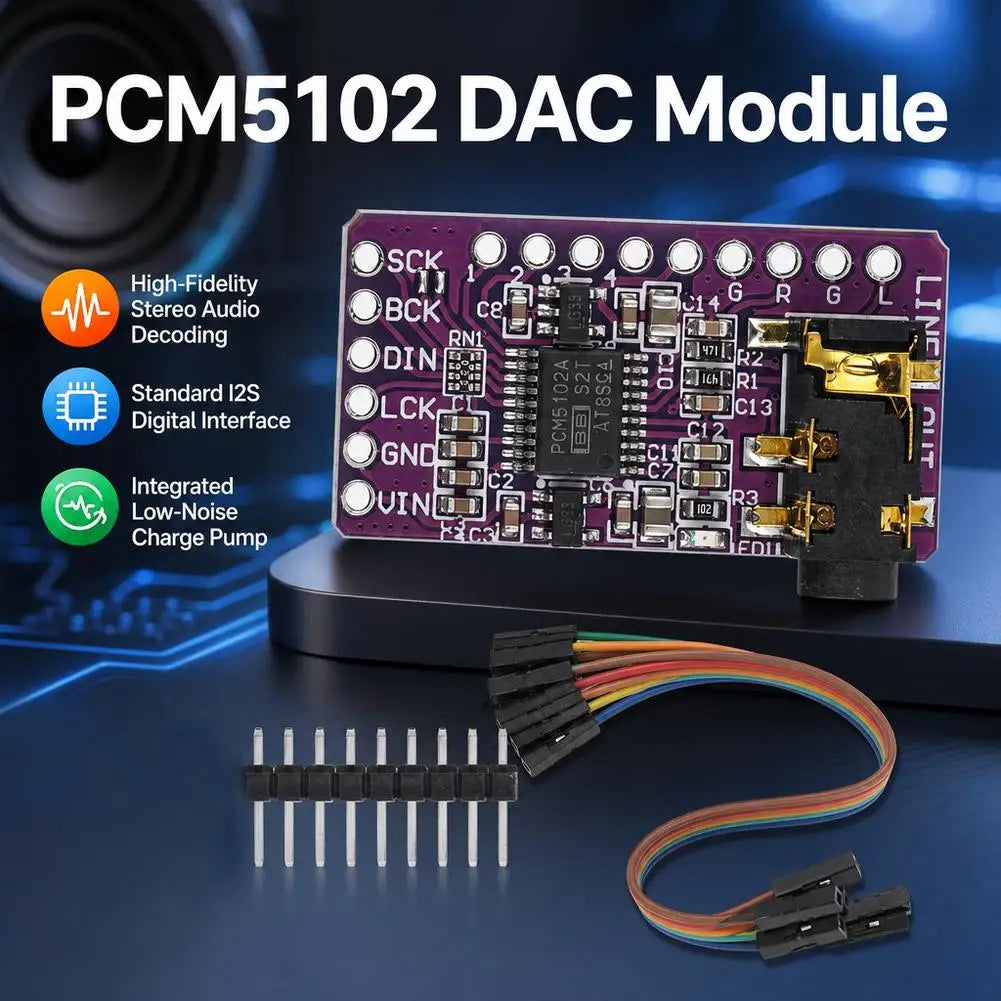

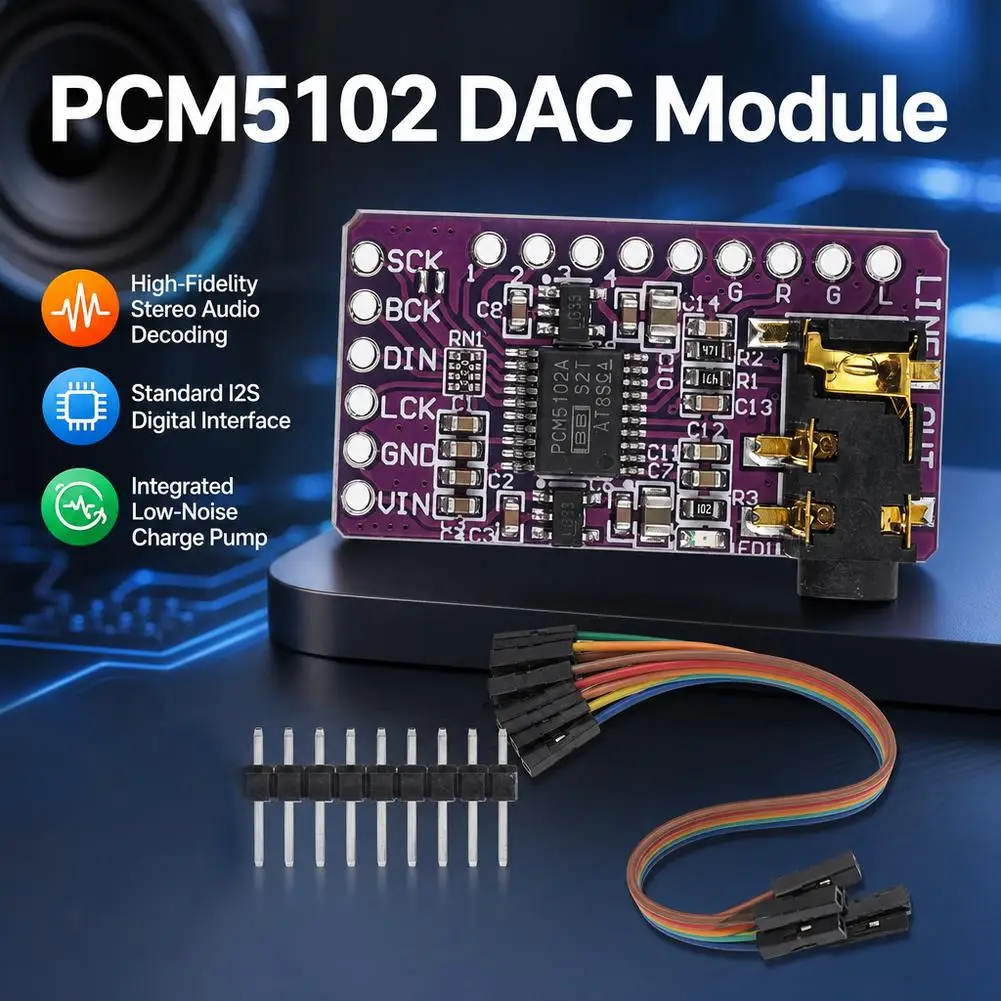

Uses PCM5102A DAC with RASPBERRY PI12S interface


Product Specifications
Power Supply Voltage: 5V
Type: 12S DAC Decoder
Model: PCM5102

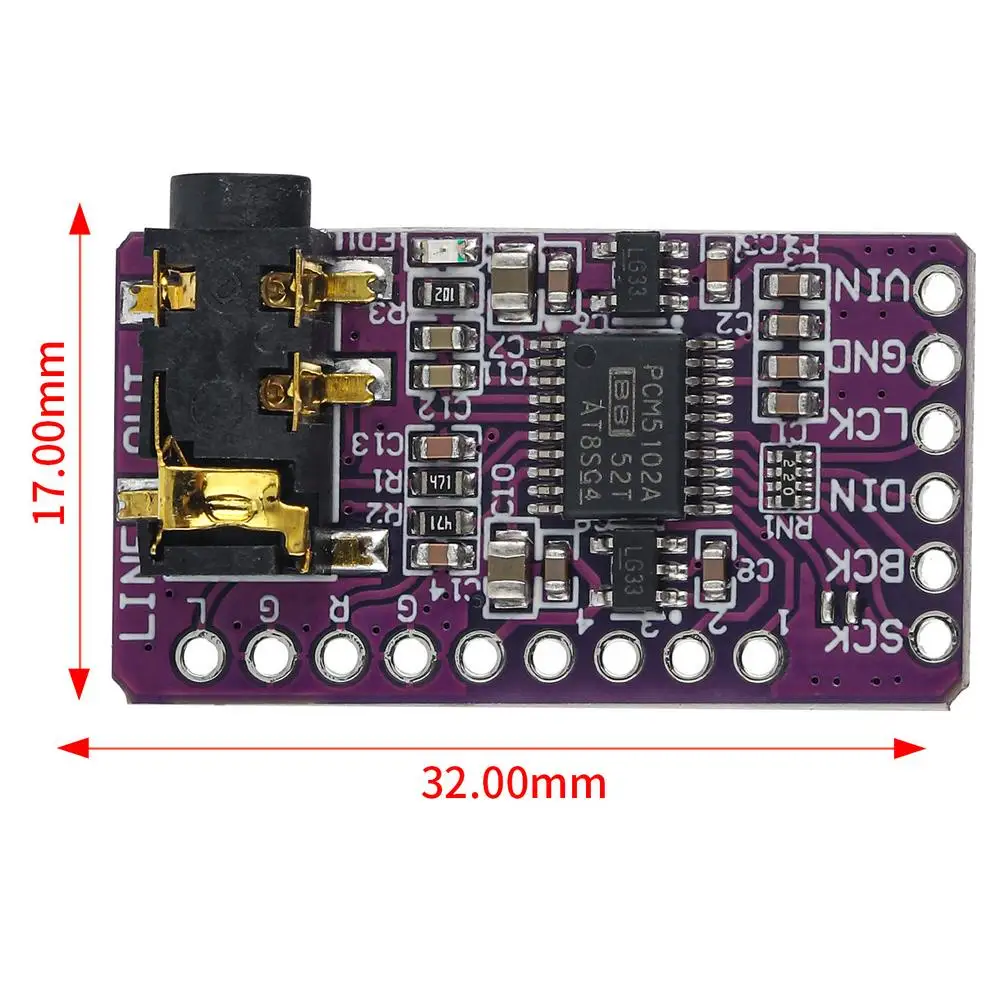

Dimensions: 32mm*17mm
Weight: 2.8g
Material: PCB
Size: 3.2 x 1.7 cm / 1.26" x 0.67"
【COMPACT FOOTPRINT】The ultra-small layout measures exactly 3.2 by 1.7 cm, allowing makers to install this component into miniature chassis or handheld portable audio players without adding unnecessary bulk to their builds.
【AUDIO DIY UPGRADE】Ideal for electronic hobbyists upgrading home music systems, this purple module fits seamlessly into custom digital-to-analog converter setups, delivering high-fidelity sound for personalized desktop speaker projects.
【STABLE CONNECTION】Excellent for custom nightstand audio players, this board utilizes a simplified interface that operates efficiently using only three wires, resolving common space constraints in bespoke bedside music devices.
【DIRECT LINE OUT】Features an integrated 3.5mm stereo jack with connectors for clean, direct signal output to your headphones or amplifier, eliminating the need for complex wiring accessories during assembly.

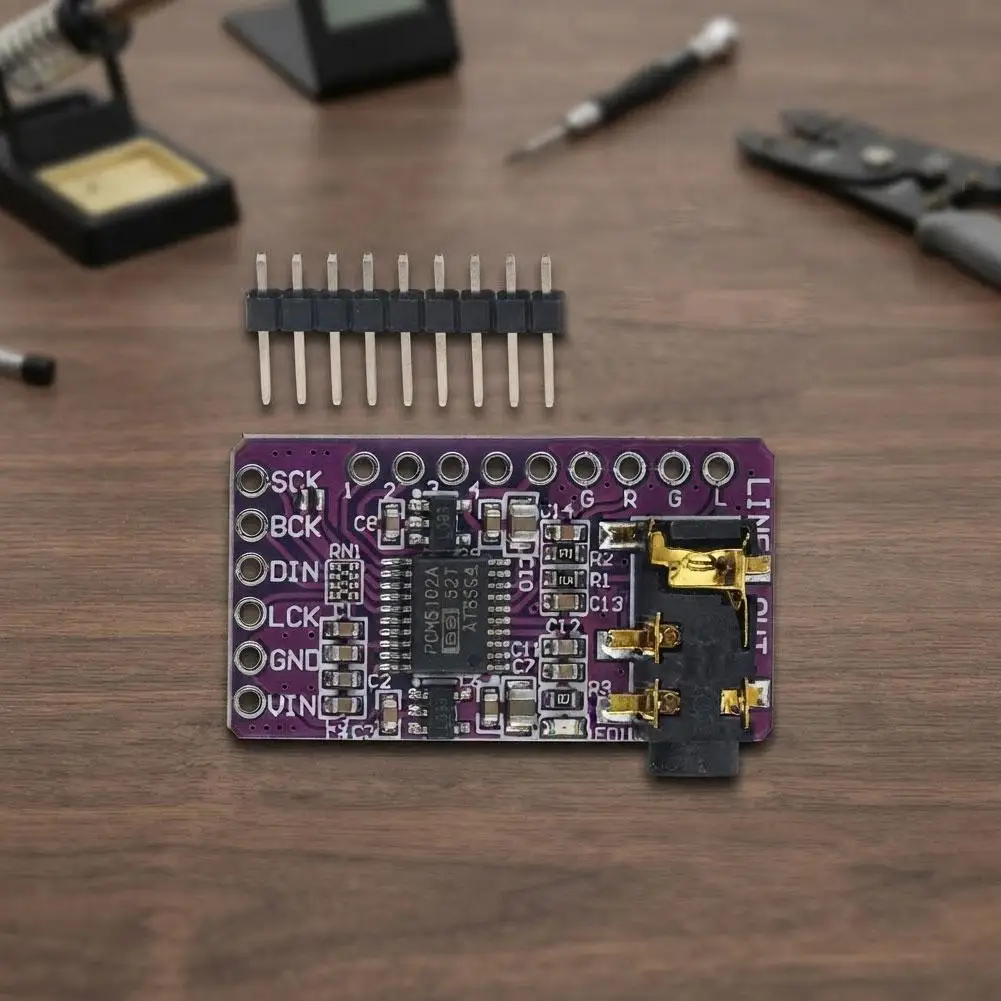

【RAPID INTEGRATION】Designed for quick integration, the compact receiver board requires less than 5 minutes of soldering to connect the included pin headers, making it excellent for Raspberry Pi projects in tight spaces.

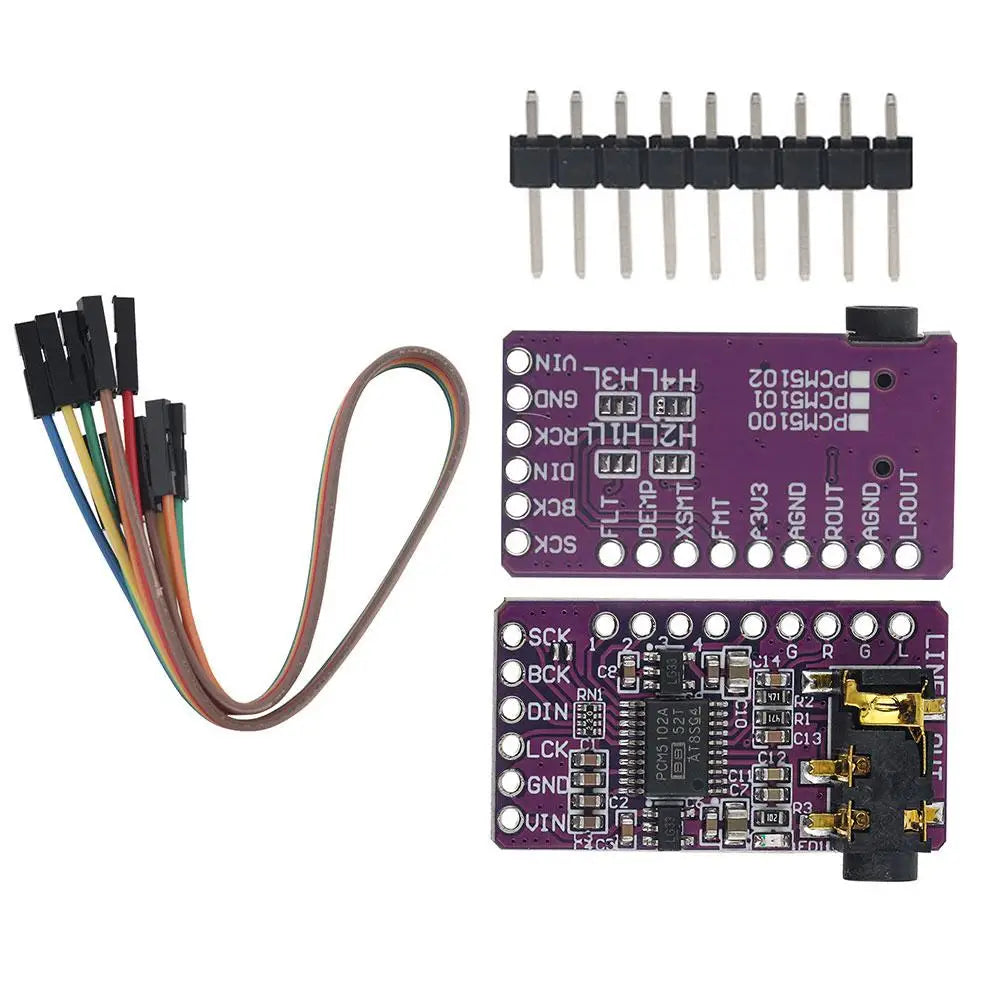

Package list:
1x PCM5102 audio decoder module
1x Pin header
1x Connecting wire
