SPECIFICATIONS

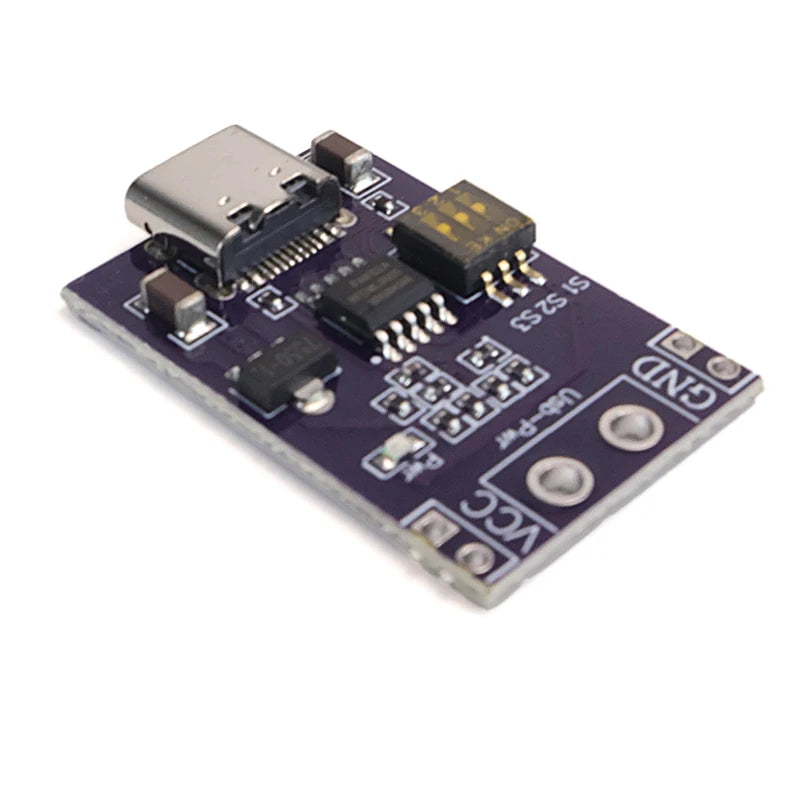

Unlock Your Charger's Potential! PD/QC/AFC Trigger Module for Fixed 5V/9V/12V/15V/20V Output, Perfect for Arduino/RPi DIY.

Key Features & Benefits:

🔌 Full Protocol Support: Triggers PD2.0/3.0, QC2.0/3.0, AFC to negotiate higher voltage from compatible chargers.

⚡ 5 Fixed Voltage Outputs: Delivers precise 5V, 9V, 12V, 15V, or 20V for various applications.

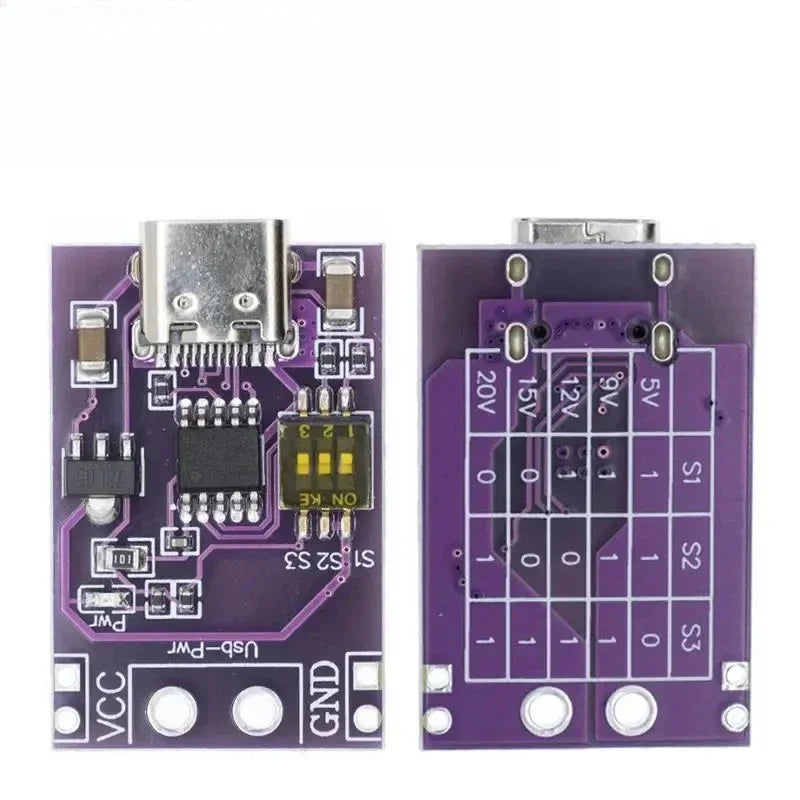

🎛️ DIP Switch, No Coding: Easy hardware configuration via backside DIP switches according to the provided table.

🛠️ Plug & Play, Wide Compatibility: Standard USB Type-C input works with most fast chargers/power banks. Simple wire output for easy connection.

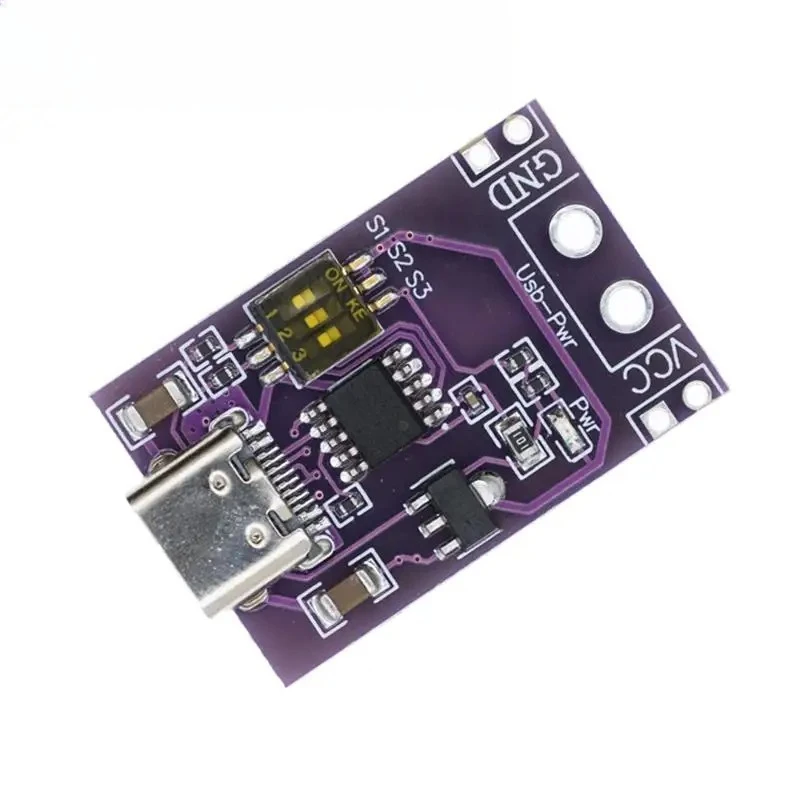

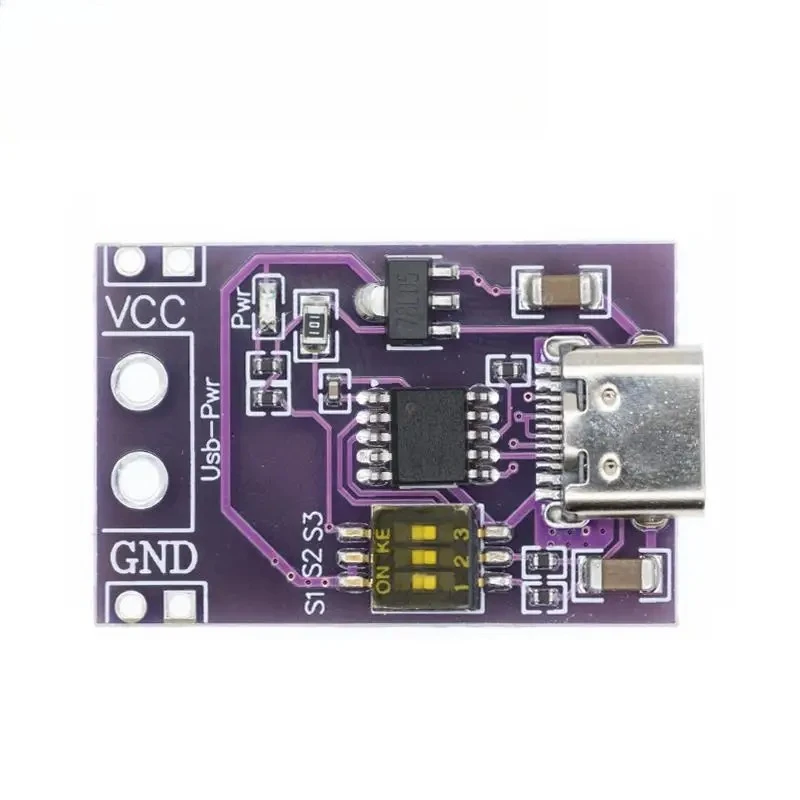

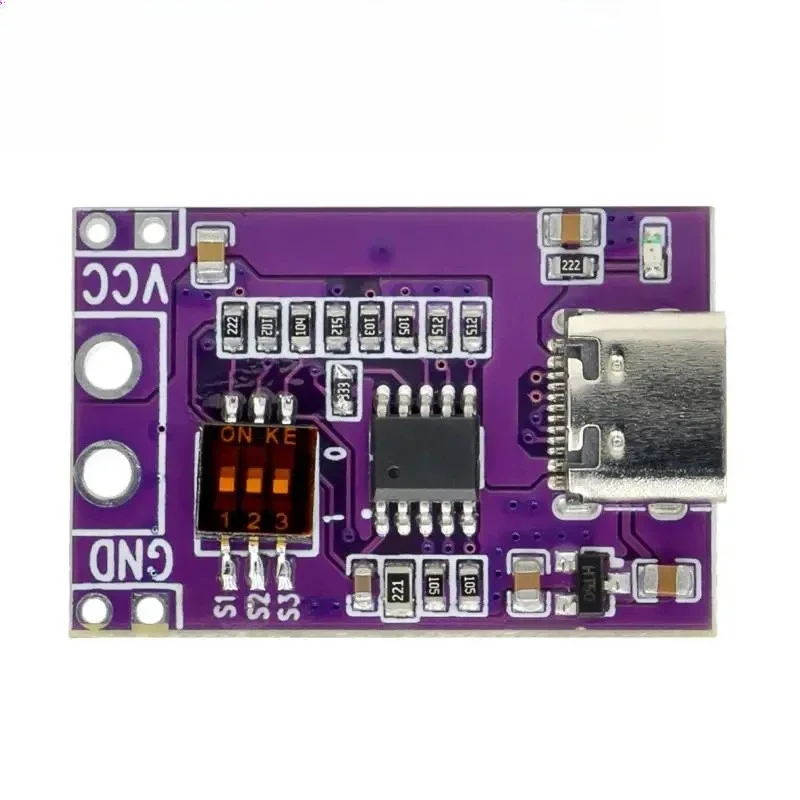

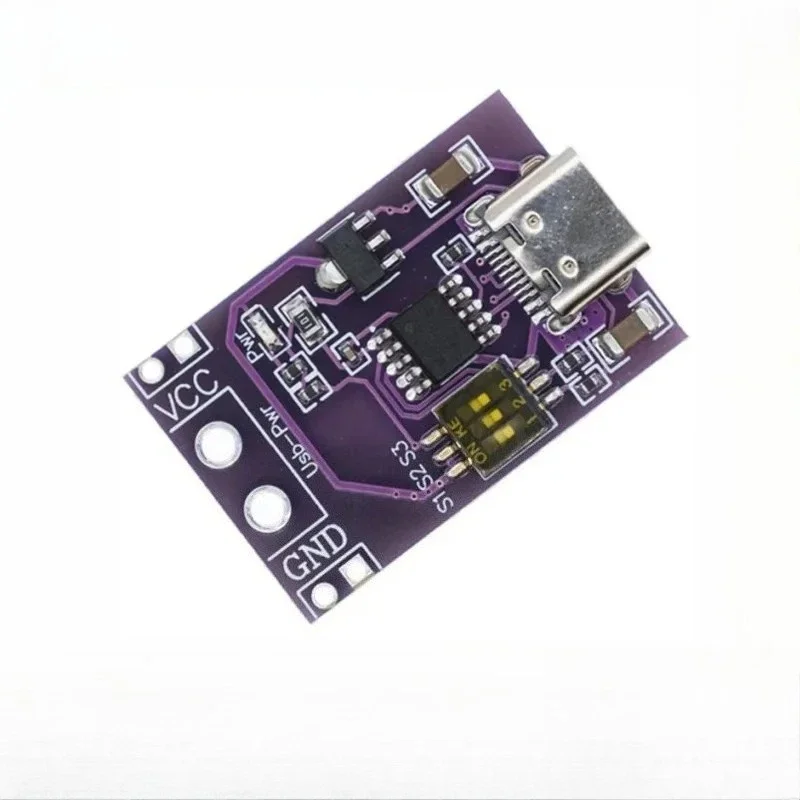

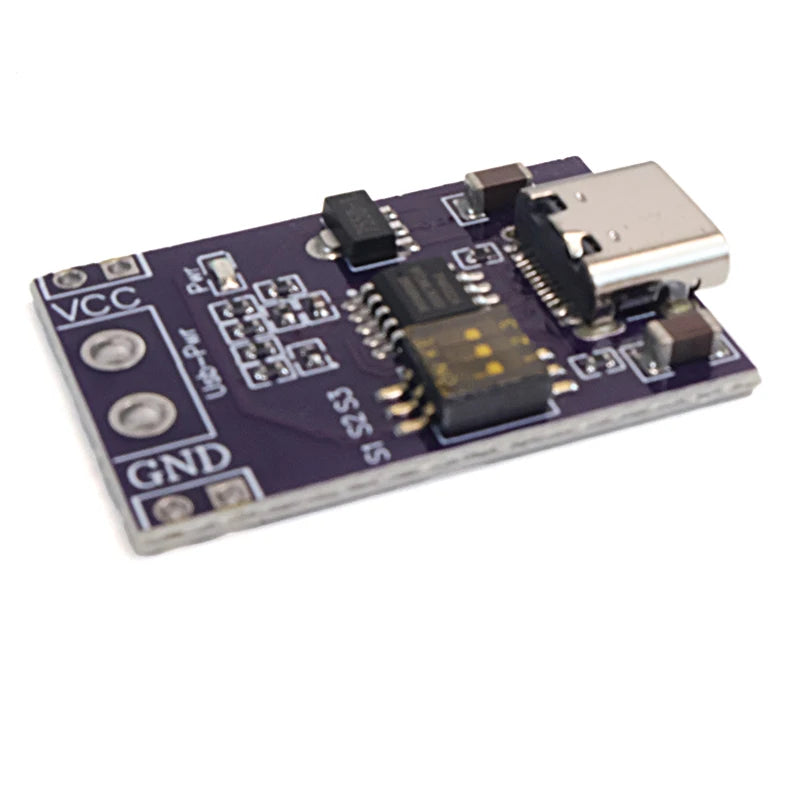

📐 Ultra-Compact Design: Tiny board (3.1x2cm) for easy integration into DIY projects, device mods, or test fixtures.

Product Description:

Want to turn a standard fast charger into a dedicated power source? This trigger module is your key. It makes your PD/QC charger output preset high voltages like 20V or 15V, ideal for testing mobile devices, creating DIY power supplies, or providing stable high-voltage input to development boards (Raspberry Pi, ESP32). A must-have tool for makers and engineers.

🚨【Critical Risk Control Module - Must Read Before Purchase!】

❌【Product Nature & Limitation】：

This is a Passive Protocol Trigger. It does NOT convert, regulate, or boost voltage. The output voltage depends entirely on whether the connected charger supports and successfully triggers the corresponding protocol. Do NOT connect directly to batteries or non-USB-C fast charge sources!

⚠️【Requirements & Most Common Mistakes】:

【Required Equipment】： You MUST have a PD or QC compatible USB-C charger/power bank as the input source. Standard 5V chargers won‘t work.

【Voltage Verification Step】： ALWAYS measure the output voltage with a multimeter after setting the DIP switches before connecting your load! The board has no voltage indicator.

【Not Adjustable】： Output is fixed to 5 specific levels. It cannot be adjusted to any value between 5V, 9V, 12V, 15V, and 20V.

✅【Correct Usage Procedure】：

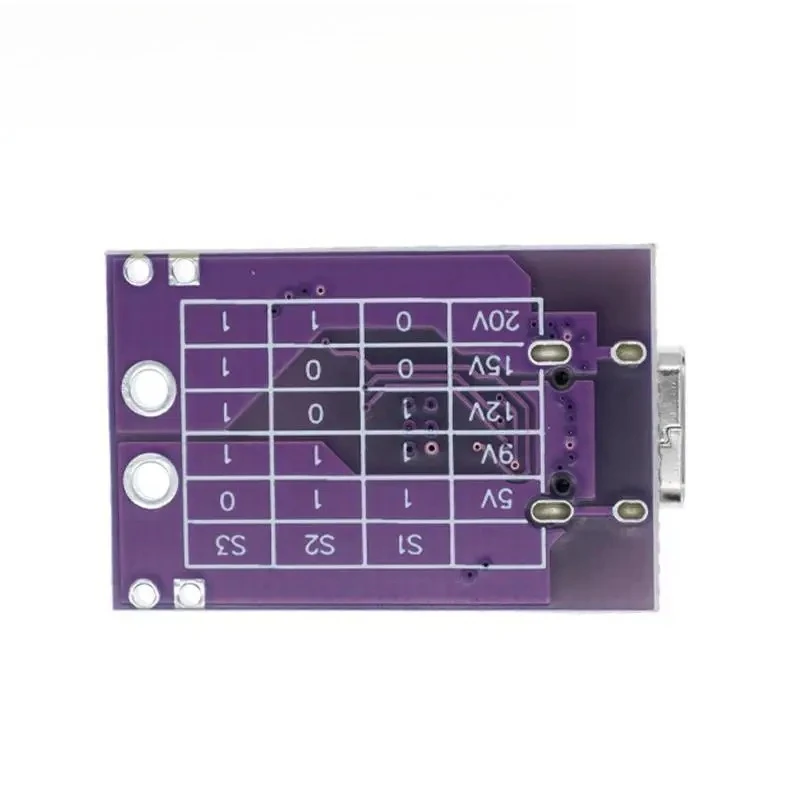

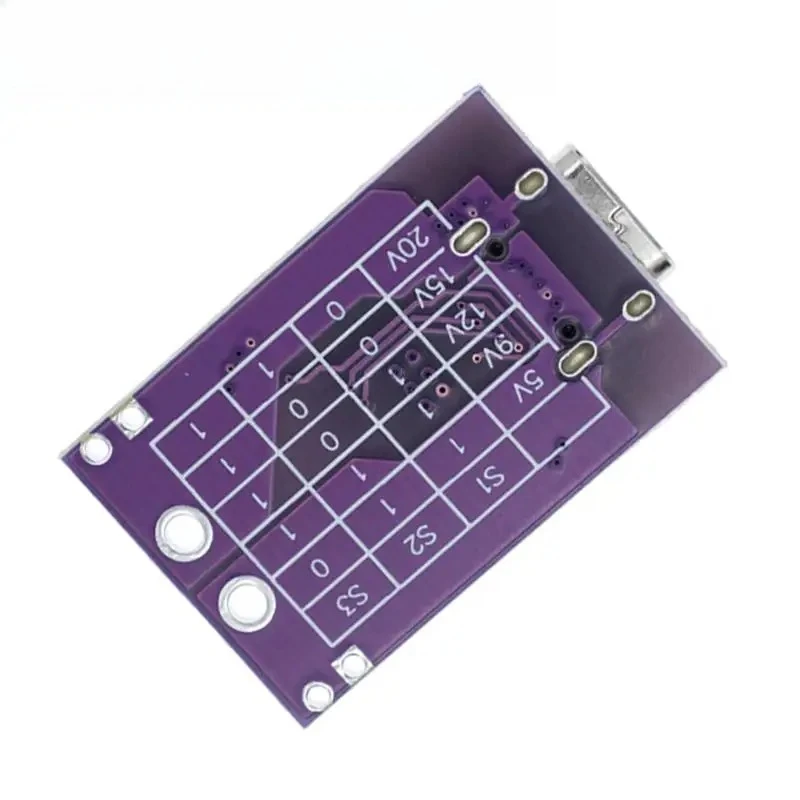

1. Set DIP switches per the onboard table
2. Connect to a fast-charge USB-C source.
3. Measure output voltage with a multimeter.
4. Connect your load device after confirmation.

🔧【Safety & Compatibility】:

Input must be USB Type-C.

Ensure your load device‘s (e.g., dev board, monitor) input voltage range includes your selected level.

Incorrect wiring or misuse may damage the module or your device.

Specifications:

Protocols: PD2.0/PD3.0, QC2.0/QC3.0, AFC

Output Voltage: Fixed 5V, 9V, 12V, 15V, 20V

Setting Method: 4-Position DIP Switch

Input: USB Type-C Female

Output: Bare Wires/Pads

Size: Approx. 31mm x 20mm

Weight: Approx. 2.9g

Package Includes:

1 x PD/QC/AFC Fast Charge Trigger Module
