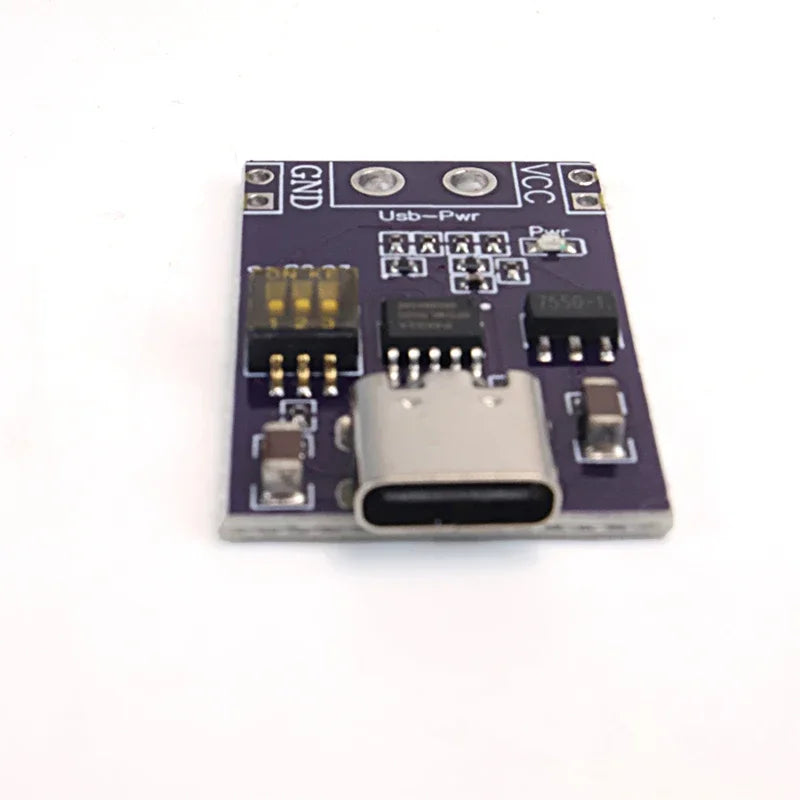

PD QC AFC Trigger Module 5V 9V 12V 15V 20V Fixed Voltage Output Fast Charging Tester for Power Bank USB-C Fast Charge

PD QC AFC Trigger Module 5V 9V 12V 15V 20V Fixed Voltage Output Fast Charging Tester for Power Bank USB-C Fast Charge

$10.08

$10.08 $0.00

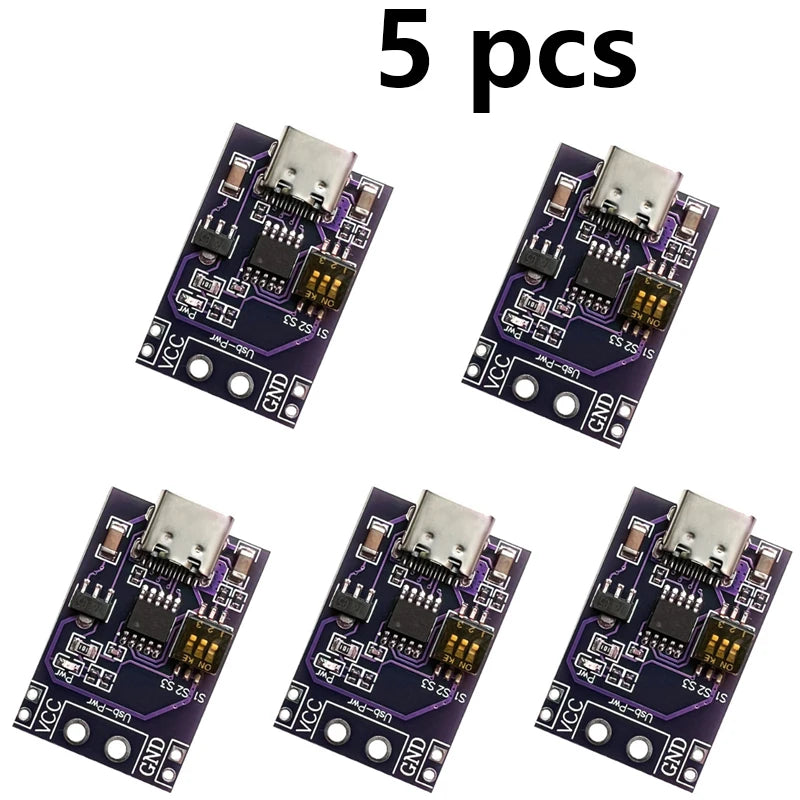

Color 1 pcs 2 pcs 5 pcs 10 pcs

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

p{margin-block-start: 0; margin-block-end: 0}

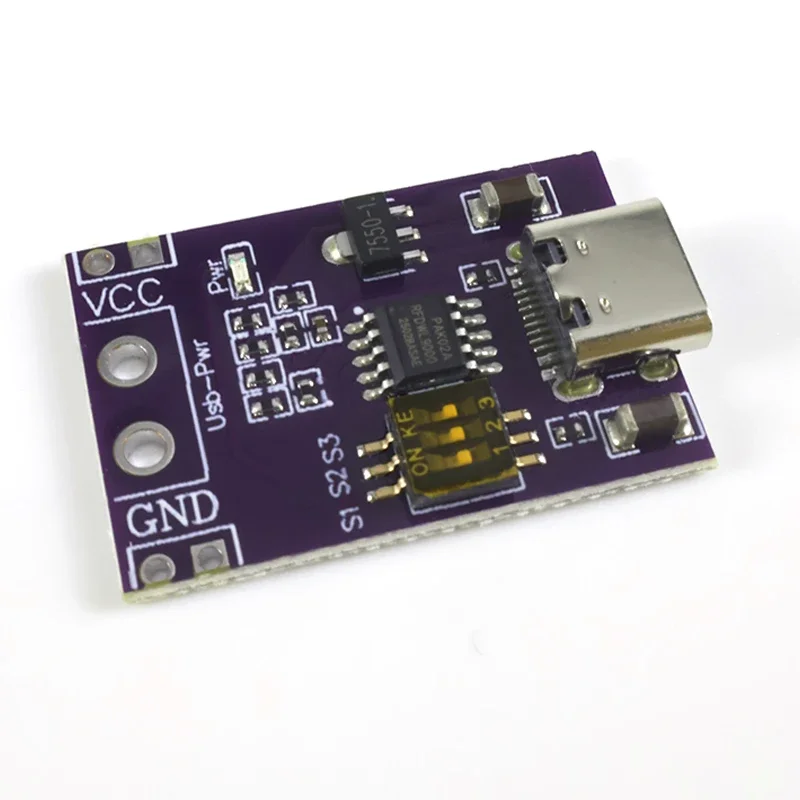

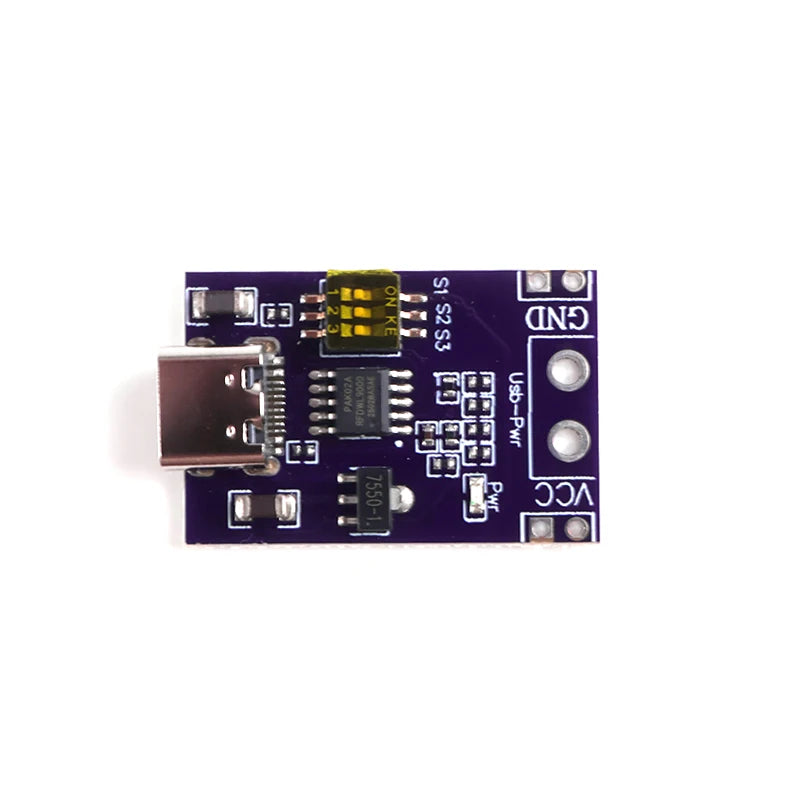

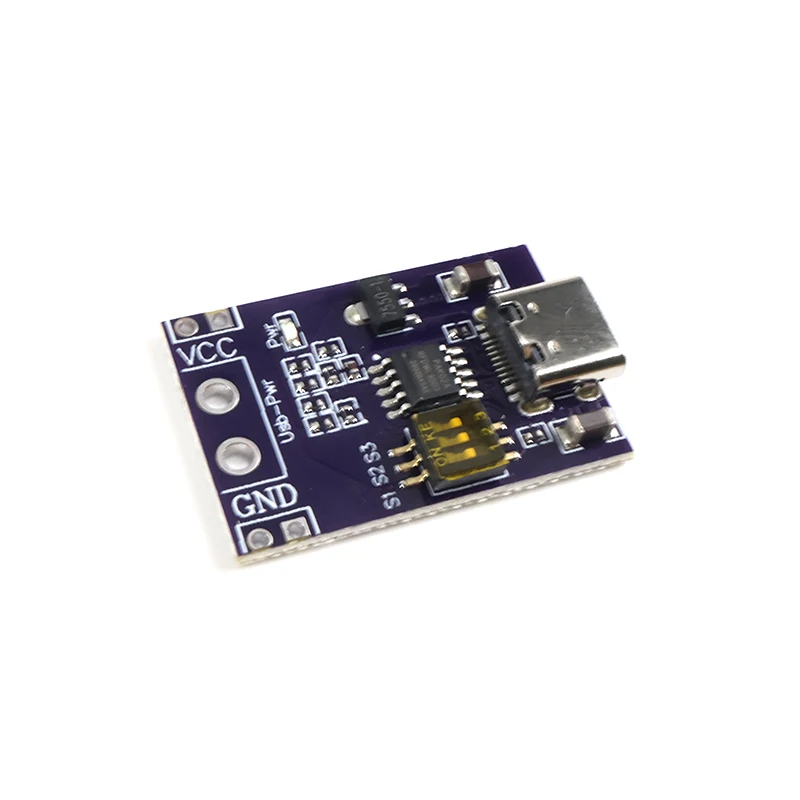

PD/QC/AFC Fast Charge Trigger Module – Fixed 5V/9V/12V/15V/20V Output, Essential Tester for Power Bank & Phone Fast Charging!

Key Features & Benefits：

✅ Multi-Protocol Fast Charge Support: Fully compatible with PD2.0/3.0, QC2.0/3.0, AFC protocols, one module tests all mainstream fast-charge standards

✅ 5 Fixed Voltage Outputs: Selectable 5V, 9V, 12V, 15V, 20V stable outputs for adjustable DC power in projects

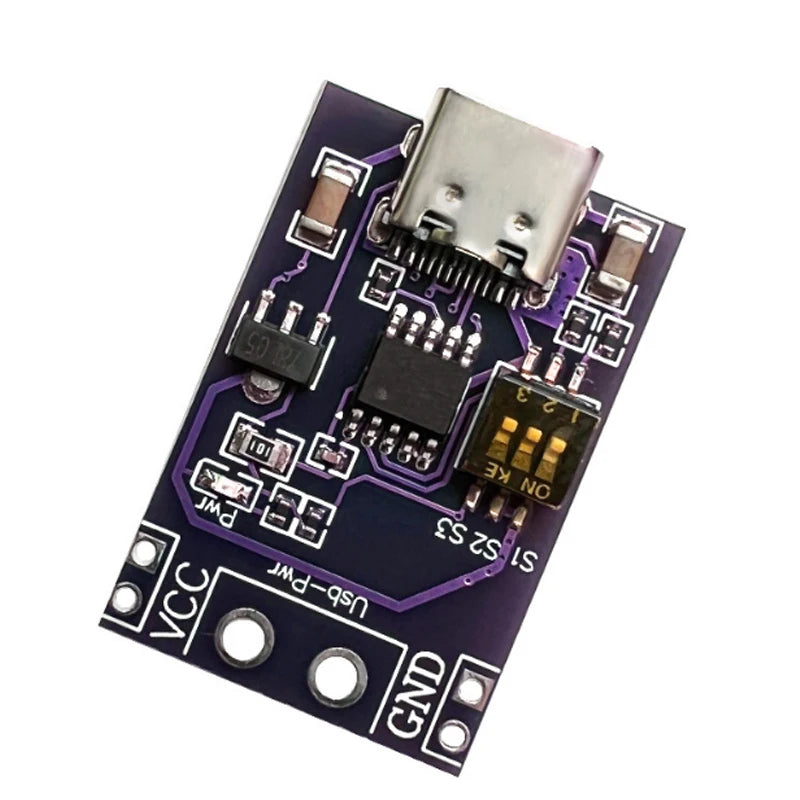

✅ DIP Switch Control: Easy voltage setting via DIP switch table on back, no programming needed, ready to use

✅ Ultra-Compact & Portable: Only 31×20mm size, approx. 2.9g weight, easy to carry and integrate

✅ USB-C Female Port: Directly connect to USB-C charger or power bank to trigger hidden fast-charge modes

Product Description：
This fast-charge trigger module is the key to unlocking the potential of your USB-C power sources. It "negotiates" with your charger or power bank to trigger hidden fast-charge modes and deliver your desired precise voltage. Whether for circuit powering, device testing, or product development, it's an indispensable tool for electronics enthusiasts, repair engineers, and developers.

🚨 Important Notes / How to Use (Safety Guide, MUST READ BEFORE USE!)：

⚠️ MUST Measure Voltage! Module has NO voltage display. After setting DIP switches, you MUST use a multimeter to measure output voltage before connecting your device! Wrong voltage can instantly destroy your device!

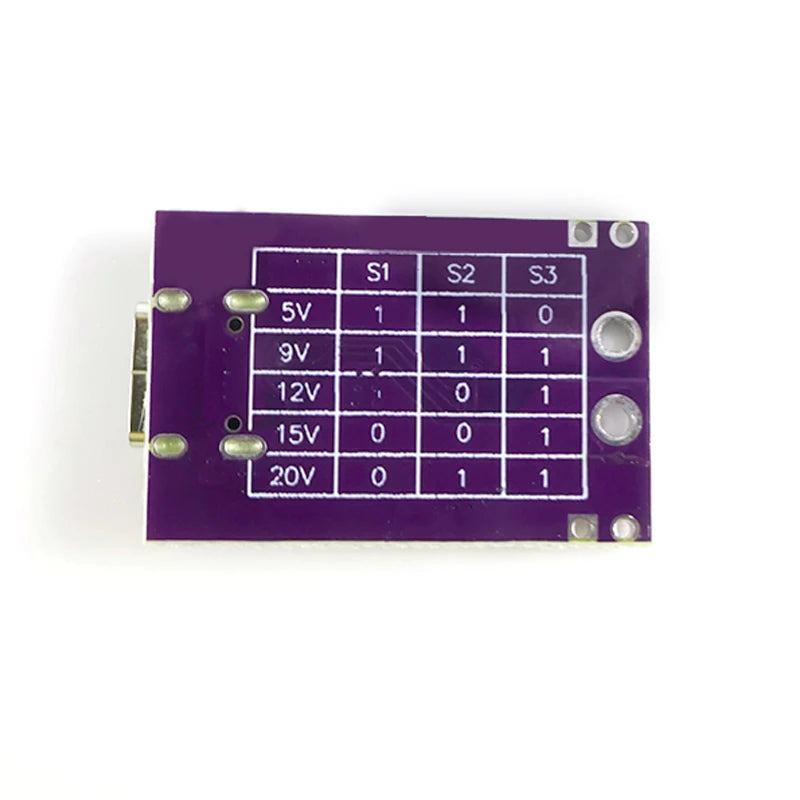

Correct DIP Setting: Output voltage is determined by DIP switch combination. Strictly follow the code table printed on the back. Wrong settings cause random voltage output.

Protocol Compatibility: The module itself doesn't generate power; it "requests" voltage from the source. Ensure your power source (adapter, power bank) natively supports your set voltage and protocol.

Power Limit: Be aware of the module's current-carrying limit. When connecting high-power devices, ensure you do not exceed the power rating of the module and source to prevent overheating damage.

Specifications：

Supported Protocols: PD2.0/PD3.0, QC2.0/QC3.0, AFC

Output Voltage: 5V, 9V, 12V, 15V, 20V (Fixed, not adjustable)

Control Method: DIP Switch

Interface: USB-C Female

Size: Approx. 31mm × 20mm

Net Weight: Approx. 2.9g

Package Includes：

1 × PD/QC/AFC Trigger Module
