Headline: Unlock Hidden Fast Charging! PD/QC/AFC Trigger Module - Your Key to 5V/9V/12V/15V/20V Fixed DC Output from USB-C.

Key Features & Benefits

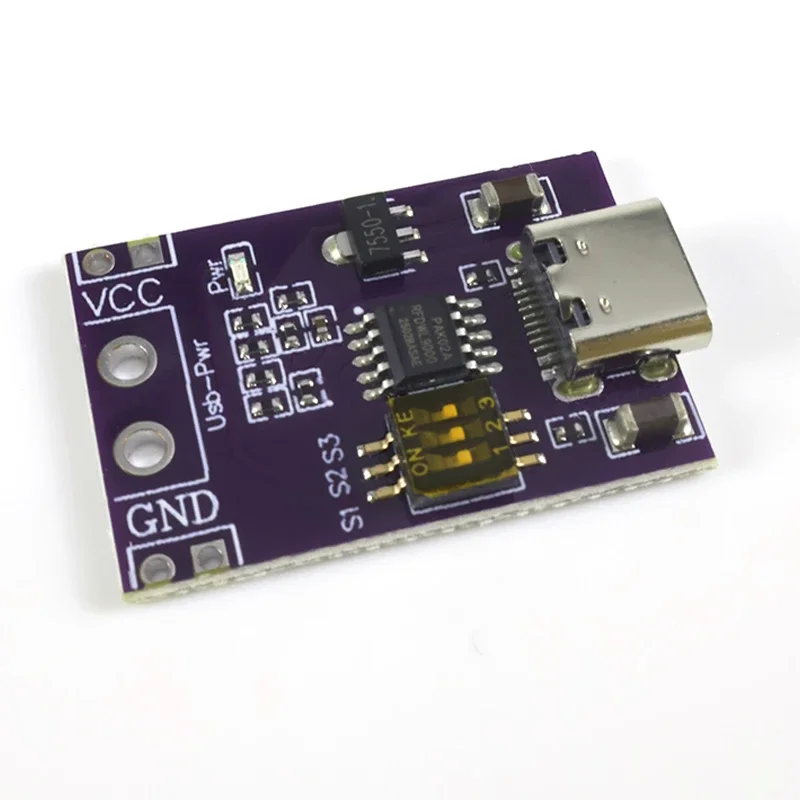

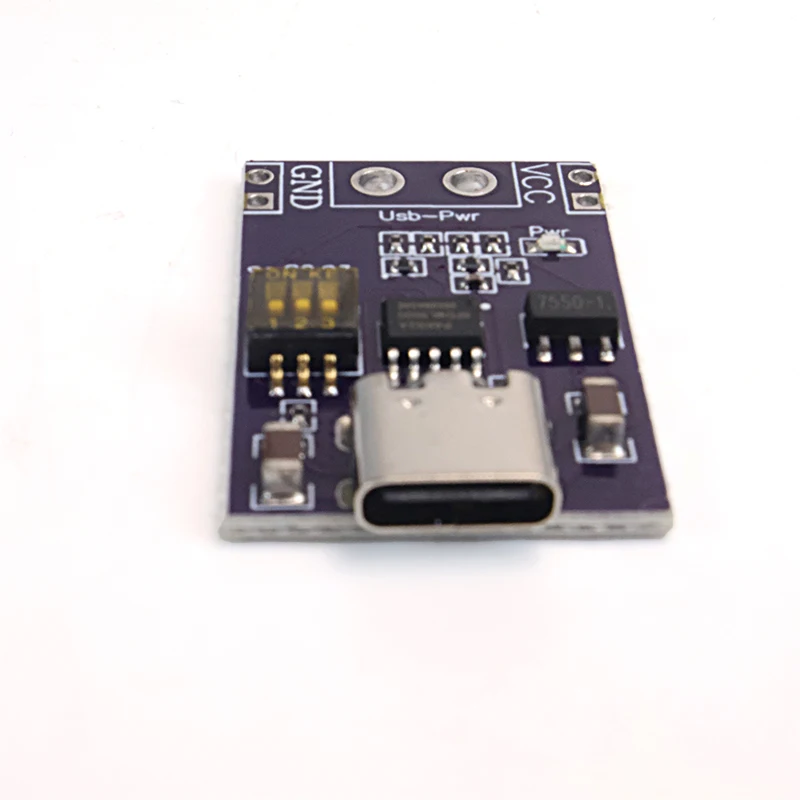

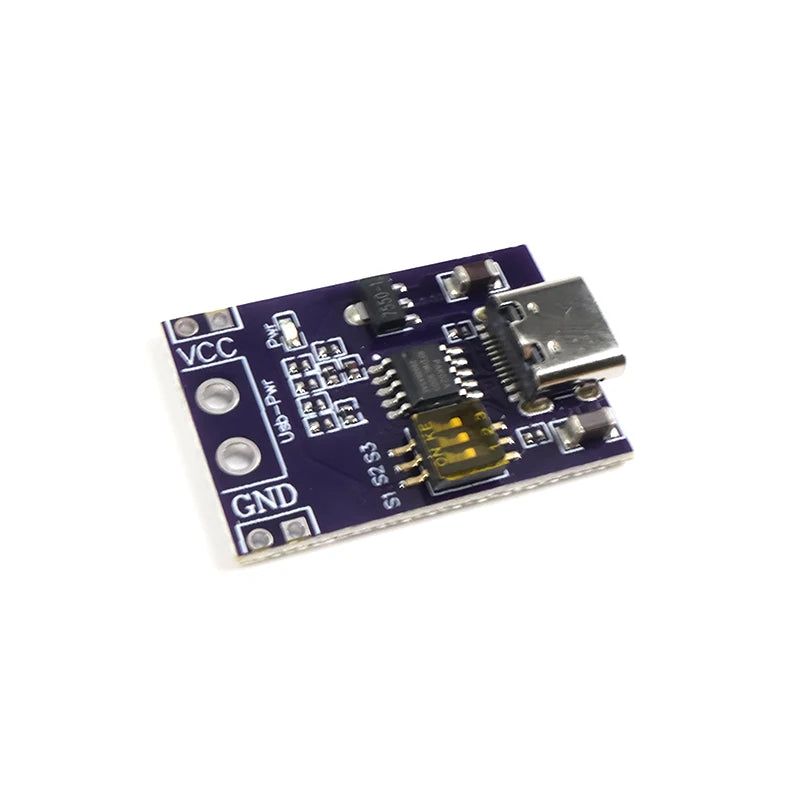

🔌 Multi-Protocol Fast Charge Trigger: Supports PD2.0/3.0, QC2.0/3.0, and AFC protocols. One module to negotiate and activate fast-charge modes from compatible USB-C power sources (adapters, power banks).

⚡ 5 Fixed Voltage Presets: Provides stable 5V, 9V, 12V, 15V, or 20V DC output (selectable, not continuously adjustable). Perfect for powering devices or testing that require specific, higher voltages from a common USB-C port.

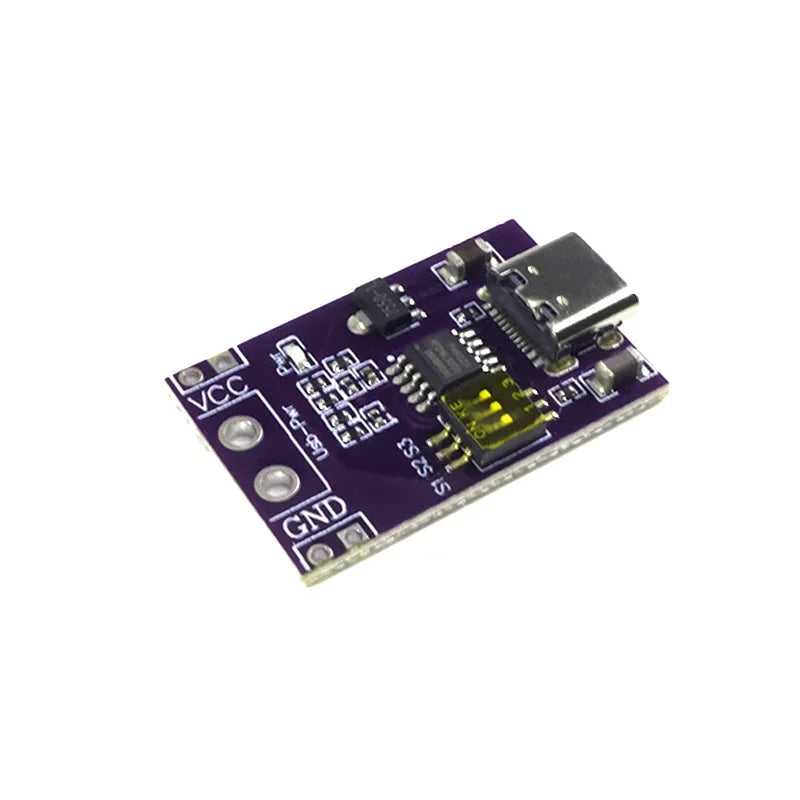

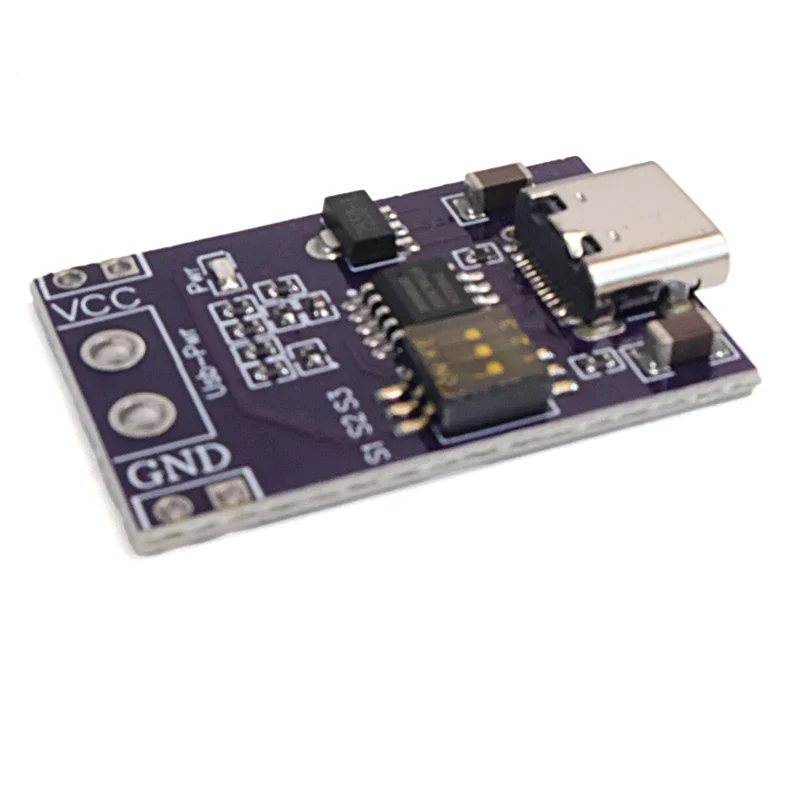

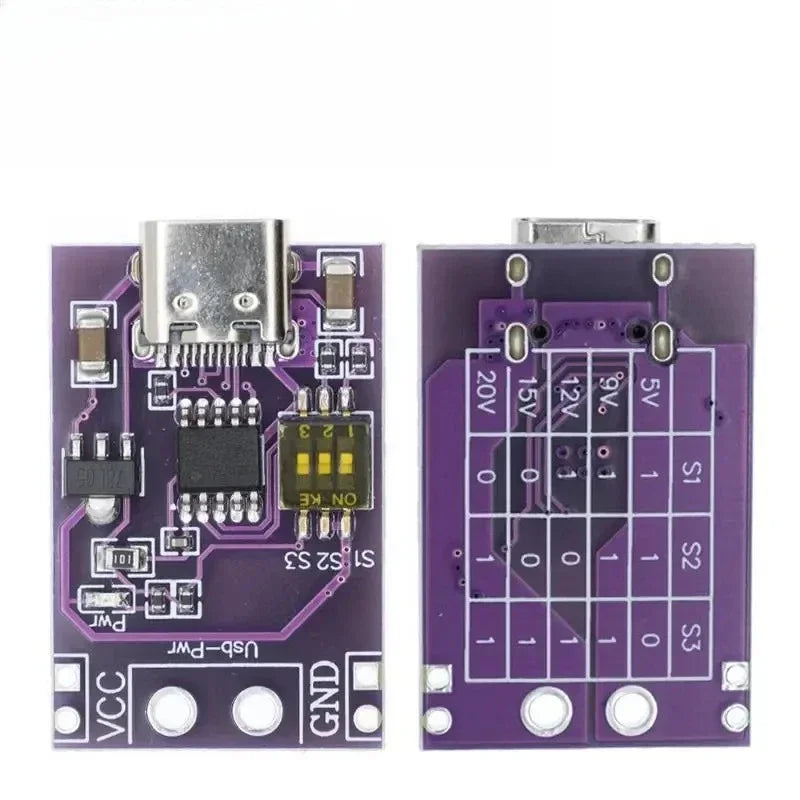

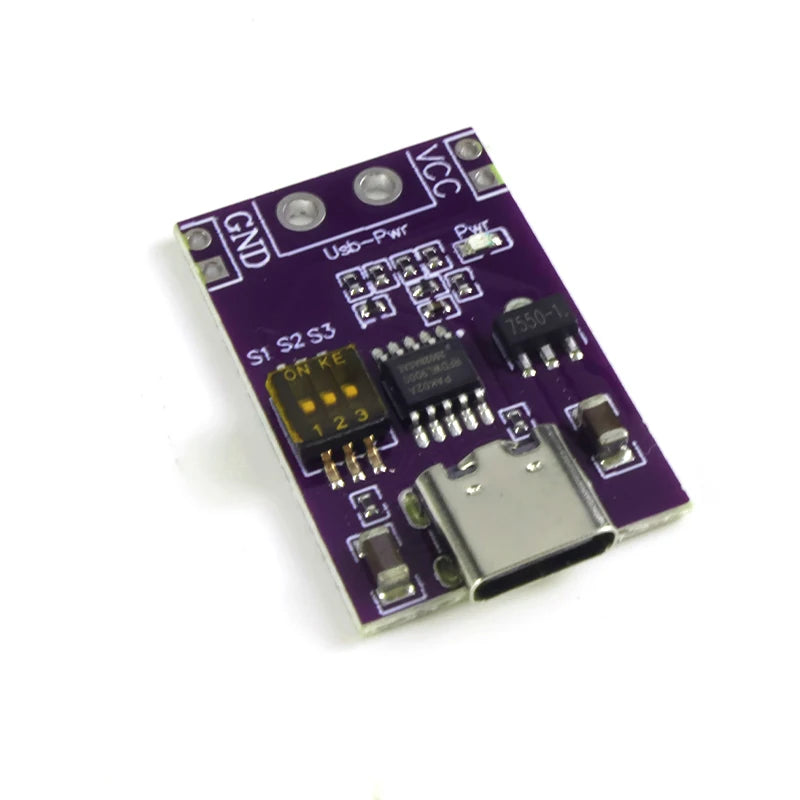

🎛️ Simple DIP Switch Control: Set your desired voltage easily using the DIP switch combination table printed on the back. No programming or complex setup needed—plug and play.

📏 Compact & Toolbox-Friendly: Tiny 31mm x 20mm size makes it incredibly portable. Easily fits into any electronics toolkit for on-the-go testing or integration into projects.

🔋 Essential for Testing & DIY: An indispensable tool for testing power bank output capabilities, verifying phone fast-charge triggers, or providing a specific voltage rail for your Arduino/Raspberry Pi projects (via a regulator if needed).

Product Description
This intelligent module is the bridge between a standard USB-C power source and your need for a higher, precise DC voltage. It communicates with your charger or power bank to "request" a specific fast-charge voltage profile. Ideal for electronics hobbyists, repair technicians, and product developers who need to test, validate, or utilize the full potential of modern USB Power Delivery and Quick Charge systems.

🚨 CRITICAL SAFETY & USAGE NOTES (READ BEFORE POWERING ON!)

⚠️【MANDATORY】 ALWAYS MEASURE OUTPUT VOLTAGE FIRST! This module HAS NO built-in voltage display. You MUST use a digital multimeter to confirm the output voltage after setting the DIP switches BEFORE connecting any device. An incorrect voltage can INSTANTLY DESTROY your phone, laptop, or other connected equipment.

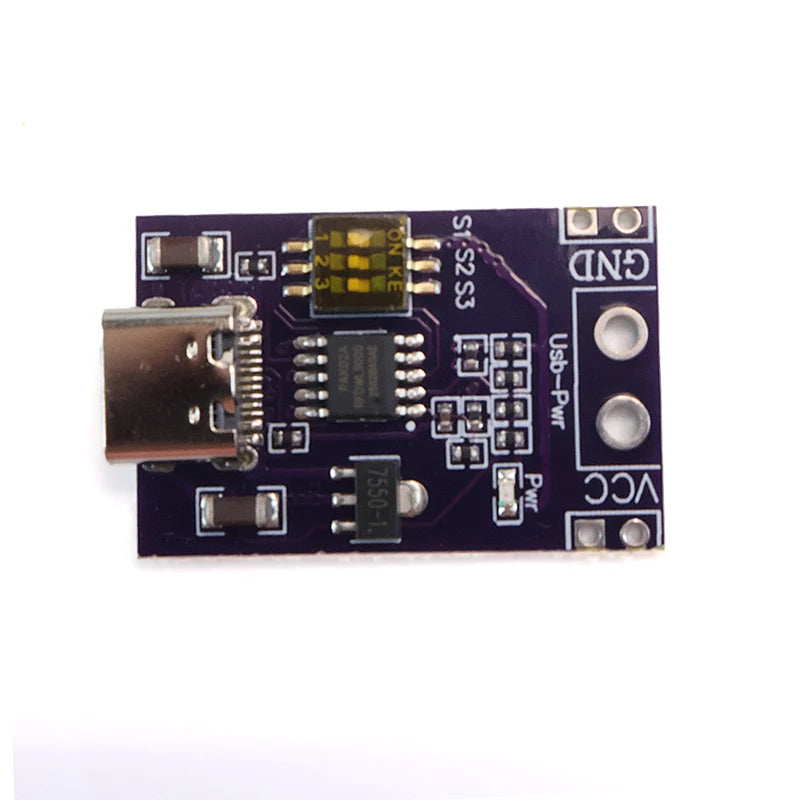

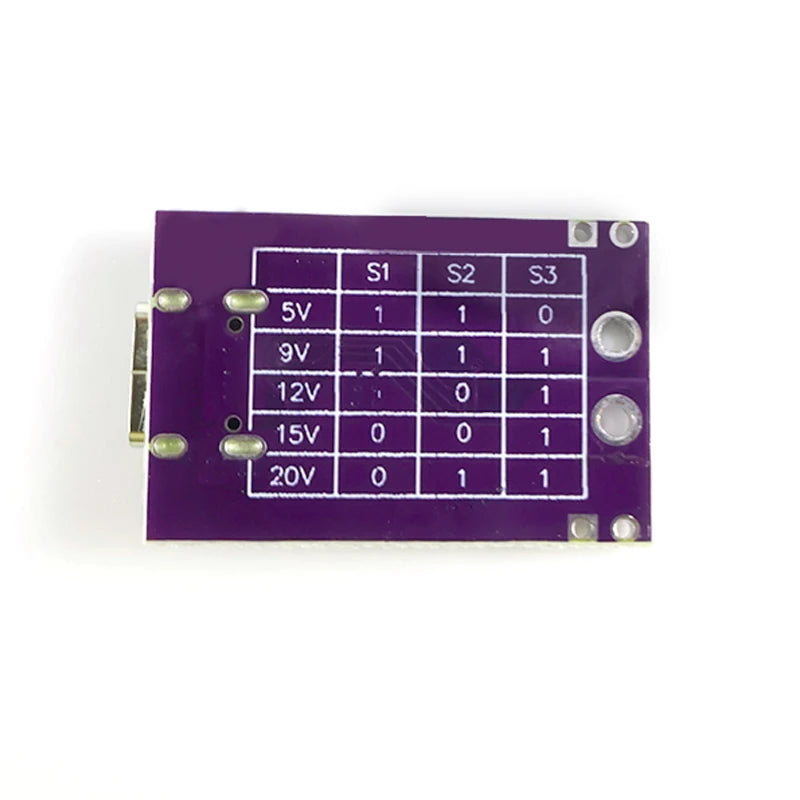

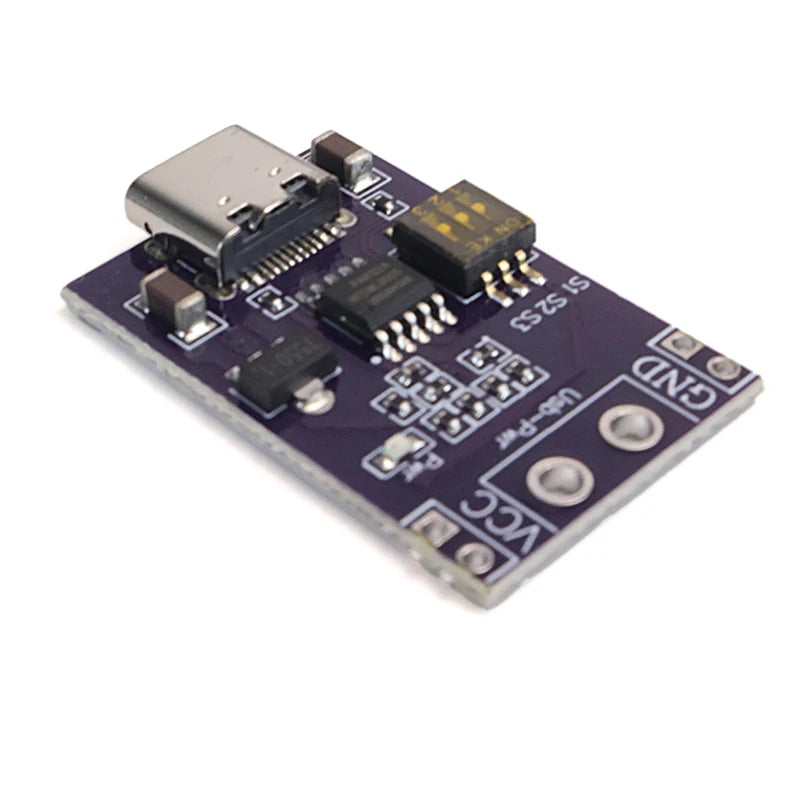

🔧 Correct DIP Switch Setting: The output voltage is solely determined by the DIP switch combination. Refer to the printed table on the module's back and set the switches exactly as shown for your desired voltage. An incorrect pattern may result in unpredictable or incorrect voltage output.

🔌 Source Compatibility is Key: This module does not generate power. It only negotiates with the power source. Your USB-C charger or power bank MUST natively support the protocol (PD/QC/AFC) AND the specific voltage level you have selected. Otherwise, it will default to 5V or not work.

💡 Current and Power Awareness: Be mindful of the current limits of both the trigger module and your power source. Do not attempt to draw excessive current for high-power devices, as this may cause overheating and damage.

Specifications

Supported Protocols: PD2.0 / PD3.0, QC2.0 / QC3.0, AFC

Fixed Output Voltages: 5V, 9V, 12V, 15V, 20V

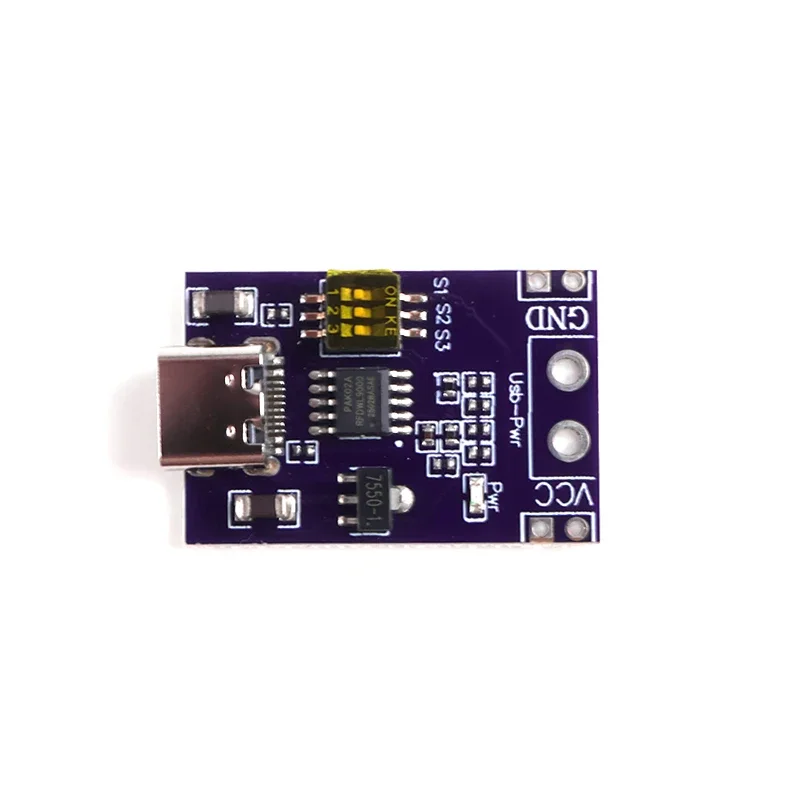

Output Interface: USB-C Female Port

Control Method: 4-Position DIP Switch

Module Dimensions: Approx. 31mm (L) x 20mm (W)

Operating Temperature: -20°C to +85°C

Net Weight: Approx. 2.9g

Package Includes

1 x PD/QC/AFC Trigger Module (PCB with USB-C port)
