SPECIFICATIONS

Application: Electric Toy

Brand Name: NONE

Choice: yes

Condition: New

Feature: 5V 9V 12V 20V Adjustable Decoy for Fast Charging

High-concerned chemical: none

Origin: Mainland China

Package: TQFP

Product Name: PD Trigger Module Type-C

Quantity: 1

Type: Module

is_customized: Yes

Features:

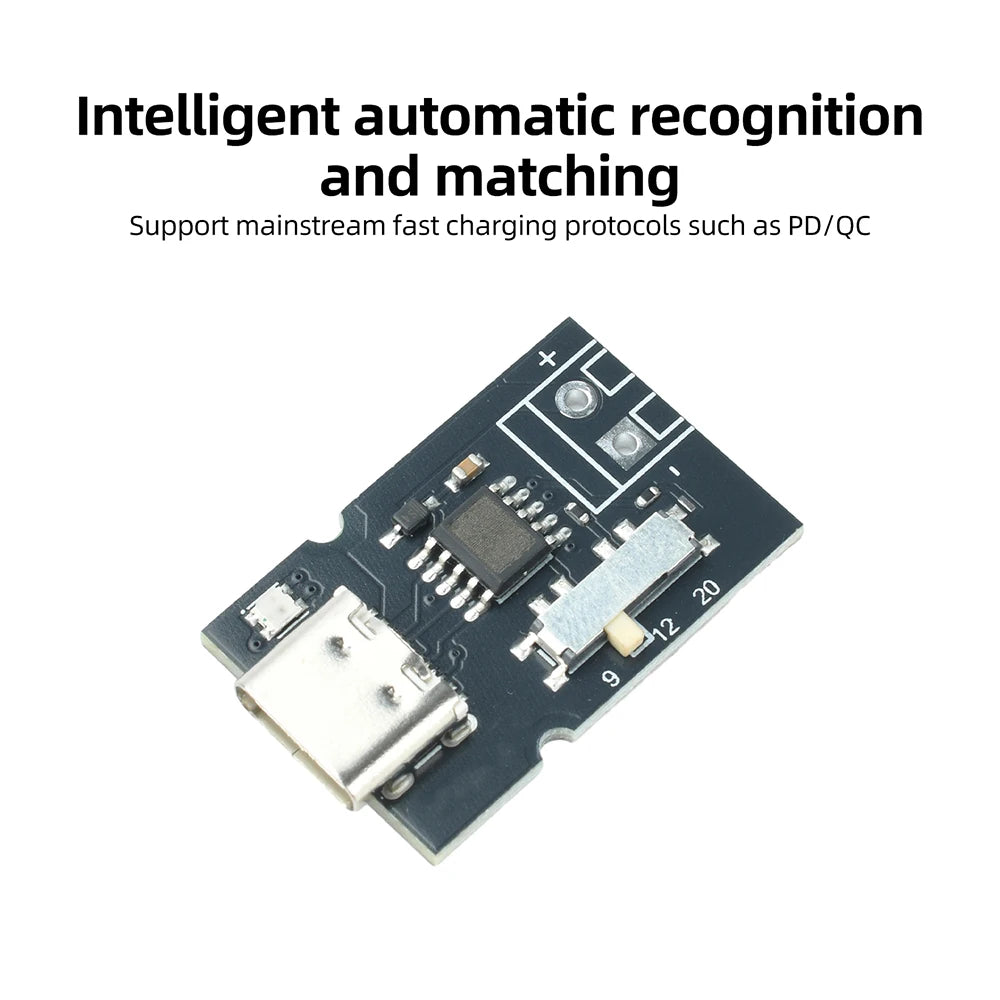

1. Supports mainstream fast-charging protocols such as PD and QC, with intelligent automatic recognition and matching

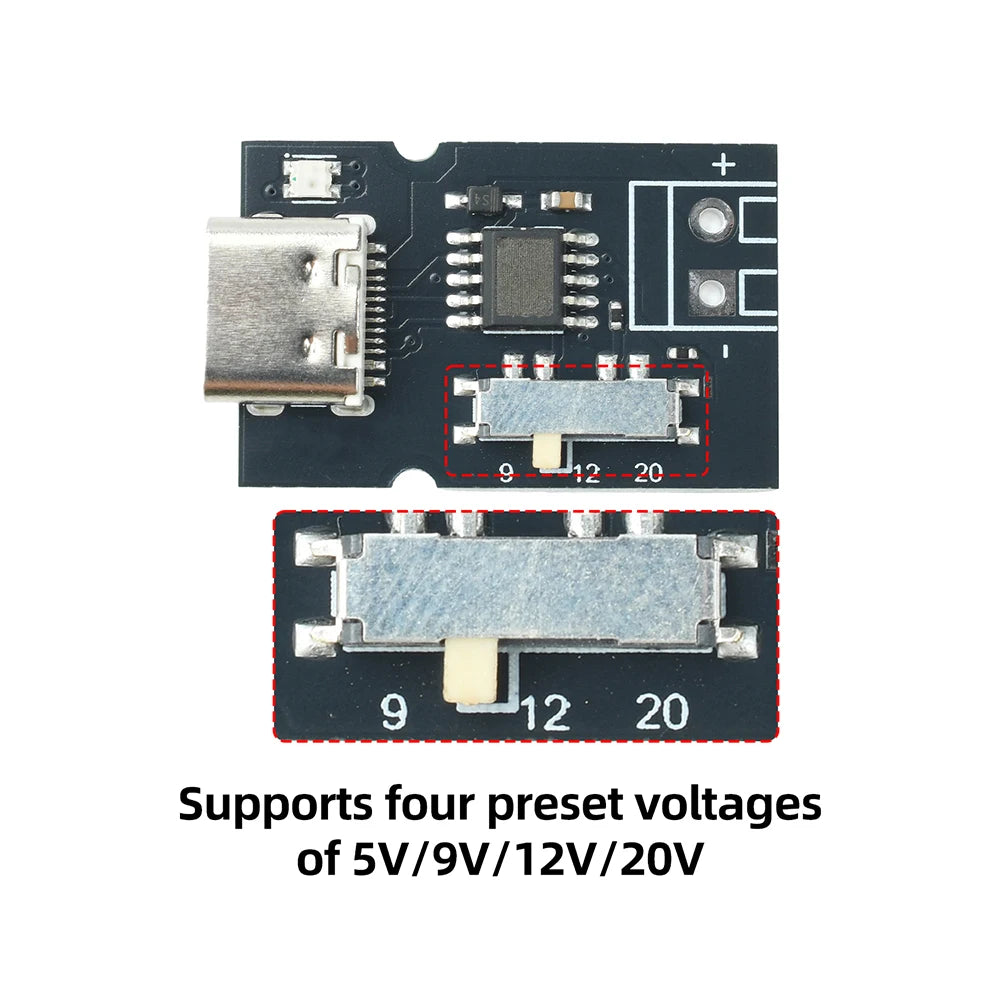

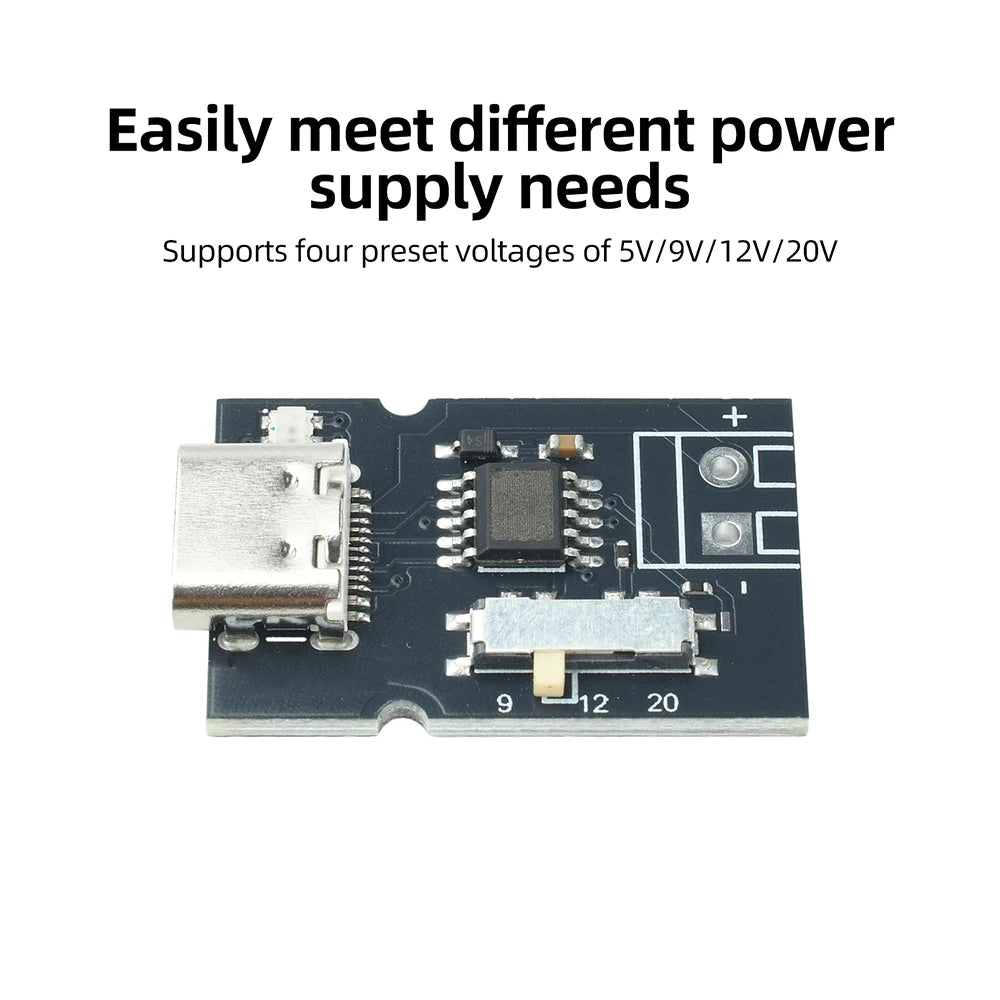

2. Supports four preset voltage levels (5V, 9V, 12V and 20V), easily meeting various power supply requirements

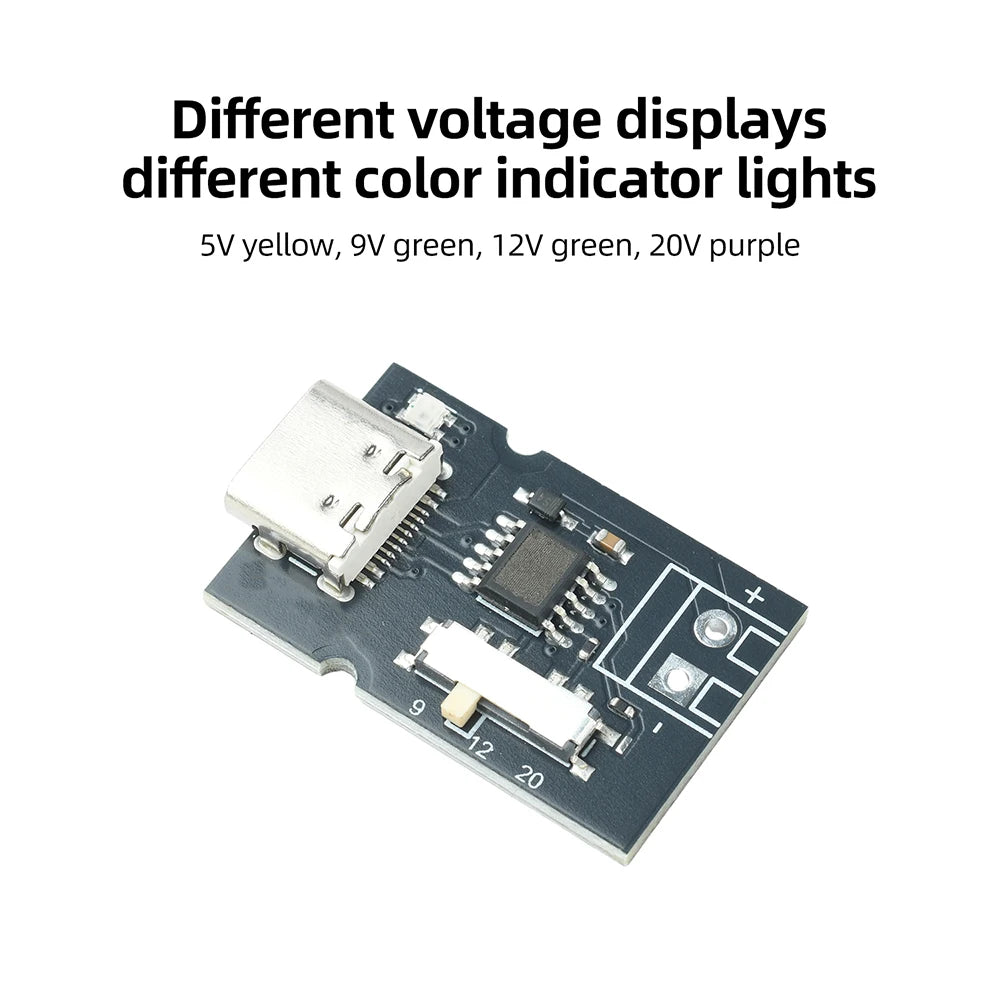

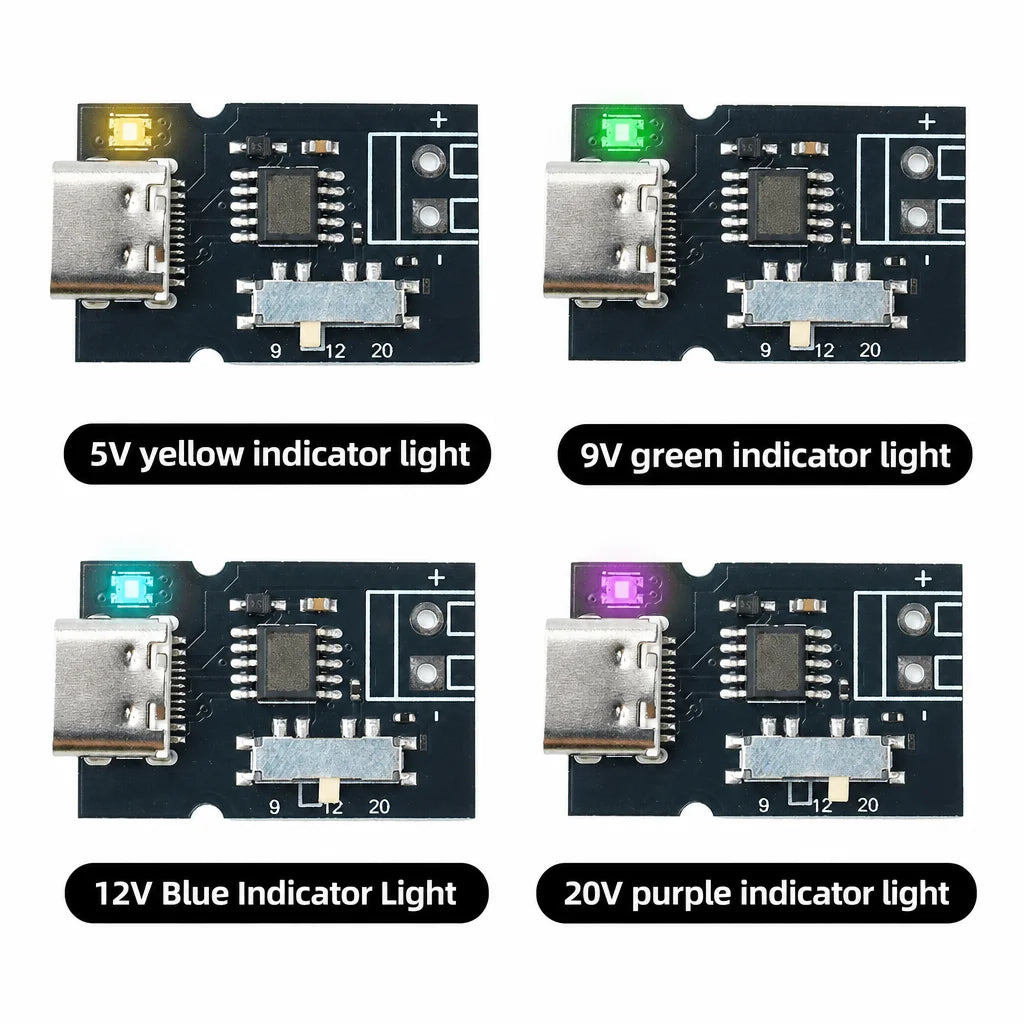

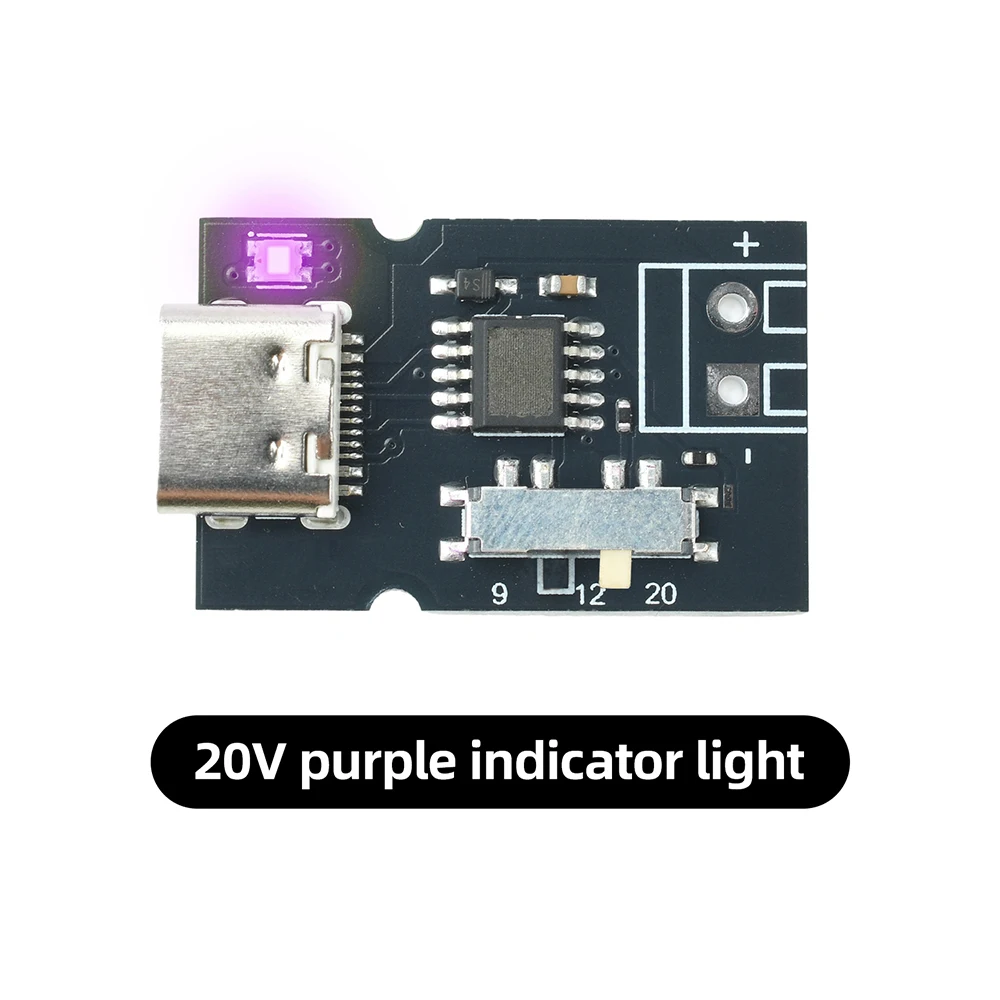

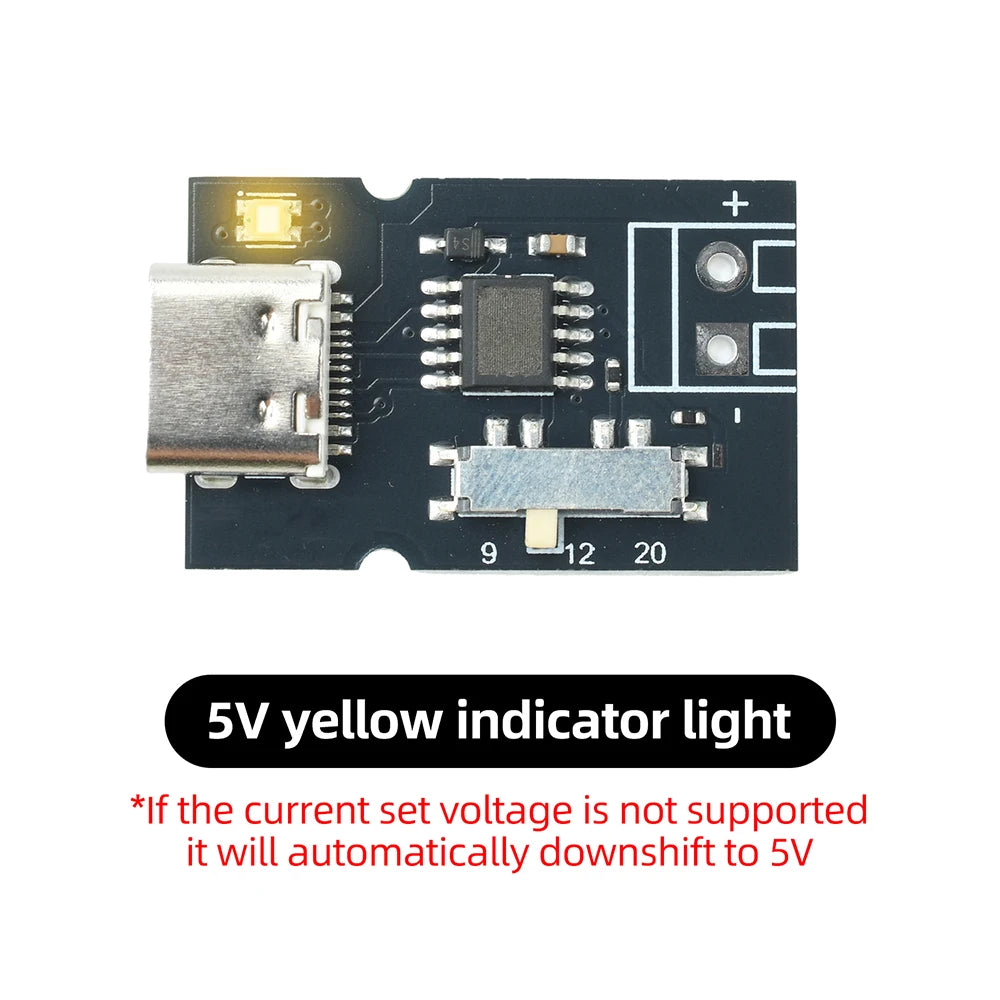

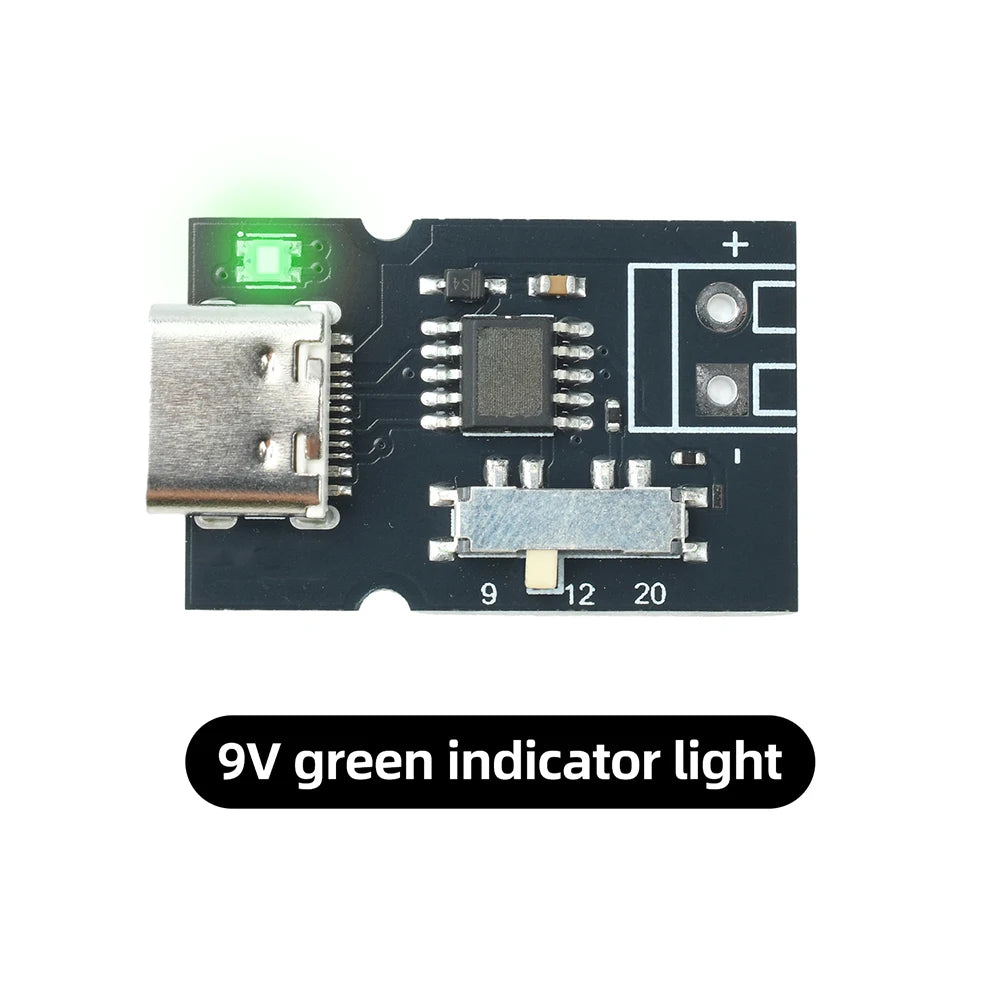

3. Different coloured indicator lights for different voltages: yellow for 5V, green for 9V, cyan for 12V and purple for 20V

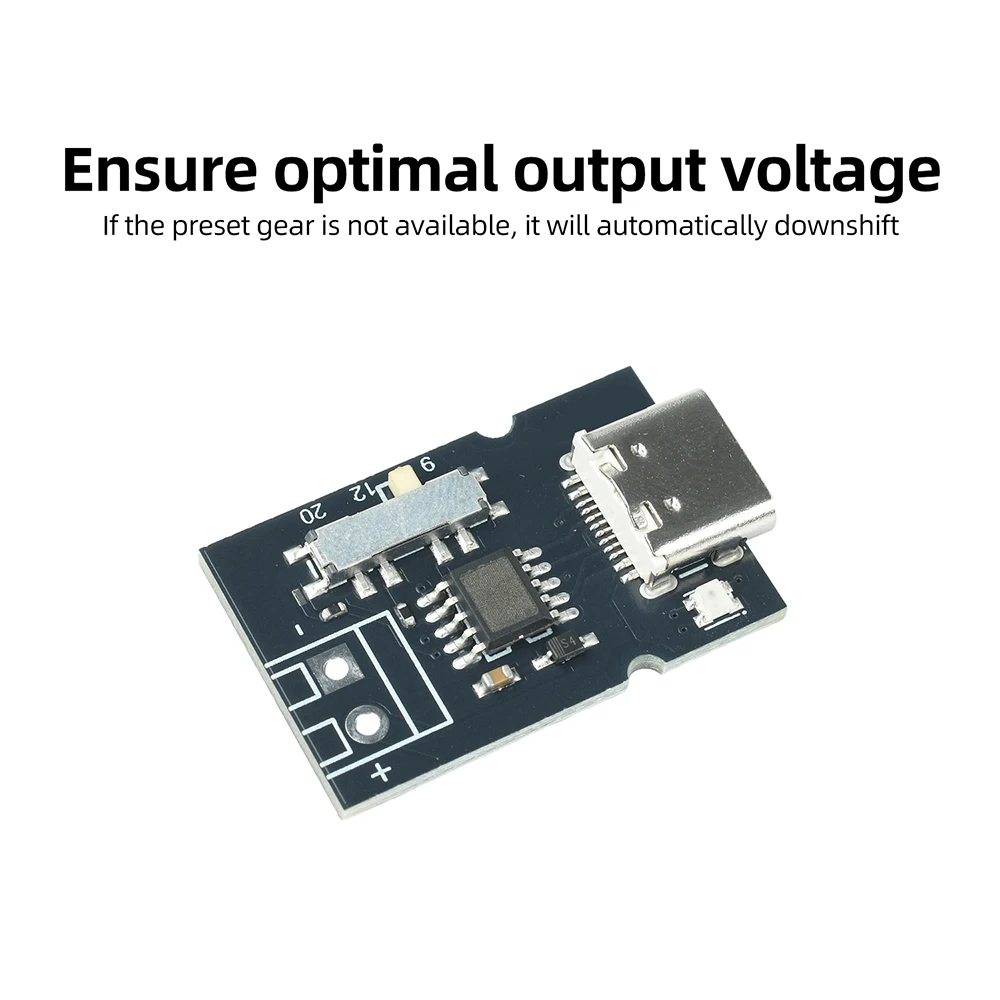

4. Automatically switches to a lower voltage setting if the preset level is unavailable, ensuring optimal output voltage

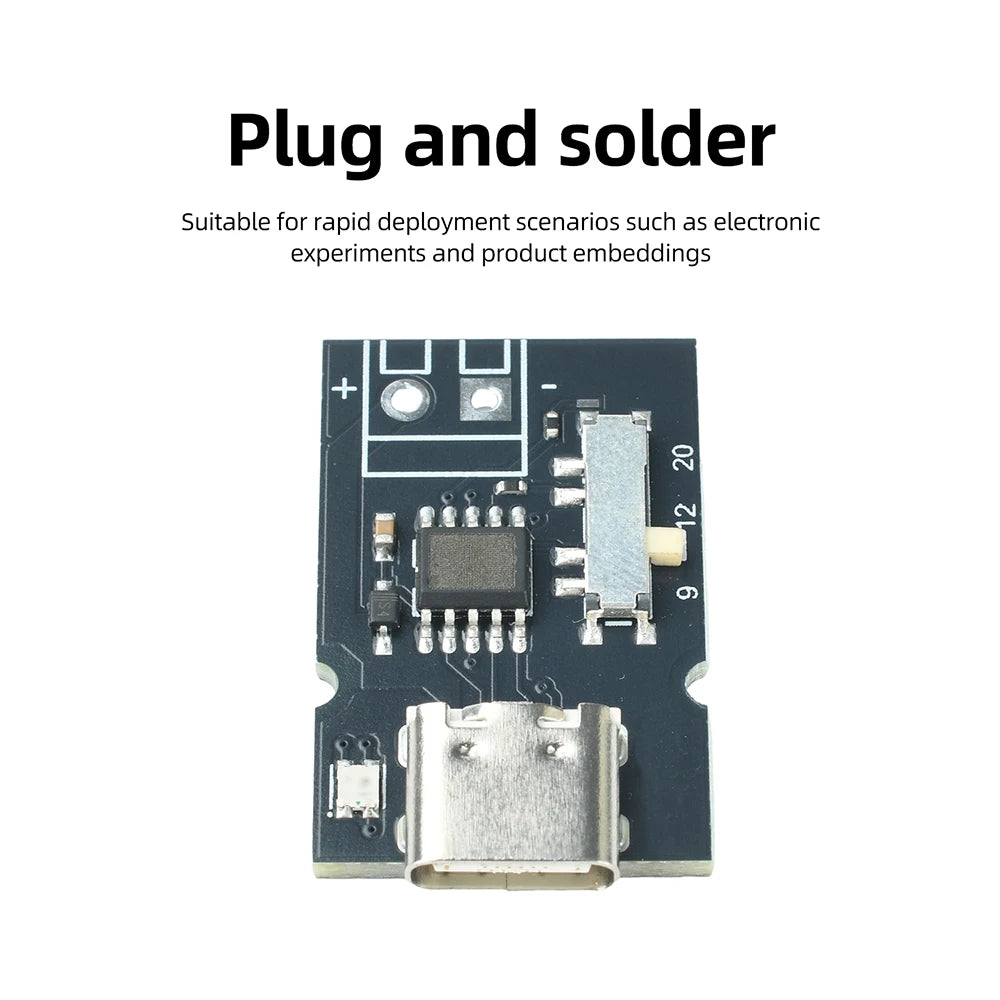

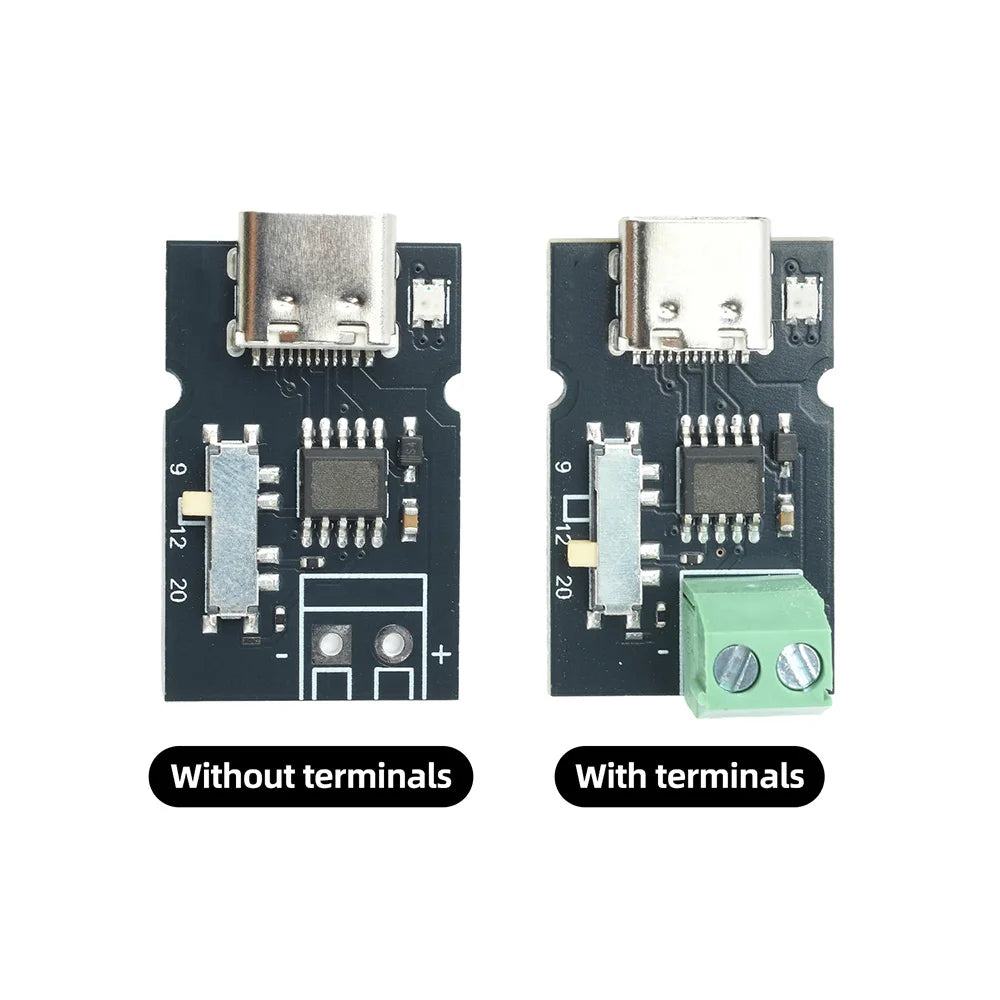

5. Plug-and-solder design, suitable for rapid deployment scenarios such as electronics experiments and product integration

Introduction:

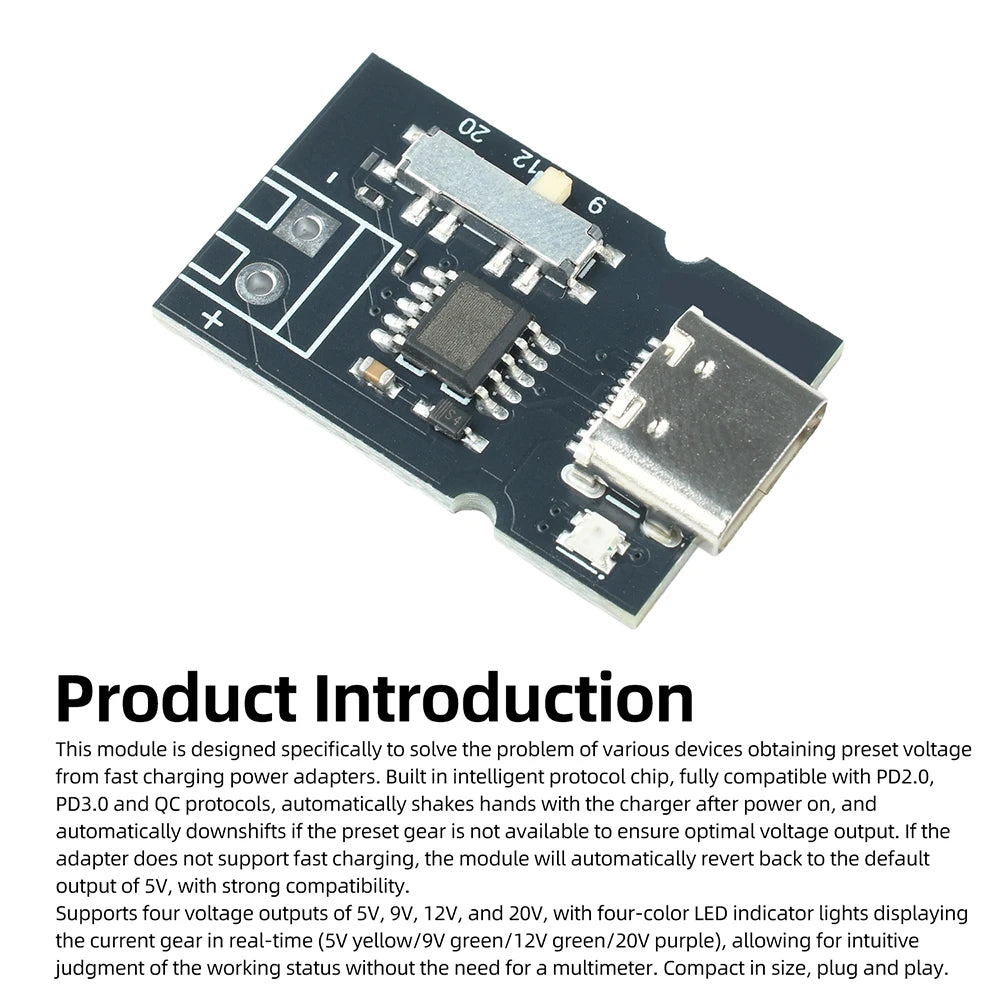

This module is specifically designed to enable various devices to obtain preset voltages from fast-charging power adaptors. It features a built-in smart protocol chip that is fully compatible with PD 2.0, PD 3.0 and QC protocols. Upon power-up, it automatically establishes communication with the charger; if the preset voltage level is unavailable, it automatically downgrades to ensure the optimal output voltage. If the adapter does not support fast charging, the module automatically reverts to the default 5V output, offering exceptional compatibility.

It supports four voltage output levels: 5V, 9V, 12V and 20V. Four-colour LED indicators display the current voltage level in real time (5V: yellow / 9V: green / 12V: cyan / 20V: purple), allowing for an intuitive assessment of operating status without the need for a multimeter. Compact in size and plug-and-play.

Specifications:

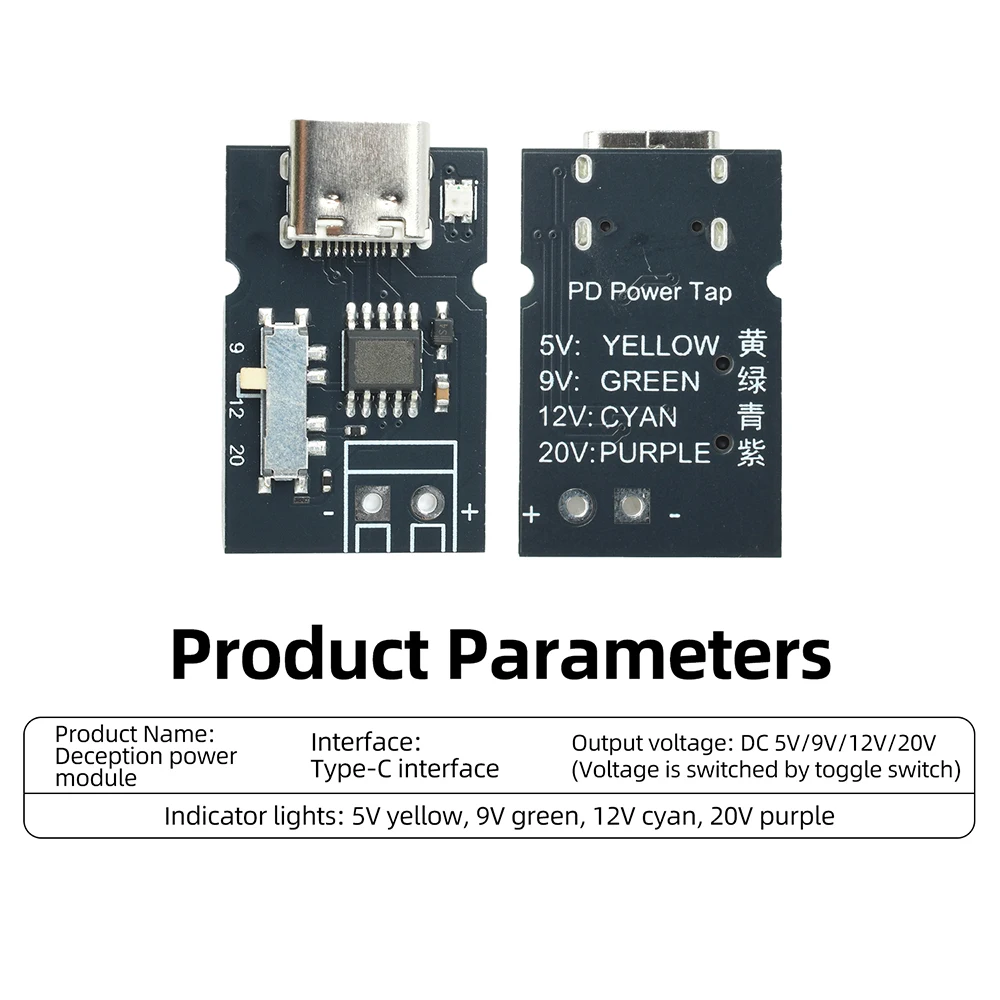

Product Name: Power Extraction Module

Interface: Type-C port

Output Voltage: DC 5V/9V/12V/20V (voltage switched via toggle switch)

Indicator Lights: 5V yellow, 9V green, 12V cyan, 20V purple

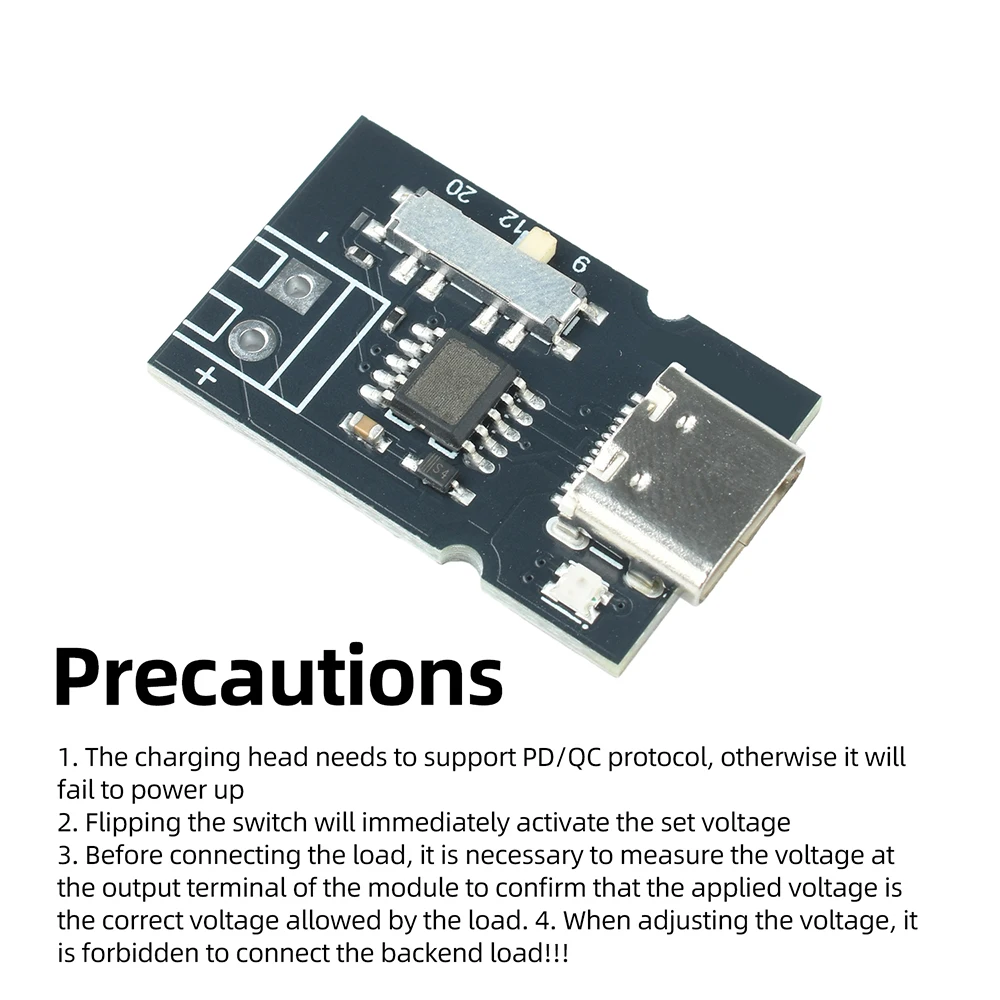

Notes:

1. The charger must support the PD/QC protocols; otherwise, power extraction will fail.

2. The toggle switch applies the selected voltage immediately.

3. Before connecting a load, measure the voltage at the module’s output to ensure the selected voltage is within the load’s permissible range.

4. Do not connect any downstream loads whilst adjusting the voltage!!!

Package Contents

Fast Charging Trigger Decoy Module × 1
