SPECIFICATIONS

Features:
1.This module supports the two most commonly used fast charging protocols: PD3.0 and QC3.0/2.0;
2.This module can be used as a DC power source, such as deceiving the voltage of the fast charging power bank/charger;
3.It can enable the fast charging power bank to output 9V/12V to power monitoring, routers, optical cats, fans, etc;
4.Easy to use, allowing monitoring, routers, optical cats, fans, and other products to function normally even when power is cut off;
5.Convert some traditional DC powered devices into TYPE-C ports for power supply.

Parameters:
Support protocol: PD3.0/QC3.0/2.0
Voltage range: fixed 9V/12V/15V/20V four ranges
Current: 5A (maximum)

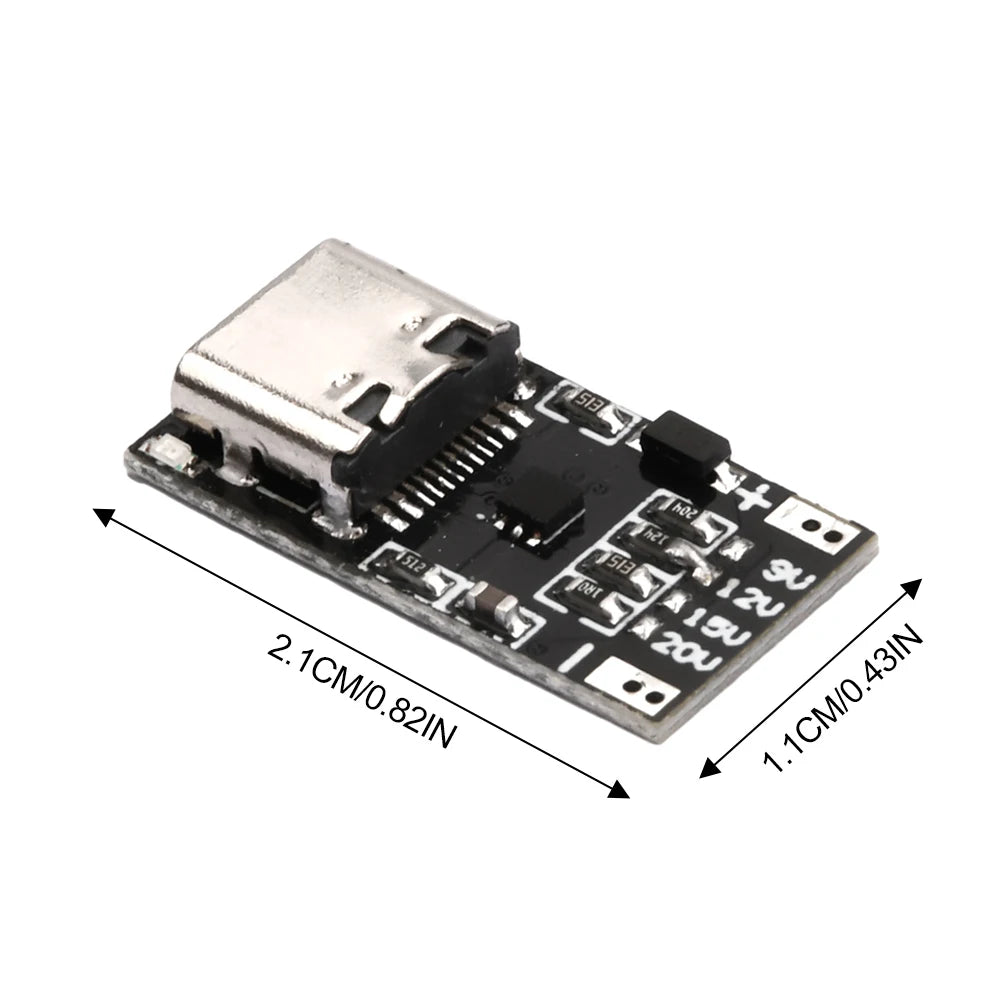

Deception board size: 21 * 11.5 * 4mm

Instructions for use:
1.The charger/power bank must first support universal fast charging such as PD3.0/QC3.0 in order to trick out voltage. Some domestic brands of high-power mobile phone chargers are private fast charging and cannot be deceived.

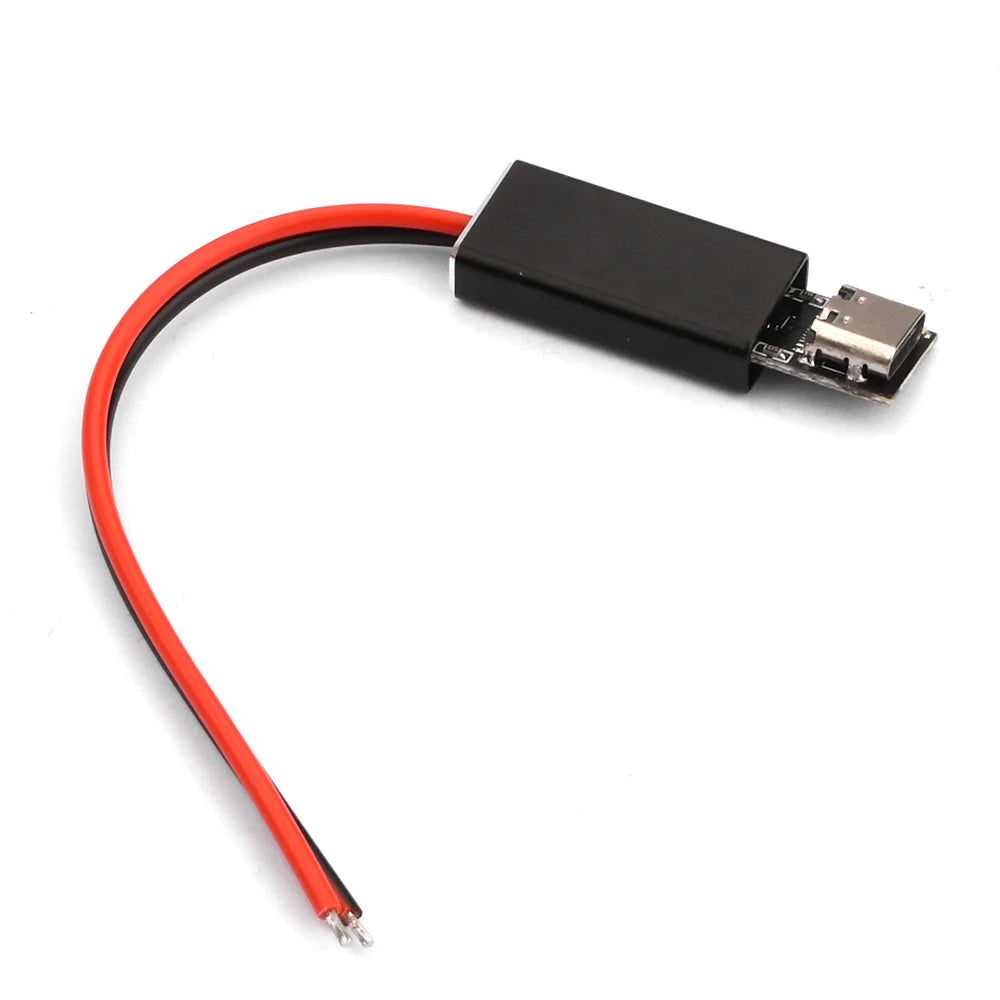

2.The 'Deception Board+Shell' option has no glue inside the shell. If customers need it, they can customize and fix the circuit board before shipping. Please leave a message and note the required voltage value when placing an order. [Customization has a quantity limit, please consult customer service for details]

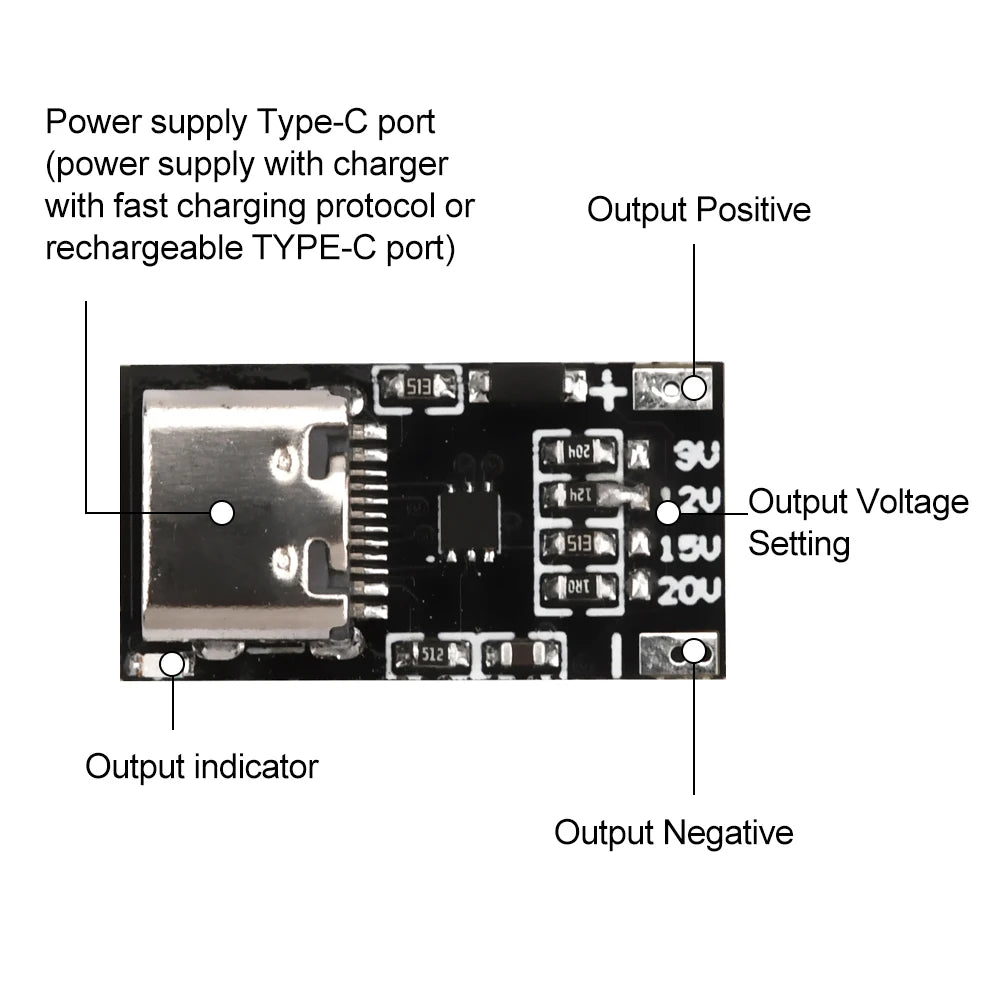

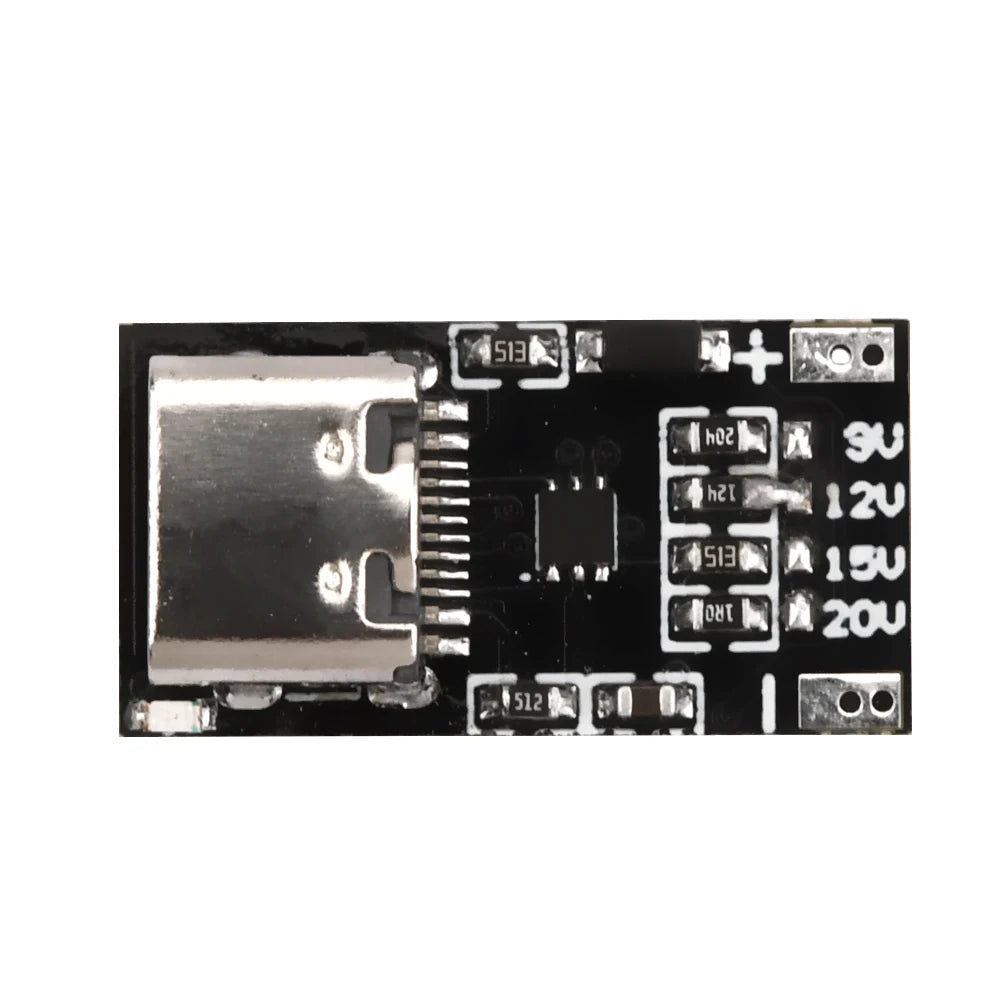

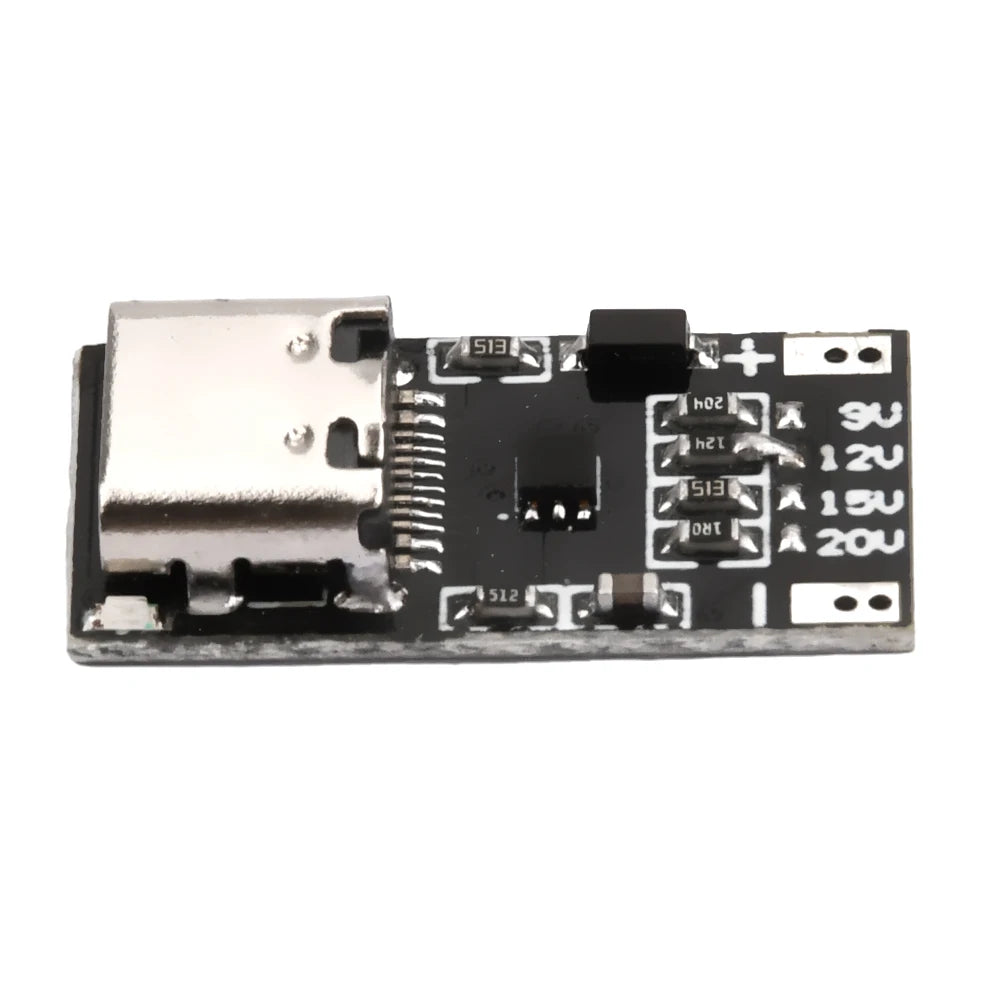

3.Fixed 9/12/15/20V four gears, what voltage is needed, just short circuit the corresponding solder pads.
4.For example, if you set up a trap of 20V, but your charger only has a maximum of 9V, it will automatically downshift to trap the output of 9V.
5.The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.

Package include:
Package 1:

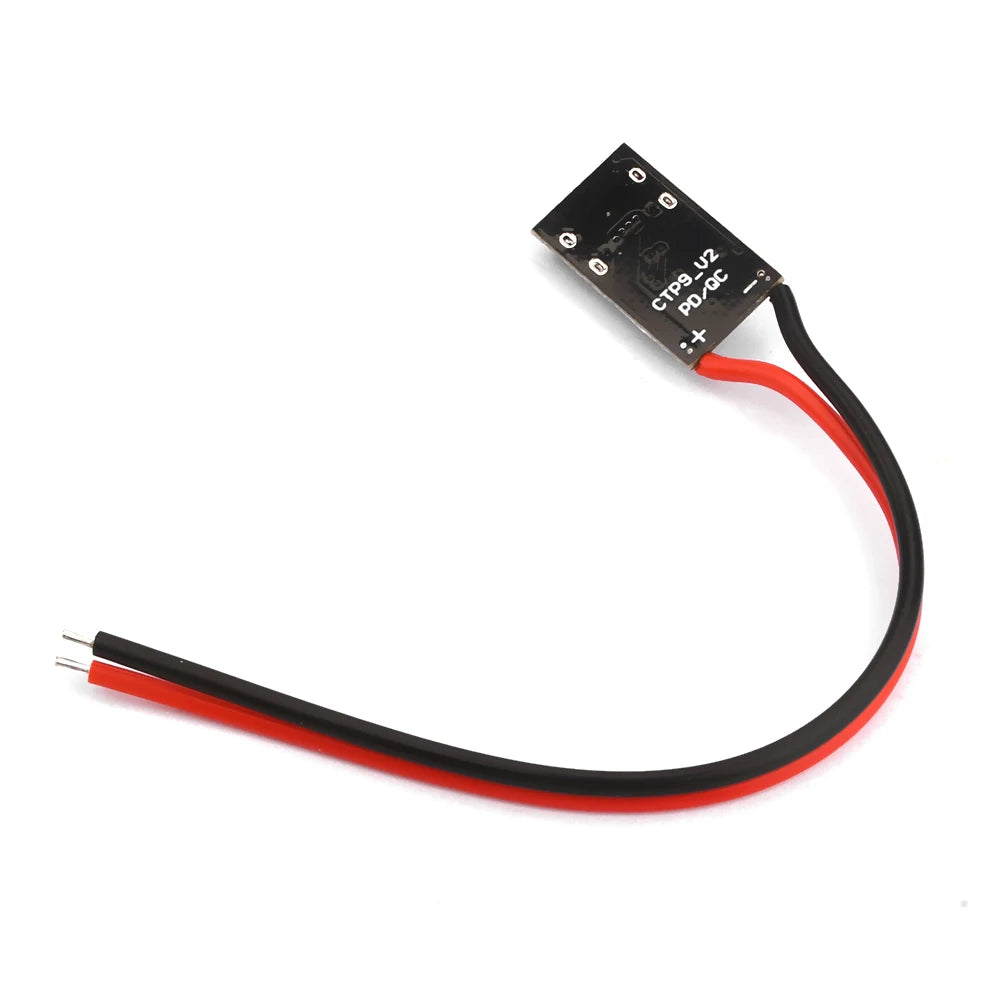

1X module

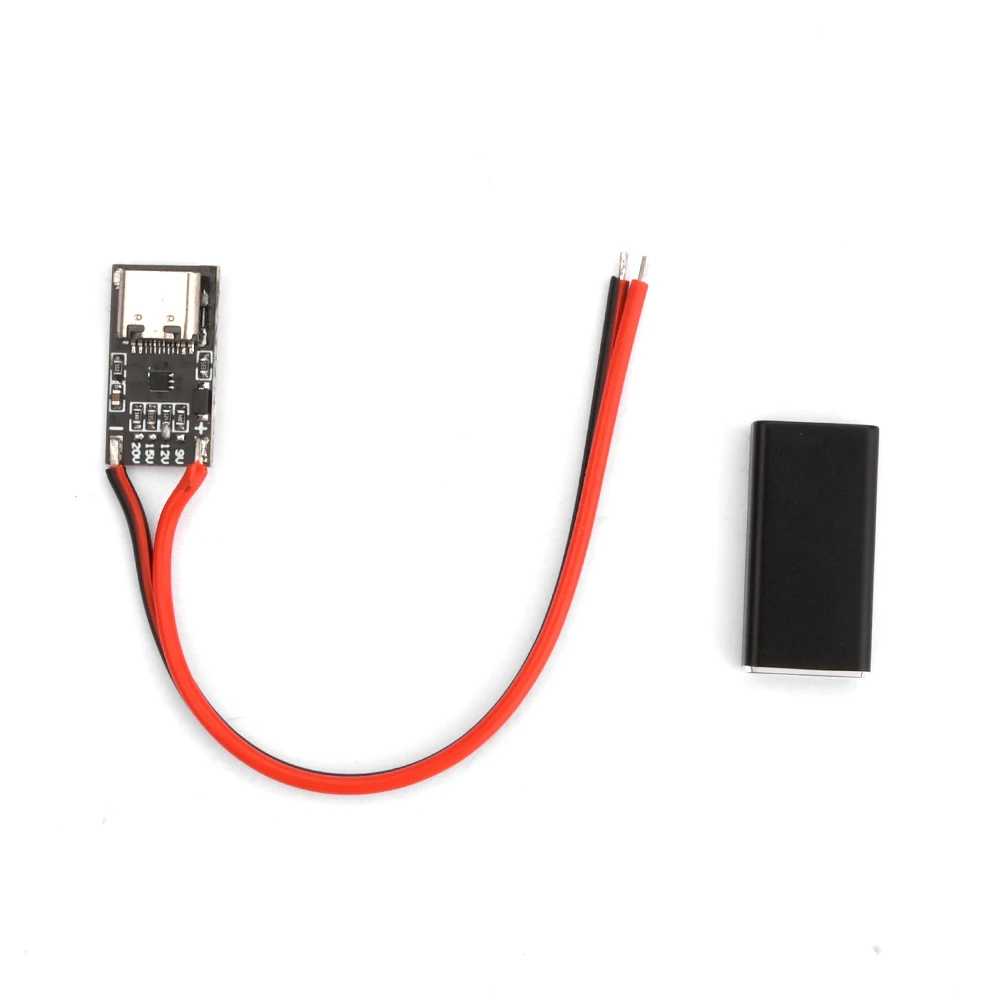

Package 2:
1X module

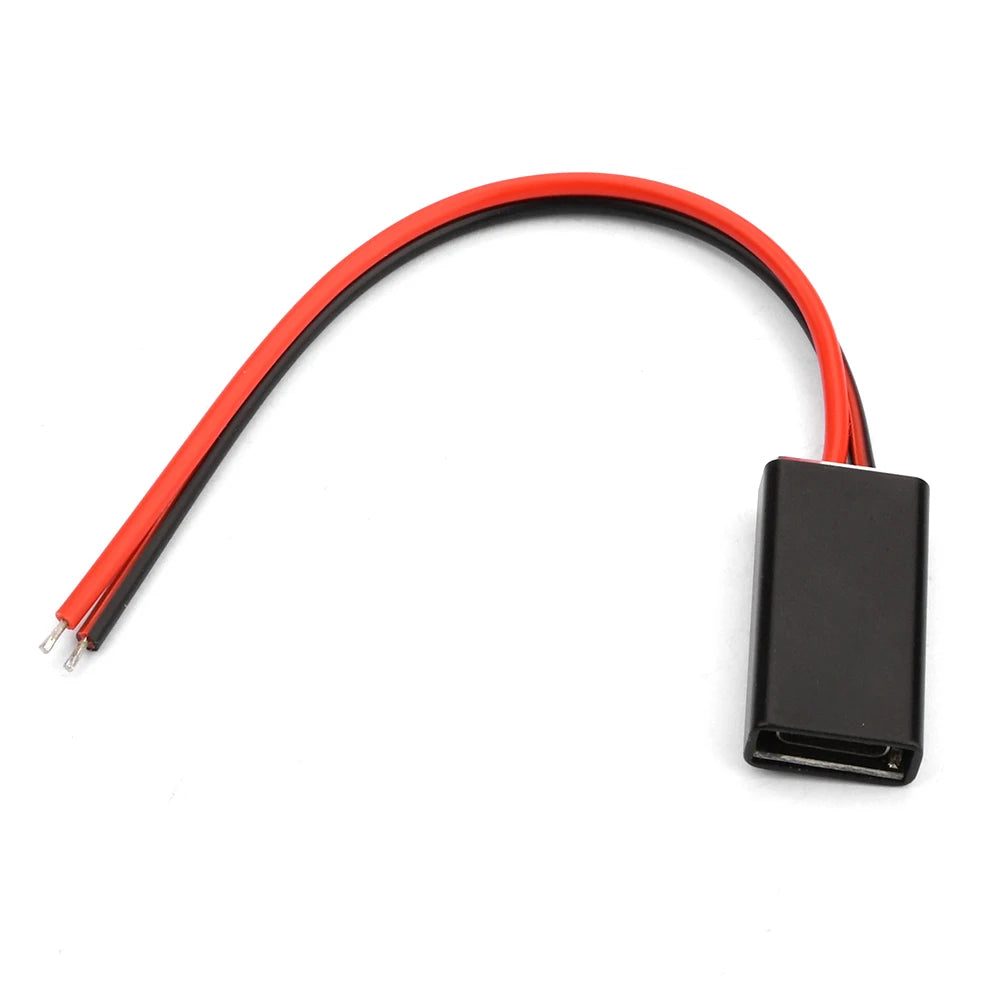

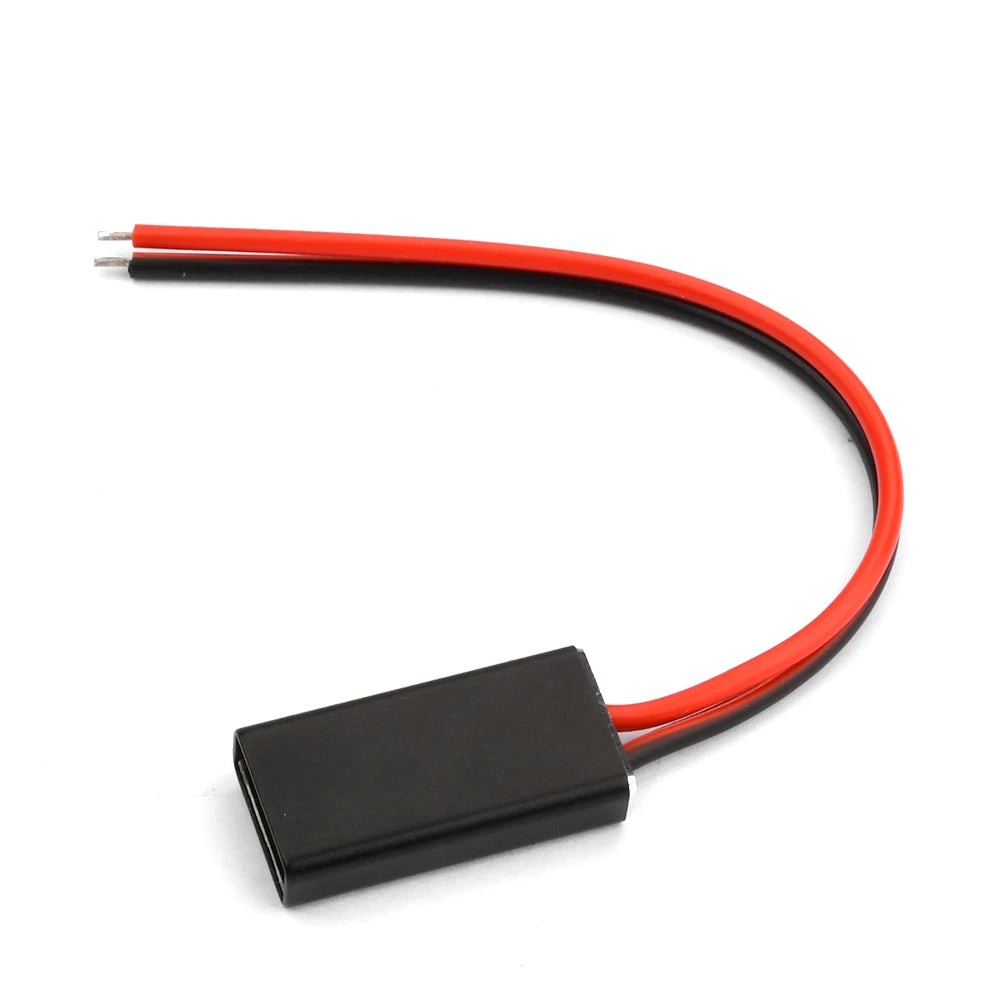

1X casing
