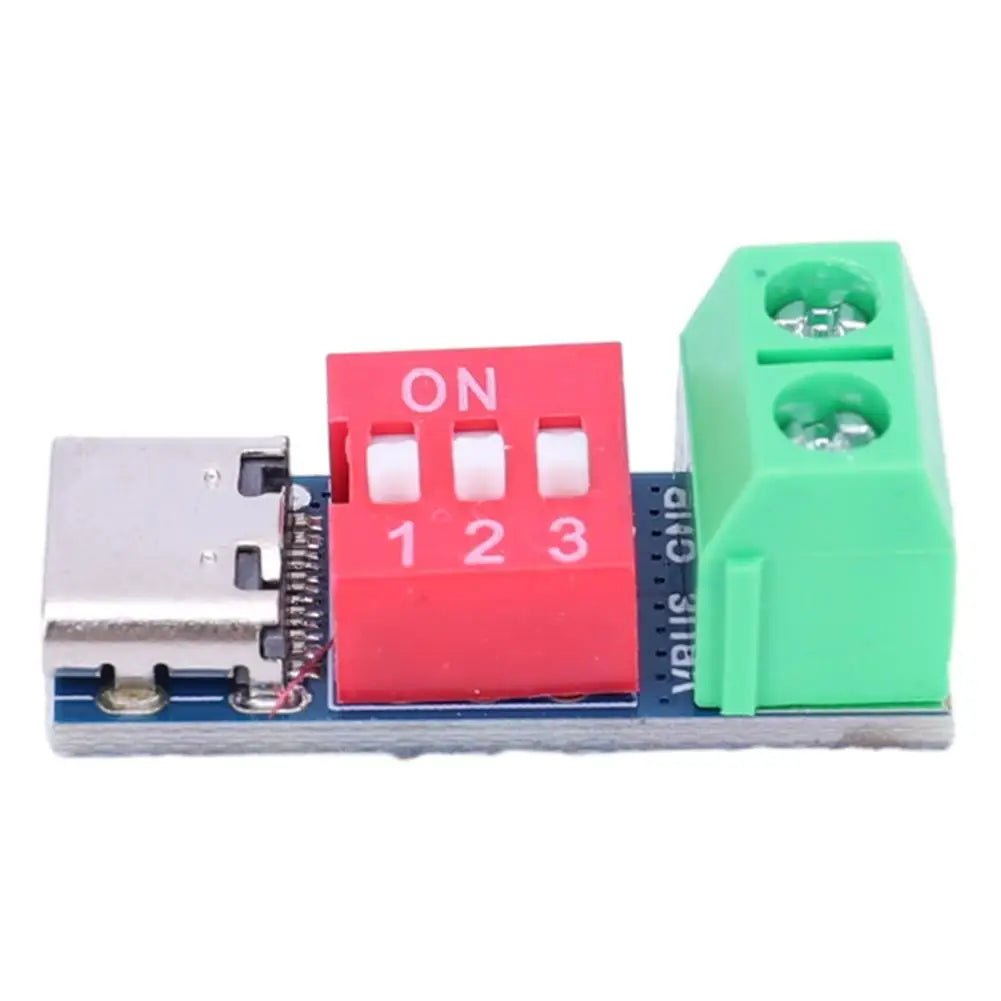

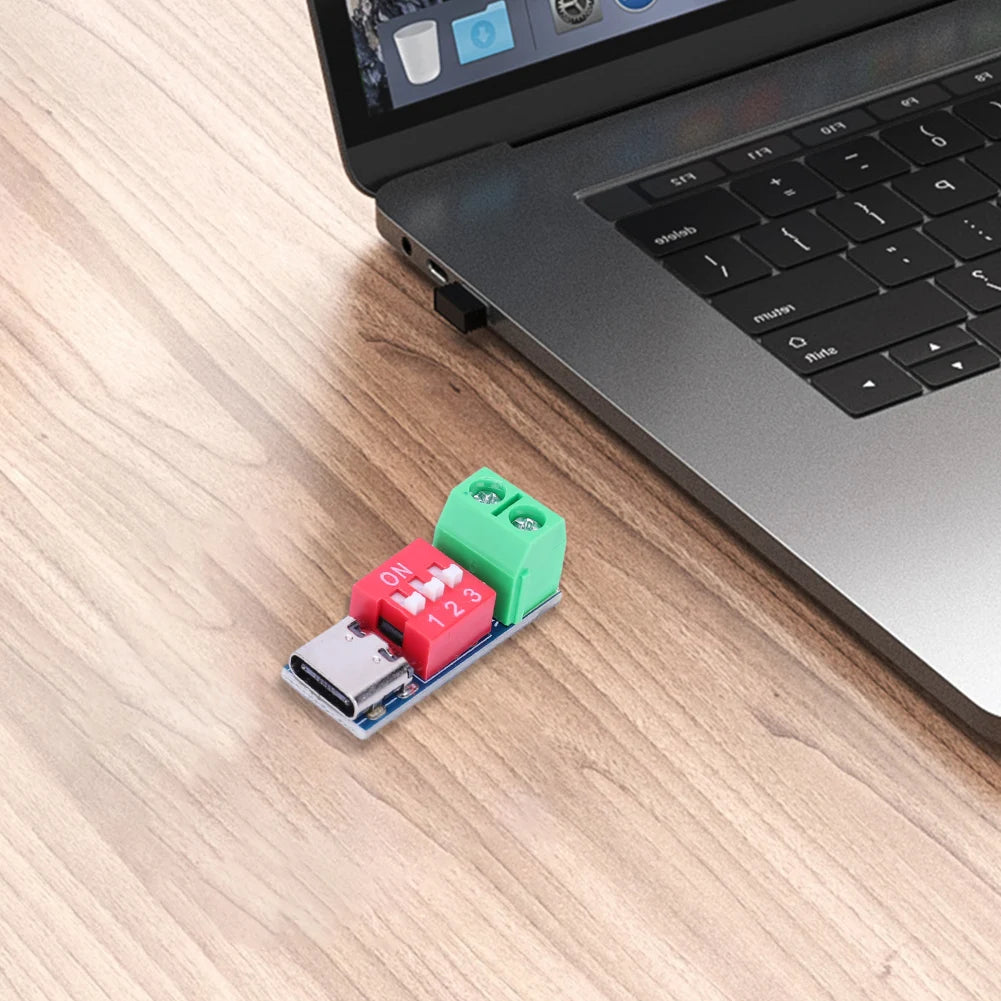

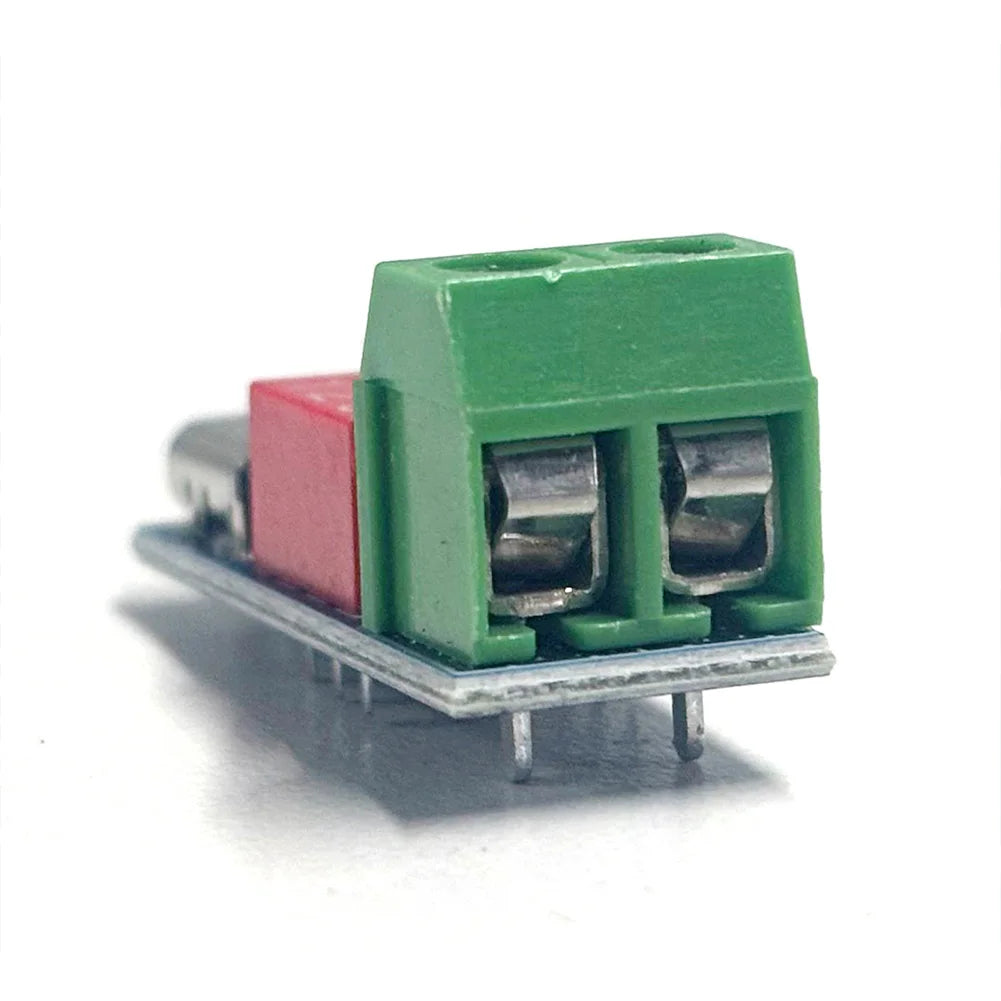

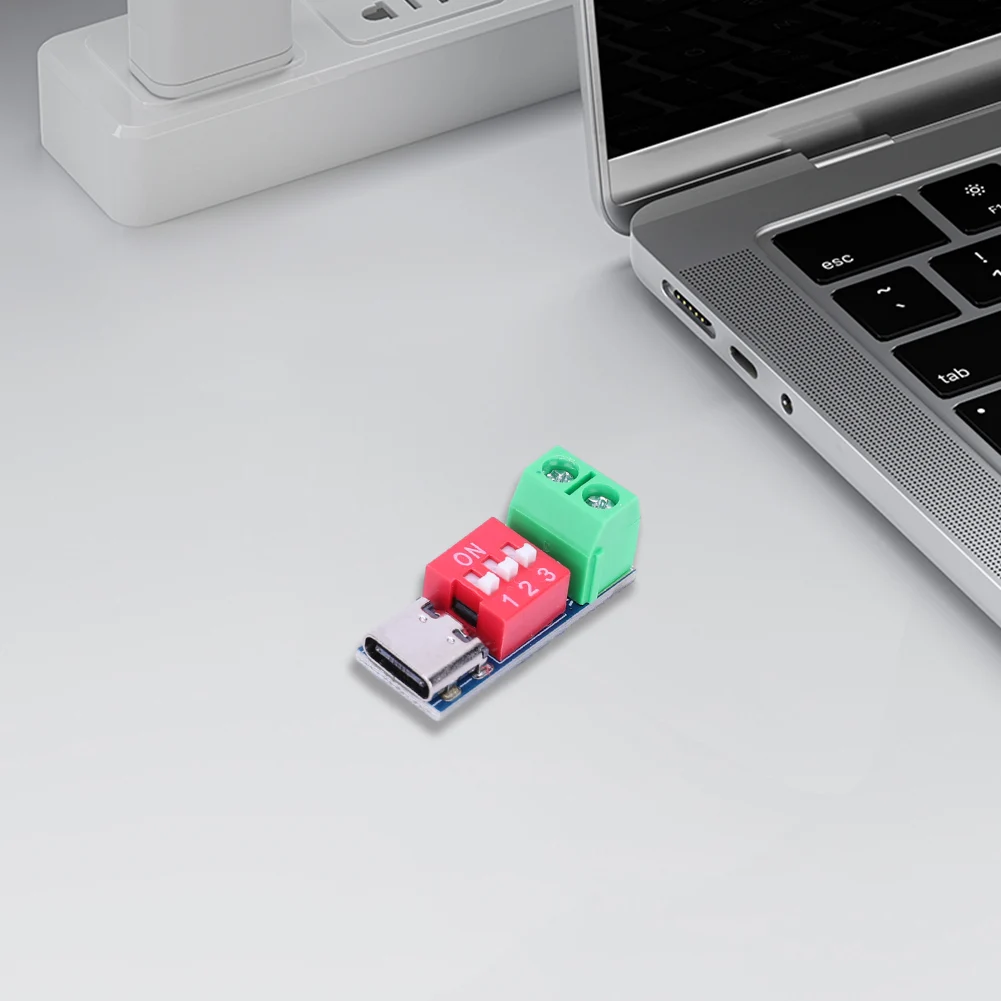

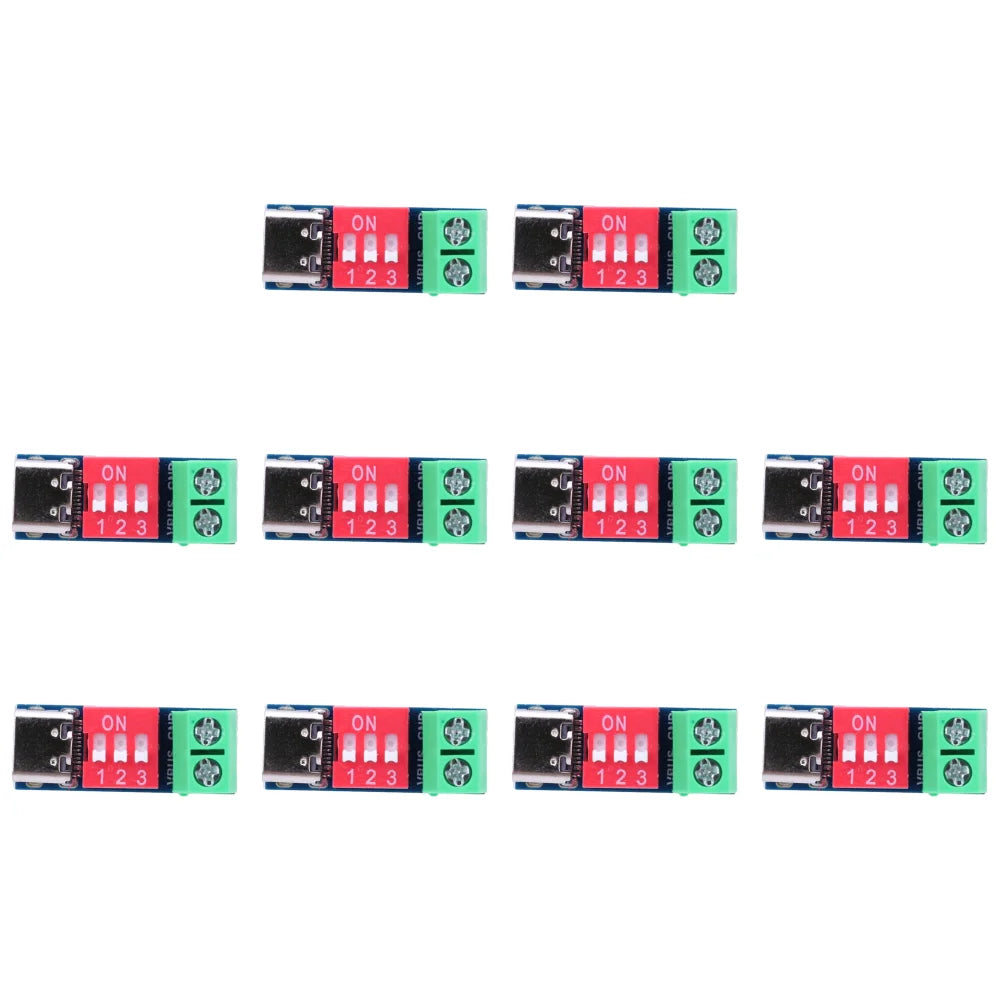

PD Trigger Module Type-C Fast Charging Test Board 5-20V Adjustable USB-C Power Detector Voltmeter for Power Bank 100W PD3.0 QC4+

PD Trigger Module Type-C Fast Charging Test Board 5-20V Adjustable USB-C Power Detector Voltmeter for Power Bank 100W PD3.0 QC4+

$17.08

$17.08 $0.00

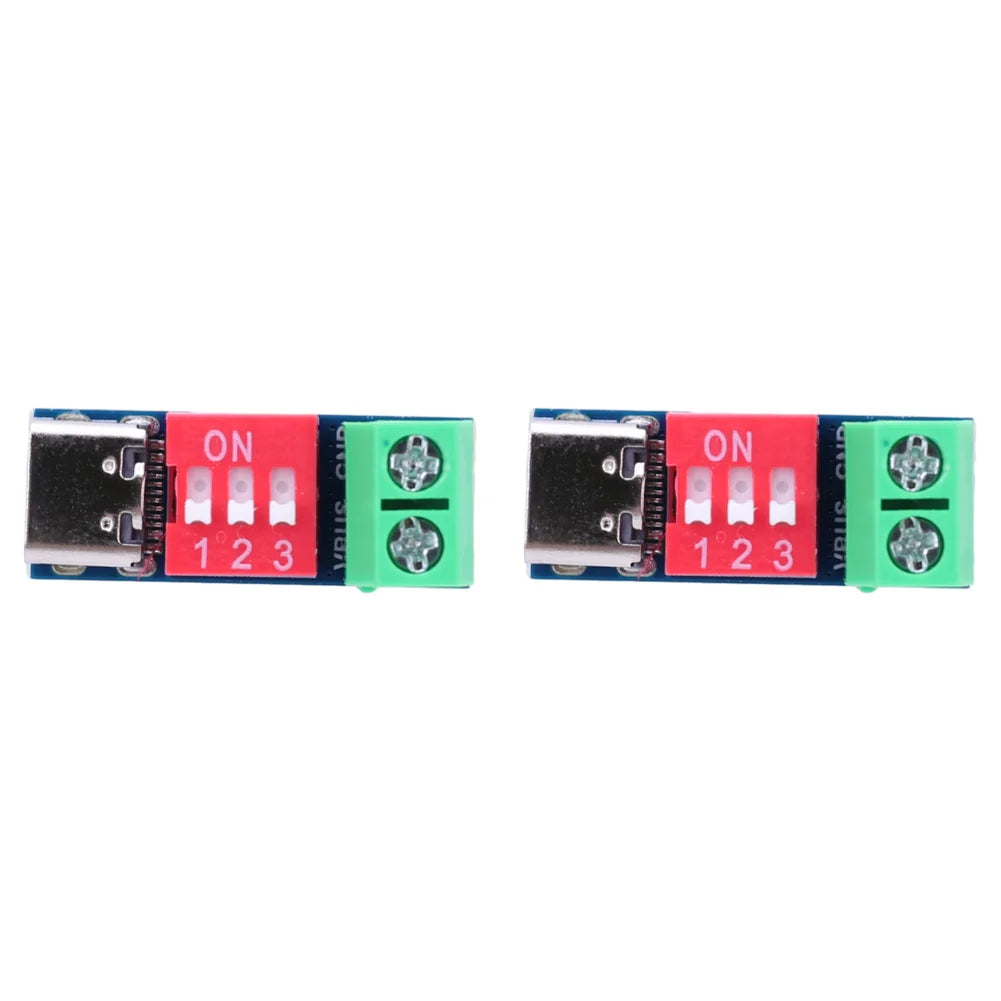

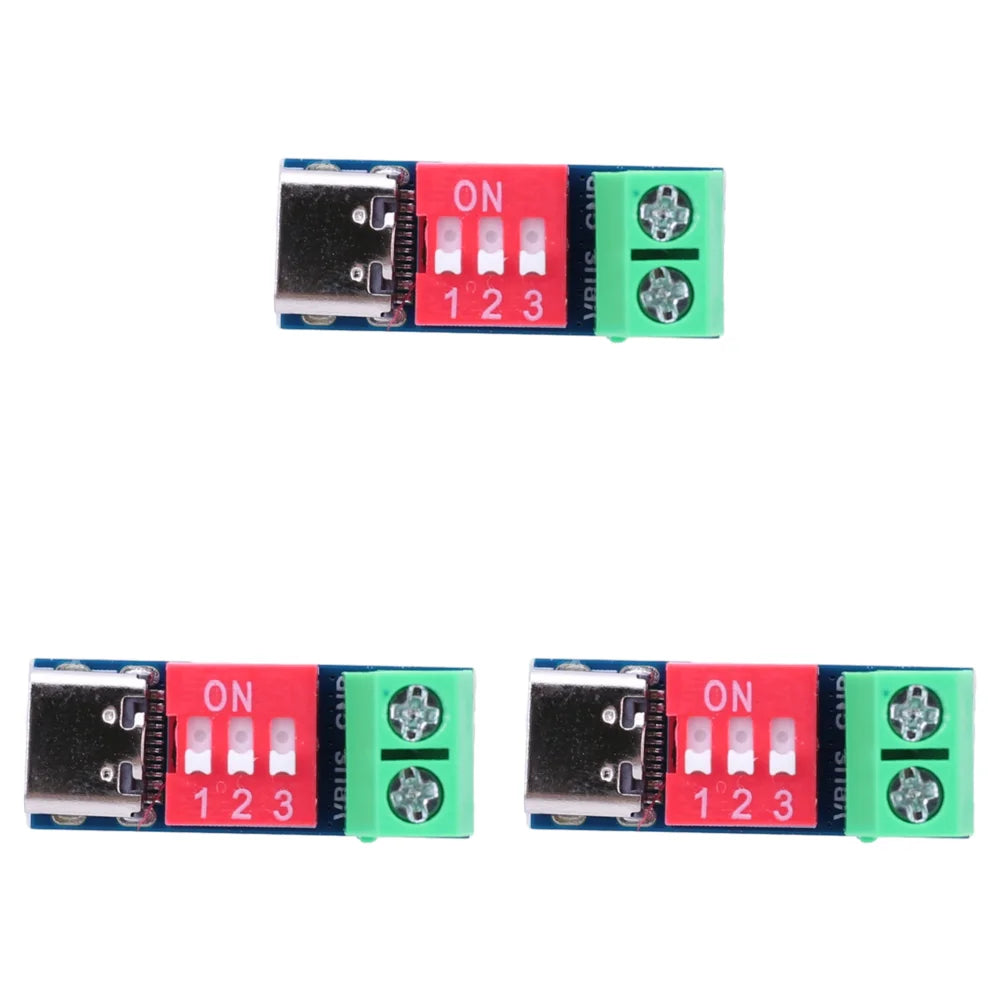

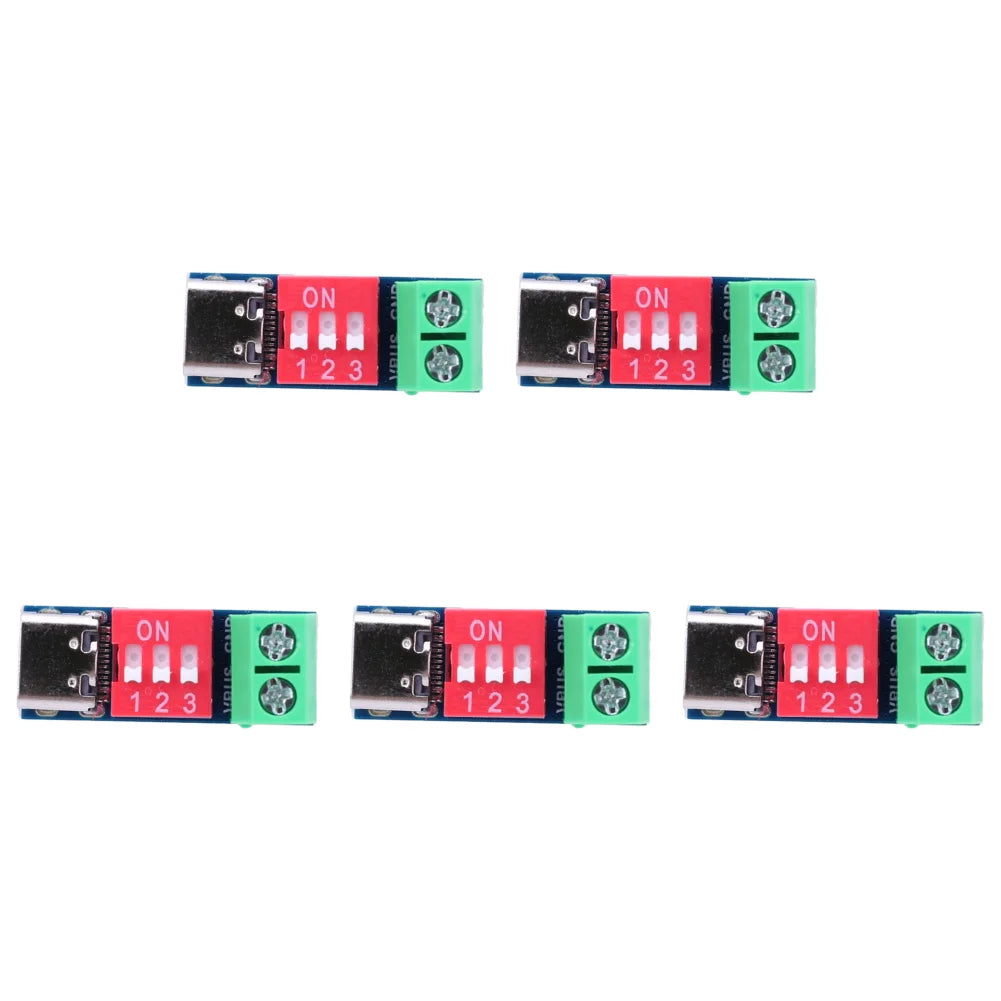

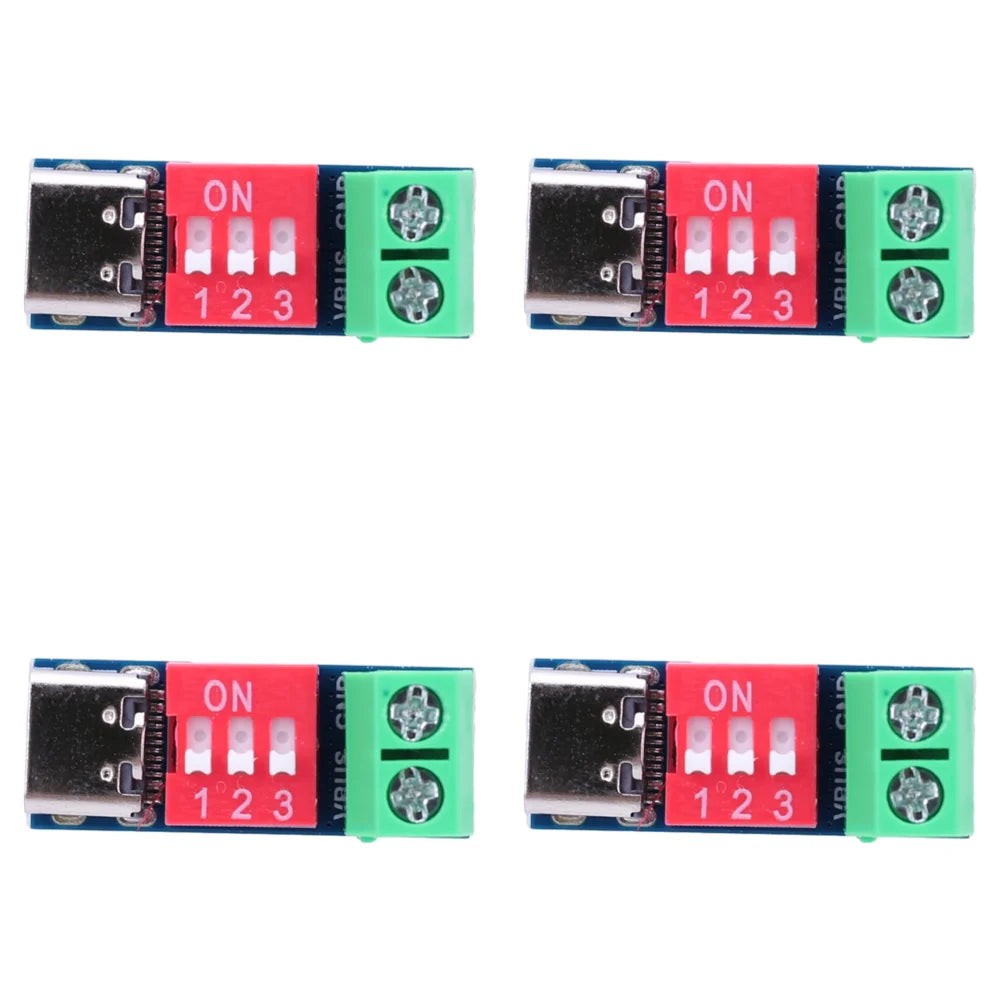

Color 4pcs 3pcs 10pcs 5pcs 2pcs 1pc PD Test Board

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Type: Module

PD Fast Charging Test Board 5-20V Adjustable Charging Test Module High Speed USB Type-C Voltage Connetor Power Supply Accesories
Feature:
1. Versatile PD Tester: Supports various fast charging protocols such as PD3.0/2.0 and BC1.2, providing a maximum power output of 100W. It includes like over-temperature and over-voltage protection.
2. Adjustable Voltage Range: Equipped with a convenient DIP switch, allowing voltage adjustment from 5V to 20V. This enables flexibility in testing different devices and their power delivery capabilities.
3. Wide Compatibility: Compatible with PD3.0/2.0 and BC1.2 fast charging protocols, ensuring compatibility with a wide range of devices. Users can confidently test and verify the charging performance of various gadgets.
4. USB Type-C PD Support: Specifically designed with USB Type-C PD support, enabling seamless connection and automatic switching for both forward and reverse insertion. This ensures hassle-free testing for devices with various input voltages between 4V and 22V.
5. Reliable Power Delivery: With its support for high-power outputs and protective like over-temperature and over-voltage protection, this PD tester provides a reliable and safe means of evaluating and analyzing the power delivery capabilities of different devices.

Specification:
Origin: Mainland China
Input voltage: 4V~22V
Output voltage: up to 20V
Interface: Supports USB Type-C PD
Power: up to 100W

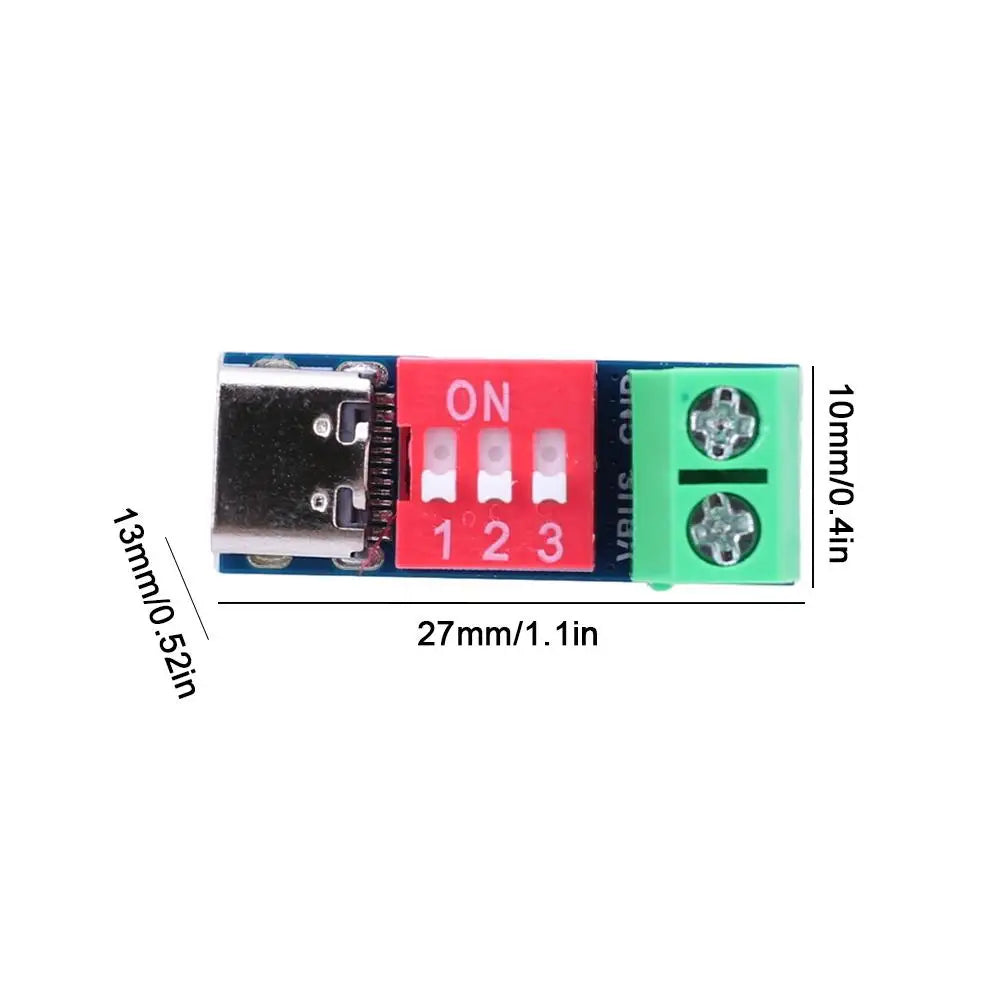

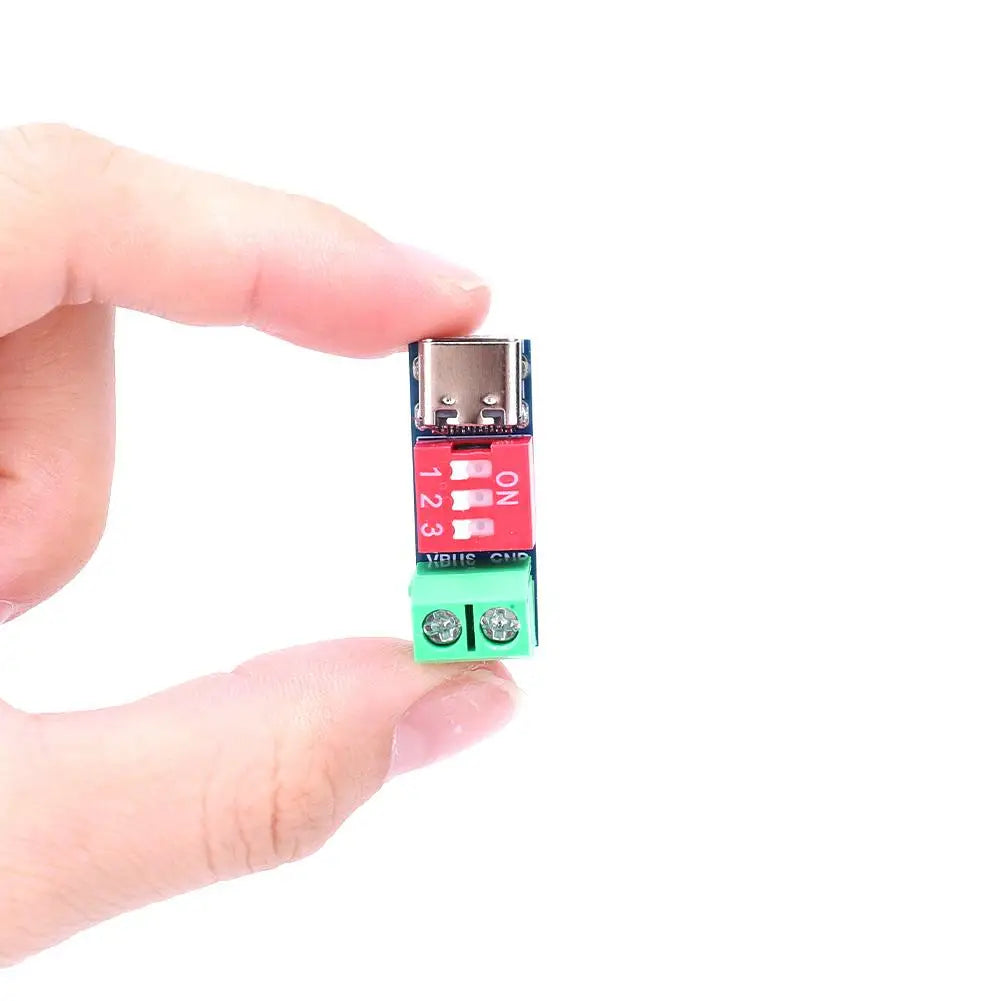

Product size: About 27 * 10 * 13mm/1.06 * 0.39 * 0.51inch
Instructions for use:

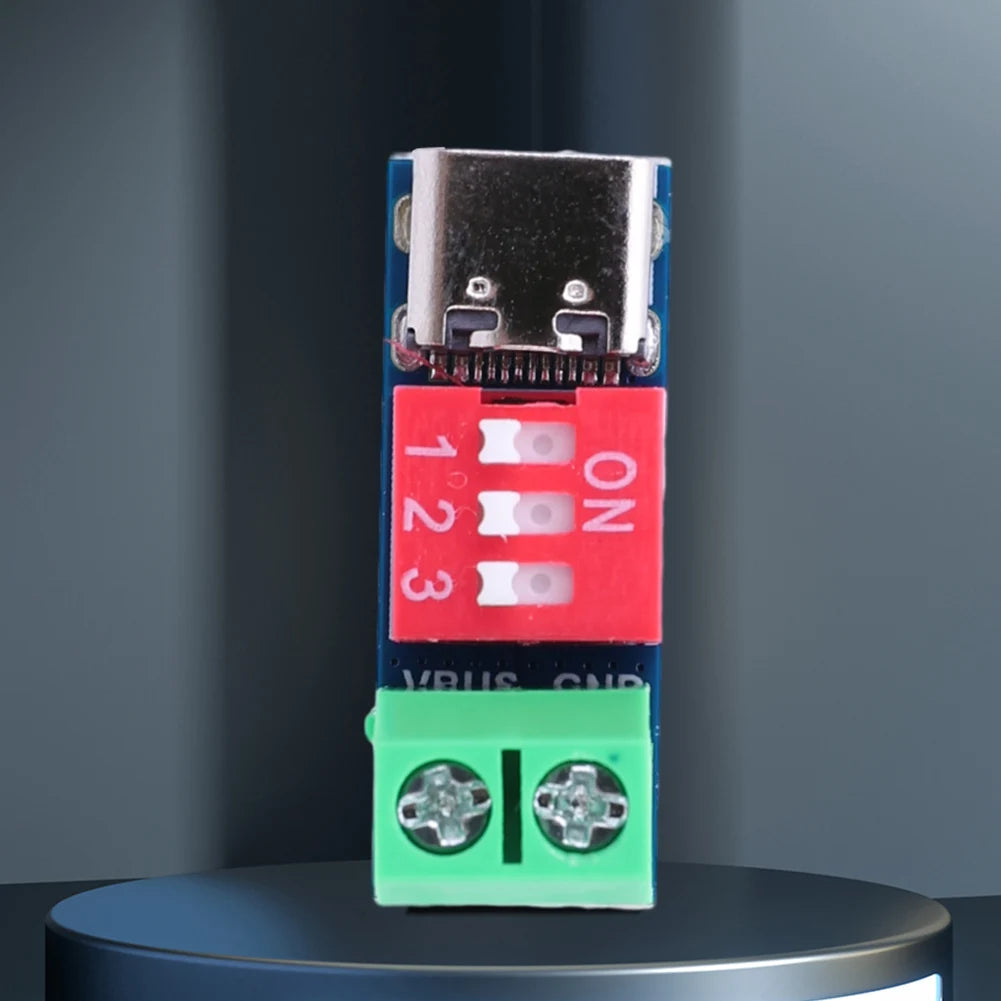

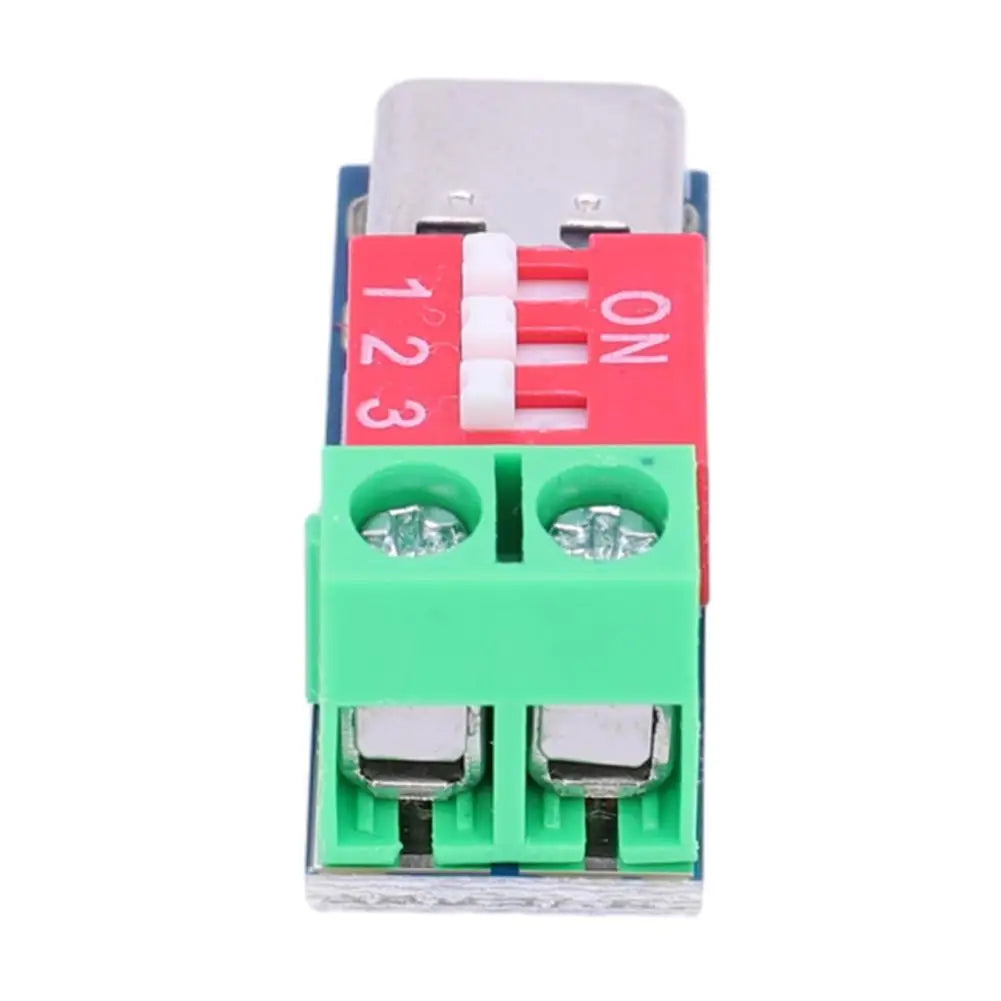

CFG1 corresponds to dial switch 1
CFG2 corresponds to dial switch 2
CFG3 corresponds to dial switch 3
Dial to the bottom as 1, and dial to the top as 0.
Flipping the switch can request an appropriate voltage based on the charger protocol

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
