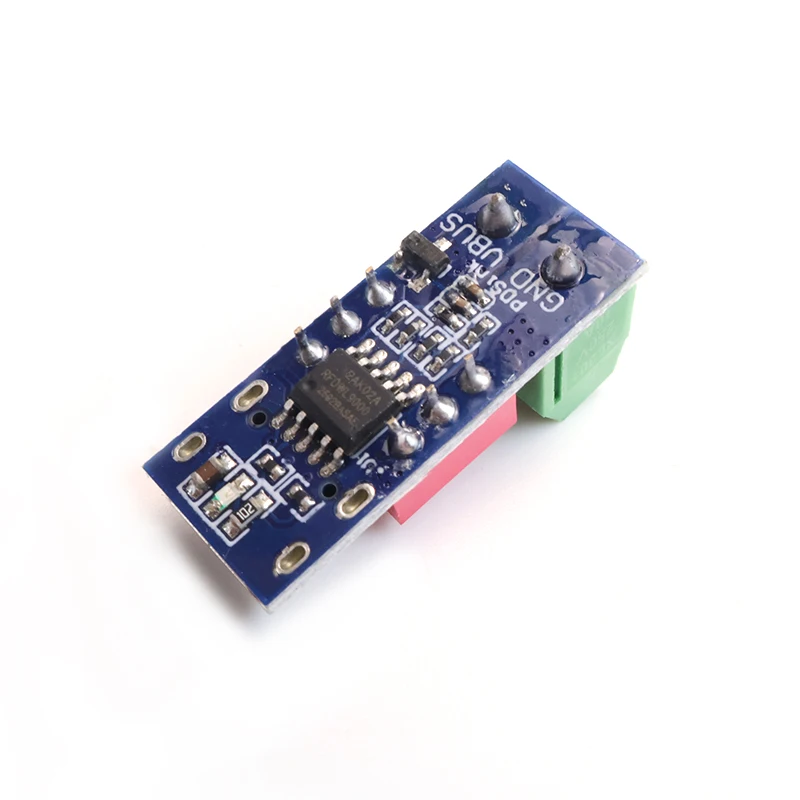

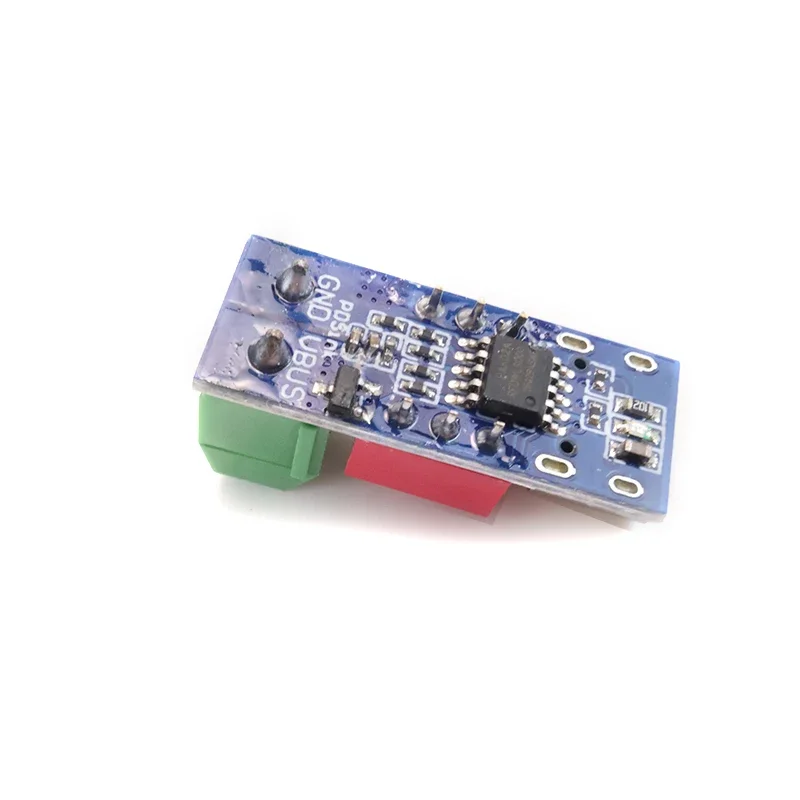

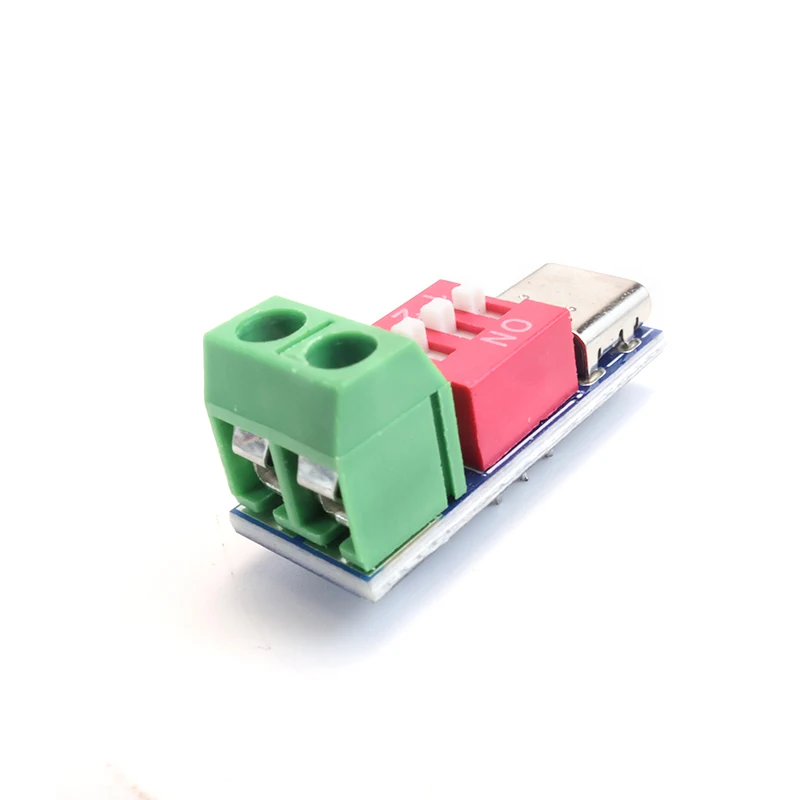

PD Trigger Module - Unlock 100W Fast Charging & Test Your USB-C Power Sources!

--- Key Features & Benefits (Bullet Points) ---

🔌 Unlock Fast Charging Protocols: Activate PD3.0/2.0, QC4+, and BC1.2 protocols from your USB-C charger, allowing you to trigger the optimal voltage for your project.

🎛️ Adjustable 5-20V Output: Easily set your desired voltage from 5V, 9V, 12V, 15V, to 20V using the 3-bit DIP switch, compatible with a wide range of devices.

💪 100W High Power Support: Handles up to 100W of power, making it perfect for testing high-power adapters, power banks, and fast-charging circuits.

🔍 Built-in Power Detection: Functions as a voltmeter, enabling you to detect and verify the output voltage and power capability of your USB-C sources.

🛡️ Safe & Reliable: Features over-temperature and over-voltage protection, ensuring safe operation during testing and use.

--- Description ---
The Essential Tool for USB-C Power Testing and Fast Charging Activation

This compact PD Trigger Module is a must-have for engineers, makers, and repair technicians. It allows you to "trick" your USB-C chargers and power banks into outputting their maximum supported voltage, making it indispensable for testing, prototyping, and powering DIY projects that require specific DC voltages.

--- How to Use (Simple 3-Step Guide) ---

Connect: Plug your USB-C power source (4V-22V) into the module.

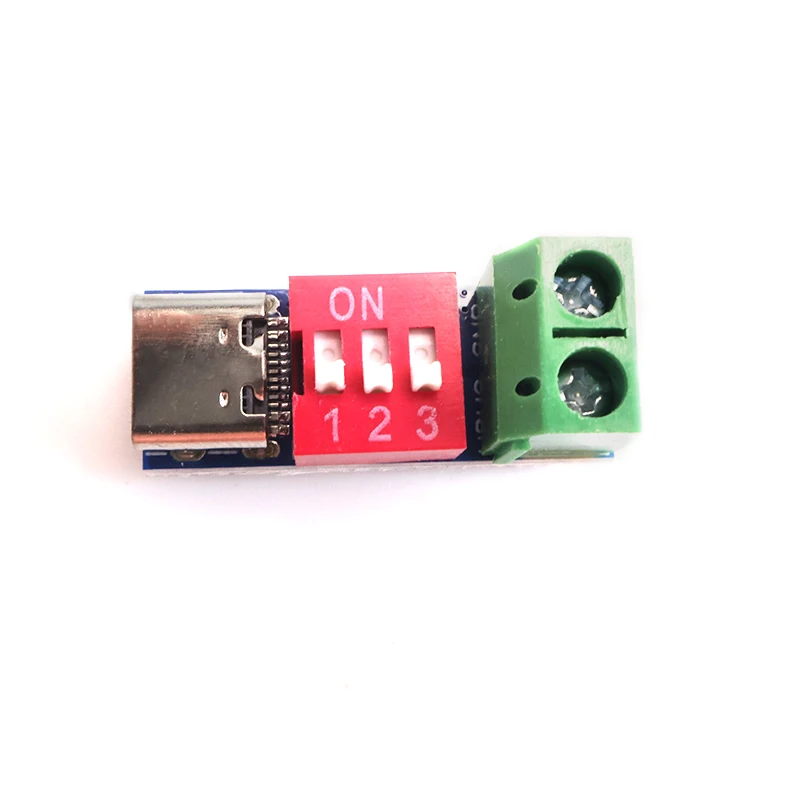

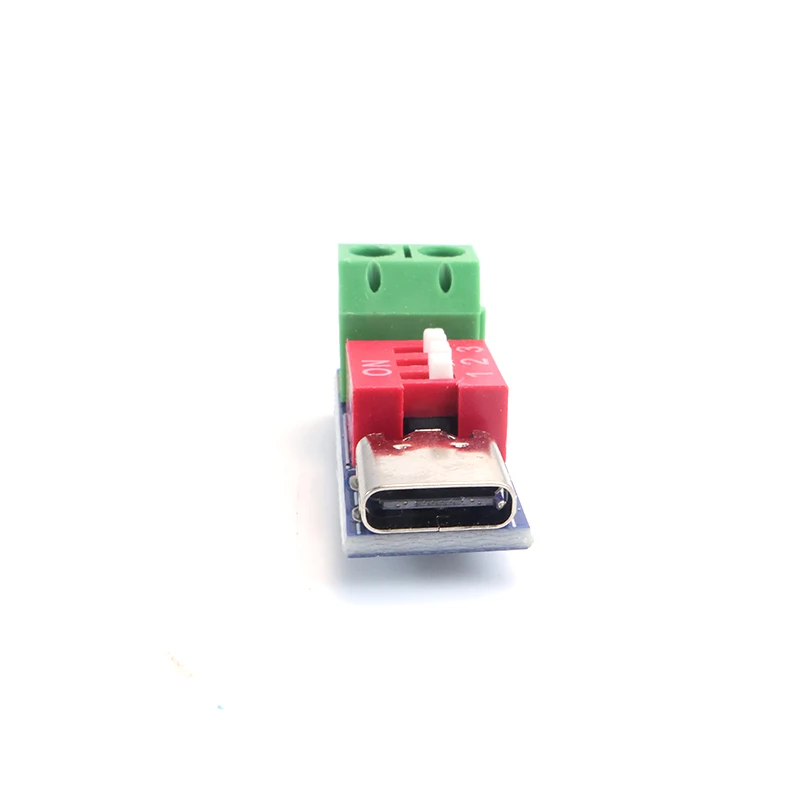

Configure: Set the DIP switches (CFG1, CFG2, CFG3) according to the table below to select your desired voltage.

Measure & Use: The module will request the set voltage. Use a multimeter to measure the output or connect it to your device.

--- DIP Switch Voltage Selection Guide ---

CFG1 CFG2 CFG3 Output Voltage
0 0 0 5V
1 0 0 9V
0 1 0 12V
1 1 0 15V
0 0 1 20V
*Switch Position: DOWN = 1, UP = 0*
--- Applications ---

Testing USB-C Chargers & Power Banks

Activating Fast Charge for DIY Projects (e.g., Raspberry Pi, Drones)

Repairing and Diagnosing USB-C Power Circuits

Creating Custom Variable DC Power Supplies

--- Specifications ---

Input Voltage: 4V - 22V

Output Voltage: 5V, 9V, 12V, 15V, 20V (Selectable via DIP Switch)

Max Power: 100W

Protocols: PD3.0/2.0, QC4+, BC1.2

Protections: Over-Temperature, Over-Voltage

Interface: USB Type-C

Size: 25.7mm x 11mm

--- Package Includes ---

1 x PD Trigger Module
