SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

Dissipation Power: 100/140w

High-concerned chemical: none

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: DC 6-30V

Type: Module

Features

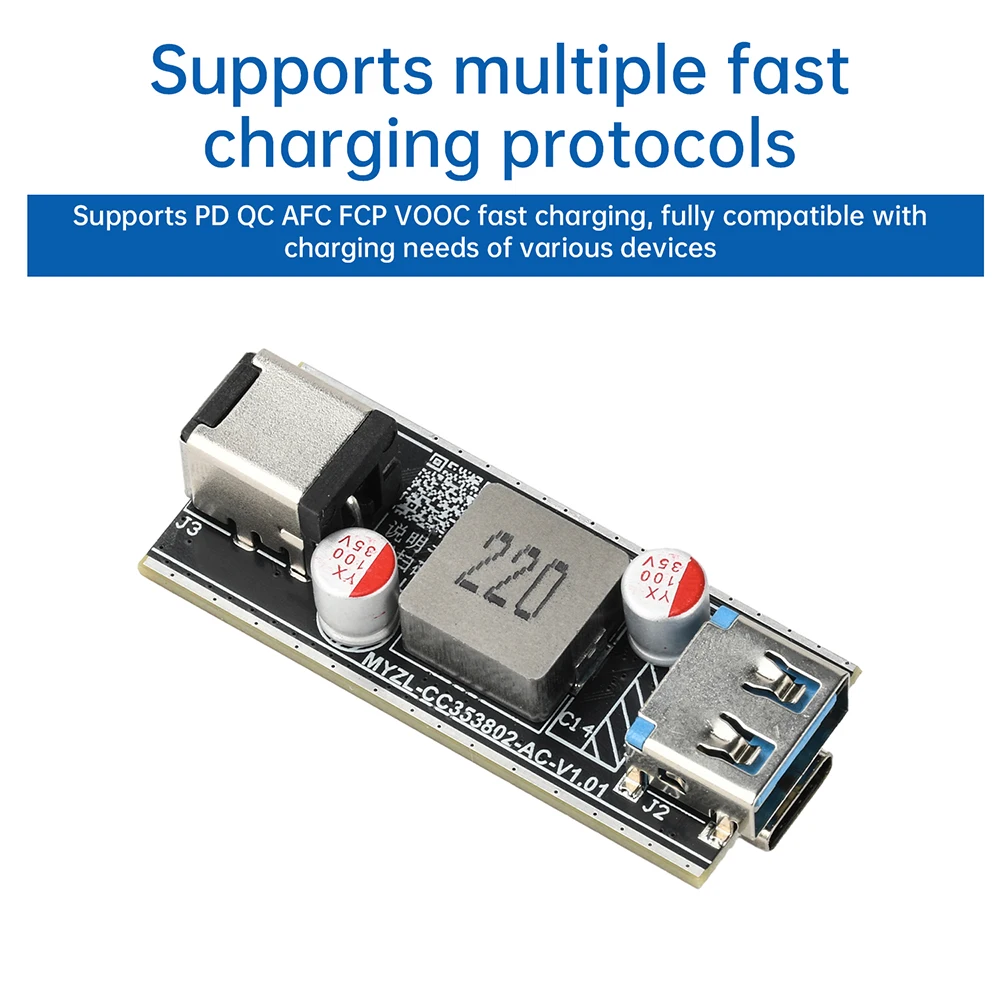

1. Supports multiple fast charging protocols, fully compatible with various device charging needs

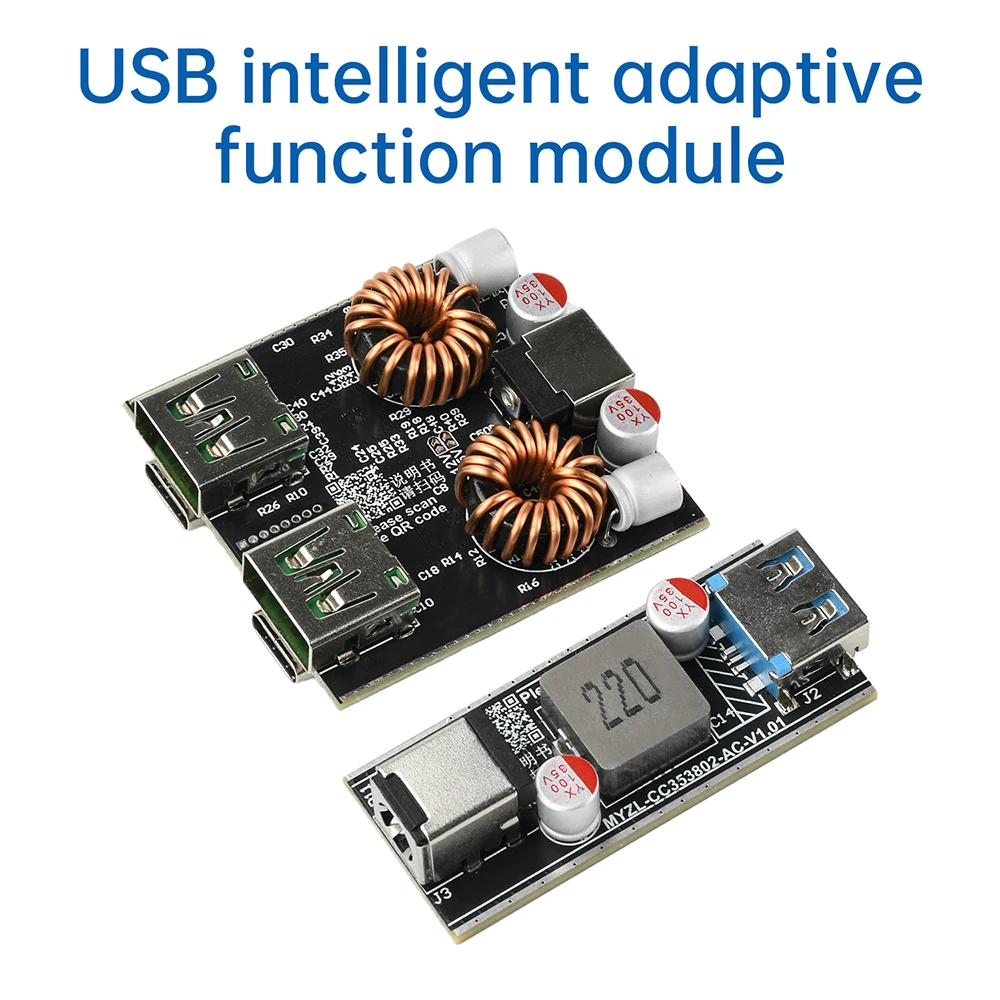

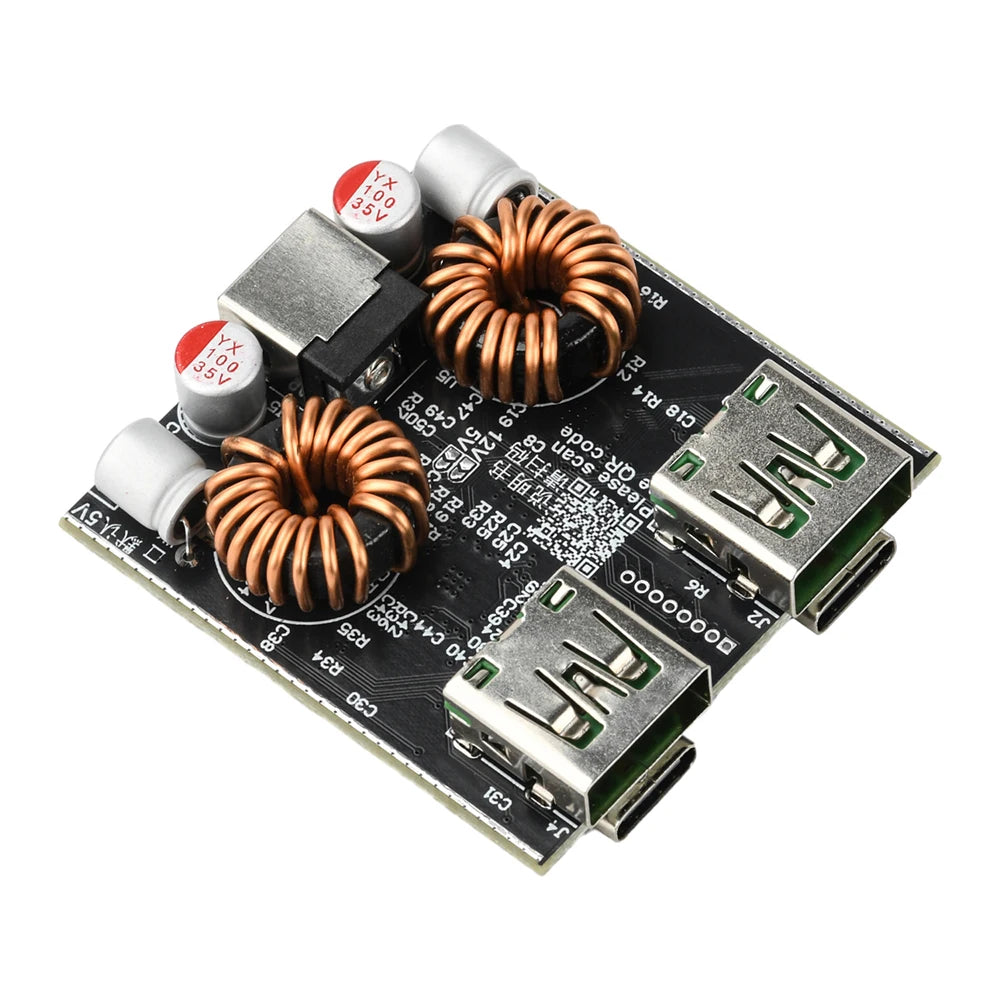

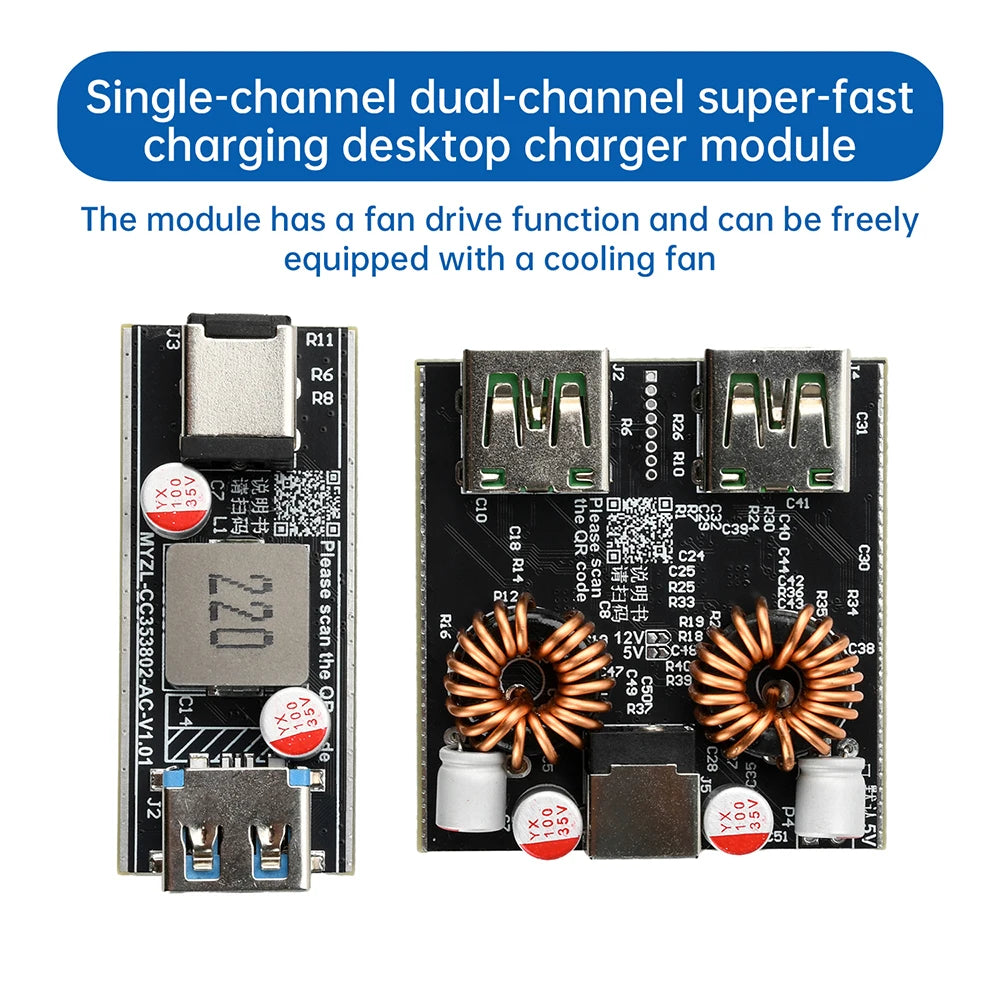

2. DIY module design, choose single-channel or dual-channel output to meet personalized desktop charging scenarios

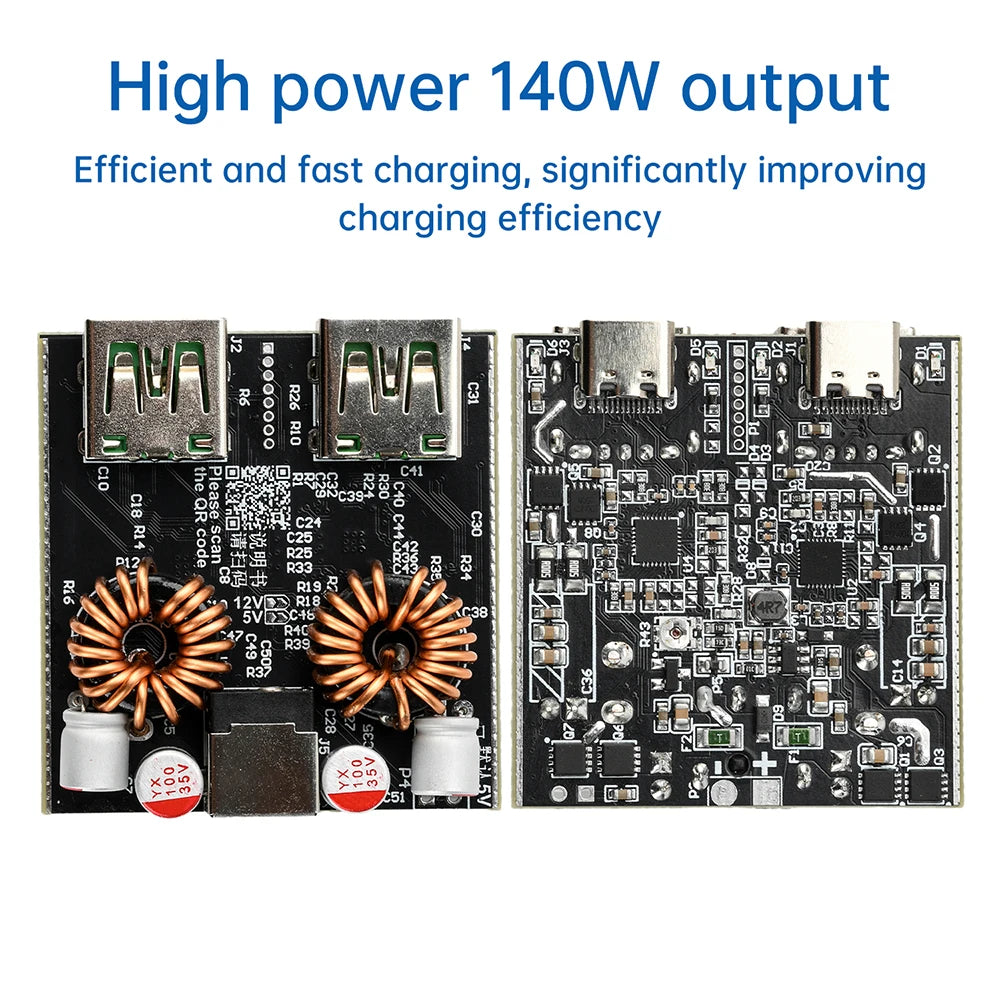

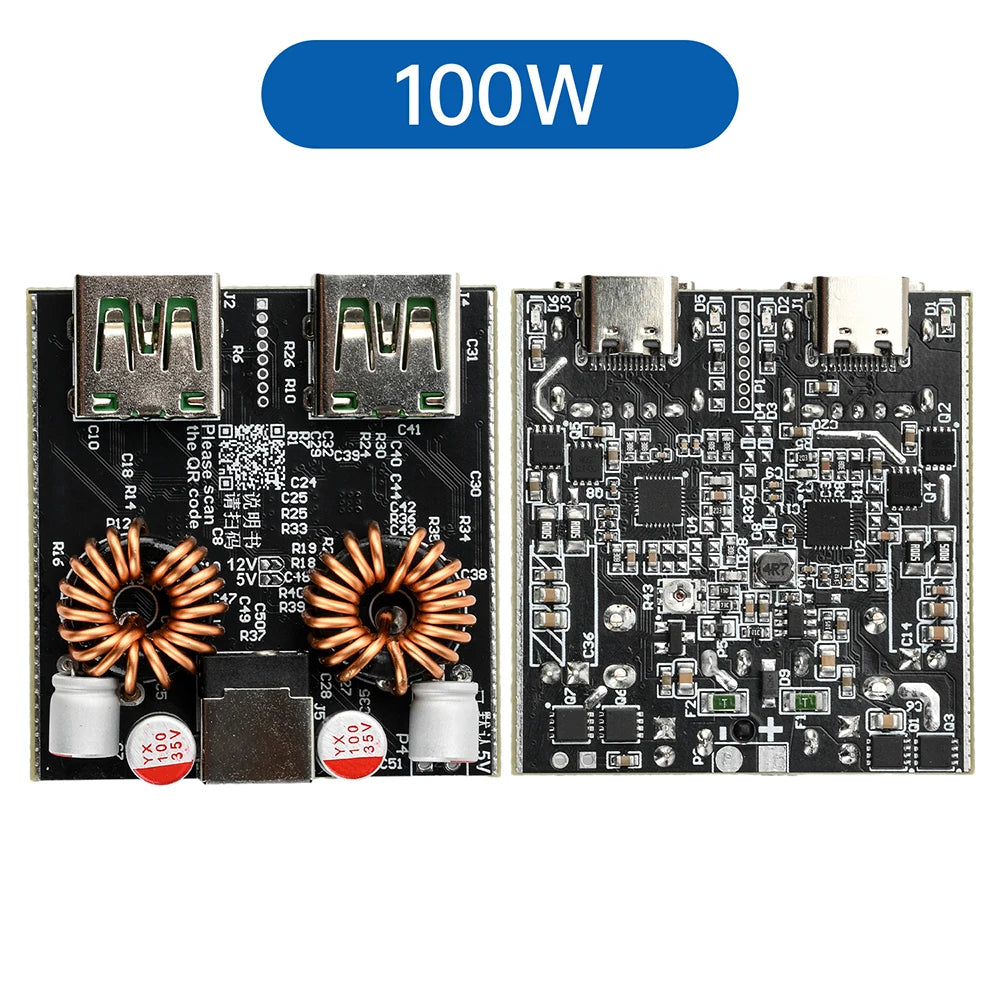

3. High-power 140W output, efficient and fast charging, significantly improving charging efficiency

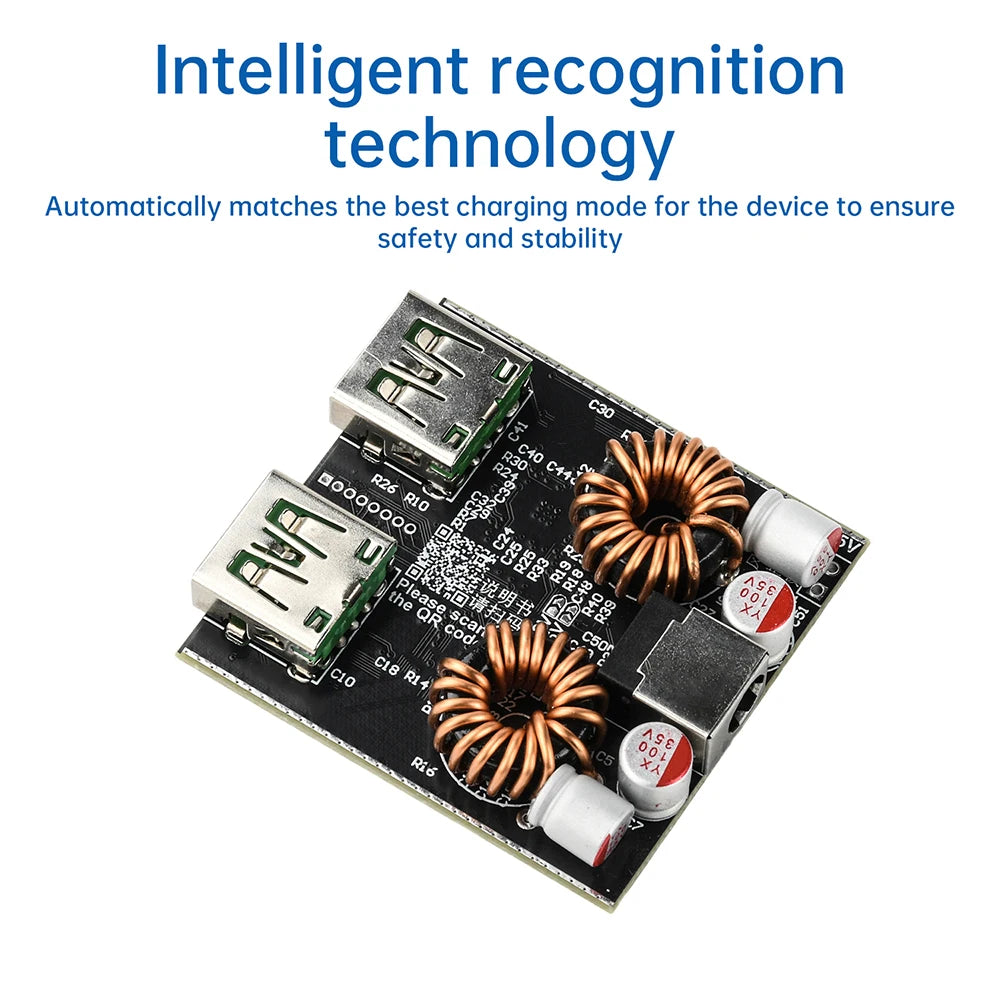

4. Intelligent recognition technology automatically matches the optimal charging mode for the device, ensuring safety and stability
5. The module includes a fan drive function, allowing for the installation of a cooling fan

Parameter

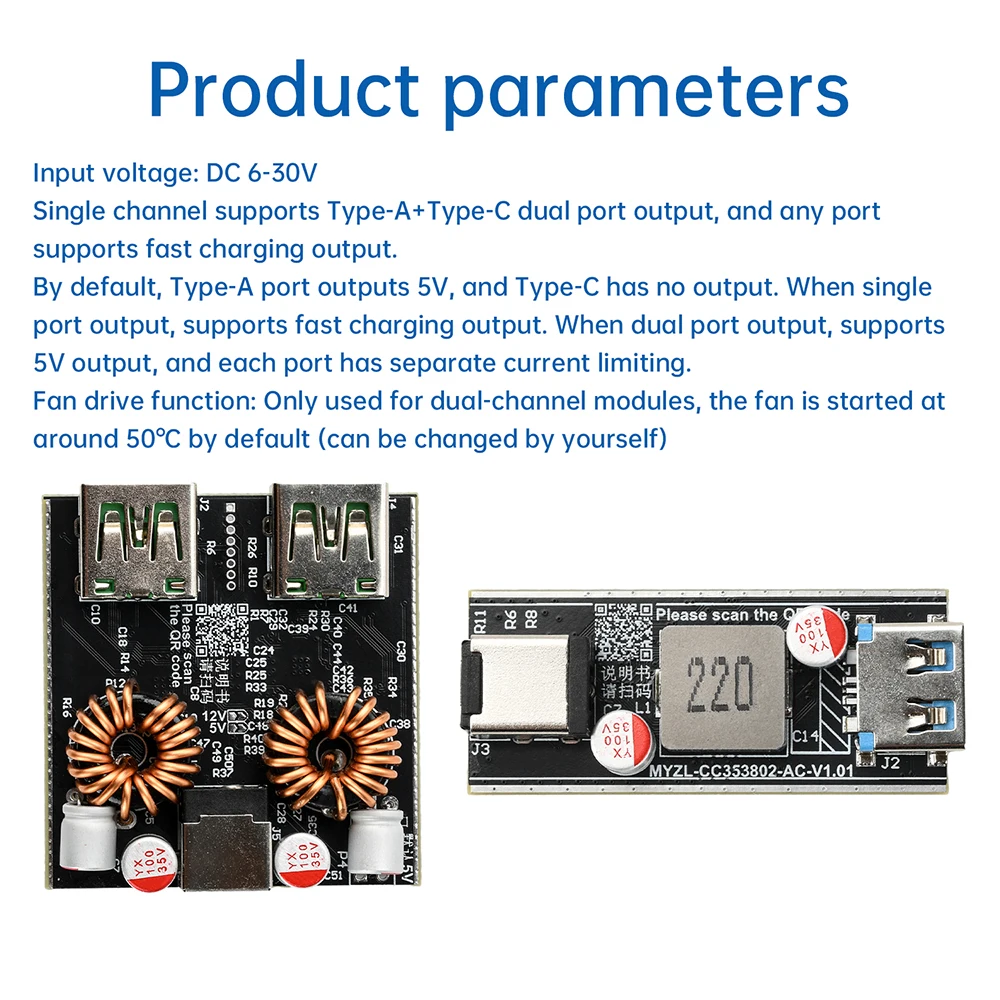

Input Voltage: DC 6-30V Single-port supports Type-A + Type-C dual-port output, with either port supporting fast charging output. By default, the Type-A port outputs 5V, while the Type-C port has no output. When using a single port, fast charging output is supported.
When using dual-port output, it supports 5V output, with each port having independent current limiting.

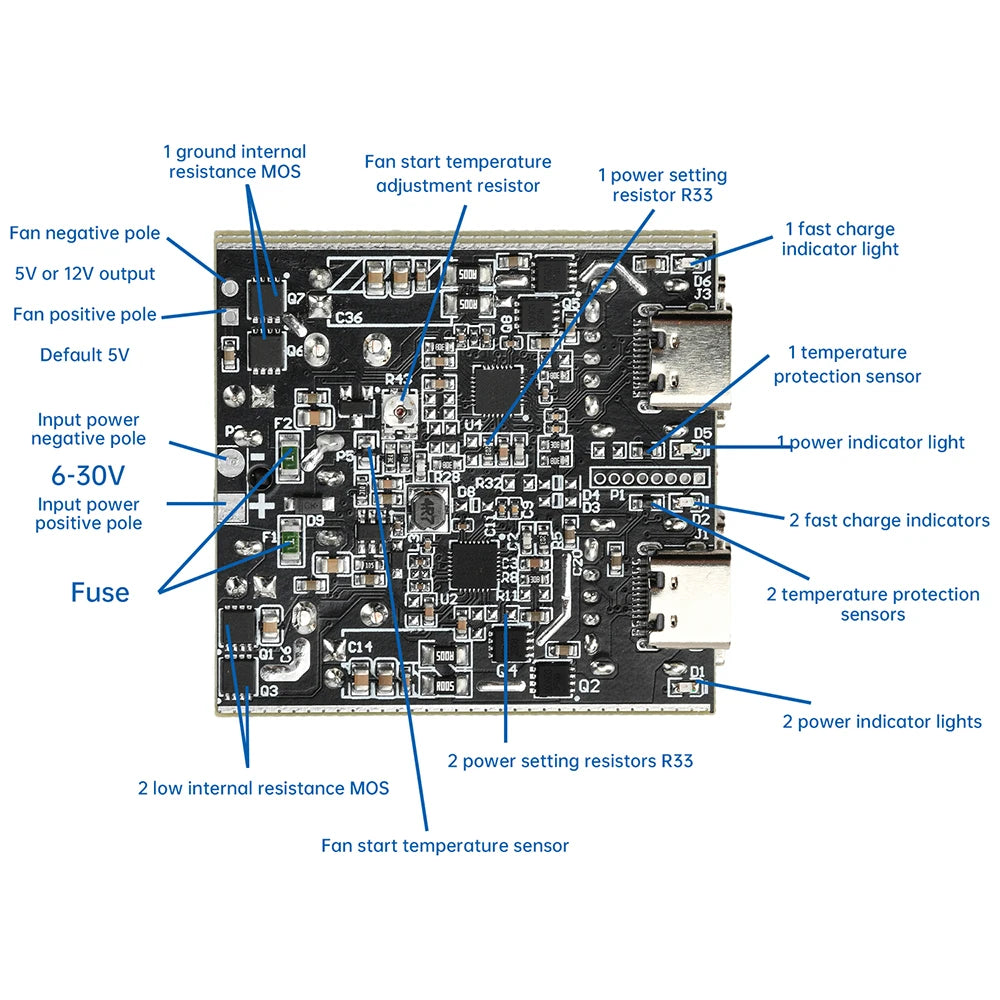

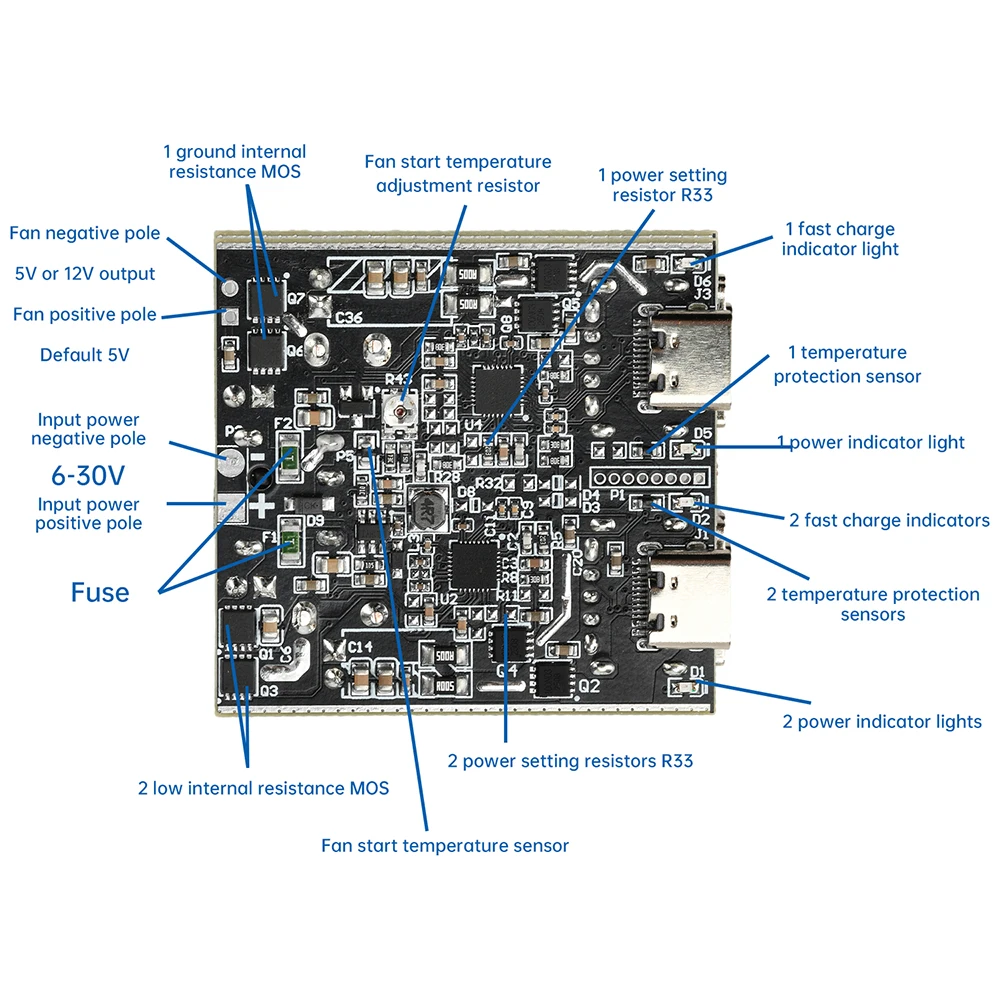

Fan drive function: Only available for dual-port modules, with the fan automatically starting at around 50°C (can be adjusted manually)

Fast charging protocols:
PPS/PD3.0/PD2.0: PPS output supports a maximum of 3.3–21V, while PD3.0/PD2.0 output supports a maximum of 5V/9V/12V/15V/20V, with a maximum output power of 140W (20V@7A). QC5/QC4+/QC3+/QC3.0/QC2.0: QC2.0 output supports 5V/9V/12V/20V, and QC3.0 output supports 3.6V to 20V.
AFC: Output supports 5V, 9V, and 12V.
FCP: Output supports 5V, 9V, and 12V.
SFCP: Output supports 5V, 9V, and 12V.

Package include
Fast Charging Module x1
