SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: TQFP

Quantity: 1

Type: Module

is_customized: Yes

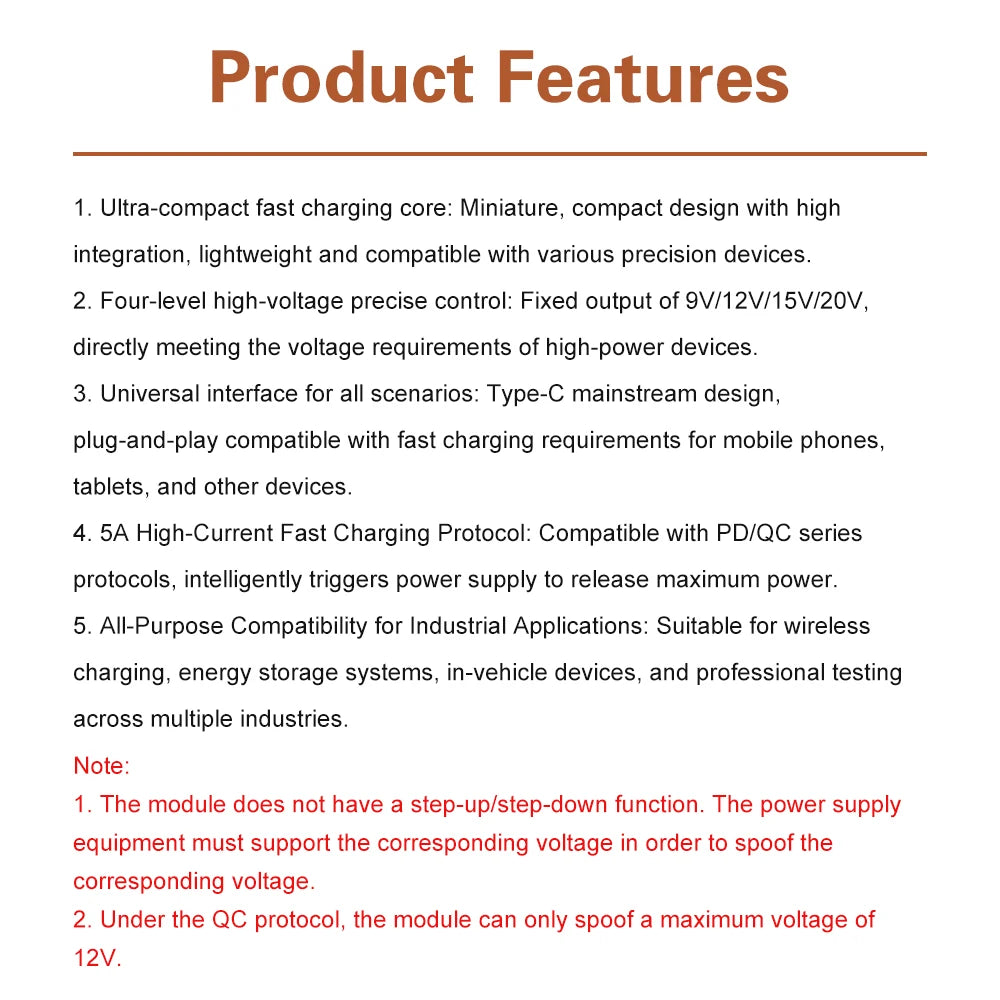

Features:

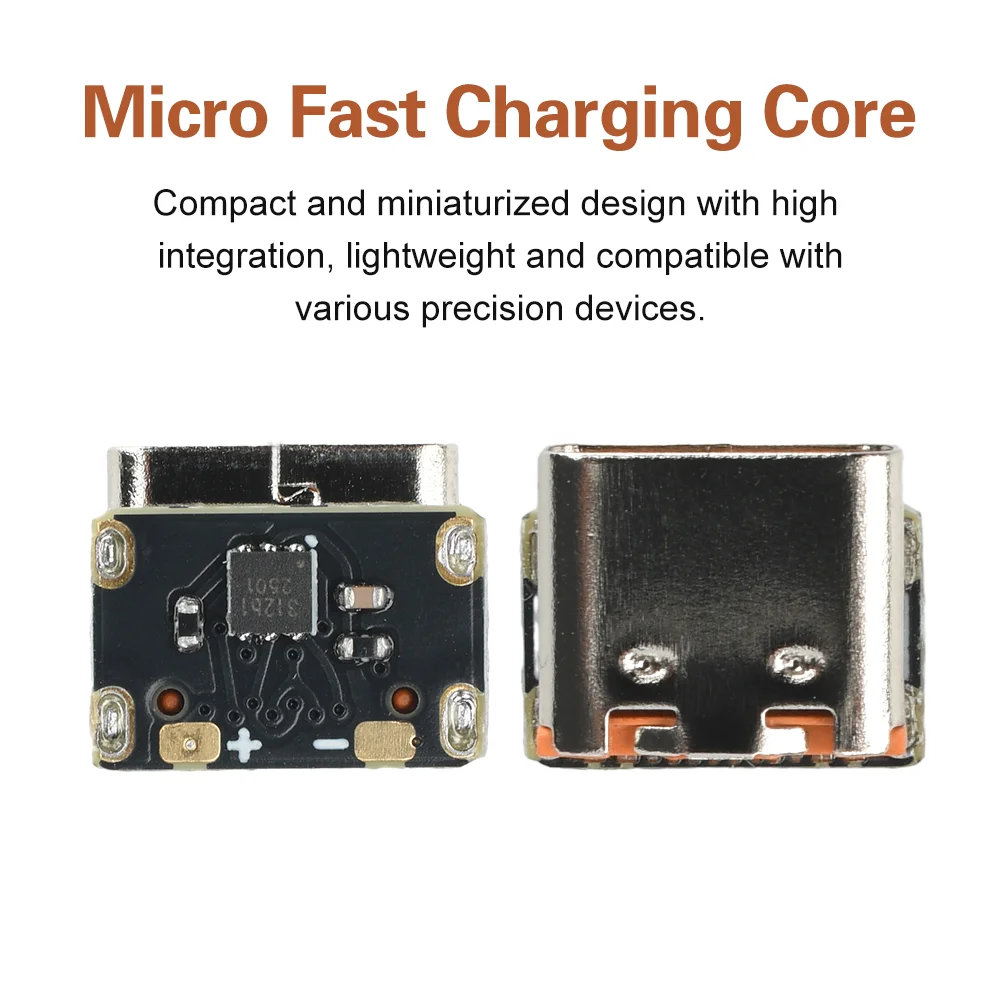

1. Ultimate micro fast charging core: Mini and compact size design, high integration, lightweight and adaptable to various precision equipment

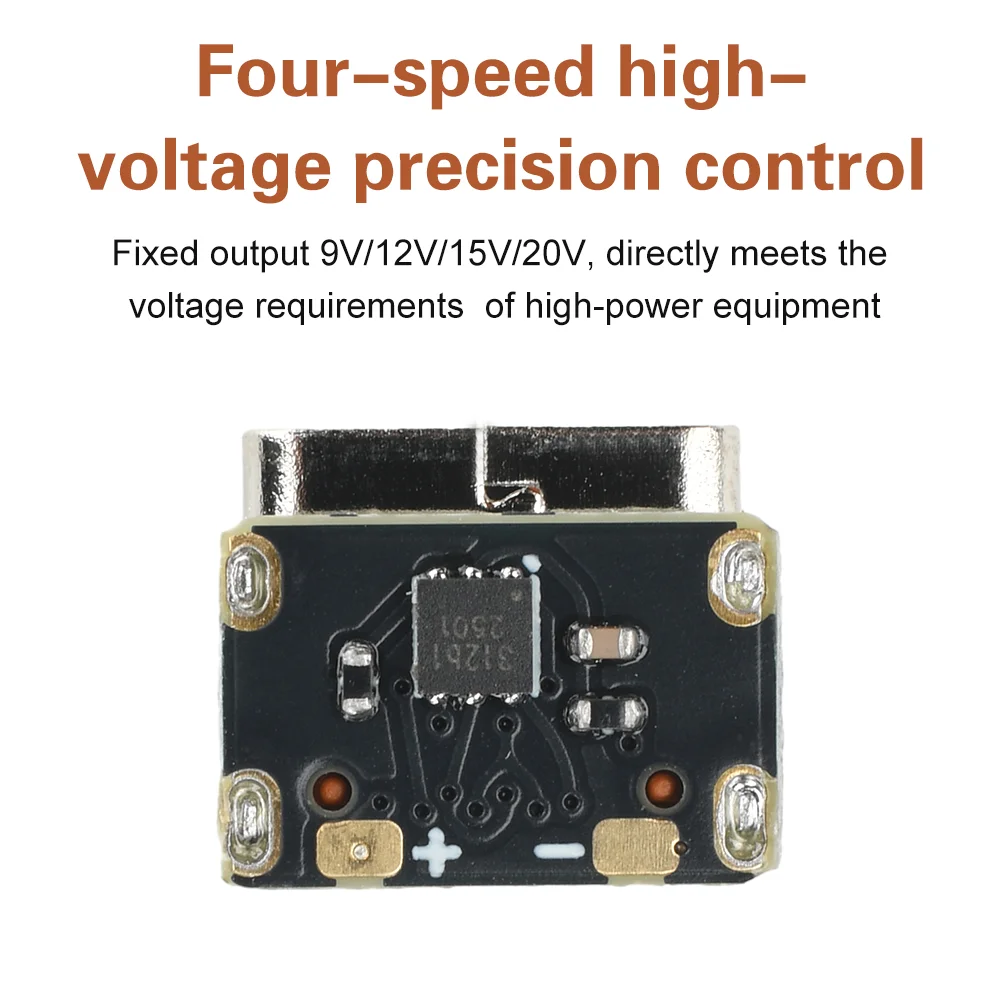

2. Four level high voltage precise control: fixed output of 9V/12V/15V/20V, directly targeting the voltage requirements of high-power equipment

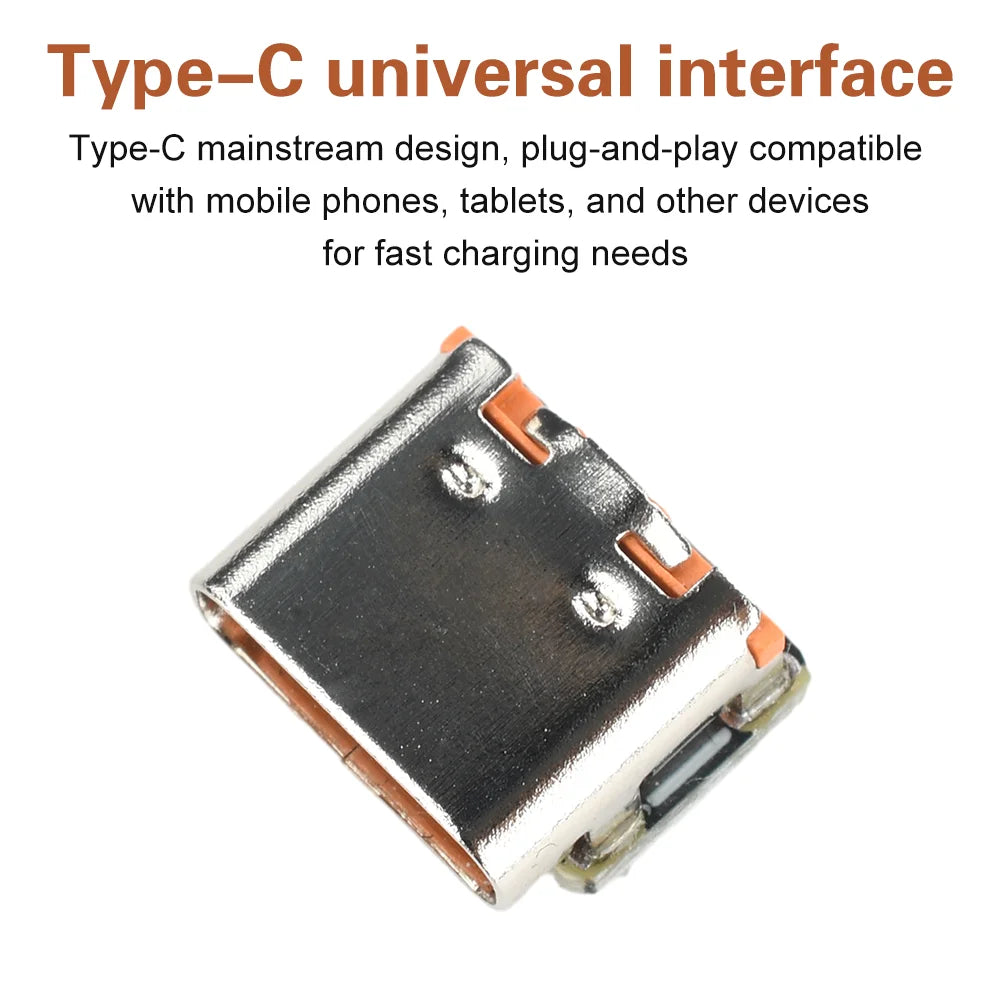

3. Universal interface for all scenarios: Type C mainstream design, plug and play compatible with fast charging requirements for mobile phones, tablets, and other devices

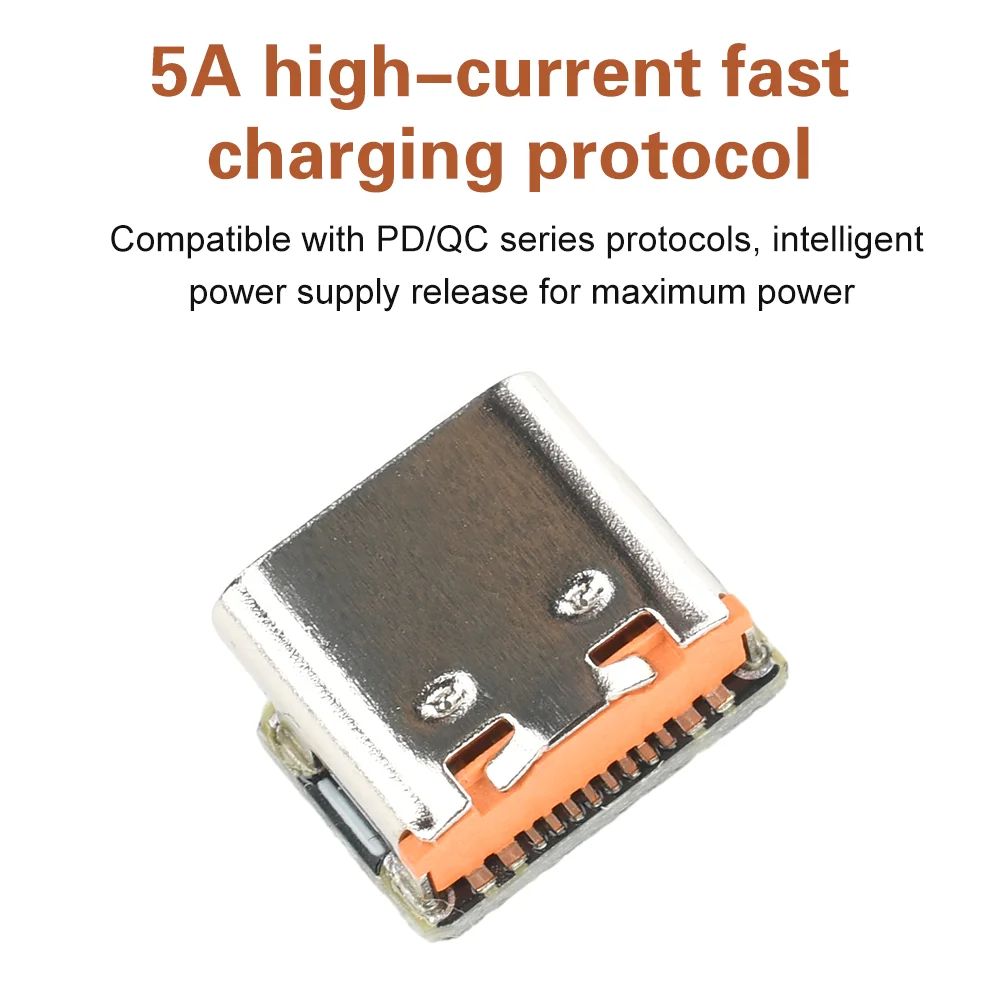

4. 5A high current fast charging protocol: compatible with PD/QC series protocols, intelligent decoy power supply releases maximum power

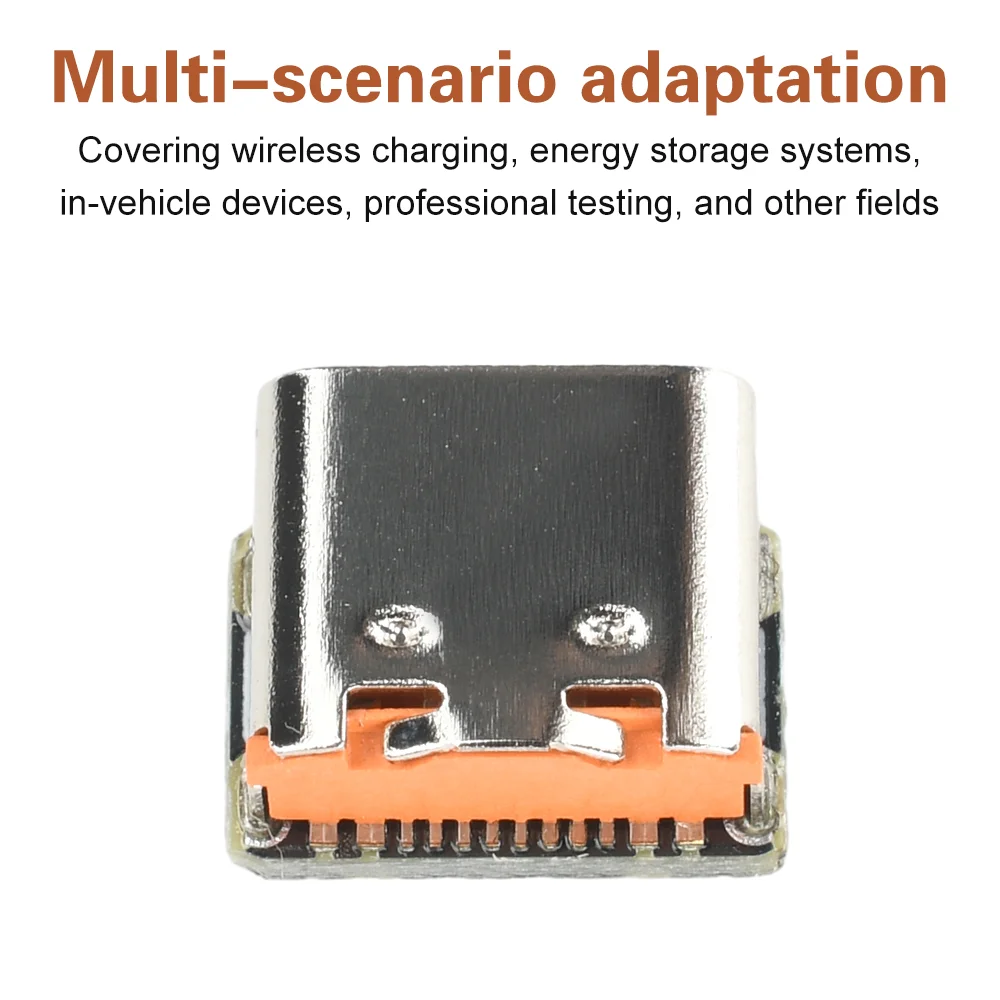

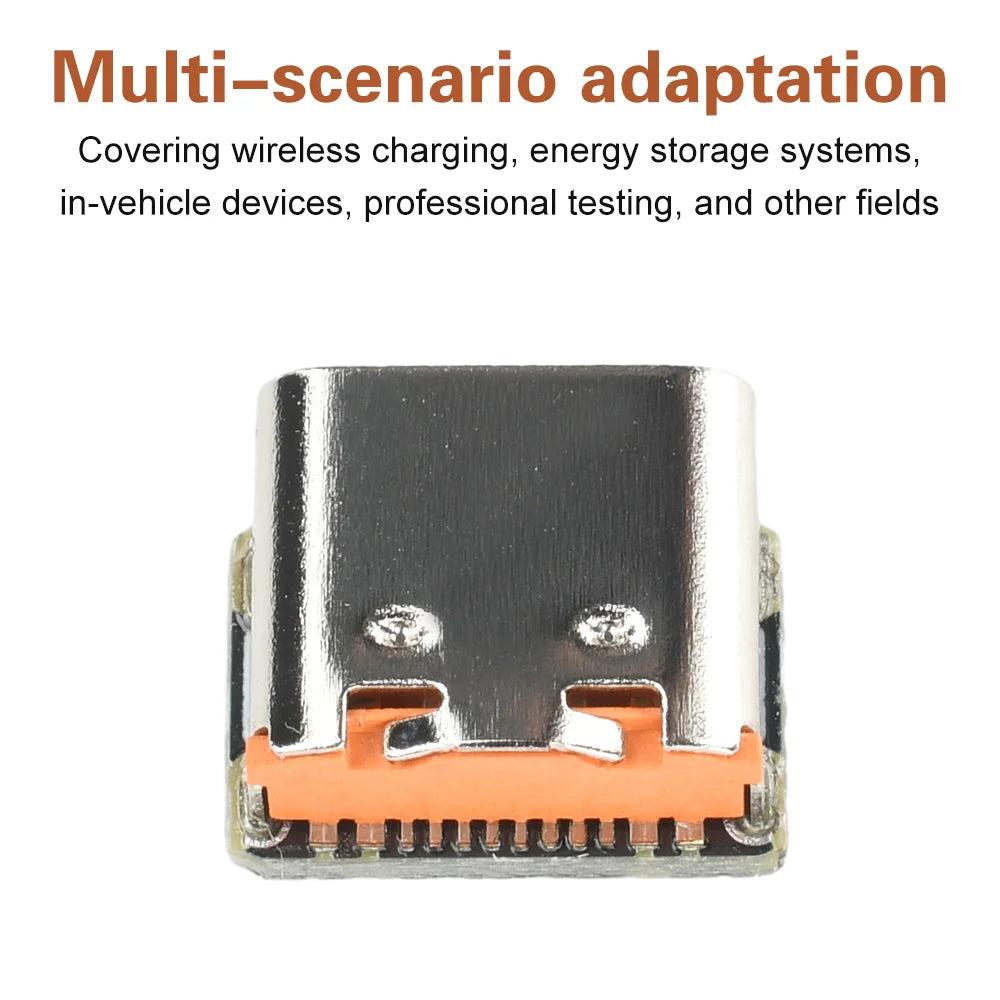

5. Versatile adaptation for industrial scenarios: covering multiple fields such as wireless charging, energy storage systems, in vehicle equipment, and professional testing

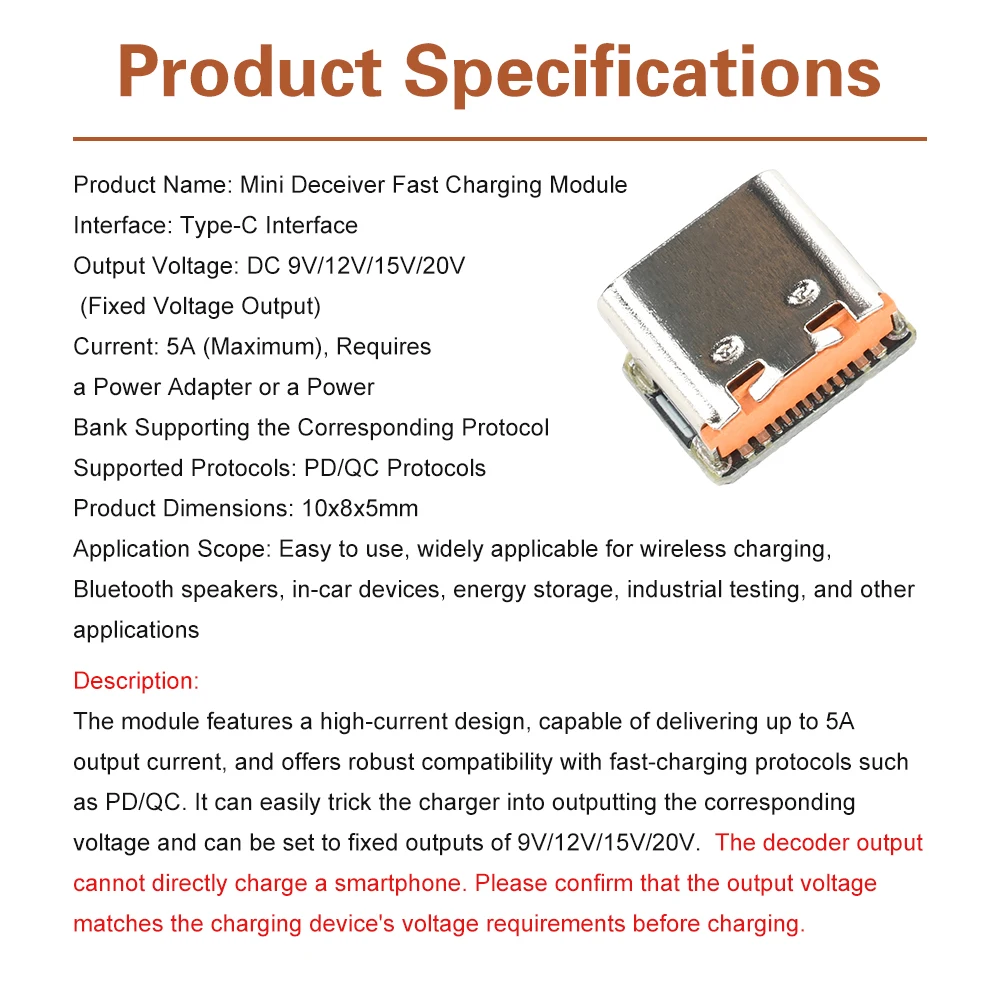

Product Parameters:

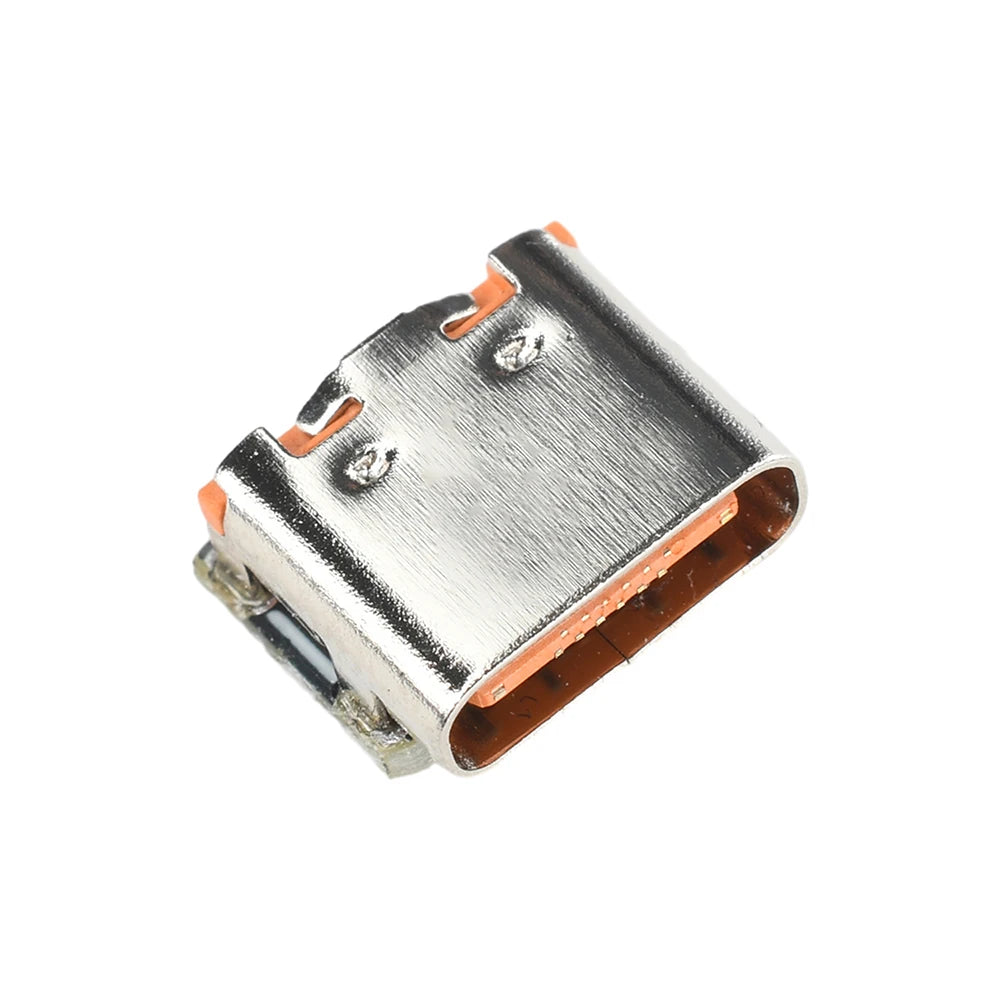

Product Name: Mini Deceiver Fast Charging Module

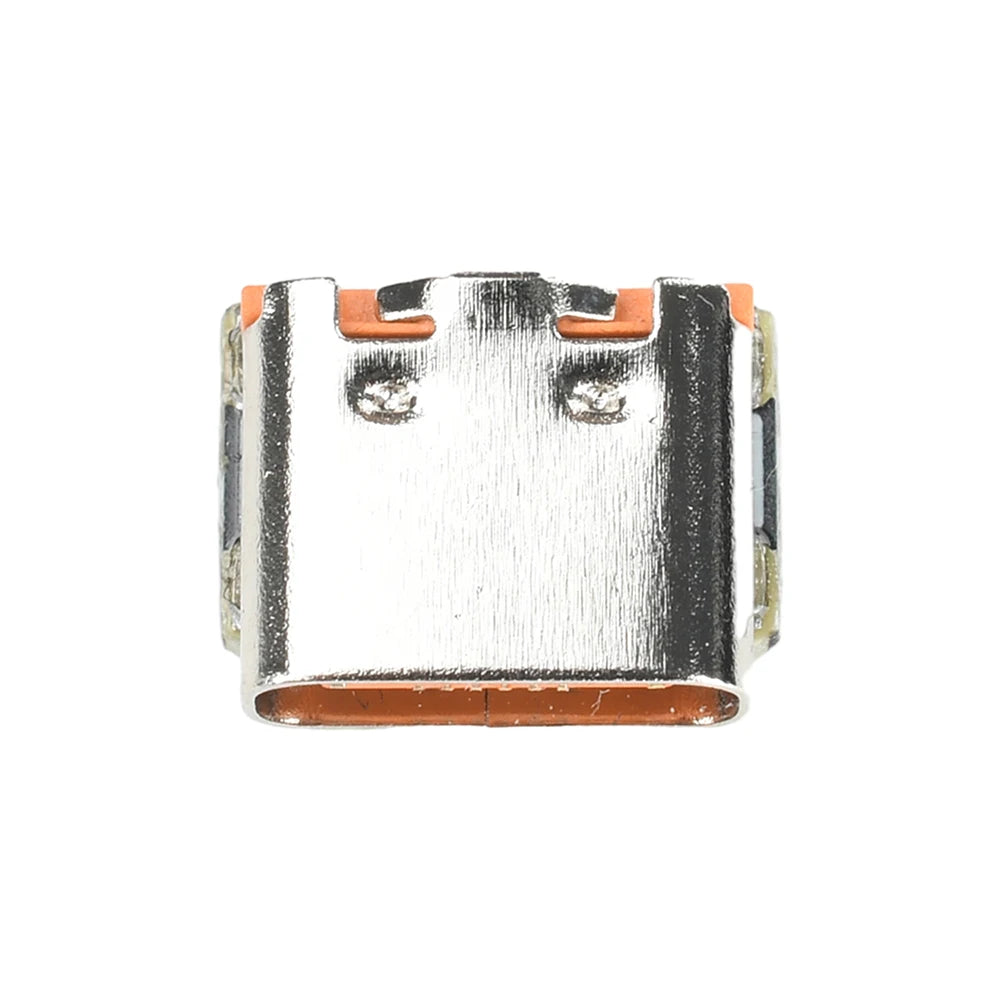

Interface: Type C interface

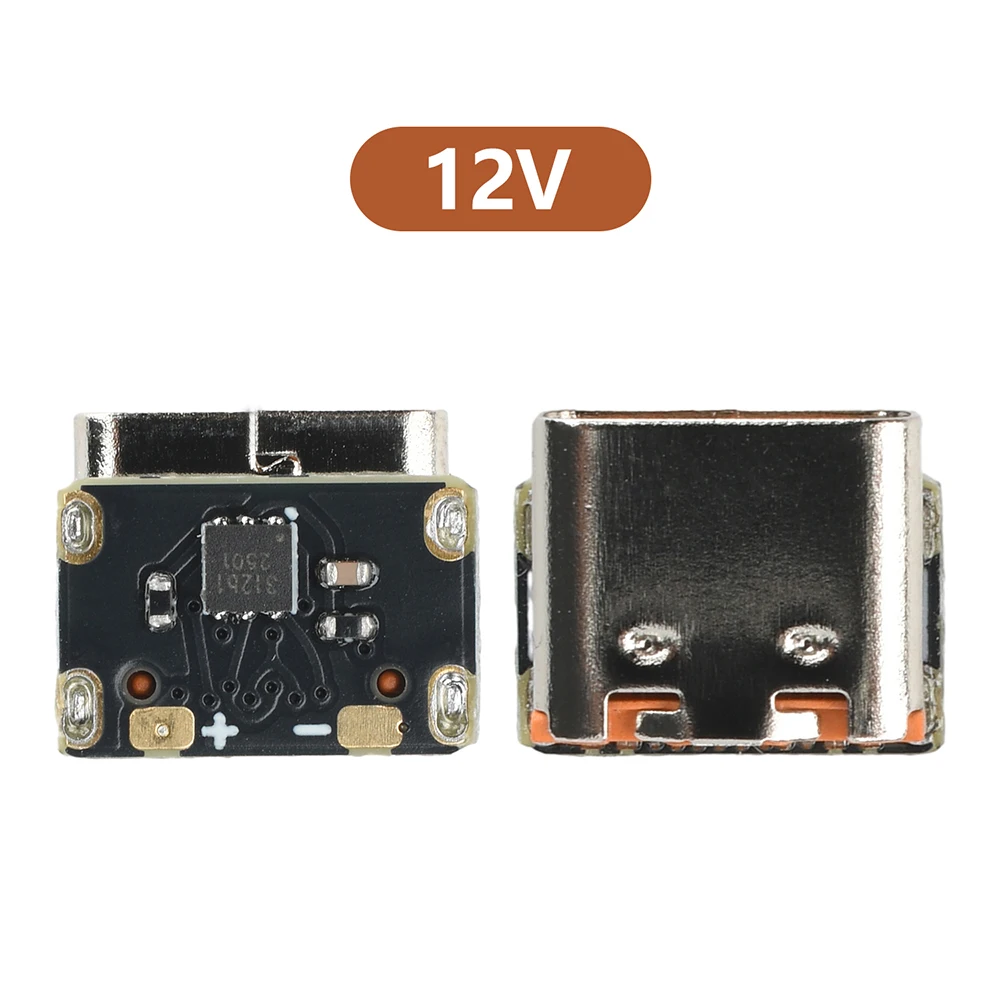

Output voltage: DC 9V/12V/15V/20V (fixed voltage output)

Current: 5A (maximum), requires a front power plug or a power bank that supports the corresponding protocol

Supported protocols: PD/QC protocol

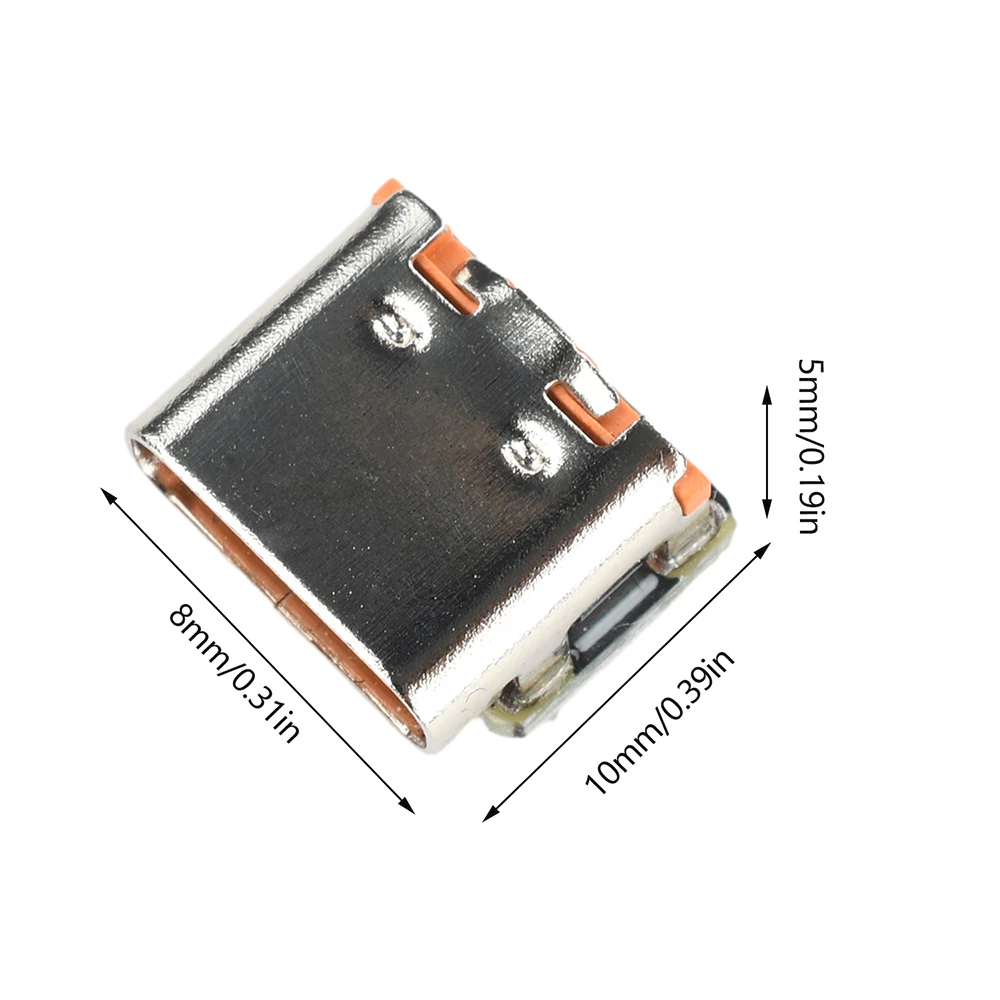

Product size: 10x8x5mm

Application scope: Easy to use, can be widely used for wireless charging, Bluetooth speakers, car devices, energy storage, industrial testing and other applications

Description:

The module adopts a high current design, with an output current of up to 5A, and has strong compatibility to support fast charging protocols such as PD/QC. It can easily lure the charger to output the corresponding voltage, and can output fixed voltages of 9V/12V/15V/20V respectively. The decoder output cannot directly charge the phone. Please confirm whether the output voltage matches the charging demand voltage before charging.

Instructions:

For example, when the customer chooses a 9V output voltage, the front power supply head must comply with the PD9V or QC9V protocol; When customers choose a 20V output voltage, the front power supply head must comply with the PD20V protocol.

Note:

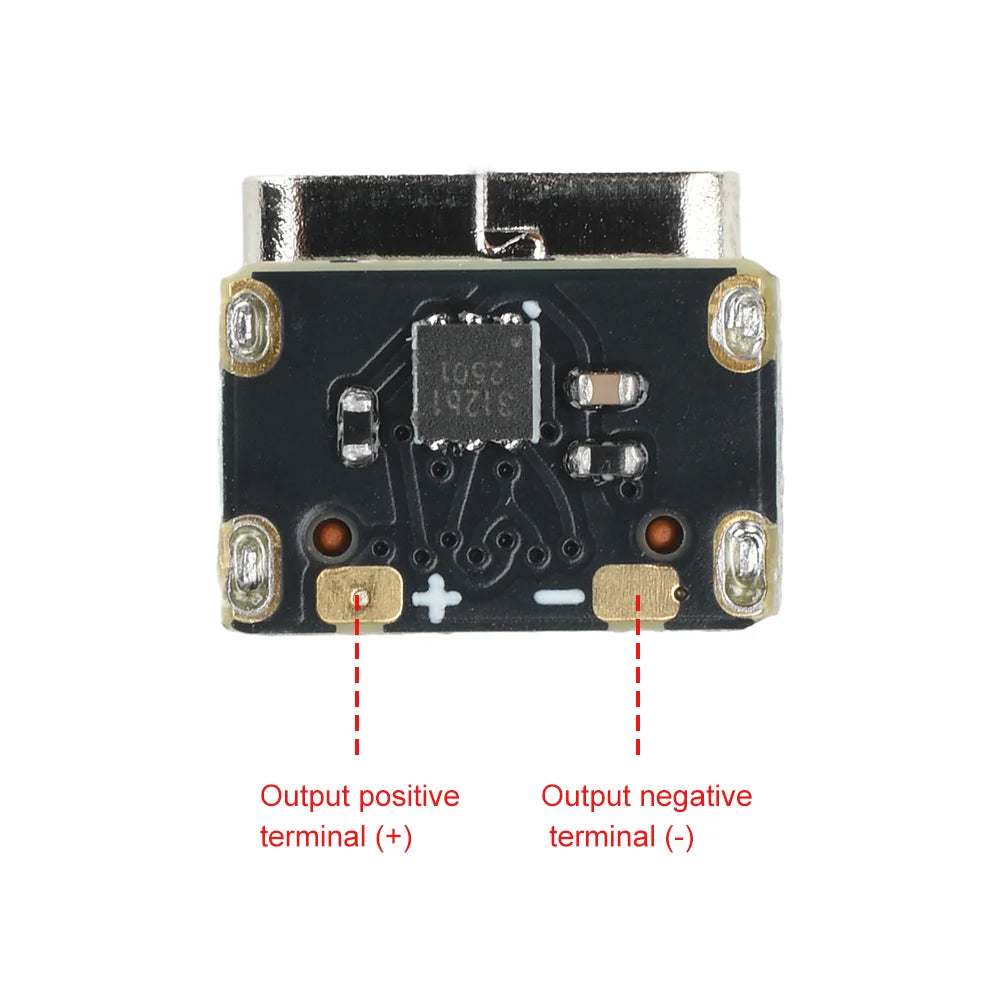

1. The module does not have a voltage boost function and requires the power supply equipment to support this voltage in order to lure out the corresponding voltage

2. Under the QC protocol, the module can only lure out a maximum voltage of 12V

Shipping List:

Module x1
