SPECIFICATIONS

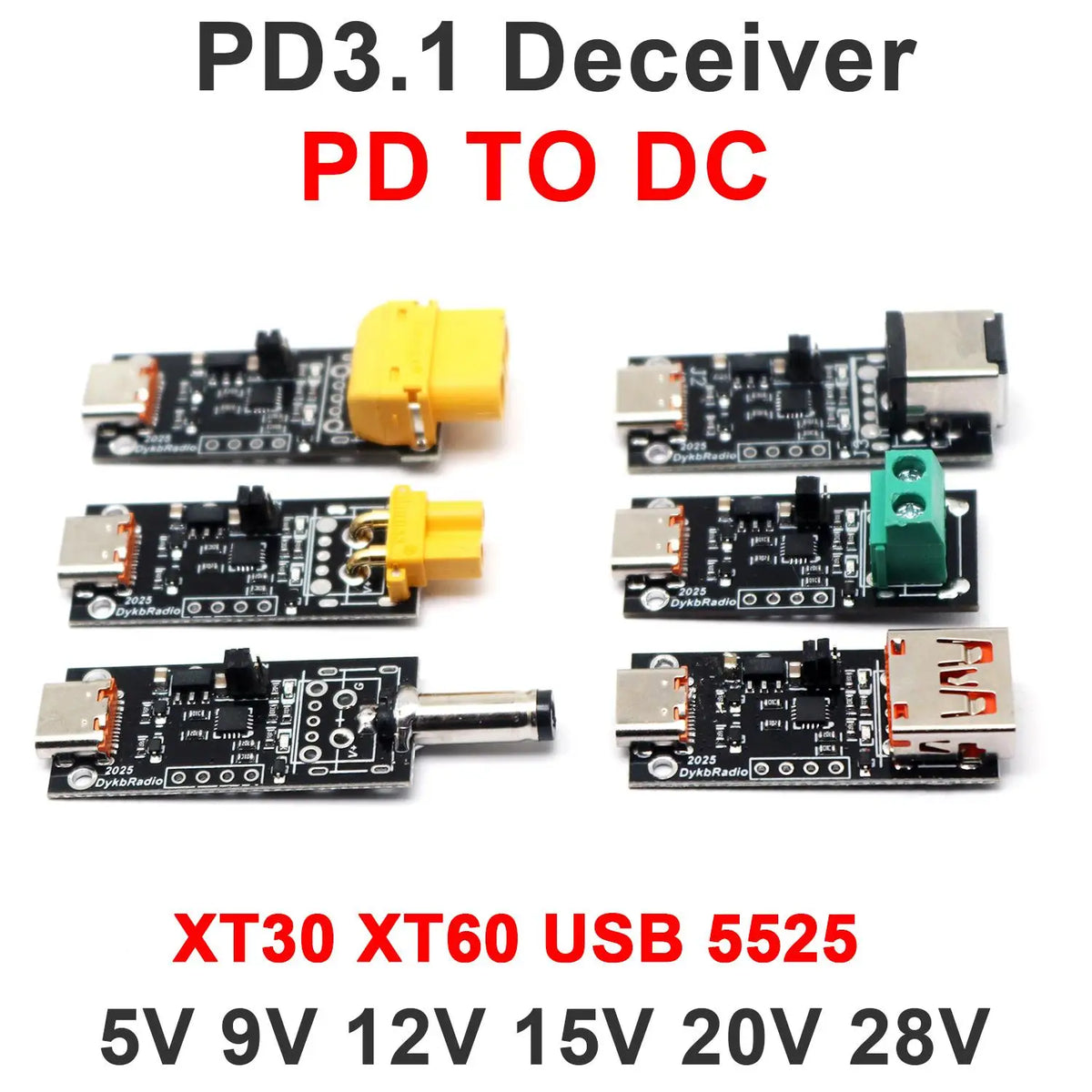

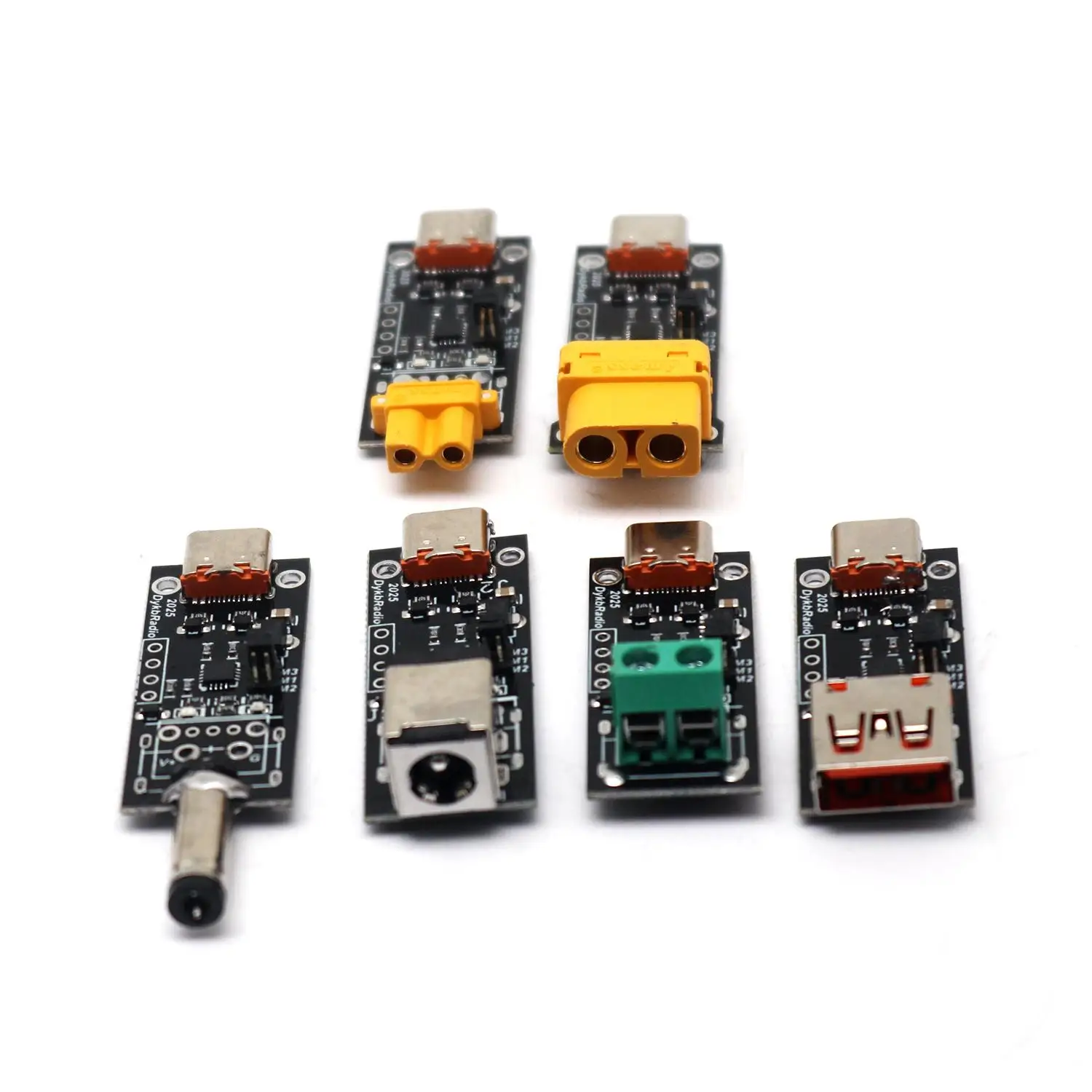

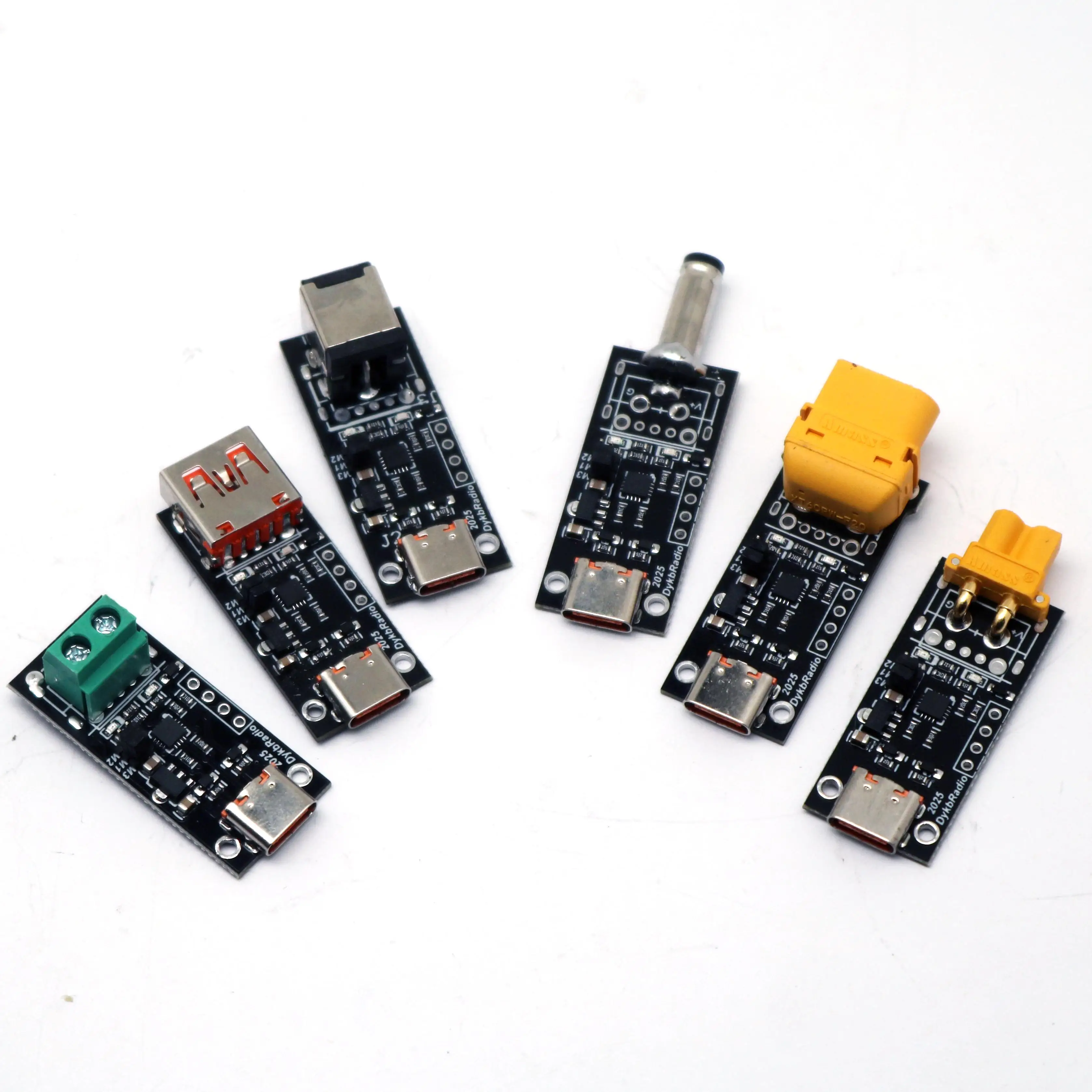

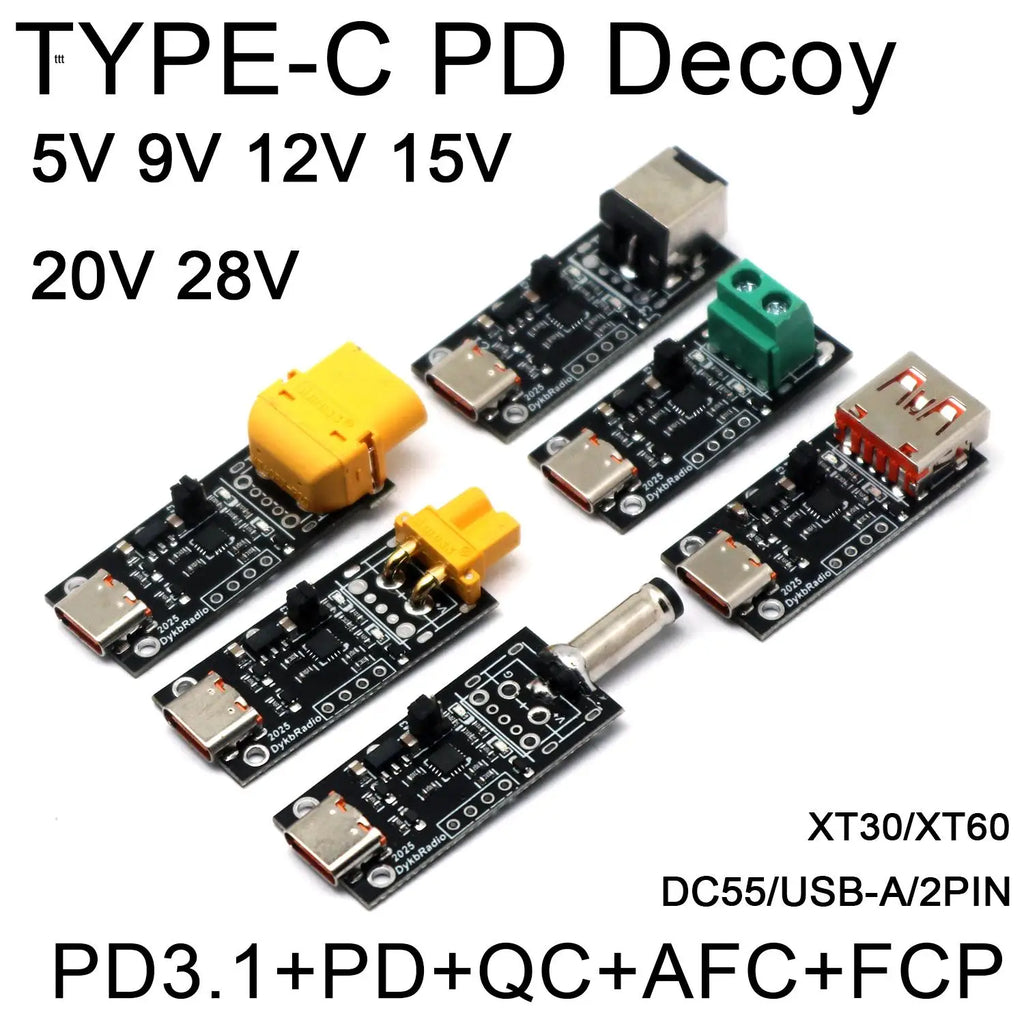

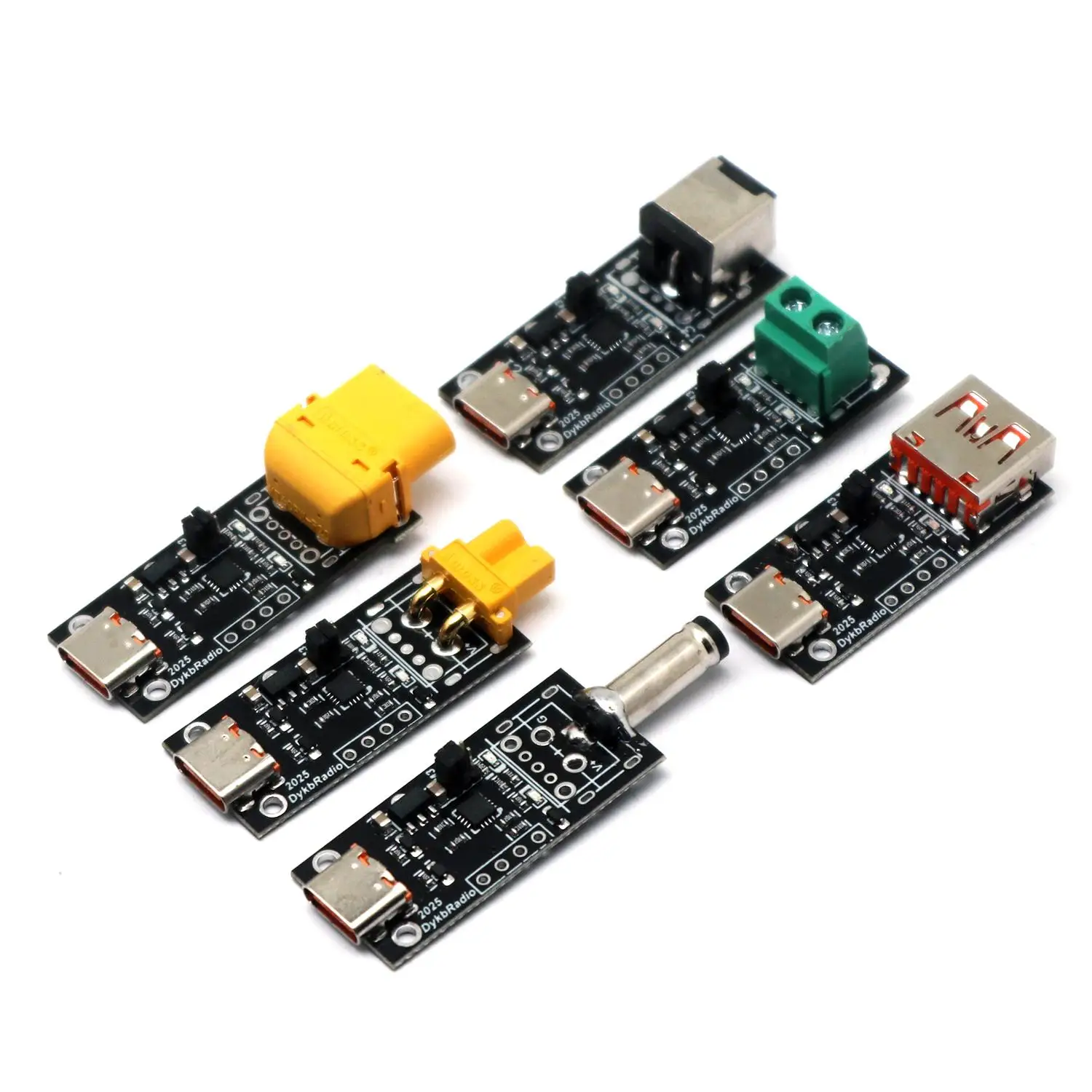

PD3.1 140W 28V 5A USB TYPE-C to DC PD Decoy Fast Charging USB Power Delivery 28V 20V 15V 12V 9V 5V Voltage Triggers Fast charger protocol XT30 XT60 DC55 USB-A 2PIN ouput

this is PD decoy, PD input, DC output, PD input, not PD output

Your charger and cable must simultaneously support Voltage and power

Description:

1. Support multiple fast charging protocols

PD3.1:5V, 9V, 12V, 15V, 20V, 28V

Support PD protocol :5V, 9V, 12V, 15V, 20V

Support QC protocol :5V, 9V, 12V, 20V

Support Samsung AFC protocol :5V, 9V

Supports FCP protocol :5V, 9V, 12V

2. Type-C interface, convenient for practical application to various devices.

3. The module outputs 28v by default. Set 5V 9V 12V 15V 20V voltages.through jumping cap

4. Easy to use, can be widely used in wireless charging, Bluetooth speakers, vehicle equipment, energy storage power, industrial testing and other applications.

Product parameters:

Size 34.7x11mm

Interface: Type-C interface

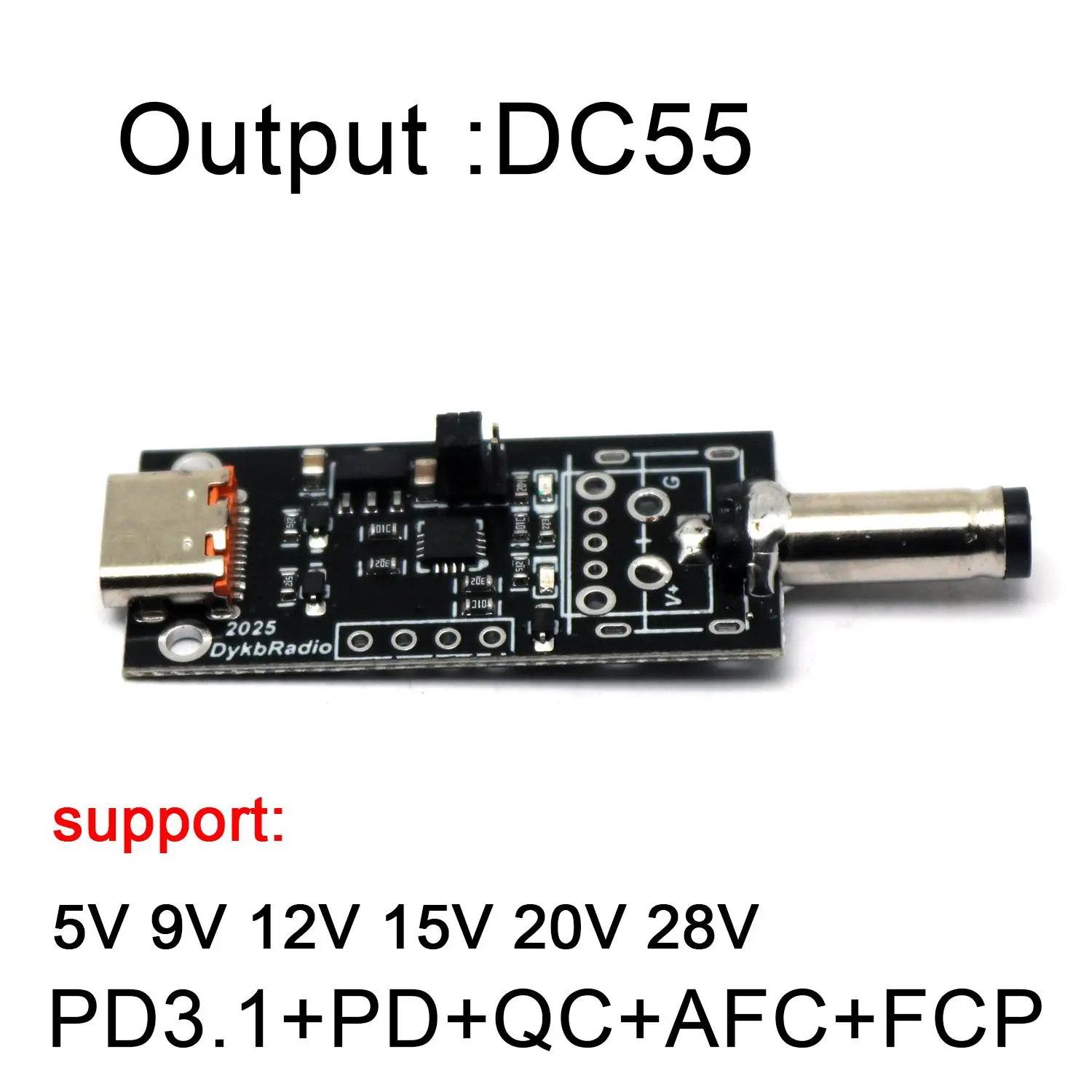

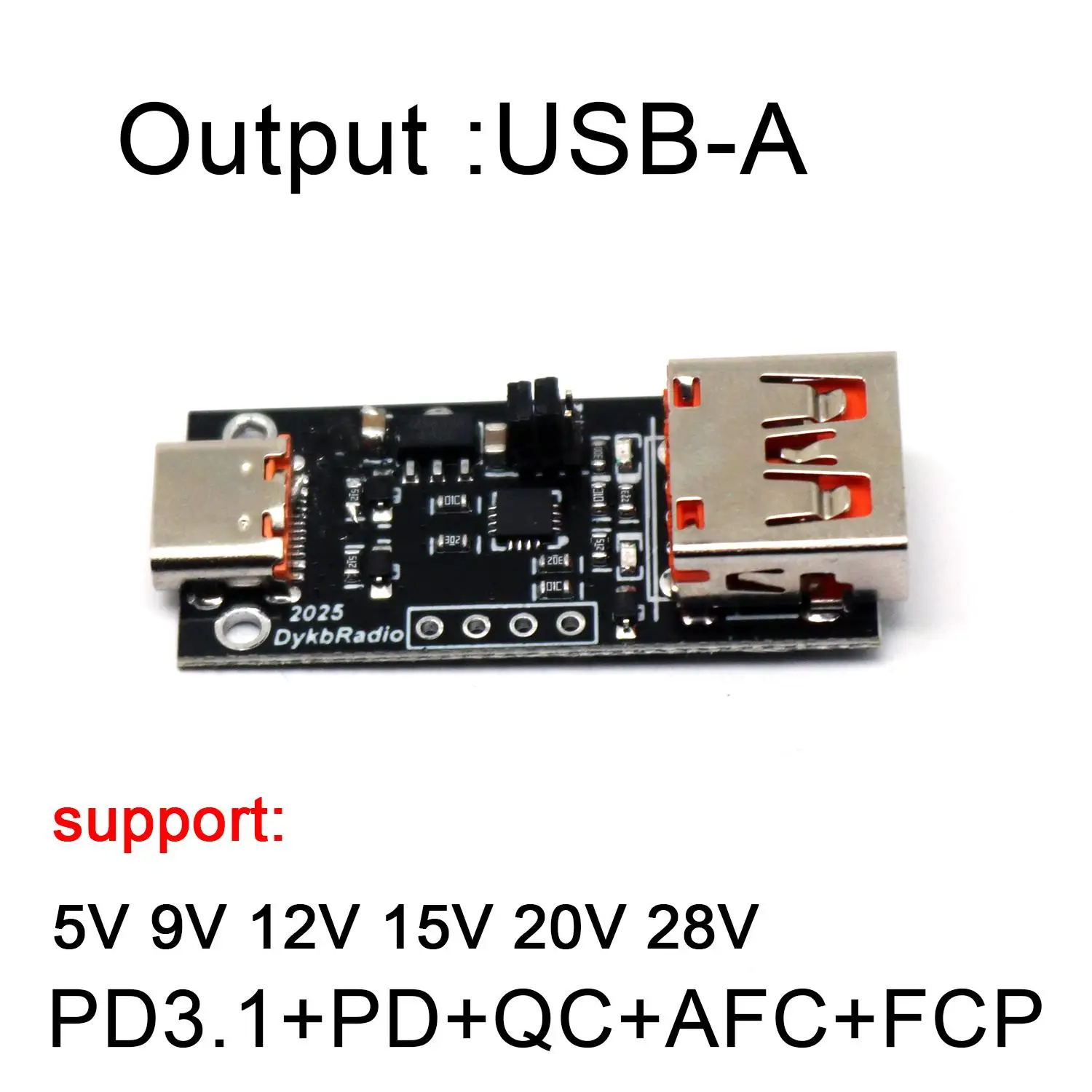

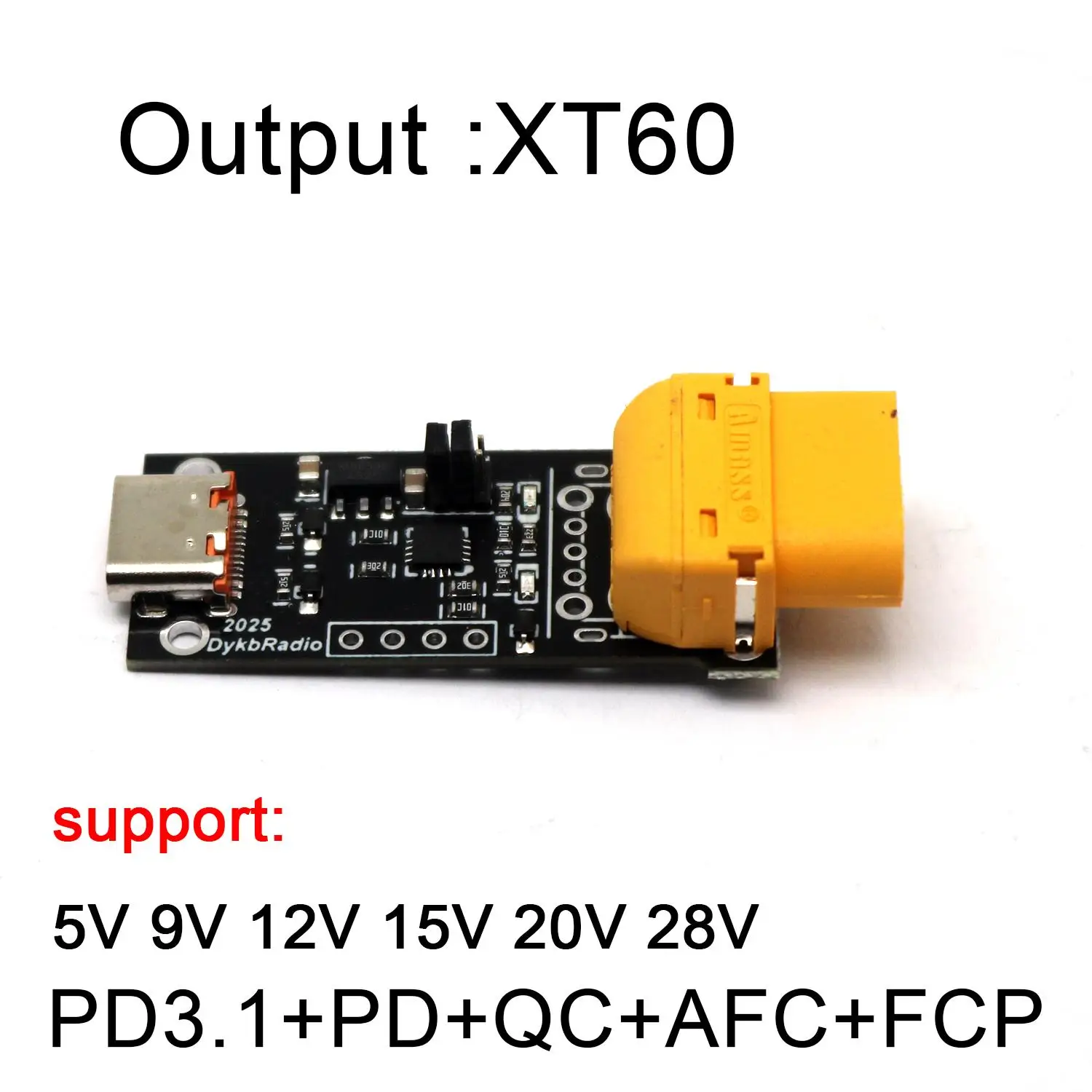

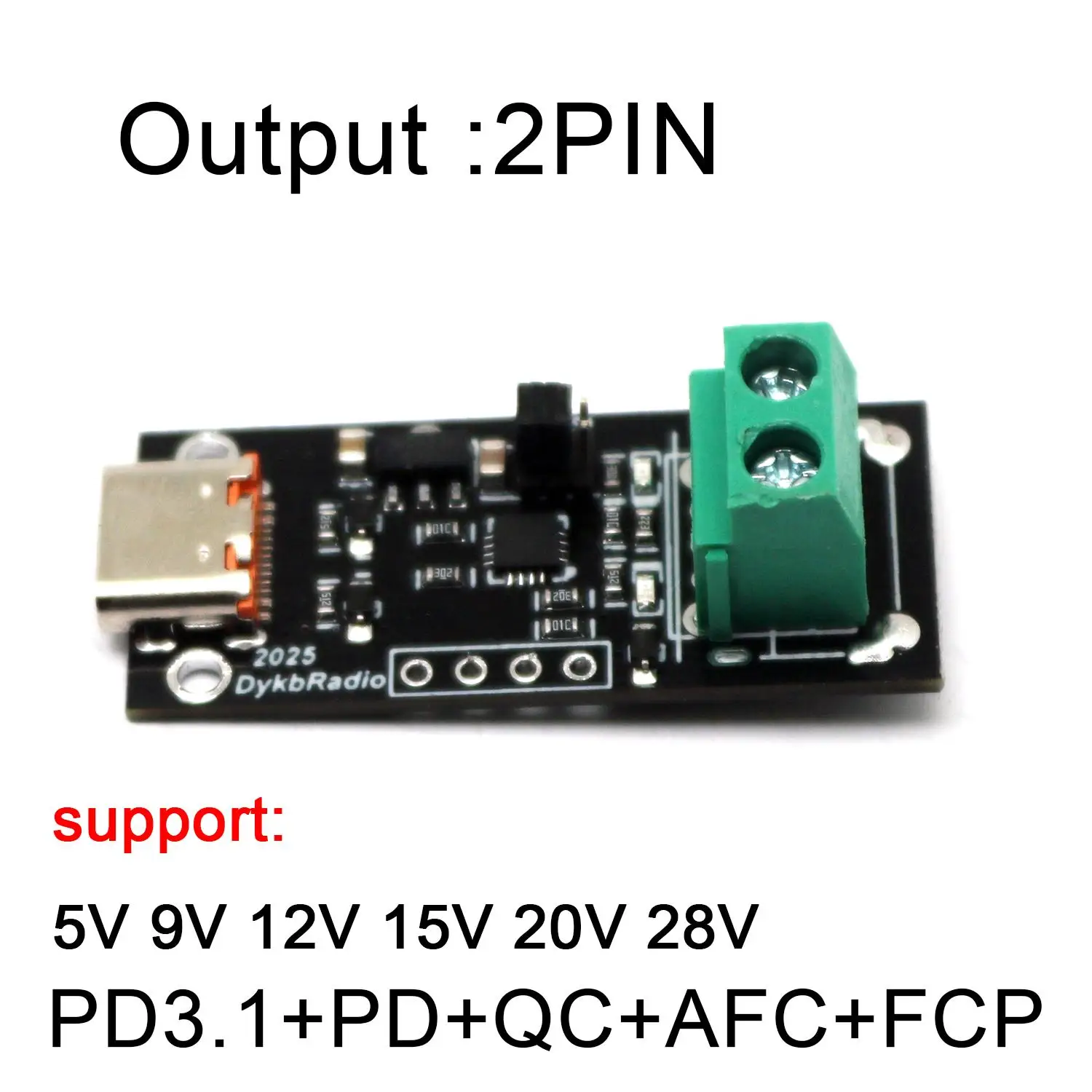

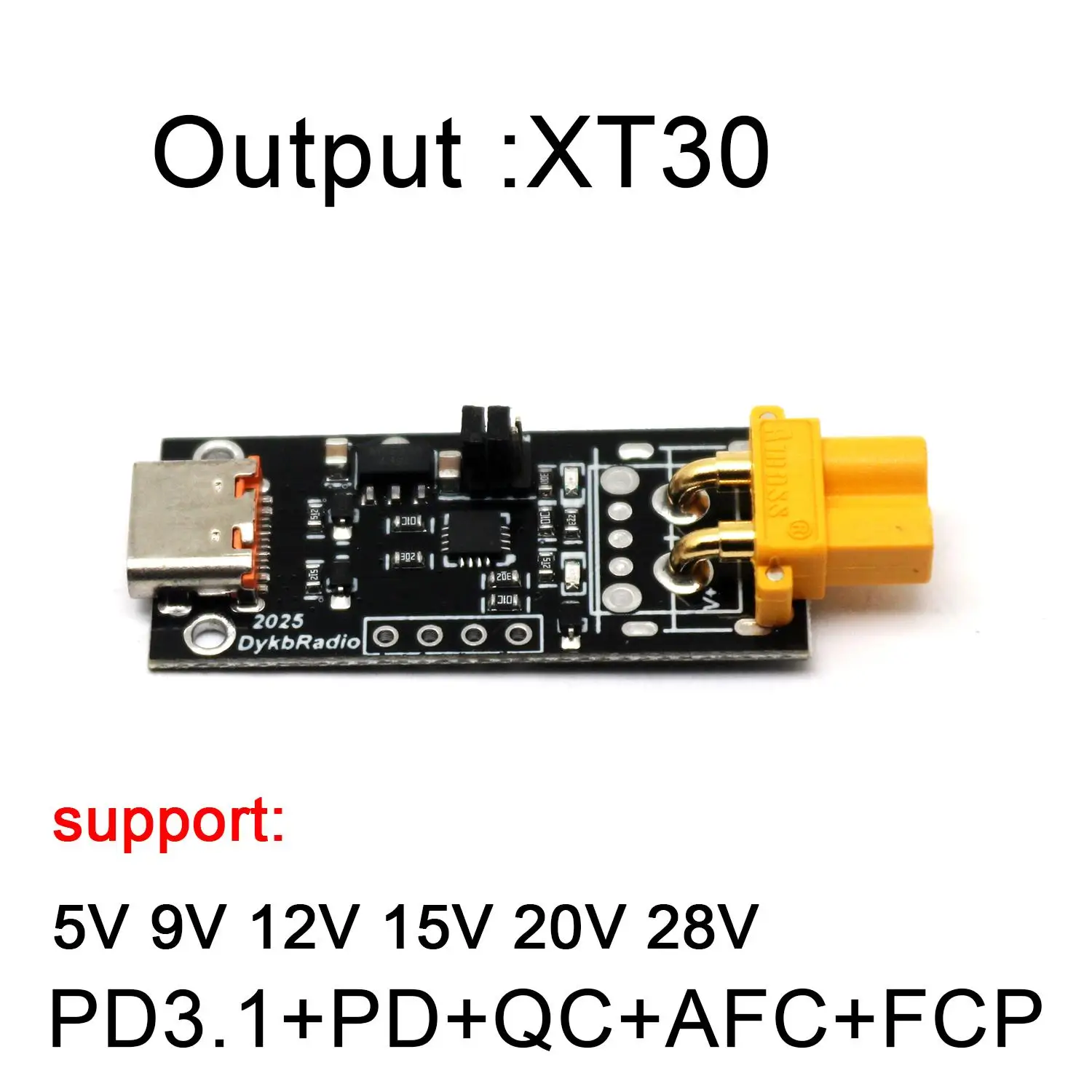

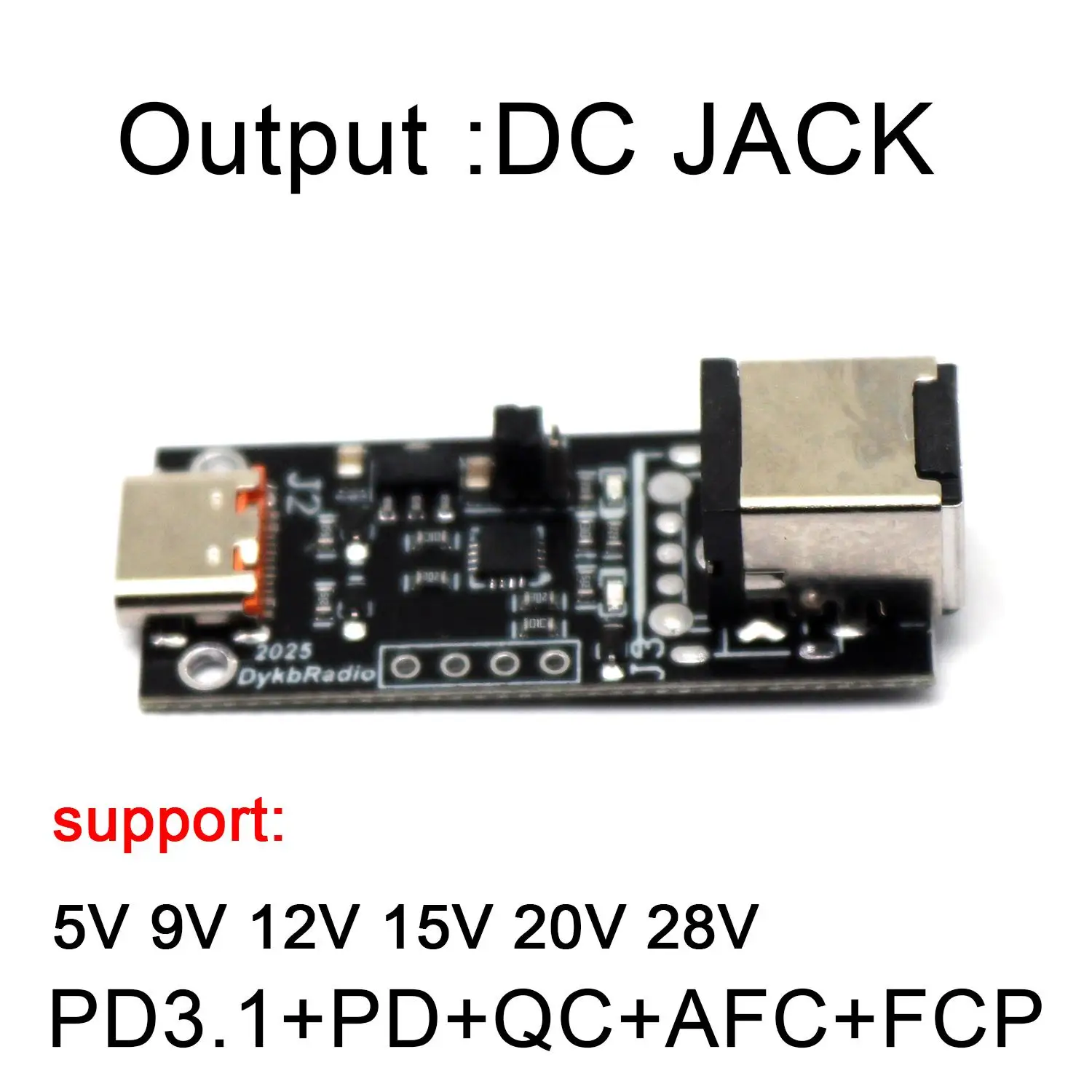

Output voltage: Default 28v XT30 XT60 DC55 USB-A 2PIN ouput Set 5V 9V 12V 15V 20V voltages.through jumping cap

Current :5A(maximum), requires front-end power supply head or charging bank has the corresponding protocol support

Supported protocols :PD2.0, PD3.0, PD3.1 QC2.0, QC3.0 QC4,QC5

Product Description:

The module outputs 28v by default. Set 5V 9V 12V 15V 20V voltages.through jumping cap can be in accordance with the protocol priority, automatically complete the handshake with the charger, and according to the preset voltage output. The output of the decoder cannot be charged directly to the mobile phone. Please confirm the matching of the output voltage and the load demand voltage before loading.

For example, when the customer chooses a 9V output decoy, the front power supply head needs to match the PD9V or QC9V protocol; When the customer chooses a decoy with a 20V output, the front power supply head needs to have a protocol matching PD9V or QC20V.
