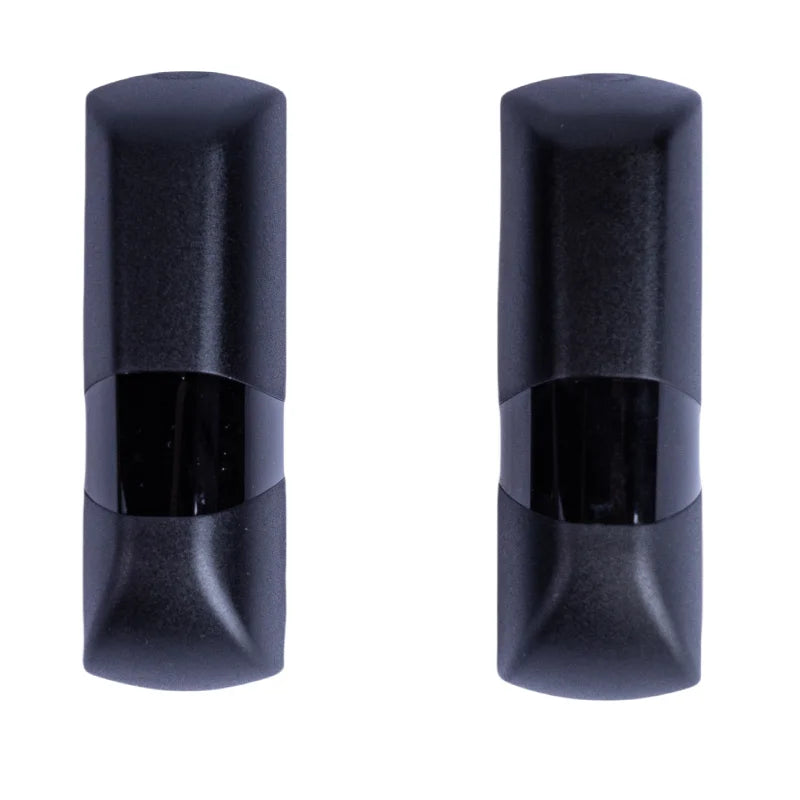

Photocell 12-24V AC/DC or 2*1.5V Dry Battery & Rotation System for Automatic Control System

Photocell 12-24V AC/DC or 2*1.5V Dry Battery & Rotation System for Automatic Control System

$35.96

$35.96 $0.00

Description

SPECIFICATIONS

Angle of incidence: < ±10°

Brand Name: NONE

Certification: CE,RoHS

Channel: 2

Color: Black

Distance: 10-15m

Form-factor: Cover

Frequency: 433 MHz

High-concerned chemical: none

Infrared emission frequency: 1.92Khz

Input Current: RX 15mA-TX 30 mA

Maximum load: 1A max 30V

Model Number: IS01

Origin: Mainland China

Package: Yes

Receiver parameter range: ≤20m When the weather is bad, such as heavy rain or fog, the distance will be reduced by 30%

Support APP: No

Technology: Active infrared radiation

Use: Universal

Use environment: -20°C ~ 70°C

Wavelength: 940nm

Wireless Communication: RF

sensitivity: ≥-112dBm

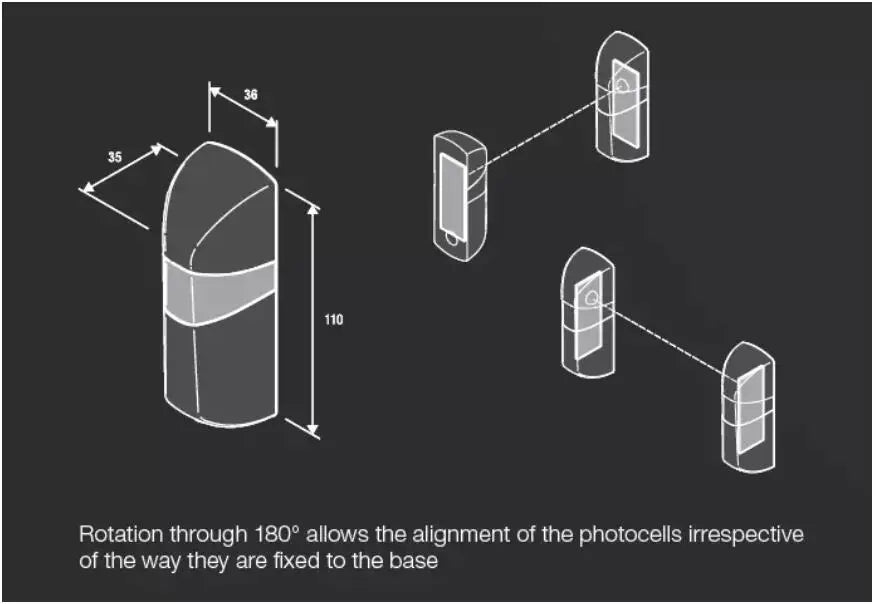

size: 108X35X30MM

working voltage: 12-24v AC/DC

Photocell 12-24V AC/DC or 2*1.5V Dry Battery & Rotation System for Automatic Control System

Specification:
1.Indoor 15m, Outdoor 10m
2.12-24 VDC/AC
3.waterproof

4.Anti-sunlight

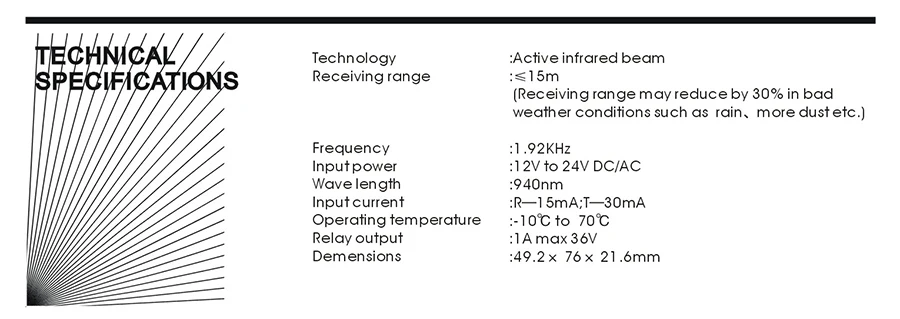

Features:

Infrared Frequancy : 1.92khz

Power supply : 12 to 24 VDC /AC

Wave length :940nm

Input : r*15ma - t*30ma

operating temperature : -20 degrees to 180degrees

Relay output : 1 a max *36 v

Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc

Description:

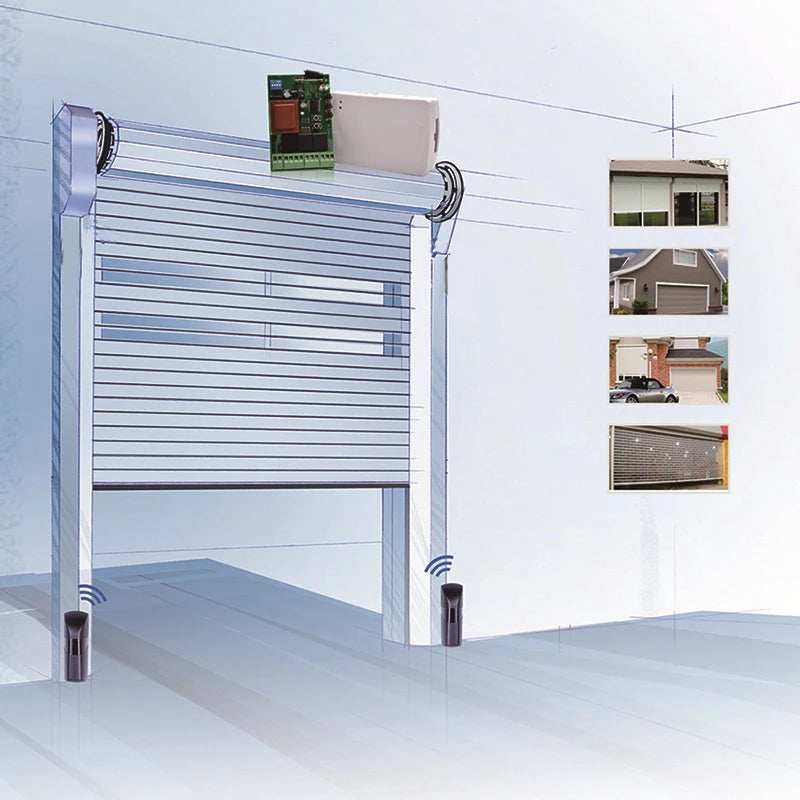

Single beam photocell sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.

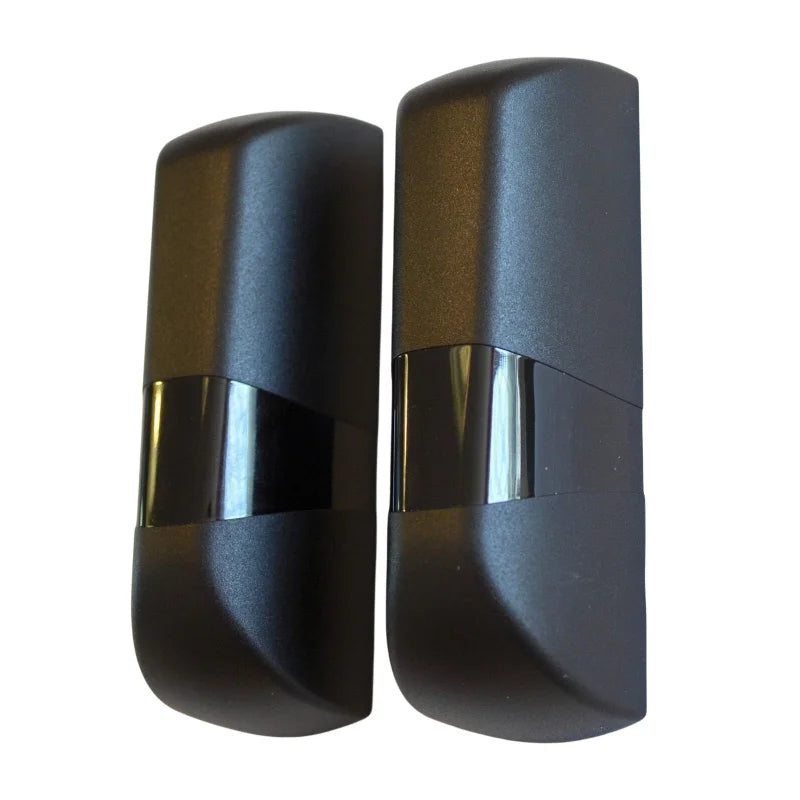

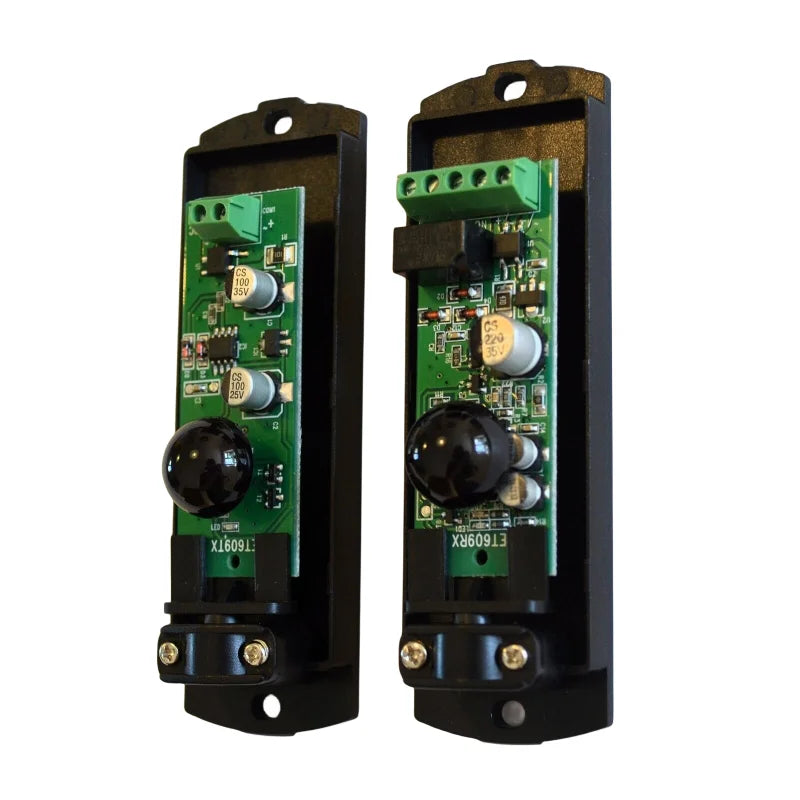

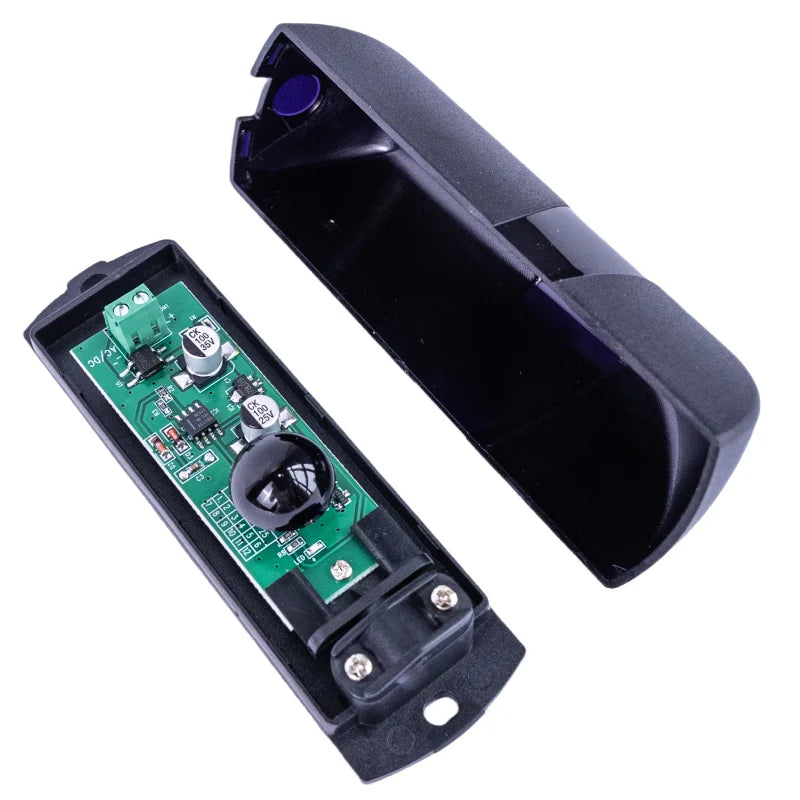

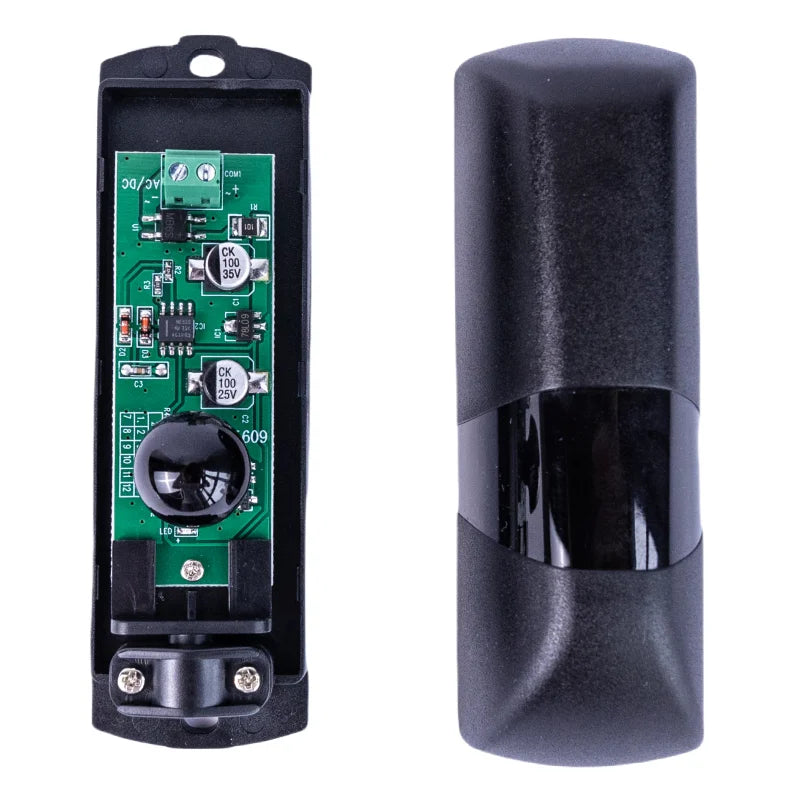

Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.

Narrow infrared beam (I or II) can avoid interruption by external light.

Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).

The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid
