Photoelectric Incremental Rotary Encoder 38S6G5-B-G24N 50/100/200/360/400/500/600PPR AB 2 Phase DC8-24V NPN PNP Optical Encoder
Photoelectric Incremental Rotary Encoder 38S6G5-B-G24N 50/100/200/360/400/500/600PPR AB 2 Phase DC8-24V NPN PNP Optical Encoder
$94.64
$94.64 $0.00
Color
Size
Description

SPECIFICATIONS

Brand Name: cloweit

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Rotary Incremental Encoder

High-concerned chemical: none

Impact resistance: 1000m/s².6ms

Is Smart Device: no

Item Type: SWITCHES

Line length: 2m

Material: Stainless Steel

Model Number: YT06-0P

Origin: Mainland China

Protection class: IP50

Relative temperature: ≤RH85% No frost

Starting torque: ≤2x10-3N.m

Switch Type: Knob switch

Warranty: 1 year

semi_Choice: yes

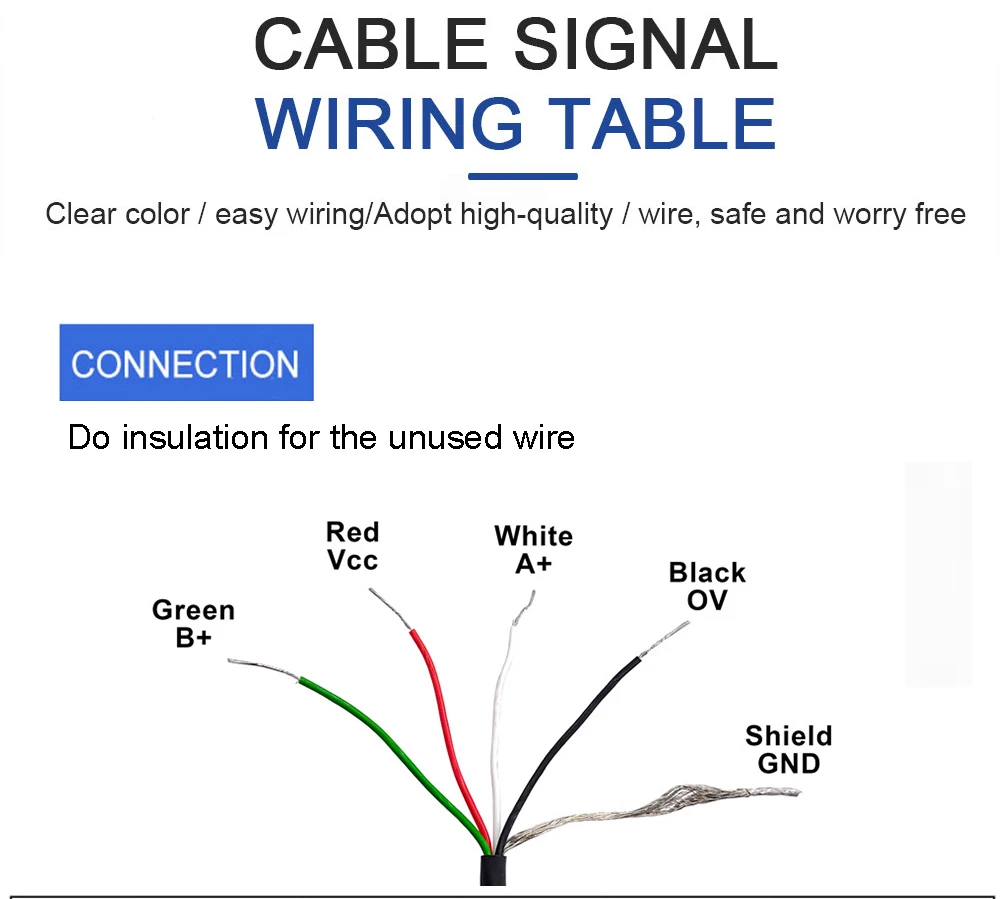

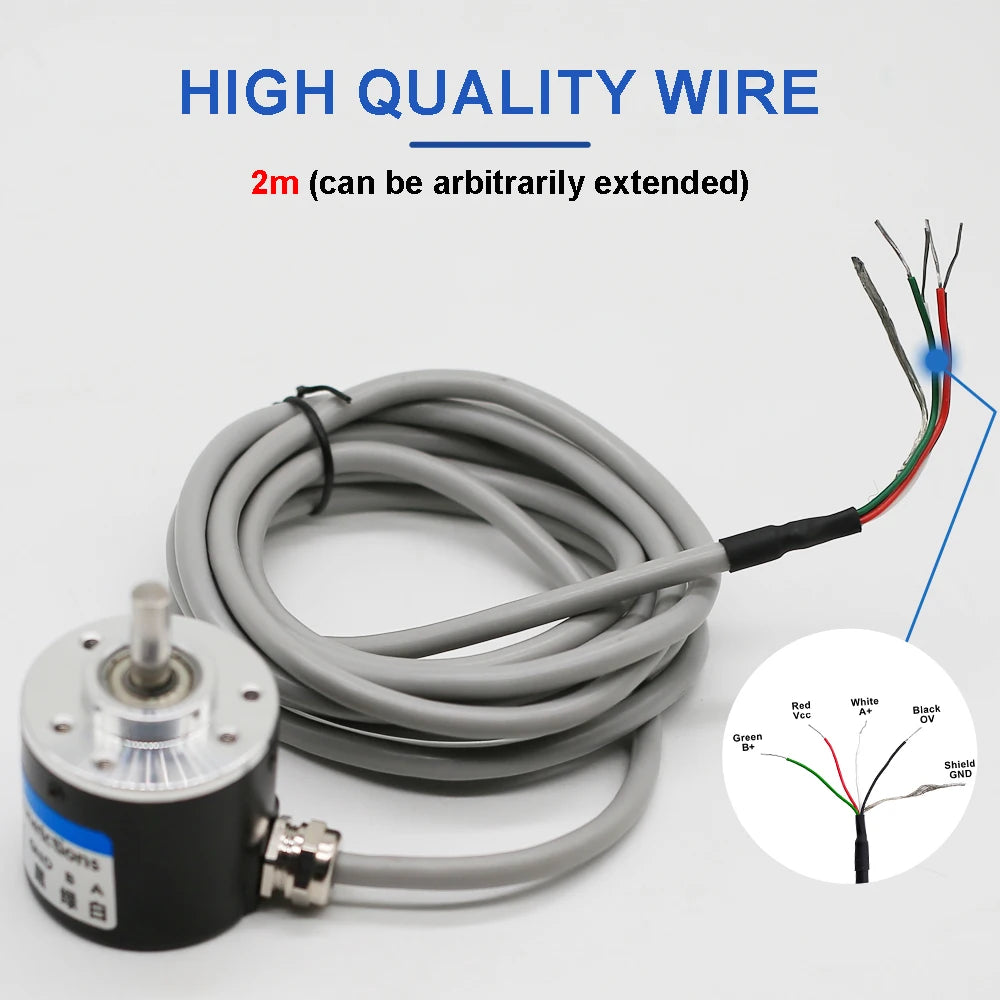

Wiring Instructions






Signal

A

B

+VVC

OV

GNC

Wire color

White

Green

Red

Black

shielded

(Note: The signal is connected according to the wire color shown in the above table, the actual wiring is subject to the label ofeach encoder, and the standard length of the output cable is 1.5 meters)




Reminder:

1.As the wiring standards of each factory are different, please strictly follow the wiring diagram

2.If you are not a professional, please do not connect the wires randomly If you have any questions, please contact our customer service

3.The outer core (shield) of the shielded wire shall not be linked with the inside and the shell

YT

38

6

O

P

/

PULSE

2

M

□

□

①

②

③

④

⑤


⑥

⑦

⑧

⑨

⑩

①Model: (Z: incremental S: solid shaft C: Magnetic type)

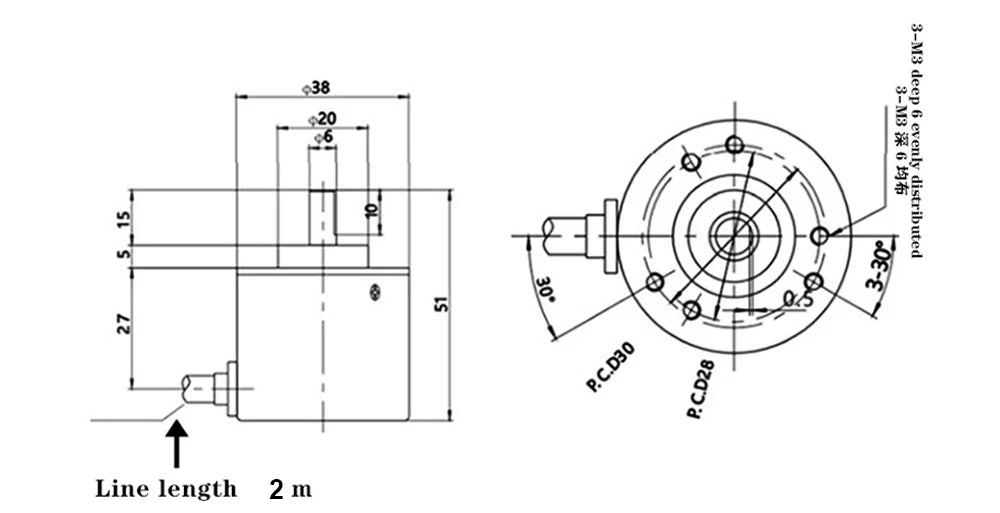

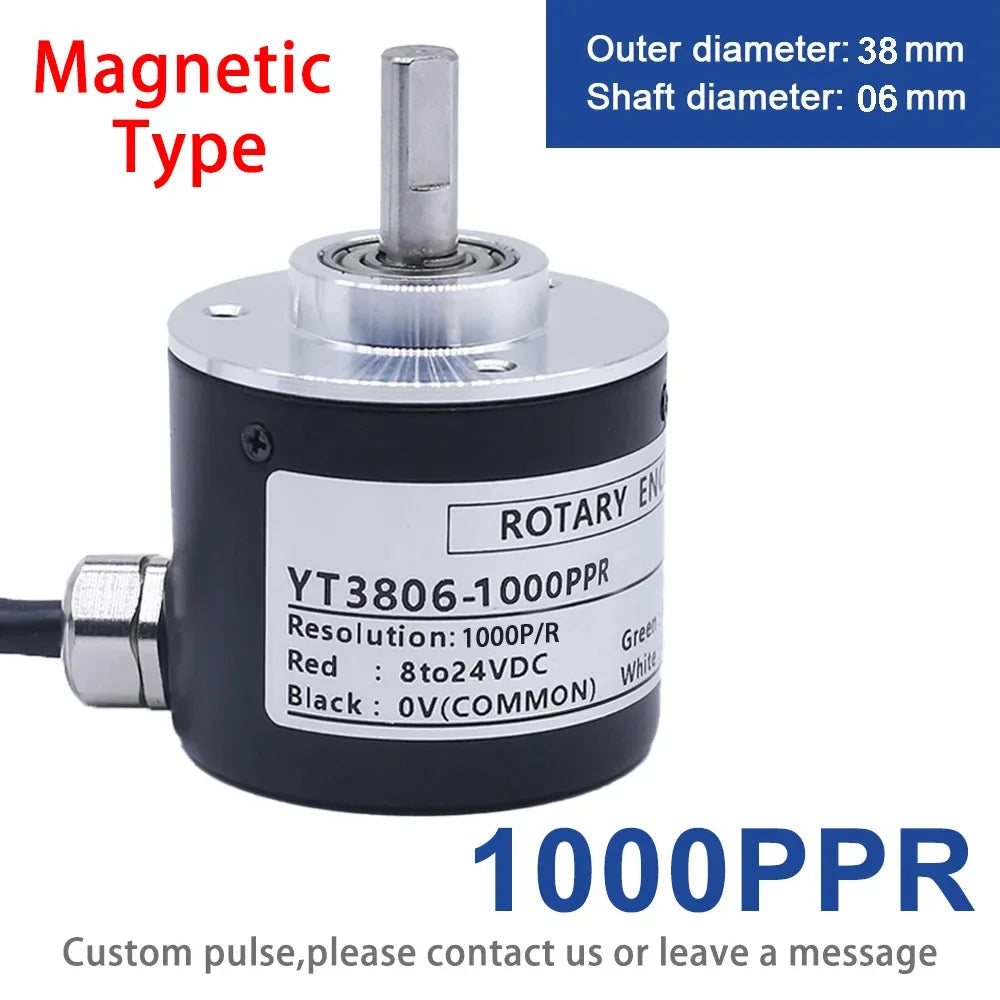

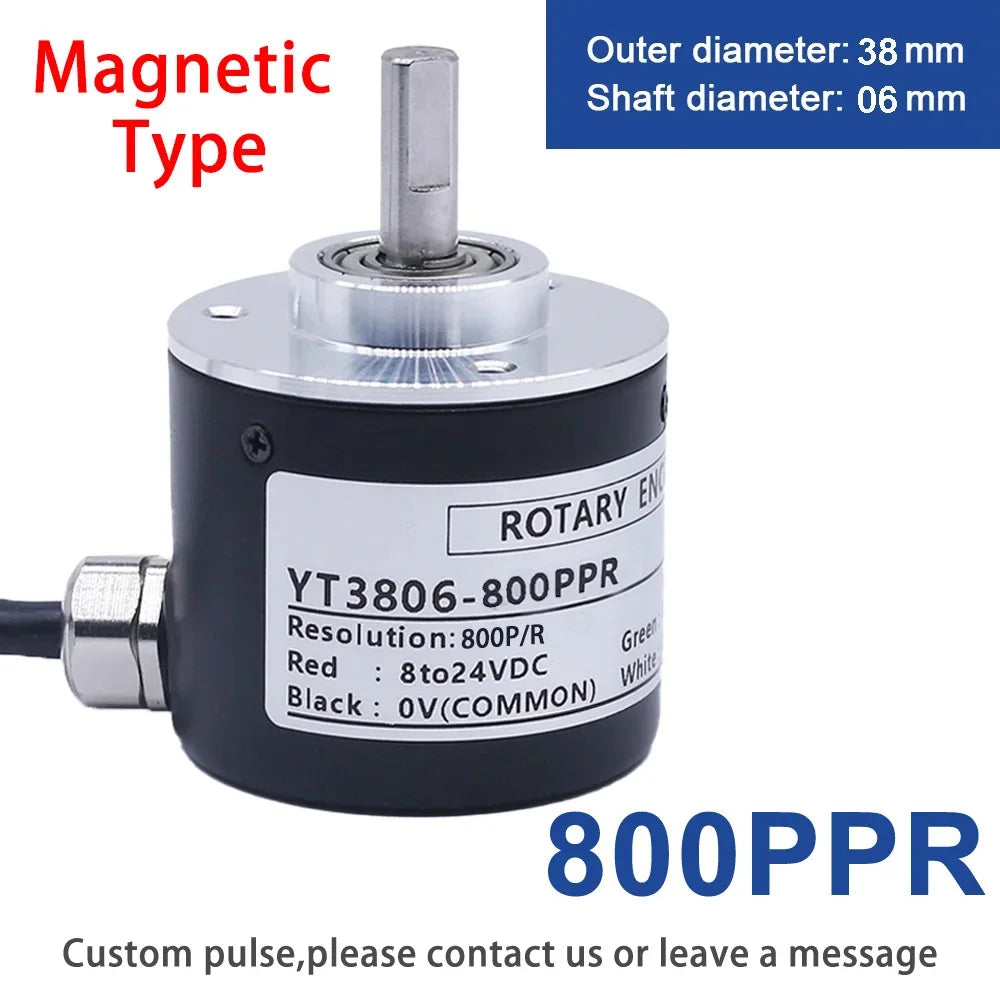

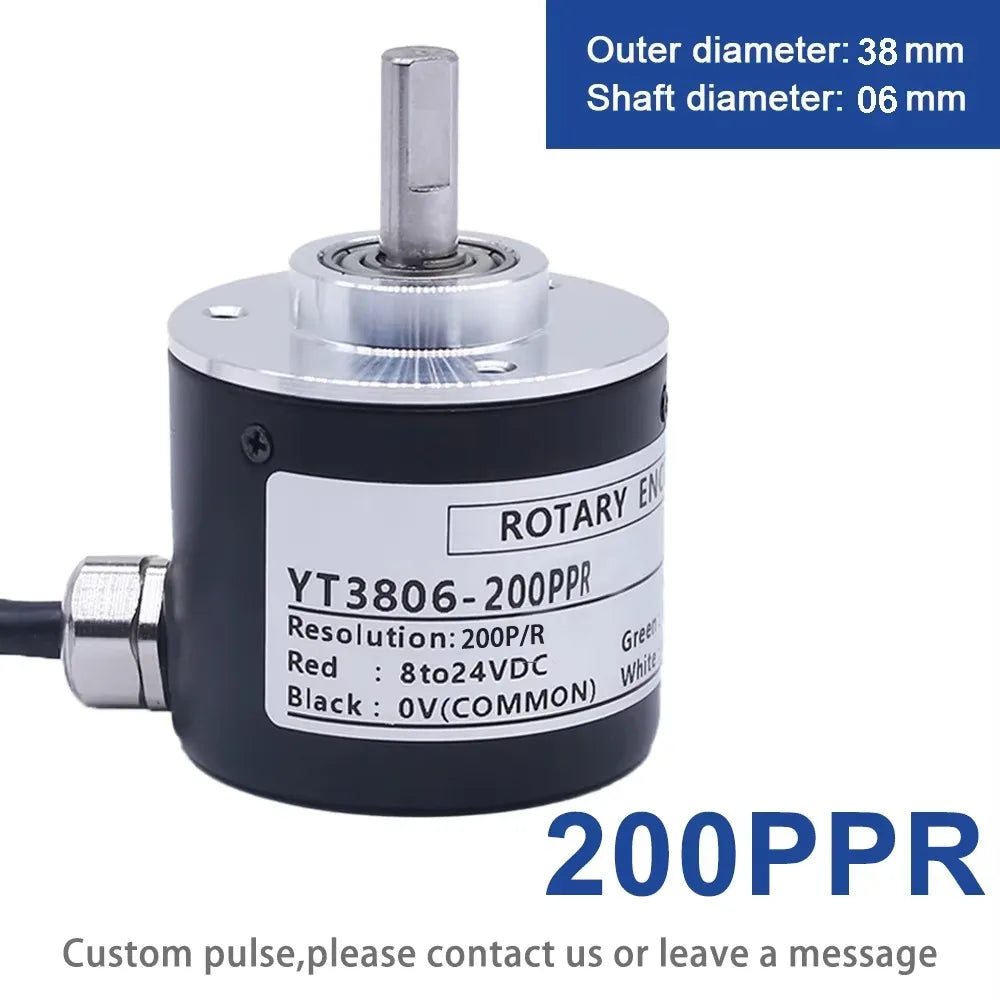

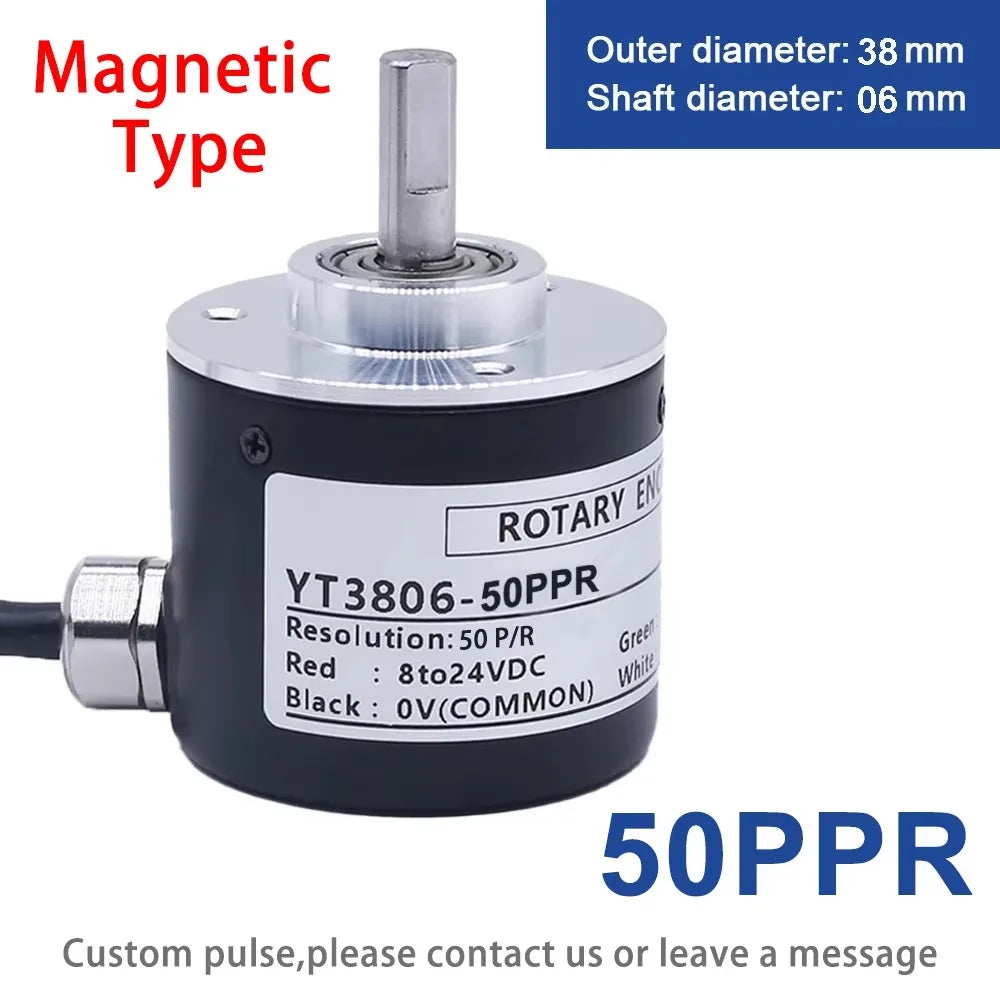

②Outer diameter: 38mm

③Shaft diameter: 06mm

④Outgoing mode: ( E: Cable rear outgoing)

⑤Model output mode:

(C: open collector output E: voltage output )

⑥Pulse number: 50,100,200,360,400,500,600,800,1000

(special specifications can be customized)

⑦Working phase number:Z: ABZ three phase

⑧Working voltage:8-24V

⑨Positive and negative zero position: (blank: positive zero position F: negative zero position)

⑩Cable length: Standard 2m (other sizes can be customized)

Electrical parameters

Mechanical parameters

Number of pulses

Maximum 1000P/R

Starting force cabinet

≤2x10-³N.m

Current consumption

≤150MA
≤60MA
≤150MA

Allowable load of shaft

Axial 9.8N, radial 9.8N

Response frequency

50~150KHZ

Moment of inertia

20g/cm²

Working temperature

-10℃~+70℃

Maximum revolutions

5000r/min

Storage temperature

-20℃~+80℃

Protection level

IP50

Relative temperature

≤RH85% No frost

Anti vibration

1000m/S.10~200Hz

Signal high

≥2.5V

Weight

160g

≥VCC*70%
