Description

SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Model Number: PHR-3

Origin: Mainland China

Type: Custom Cable

1.  Materials:

Housing: PHR-3, 3P

TERMINAL: SPH-002T-P0.5S

HOOK WIRE: UL3266, 24AWG, 125c, 300V

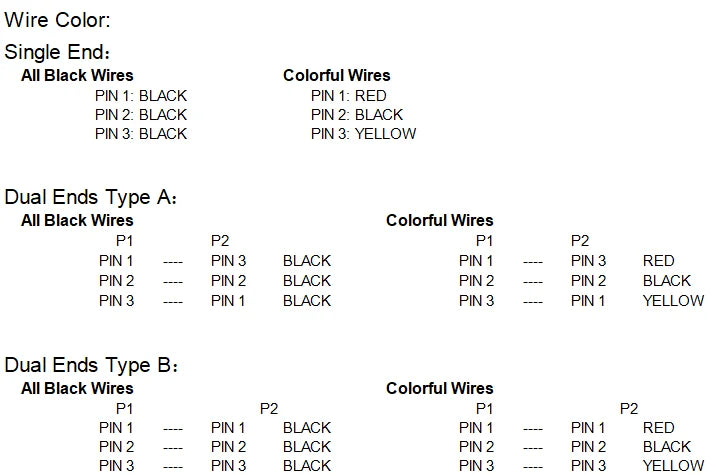

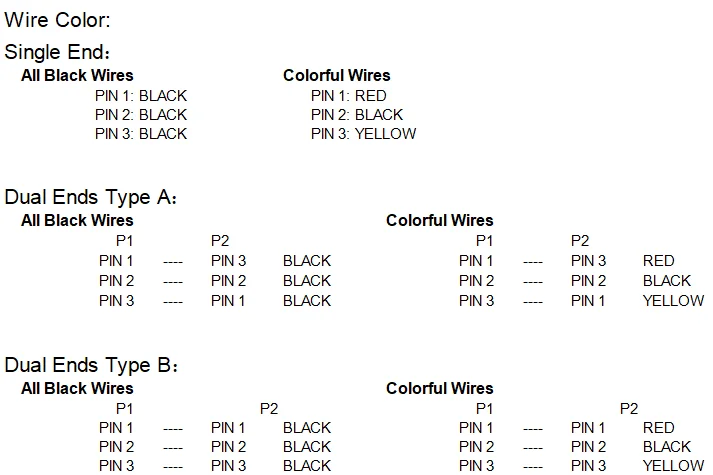

2. Wiring Scheme and Color：

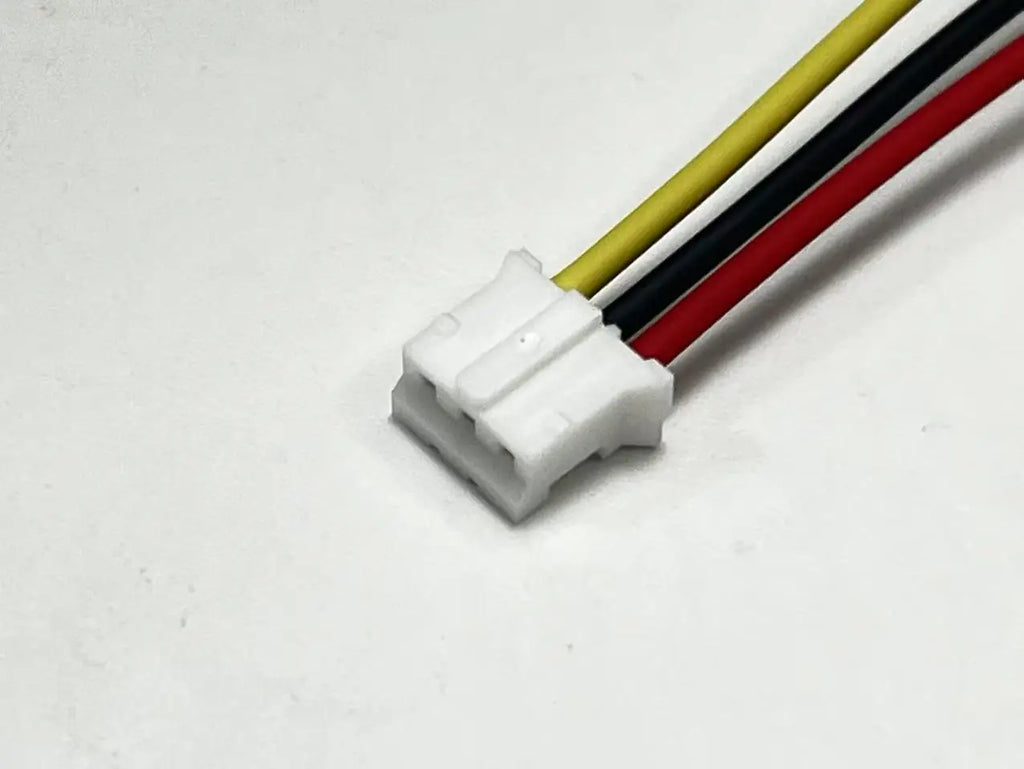

TYPE CSE:

Housing:  PHR-N

Color Option:  Colorful Wires

Termination:  Single End

Conbeone P/N:  CB030507


TYPE CDA:

Housing:  PHR-N

Color Option:  Colorful Wires

Termination:  Dual Ends Type A

Conbeone P/N:  CB030508


TYPE CDB:

Housing:  PHR-N

Color Option:  Colorful Wires

Termination:  Dual Ends Type B

Conbeone P/N:  CB030509

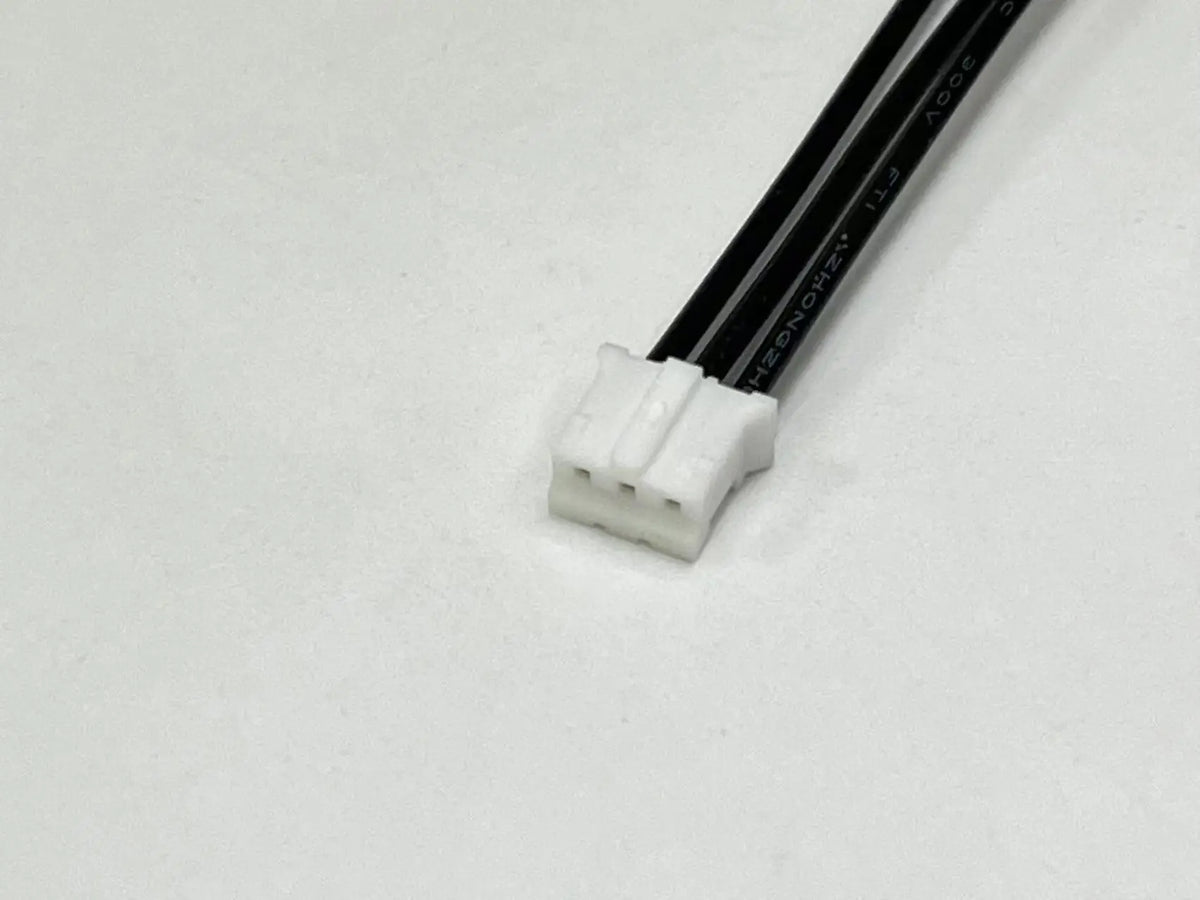

TYPE BSE:

Housing:  PHR-N

Color Option:  All Black Wires

Termination:  Single End

Conbeone P/N:  CB030001

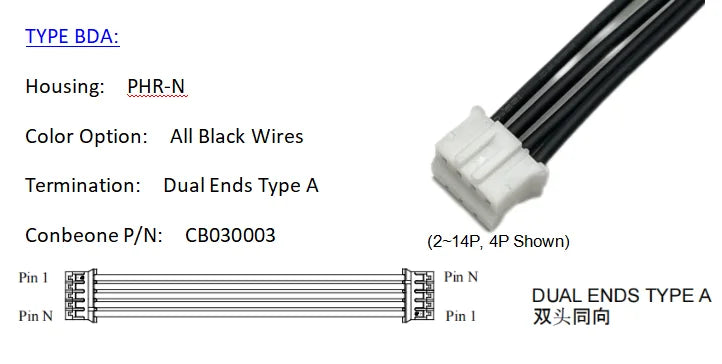

TYPE BDA:

Housing:  PHR-N

Color Option:  All Black Wires

Termination:  Dual Ends Type A

Conbeone P/N:  CB030003


TYPE BDB:

Housing:  PHR-N

Color Option:  All Black Wires

Termination:  Dual Ends Type B

Conbeone P/N:  CB030002

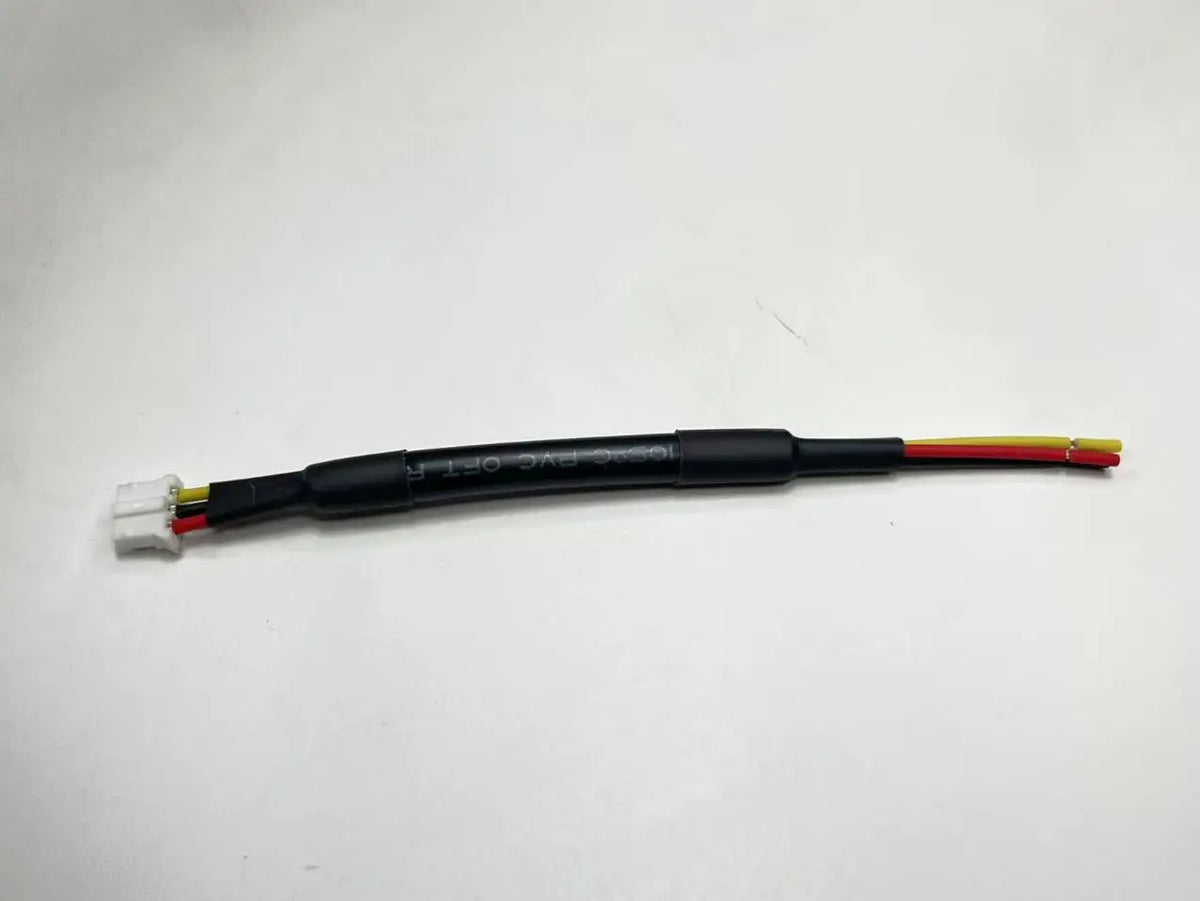

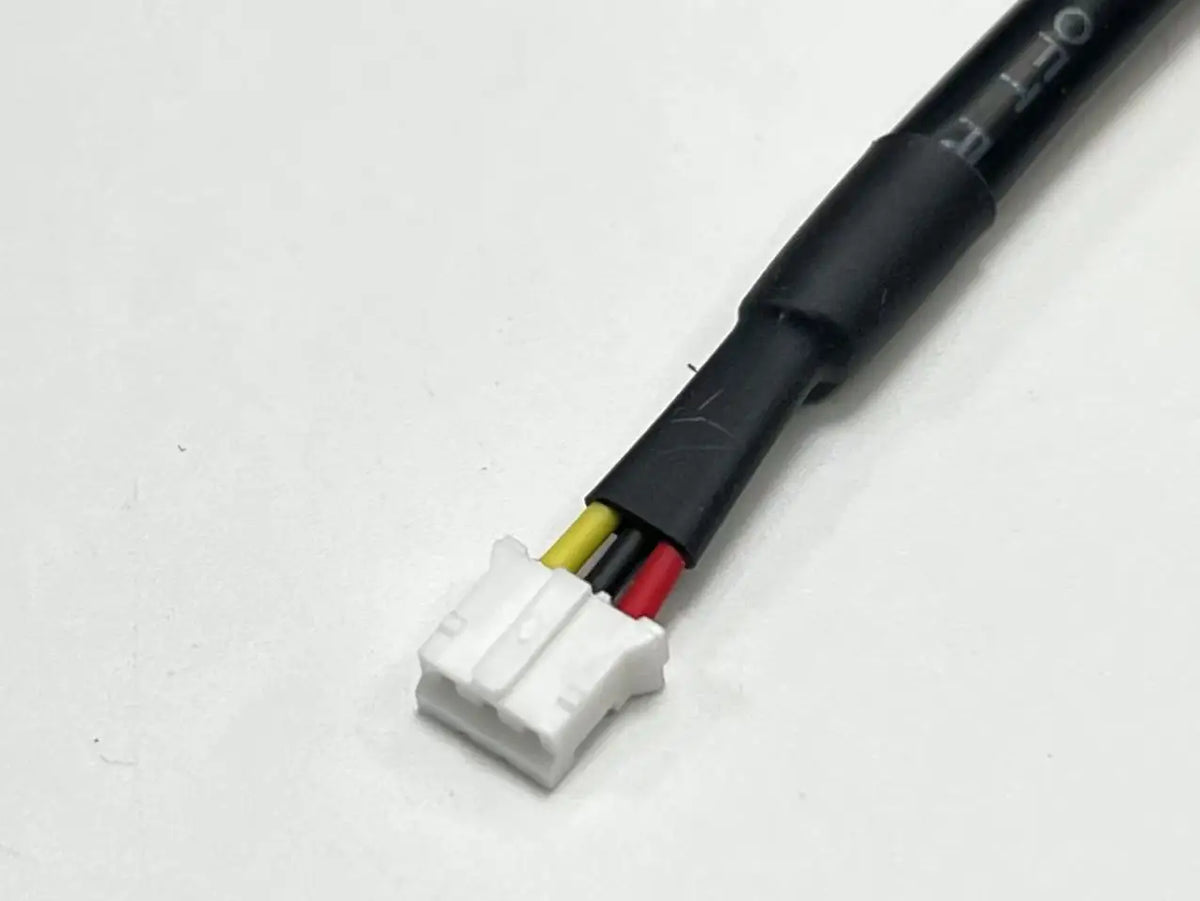

TYPE CSEP:

Housing:  PHR-N

Color Option:  Colorful Wires

Termination:  Single End

Remark:  Covered with PVC Tube

Conbeone P/N:  CB030528


TYPE CDAP:

Housing:  PHR-N

Color Option:  Colorful Wires

Termination:  Dual Ends Type A

Remark:  Covered with PVC Tube

Conbeone P/N:  CB030529

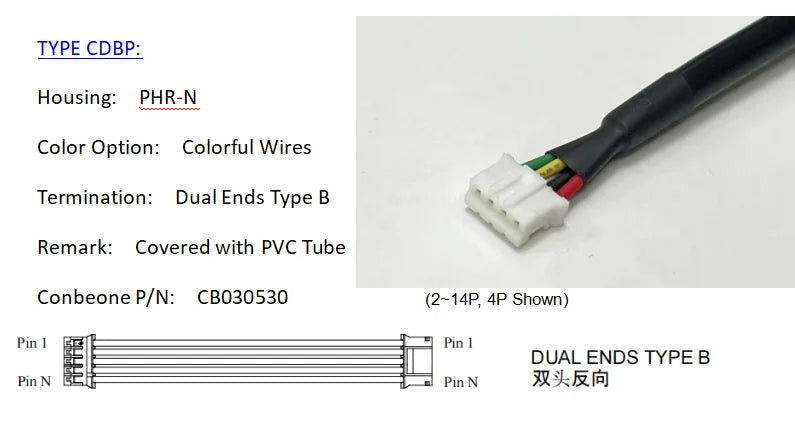

TYPE CDBP:

Housing:  PHR-N

Color Option:  Colorful Wires

Termination:  Dual Ends Type B

Remark:  Covered with PVC Tube

Conbeone P/N:  CB030530


3. Package:

10Pieces Per Bag


4. More Information：

If you have any question or want to customize cable assembly.

Please contact our sales engineer:

Email: Roy.Wang@conbeone.com

(CAD Drawing available on our website )
