SPECIFICATIONS

Project site:https://github.com/xjtuecho/PI035https://github.com/xjtuecho/PI0049

Domestic mirror:https://gitee.com/xjtuecho/PI035https://gitee.com/xjtuecho/PI0049

User manual, schematic diagram, clone the entire warehouse directly.

Shipping list: Single development board, not including housing and other accessories, default price does not include technical support fees.

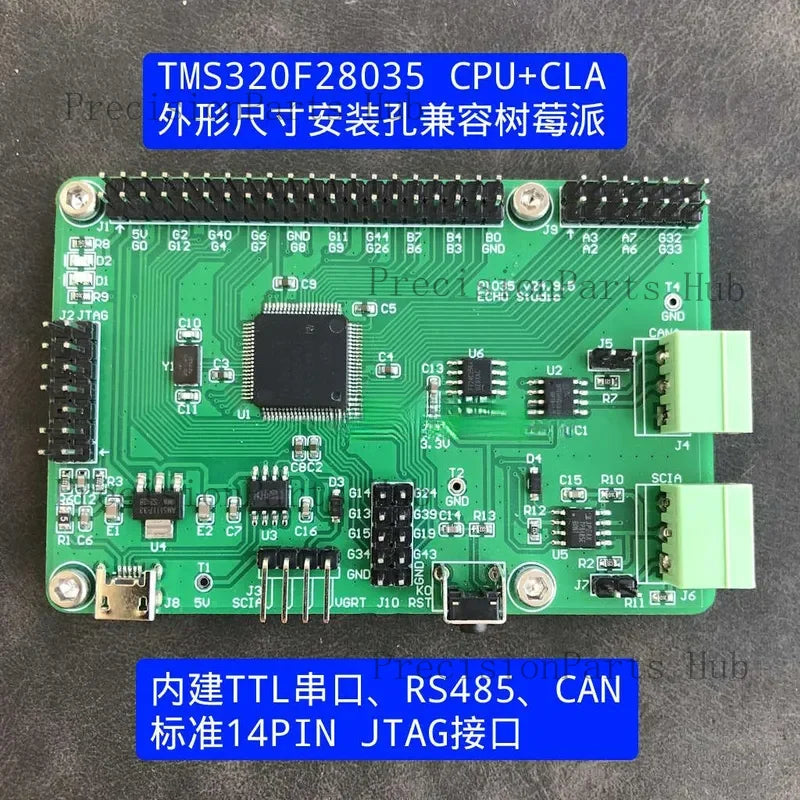

PI035 is a DSP core board, the main controller adopts TI Piccolo series TMS320F28035PNT, LQFP-80 package, leading to all IO.The PI035 form factor is fully compatible with the Raspberry PI, allowing direct use of resources such as the Raspberry PI shell and expansion board, and has a 40PIN GPIO interface compatible with the Raspberry PI.

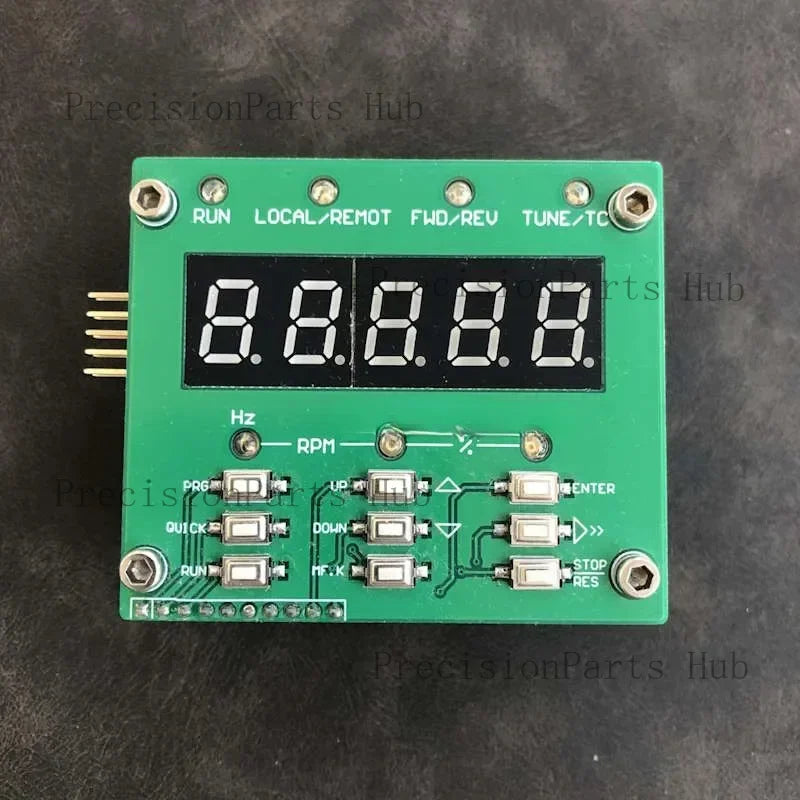

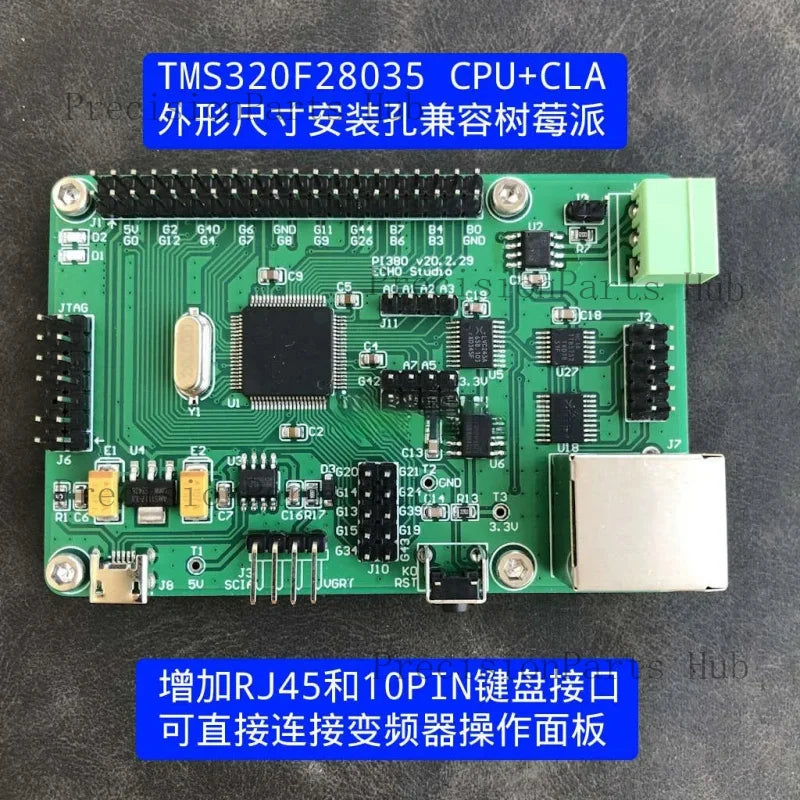

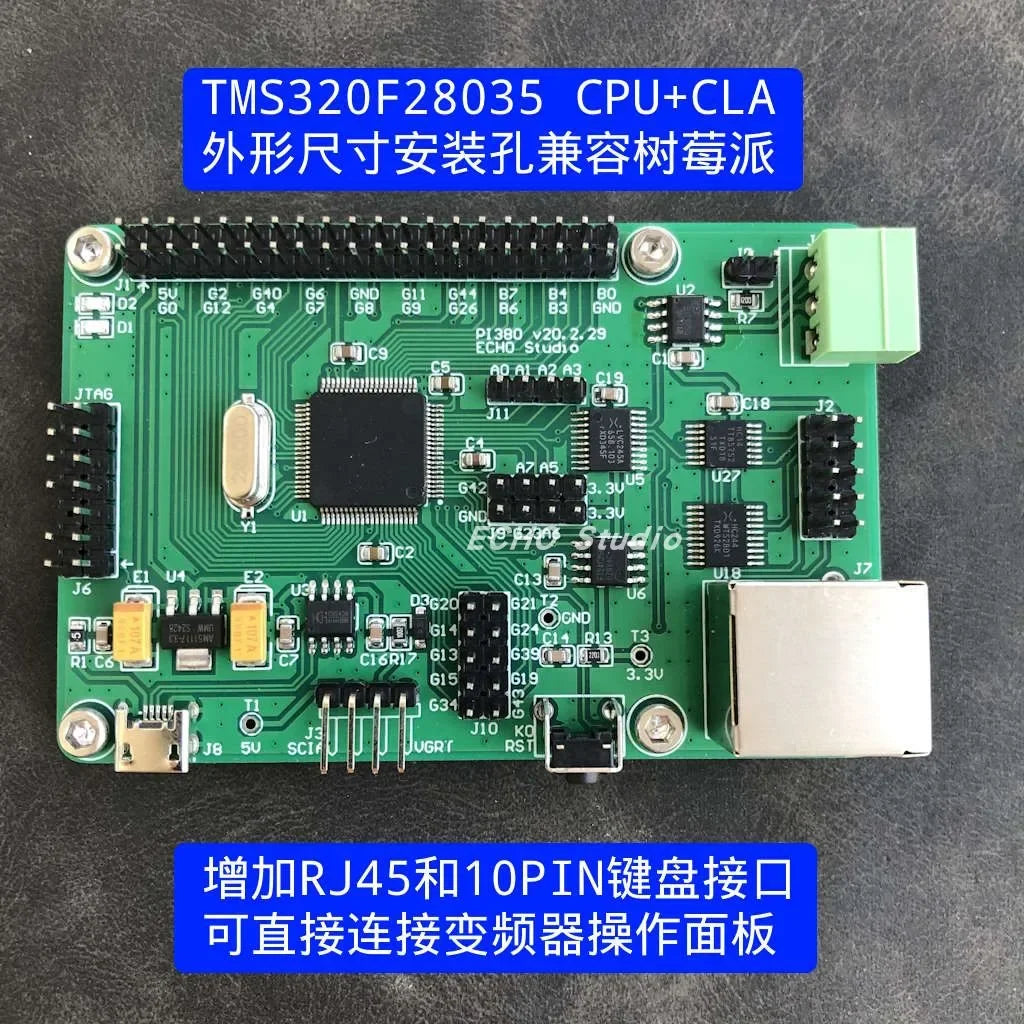

PI380 adds the frequency converter operation panel interface J2 (2.54 2x5P) and J7 (RJ45) on the basis of PI035, removes the RS485 interface, supports the operation of 380 frequency converter software, supports the connection of frequency converter operation panel.It can be used for frequency converter software development, frequency converter operation training and other occasions.

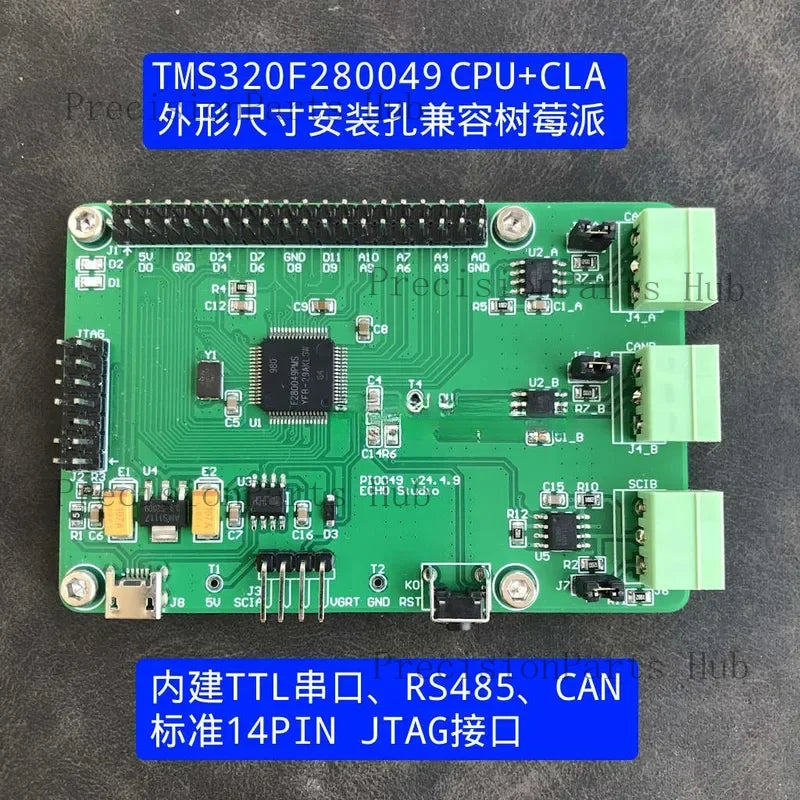

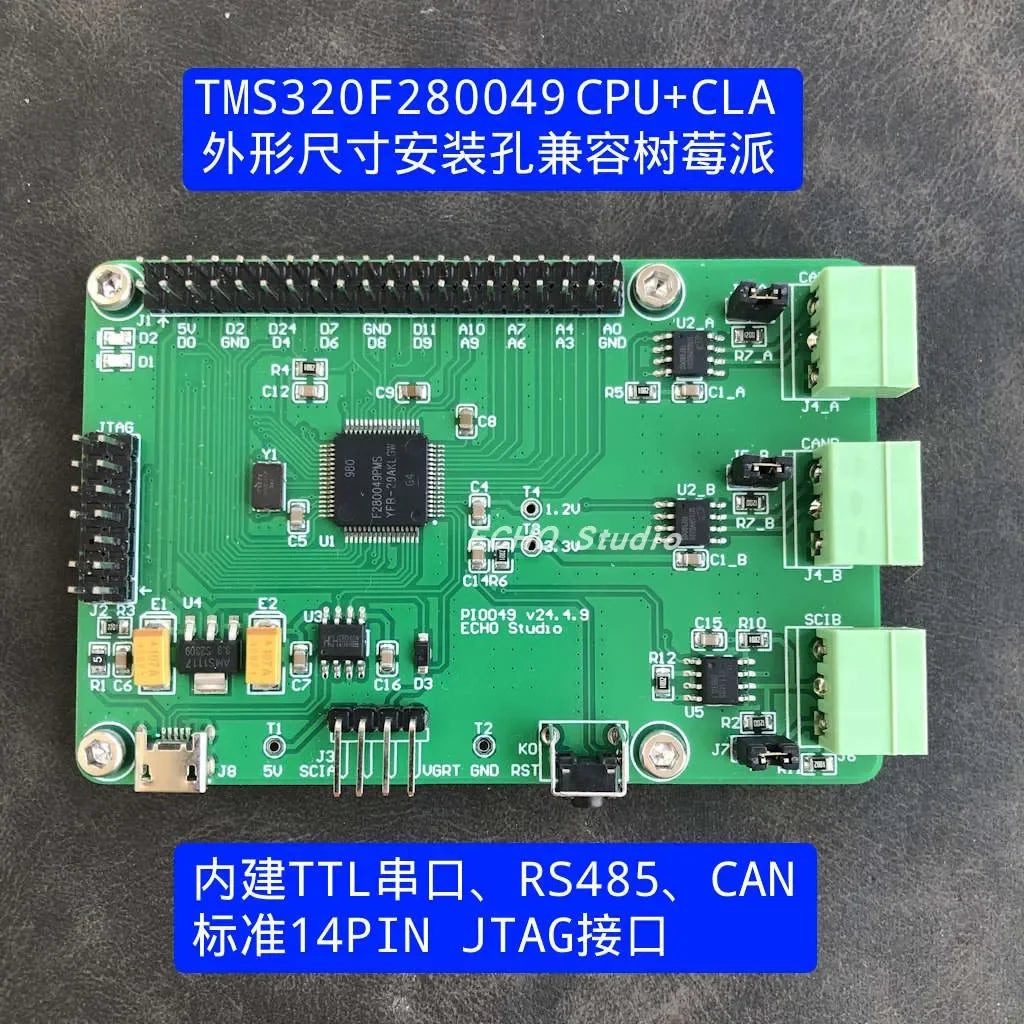

PI0049 and PI0025 are TMS320F280049 and TMS320F280025 development boards, respectively, and the two boards differ only in the main control chip.

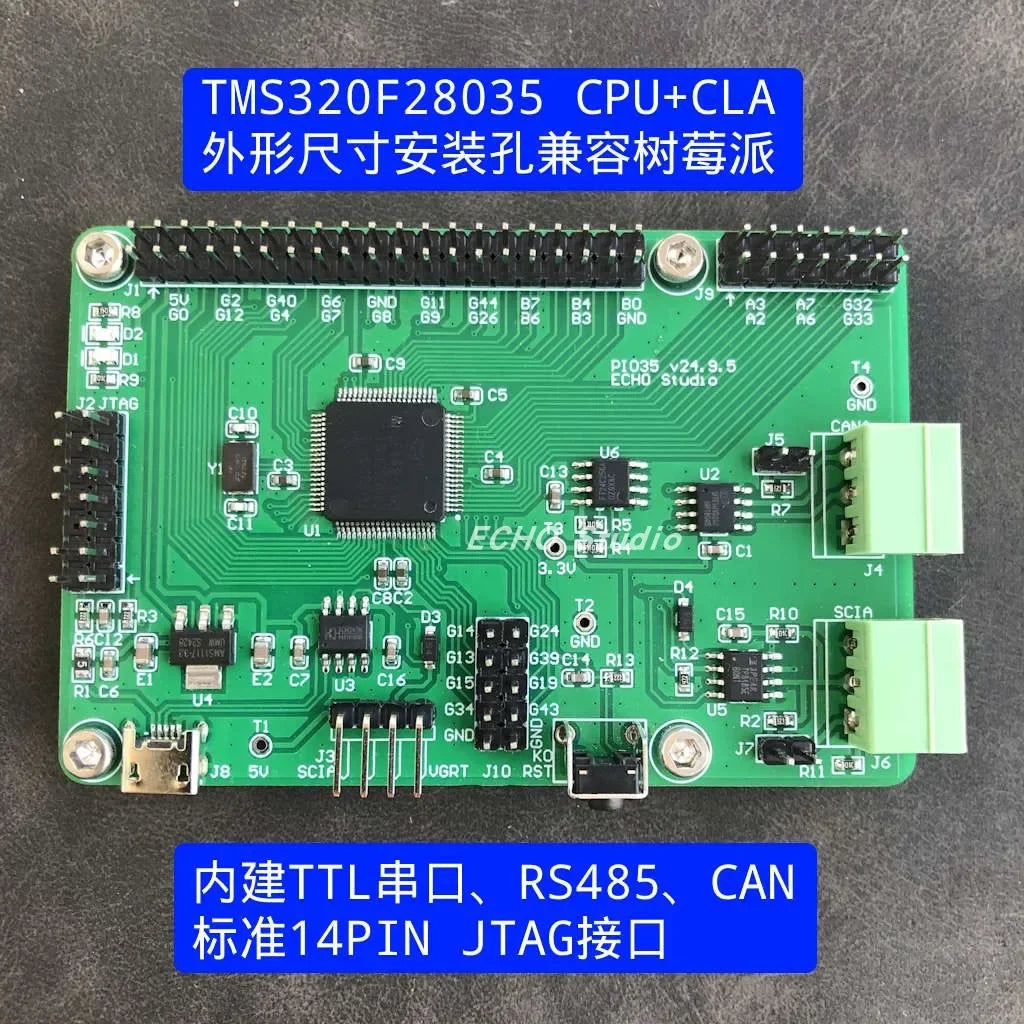

The PI035 features are as follows:

1) Using TMS320F28035PNT, 60M main frequency, leading out all IO.

2) Dimension compatible with Raspberry PI, can directly use the Raspberry PI shell, expansion board and other resources.

3) 40PIN GPIO interface compatible with Raspberry PI.

4) Built-in USB-TTL circuit, use a MicroUSB data line to start development.

5) Built-in standard JTAG interface.

6) Built-in 32kB EEPROM.

7) With CAN, 485, TTL multiple communication interfaces.

8) XBOOT_PI035 supports IAP and does not require an emulator during development.

9) PI380 supports connection of inverter panel.
