SPECIFICATIONS

Application: Electronic module

Brand Name: ZHUANG One

Condition: New

Dissipation Power: Electronic module

High-concerned chemical: none

Operating Temperature: Electronic module

Origin: Mainland China

Package: Electronic module

Supply Voltage: Electronic module

Type: Module

is_customized: Yes

Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.

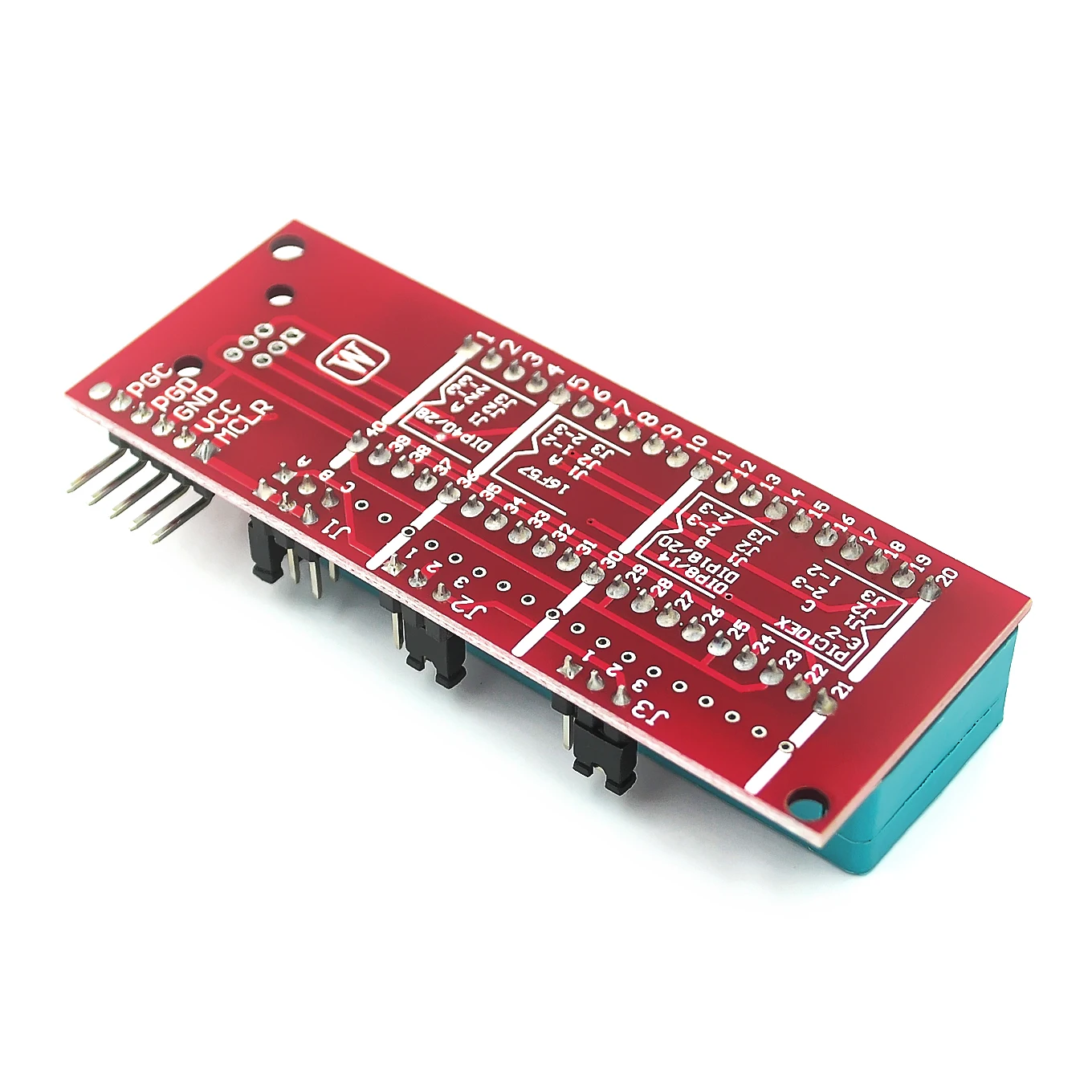

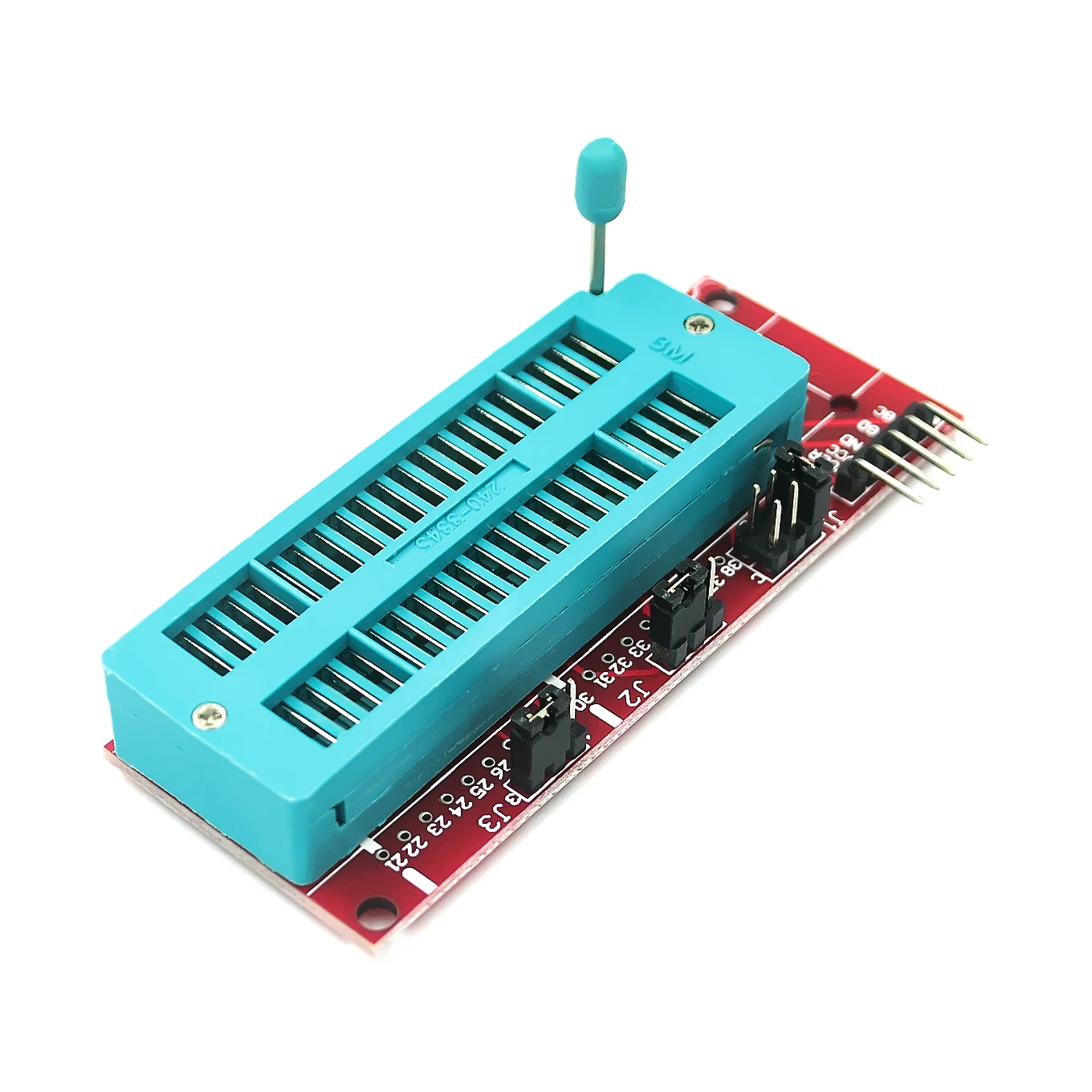

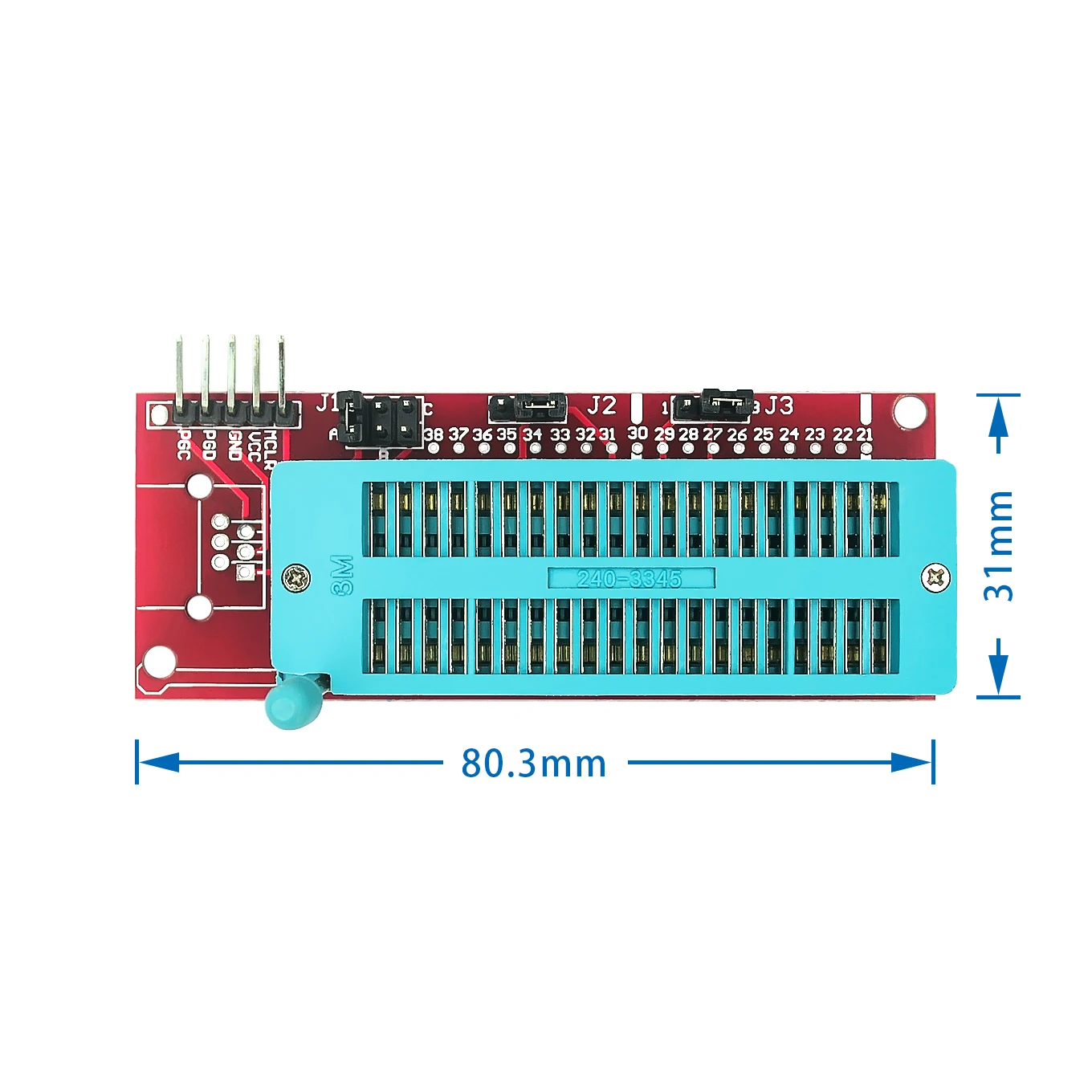

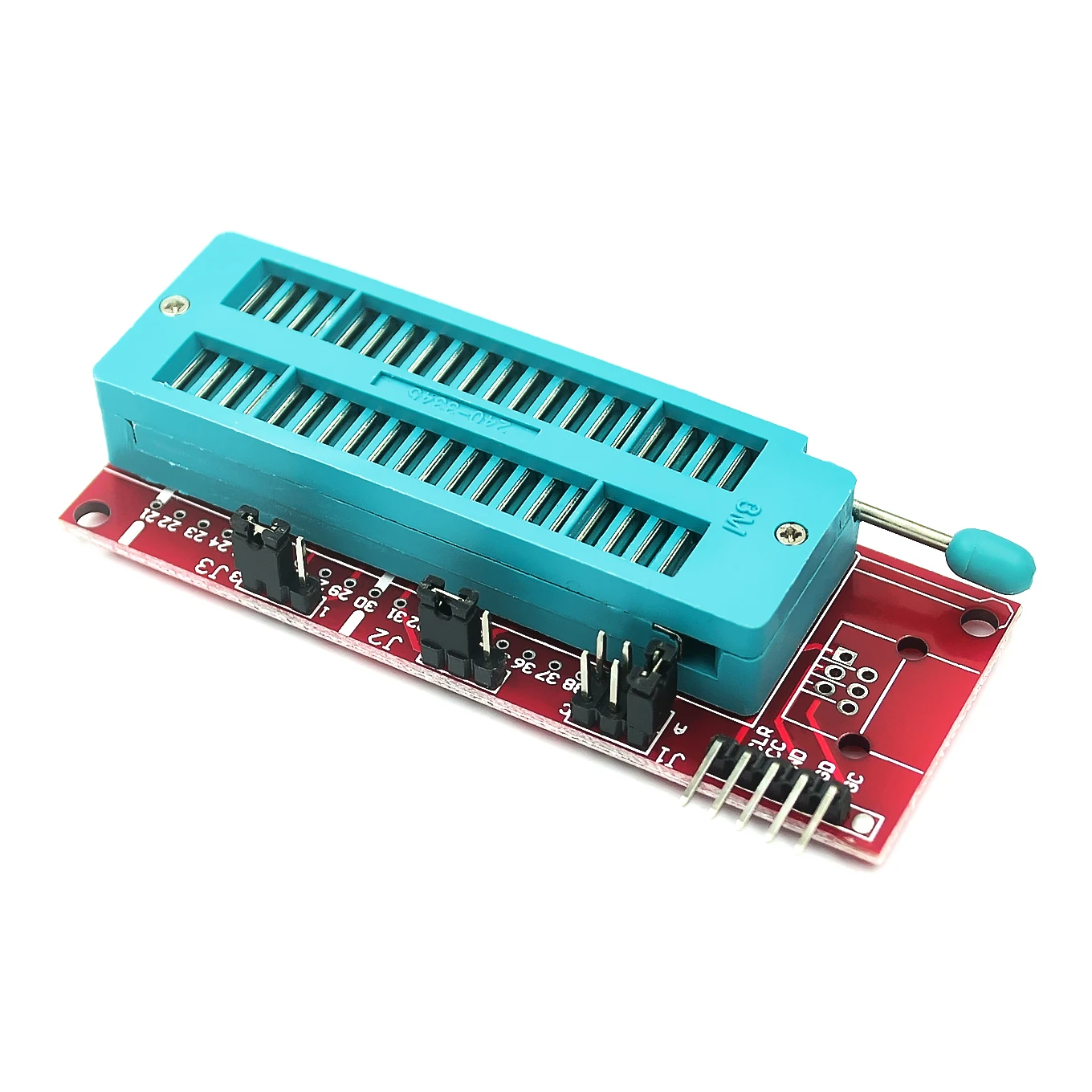

PIC ICD2 Kit 2 kit3 Prgramming Adapter Universal Programmer Seat

Instructions for use:

Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position.

The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position.

The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions)

The seat supports the following programming microcontroller:

PIC16/18XX 40PIN Series devices (except 16F59)

PIC16/18XX 28PIN Series devices (except 16F57)

PIC16/18XX 18PIN Series devices

The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

Package Included:

1 x Universal Programmer Seat
