SPECIFICATIONS

Brand Name: ZAVE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Voltage Regulator

semi_Choice: yes

Product Introduction:

1. Fast download speed. USB connection is more stable than KIT2

2. Offline burning function. Development, debugging, and programming can be used

Batch offline burning of products is also useful. .

3. Power output, internal voltage can be soft in MPL AB IDE

Direct control of the item.

4. PIKCIT3, Supports WIN7 system KIT2 does not support 64

Located in WIN7.

5. Fully automatic surface mounting machine processing, with surface mounting processed by reflow soldering,

The product quality is more stable and reliable.

01

Comparison between PICKIT3 and PICKIT2

Similarities:

1. Functionally the same 2 USB power supply for PC 3. Provides programmable voltage

difference:

1. The speed of PICKI T3 will be faster, and the main chip of PICKIT3 is PIC24,

The speed is slightly improved compared to PICKIT2, but the USB is still FU1L12M

2. Expand offline download space

(512KBYTES) ,PICKIT2 (128KBYTES)

3. Provide a more accurate reference voltage source to increase the voltage range

(1.8-5V VDD; 1.8-14V VPP),PICKIT 2 (2. 5-5V VDD)

4. More chip series are supported, and currently PICKIT3 already supports them

PIC16F193X and PIC32. PICKIT2 will not support PIC32 in the future

Debugging, while PICKIT2's support for some new chips has been lacking

In BETA state, such as PIC18F14K50

5. PIKCIT3, Supports WIN7 system, PICKIT2 is not supported

6. PICKIT3, There are 4 self recovering fuses, PICKI T2 has no fuse

PICKIT3 and

Comparison of PICKIT3.5

PROOUCTOUAUTY

ISMORESTABLE

1. KIT3.5 offline burning without crashing, faster burning speed

2. KIT3.5 firmware self recovery, no need to unpack, no need to flash programs

3. KIT3.5 has better circuit protection

4. Stable programming voltage and high power supply current

5. KIT3.5 has a more complete interface protection circuit

For the ICs supported by PICKIT3, they can be accessed through

View MPLAB IDE V8.92

Open the software, configure- >select device PICKIT3

The green light in front indicates support.

8- BIT DEVICES - PIC10F/12F/16F

PIC10F/12F/16F5X

PIC16F6XX

PIC16F7XX

PIC16F8XX

PIC16F9XX

PIC16F1XXX

8-BIT DEVICES- PIC18F

PIC18CXX/FXX

PIC18F1XXX

PIC18F2XXX/4XXX/6XXX/8XXX

PIC18FXXJ

PIC18FXXK

16-BIT DEVICES

DSPIC30F/33F, PIC24F/H

32-BIT DEVICES

PIC32MX

The status of the LED indicator light on PICKIT3

The indicator light has the following meanings:

* Power: .

Green, lights up when starting to power on or connect to the target board.

* Active: ;

Blue, lights up when PICkit 3 has established communication with the PC or sent/received commands

●Status:

Green. Lights up when the debugger is working normally (standby).

Yellow, lights up when the operation is busy.

Red, lights up when the debugger fails.

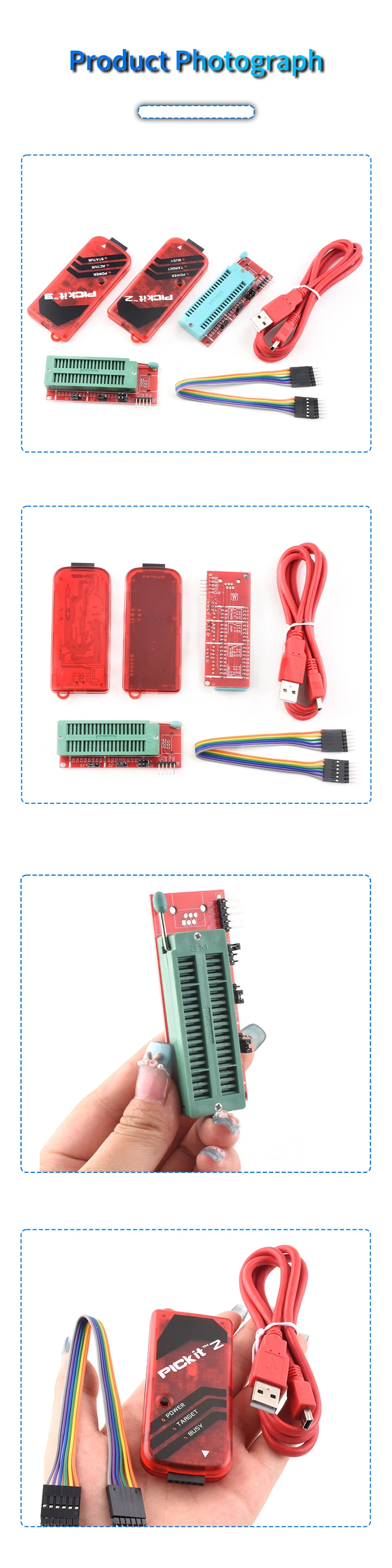

product description

PRODUCT DrSCRPToN

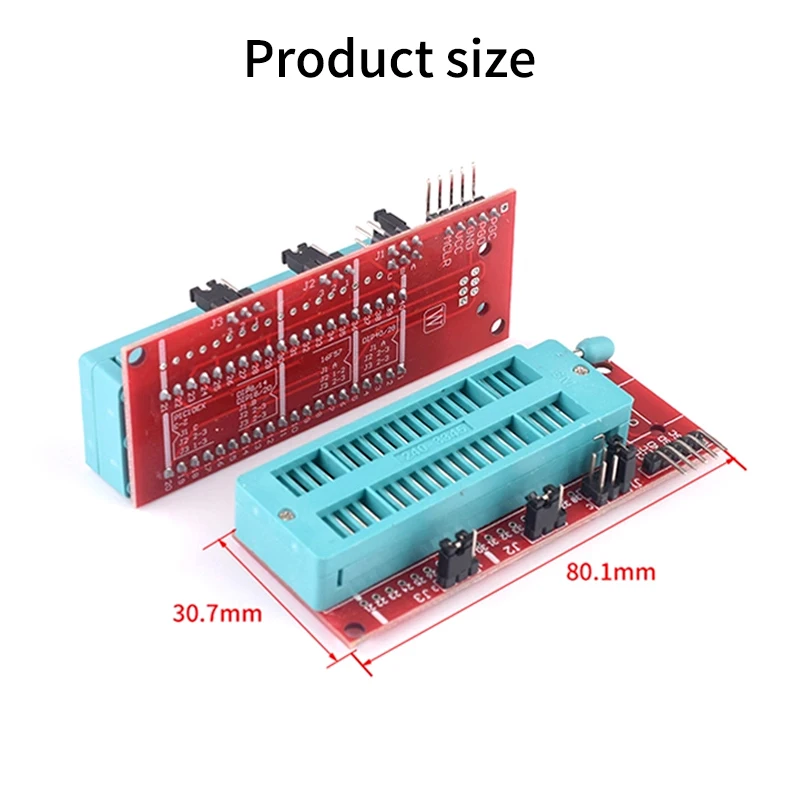

Please note: The burning socket can only be used for burning and cannot be used for hardware simulation.

instructions

The location for installing the microcontroller is marked in detail on the reverse side of the burning socket.

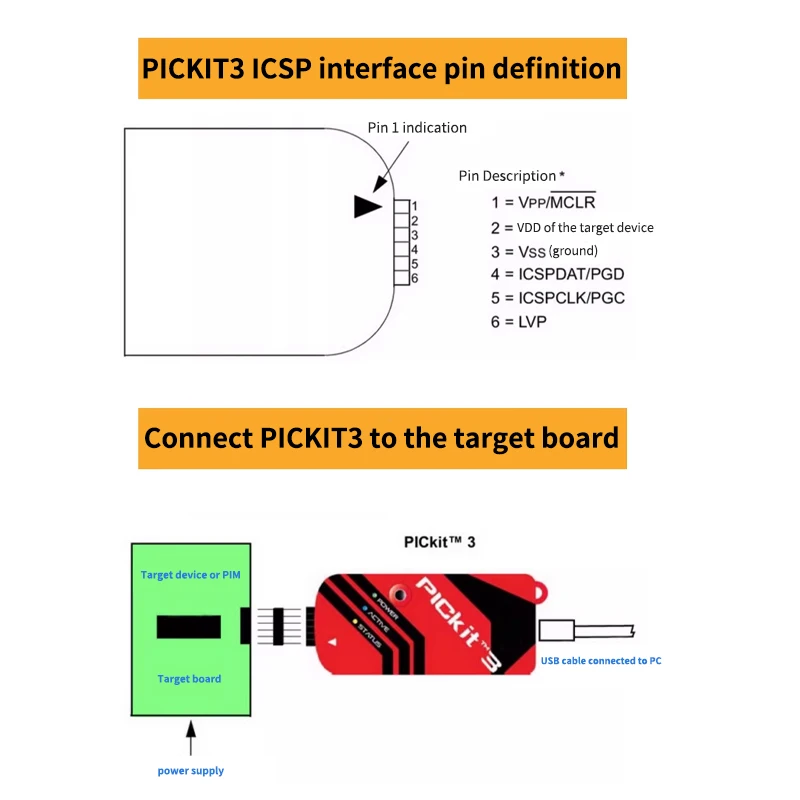

ICD2, KIT2, KIT3 are connected to the burn-in socket through a 5-pin connection,

Perform programming and burning operations.

This burner supports the following microcontrollers:

PIC16/18XX40PIN series devices (excluding 16F59)

PIC16/18XX28PIN series devices

PIC16/18XX18PIN series devices

PIC 8PIN/14PIN/20PIN series devices
