Pico-2CH-RS485 Incorporate RS485 Transceiver SP3485 Using UART Bus for Raspberry Pi Pico with Development Resources Manual
Pico-2CH-RS485
$30.44
Sale price
$30.44
Regular price
$0.00
Skip to product information
Pico-2CH-RS485 Incorporate RS485 Transceiver SP3485 Using UART Bus for Raspberry Pi Pico with Development Resources Manual
$30.44
Sale price
$30.44
Regular price
$0.00
Description
SPECIFICATIONS
Accessory Type: Extension Board
Battery Included: no
Brand Name: SHCHV
Choice: yes
Compatible With: Raspberry Pi Pico
High-concerned chemical: none
Origin: Mainland China
Typical Application Fields: Other Fields
semi_Choice: yes
2-Channel RS485 Module for Raspberry Pi Pico, SP3485 transceiver, UART to RS485
2-Channel RS485 Module for Pico
incorporates RS485 transceiver SP3485, using UART bus
Features at a glance
Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
Using UART bus, easily converting UART to RS485, or vice versa
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
Operating voltage |
3.3V |
RS485 transceiver |
SP3485 |
Communication bus |
UART |
Baudrate |
300~500000bps |
Raspberry Pi Pico header compatibility
onboard female pin header for direct attaching to Raspberry Pi Pico,
male pin header for stacking other modules
Raspberry Pi Pico and Pico-LCD-0.96 are NOT included.
What's On Board
RS485 bus interface
2-channel RS485UART status indicators
RXD0/TXD0: Channel 0 RX/TX indicators
RXD1/TXD1: Channel 1 RX/TX indicatorsPower indicator
4. SP3485 RS485 transceiver
5. SMAJ12CA
transient suppress diode array
6. Raspberry Pi Pico header
Pinout definition

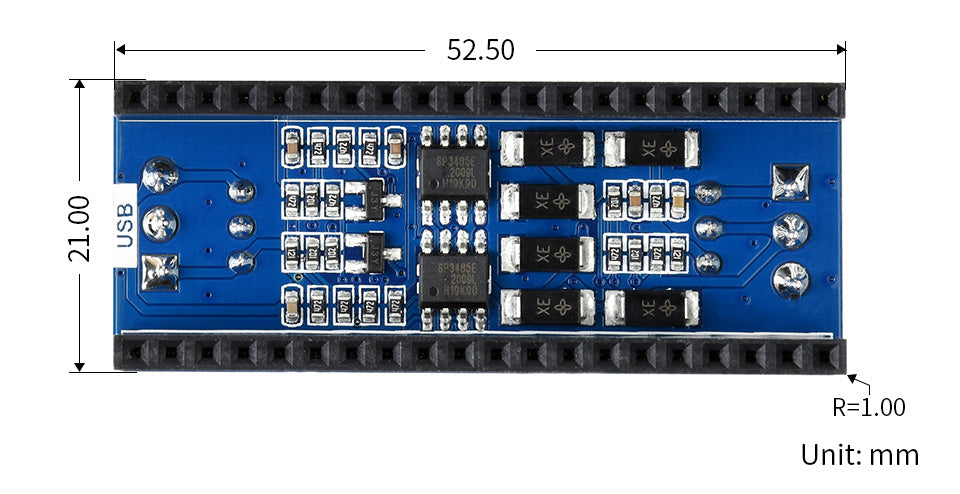

Outline dimensions
Resources & Services
WIKI: http://www.waveshare.com/wiki/Pico-2CH-RS485
