Pine64 CN Version Pinecil V1 Soldering Iron Portable Programable Welding Tools Adjustable Temperature Digital Solder Station

Pine64 CN Version Pinecil V1 Soldering Iron Portable Programable Welding Tools Adjustable Temperature Digital Solder Station

$203.72

$203.72 $0.00

Color FMchip TS 8tips FMchip TS 6tips Red CN version Blue CN version

Description

SPECIFICATIONS

Brand Name: Pine64

Certification: CE,FCC,RoHS

Choice: yes

Dimensions: Pinecil V1 CN

High-concerned chemical: none

Input Voltagle: 12V-21V

Is Smart Device: no

Model Number: Pine64 V1

Origin: Mainland China

Output Temperature: 0~420

Output Voltage: 36-60W

Temperature Stability: 320

Voltage: No electricity

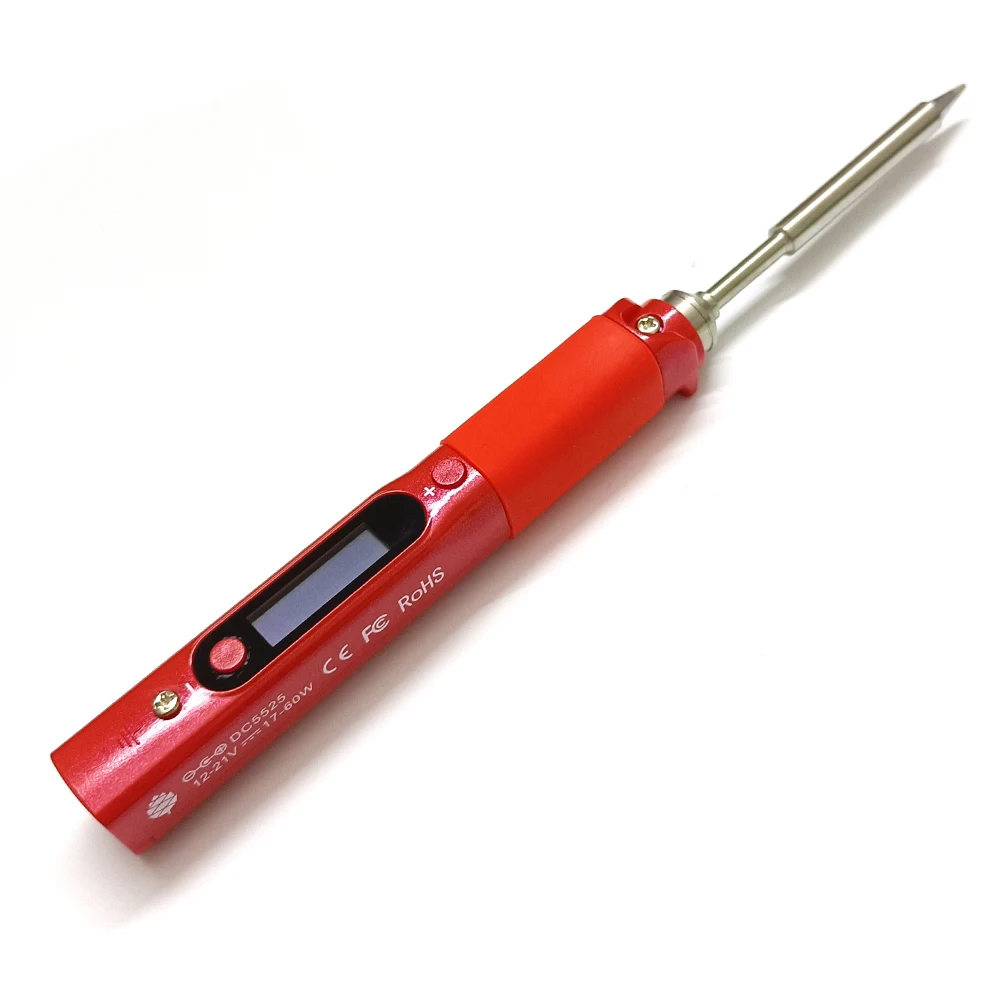

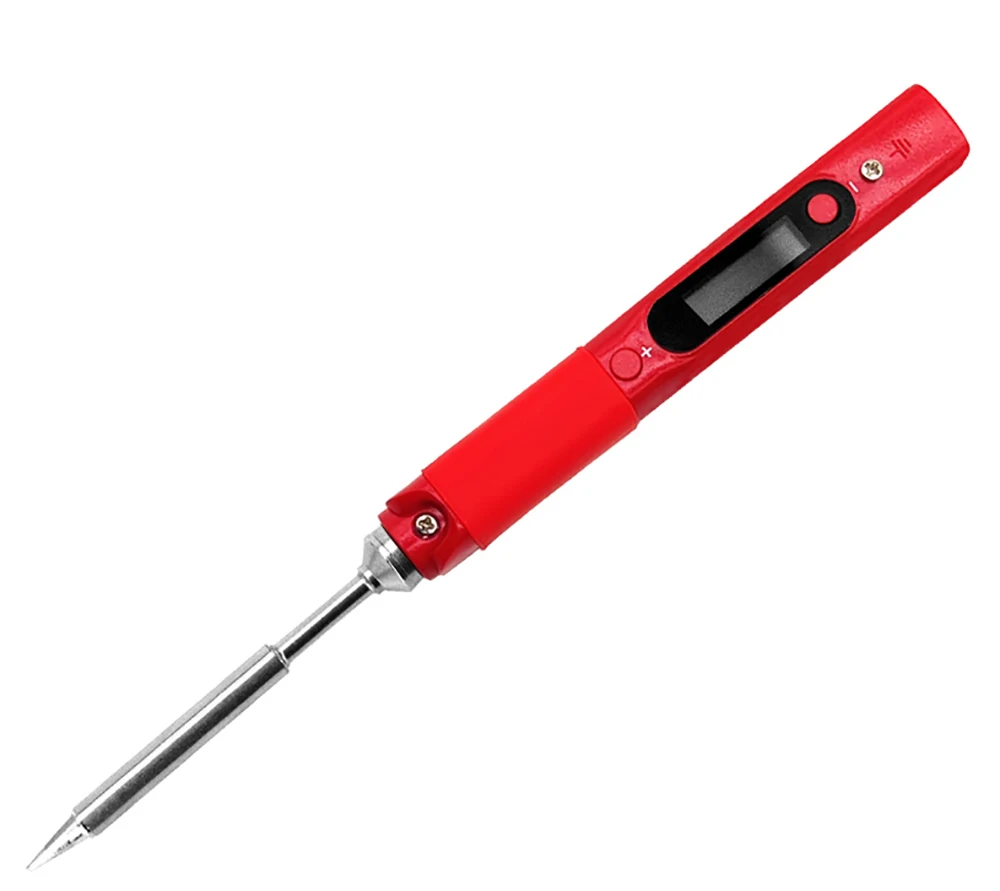

Pine64 CN Version Pinecil V1 Soldering Iron

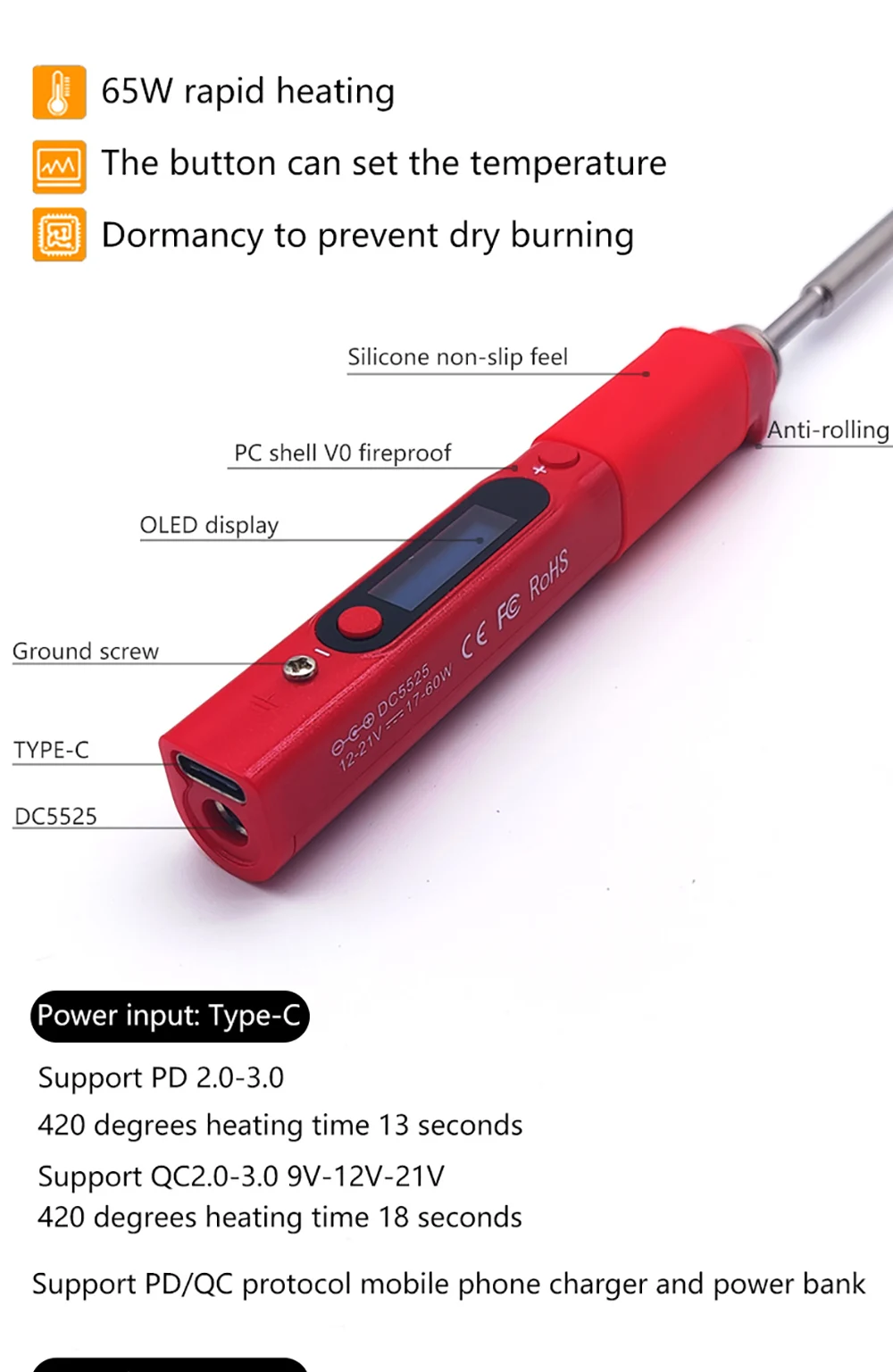

Product features

The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby and it heats up to an operating temperature in just 12 seconds!

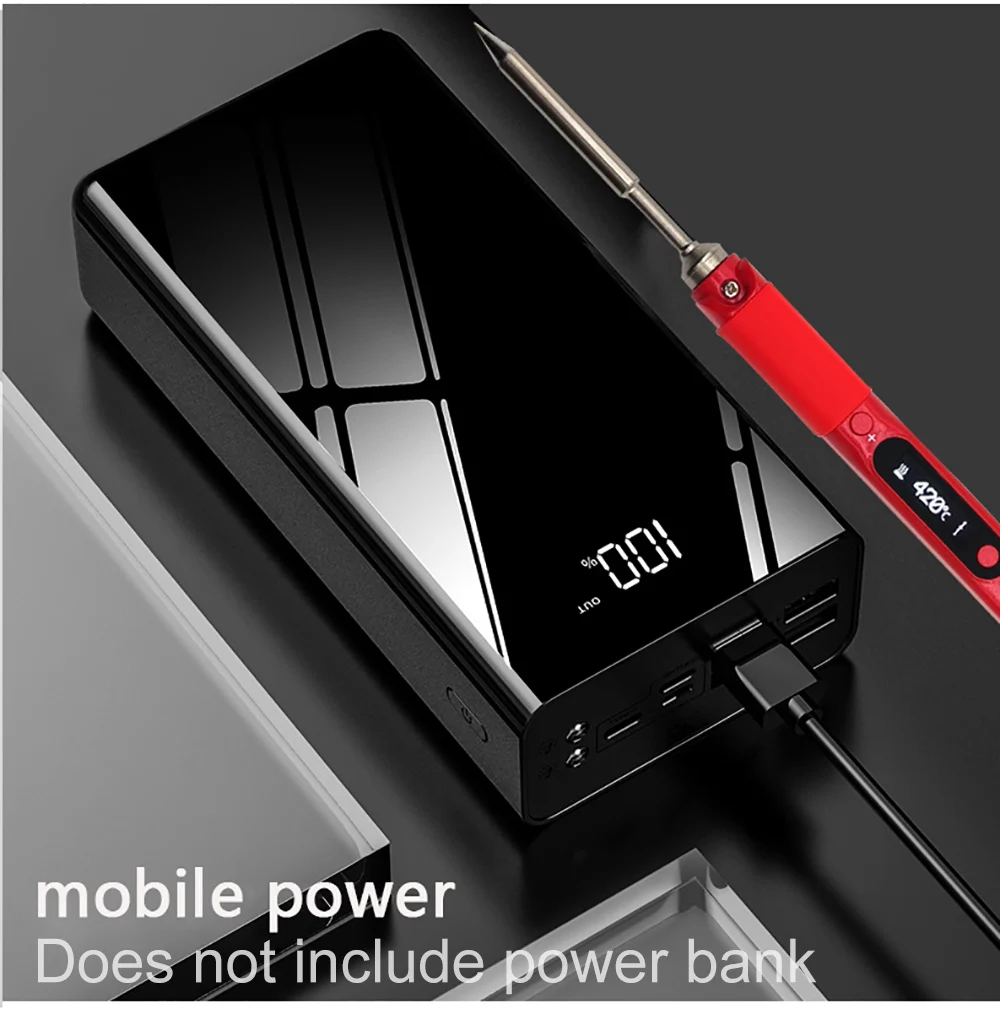

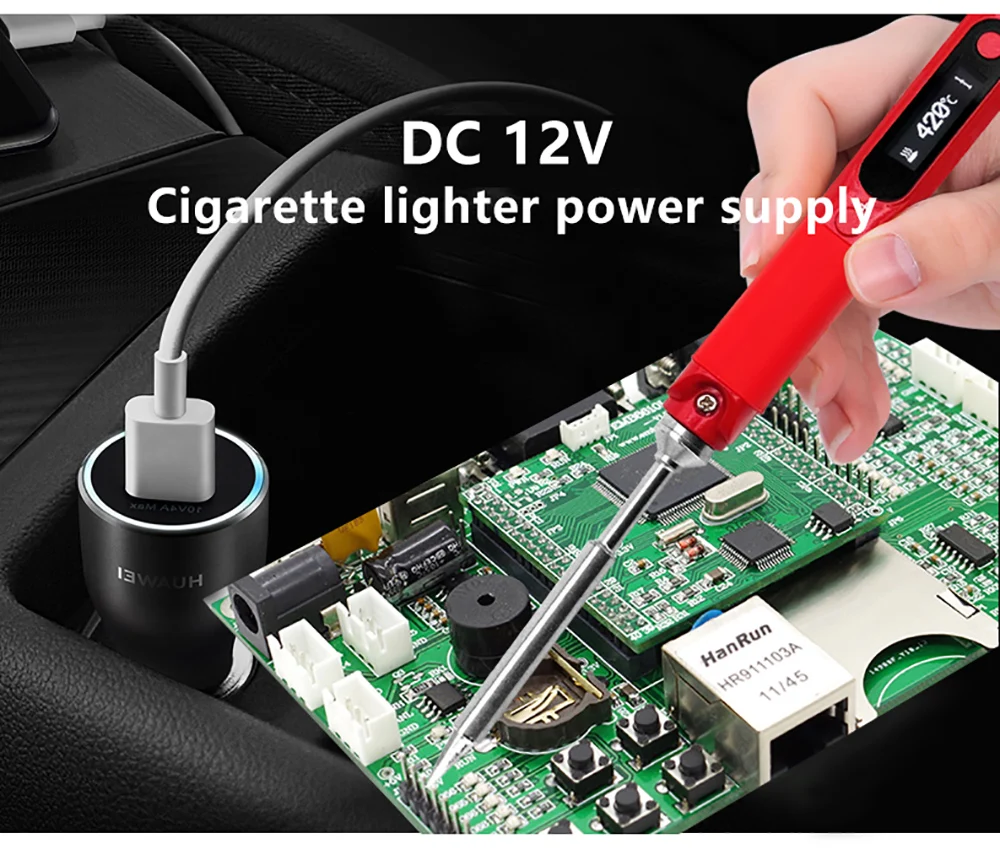

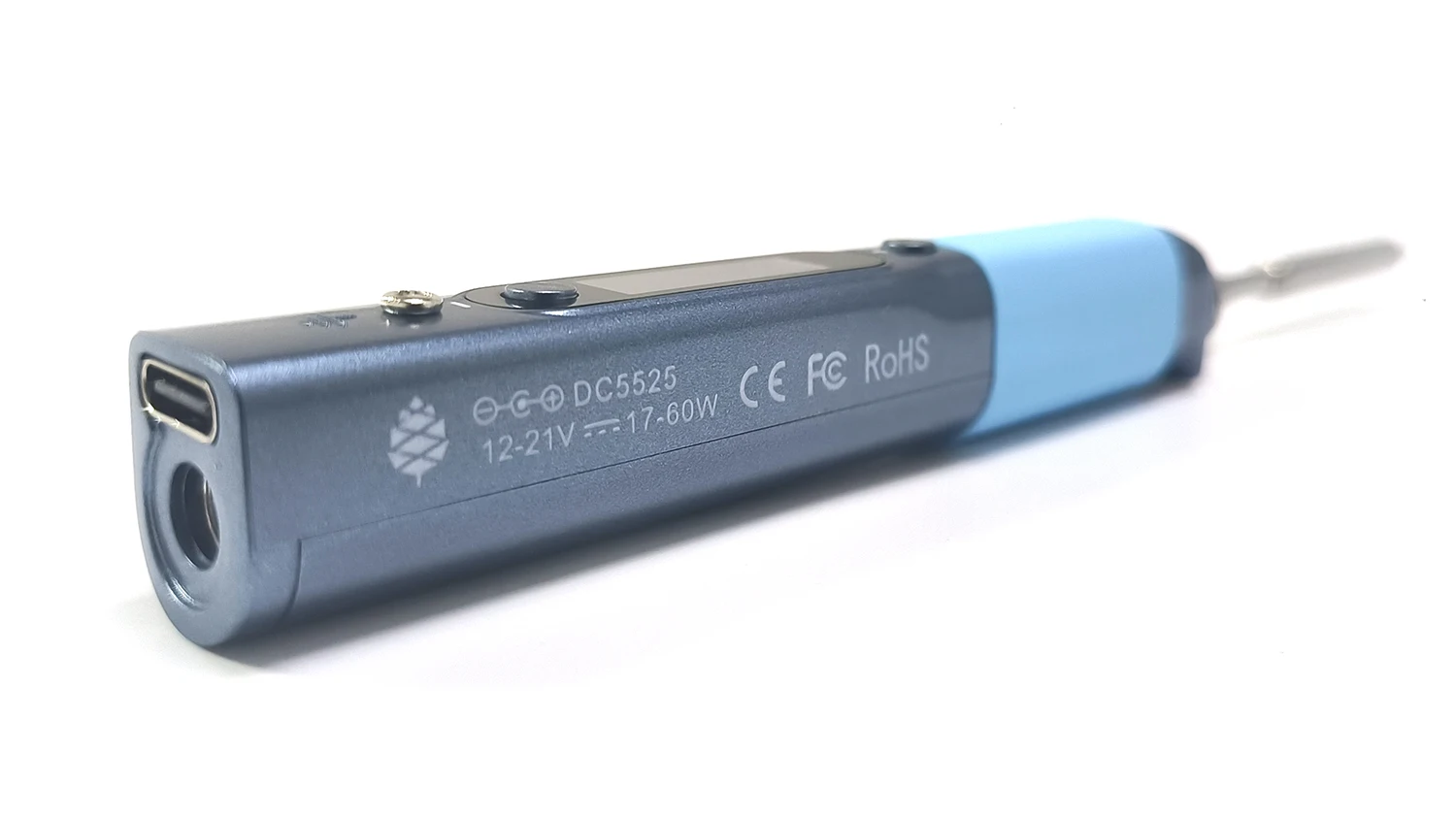

Dual power input design: 1) USB-C supports both PD and QC 3.0 and; 2) DC5525 barrel DC jack.

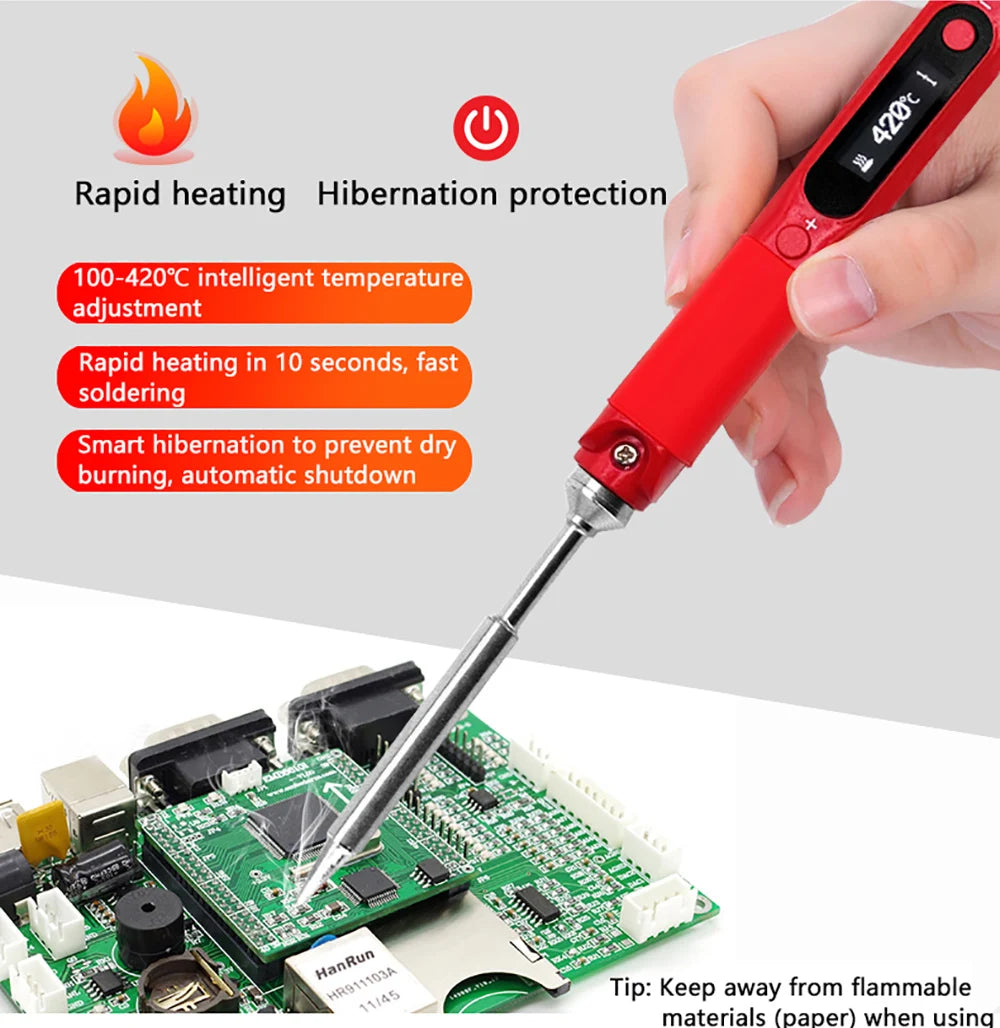

Speedy Rapid Warmup: Reaches operating temperature in 12 seconds. Support for on-demand rapid boost feature.

Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display.

Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell.

Auto standby mode engages when it is not in use ensuring user safety.

Specifications

PACKAGE	Dimensions: 17cm x 12cm x 2.3cm Weight: 88 grams

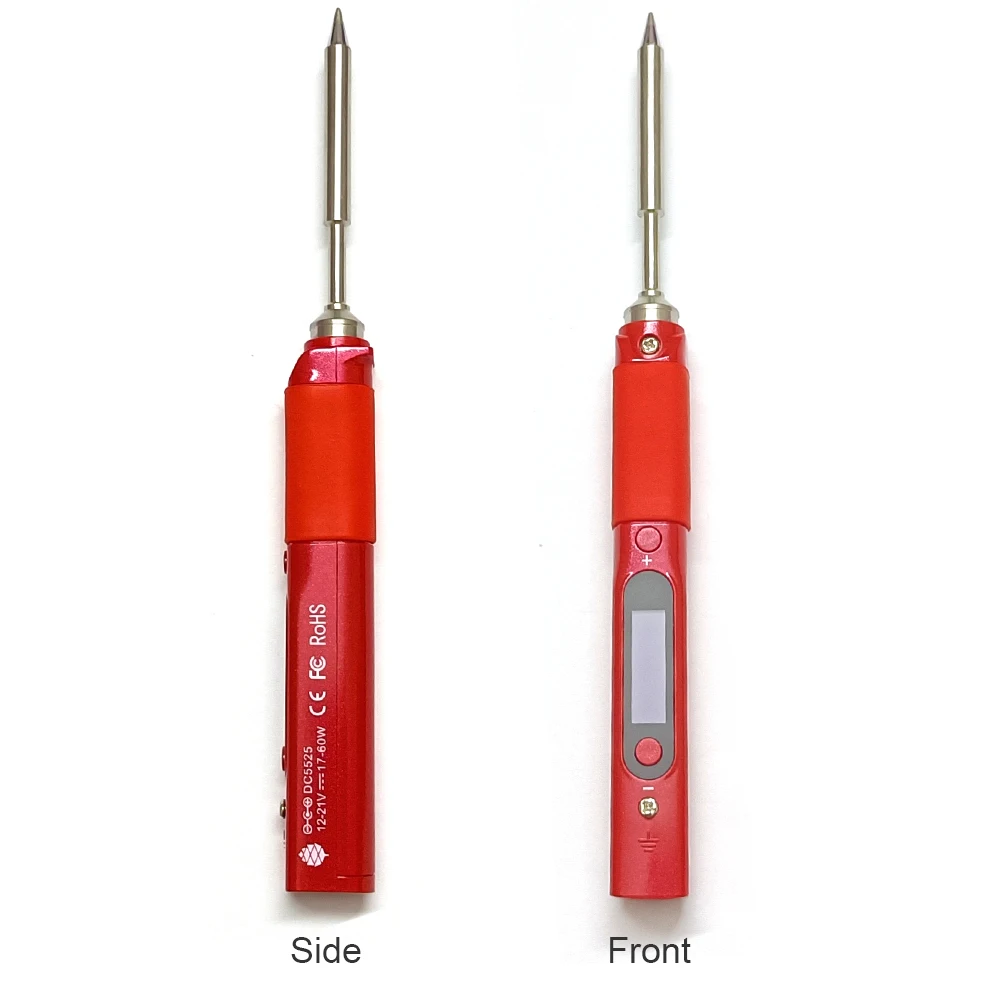

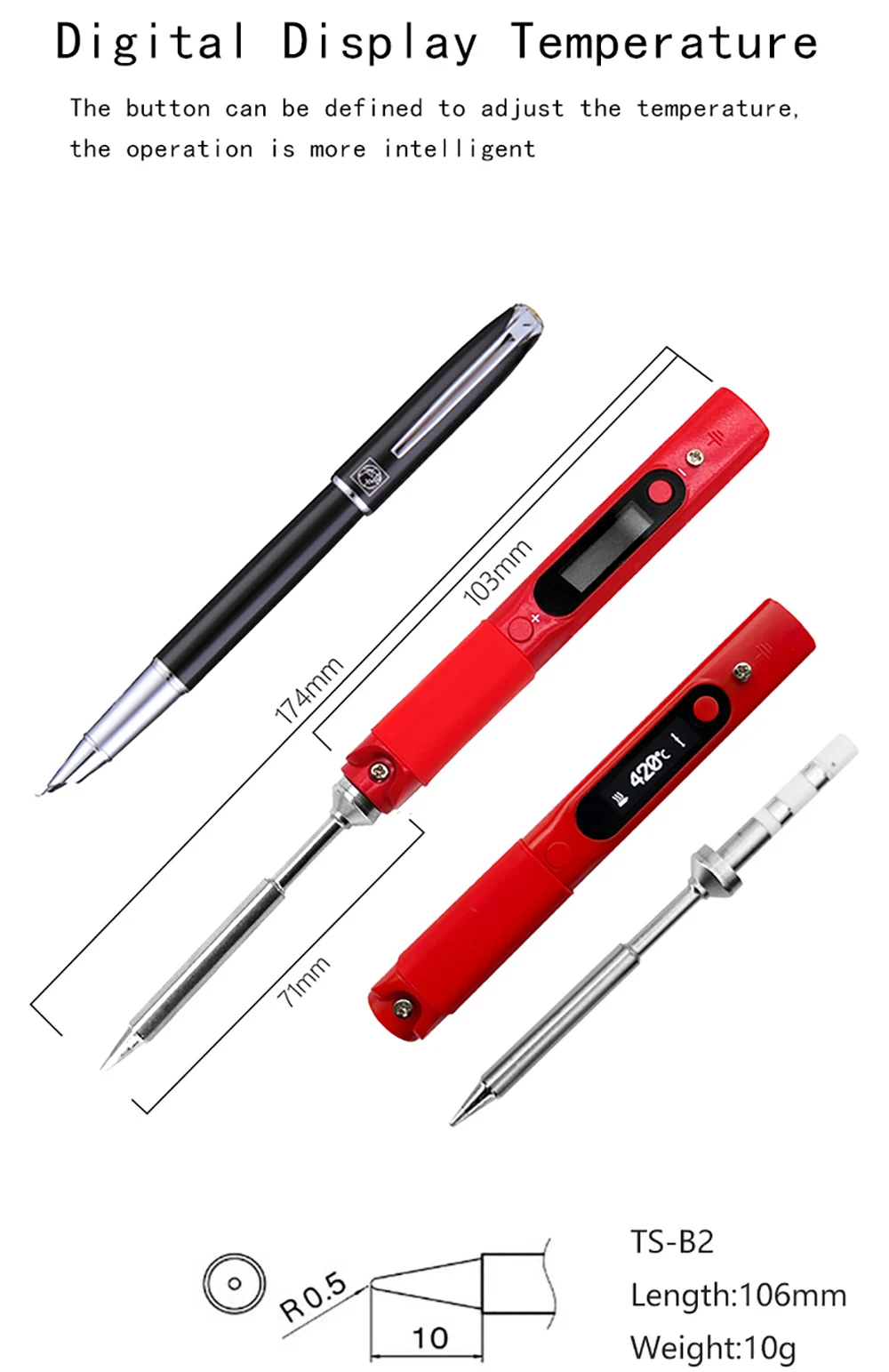

BODY	Dimensions: 170mm with solder tip / 98mm without solder tip x 12.8mm x 16.2mm Weight: 30g with solder tip / 20g without solder tip Build: Plastic with metal clip (Handle) Color: Blue/Red

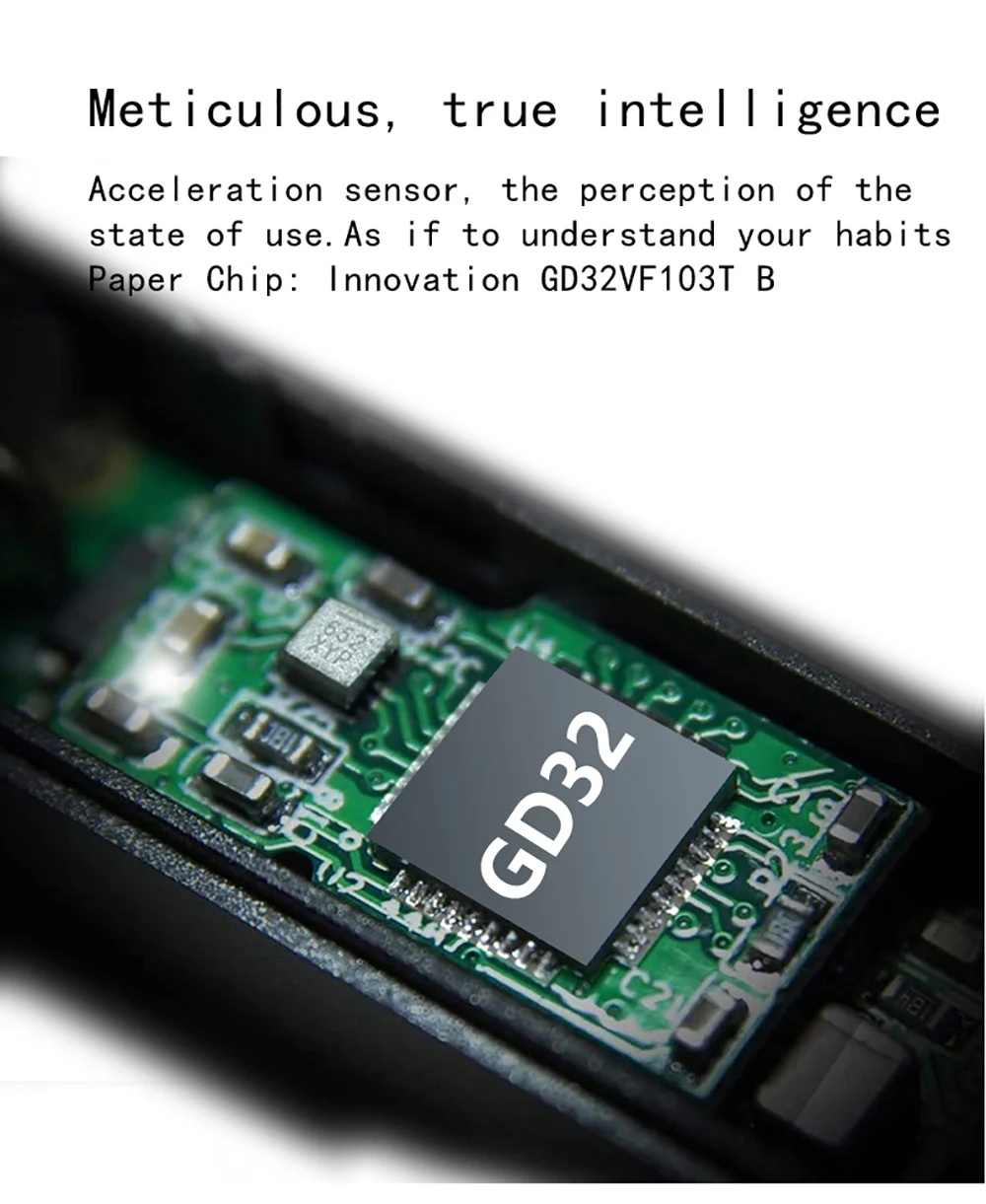

PLATFORM	OS: Ralim's IronOS build Chipset: GigaDevice GD32VF103 CPU: 32-bit RV32IMAC RISC-V "Bumblebee Core" @ 108 MHz
DISPLAY	Type: OLED White Colour Monochrome Display Size: 0.69 inches Resolution: 96x16pixels
MEMORY	Internal Flash Memory: 128KB System Memory: 32KB SRAM Expansion: None

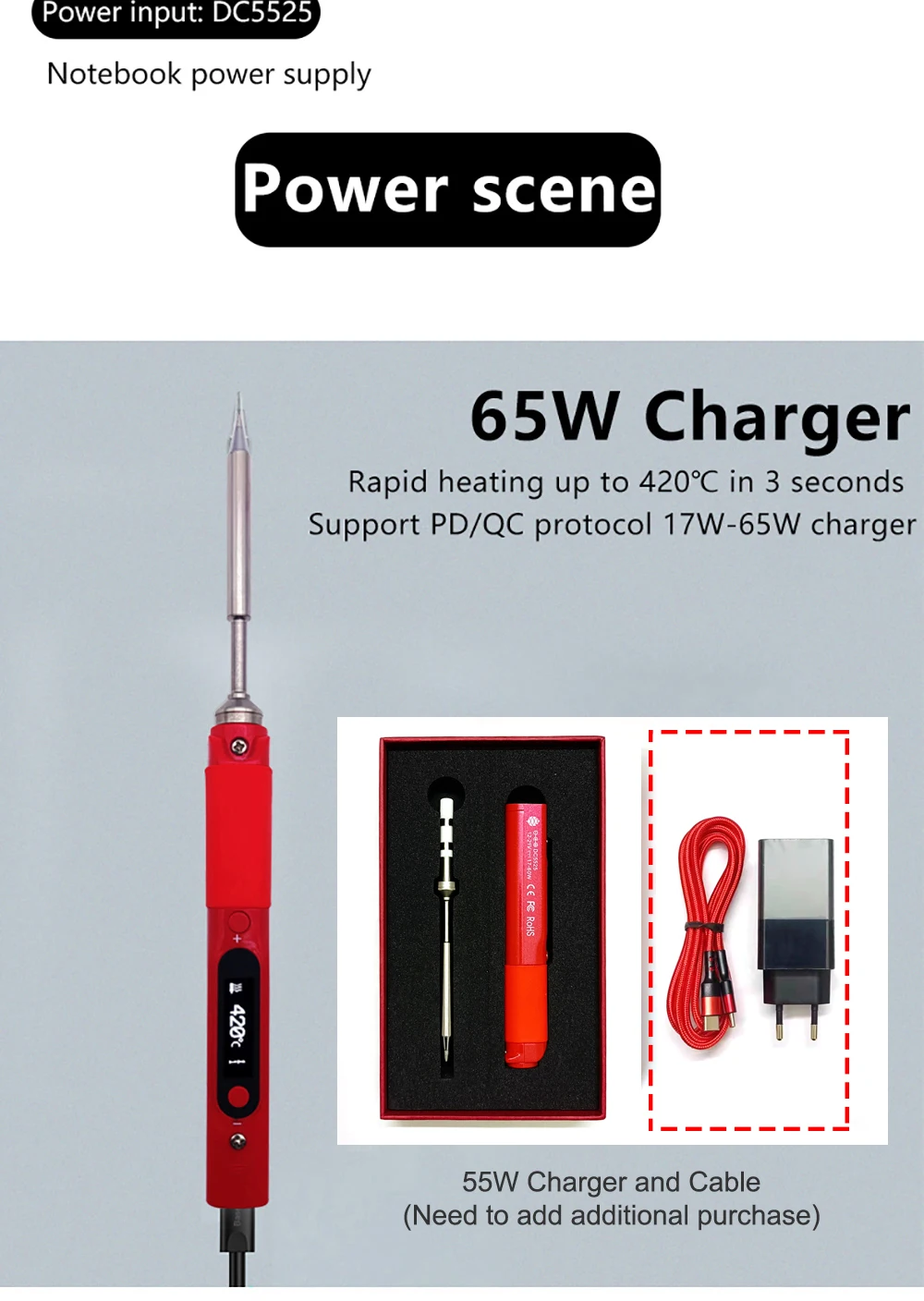

POWER PORTS	USB type C: PD and QC 3.0 12V-20V 3A Barrel Jack: DC5525, 12V-21V DC 3A
TIP	Type B2 Length: 106mm Weight: 10g
FEATURES	Capable received power from either USB-C port or barrel jack. GPIO break-out thru USB-C port

Package list

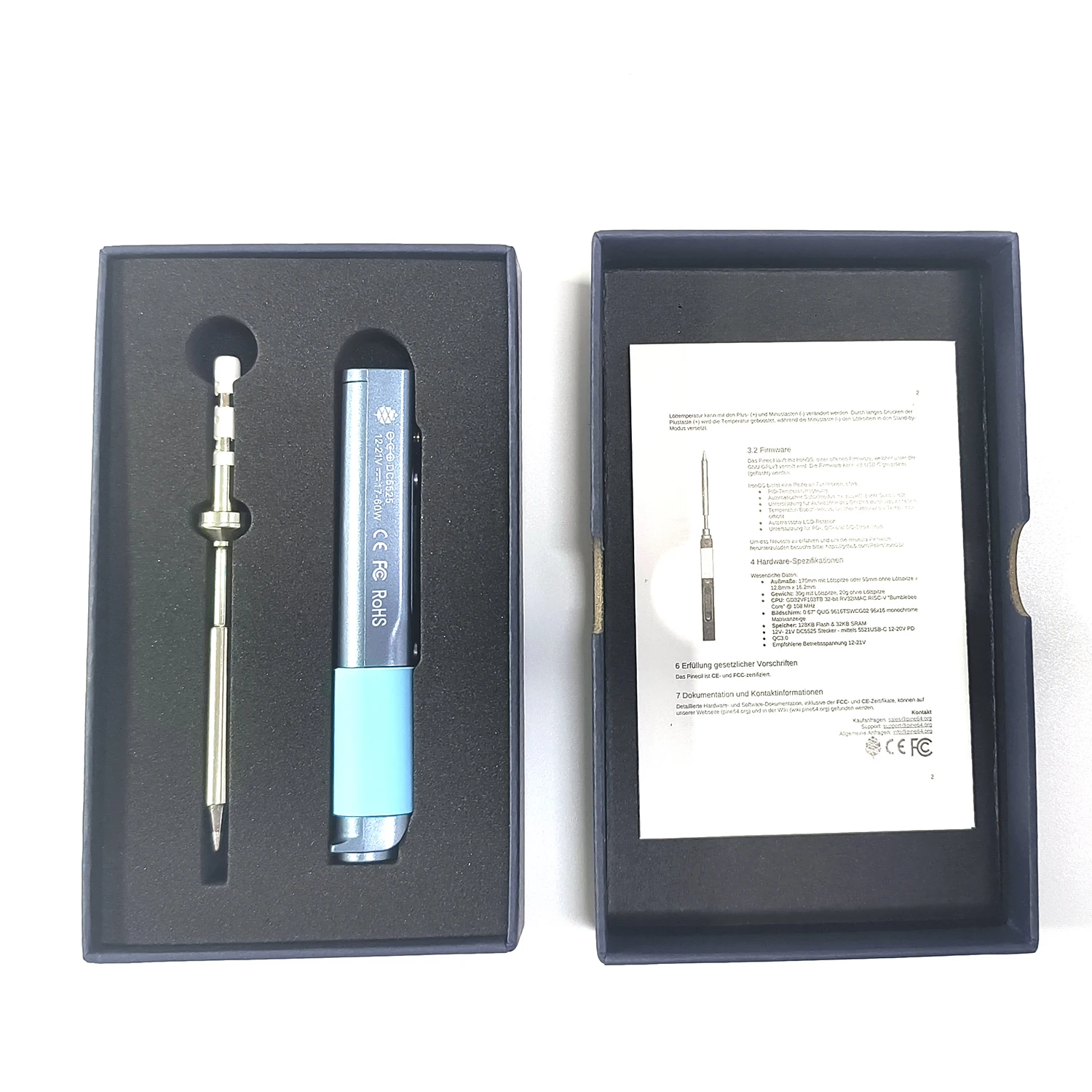

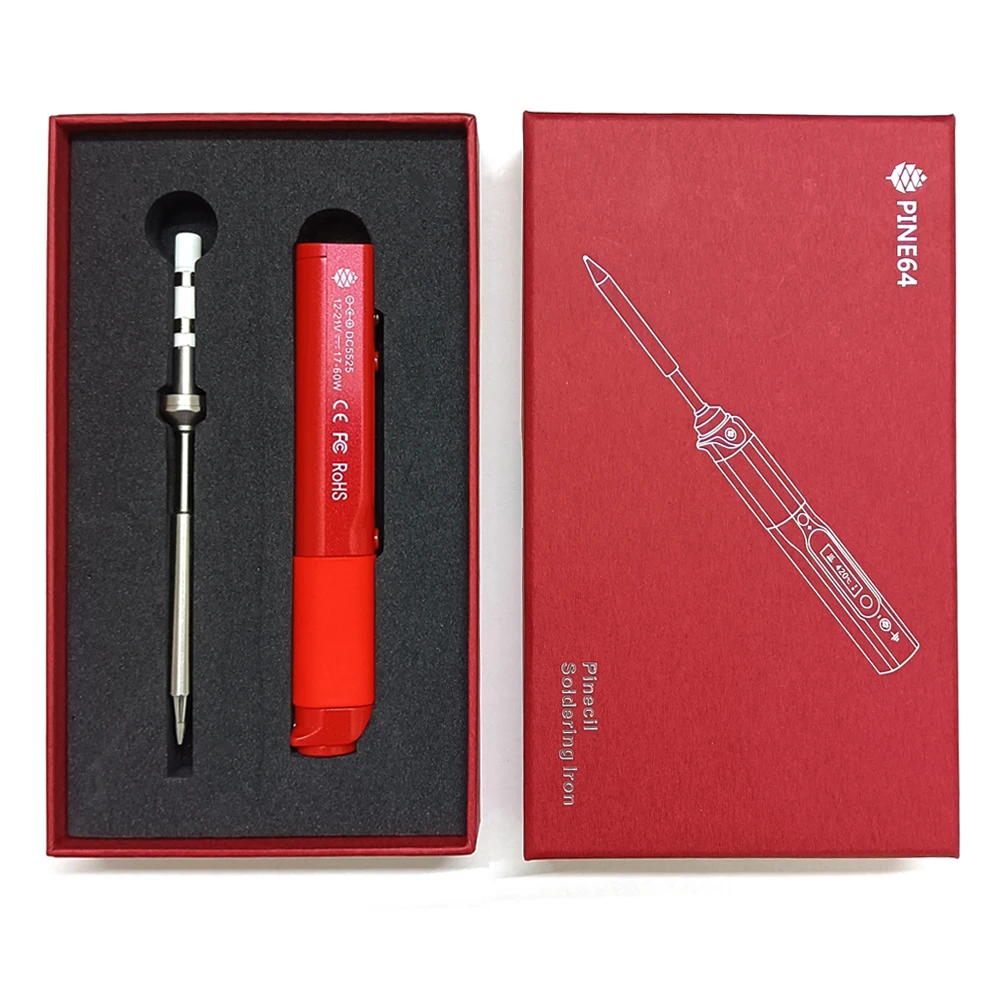

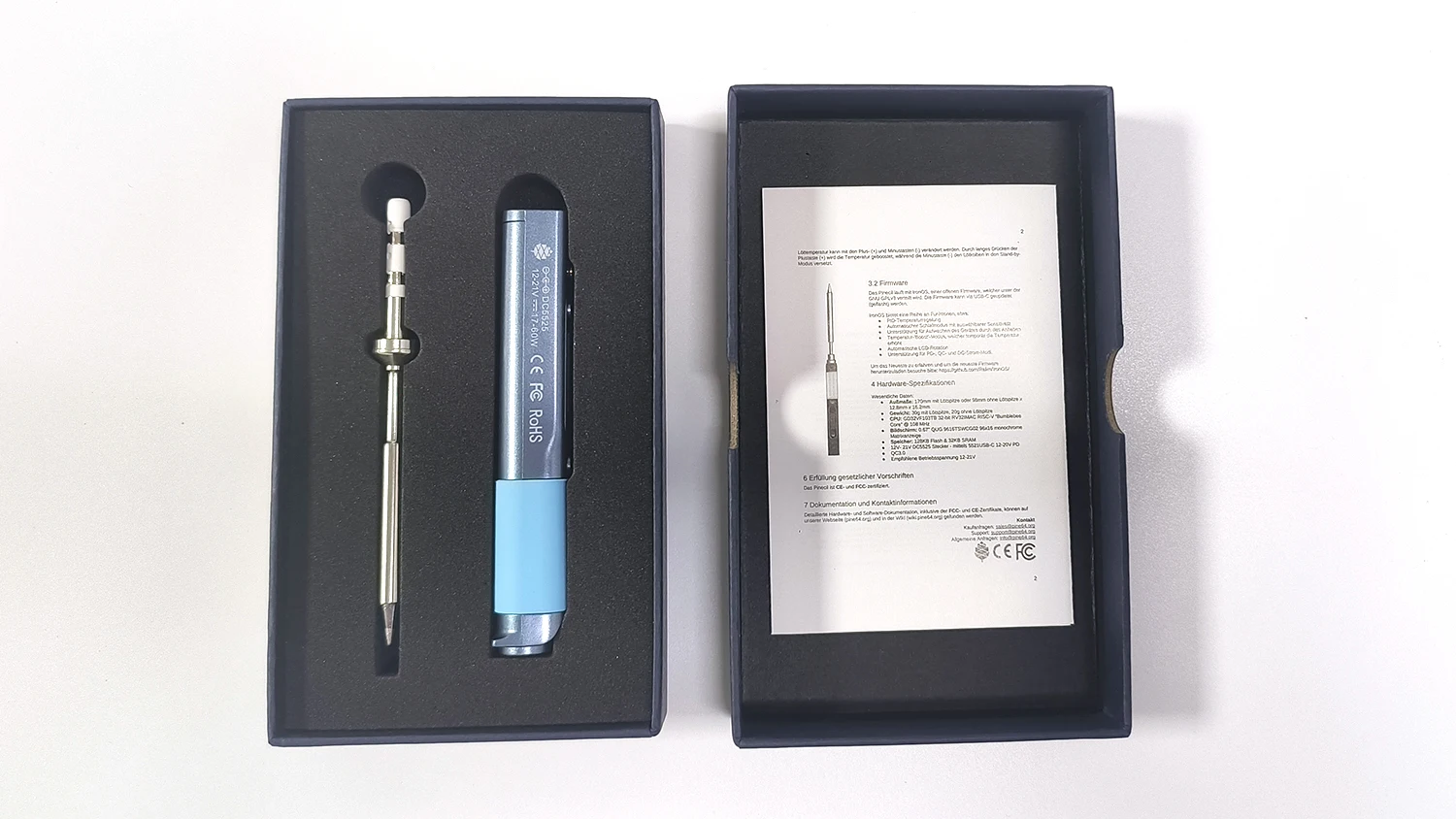

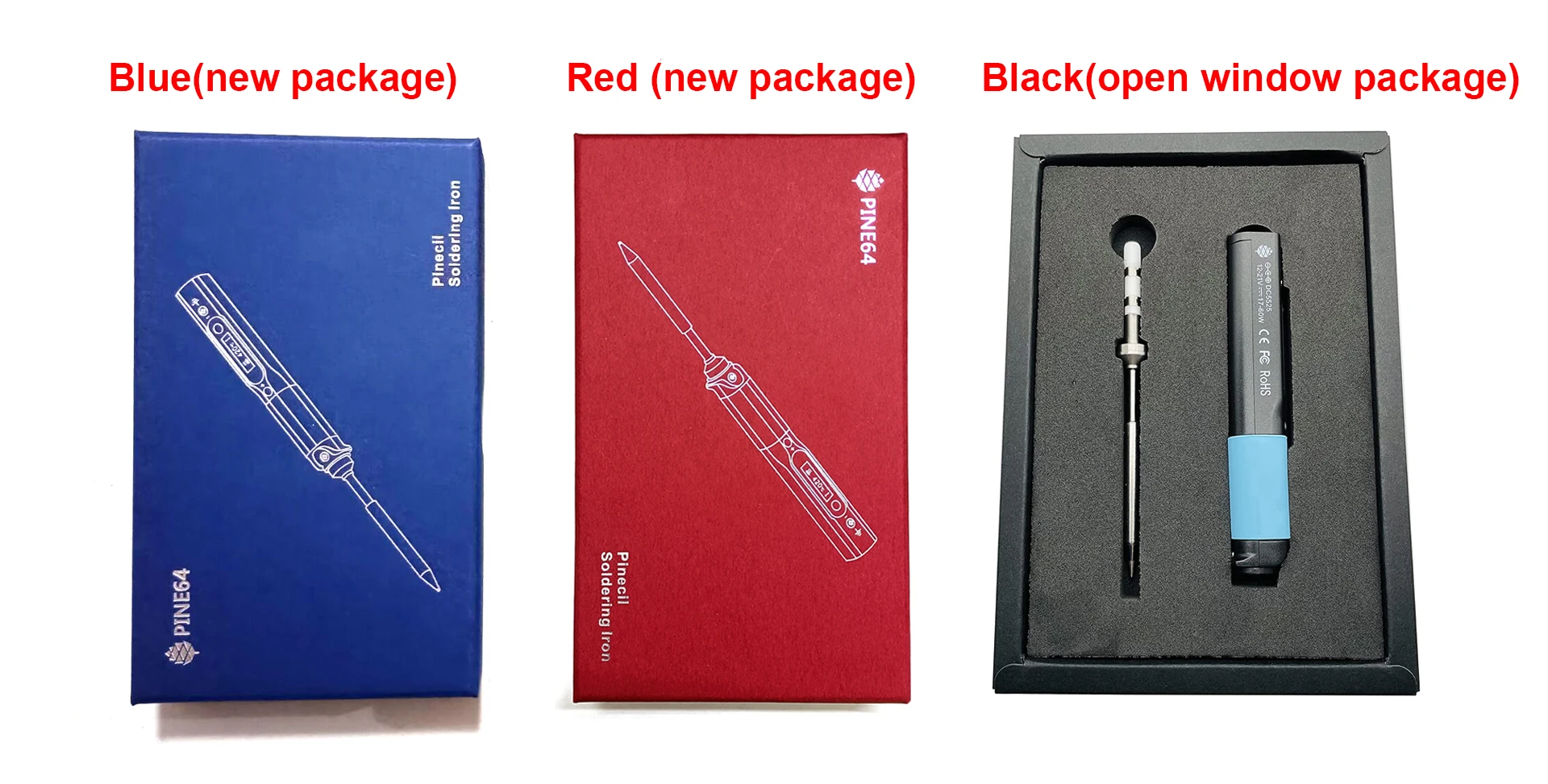

1. Standard package	Pinecil V1 CN soldering iron + TS-B2 + User Manual

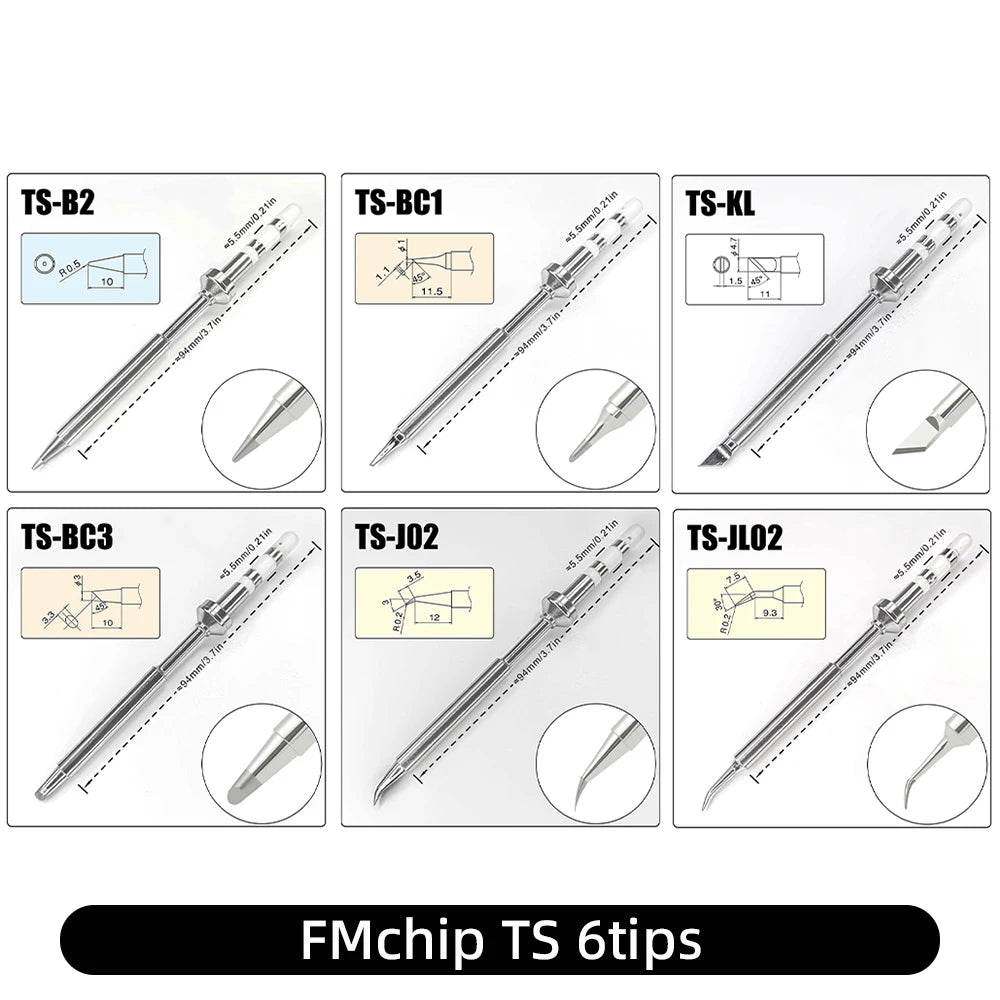

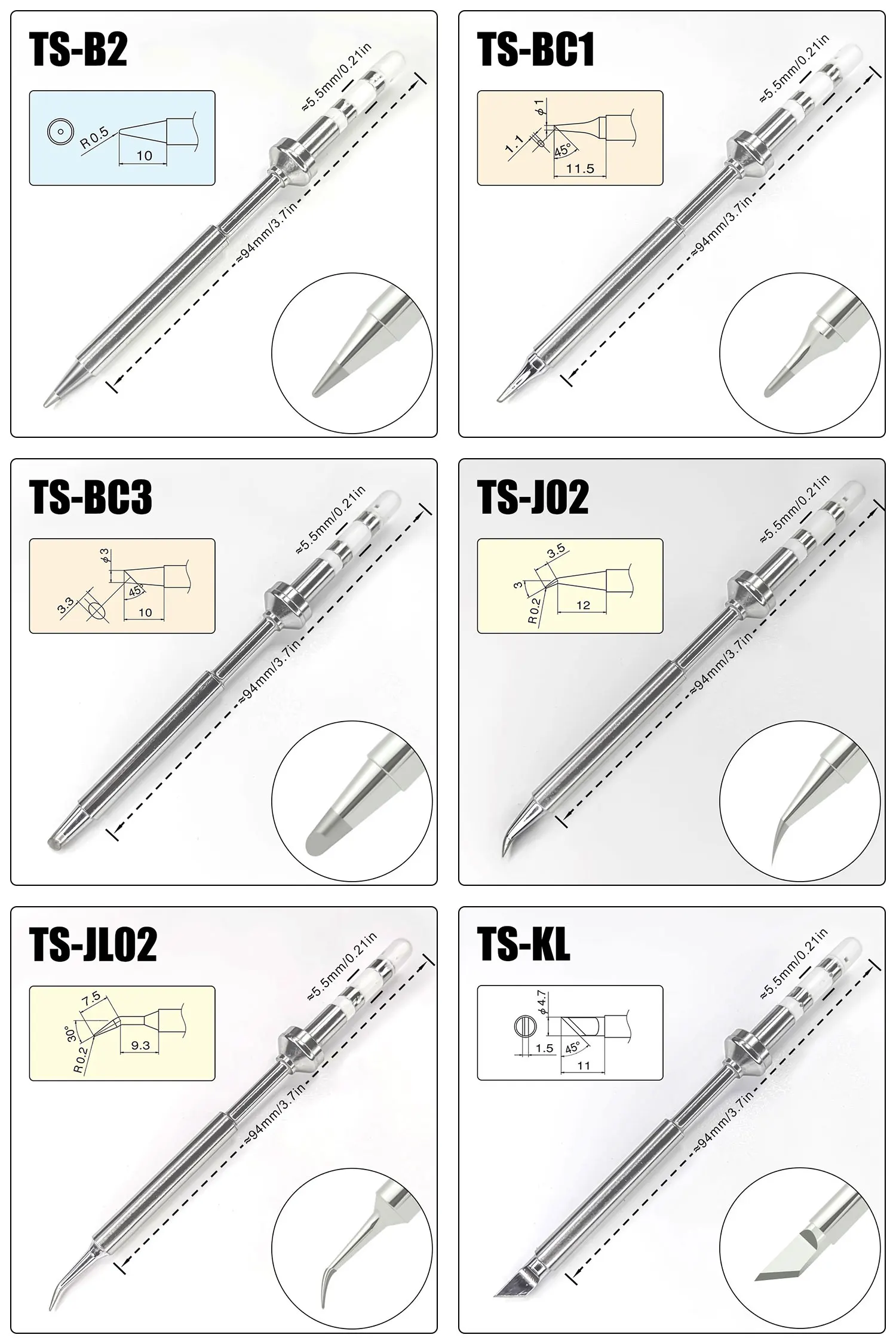

2. FMchip TS 6tips	6pcs TS tip only (TS-B2+TS-BC1+TS-BC3+TS-J02+TS-JL02+TS-KL)

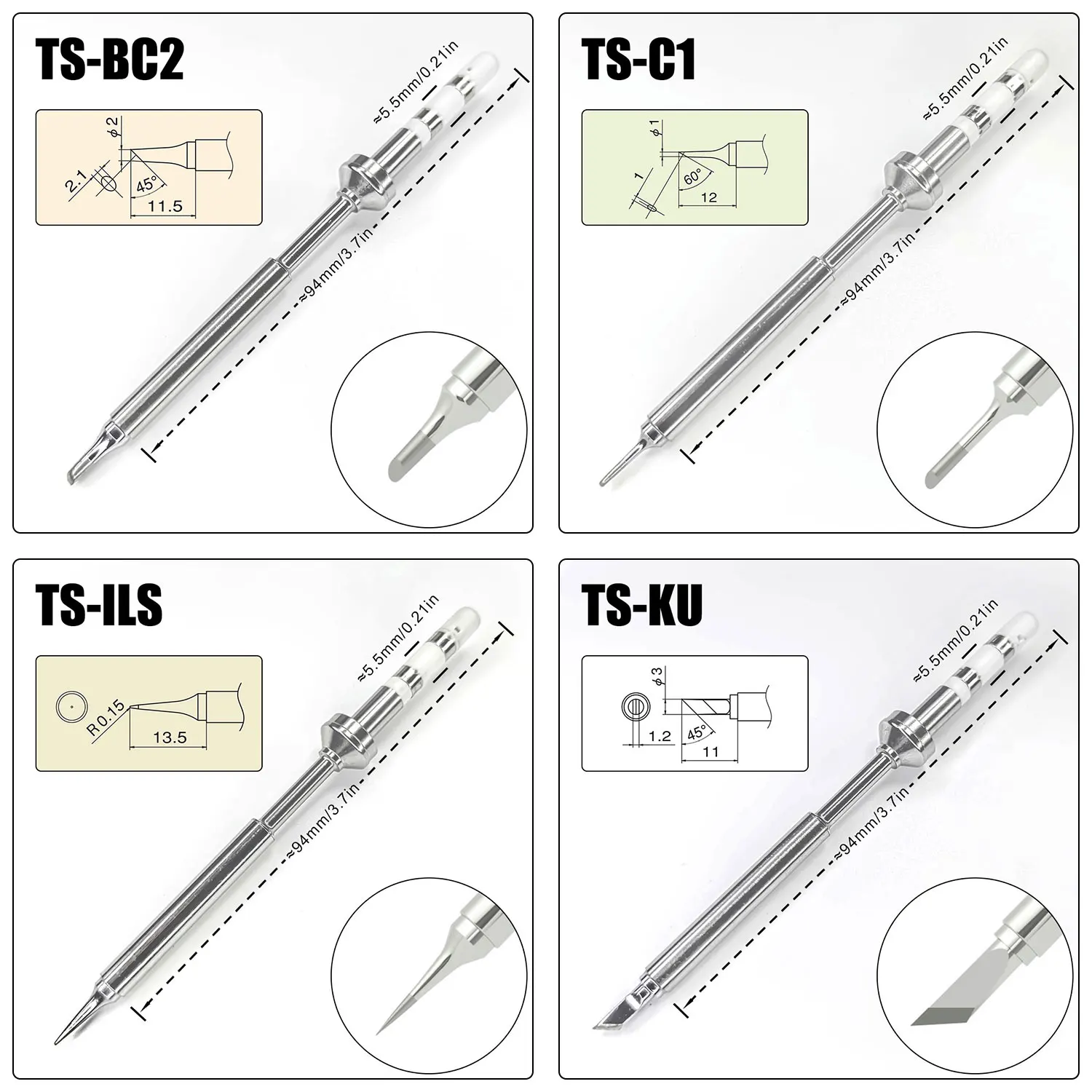

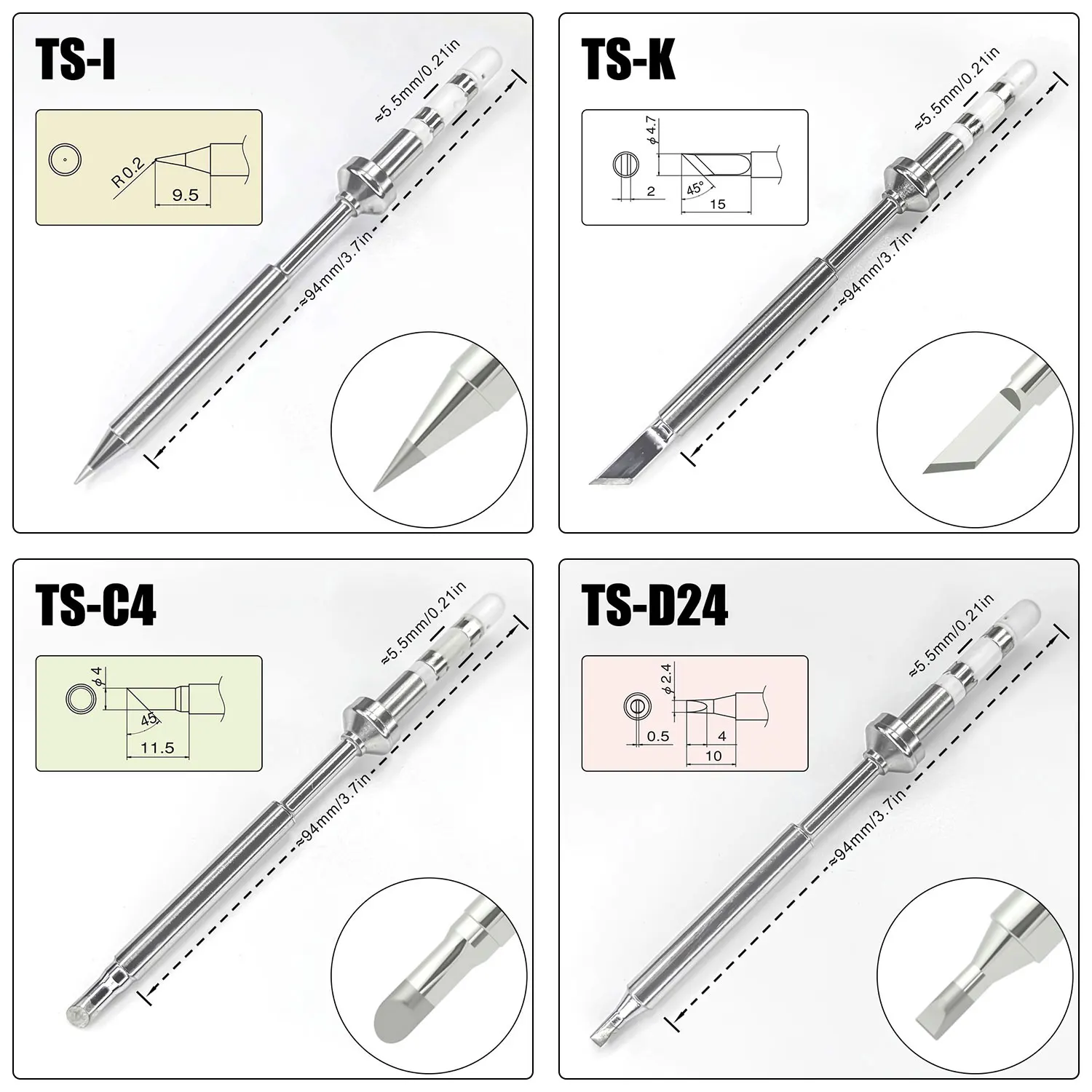

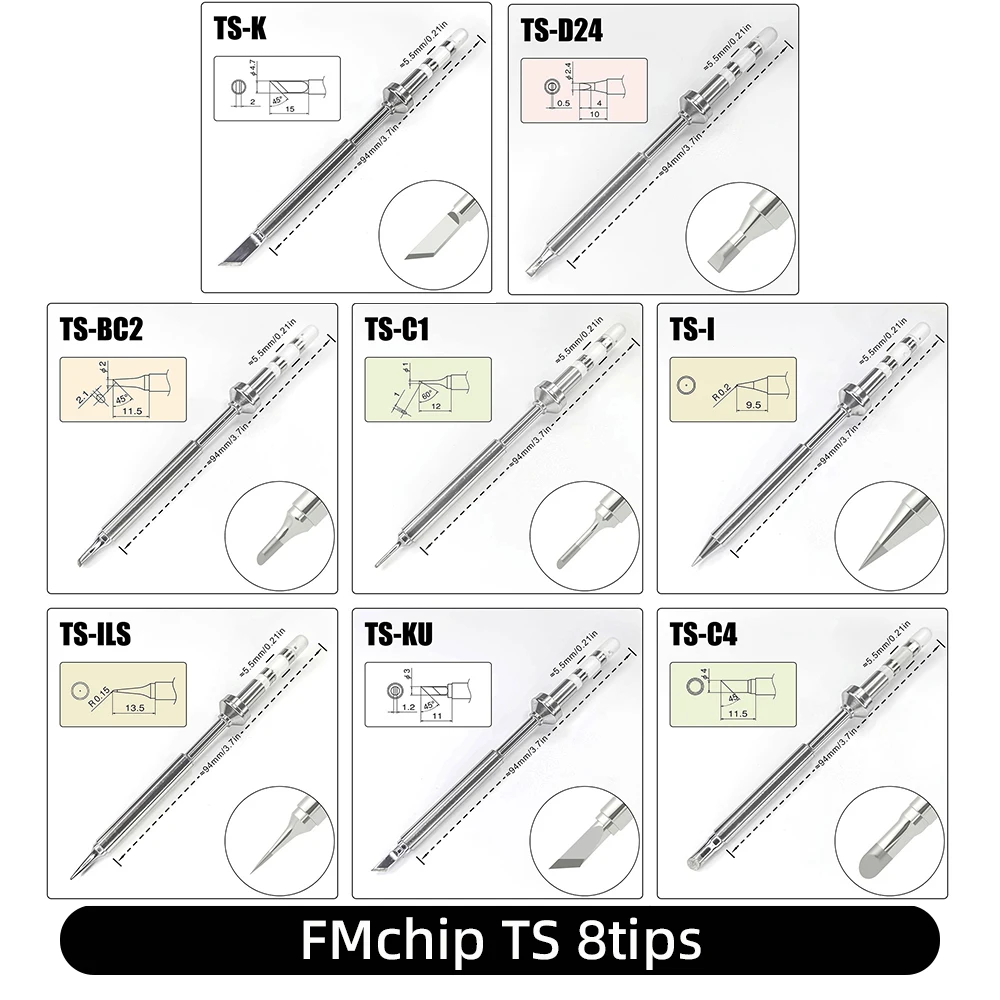

3. FMchip TS 8tips	8pcs TS tip only (TS-BC2+TS-C1+TS-ILS+TS-KU+TS-I+TS-C4+TS-D24+TS-K)
