Description

SPECIFICATIONS

Brand Name: Pine64

Certification: CE,FCC,RoHS

High-concerned chemical: none

Is Smart Device: no

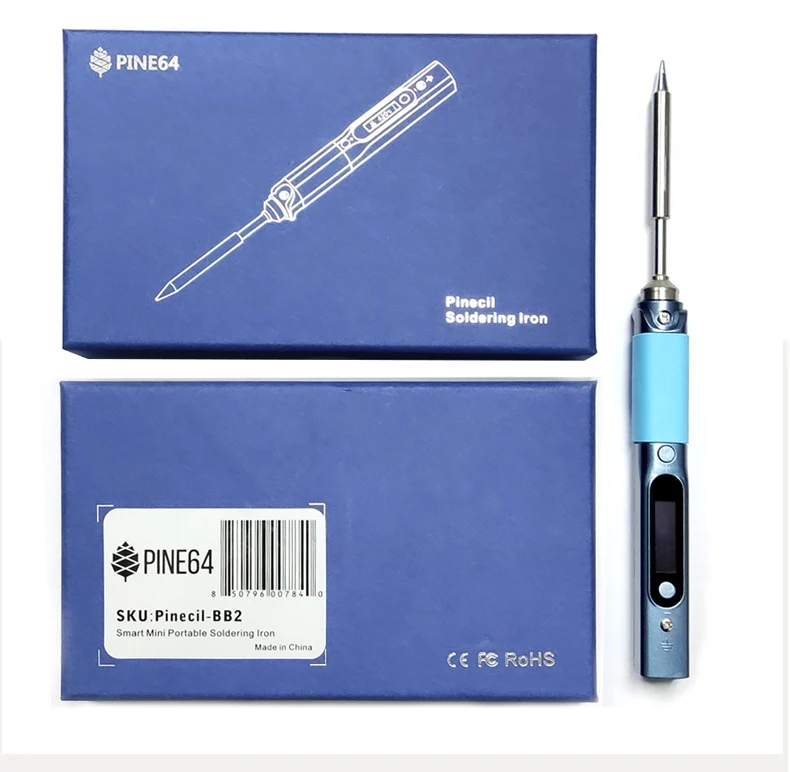

Model Number: pinecil-BB2

Origin: Mainland China

Output Voltage: 65W

Voltage: Below-50V AC (Safety Extra-Low Voltage AC, SELV AC)

Electric soldering iron: V1 version,No serial number

Note：Please do not upgrade with V2 software

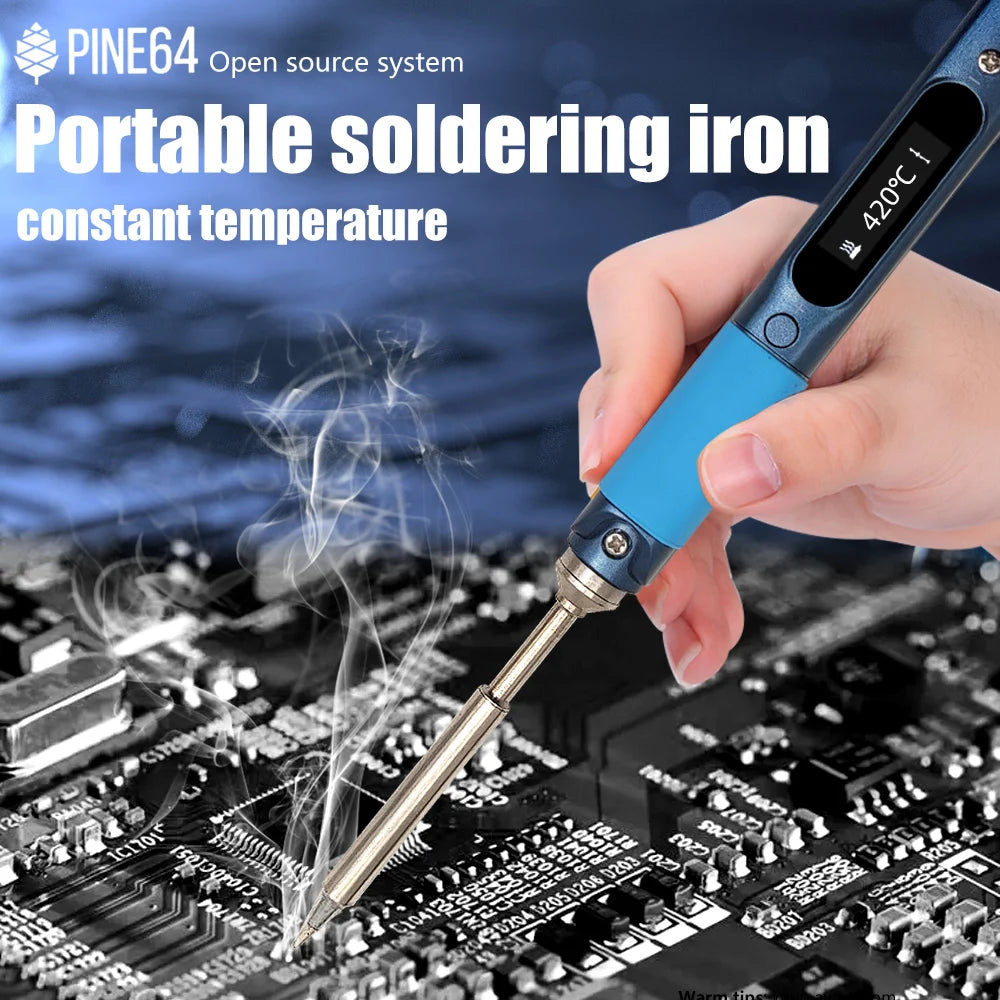

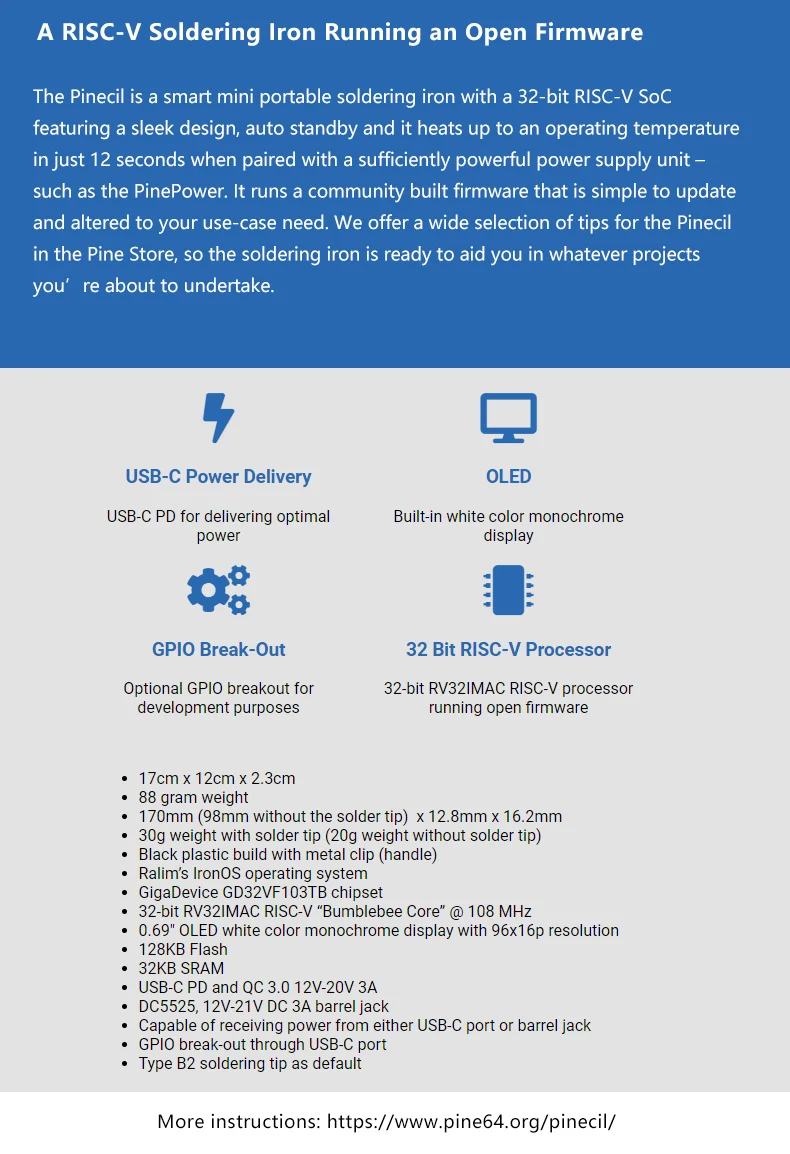

The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby and it heats up to an operating temperature in just 12 seconds!

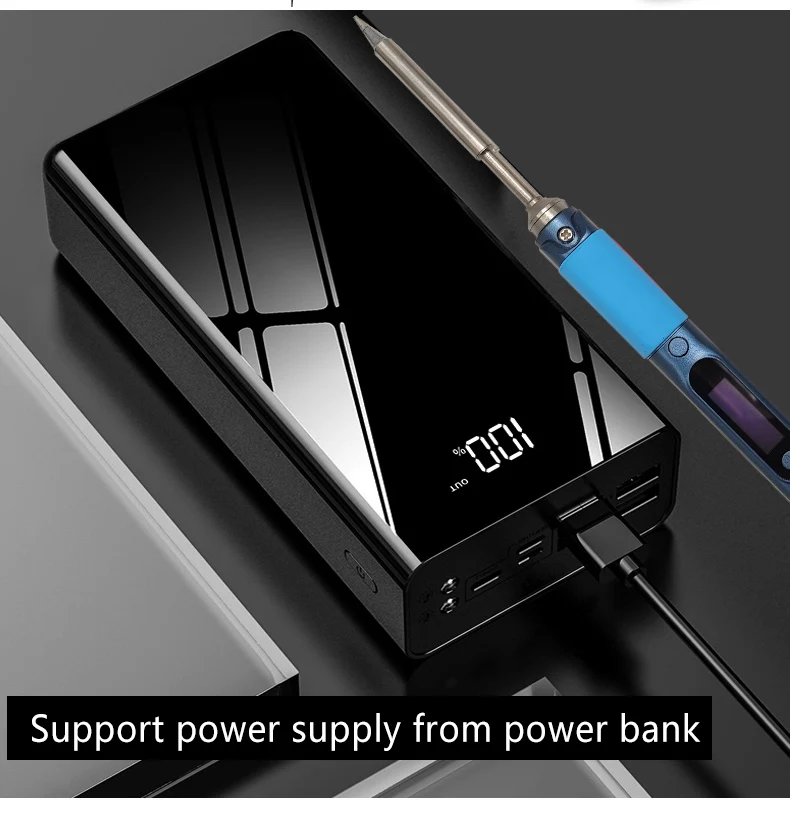

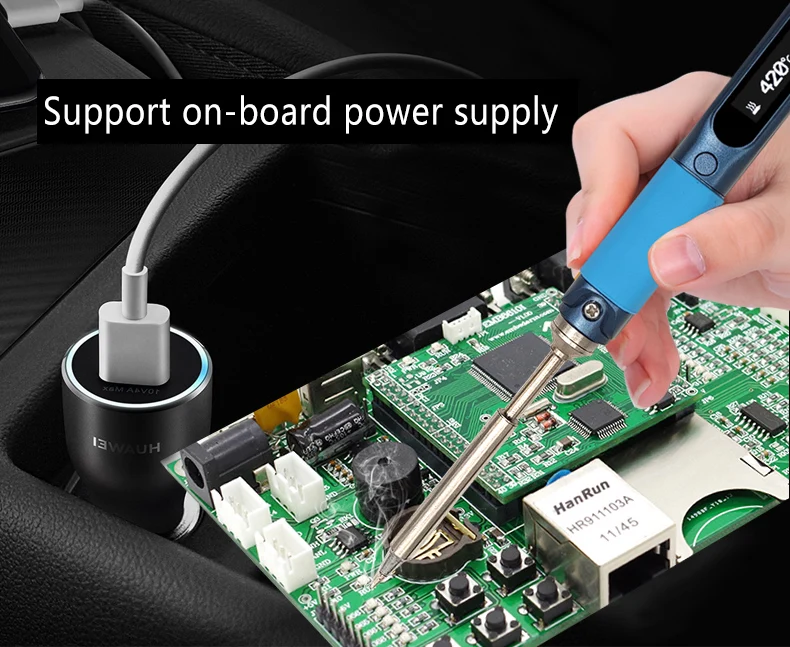

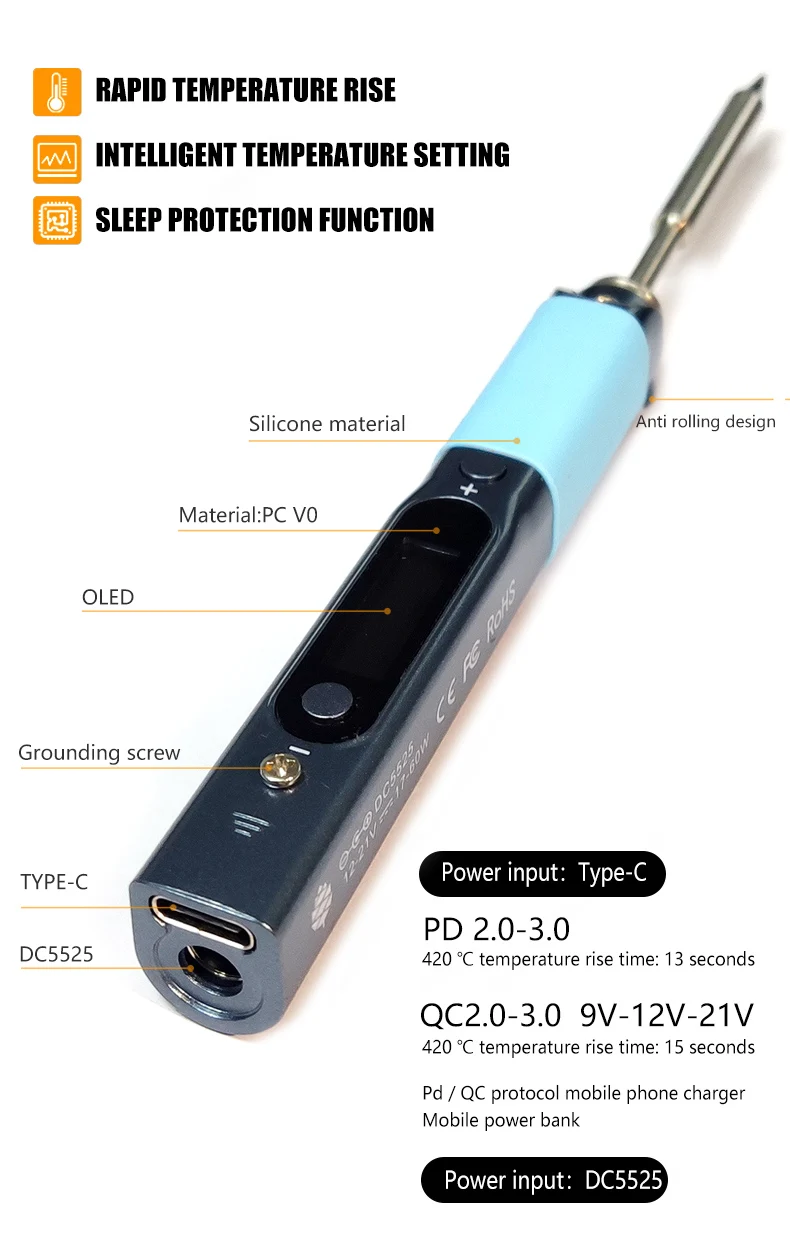

Dual power input design: 1) USB-C supports both PD and QC 3.0 and; 2) DC5525 barrel DC jack.
Speedy Rapid Warmup: Reaches operating temperature in 12 seconds. Support for on-demand rapid boost feature.

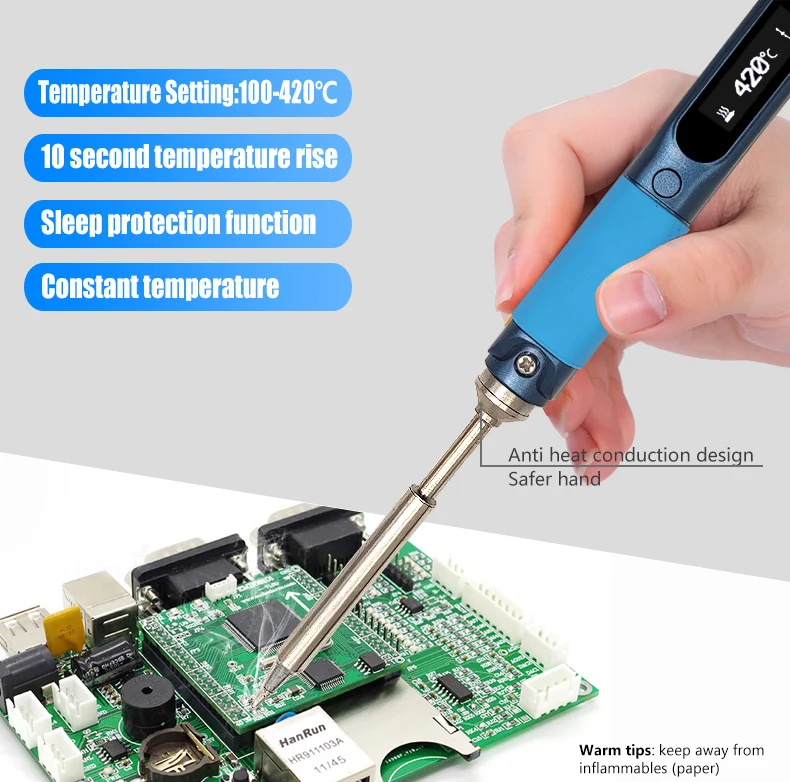

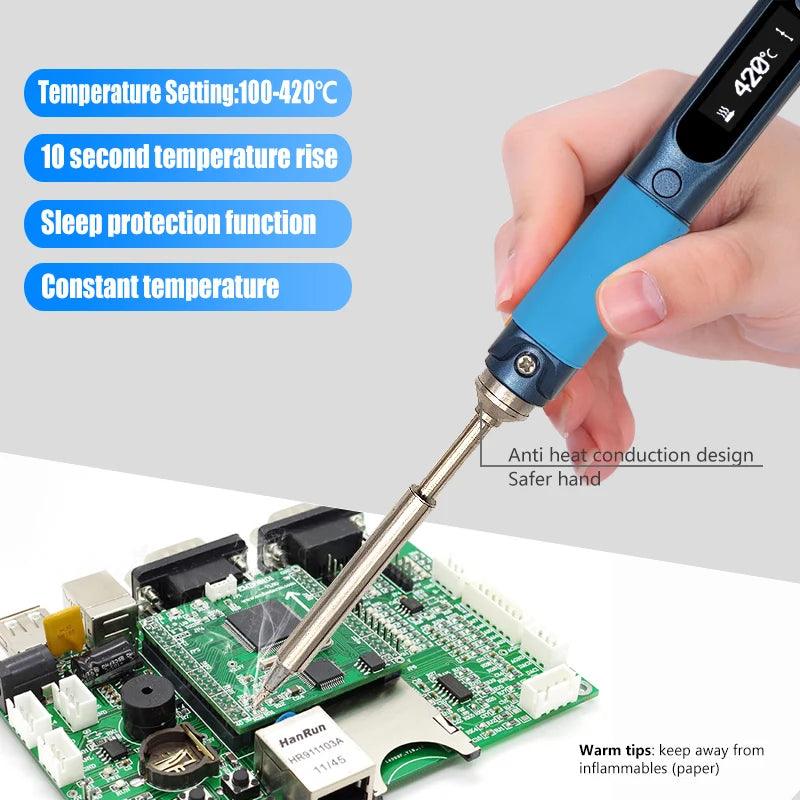

Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display.
Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell.
Auto standby mode engages when it is not in use ensuring the user safety.

PACKAGE	Dimensions: 17cm x 12cm x 2.3cm Weight: 88 grams

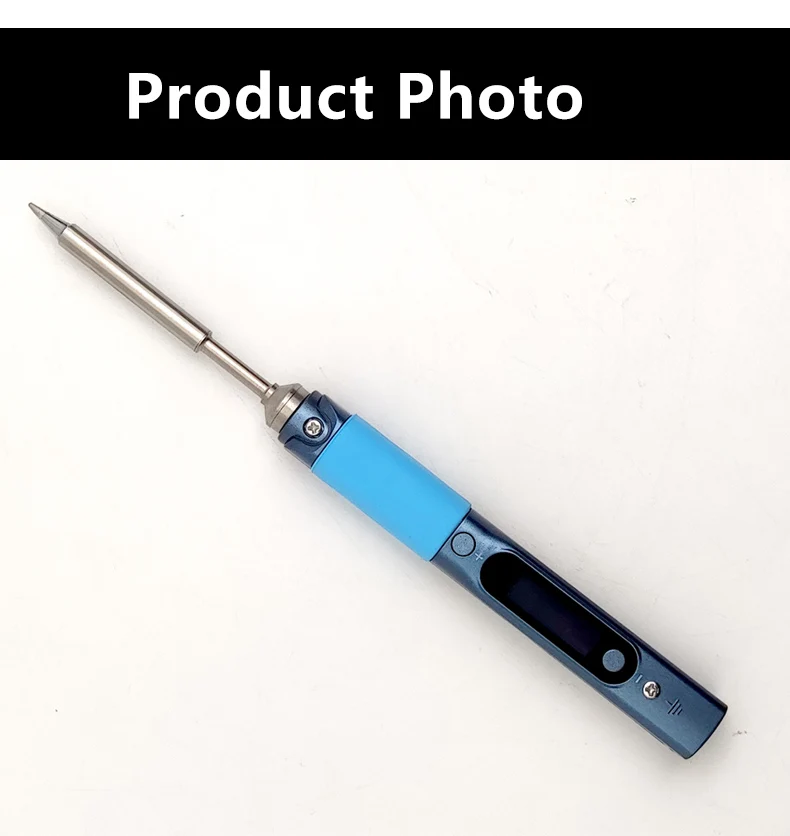

BODY	Dimensions: 170mm with solder tip / 98mm without solder tip x 12.8mm x 16.2mm Weight: 30g with solder tip / 20g without solder tip Build: Plastic with metal clip (Handle) Color: Black

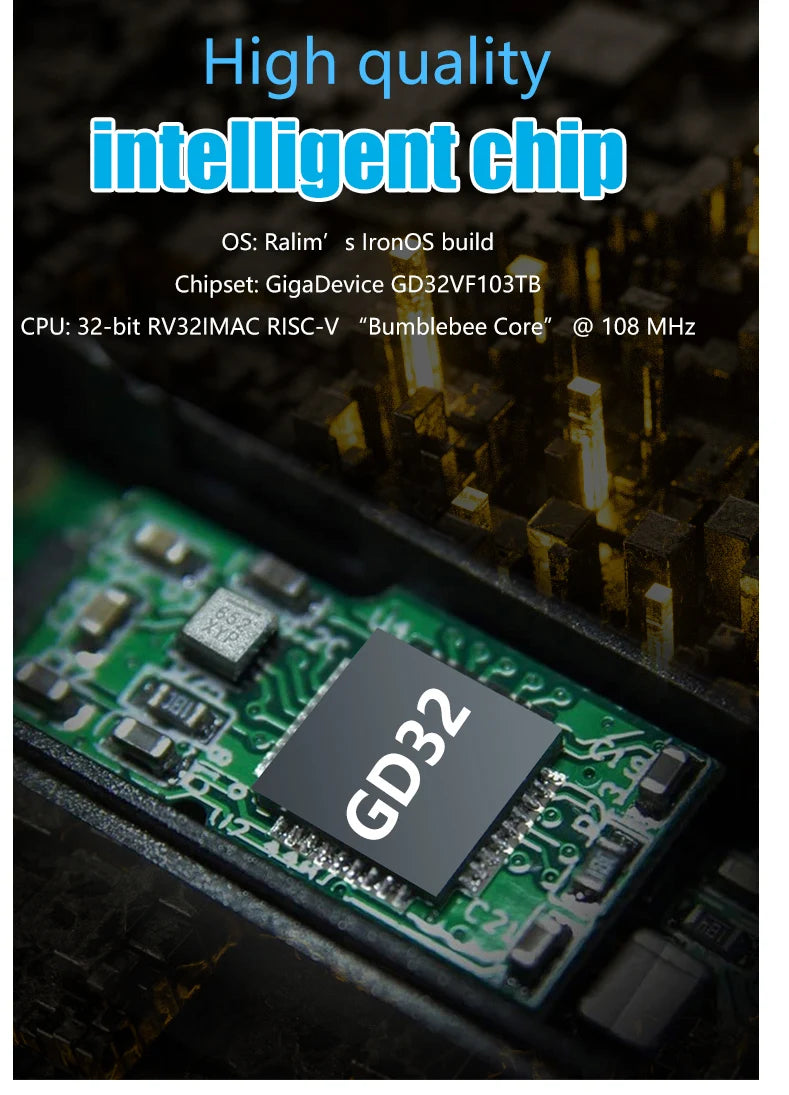

PLATFORM	OS: Ralim's IronOS build Chipset: GigaDevice GD32VF103TB CPU: 32-bit RV32IMAC RISC-V "Bumblebee Core" @ 108 MHz
DISPLAY	Type: OLED White Colour Monochrome Display Size: 0.69 inches Resolution: 96x16pixels
MEMORY	Internal Flash Memory: 128KB System Memory: 32KB SRAM Expansion: None

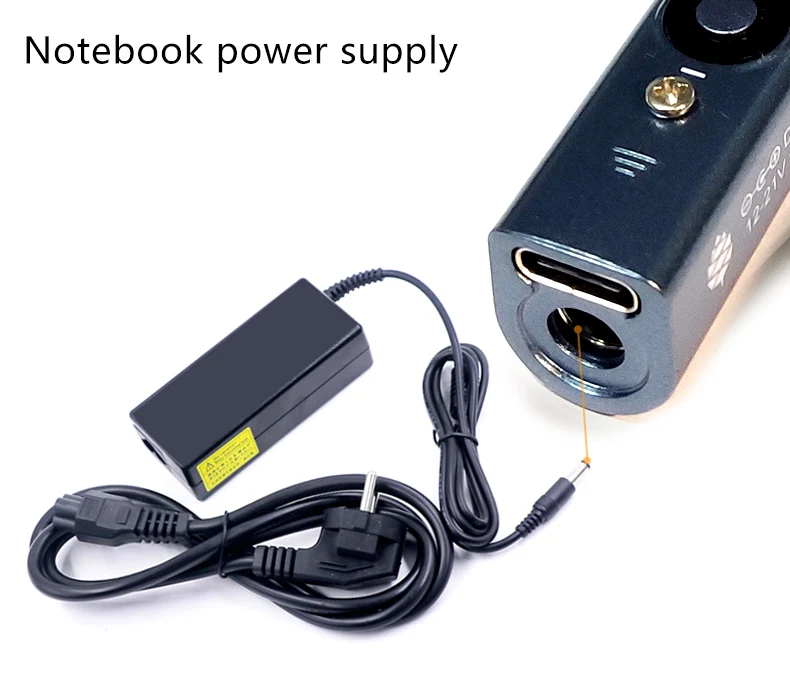

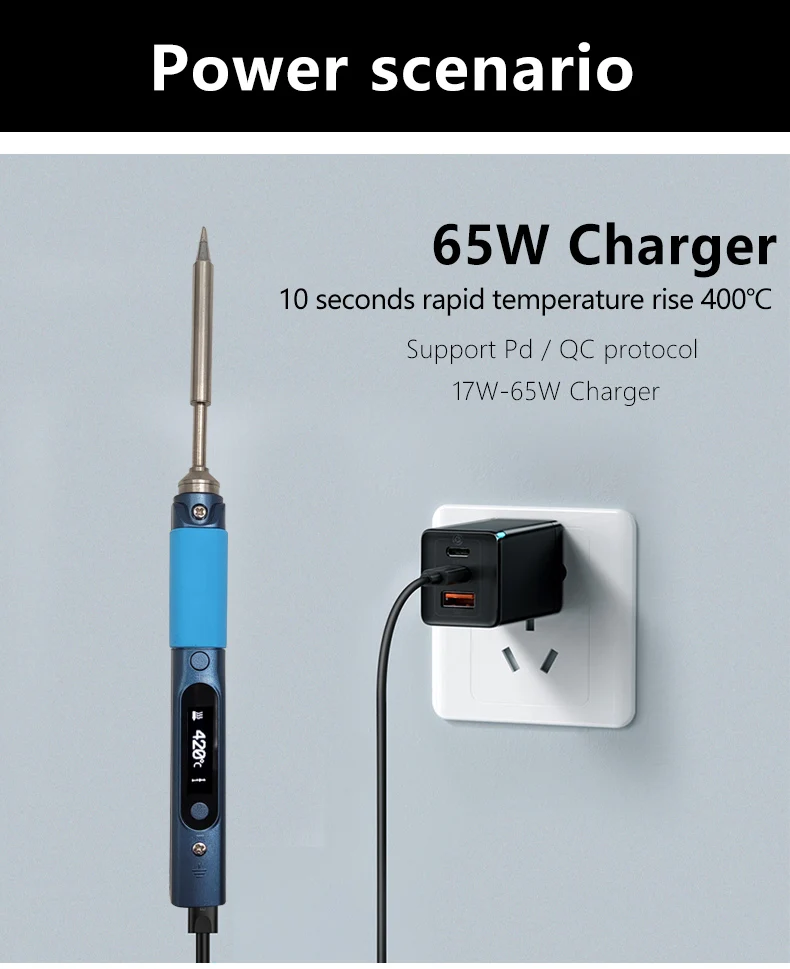

POWER PORTS	USB type C: PD and QC 3.0 12V-20V 3A Barrel Jack: DC5525, 12V-21V DC 3A

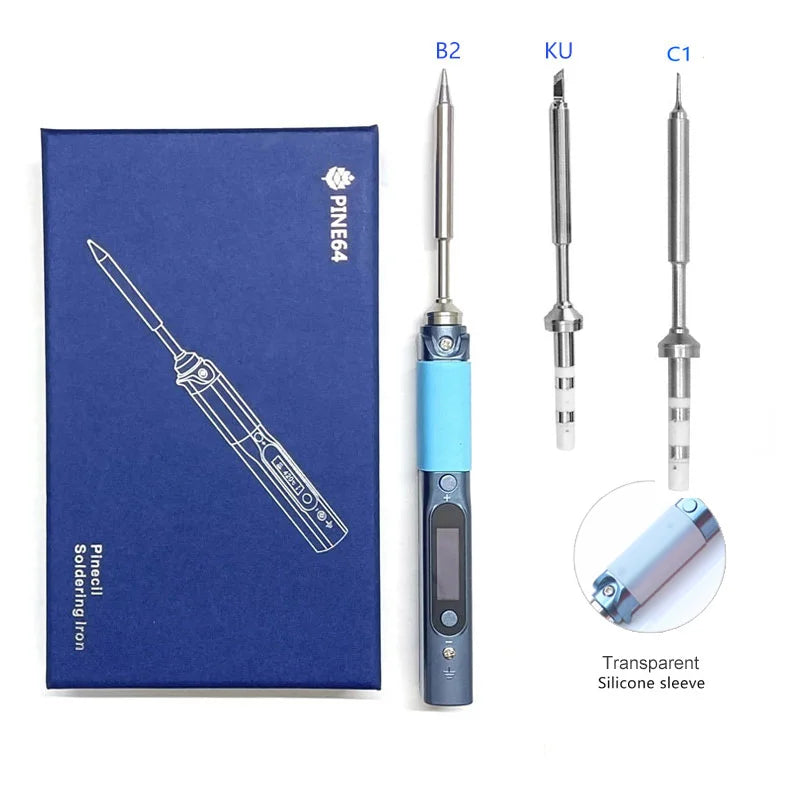

TIP	Type B2 Length: 106mm Weight: 10g
FEATURES	Capable received power from either USB-C port or barrel jack. GPIO break-out thru USB-C port
