Pine64 Pinecil Soldering Iron KIT Pinecil V1 Type-C DC Adjustable Digital Temperature Solder Station Welding repair tools

Pine64 Pinecil Soldering Iron KIT Pinecil V1 Type-C DC Adjustable Digital Temperature Solder Station Welding repair tools

$176.40

$176.40 $0.00

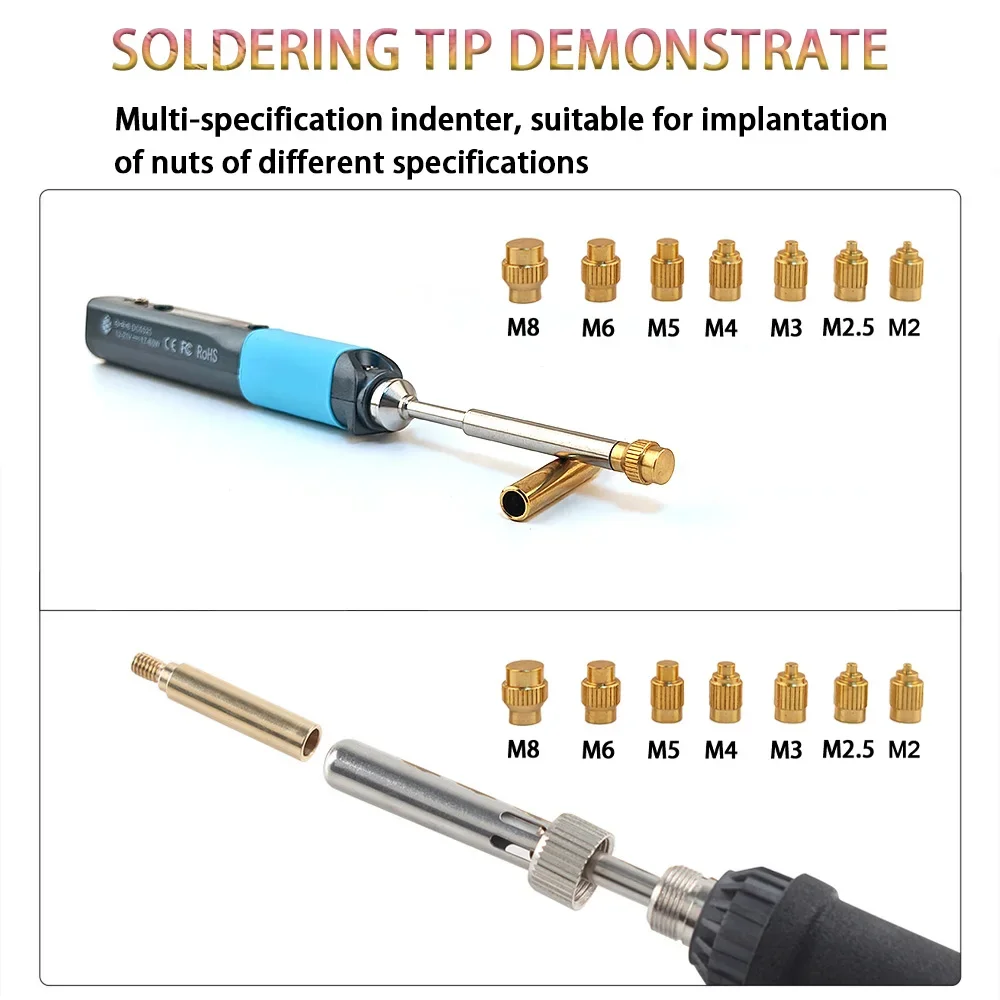

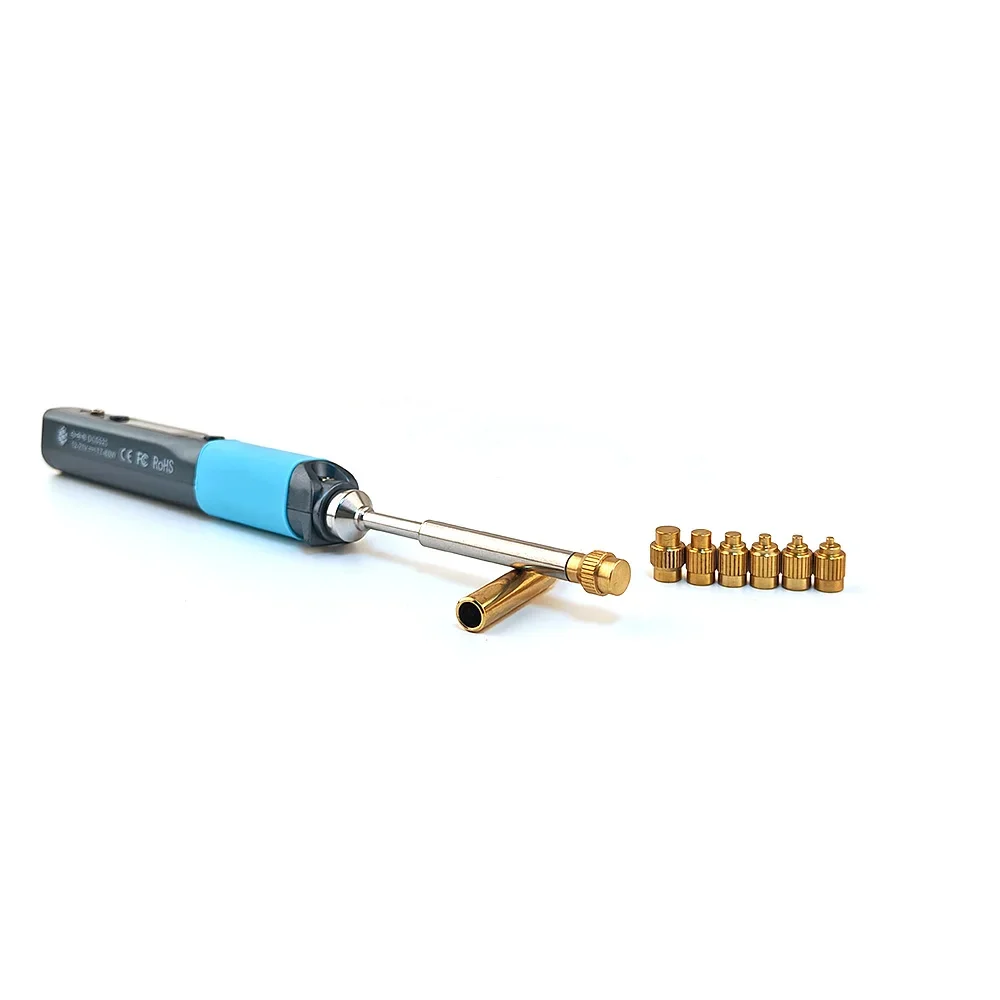

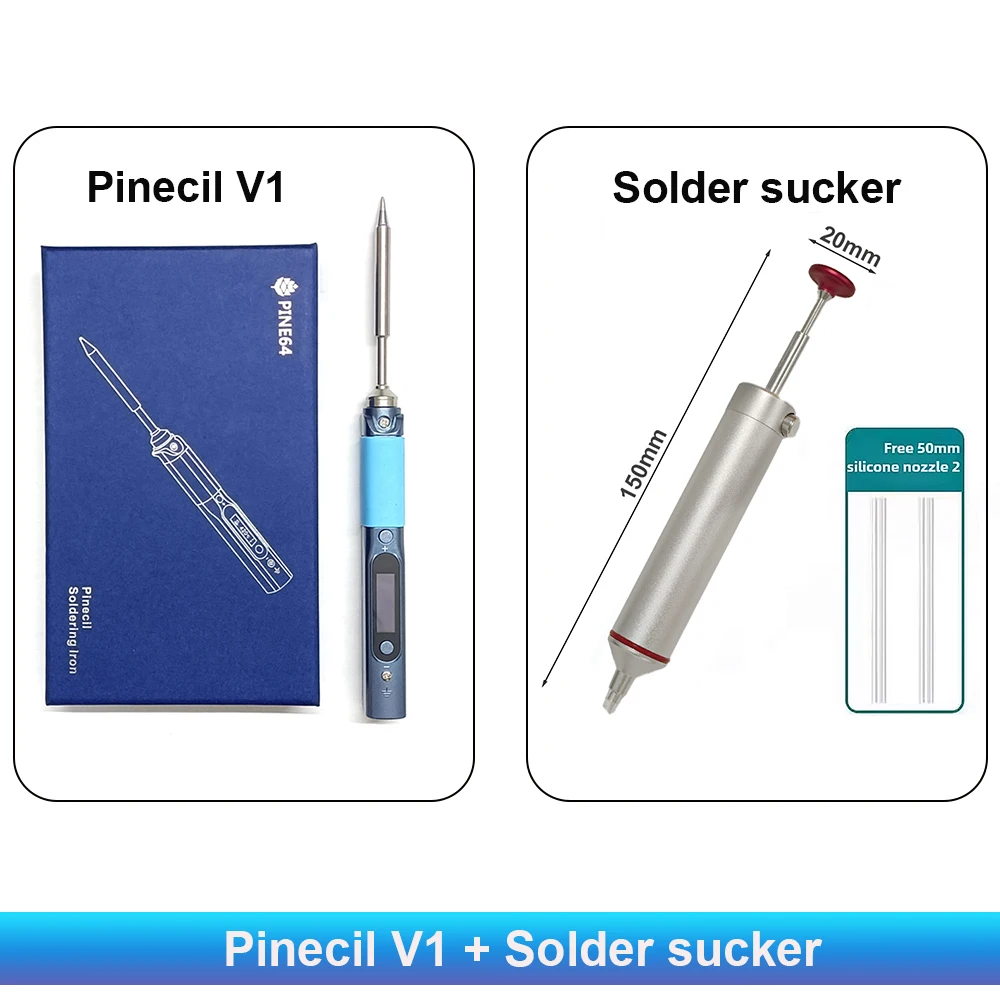

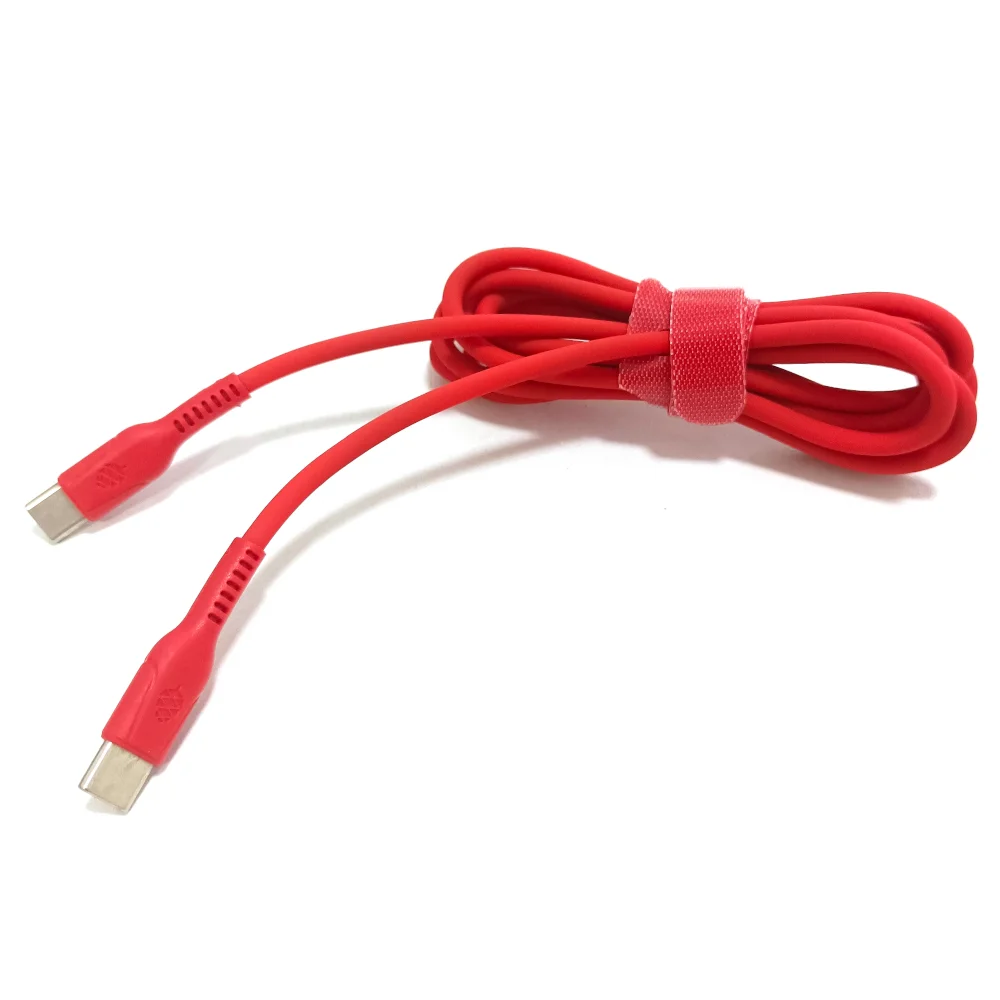

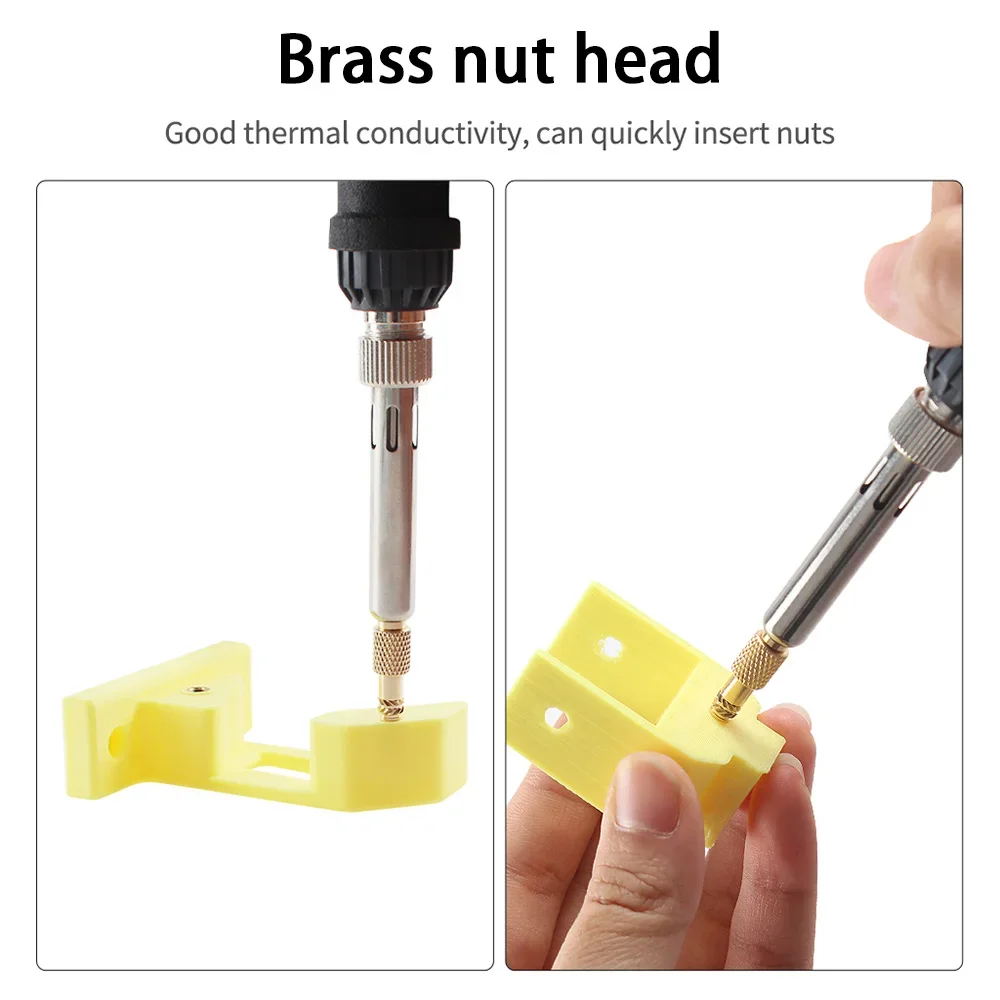

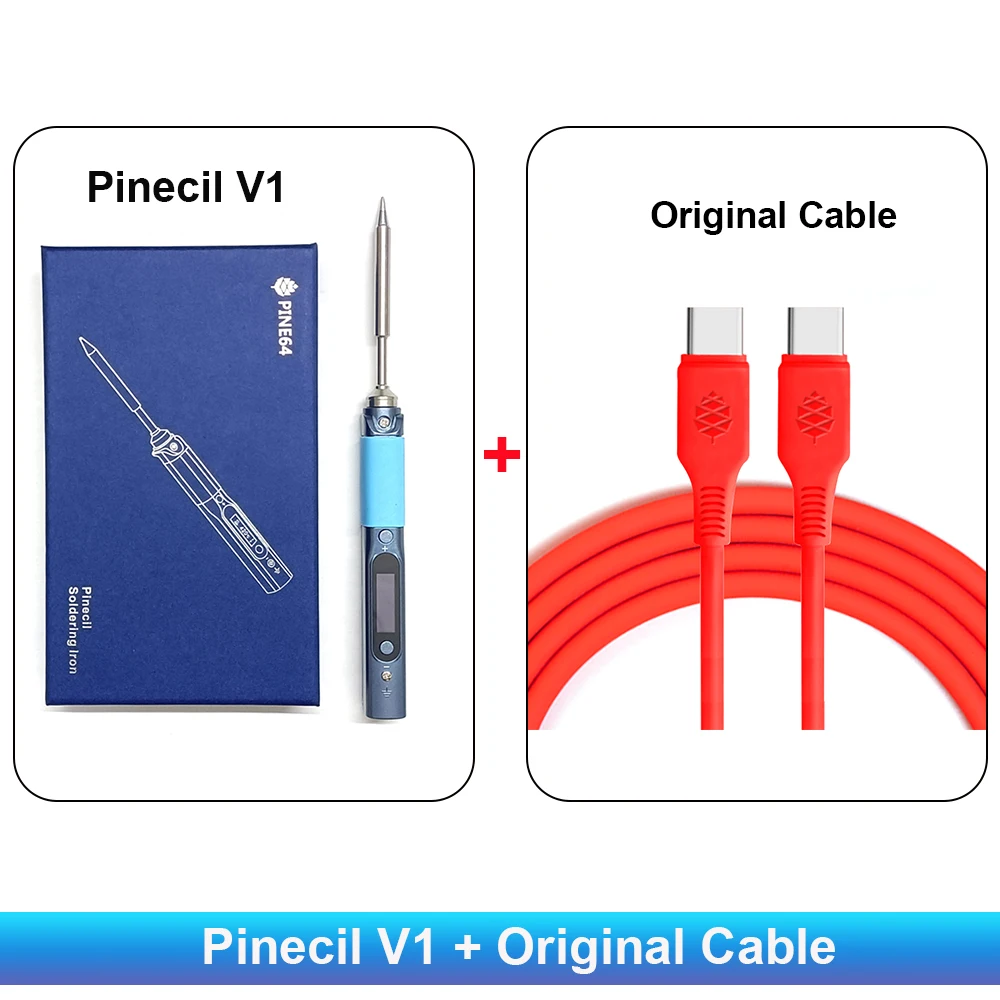

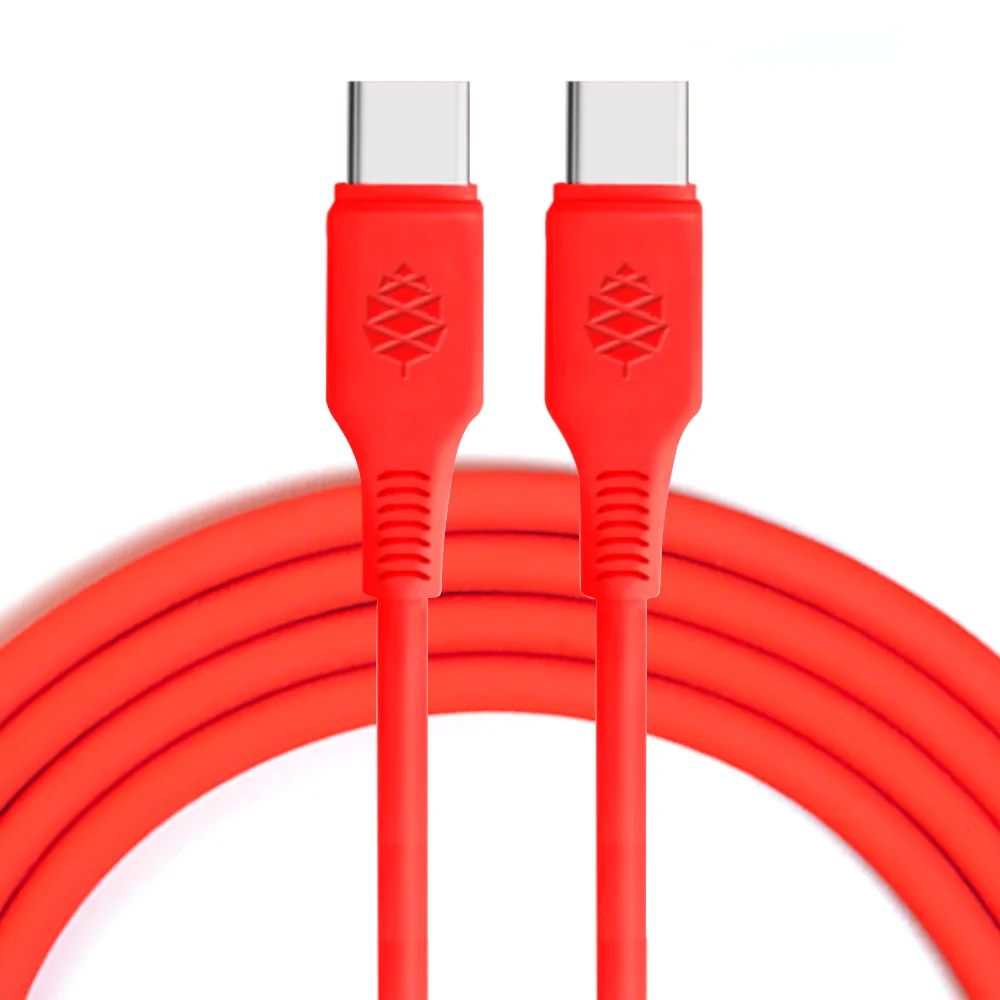

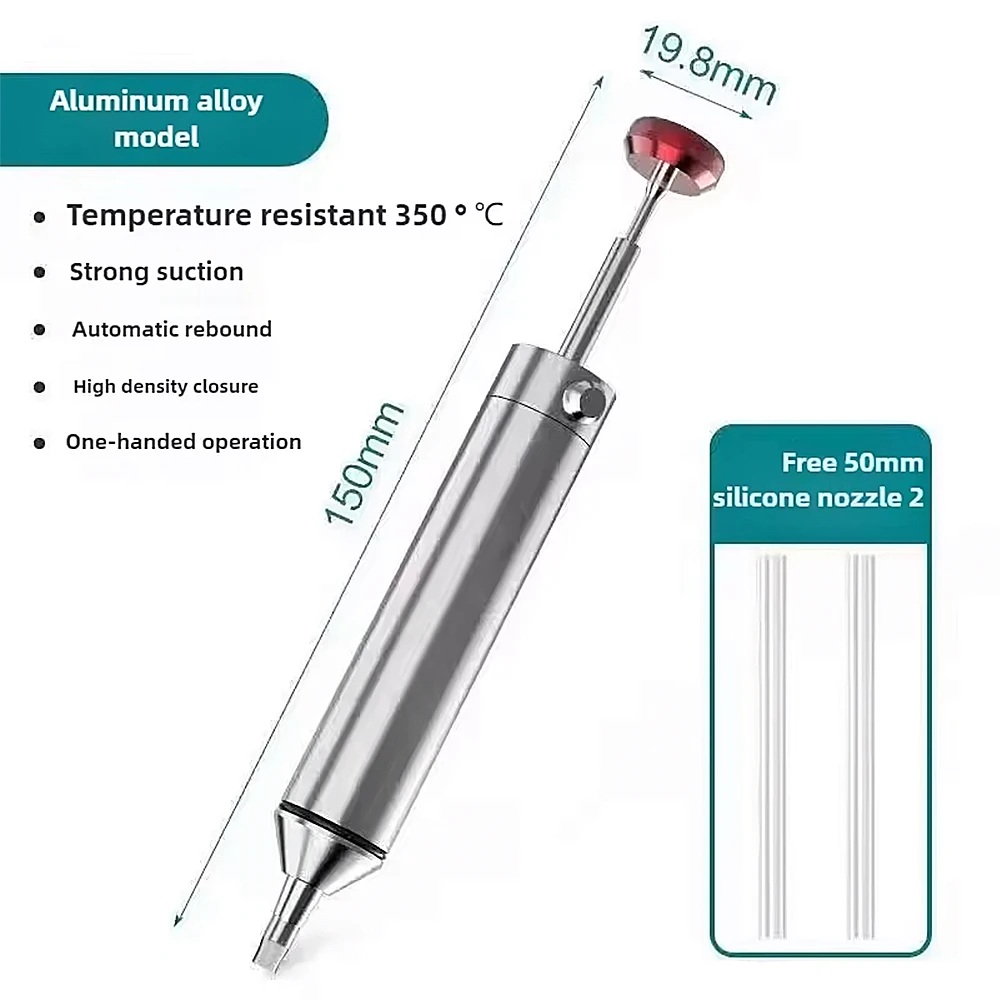

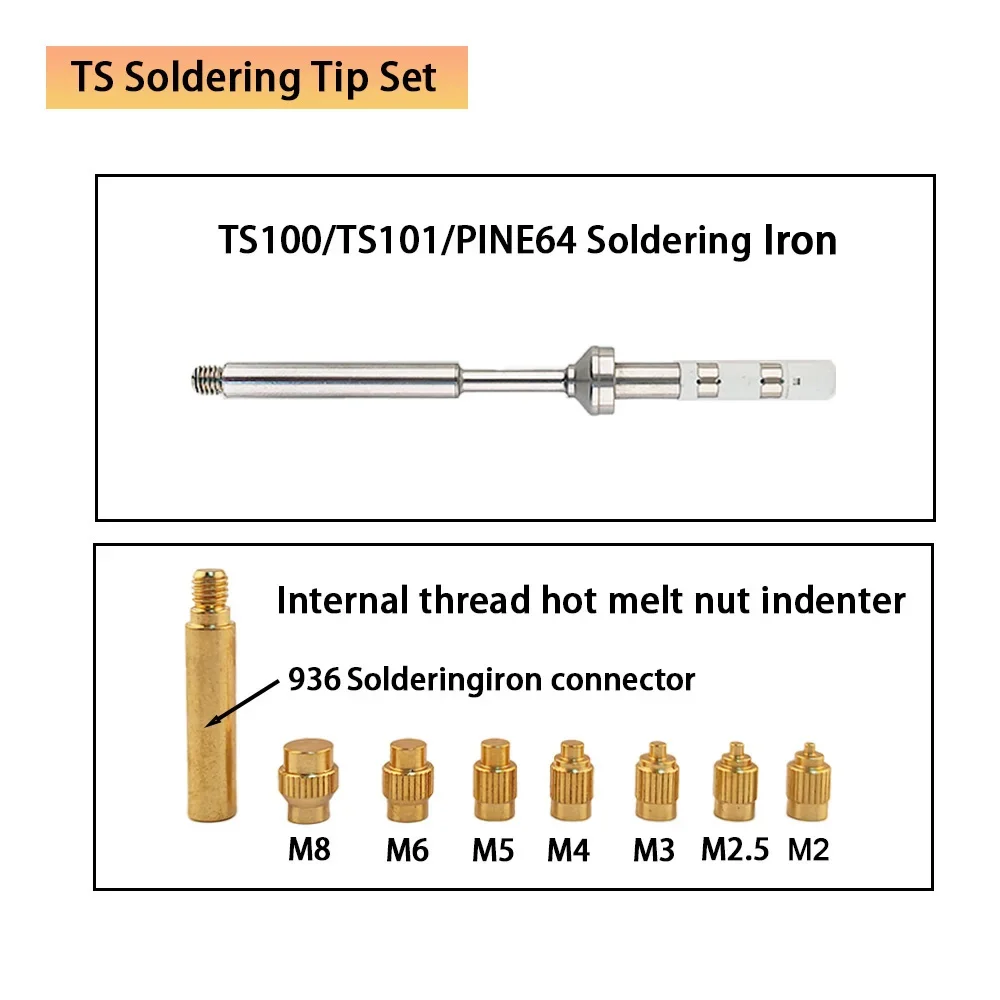

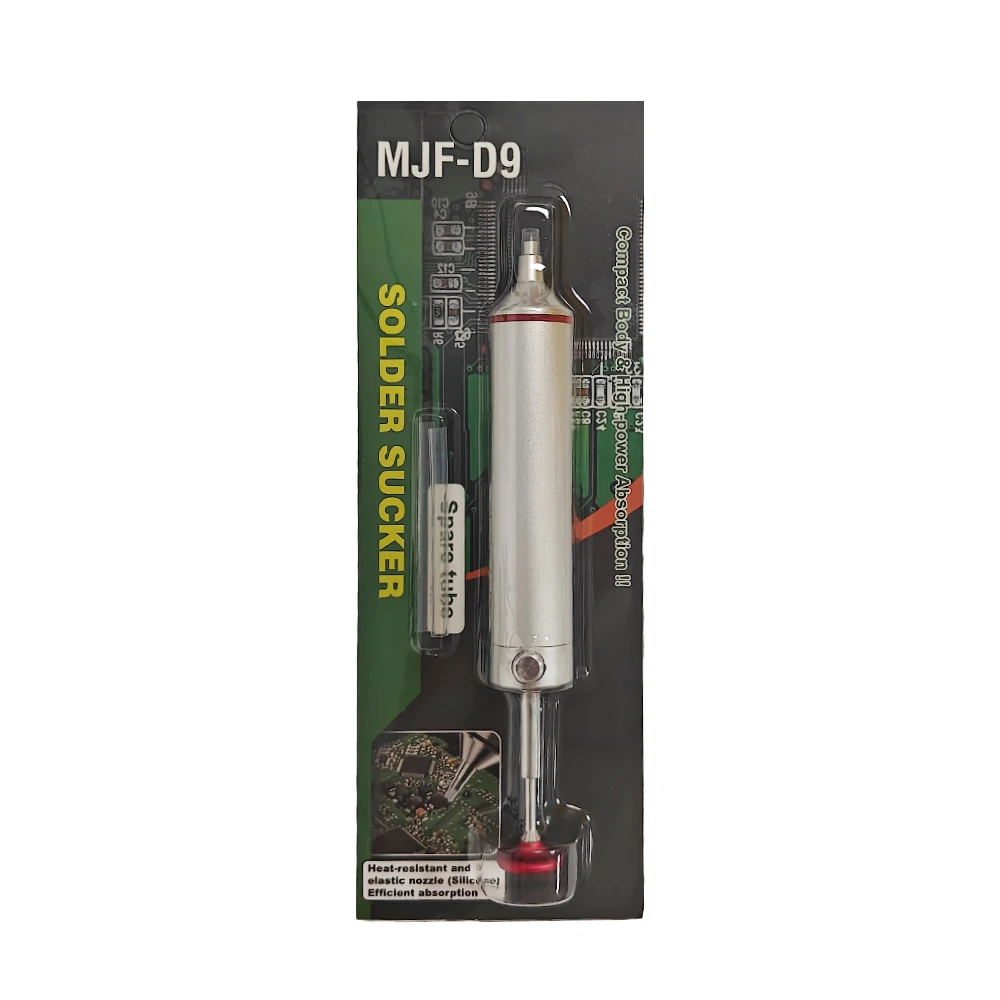

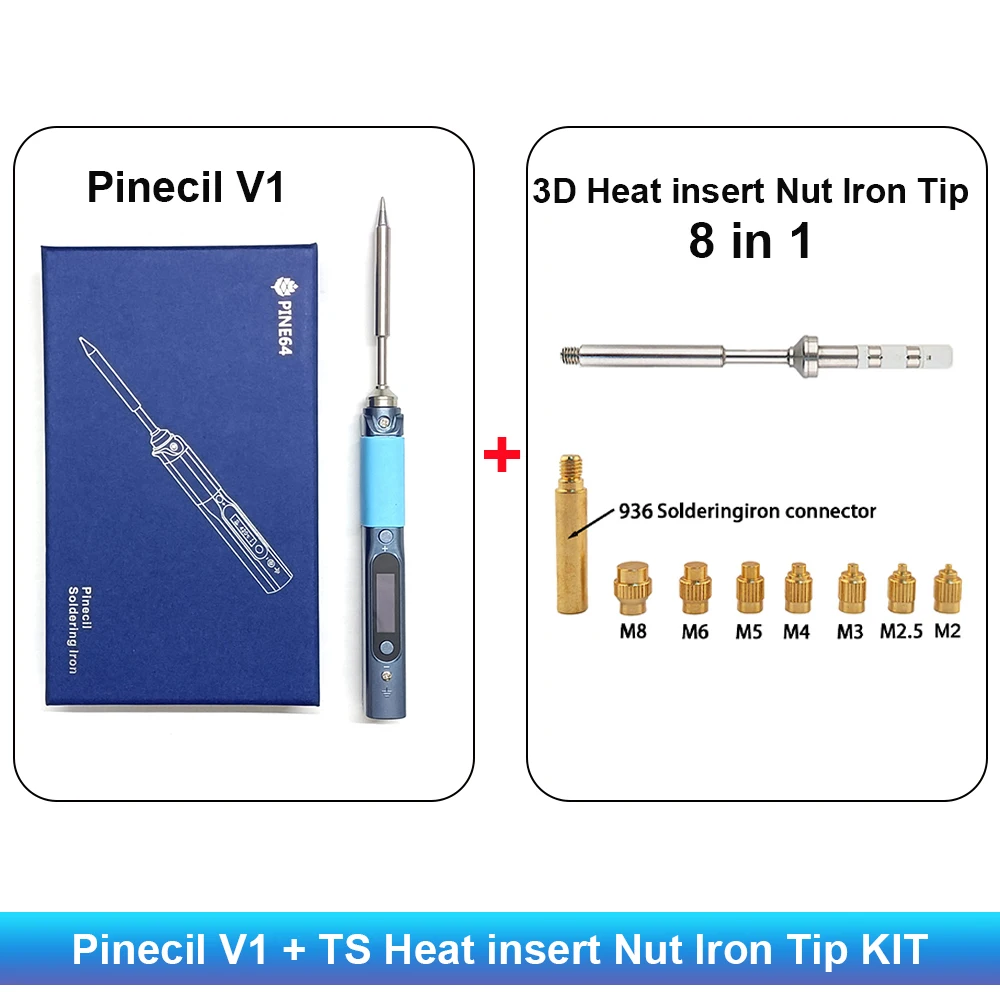

Color Pinecil V1 And Original Cable Add Solder sucker Add Heat insert kit

Description

SPECIFICATIONS

Brand Name: Pine64

Certification: CE,FCC,RoHS

Choice: yes

Dimensions: Pinecil-BB2

High-concerned chemical: none

Input Voltagle: 12V-21V

Is Smart Device: no

Model Number: Pinecil V1

Origin: Mainland China

Output Temperature: 0~420°

Output Voltage: 17-60W

Temperature Stability: ±3%

Voltage: Others

semi_Choice: yes

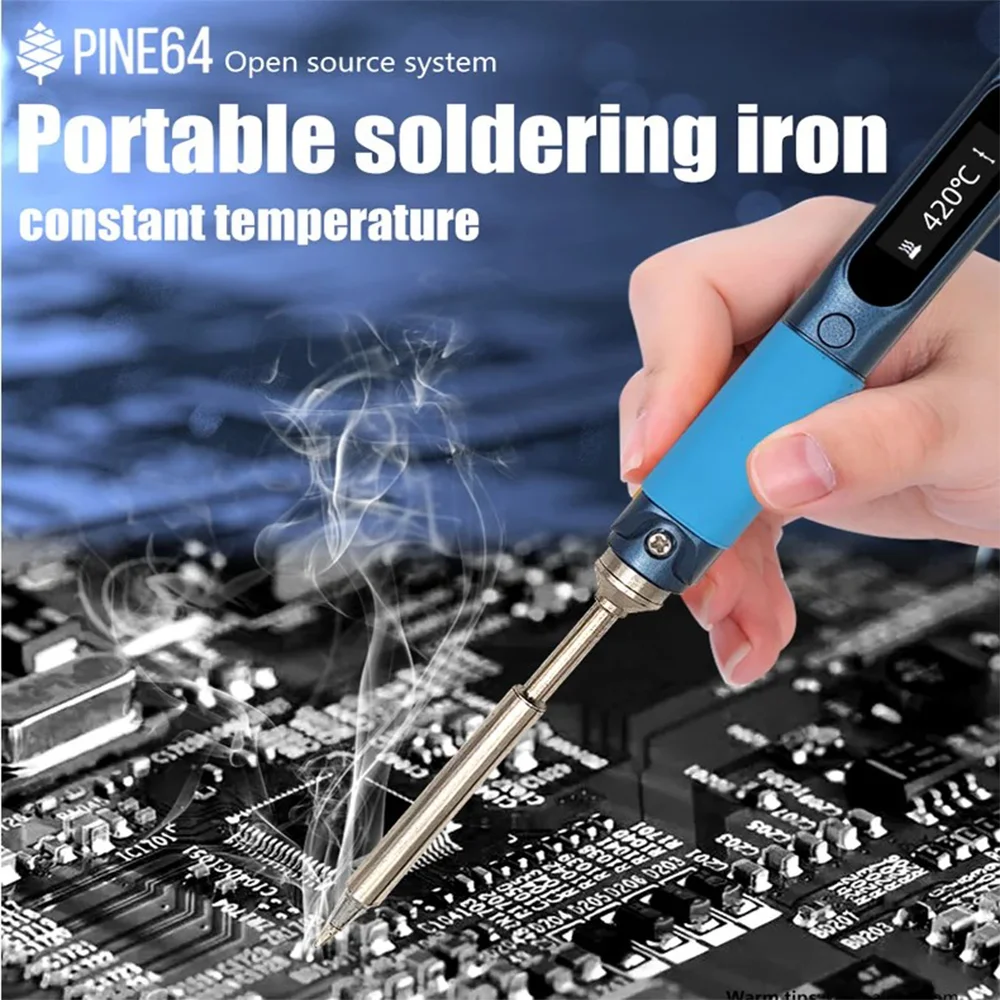

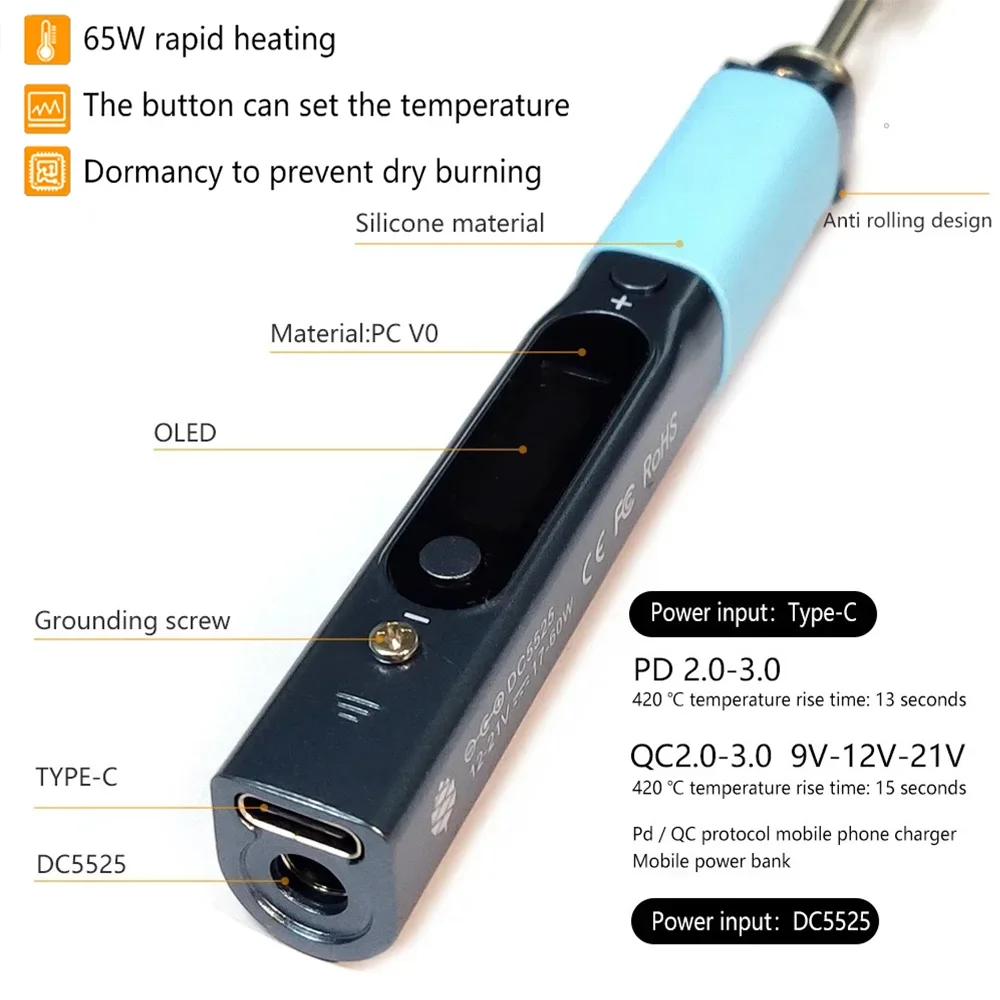

Pine64 Pinecil-V1 BB2 Smart Soldering Iron

The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby and it heats up to an operating temperature in just 12 seconds!

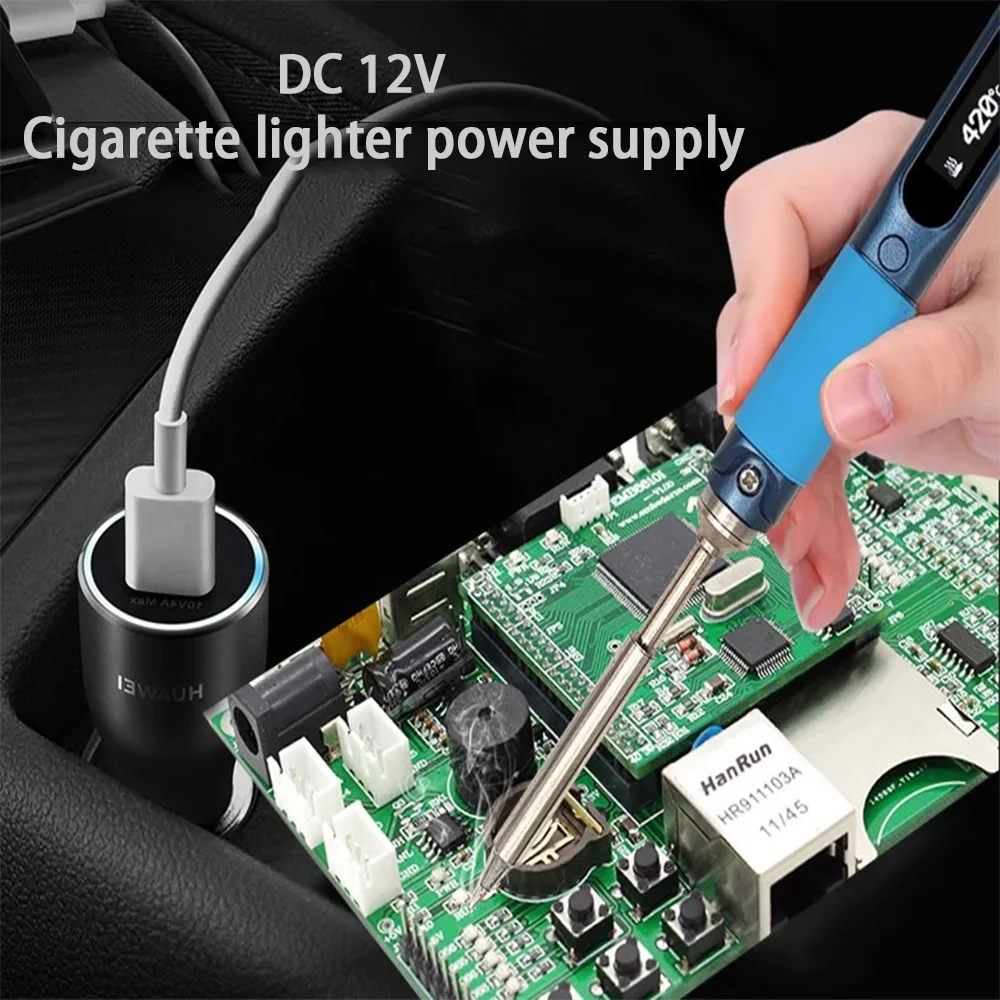

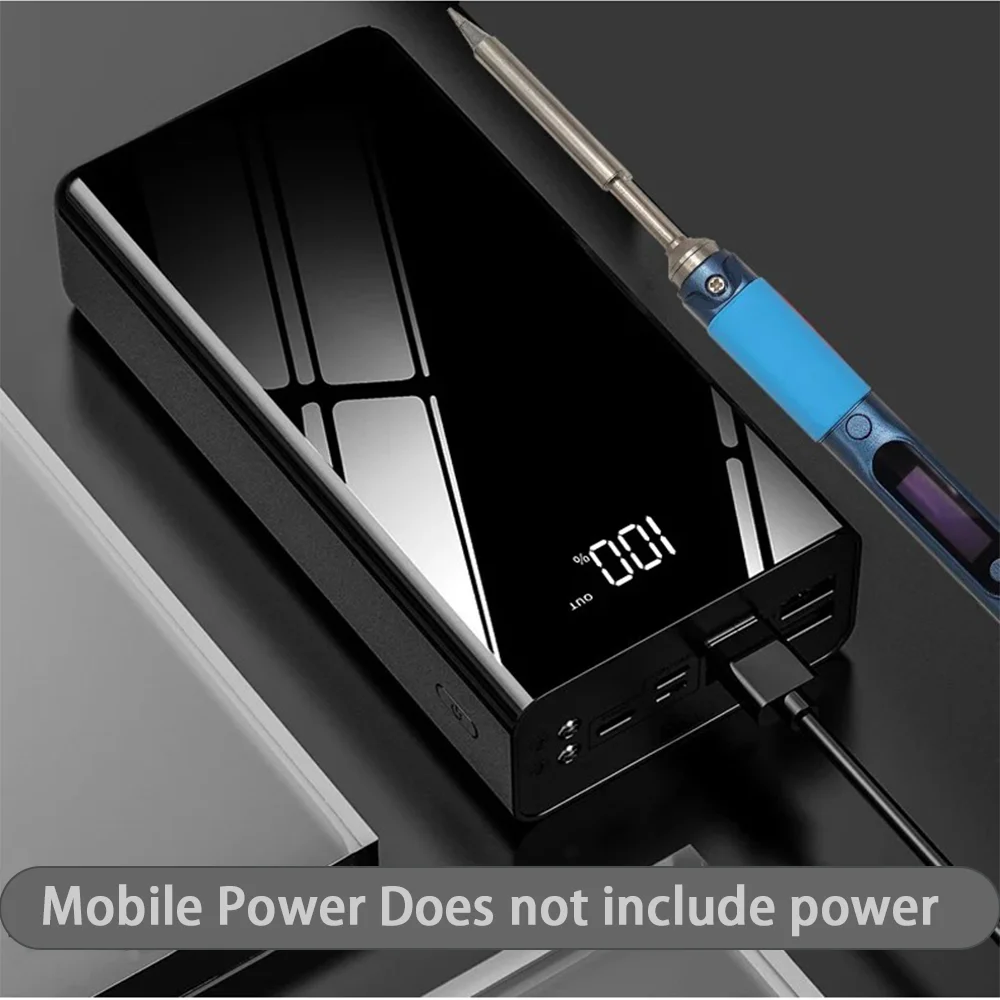

Dual power input design: USB-C supports both PD and QC 3.0 and; DC5525 barrel DC jack.(Note: does not include power supply)

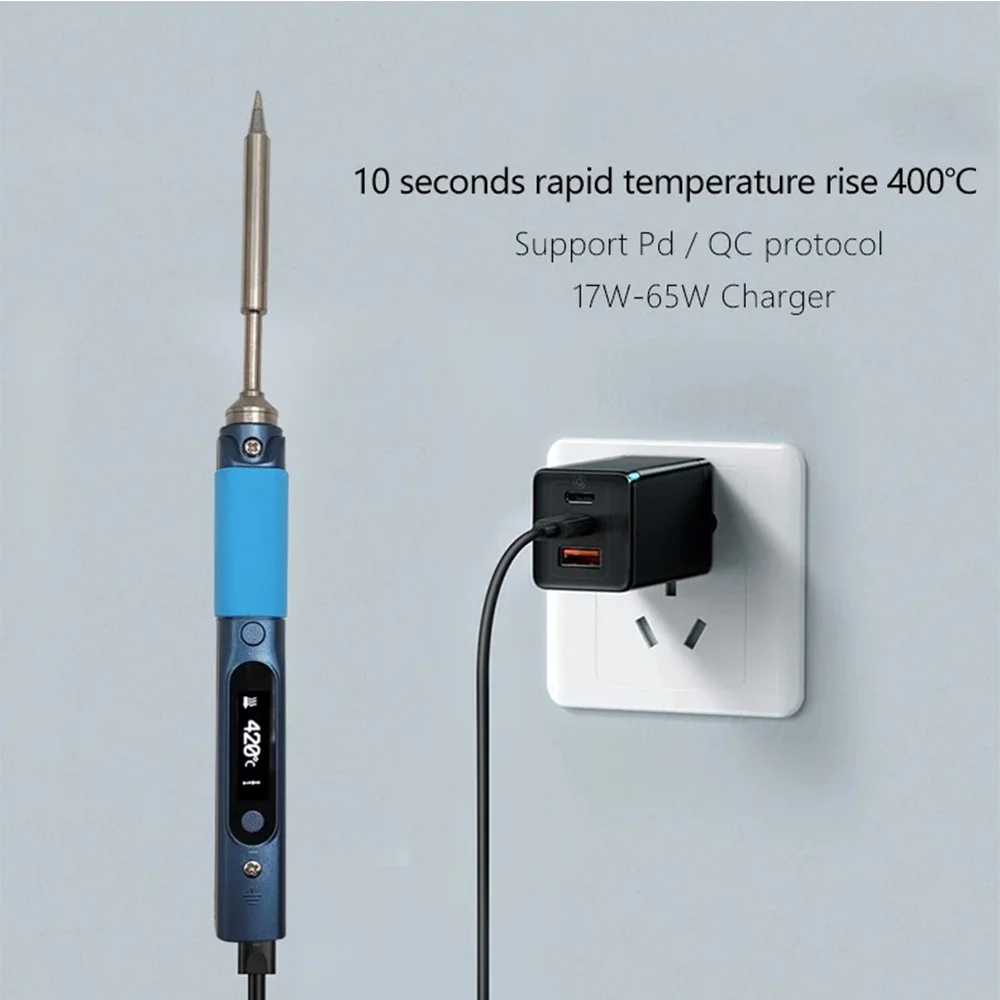

Speedy Rapid Warmup: Reaches operating temperature in 12 seconds.Support for on-demand rapid boost feature.

Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display.

Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell.

Auto standby mode engages when it is not in use ensuring the user's safety.

1, We sale CN version V1 in Blue color with newest package, not the open window package, not the V2 version, not black color.2, V1 version does not support "Serial number Authenticity"

PACKAGE	Dimensions: 17cm x 12cm x 2.3cm Weight: 88 grams

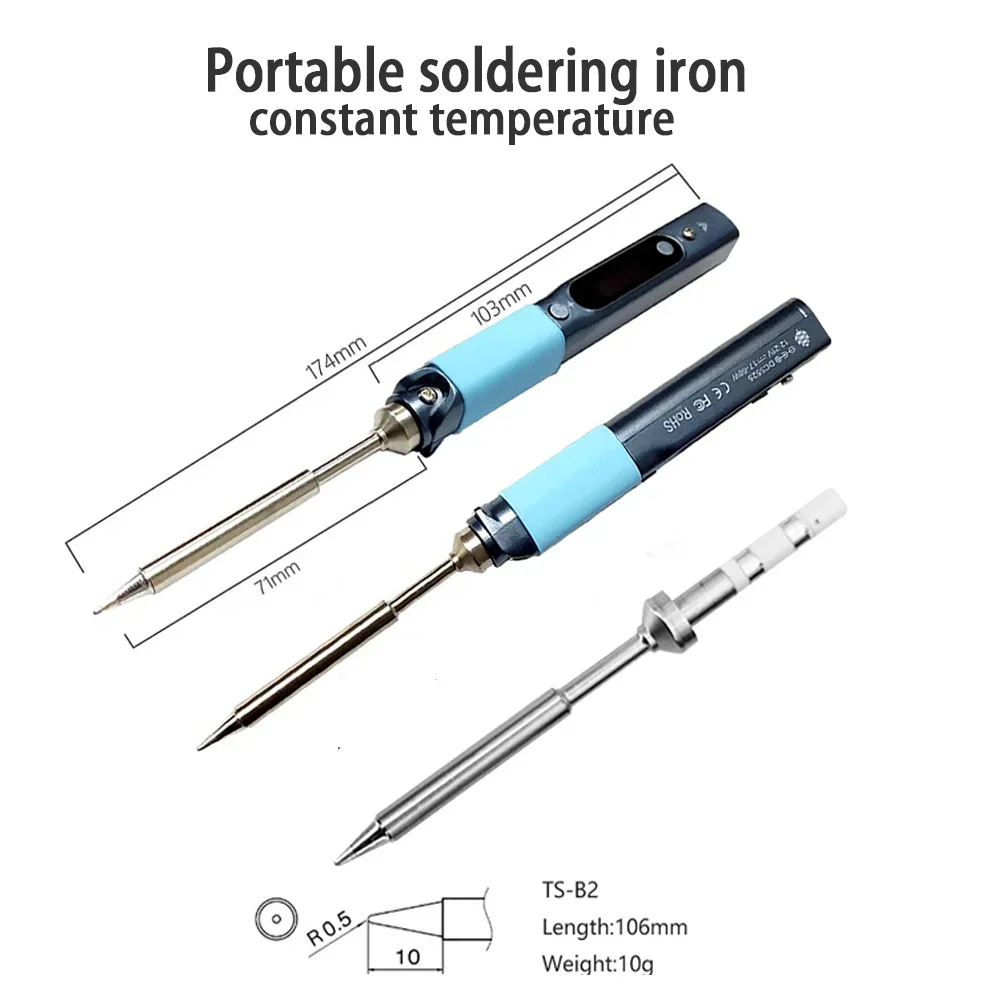

BODY	Dimensions: 170mm with solder tip / 98mm without solder tip x 12.8mm x 16.2mm Weight: 30g with solder tip / 20g without solder tip Build: Plastic with metal clip (Handle) Color: Blue

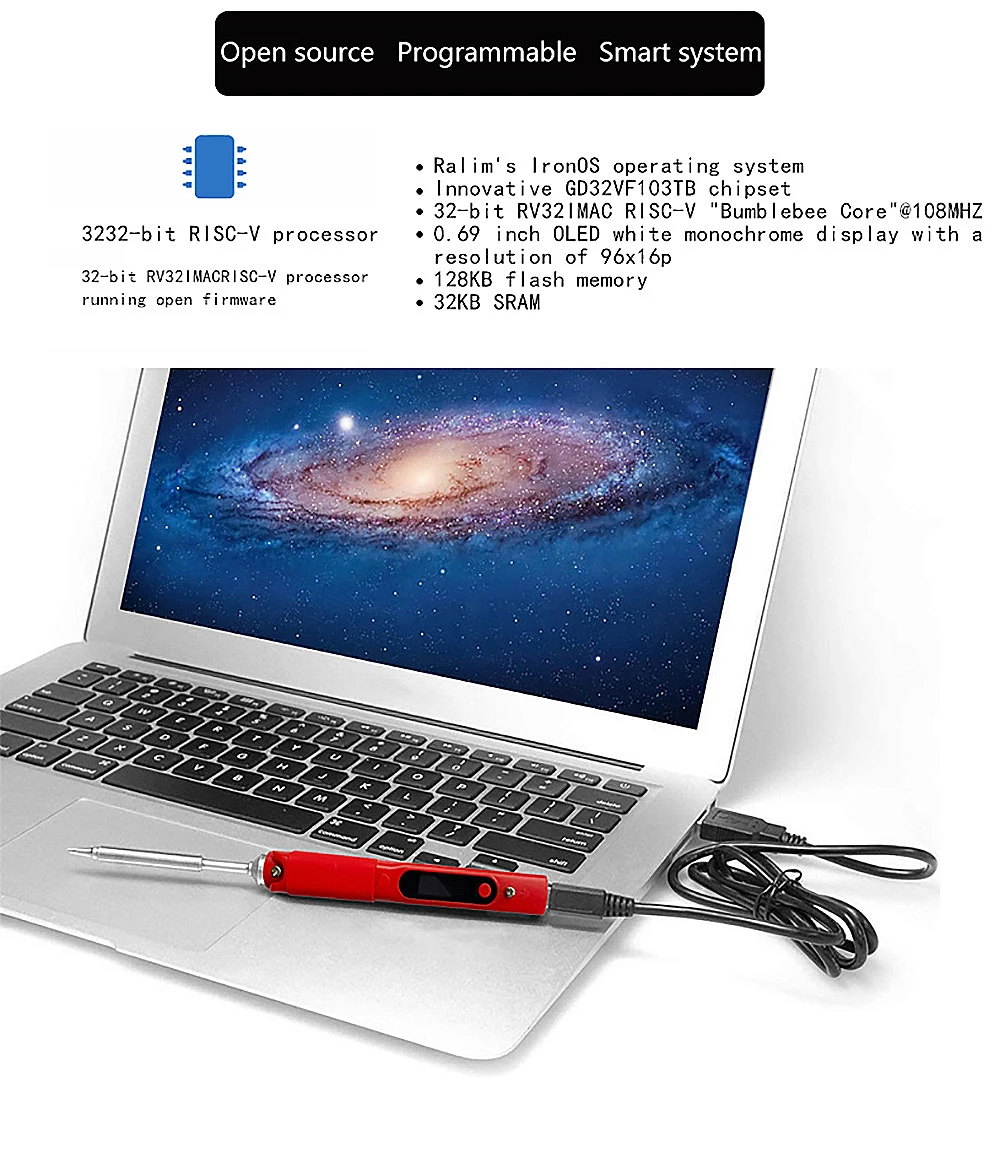

PLATFORM	OS: Ralim's IronOS build Chipset: GigaDevice GD32VF103 CPU: 32-bit RV32IMAC RISC-V "Bumblebee Core" @ 108 MHz
DISPLAY	Type: OLED White Colour Monochrome Display Size: 0.69 inches Resolution: 96x16pixels
MEMORY	Internal Flash Memory: 128KB System Memory: 32KB SRAM Expansion: None
POWER PORTS	USB type C: PD and QC 3.0 12V-20V 3A Barrel Jack: DC5525, 12V-21V DC 3A
TIP	Type B2 Length: 106mm Weight: 10g
FEATURES	Capable received power from either USB-C port or barrel jack. GPIO break-out thru USB-C port
