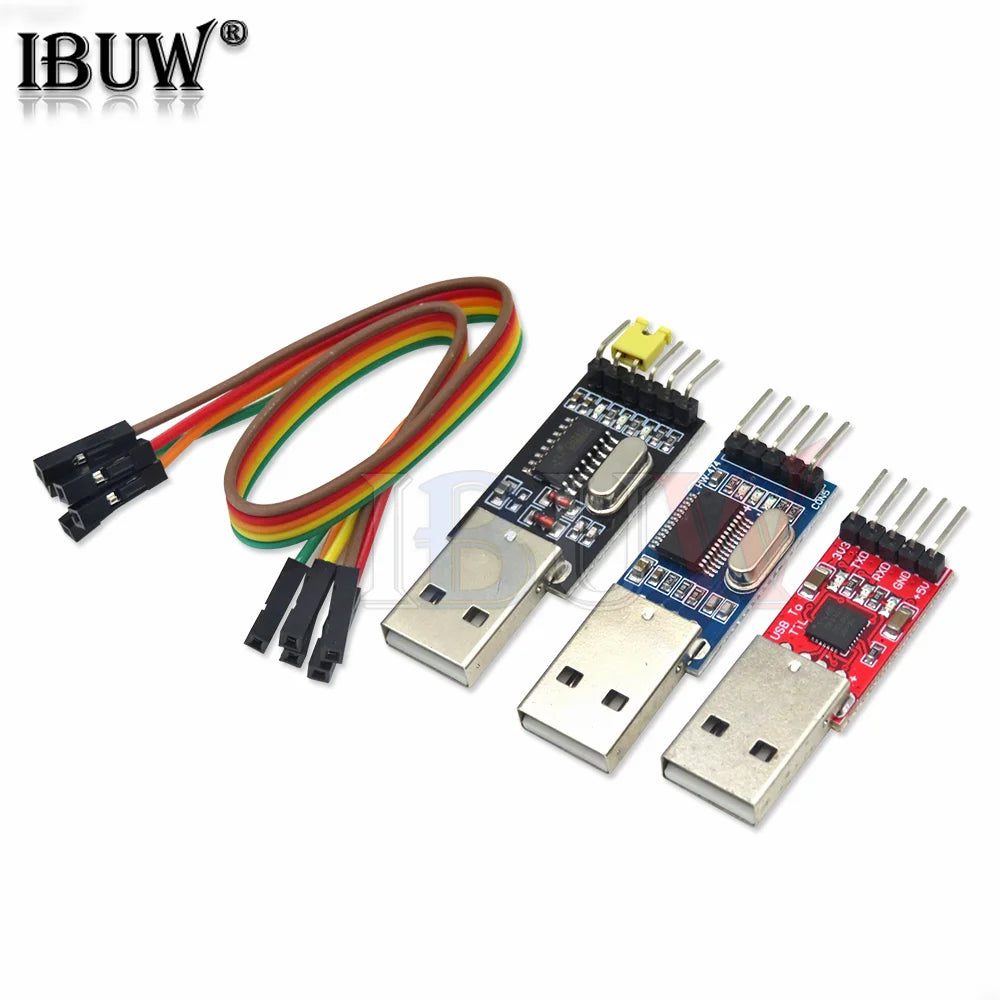

PL2303HX CP2102 CH340G USB TO TTL PL2303 CP2102 5PIN USB to UART TTL Module For Arduino

PL2303HX CP2102 CH340G USB TO TTL PL2303 CP2102 5PIN USB to UART TTL Module For Arduino

$15.84

$15.84 $0.00

Color CP2102 5P PL2303 Blue 1PCS USB TO CH340G 1PCS 3 in 1(3PCS)

Description

SPECIFICATIONS

Brand Name: IBUW

Choice: yes

Condition: New

Dissipation Power: PL2303

High-concerned chemical: none

Operating Temperature: igmopnrq

Origin: Mainland China

Package: DIP

Supply Voltage: CP2102

Type: Voltage Regulator

is_customized: Yes

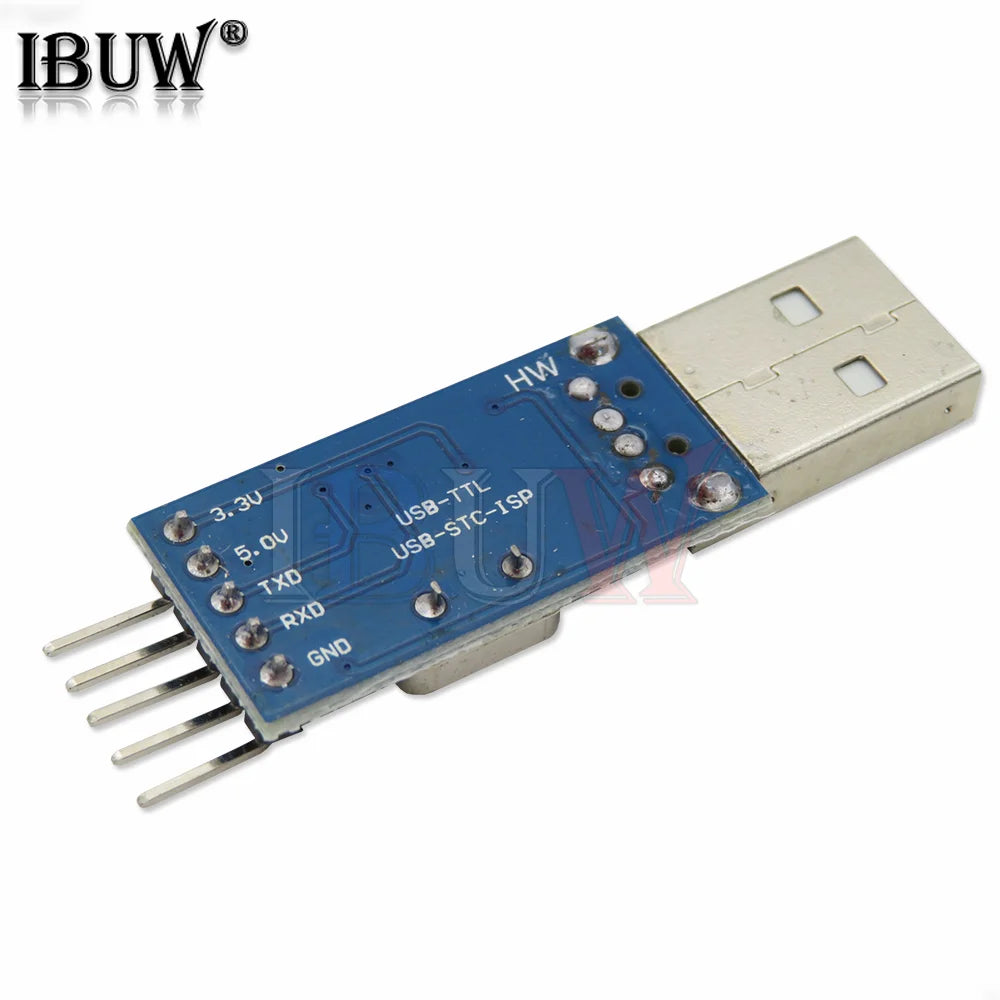

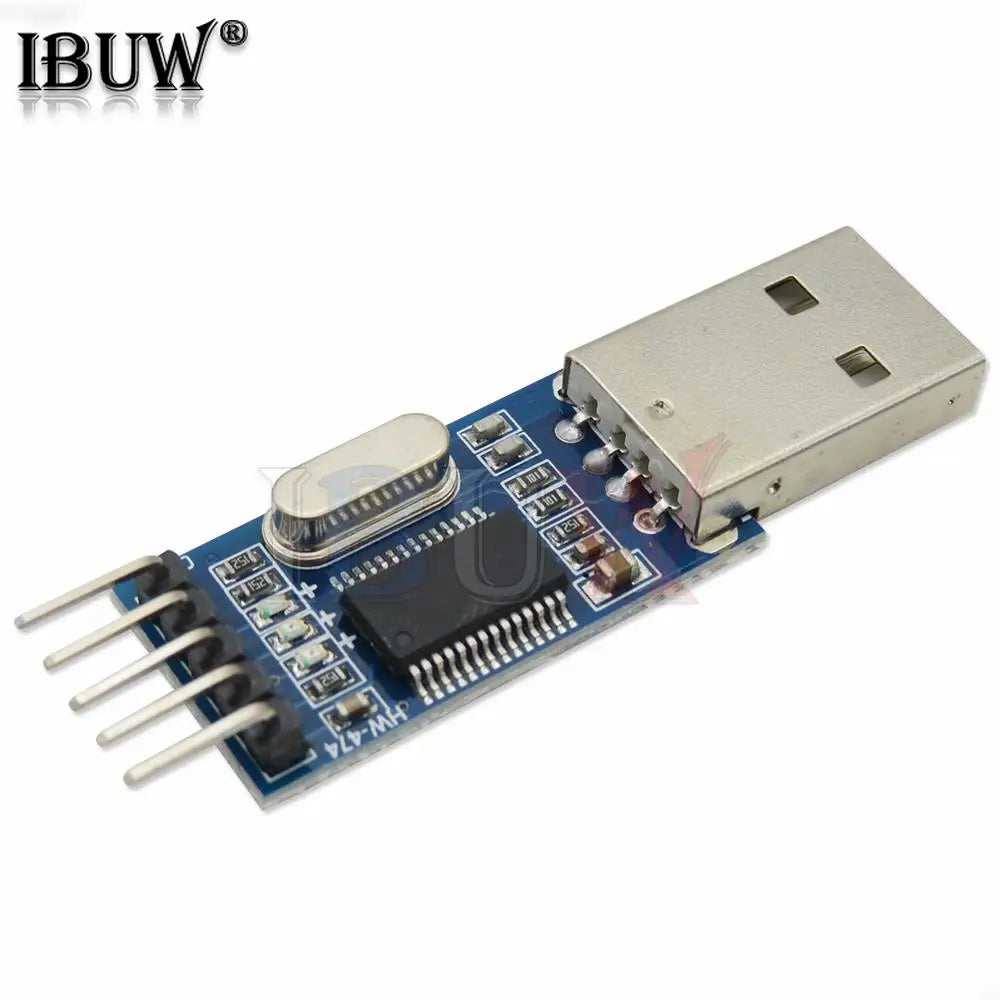

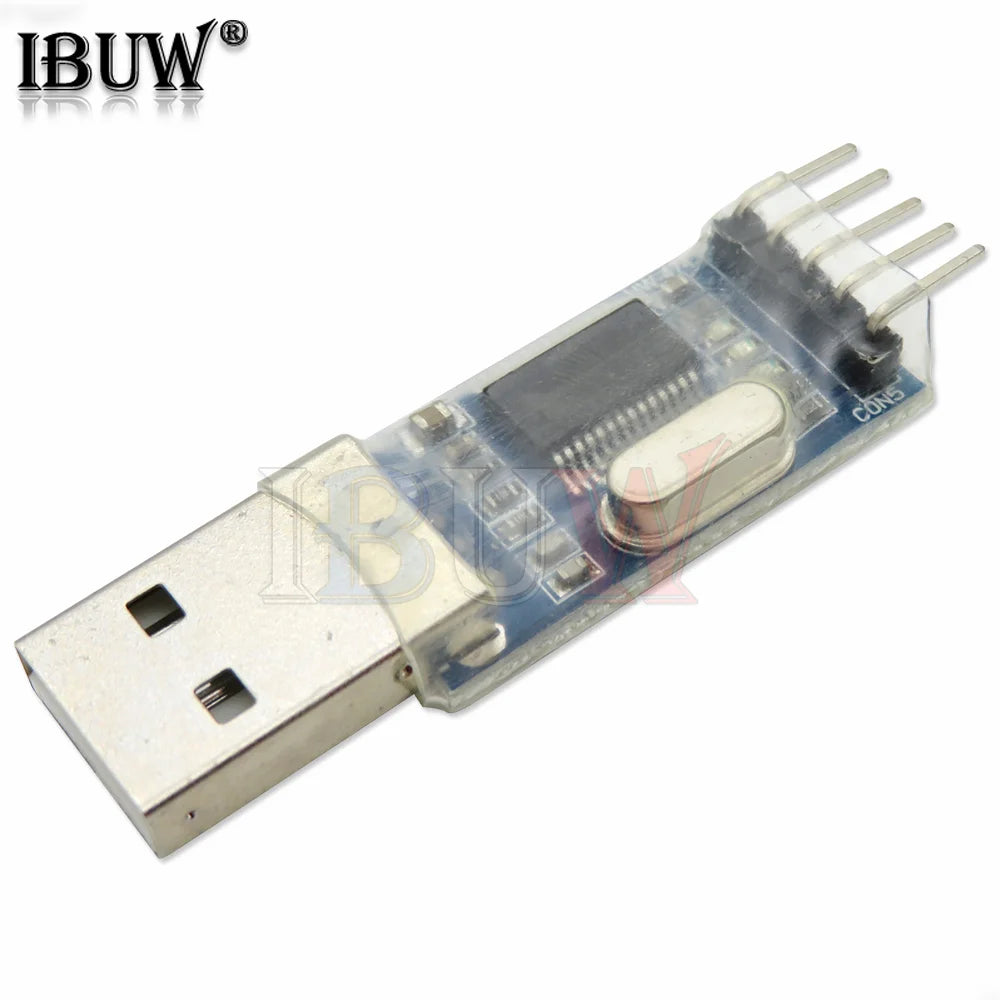

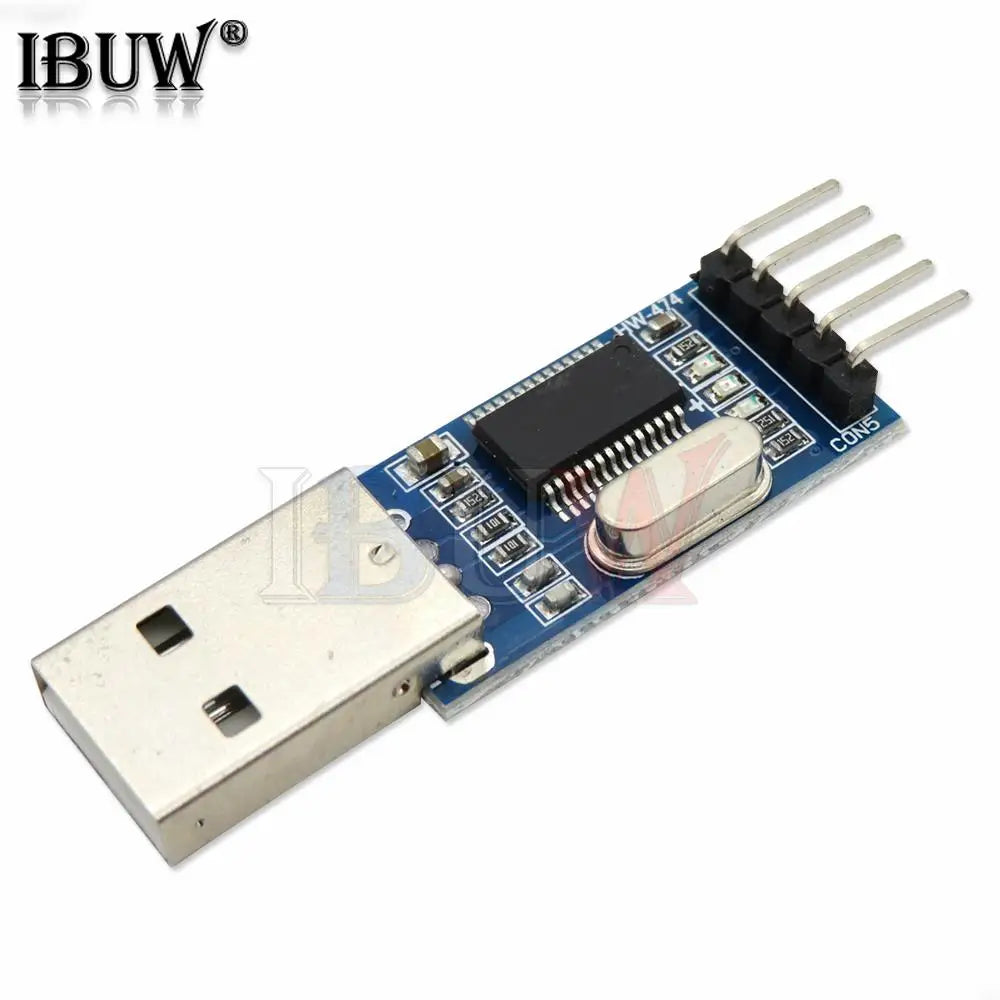

PL2303 Module:

Product Name:

USB-TTL level converter board

Application:

1. A variety of satellite STB upgrade

2. routers, hard drives, ADSL, broadband cat or cracked upgrade firmware upgrade

3. Phone, XBOX360, GPS serial communication, vehicle inspection, DVD, etc. Brush

4. STC microcontroller programming, NXP microcontrollers, Renesas microcontrollers, NEC SCM

5. A simple serial communication, HyperTerminal serial debugging tools in common

6. electronics enthusiasts can use the USB signals to TTL signal

Features:

1. Imported new original control chip PL2303HX, high-speed stability Brush

2. Set the two real-time monitoring of data transmission indicator data transfer status

3. reserve 3.3V and 5V pin interface to facilitate the supply of different voltage systems require Brush

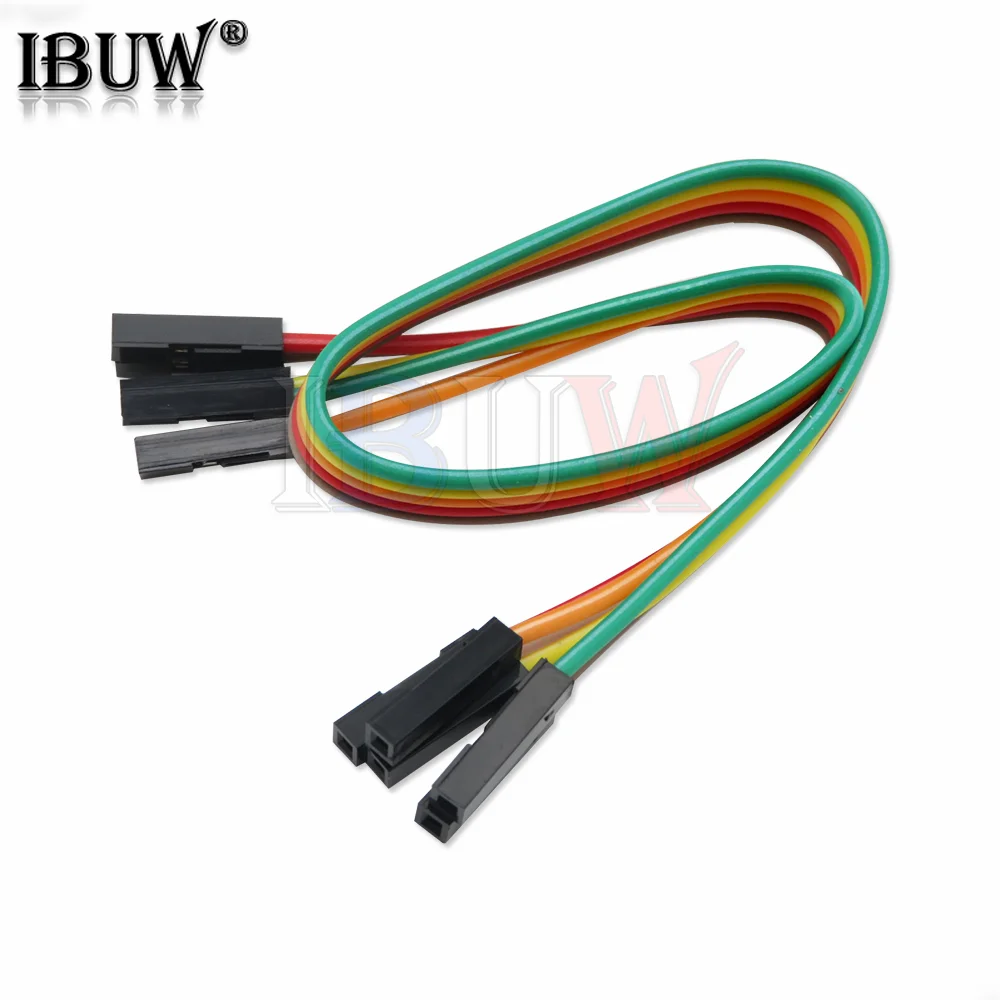

4. Interface pin parallel with the board, and the board instead of a vertically mounted, leads DuPont wire brush when convenient

5. The entire circuit board using high-quality transparent coating heat-shrinkable tubing, so that the PCB with the outside world into the insulating state

Thus protecting the metal board is accidentally shorted and burned, due to the use of transparent material, it does not affect the board pick

Watch the opening screen and indicator monitoring results

6. Support WINXP, WIN7 systems

Now basically a computer with a serial port are rarely, playing board or upgrade some equipment when more trouble, USB-TTL good solution to this problem, the computer did not have to worry about the serial port of the problem, directly into the USB and the other end connected to the development board download port or port to upgrade equipment.

This adapter board USB to TTL chips imported PL2303, which is the most commonly used are the best use of a chip.

To see the board with a very compact and reasonable dual-panel design, using a standard USB connector with the output pin leads, very easy to connect with other board.

Tip: USB-TTL small board with a microcontroller or other products is the connection method:

USB-TTL Microcontroller

TXD <----> RXD

RXD <----> TXD

GND <----> GND

CP2102 Module:
1.PCB size: 26.5mm * 15.6mm
2.PCB Color: Black
3. Weight: 4g
4. Using the new chip CP2102
5. with resettable fuse. In the event of accidental short-circuit can effectively protect your device and computer USB port to download
6. With three LEDs: power indicator, the indicator data reception, data transmission indicator, work status at a glance
7. 3.3V and 5V with two power output
8. all the useful lead pins
9. with reset signal output can be directly Pro mini and other Ard uino board to download!
10. Compatible Operating Systems:
-Windows 98 / Me / 2000 / XP / 7
-MAC OS-9
-MAC OS
-X-Windows CE
-Linux 2.40 or later

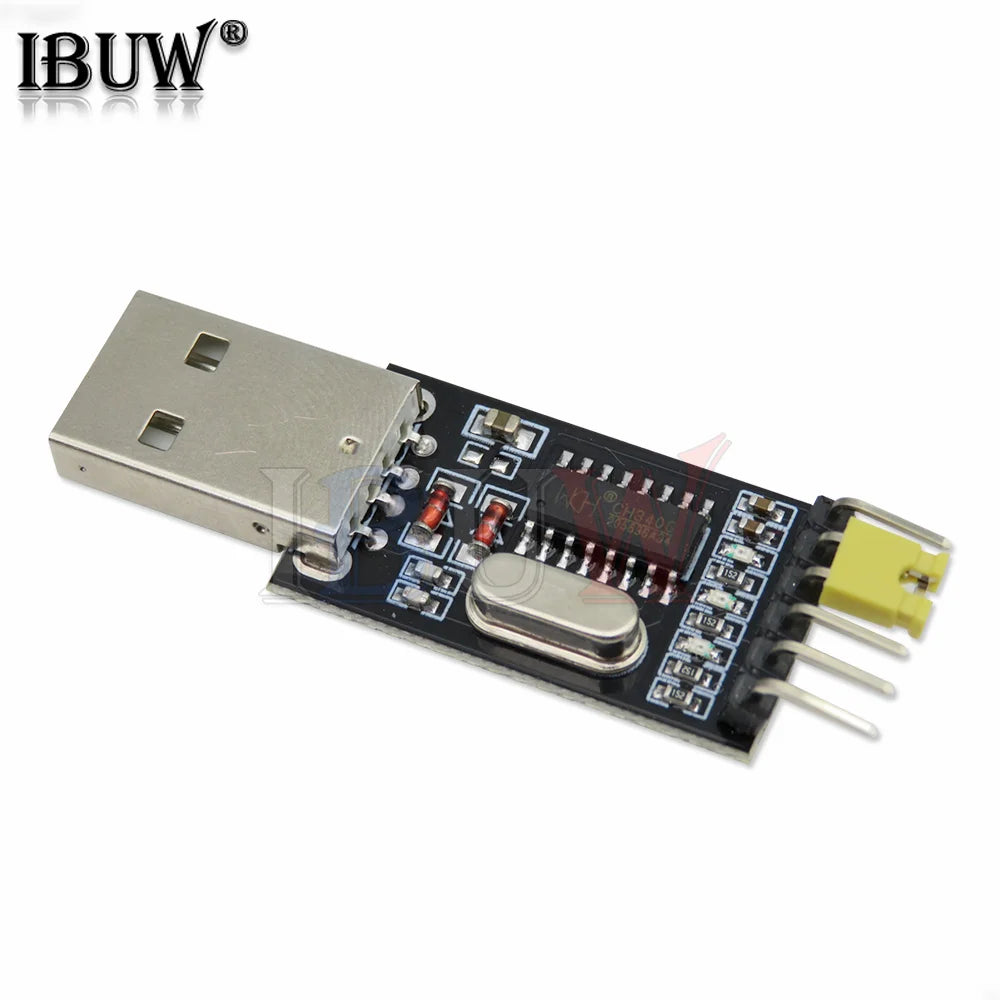

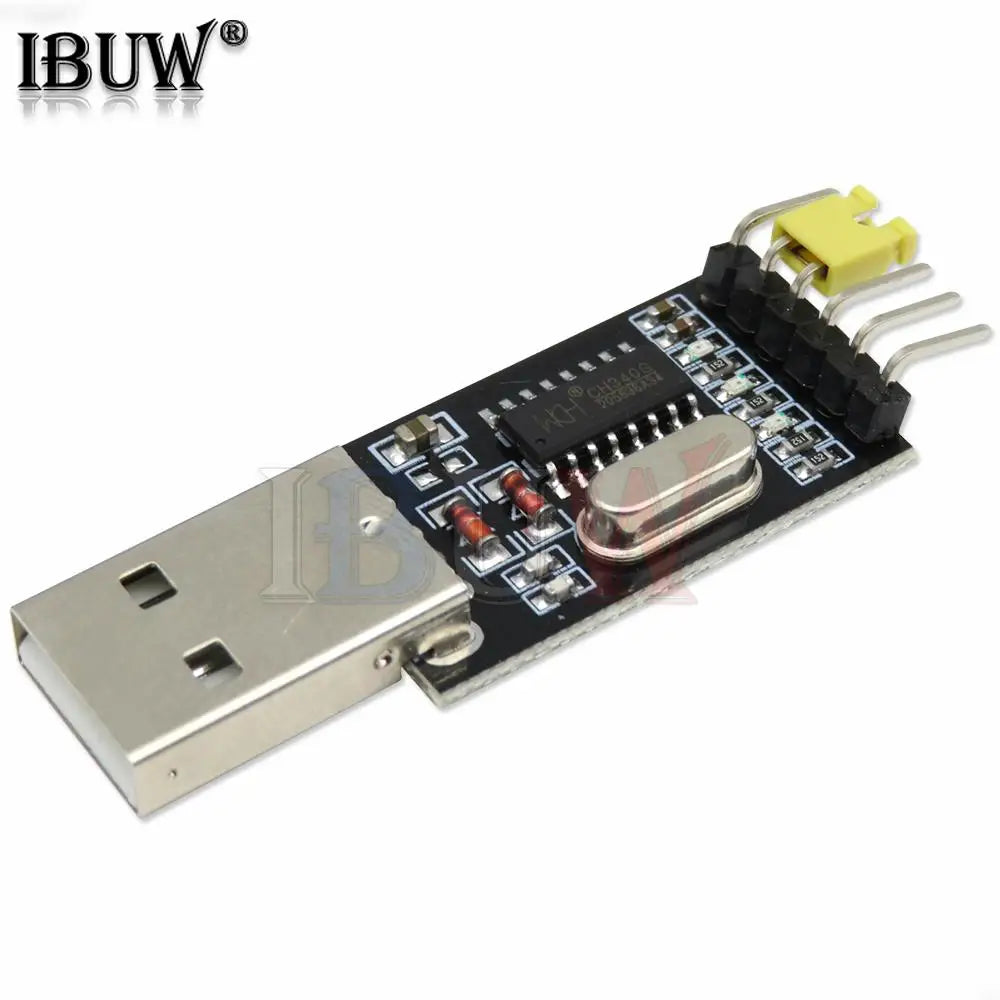

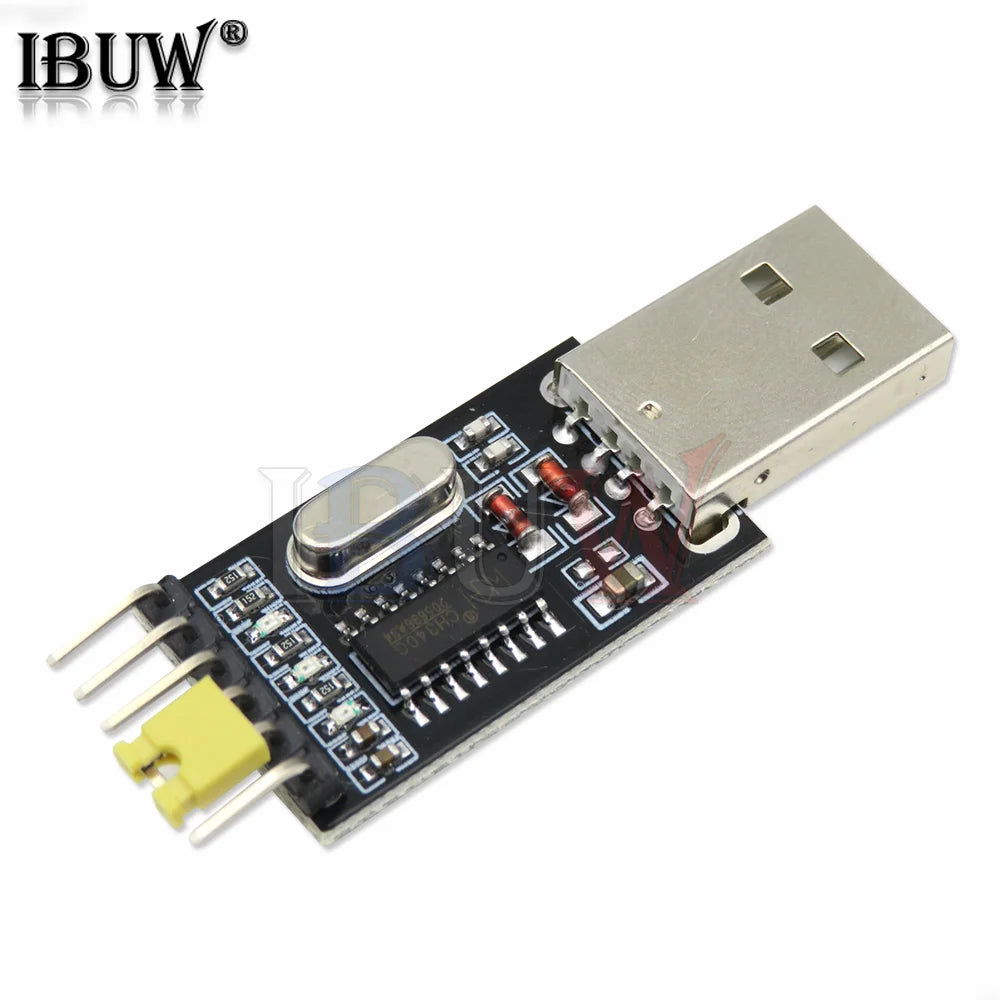

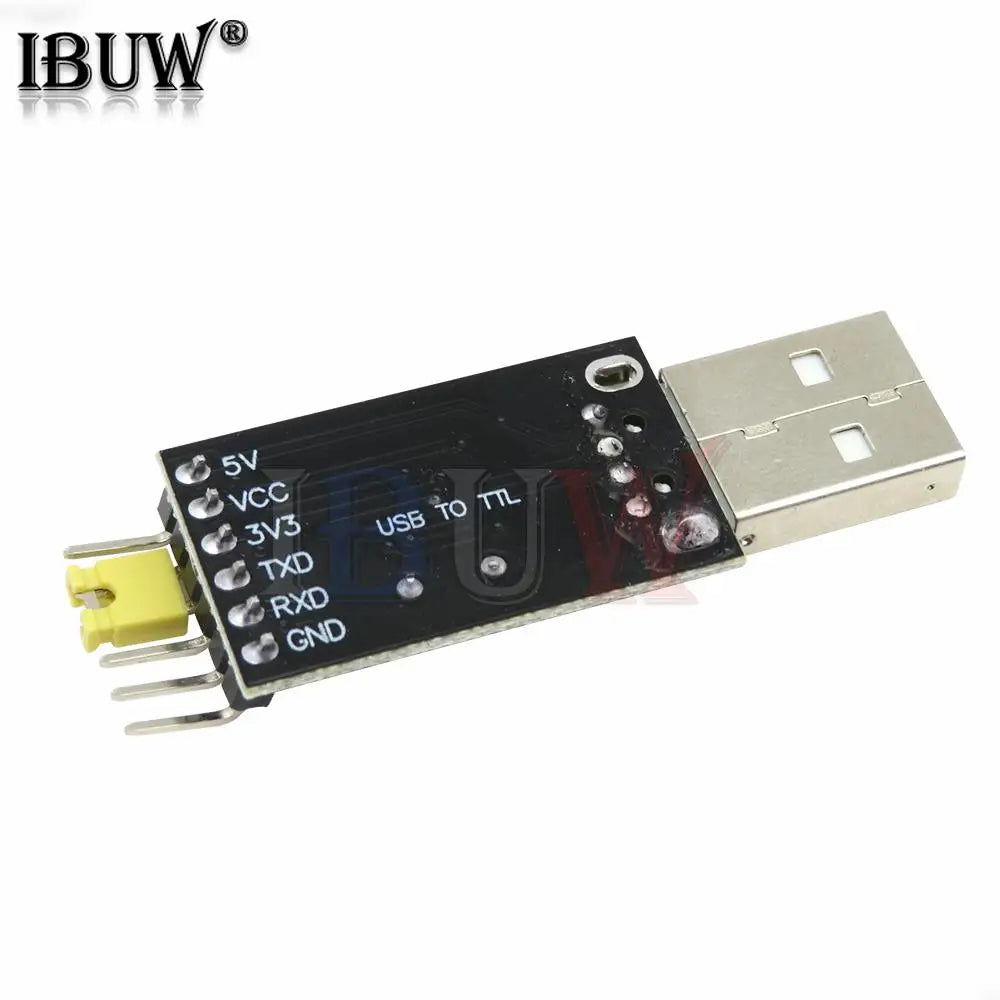

CH340 Module:

CH340 module / USB switch TTL / USB transfer RS232 / exceed PL2303 / STC Downloader / 9 Brush board STC official download chip. Perfectly compatible with all Series MCU STC will not be because of the different drivers that would lead to problems like PL2303 can not download the program. Ultra-stable.

1, new original CH340G chips, the chips are STC official recommended USB to TTL chips will not appear due to different drive / different computer as a result of incompatibilities! ! !
2, high-quality high-grade yellow pin, pin durable than the black market, beautiful;
3, not only has the power light PWR, there TXD and RXD LEDs, whether the product is easy to learn and intuitive to work in the absence of the instrument in the case;
4,3V3 and 5V by a short circuit to take choice;
5, support WINDOWS 98 / ME / 2000 / XP / Server 2003 / VISTA /
Server 2008 / Win7 / Win8 32 Bit / 64
