SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Electrified: No

High-concerned chemical: none

Origin: Mainland China

1). Product Introduction

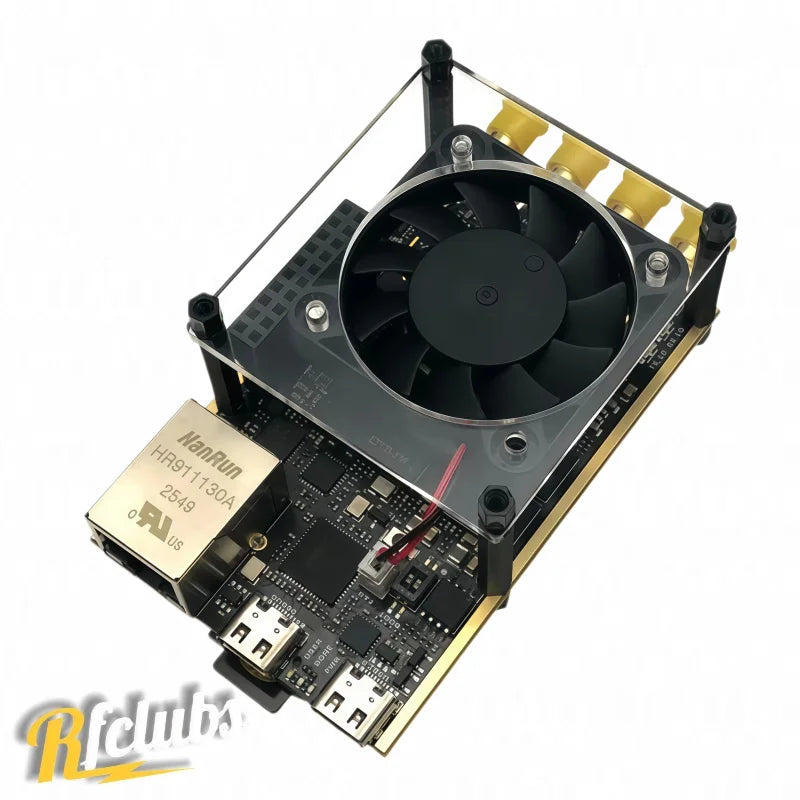

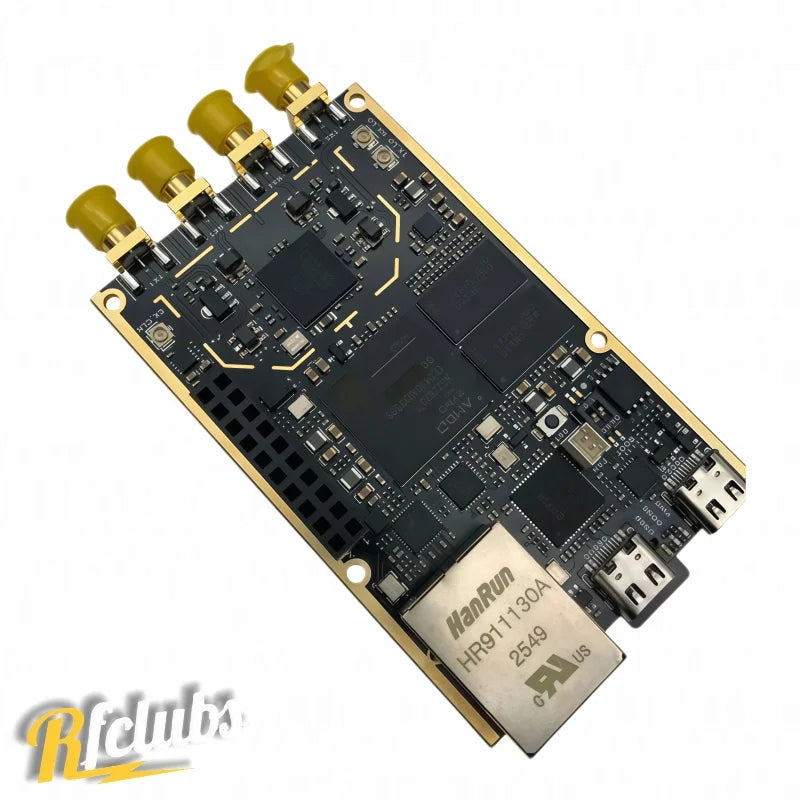

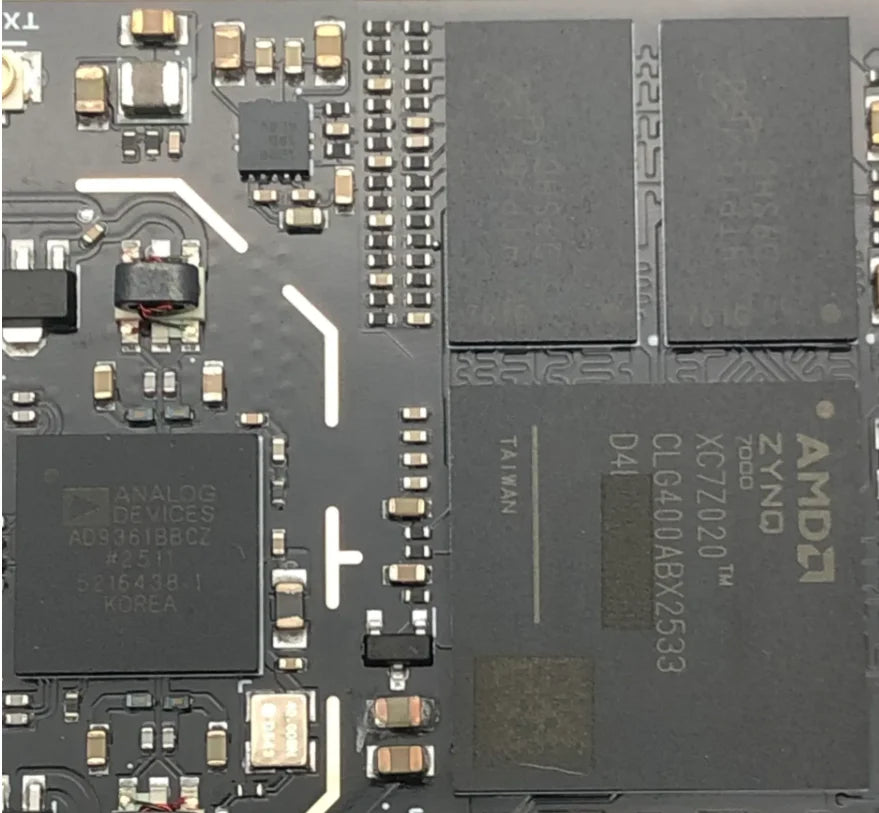

This product is a high-performance Software Defined Radio (SDR) development board based on the Xilinx Zynq-7020 FPGA (XC7Z020-2CLG400I) and ADI AD9361BBCZ RF transceiver, covering a frequency range of 70MHz to 6GHz with support for adjustable signal bandwidth from 200kHz to 56MHz. The onboard FPGA + dual-core ARM Cortex-A9 heterogeneous processor delivers powerful baseband signal processing capabilities. Featuring a 2T2R full-duplex architecture with two transmitters and two receivers, it provides the hardware foundation for MIMO, spectrum analysis, and protocol decoding. Equipped with 1GB DDR3 RAM, 16MB Flash, Gigabit Ethernet, USB 2.0, and an SD card slot, along with a built-in 0.5ppm high-precision TCXO, this compact board (approx. 50×80mm) offers a professional-grade SDR development platform.

2). Product Parameters

• Model: 7020+AD9361 Version

• RF Chip: AD9361BBCZ

• Processor: Xilinx Zynq-7020 (XC7Z020-2CLG400I), FPGA + Dual-Core ARM Cortex-A9

• Frequency Range: 70 MHz – 6 GHz

• Signal Bandwidth: 200 kHz – 56 MHz (adjustable)

• RF Amplifier: PGA-102+ (gain ~10 dB)

• RF Channels: 2 Transmit (TX) + 2 Receive (RX), Full-Duplex

• DDR3 Memory: 1 GB

• Flash Storage: 16 MB (for PS boot)

• Network Interface: 1 × 10/100/1000 Mbps Ethernet (PS side)

• Debug Interface: 1 × Type-C (supports UART+JTAG)

• USB Interface: 1 × Type-C USB 2.0

• SD Card Slot: 1 (supports PS boot)

• I/O Expansion: 8 pins at 1.8V level + 4 pins at 3.3V level

• PTT Output: 1, 5V level (for controlling external equipment such as power amplifiers)

• Clock Source: Built-in 0.5 ppm TCXO (default), with IPEX connector for external clock input

• Dimensions: Approx. 50 × 80 mm

• Power Supply Options: USB power, JTAG interface power, or pin-header power – flexible for various development environments

3). Package Contents

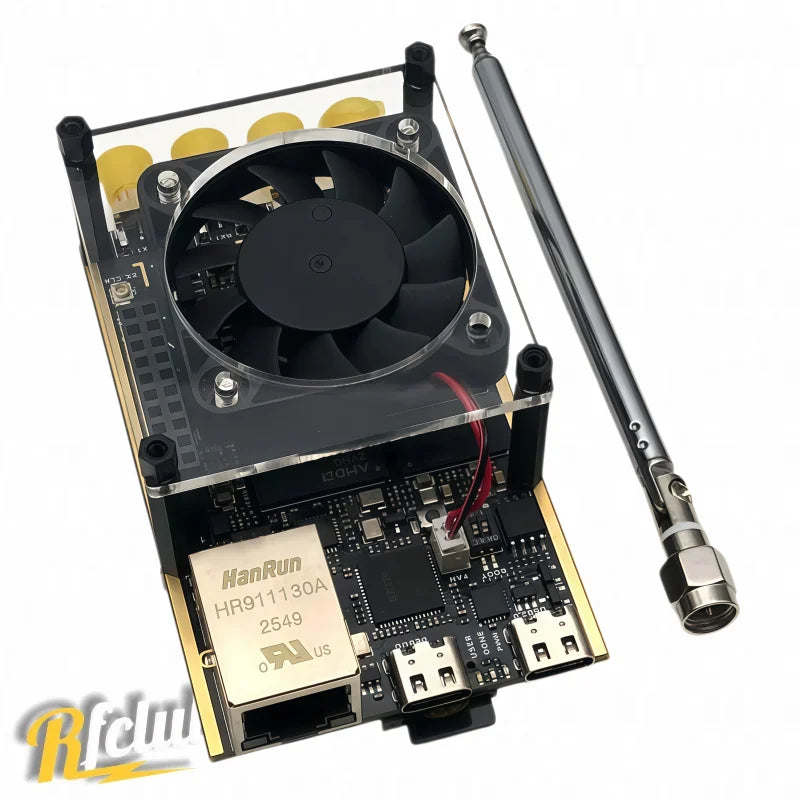

• SDR Development Board (7020+AD9361 Version) × 1 piece

• Antennas ×

• SD card ×

4). Application Areas

• SDR algorithm development and testing

• Wireless communication protocol analysis (e.g., Bluetooth, ZigBee, LoRa)

• Spectrum monitoring and radio reconnaissance

• Amateur radio experimentation platform

• University telecommunications teaching and research

• Custom wireless communication system prototyping
  (This platform is built on the mature Zynq+AD9361 architecture, with extensive open-source community support and official reference designs. It supports bare-metal development, Linux porting, and secondary development based on frameworks such as OpenWIFI and GNU Radio.)
