Portable CO2 Temperature Humidity Monitor Air Quality Monitor Infrared NDIR Detector Indoor Outdoor Detection Tools

Portable CO2 Temperature Humidity Monitor Air Quality Monitor Infrared NDIR Detector Indoor Outdoor Detection Tools

$136.17

$136.17 $0.00

Description

SPECIFICATIONS

Application Scenarios: Civilian Grade

Battery Included: Yes

Brand Name: winsen

Certification: CE

DIY Supplies: Electrical

Gas Type: Co2

High-concerned chemical: none

Is Smart Device: no

Measurement Range: 400-5000ppm

Model Number: Air Quality monitor

Origin: Mainland China

PCBincluded: Yes

Semi-finishedproduct: No

With LCD Screen Or Not: Yes

1pc Air quality monitor detect CO2,Temperature Humidity ,manual set alarm threshold and turn on/ off co2 alarm sound

Product Specifications

Display method:

Common Screen display

Atmospheric pressure: 86Kpa - 106Kpa

Detection method for CO2 : Infrared (NDIR)

Sampling time: 1.5 seconds

Product Size: 80*70*35 MM

Detection temperature: -10°C to 50°C;

Relative humidity: 20% - 85%

Storage temperature: -10°C to 60°C;

Concentration unit for CO2:PPM

Power source: Lithium battery with 1600mAh capacity;

5V DC power charging via micro USB port

Product weight: 115g
Product Description

This product is an air quality monitor that detects Carbon dioxide (CO2),Temperature, and Humidity. it combines sensors real-time

monitoring of Carbon dioxide (CO2),temperature, and humidity on its display.
Considerations

Please read the instructions carefully before using this device.

Please let the device work short mins outdoors before use for most accurate results .

Please keep the manual handy for quick reference and troubleshooting.
Precautions

Avoid covering the air intake areas during use to avoid inaccurate measurements.

Avoid use of solvents to clean the product as residual fumes will skew air quality readings.

Avoid water or other liquids near the product to avoid electrical damage.

Do not allow unauthorized modification or repair of this product.

Features:

-Common Screen display

-Test variables:Carbon dioxide (CO2),temperature, humidity

-Large 1600mAh capacity Lithium battery

-5V Micro USB charging

-Low battery warning
Instructions
1. Start Up

When you long-press the power button, the air quality monitor will boot up.
Product Key function description:

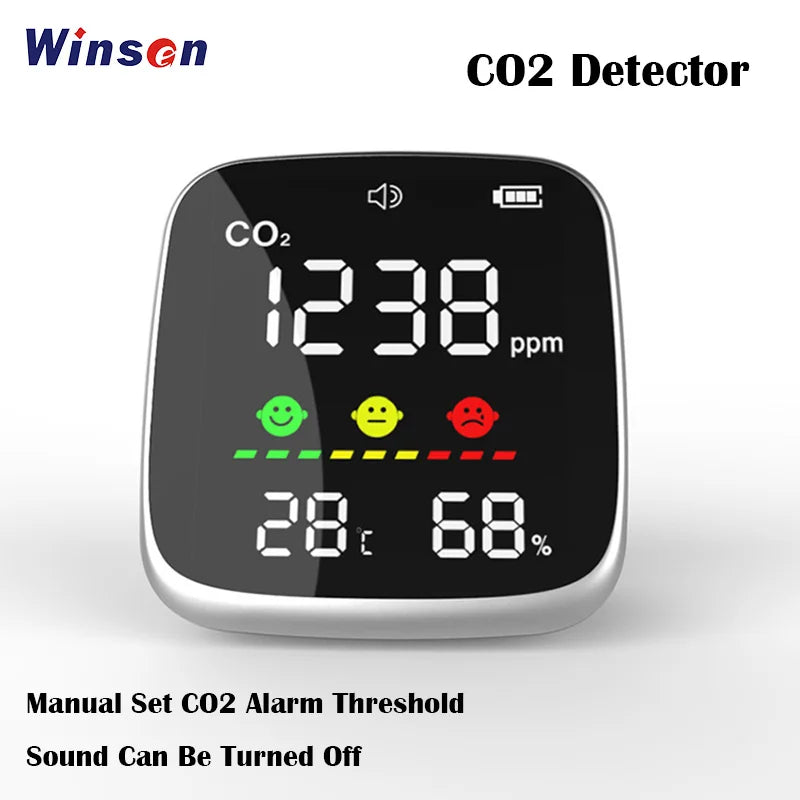

1) Power button, long-Press to turn on/off, Double-click to set CO2 alarm thresold.(800~2000 ppm)

2) Left button, click to decrease CO2 alarm thresold.

3)Right button, click to increase CO2 alarm thresold; long press to open/close CO2 alarm sound.

2. About Charging

When low battery icon is displayed, the device needs to be charged. Insert the included or another compatible micro USB charging cable into the device. Attach the other end to a USB DC charger (such as a smart phone charger) that outputs DC 5V at>=1000mA. Fully charge for at least 2-3 hours before use. Avoid charging with a USB computer port which only outputs 500mA.
3.Parameters

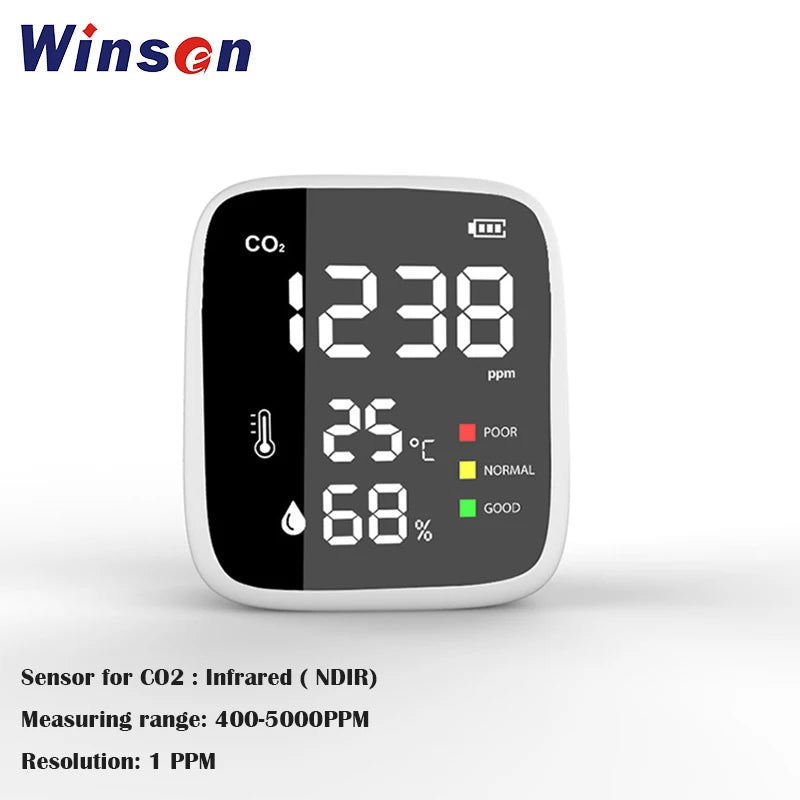

Measuring range: 400-5000PPM

Sensor for CO2 : Infrared ( NDIR)

Resolution: 1 PPM

Measuring range: -10-50 ° C

Humidity range: 20%-85% RH

Measurement accuracy: ±1 °C

Measurement accuracy: ±4% RH

Temperature and humidity

Product List

Air Quality monitor x 1

Micro USB charging cable x 1

Product Manual x 1

Indor CO2 Temperature Humidity Air Quality Monitor Infrared NDIR Detector

Product Description

This product is an air quality monitor that detects Carbondioxide (CO2),Temperature, and Humidity. it combinessensors real-time monitoring of Carbon dioxide (CO2),temperature, and humidity on its display.
Features:

- Common Screen display

-Test variables:Carbon dioxide (CO2),temperature,humidity
