SPECIFICATIONS

Battery Included: no

Brand Name: GOYOJO

Certification: CE

Choice: yes

Dimension: 125mm * 69mm * 24.5mm (L*W*H)

High-concerned chemical: none

Infrared rejection rate: -999%-100%

Measurement accuracy: ± 10%

Model Number: LS123,LS123

Origin: Mainland China

Photosensitive aperture: 10mm

Power range: 0-40000 μW/c㎡

Power supply: AAA alkaline dry batteries

Semi-finishedproduct: No

Spectral response: 260nm-380nm, peak wavelength=365nm

Weight: About 140 g (including battery)

Working temperature: -20℃ - + 70 ℃

semi_Choice: yes

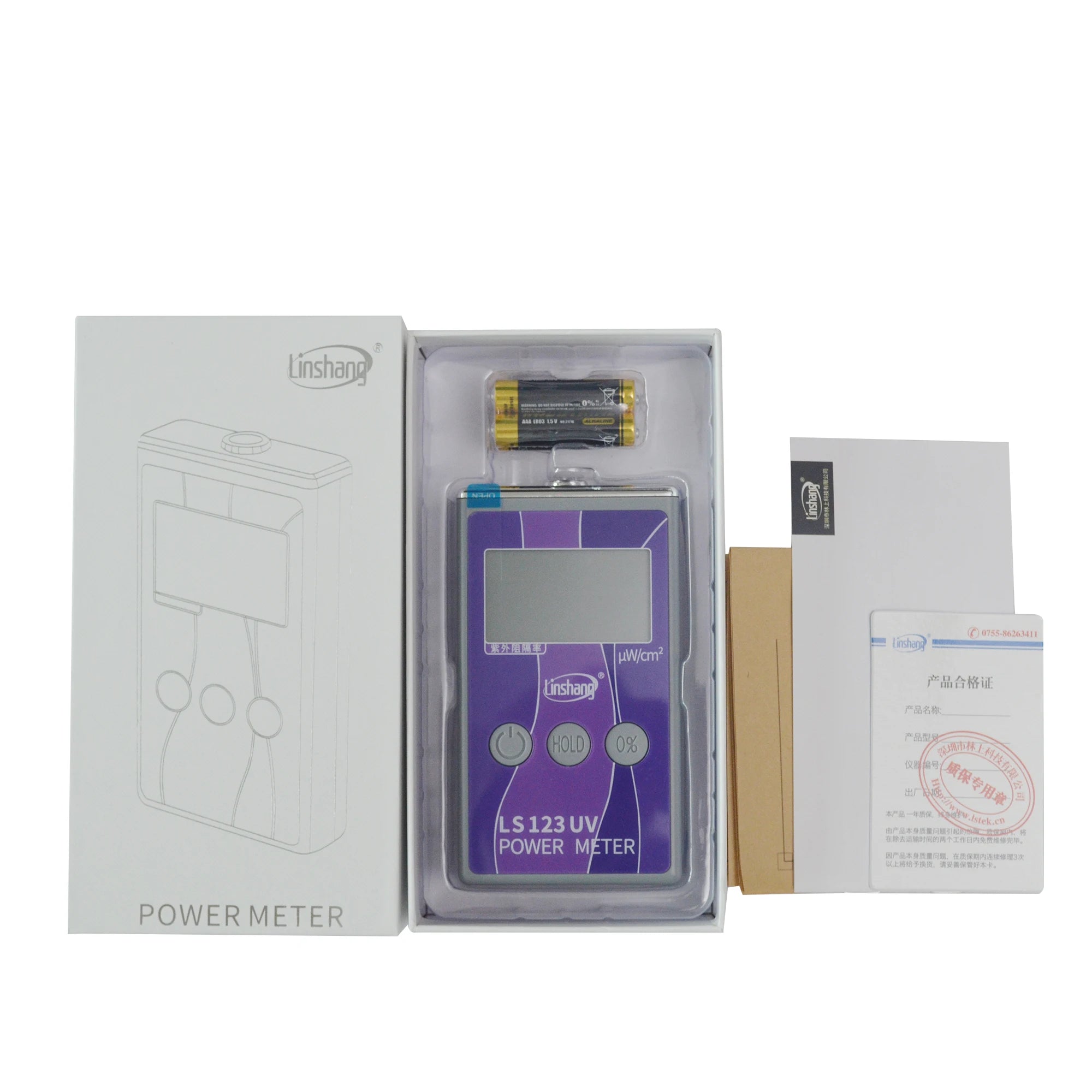

Portable UV Meter Linshang LS123 Measure Ultraviolet Radiation Power Intensity Radiance Density Rejection Rate



Overview

LS123 portable UV power meter, also known as UV lamp intensity meter. This is an instrument with a wide spectrum receiving range. It is mainly used for measuring the UV rejection rate of materials. It is suitable for displaying the UV rejection performance of materials such as explosion-proof films, solar films and insulating glass. The ultraviolet power meter is also used for the measurement of radiated energy power density measurement, that is, radiant energy power per square meter, in microwatts per square centimeter (uW / cm2). The detector is located at the front of the instrument and is easy to use.

Power range	0-40000 μW/cm²
Measurement accuracy	± 10%
Infrared rejection rate	-999%-100%
Spectral response	260nm-380nm, λp=365nm
Photosensitive aperture	10mm

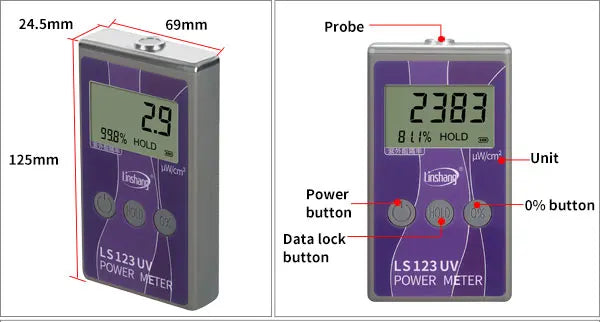

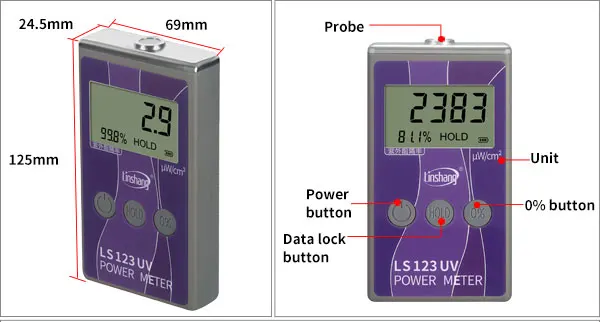

Dimension	125mm * 69mm * 24.5mm (L*W*H)
Weight	About 140 g (including battery)
Working temperature	-20℃ - + 70 ℃

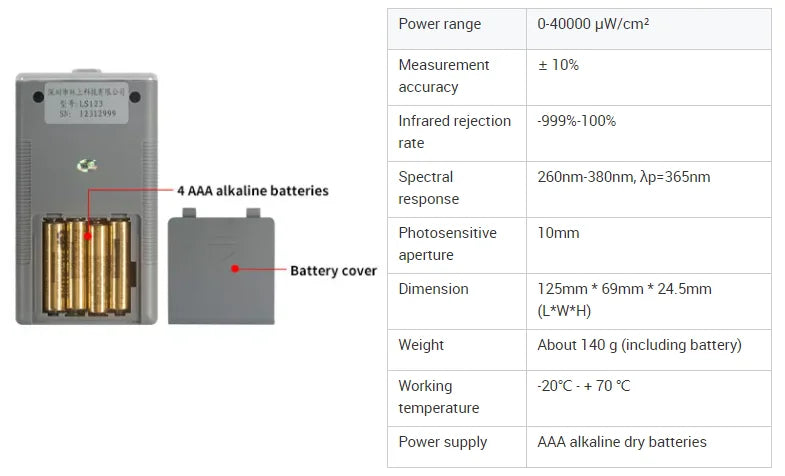

Power supply	AAA alkaline dry batteries



Application

Features

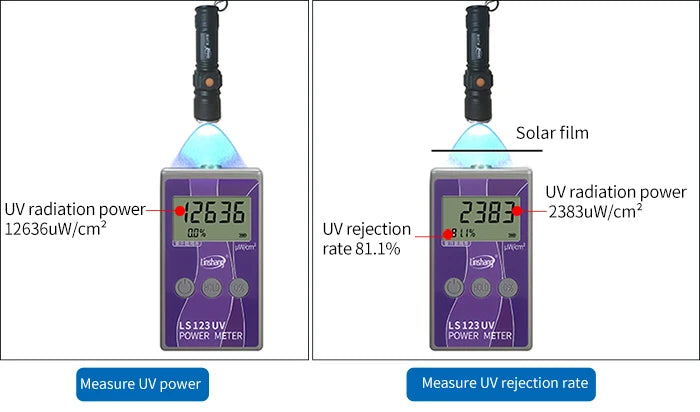

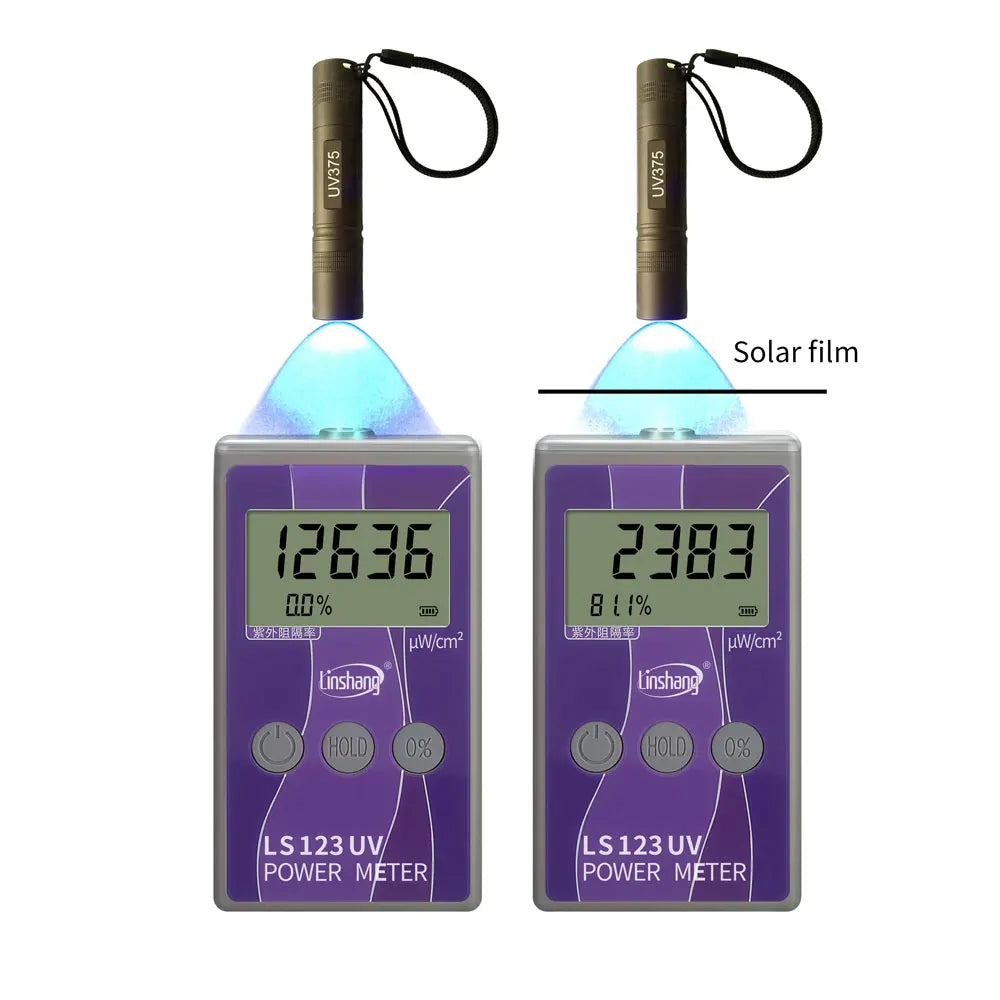

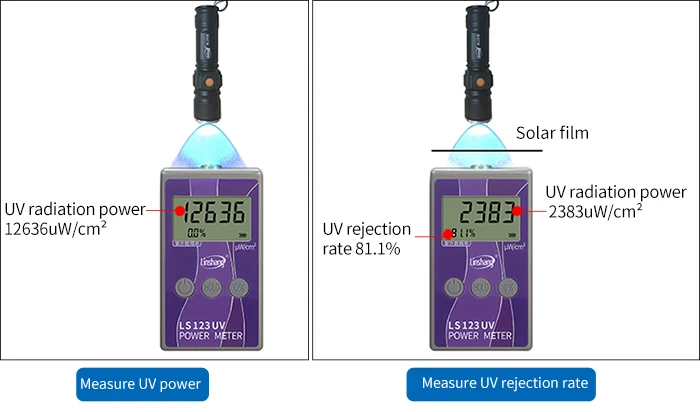

1. The LS123 UV power meter is suitable for testing the ultraviolet rejection performance of explosion-proof films, automotive insulation films, solar films and insulating glass.
2. It can be used to measure the radiation intensity (ultraviolet power density) of ultraviolet light sources (sunlight, ultraviolet flashlight, etc.).

3. The ultraviolet power meter has a fast measurement speed which can automatically convert the ultraviolet rejection rate of the material. The rejection rate will be displayed on the interface directly for easy reading.

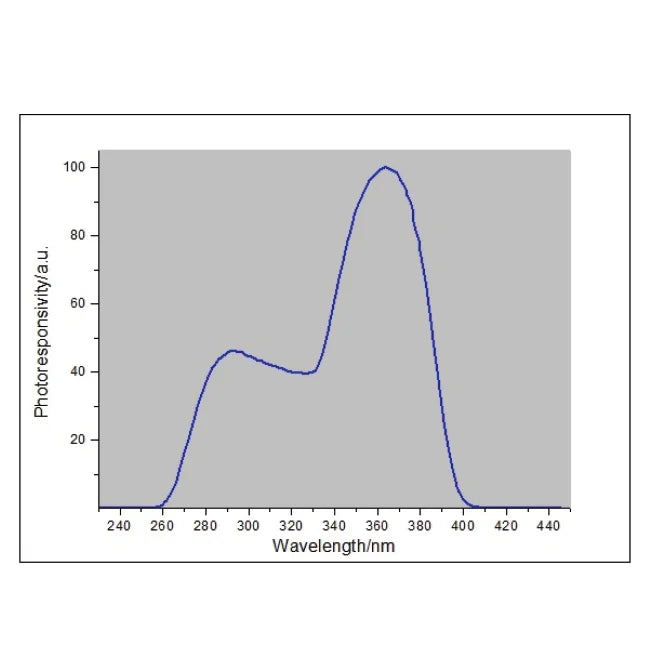

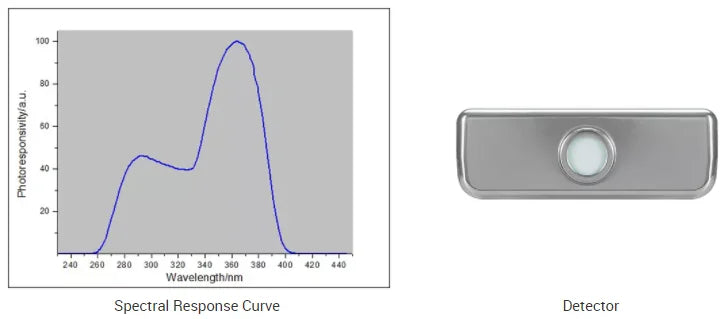

4. The UV lamp intensity meter has wide spectral response which can test the ultraviolet intensity from 260nm-380nm wavelength.



Paramenters

Power range	0-40000 μW/cm²
Measurement accuracy	± 10%
Infrared rejection rate	-999%-100%
Spectral response	260nm-380nm, λp=365nm
Photosensitive aperture	10mm
Dimension	125mm * 69mm * 24.5mm (L*W*H)
Weight	About 140 g (including battery)
Working temperature	-20℃ - + 70 ℃
Power supply	AAA alkaline dry batteries
